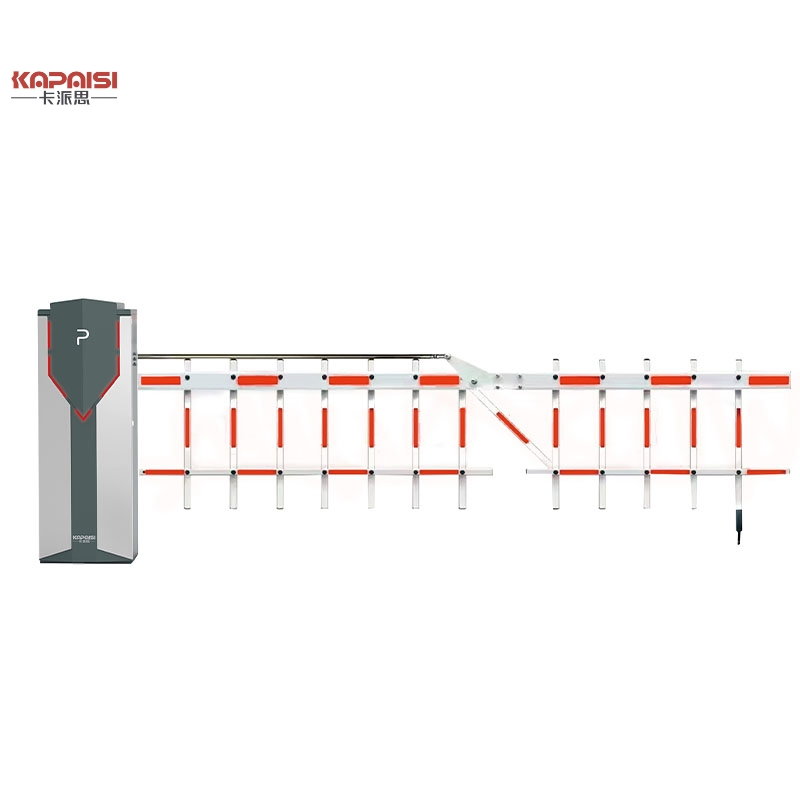

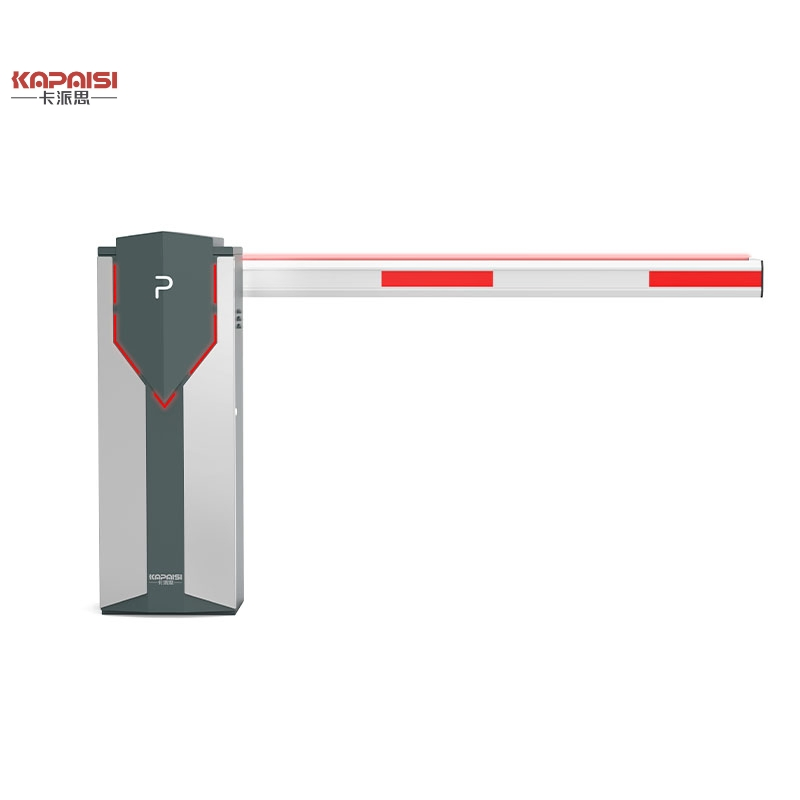

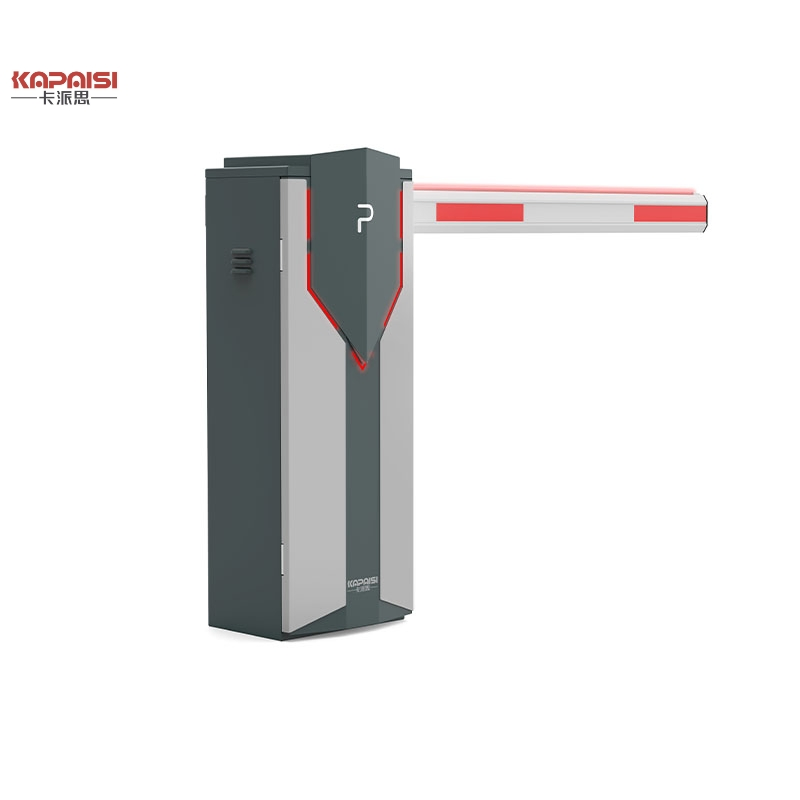

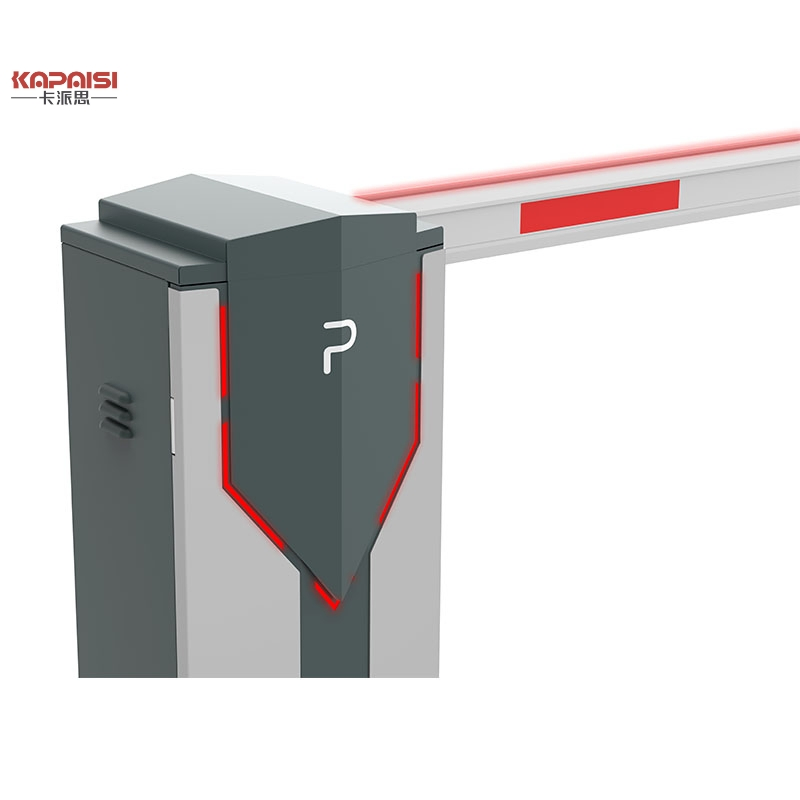

Wireless Remote Barrier Gate Fast Response Time Emergency Stop

Basic Specifications

Model NO.

KPS-DZ-8002

Authentication

Biometric, Proximity, CE

Material

Aluminum Alloy

Power Supply

AC220V±10% 50Hz

Output Power

120W

Protection Grade

IP44

Motor Speed

1500r/Min

Origin

China

Product Highlights

Compact Construction: Side-fixation movement installation for space efficiency.
Durable Material: Main body crafted from die-casting aluminum alloy for high mechanical strength and fast heat dissipation.
Efficient Transmission: Helical gear reduction provides stable performance and long service life with shock-resistant gear grinding.
DC Brushless Technology: Low heat generation, large output torque, and adjustable speed for smooth buffer deceleration.
Safety First: Uses safe 24V DC voltage, significantly reducing electrical risks compared to traditional AC motors.

General Technical Parameters

Parameter	Specification
Working Power Supply	AC220V ± 10% 50Hz
Working Temperature	-40°C to +85°C
Remote Control Distance	≤ 30 Meters
Motor Power	24V DC 150W Brushless
Lifting Time	1.5S - 6S (Adjustable)
Chassis Thickness	1.5MM
Noise Level	≤ 55dB

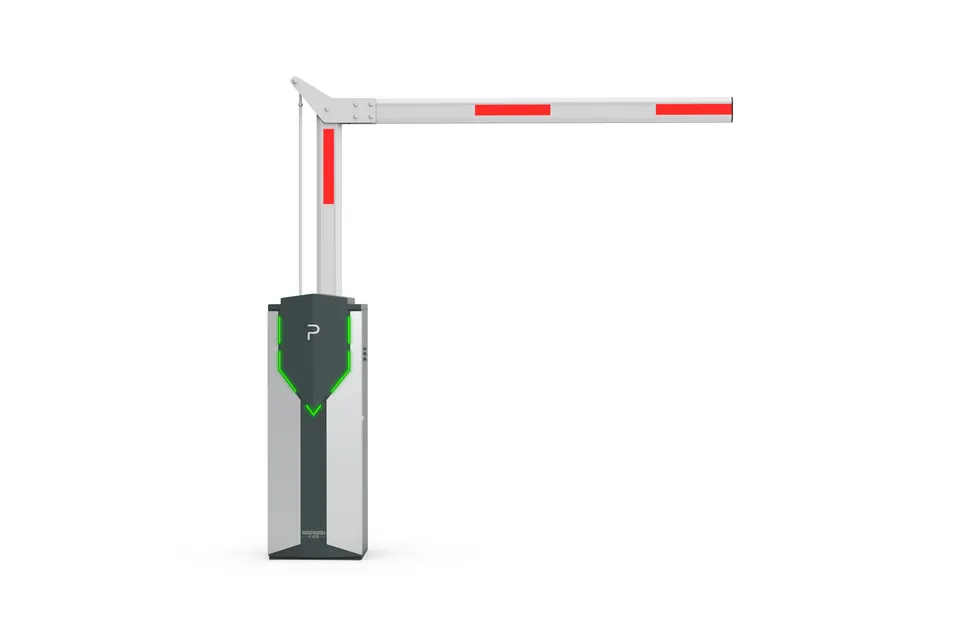

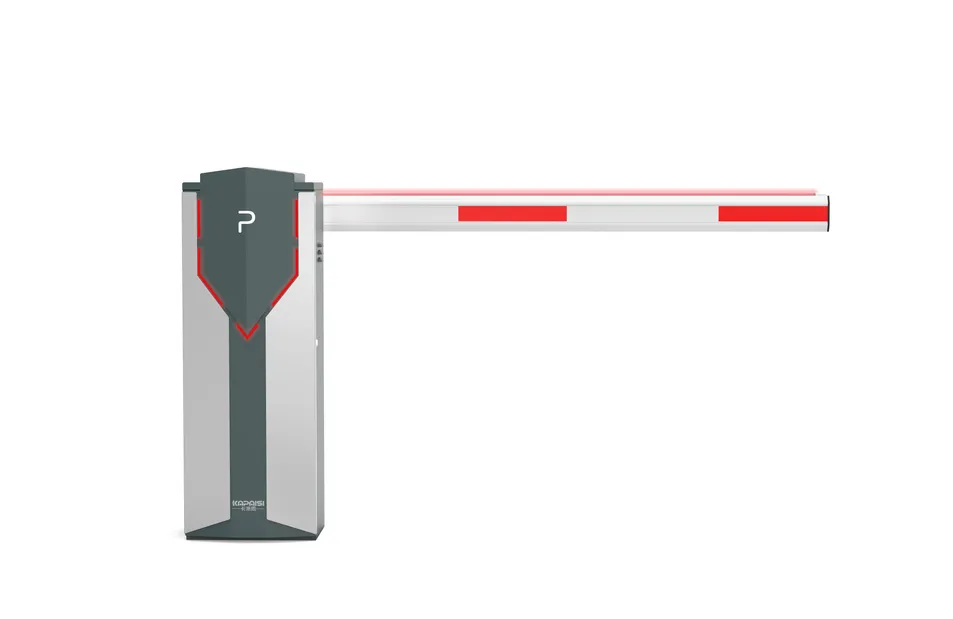

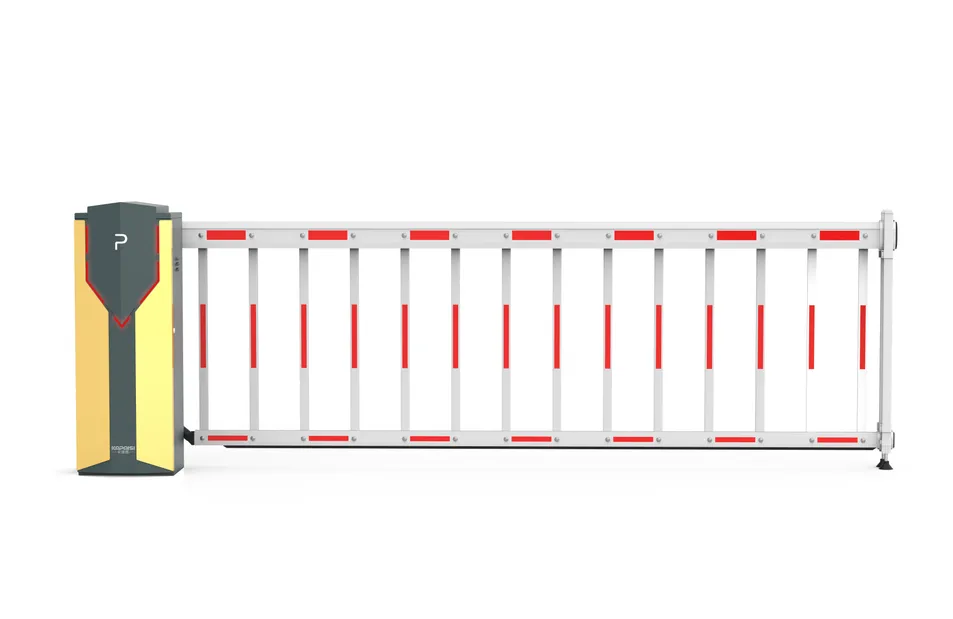

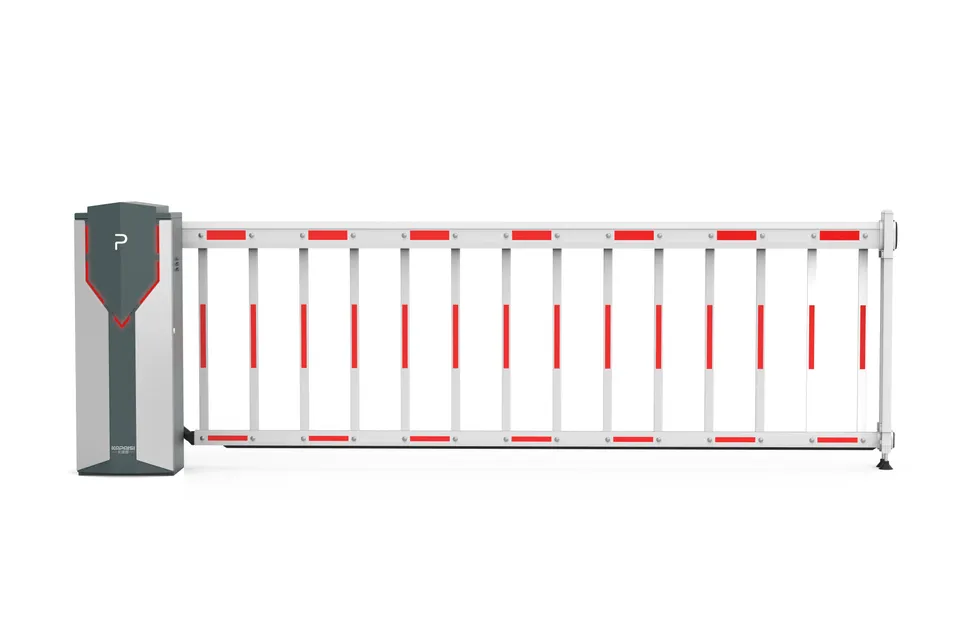

Compatible Rod Types

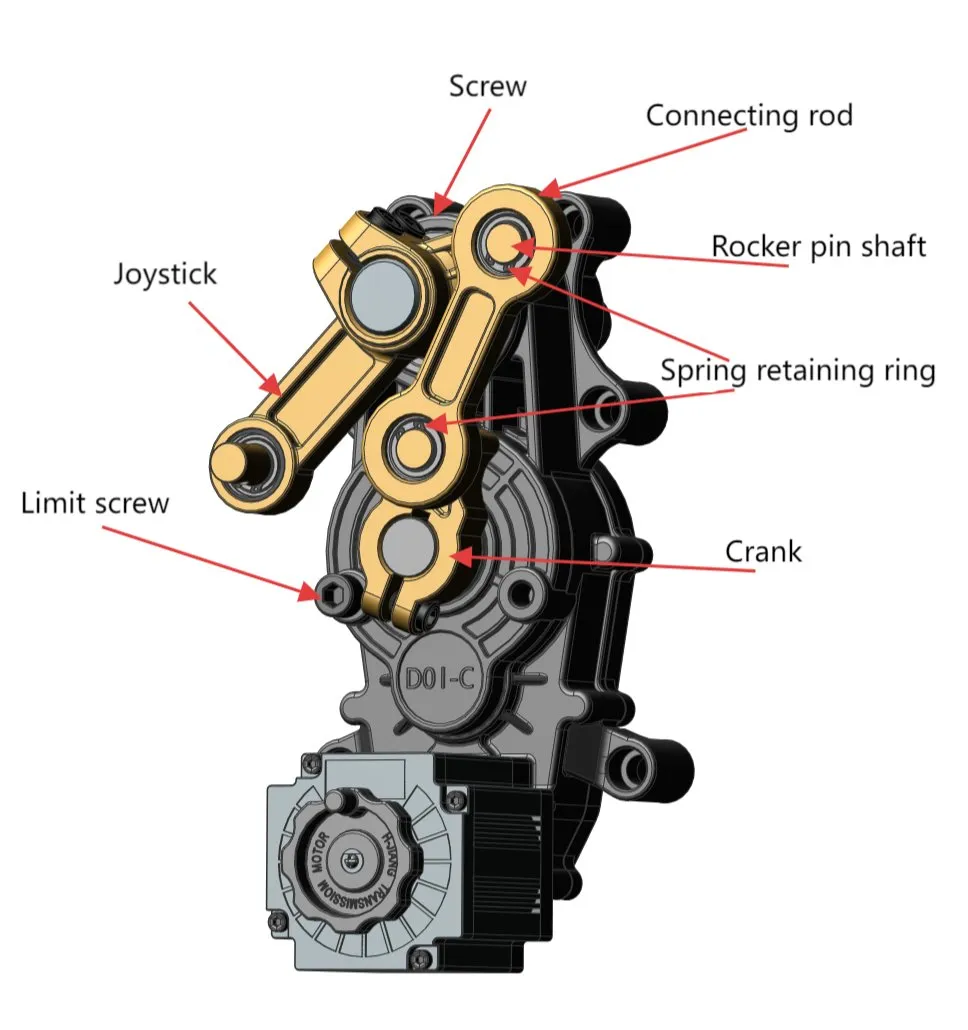

Motor Performance Data

Model	Output Power	Rated Current	Lifting Time	Output Torque
D01C-0.8S	120W	8A	0.8s-1.5s	36.4N·m
D01C-1.5S	120W	8A	1.5s-3.0s	64.8N·m
D01C-3.0S	120W	8A	3.1s-7.0s	129.9N·m

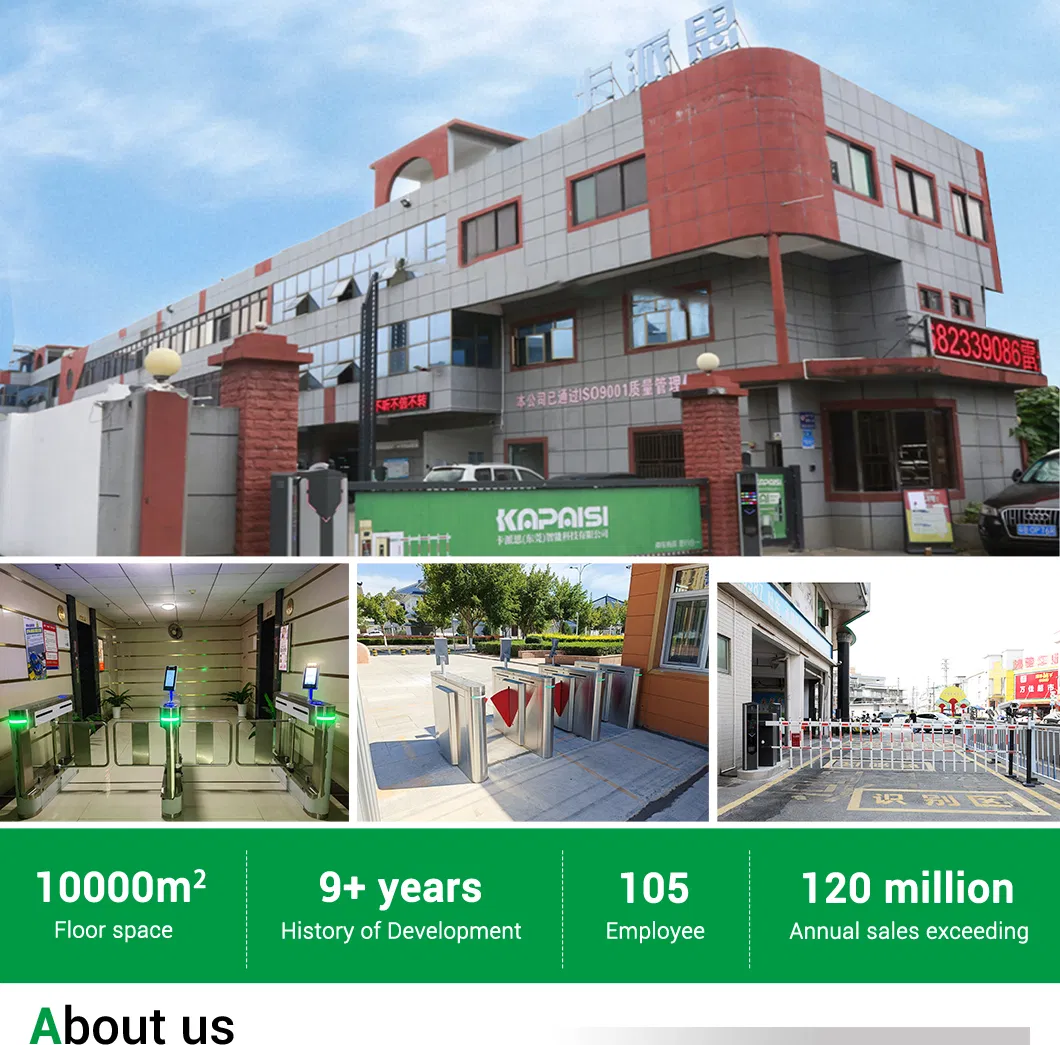

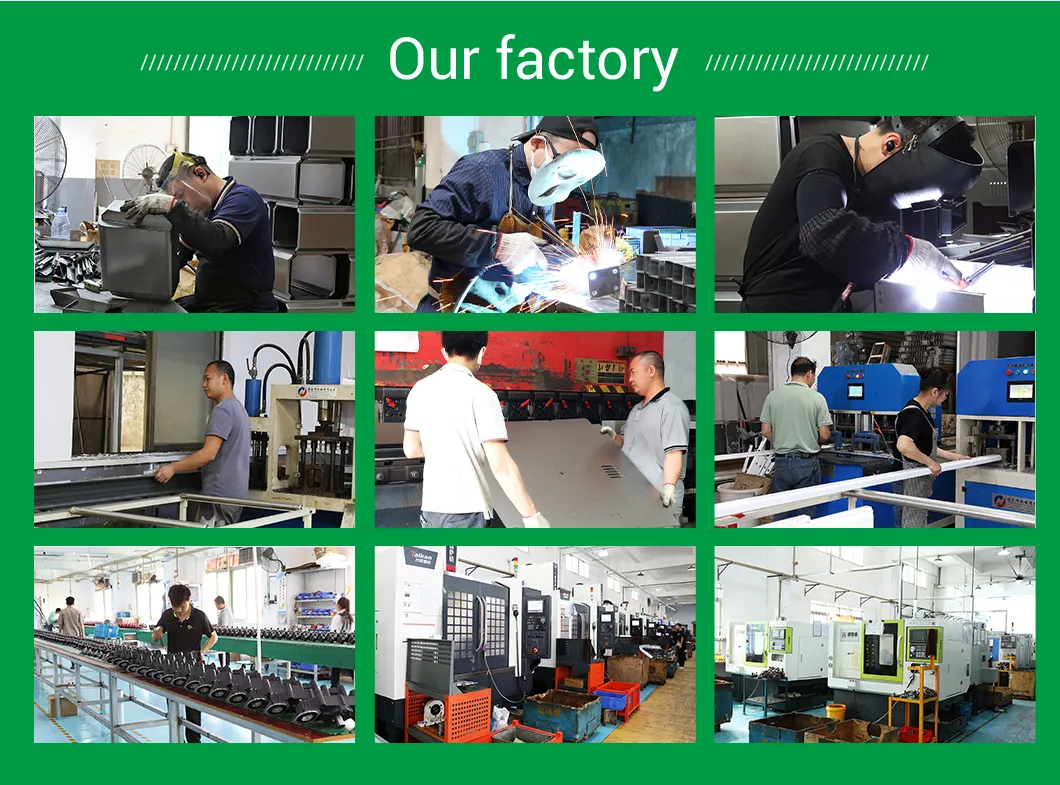

Manufacturing Excellence

Our facility integrates R&D, production, sales, and service, operating under ISO9001:2015 quality management standards. With a specialized industrial park covering 10,000 square meters, we employ senior engineers and high-quality technical personnel to ensure every product meets international standards. Our channel opening solutions are widely used in airports, residential communities, shopping malls, and government agencies worldwide, exported to over 80 countries including Germany, UK, and Canada.

Certifications & Logistics

Frequently Asked Questions

1 Which scenarios are these barrier gates suitable for?

They are widely used for residential/commercial entrances, parking management systems, expressway toll stations, logistics parks, and schools.

2 What triggering methods are supported?

The series supports multi-mode triggering including remote control, license plate recognition (LPR), ground induction loops, mobile phone control (WIFI/Bluetooth), and manual buttons.

3 Can the barrier operate in extreme weather?

Yes, it features IP54 protection (IP68 customizable) and operates reliably in temperatures ranging from -40℃ to +80℃ with built-in lightning and overheat protection.

4 What types of poles are available?

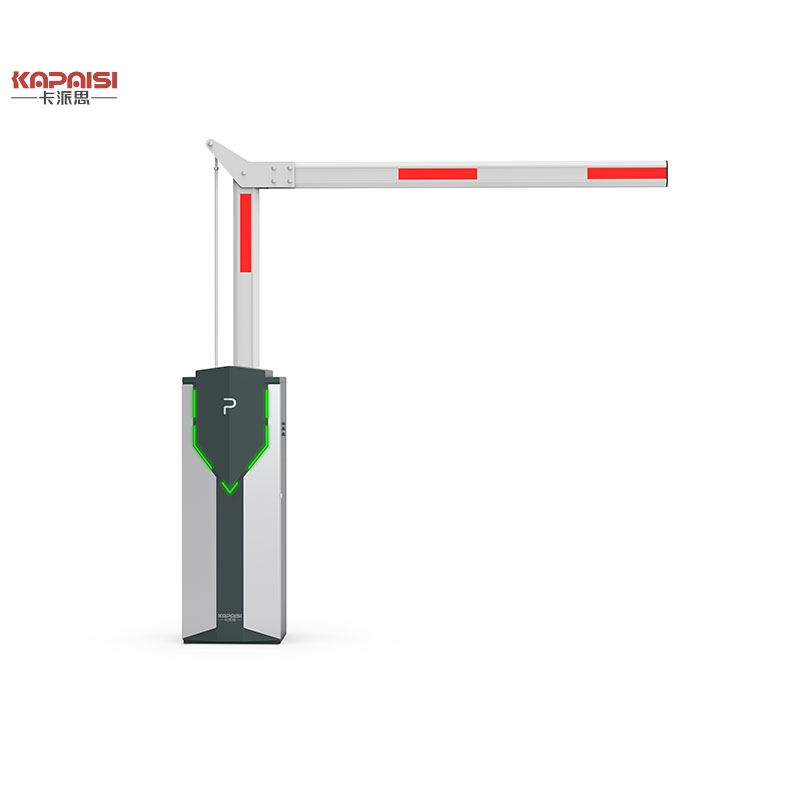

We offer six major types: standard straight rods (2-6m), curved rods for low spaces, anti-climbing fence poles, LED advertising poles, folding rods, and anti-collision rods.

5 What are the benefits of the DC brushless motor?

The DC brushless motor provides higher efficiency, lower heat generation, and smoother speed regulation during the lifting/lowering cycle, ensuring a longer service life.

6 Is the equipment safe for high-traffic areas?

Absolutely. The system uses a safe 24V DC voltage and can be equipped with anti-collision rods that rebound or break away upon encountering obstacles to prevent vehicle damage.
