WiFi Lorawan Password Digital Touch Keypad Access Control with Vistor Qr Code RFID NFC BLE Access Control Reader

Customization:	Available
Type:	Access Control System
Card Type:	CPU, EM, DESFire EV1/EV2/EV3

Send Inquiry

Product Description

📋 Basic Information

Model NO.

CT9 E

Reading Distance

10cm-15m

Application

Parking, Hospital, Library, Company, Bank, Store

Product

Touch Keypad Access Control Terminal

Operating System

Linux OS

Identification

RFID, NFC, BLE, Pin Code

RFID Card

13.56MHz 125kHz

Mobile Credential

NFC, BLE, Qr Code

Qr Code

Optional Qr Code, Barcode

Password

Touch Pincode

Card Holders

Unlimited/10, 000 Users

Interfaces

4G, WiFi, TCP/IP, RS485 Osdp, Wiegand

Work Mode

Standalone & Network Mode

Power

12-24V DC; Poe IEEE 802.3af

IP Protection

Waterproof Outdoor Use, UV Resistance

Certification

CE, FCC

Origin

China

🔍 Product Overview

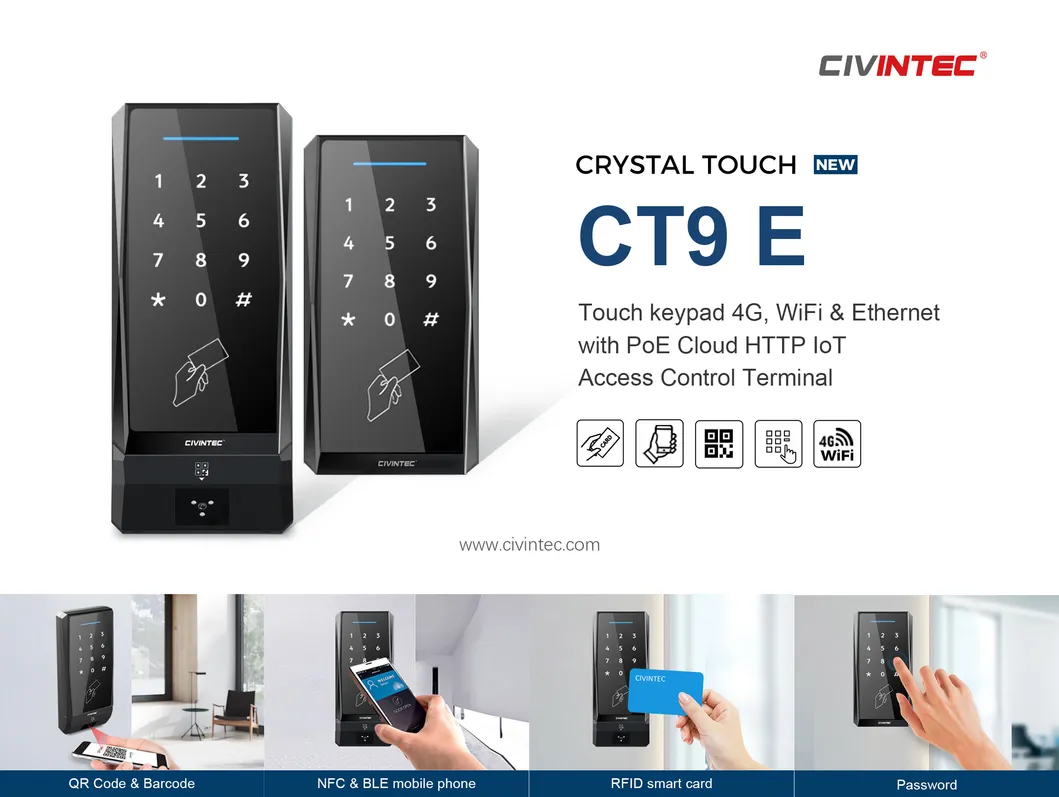

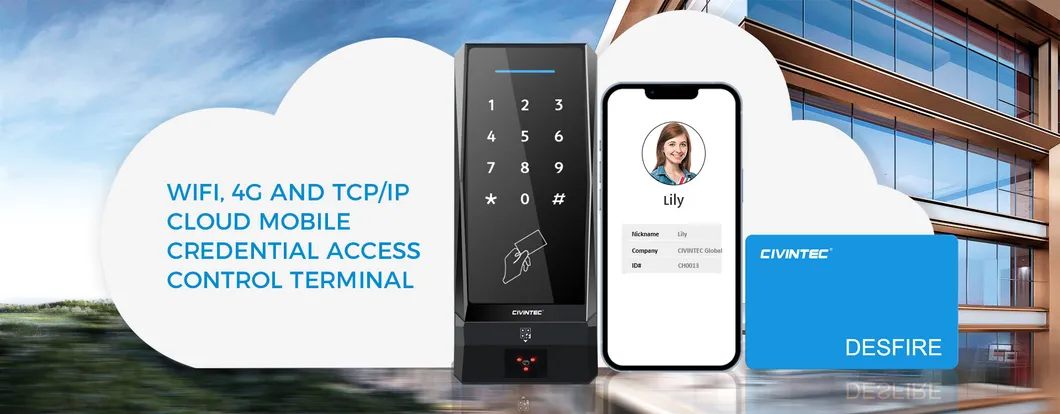

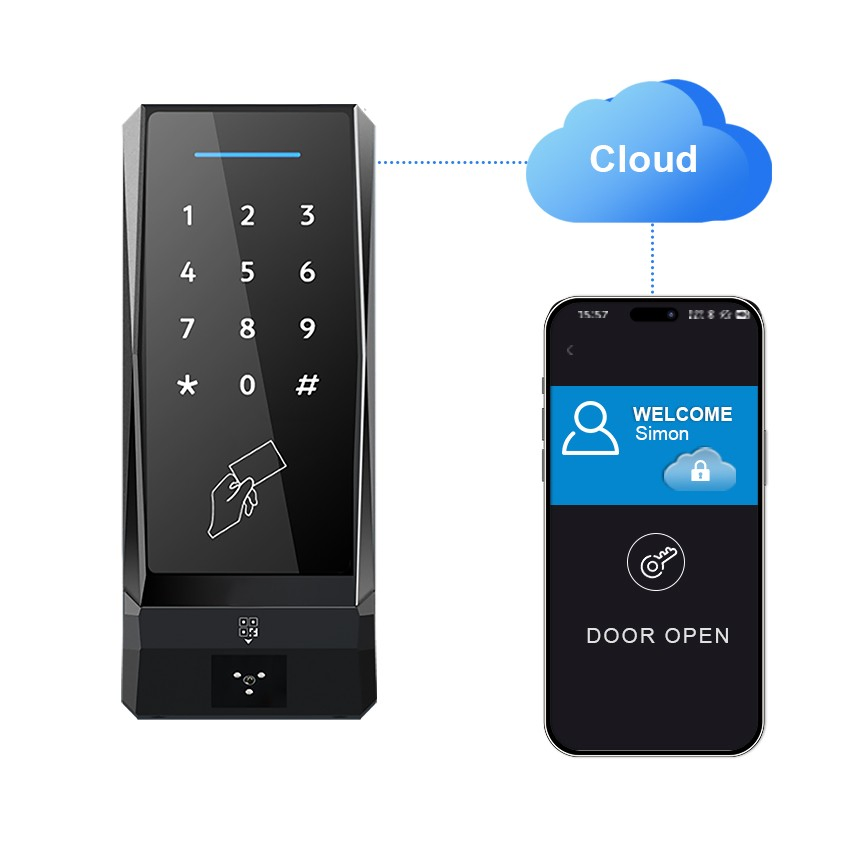

CT9 E is a Linux-based HTTP/HTTPs server centralized terminal with wireless WiFi, 4G, and TCP/IP Ethernet. It is suitable for both LAN and Internet cloud server software communication, featuring an embedded relay to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, including a touch keypad, dual RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR CODE/barcode scanning via mobile phones.

⚙️ Technical Specifications

Feature Category	CT9 E Specification
RFID Contactless Cards	125KHz PROx, 125KHz EM; 13.56MHz Mifare® Classic, Ultralight®, Mifare® Plus, DESFire® EV1/ EV2/ EV3, NFC tags
Mobile Credential	BLE (2.4Ghz), NFC
Barcode / QR Scanner	1D & 2D QR Code, Micro QR code, PDF417, Code 128, Code 39 and mainstream 1D/2D barcodes
Communication	TCP/IP (RJ45), 4G, WiFi 2.4GHz IEEE802.11b/g/n, RS485, Wiegand input
I/O Port	Door contact, Door exit, Buzzer, Fire alarm, Tamper switch, 1~2 relay outputs
Operating System	LINUX
Keypad	12-digit Touch keypad with backlit
Capacity	Unlimited Online Users; 10,000 Offline users / 50,000 logs
Power Supply	12~24V DC or PoE IEEE 802.3af
Protection	IP65 electric epoxy potted, Resistant to UV ray

* Specifications are subject to change without notice.

🚀 Key Features

✔

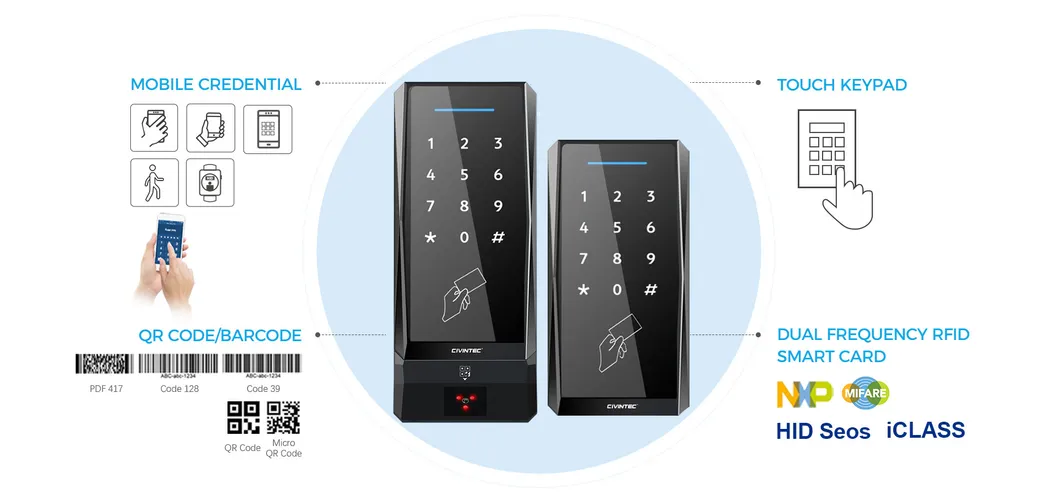

Multiple Access Credentials: Incorporates 5-in-1 technology including smart cards, mobile access, and QR codes for comprehensive visitor management.

✔

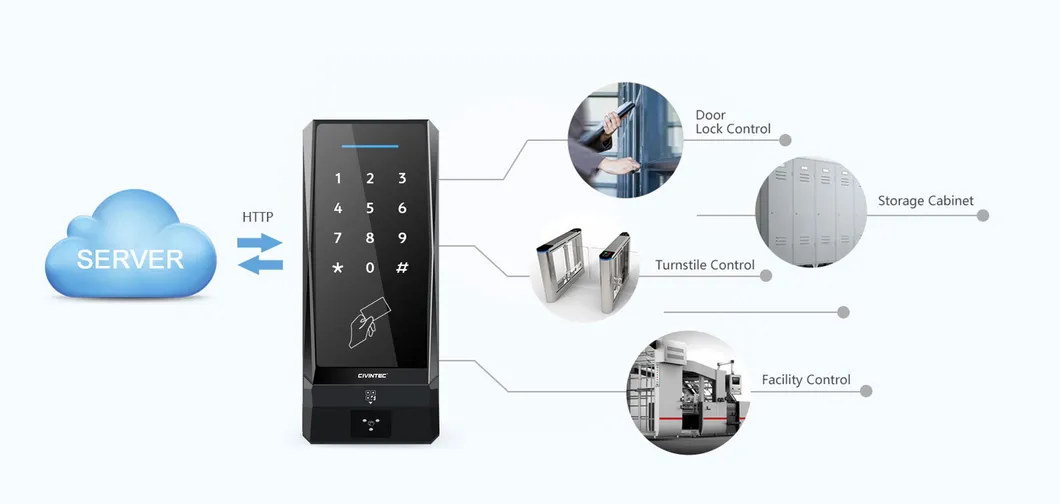

Cloud Server Remote Control: Bi-directional communication via standard HTTP/HTTPs between terminal and server for remote facility management.

✔

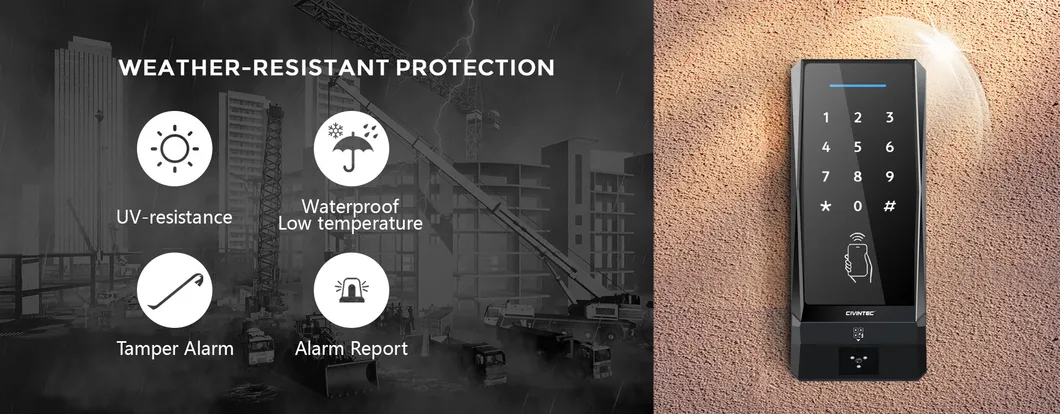

Weather-Resistant Protection: IP65 rated for rain, dust, and strong sunlight, making it ideal for outdoor and rugged environments.

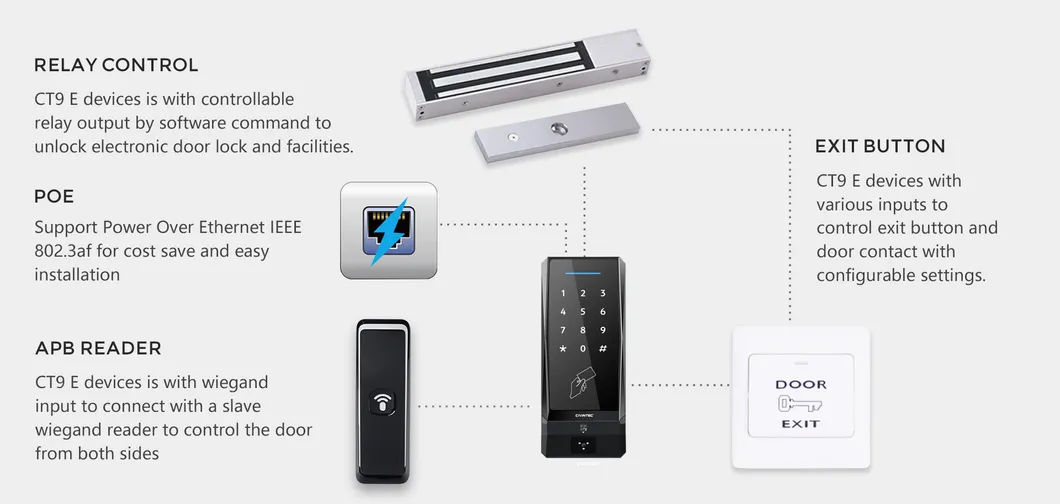

🌐 System Configuration

🛠️ Customization Service

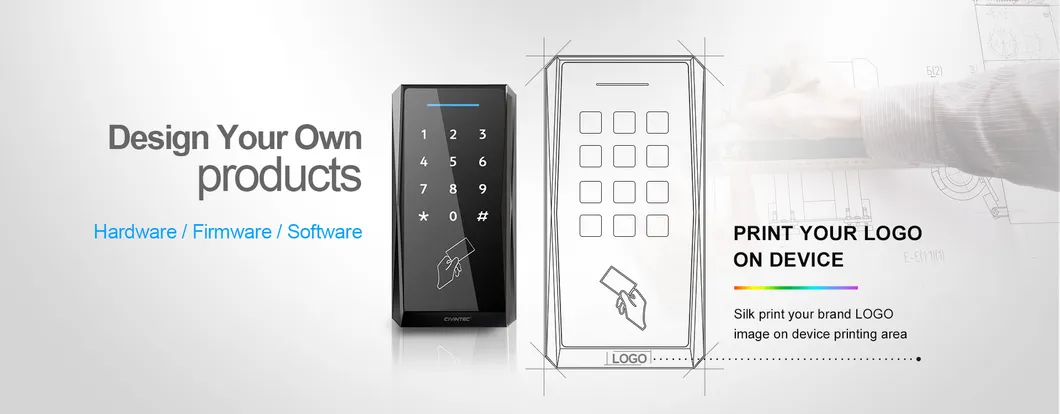

We offer ODM customization on hardware, housing, firmware, and software design. Users can program and display their own content on the 3.5" touch screen. OEM logo printing on the reader body is also available.

📦 Related Products

❓ Frequently Asked Questions

What types of identification does the CT9 E support?

The CT9 E supports 5-in-1 identification: Touch Keypad (PIN), RFID (125KHz & 13.56MHz), BLE, NFC mobile access, and QR Code/Barcode scanning.

Can this device be installed outdoors?

Yes, the device is IP65 rated, making it waterproof and resistant to UV rays, dust, and extreme sunlight, suitable for outdoor environments.

Does the terminal support Power over Ethernet (PoE)?

Yes, it supports PoE IEEE 802.3af, allowing for simplified installation by providing both power and data over a single cable.

How many users can the CT9 E handle?

In network mode, it supports unlimited users. For offline storage, it can manage up to 10,000 users and 50,000 event logs.

What communication interfaces are available?

It offers versatile connectivity options including 4G, WiFi (2.4GHz), TCP/IP (RJ45 Ethernet), RS485, and Wiegand.

Is it possible to customize the device?

Yes, ODM and OEM services are available, including hardware modification, housing design, firmware customization, and logo printing.
