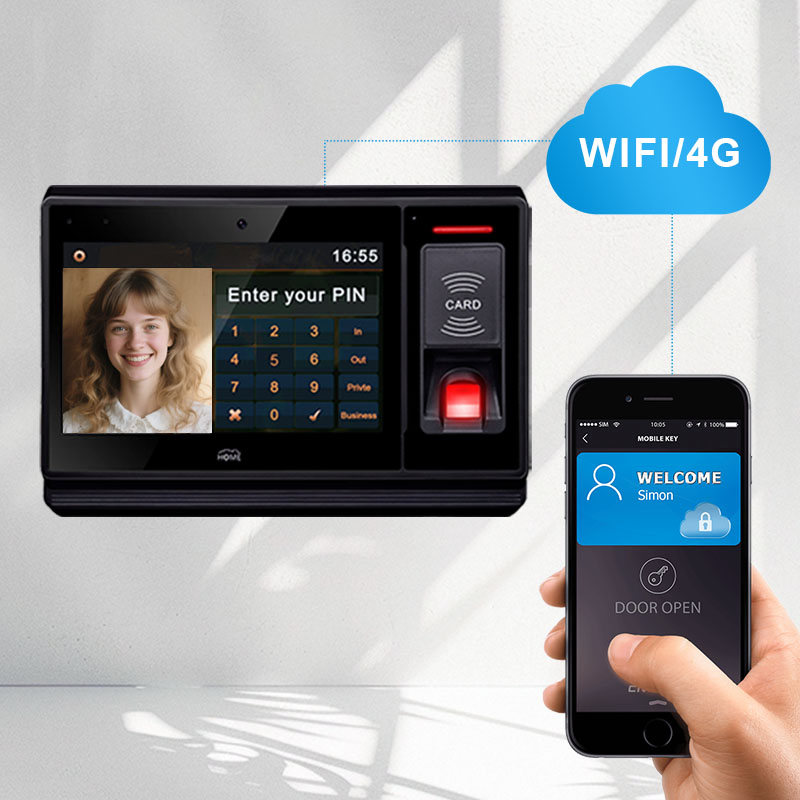

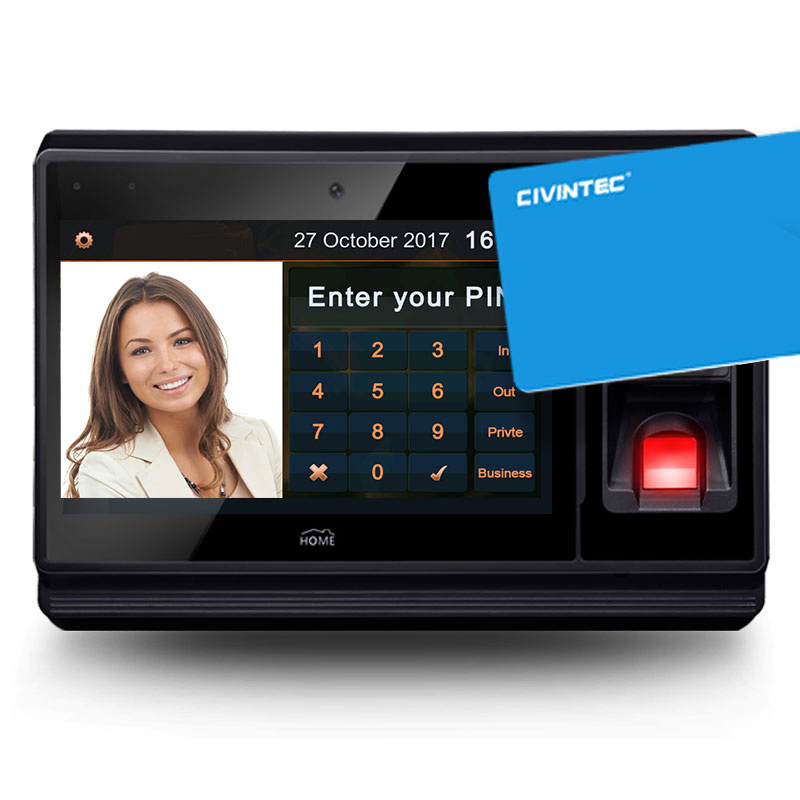

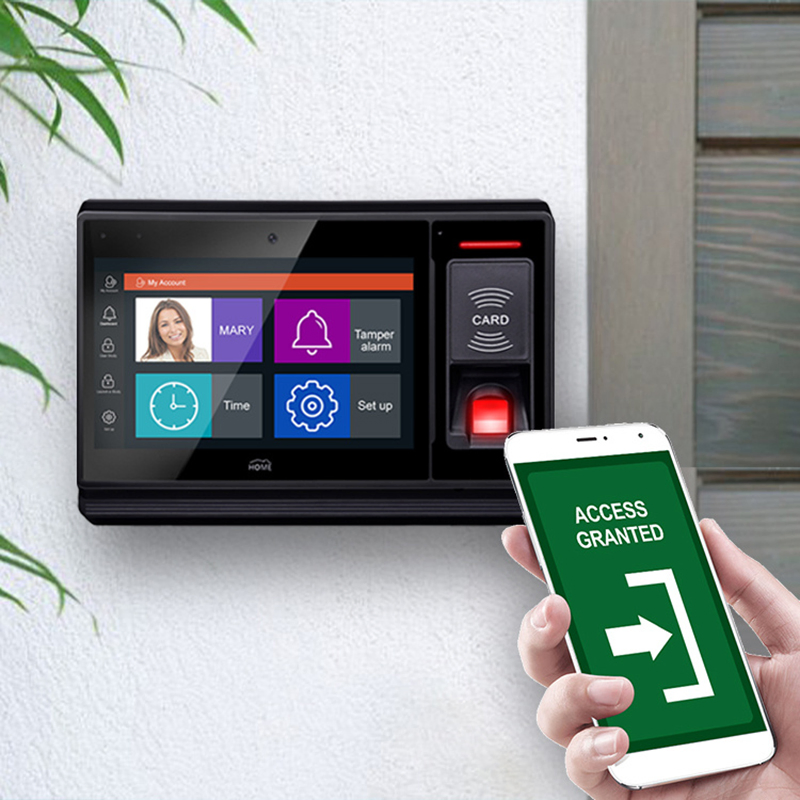

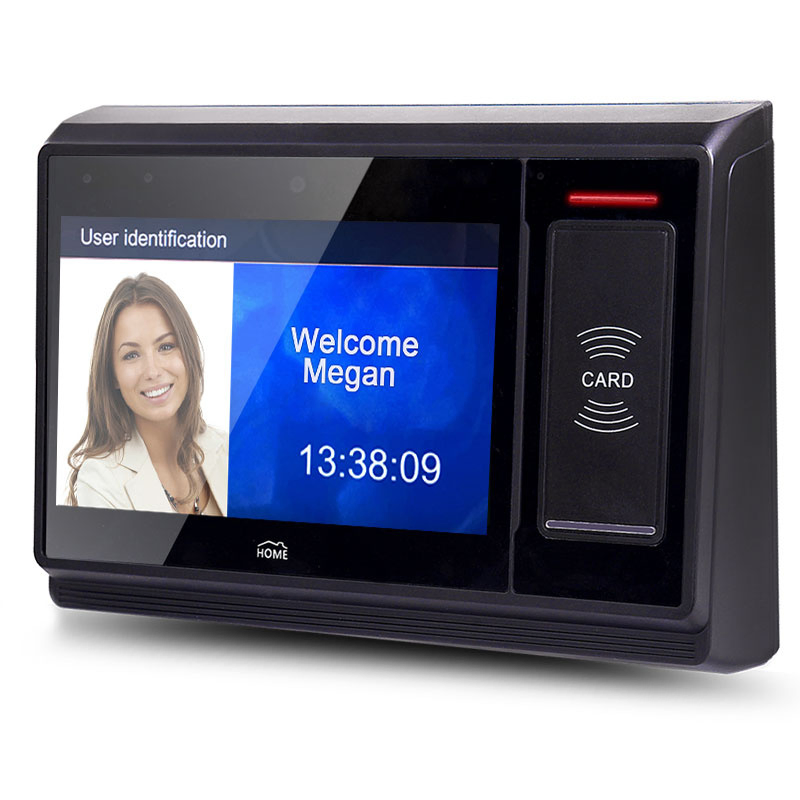

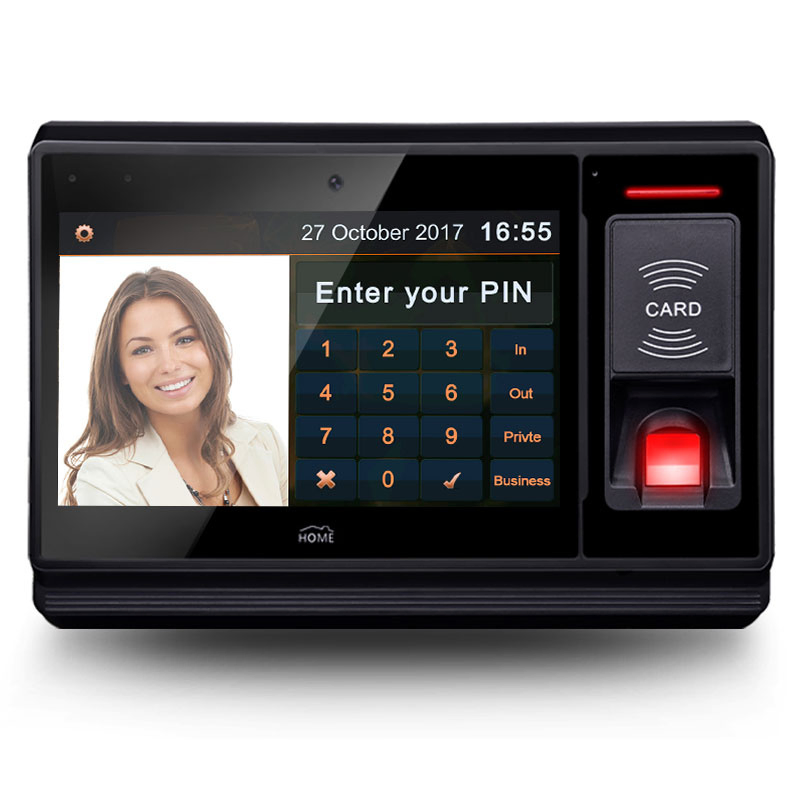

WiFi Biometric Access Control Fingerprint Door Entry System for Building Access Control RFID Card Reader Commercial Use
WiFi Biometric Access Control Fingerprint Door Entry System for Building Access Control RFID Card Reader Commercial Use
WiFi Biometric Access Control Fingerprint Door Entry System for Building Access Control RFID Card Reader Commercial Use
WiFi Biometric Access Control Fingerprint Door Entry System for Building Access Control RFID Card Reader Commercial Use
WiFi Biometric Access Control Fingerprint Door Entry System for Building Access Control RFID Card Reader Commercial Use
1 / 5
WiFi Biometric Access Control Fingerprint Door Entry System for Building Access Control RFID Card Reader Commercial Use
WiFi Biometric Access Control Fingerprint Door Entry System for Building Access Control RFID Card Reader Commercial Use
WiFi Biometric Access Control Fingerprint Door Entry System for Building Access Control RFID Card Reader Commercial Use
WiFi Biometric Access Control Fingerprint Door Entry System for Building Access Control RFID Card Reader Commercial Use
WiFi Biometric Access Control Fingerprint Door Entry System for Building Access Control RFID Card Reader Commercial Use

WiFi Biometric Access Control Fingerprint Door Entry System for Building Access Control RFID Card Reader Commercial Use

Customization: Available
Type: Fingerprint
Card Type: CPU, EM
Send Inquiry

Product Description

Basic Info
Model NO.
CN8
Reading Distance
1-10cm
RFID Card
13.56MHz 125KHz
Biometric
Fast Speed Biometric 1:1, 1:N
Power
Poe, Alternative: DC 9-24V
Screen
7" Touch Screen
Memory
2GB Nand Flash + 256MB Mobile DDR Sdram
Camera
Embedded 2.0m Pixel Digital Camera
Door Phone
Microphone, Door Bell, 2W/8 Ohm Speaker
Operation System
Linux, Android (Option)
Usage
Access Controller, Attendance
Communication
TCP/IP(RJ45), RS232, RS485, USB, Wireless, WiFi, 4G
Specification
L=230mm, H=45mm, W=160mm
Product Presentation

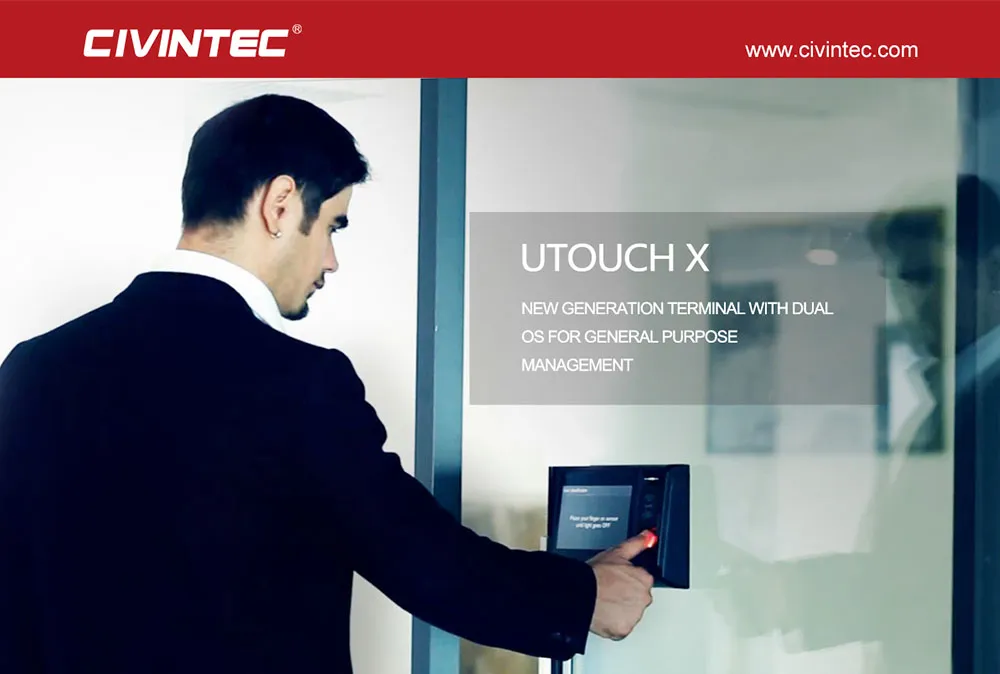

Biometric Access Control

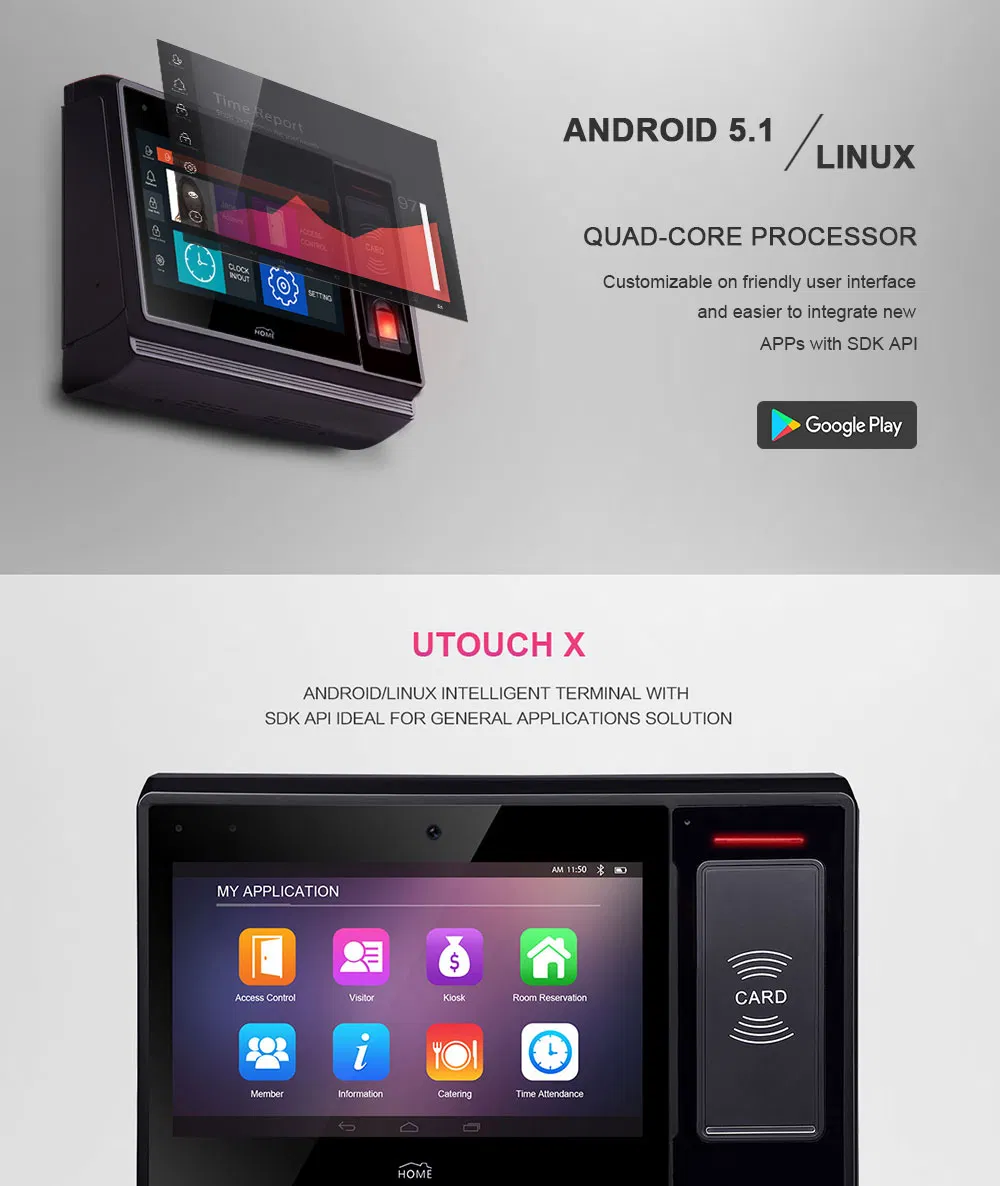

Feature 1

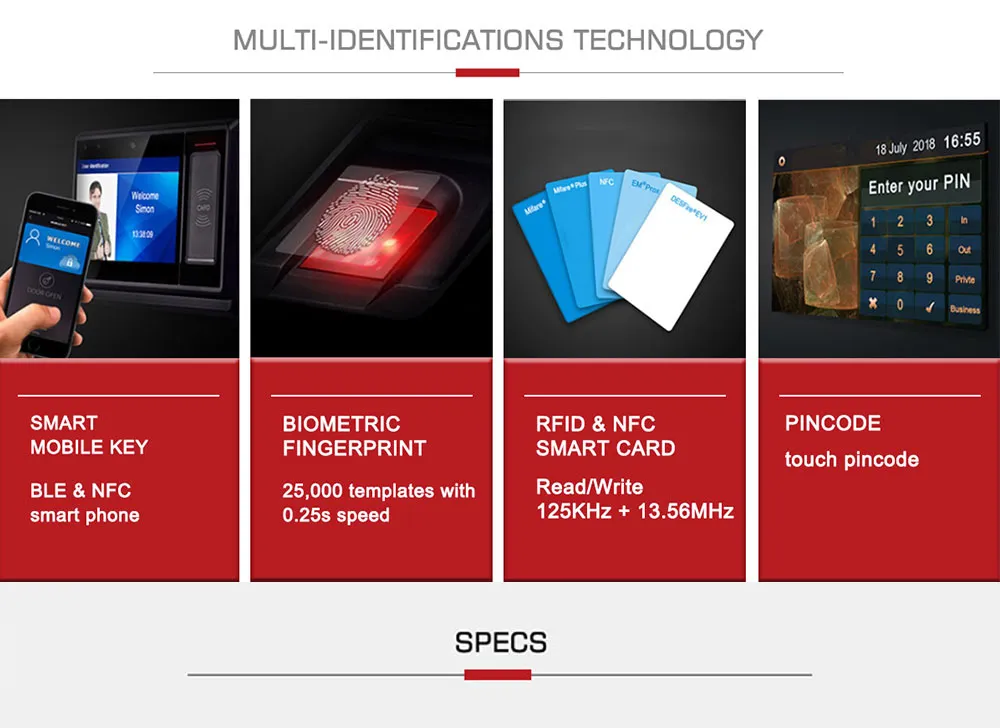

Feature 2
Technical Specification
CN890 SERIES PARAMETERS
Operation System ANDROID & LINUX
Display 7.0" capacitive touch screen
Smart Card Interface
ISO-protocol 125KHz & Pro, 13.56MHz ISO14443A/B, ISO15693, NFC
Contact smart card ISO7816 (T=0,T=1) 1 SAM module
Biometric Fingerprint Reader
Fingerprint sensor 500 dpi optical sensor
Template capacity 1:1 (100,000); 1:N (25,000)
General Features
Communication 4G, WiFI, BT4.0, TCP/IP, RS232, RS485, wiegand, USB2.0 (OTG)
Power supply 9-24V DC, Power over Ethernet (PoE)
Camera Auto focus 5.0 megapixel digital camera
Tamper alarm 1 tamper alarm switch
Certification CE
Detail 1

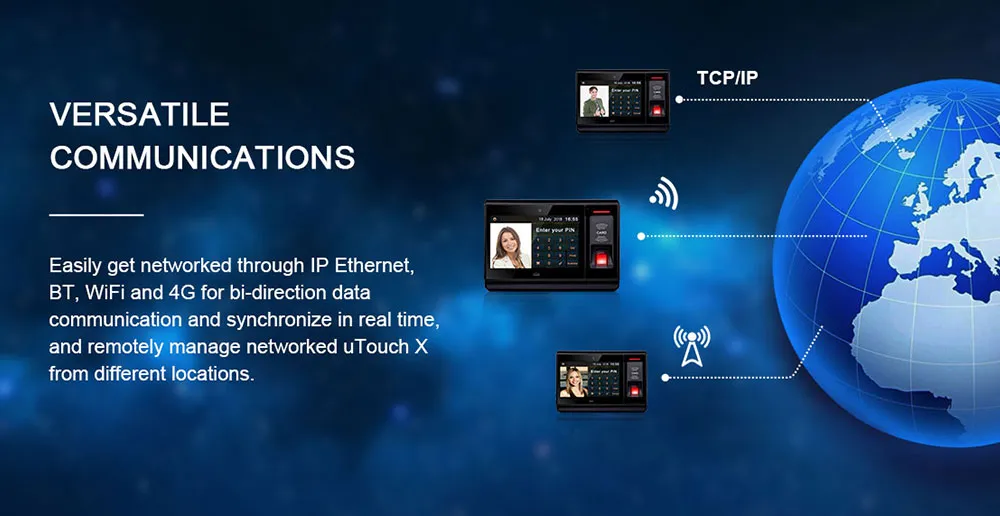

Detail 2
Detail 3
Application 1
Application 2
Application 3
Application 4
Frequently Asked Questions
What is the reading range for the RFID reader?
The device supports a reading distance of 1-10cm for various card types including 13.56MHz and 125KHz frequencies.
Does this device support wireless network connections?
Yes, it features integrated support for WiFi and 4G wireless communications, as well as standard TCP/IP(RJ45) and Bluetooth.
Can I power the device via my network cable?
Yes, the system is compatible with Power over Ethernet (PoE). Alternatively, it can be powered by an external DC 9-24V power supply.
What biometric identification options are available?
It features a high-speed biometric fingerprint reader (500 dpi optical sensor) supporting both 1:1 and 1:N matching modes with high template capacity.
What operating systems can this hardware run?
The hardware is versatile and supports both Linux and Android operating system options to suit different software requirements.
Is the screen suitable for user interaction?
Yes, the device is equipped with a large 7-inch capacitive touch screen, making it ideal for access control and attendance management interactions.
