Product Description

Basic Specification

Model NO.:XJBS-A 5050/30
Form:Partly-welded Type
Operation Voltage:Low Voltage
Application Range:Power Plants
Shell Material:Steel Plate
Protection Grade:IP65
Thickness:1.2mm
Color:Ral 7032
Paint Finish:Poxy Polyester Powder Coating
Origin:China
Enclosures Banner

Product Description

Premium Material: 1.2mm to 1.5mm sheet steel for body and door; 1.5mm to 2.0mm for mounting plate.
Superior Finish: Epoxy polyester powder coating textured finish for body; flat finish for mounting plate.
IP65 Protection: High waterproof and dustproof performance, suitable for outdoor environment.
Impact Resistance: IK10 rated against mechanical impacts.

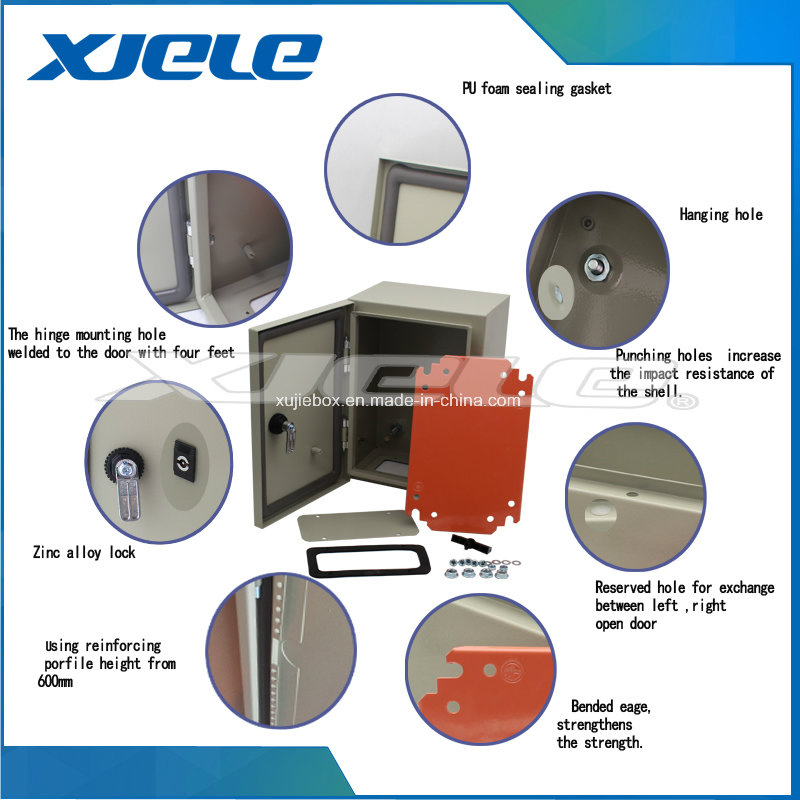

Enclosure Details 1

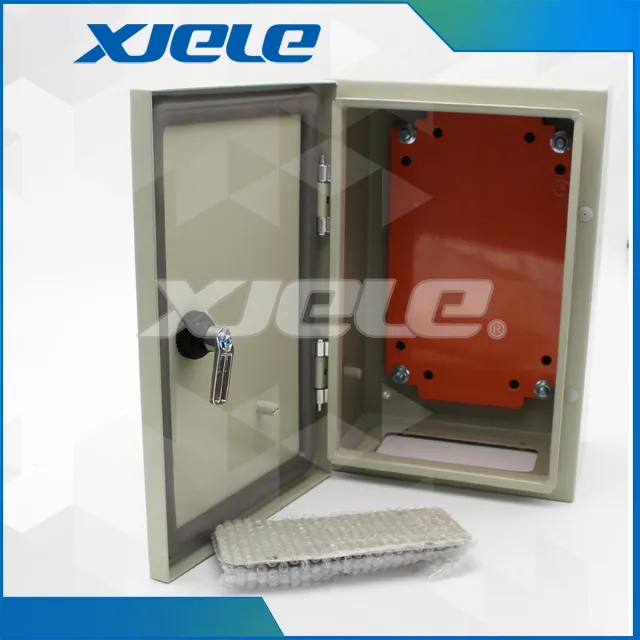

Enclosure Details 2

Size & Dimensions Chart

MODEL H(MM) W(MM) D(MM) MODEL H(MM) W(MM) D(MM)
XJBS-A 2020/15200200150XJBS-A 6060/30600600300
XJBS-A 2520/15250200150XJBS-A 7050/15700500150
XJBS-A 3020/15300250150XJBS-A 7050/20700500200
XJBS-A 4030/20400300200XJBS-A 8060/20800600200
XJBS-A 5040/25500400250XJBS-A 10080/301000800300
XJBS-A 6050/30600500300XJBS-A 120100/3012001000300
Process Display

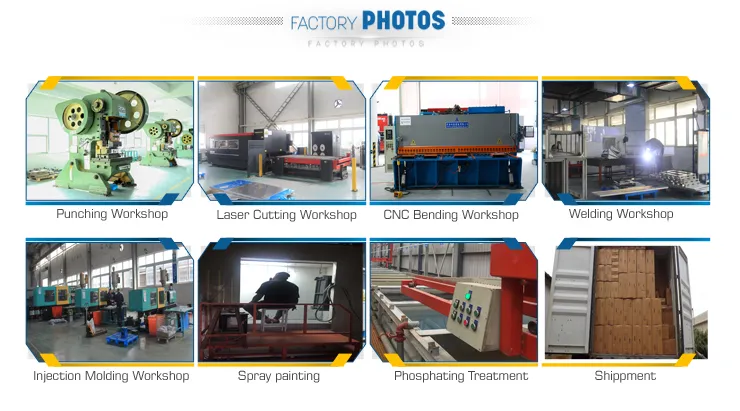

Bulk Production

Our powder coating spray Mild Sheet steel metal Outdoor waterproof distribution boxes are designed for industrial efficiency. These electrical wall mounted control panels provide IP66 rated protection for power distribution and switching control. Available as double door or single door configurations, the industrial steel distribution boxes ensure safety and durability for electrical switchboards in demanding environments.

Frequently Asked Questions

What is the protection level of these enclosures?

The enclosures are rated IP65, offering excellent protection against dust and water ingress, and IK10 for mechanical impact resistance.

What materials are used for construction?

We use high-quality sheet steel. The thickness ranges from 1.2mm to 1.5mm for the body and door, and 1.5mm to 2.0mm for the mounting plate depending on the size.

What is included in the standard supply package?

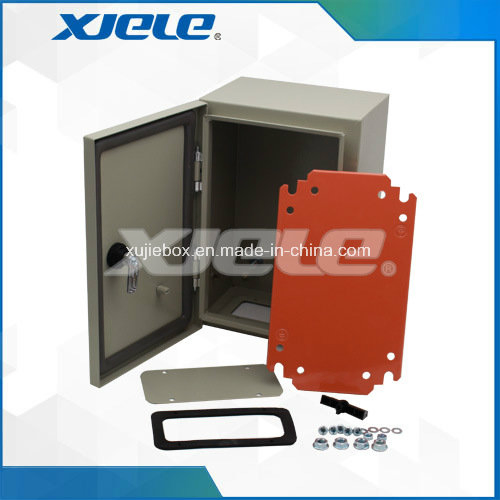

The package includes the enclosure, door, galvanized or orange painted mounting plate, locking system, gland plate, sealing gasket, and all necessary fixing accessories.

Is customization available for specific sizes?

Yes, we accept customized requirements for size, thickness, and specific process requirements to meet your project needs.

What type of surface finish is applied?

Both the body and door feature an epoxy polyester powder coating textured finish, typically in RAL7032 or RAL7035 colors.
