Customization: Available
Card Reader Quantity: 2
Control Gates: One Gate
Send Inquiry

Product Description

Basic Info
Model NO.:ZDAC-2100
Technology:32-Bit Technology
Way of Control:Computer Control
Type:One-way Controller
Product Name:Standalone Access Control
Card Types:EM or EM Compatible
Capacity:2000 Users
Keypad Housing:Metal
Reading Distance:3~6cm
Warranty:1 Year
Product Description

Waterproof Metal Standalone RFID Door Access Control with Backlight Keypad

The ZDAC-2100/2300 series is suitable for mounting either indoor or outdoor in harsh environments. Featuring an exquisite design with a non-masking Metal shell, Keystroke backlight, and Wiegand output. It supports up to 2000 users with Card, 4-digit PIN, or Card + PIN options, including a doorbell function. It is an ideal choice for door access in small shops, domestic households, and industrial applications such as factories, warehouses, laboratories, and banks.

Key Features
  • ✔ Exquisite design with non-masking Metal shell
  • ✔ Keystroke backlight for night visibility
  • ✔ Card appliance: 125kHz EM ID cards
  • ✔ WG26 output, usable as a standalone Access reader
  • ✔ Large capacity: Supports up to 2000 users
  • ✔ Multiple Access ways: Card, Code, or Card & Code
  • ✔ Integrated Doorbell key for external connection
  • ✔ Short-circuit protection for output safety
  • ✔ Low power consumption: Static current < 30mA
  • ✔ Fast search speed: Less than 0.1s
Product Parameters
ModelZDAC-2100
Card TypesEM or EM compatible
Operating VoltageDC 12V±10%
User Capacity2000 Users
Card Reading Distance3~6cm
Active Current<60mA
Idle Current25±5 mA
Lock Output LoadMax 3A
Operating Temperature-45ºC~60ºC
Adjustable Relay Time0 - 99 seconds
Wiegand InterfaceWiegand 26 bit
Dimensions128mm x 82mm x 28mm
Weight500g
Product Showcase

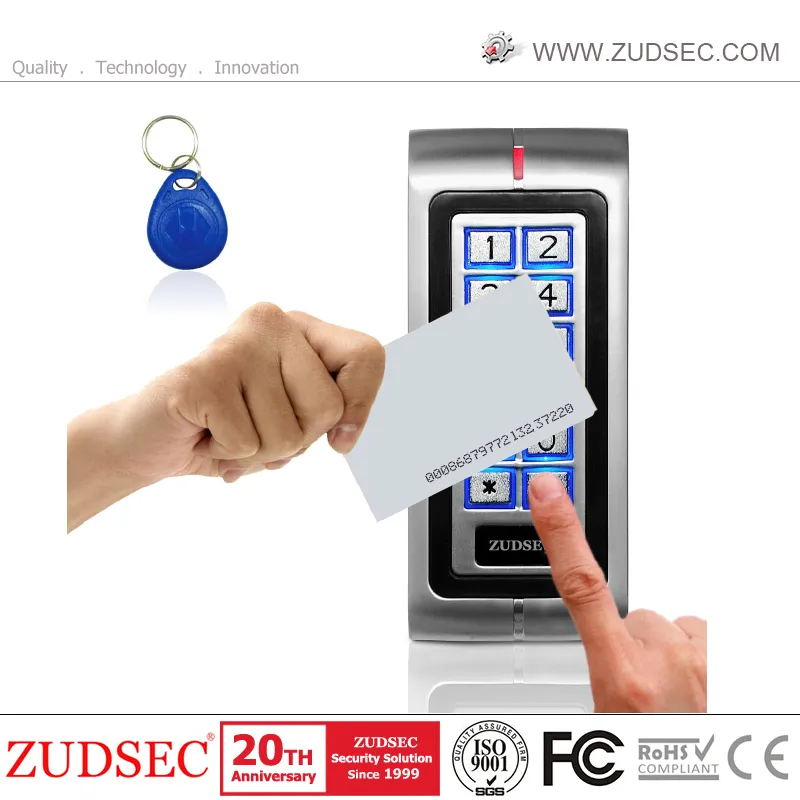

Access Control 1
Access Control 2

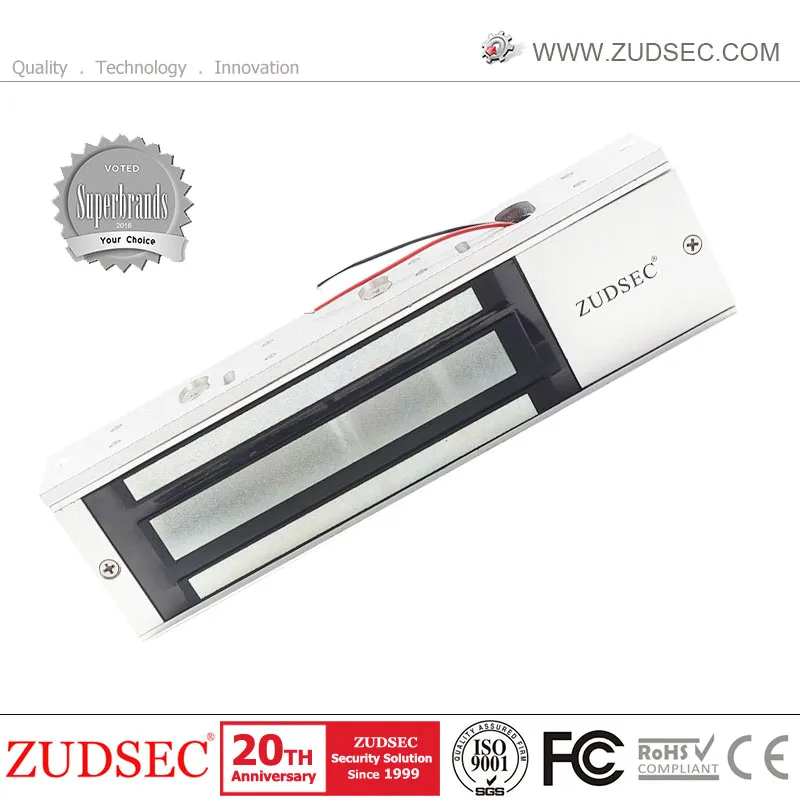

Access Control 3

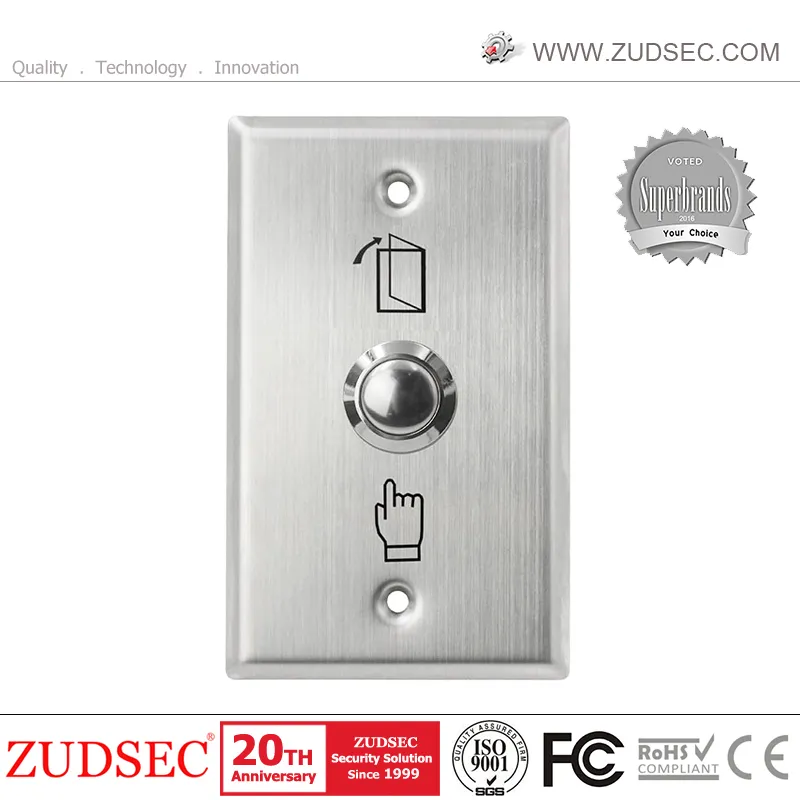

Access Control 4

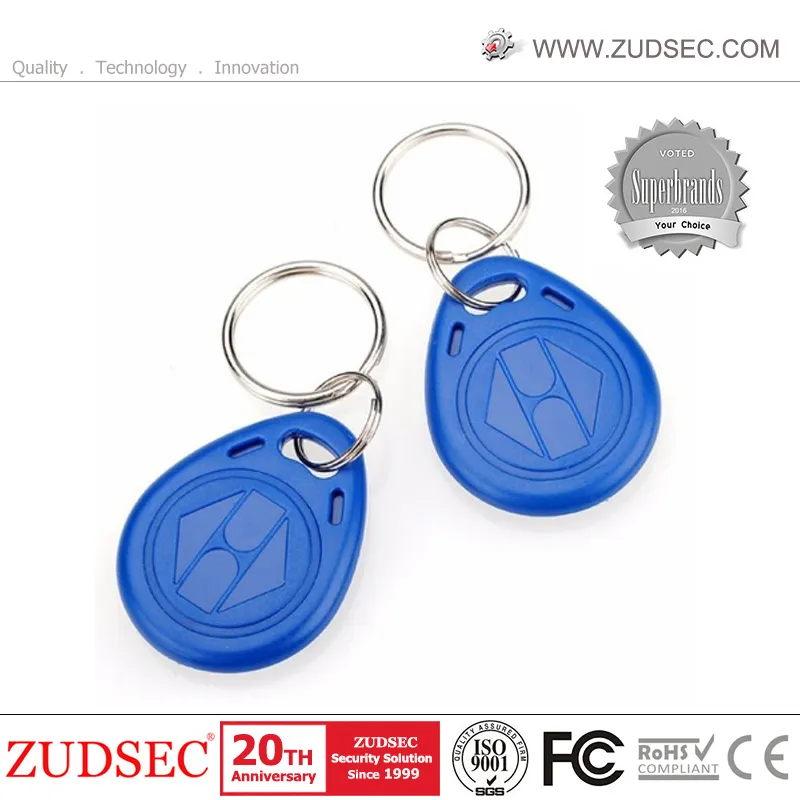

Access Control 5
Technical Detail 1
Related Products
Related Product
Frequently Asked Questions
How many users can this access control system store?
The ZDAC-2100 can support up to 2000 users using a card, a 4-digit PIN, or a combination of both.
Is this device waterproof for outdoor installation?
Yes, the device features a rugged metal housing designed for harsh environments, making it suitable for both indoor and outdoor use.
What types of RFID cards are compatible?
It is compatible with 125kHz EM cards or other EM-compatible identification cards.
Can I connect an external doorbell to this system?
Yes, the keypad includes a dedicated doorbell key and can be connected to any standard external doorbell system.
What happens if there is a short circuit in the lock output?
The device includes short-circuit protection. If a short circuit occurs at the relay or alarm output, the output will automatically close within 100μS for safety.
Can the door open time be adjusted?
Yes, the door relay time is fully adjustable from 0 to 99 seconds to suit your specific security needs.
