User-Friendly Touchscreen Interface for Three Phase Pump Management

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.	A12
Mathematical Model	Linear
Signal	Continuous
Function	Automatic Control, Protection, Monitoring
Certification	ISO: 9001, CE
Material	ABS
Protection Grade	IP54
Phase Number	3 Phase
Rated Output Power	0.75kw~15kw
Rated Input Voltage	AC380V
Switch Type	Auto / Manual
Frequency	50Hz/60Hz
Specification	300240120mm

📦 Packaging & Delivery

Package Size	32.00cm * 26.00cm * 15.00cm
Package Gross Weight	4.350kg

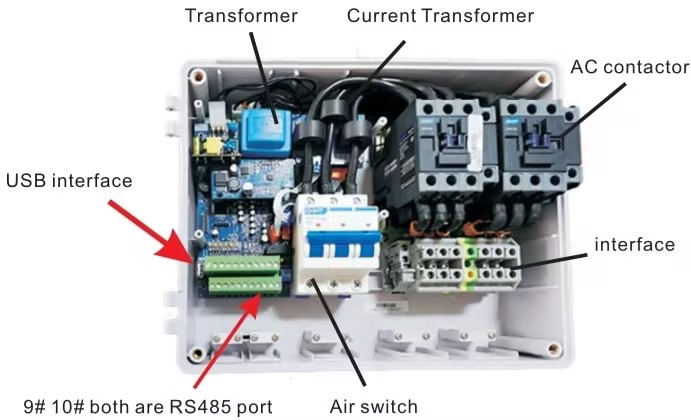

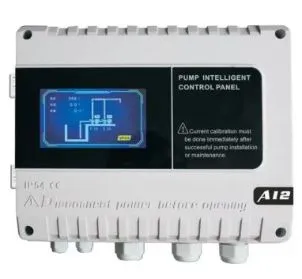

📷 Detailed Photos

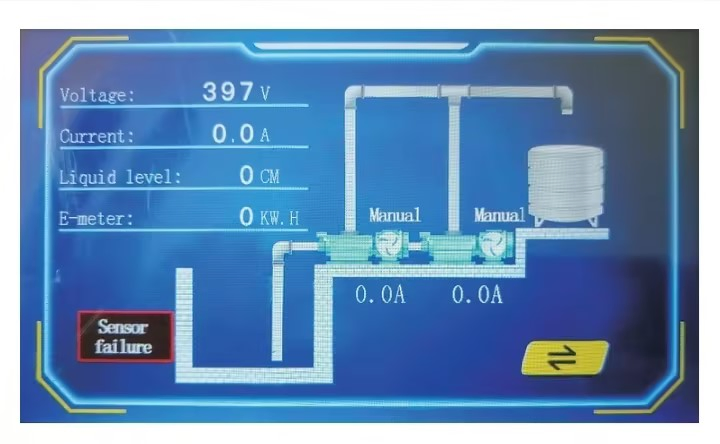

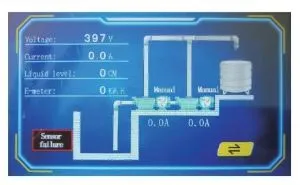

LCD Touch Screen: Stay informed with the high-definition interface on our Duplex Pump Controller. Monitor pump status with ease. Ideal for industrial use.

🛠️ Product Specifications

Start Type	Direct on line
Qty of Controlled Pump	Duplex pump
Rated Input Voltage	AC380V/AC400V Three Phase (50HZ/ 60HZ)
Protection Functions	Over load, Pump stalled, Dry run (sensor free), Under voltage, Over voltage, Repeat start, Over temperature, Phase reversal, Open phase, Pump leakage, Spindle rust prevention.
Control Characteristics	- Duplex pump control with auto-alternate - Main/Standby pump auto-switch against malfunction - Supports 4-20mA transmitter, liquid probe, float switch or pressure switch
Other Features	- Last five faults record display - Accumulative running time display - RS485 port for remote monitor - Push button calibration

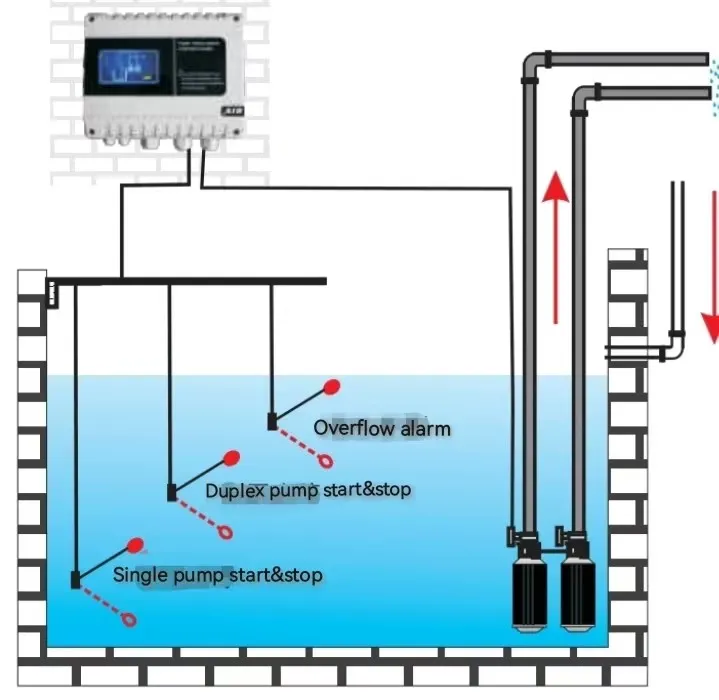

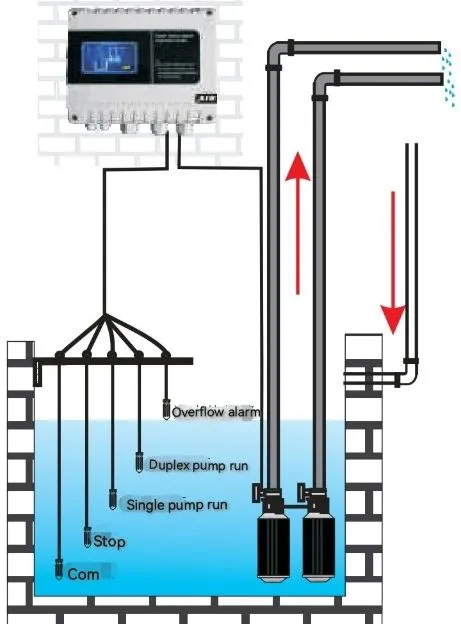

💡 Typical Application Example

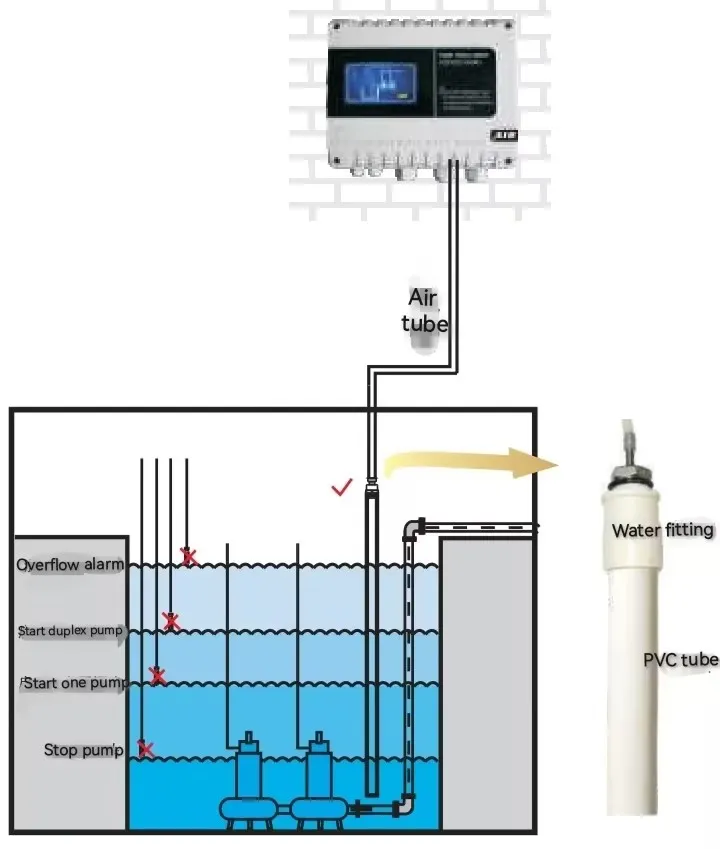

Connectable Sensors: Liquid probe (standard accessory), Pressure switch, Float switch, or 4-20mA transmitter.

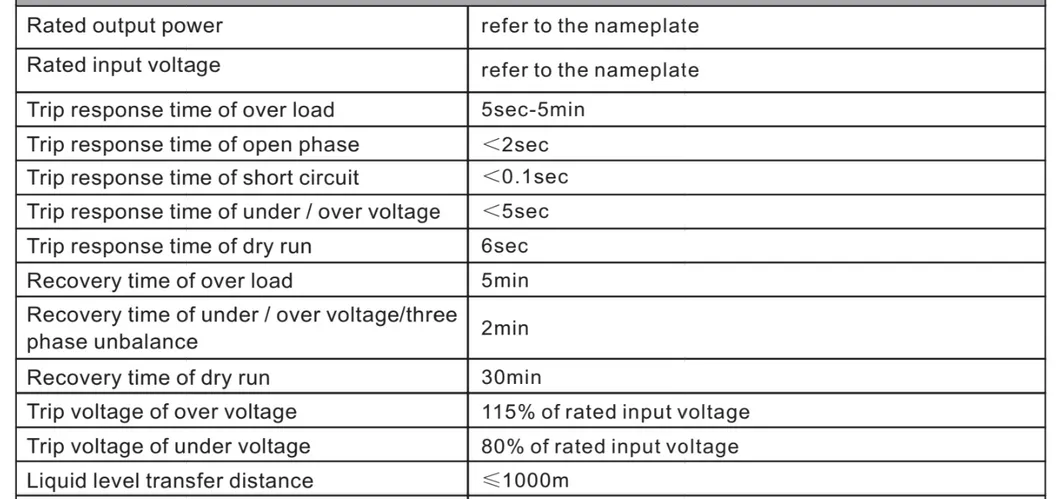

📊 Technical Parameters

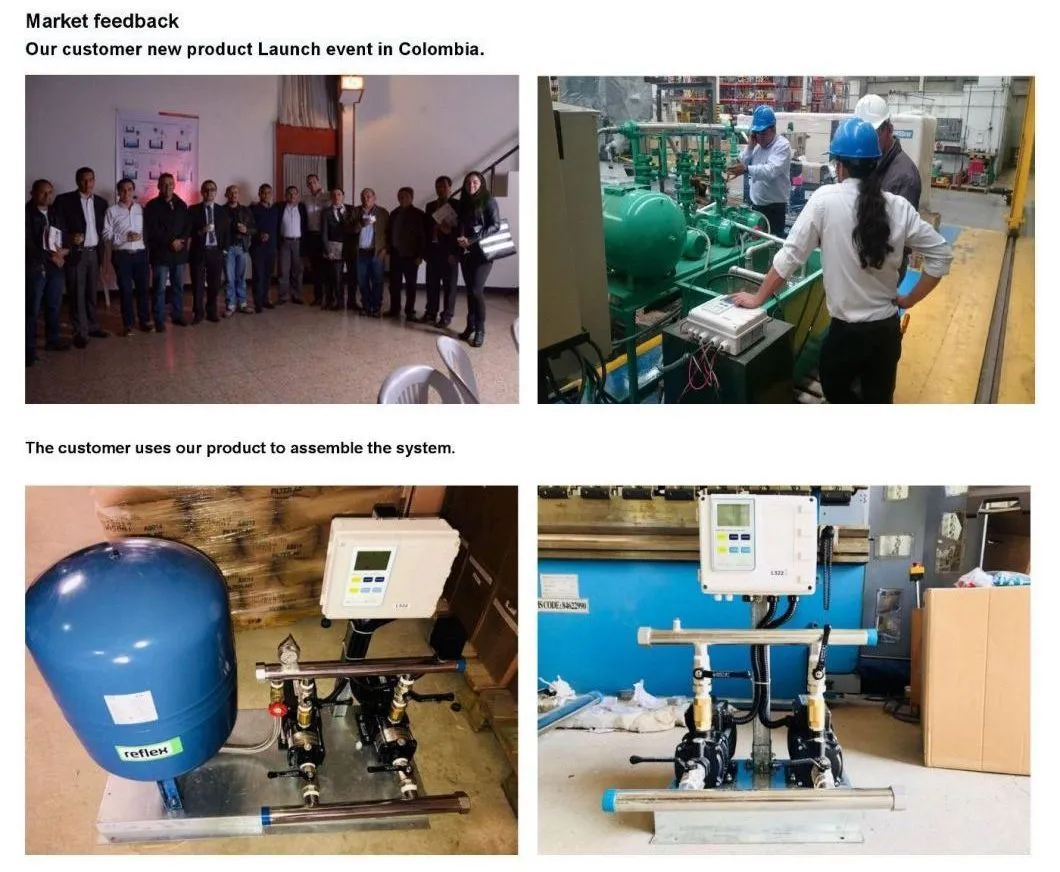

🏭 Manufacturing Facility & Ability

💳 Payment & Delivery Terms

❓ Frequently Asked Questions

Can I have some samples?

Yes, we can send you samples for testing. Please contact us for specific arrangements and details.

What's the delivery time?

For standard pump control panels, it usually takes about 7 working days. For non-standard or customized orders, it typically takes 15-20 days.

Can I do OEM or ODM?

Yes, we have our own engineering team and accept both OEM and ODM orders, subject to minimum ordering quantity requirements.

How does your factory handle quality control?

Our production process follows ISO standards. We control quality from raw materials to finished products; each panel is fully assembled and strictly tested before shipping.

What is the approximate life time for your control panel?

The designed life time of our control panels is approximately 8 years under normal operating conditions.

What is your after-sales service policy?

Depending on the order quantity, we provide free spare parts or controllers for maintenance and replacement, along with technical training support.
