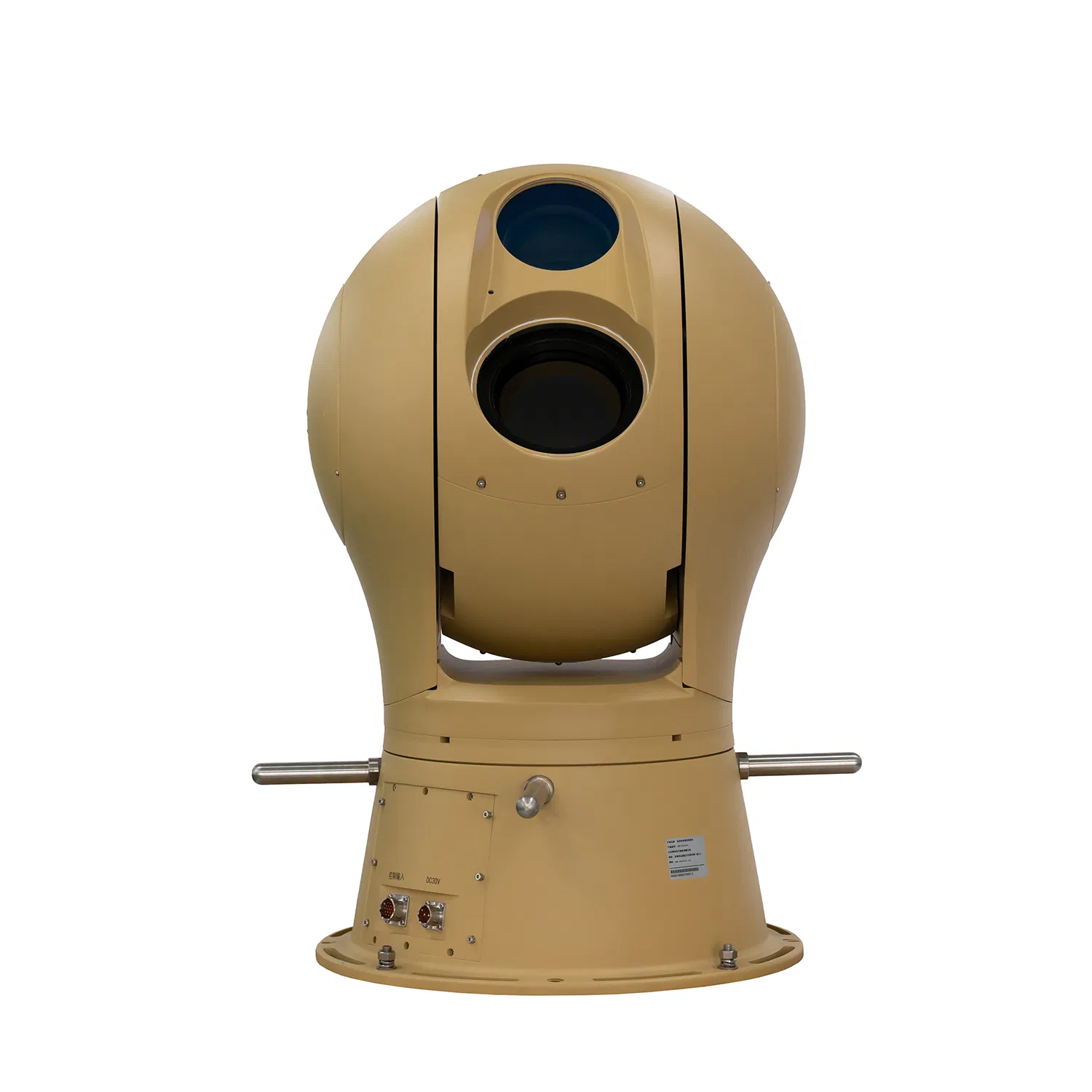

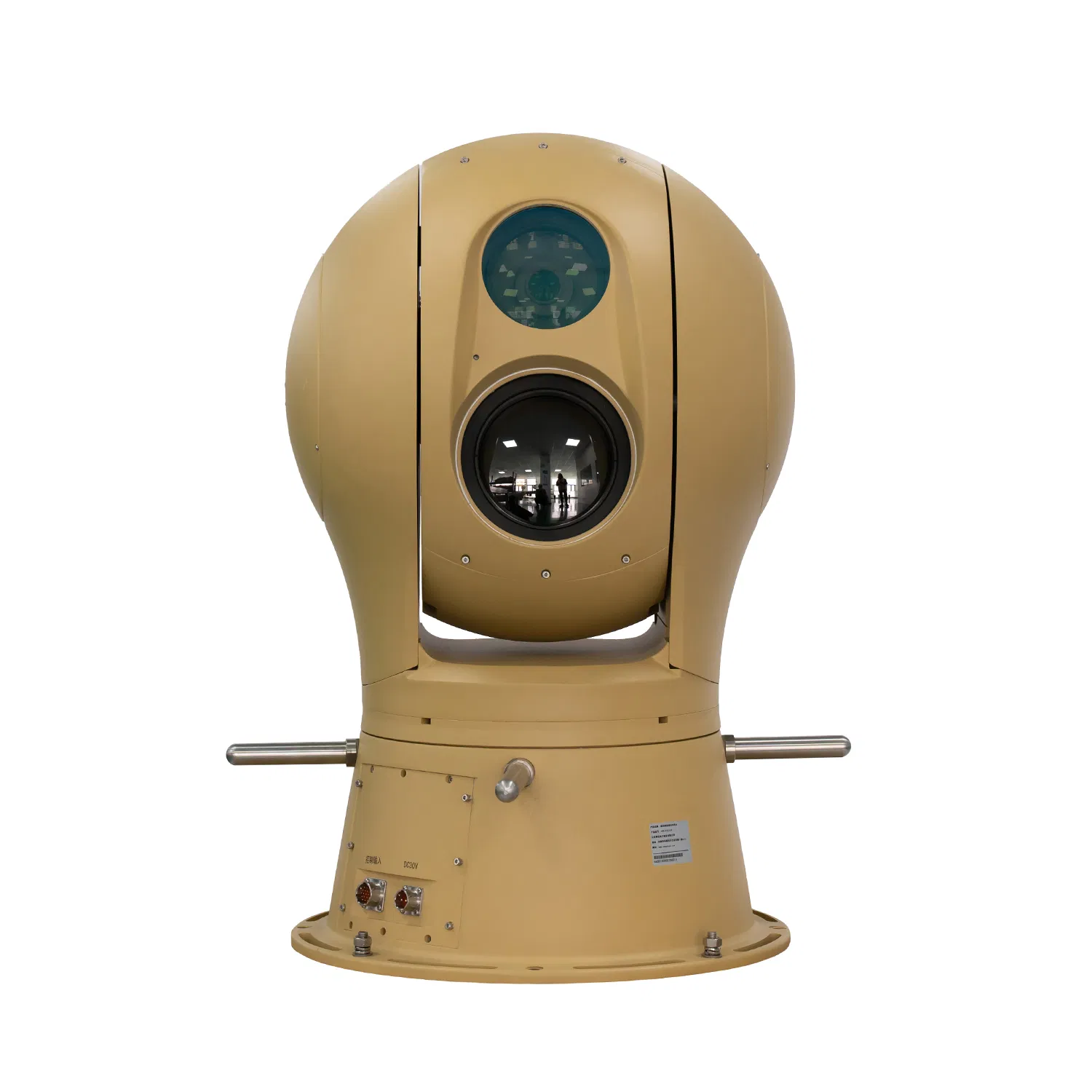

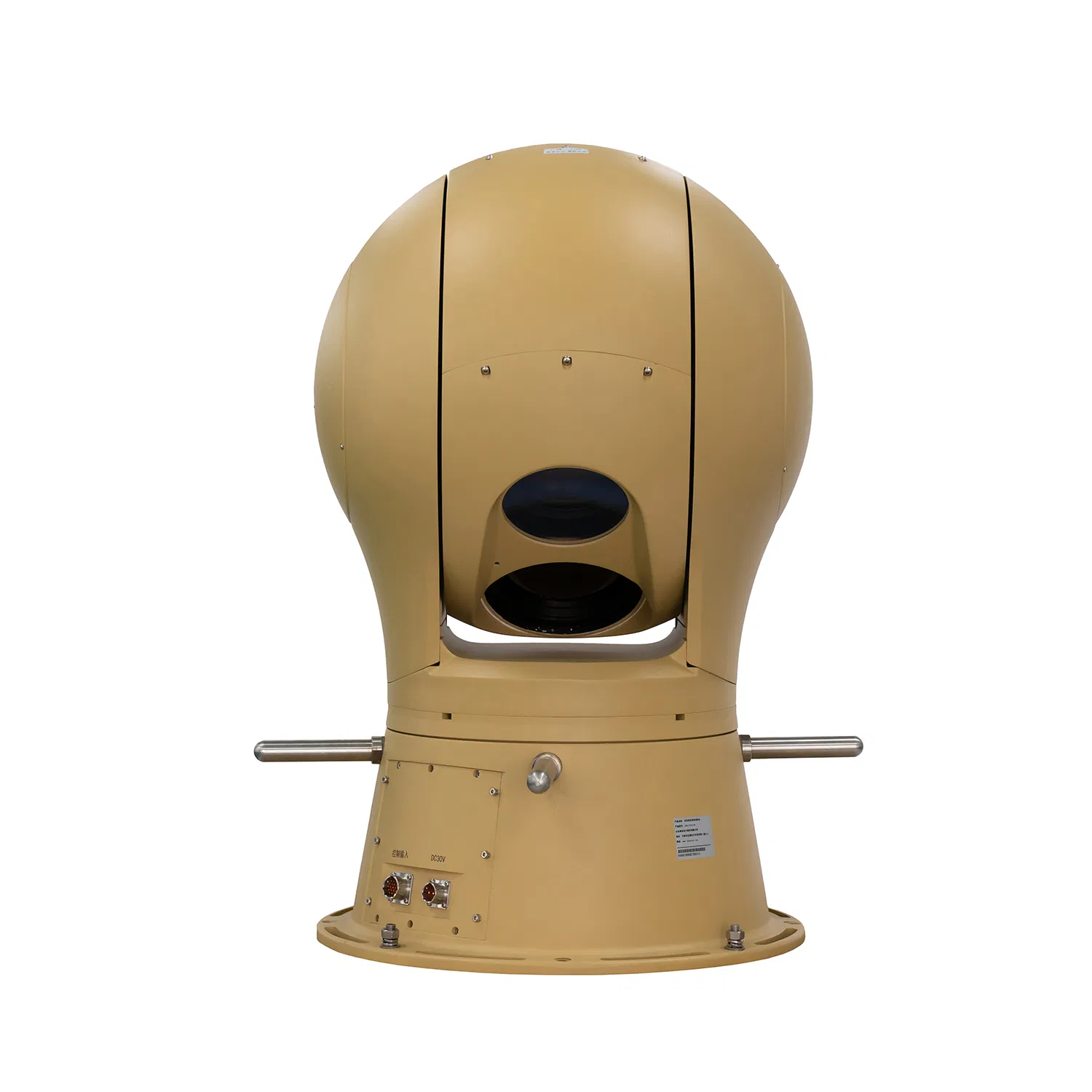

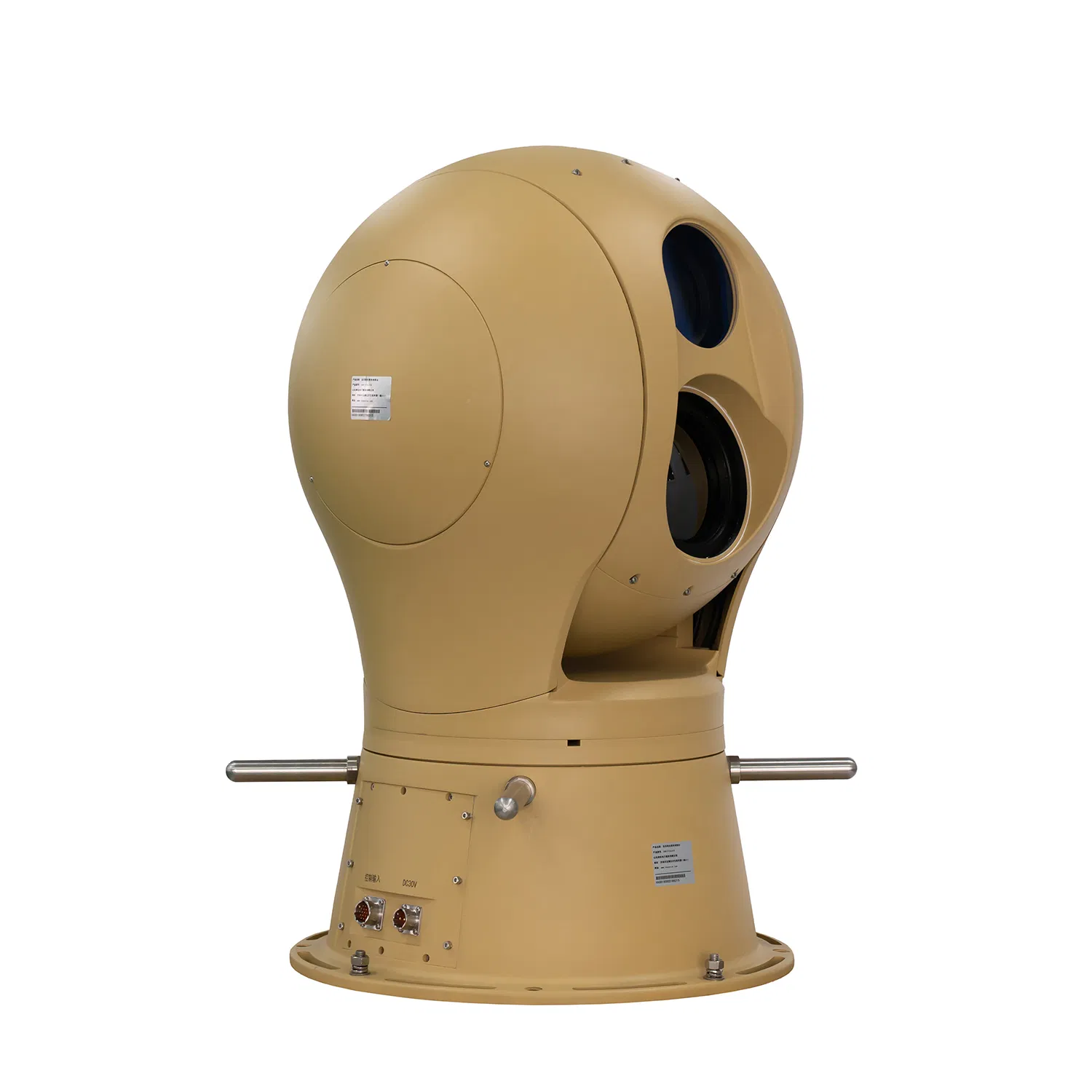

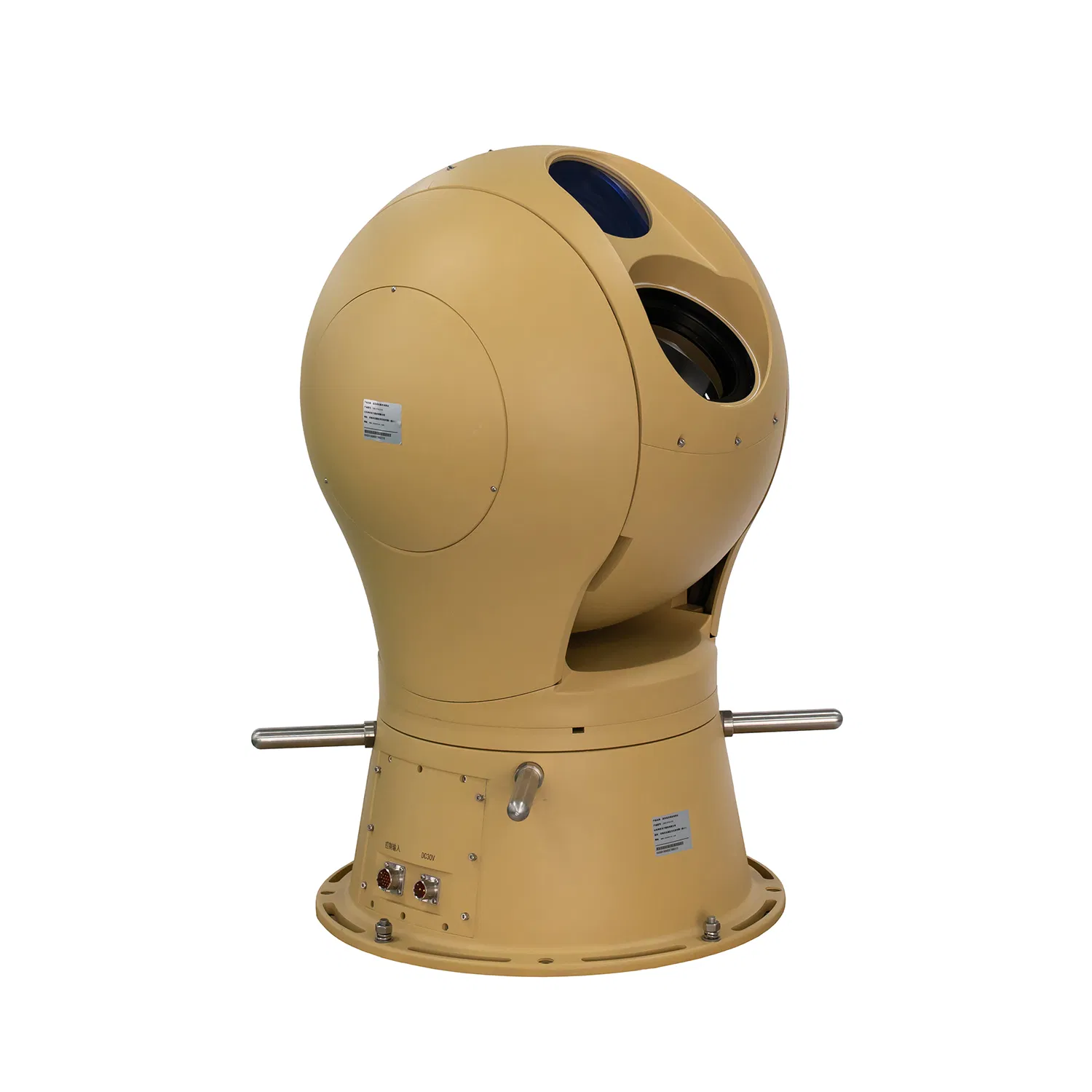

Ultra Long Range Day and Night Surveillance Ball-Shaped Cooled Thermal Surveillance System
Ultra Long Range Day and Night Surveillance Ball-Shaped Cooled Thermal Surveillance System
Ultra Long Range Day and Night Surveillance Ball-Shaped Cooled Thermal Surveillance System
Ultra Long Range Day and Night Surveillance Ball-Shaped Cooled Thermal Surveillance System
Ultra Long Range Day and Night Surveillance Ball-Shaped Cooled Thermal Surveillance System
1 / 5
Ultra Long Range Day and Night Surveillance Ball-Shaped Cooled Thermal Surveillance System
Ultra Long Range Day and Night Surveillance Ball-Shaped Cooled Thermal Surveillance System
Ultra Long Range Day and Night Surveillance Ball-Shaped Cooled Thermal Surveillance System
Ultra Long Range Day and Night Surveillance Ball-Shaped Cooled Thermal Surveillance System
Ultra Long Range Day and Night Surveillance Ball-Shaped Cooled Thermal Surveillance System

Ultra Long Range Day and Night Surveillance Ball-Shaped Cooled Thermal Surveillance System

Customization: Available
Technology: Electro Optical System
Style: Electro Optical System
Send Inquiry

Product Description

Basic Specifications

Model NO.
SHR-PT501HLV3020ZIR700
Type
Electro Optical System
Sensor
Vox and CMOS
Effective Distance
7.7km (Human), 22km (Vehicle)
Horizontal Resolution
1920*1080
Thermal Lens
35~700mm
Day Camera Lens
12.5~750mm
Ingress Protection
IP66
Feature
Waterproof, High Definition, Vandal-proof
Certification
CE, FCC, ISO9001

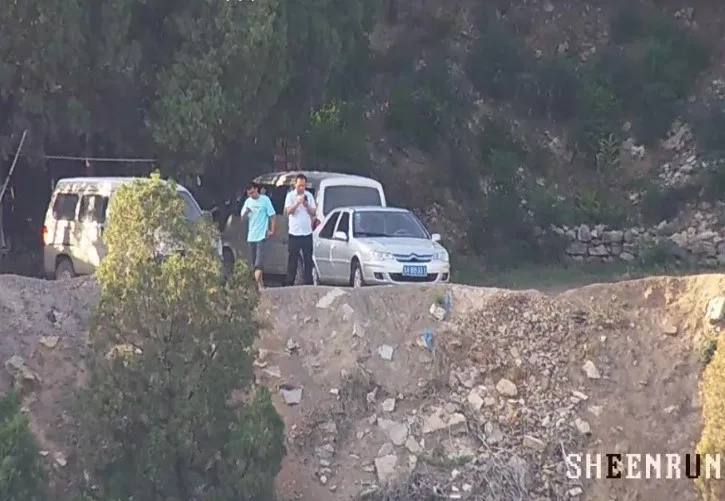

Thermal Surveillance System Side View

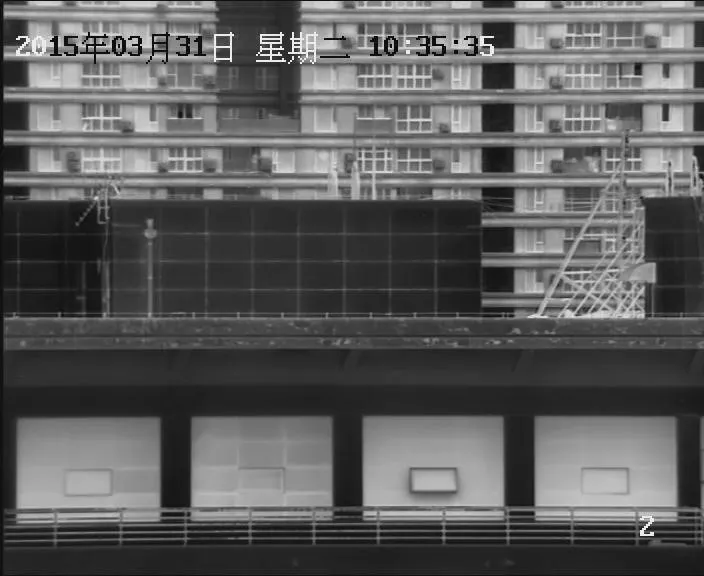

Thermal Surveillance System Front View

Key Features

  • Continuous Zoom Technology: Powerful fog penetration and long-distance target detection for both wide-range search and close-range observation.
  • Dual-Sensor System: 2MP low illuminance color camera paired with thermal imaging for 24/7 continuous monitoring.
  • Intelligent Autofocus: Multi-position identification technology ensuring fast focusing across various trigger modes.
  • Smart PTZ Control: Universal variable speed PTZ achieving blind-free monitoring with high-precision positioning and power-off memory.
  • Remote Maintenance: Supports online upgrades and remote restart functions via network control software.
  • Ruggedized Design: Professional shell resistant to high temperatures, corrosion, acid rain, and water (IP66).

Technical Specifications

Operating Distance Visible Light: 5000 ~ 8000m
Thermal (Detection): Human 15.4km / Vehicle 22km (approx.)
HD Lens 12.5~750mm, 60X optical zoom, Auto Aperture, Manual/Auto Focus
Day Camera 1/1.8" Progressive Scan CMOS, 2.1MP, H.265/H.264/MJPEG, 3D Noise Reduction
Thermal Detector Cooled Sensor, 640×512 Resolution, 3.7~4.8μm Spectral Range
Pan-Tilt (PTZ) Horizontal 360° continuous, Pitch -45°~+45°, Speed up to 80°/s, 255 Presets
Environmental Working Temp: -25ºC~+55ºC, IP66 Protection, Built-in Temp Control
Physical Power: DC30V (Max 250W), Weight: ≤60kg, Dimensions: 600×600×937mm

Professional Services

Warranty
Standard one year with extended options available.
Support
Life-long technical support and professional troubleshooting.
Manufacturing
OEM and customized product development accepted.

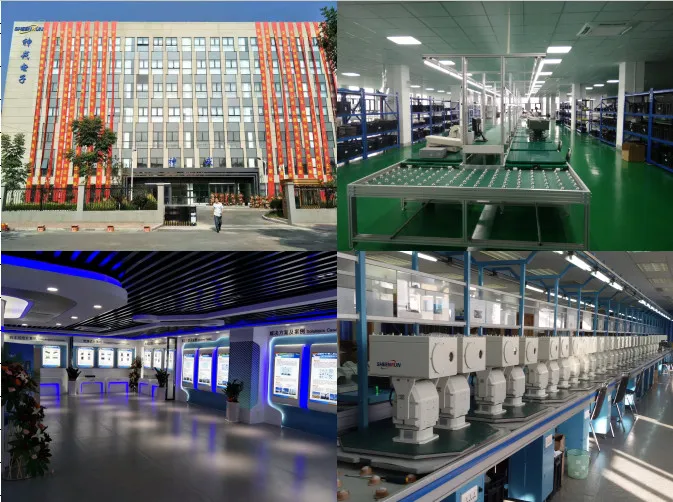

Thermal Imaging Technology Application

Frequently Asked Questions

What is the maximum detection range of this system?
The system features ultra-long-range capabilities, detecting humans up to 15.4km and vehicles at even greater distances depending on environmental conditions.
Can this camera operate in harsh weather conditions?
Yes, it is IP66-rated and built with high-strength aluminum alloy. It includes built-in temperature adjustment for heating, dehumidification, and defrosting.
Does the system support night vision?
Absolutely. It utilizes a dual-sensor approach combining high-resolution thermal imaging with a 2MP low-light color camera for true 24/7 surveillance.
What kind of zoom capabilities does the day camera have?
The HD visible light lens offers a powerful 60X optical zoom, ranging from 12.5mm to 750mm focal length.
Is the PTZ movement precise enough for long-range tracking?
Yes, the pan-tilt unit provides high-precision positioning with a preset accuracy of ±0.01° and supports 360° continuous rotation.
Can the software be updated remotely?
Yes, the front-end equipment supports online upgrades via the network, making maintenance convenient and efficient.
