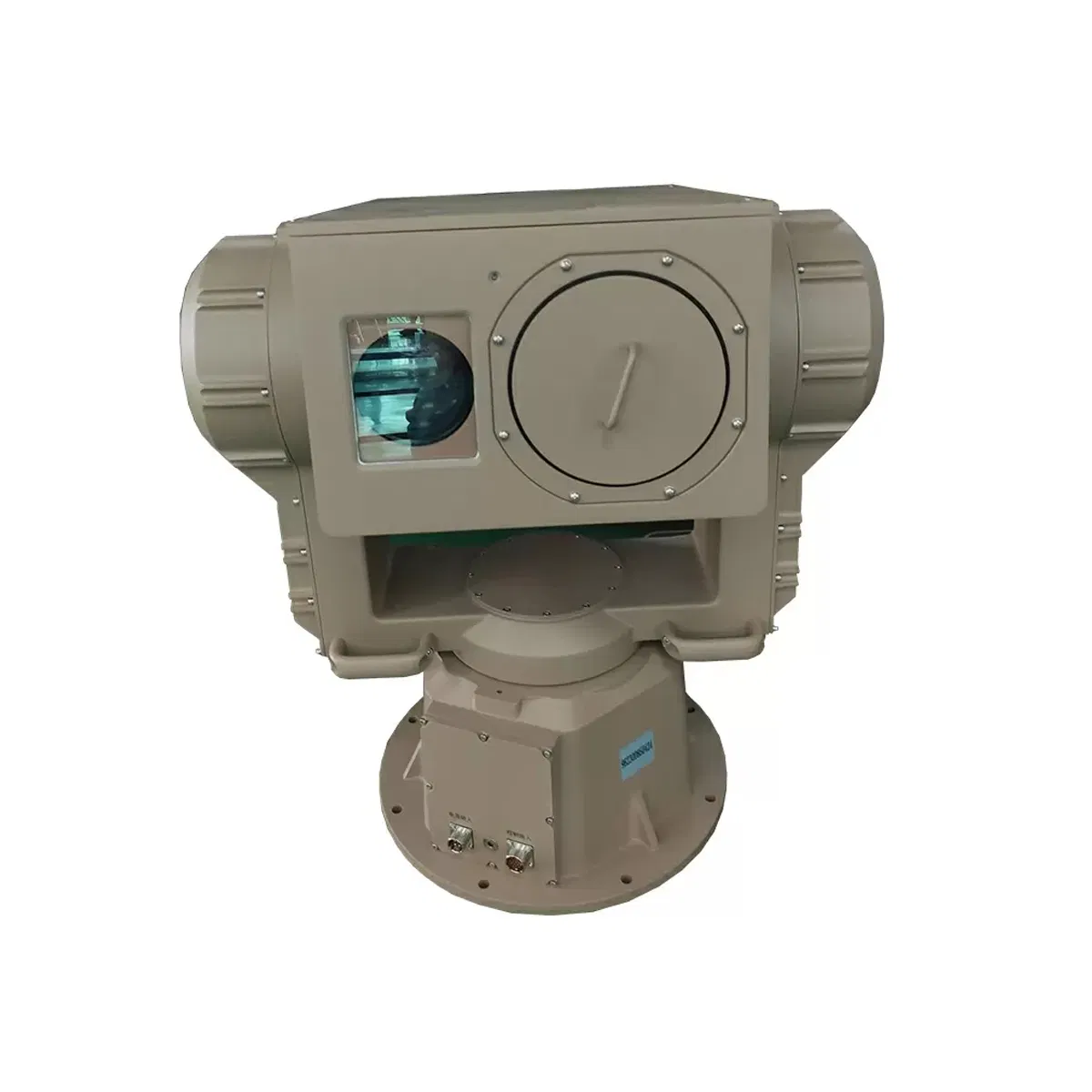

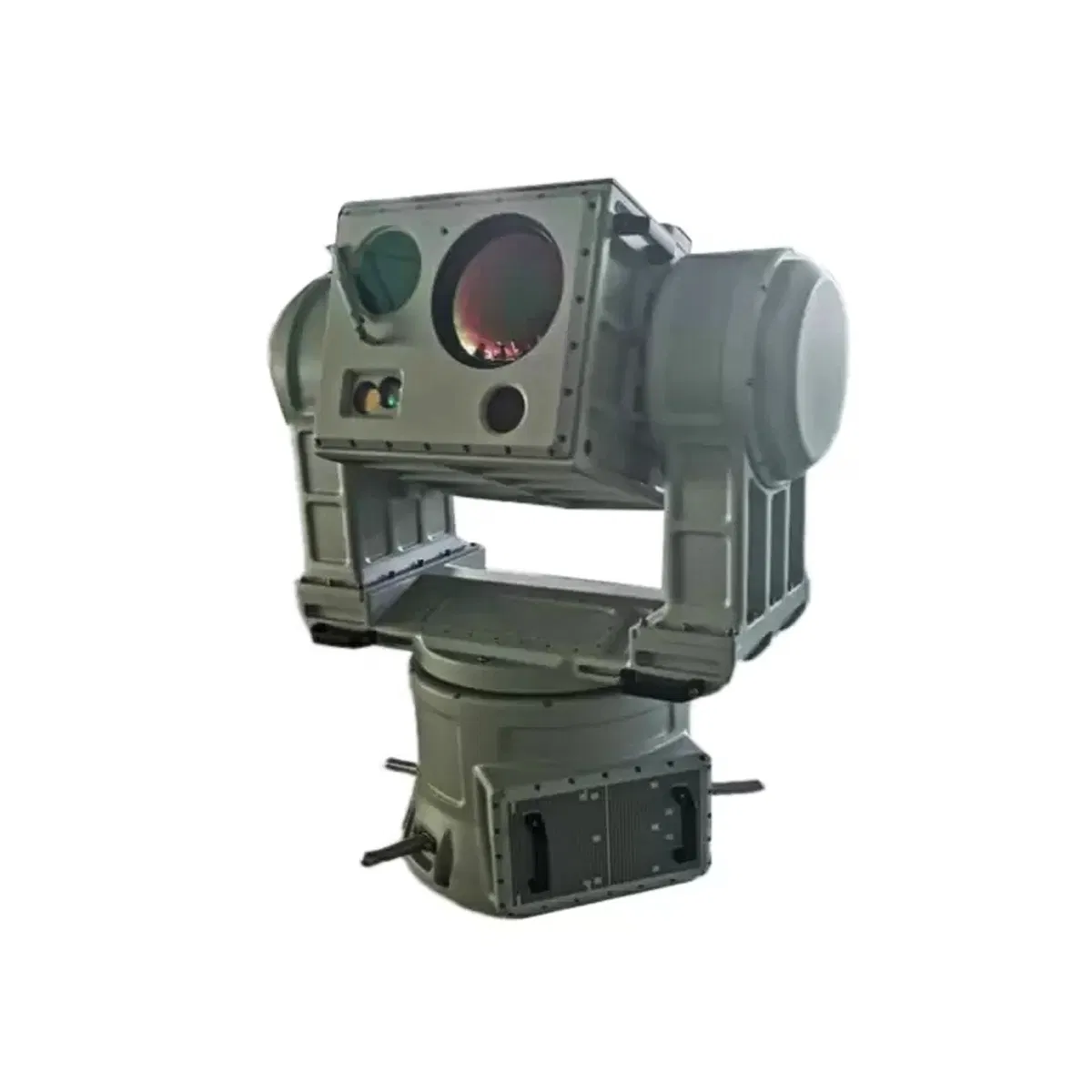

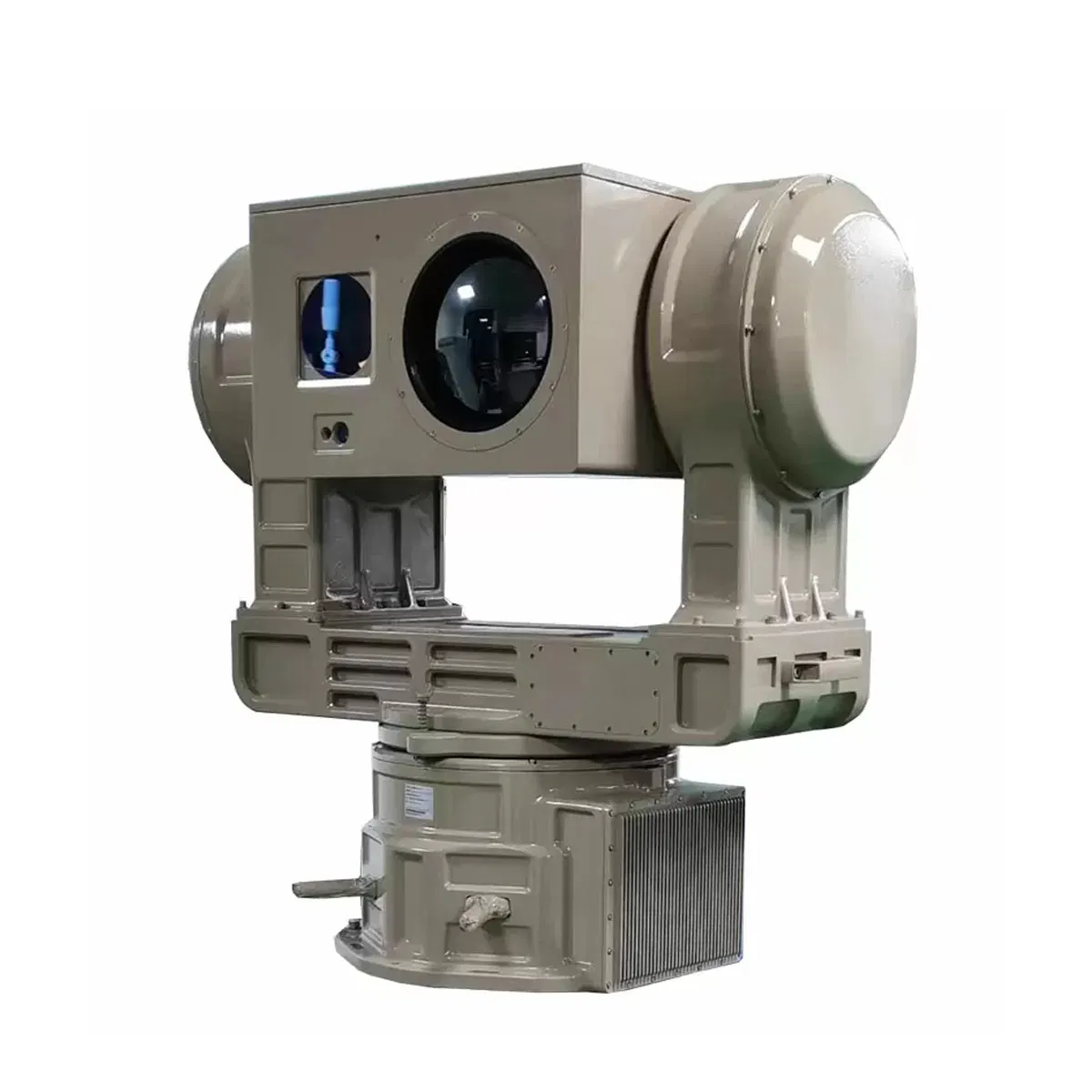

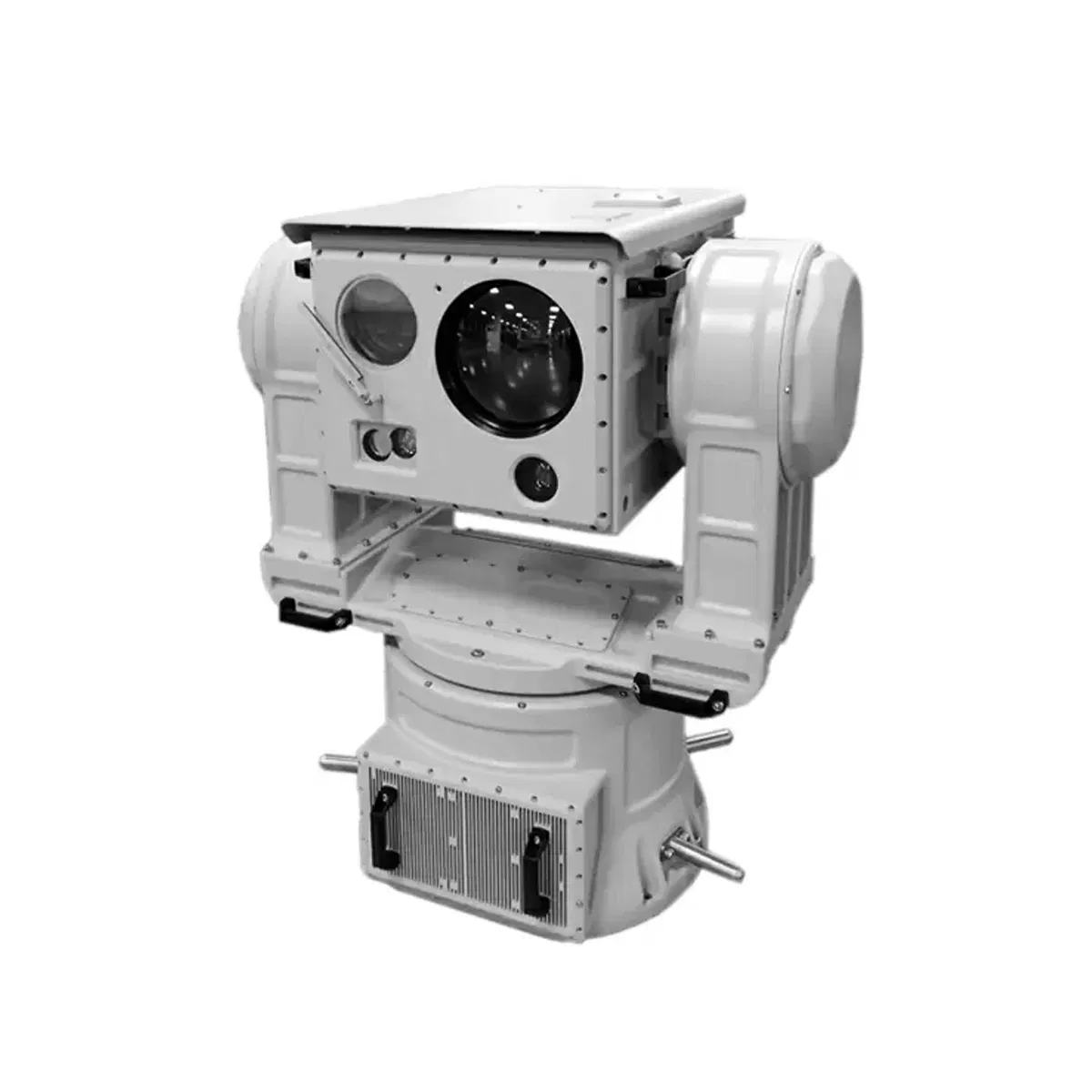

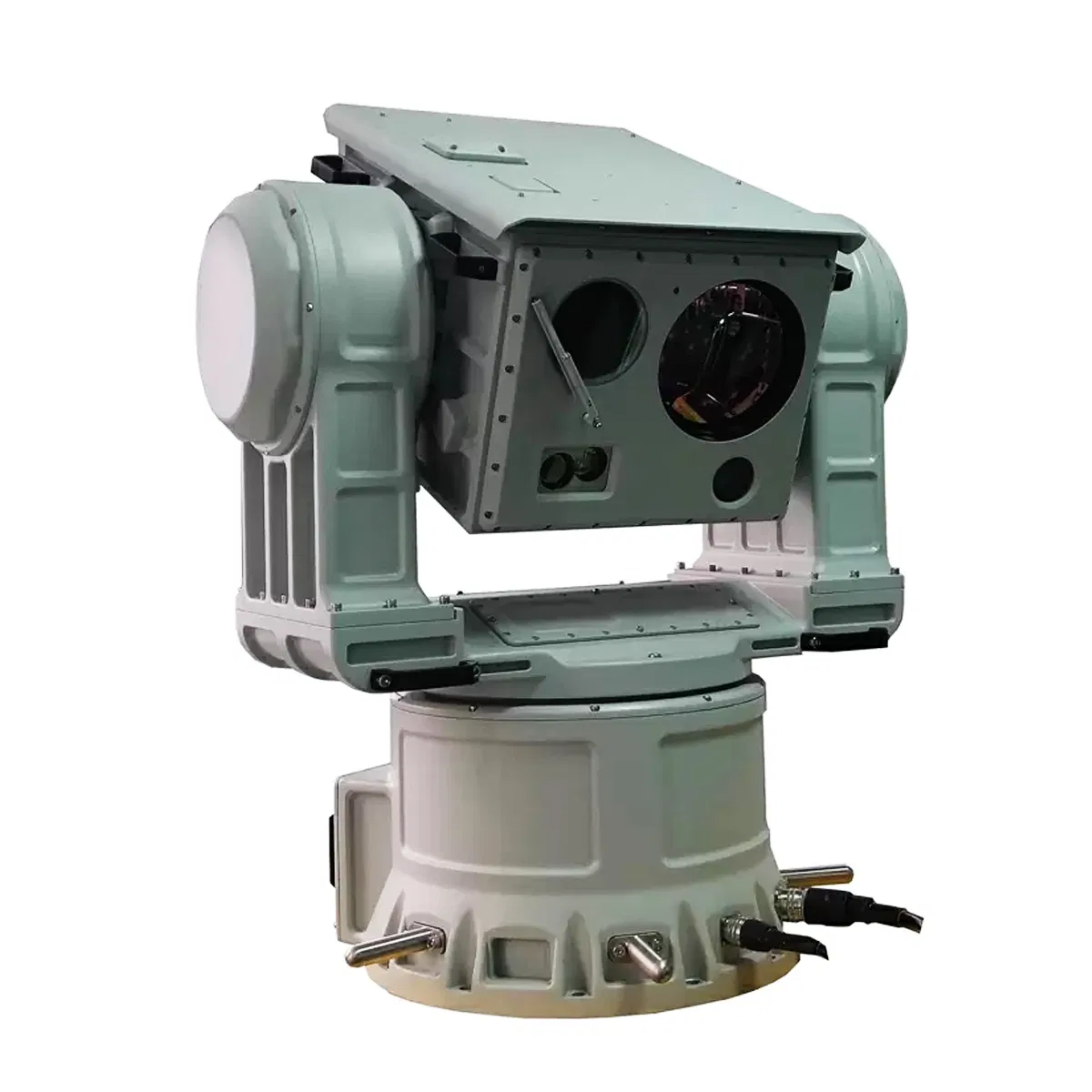

U Shape 5-20km Auto Tracking Cooled Thermal Camera System
U Shape 5-20km Auto Tracking Cooled Thermal Camera System
U Shape 5-20km Auto Tracking Cooled Thermal Camera System
U Shape 5-20km Auto Tracking Cooled Thermal Camera System
U Shape 5-20km Auto Tracking Cooled Thermal Camera System
1 / 5
U Shape 5-20km Auto Tracking Cooled Thermal Camera System
U Shape 5-20km Auto Tracking Cooled Thermal Camera System
U Shape 5-20km Auto Tracking Cooled Thermal Camera System
U Shape 5-20km Auto Tracking Cooled Thermal Camera System
U Shape 5-20km Auto Tracking Cooled Thermal Camera System

U Shape 5-20km Auto Tracking Cooled Thermal Camera System

Customization: Available
Type: Monitoring System
Application: All-Round Monitoring, Sound Monitoring
Send Inquiry

Product Description

Basic Specifications
Model NO.
UPTHLV3020HVIR186
Feature
Waterproof / Weatherproof, High Definition
Capture System
Video Camera
Transmission
Wireless Transmission
Software Function
Monitoring
Usage
Vehicle / Computer Monitoring
Sensor
CMOS
Technology
Pan / Tilt / Zoom
Protection Grade
IP66
Effective Distance
14.4km
Installation
Outdoor Pedestal Mounting
PTZ Angle
P: 0~360° T: -60°~+20°
Product Features
✔
Adopting thermal imaging technology, providing clear imaging for large area searching and long-distance objective recognition.
✔
640× 512 high resolution infrared detector with NETD≤ 50mK.
✔
Day and night 2 megapixels low illuminance color camera for continuous 24-hour monitoring.
✔
Optional auto-focusing function with multiple triggering modes.
✔
3D locating function for precise frame selection, magnifying, and centering.
✔
High reliability aluminum alloy electro-optical pantilt with reinforced design for anti-wind and anti-corrosion resistance.
Technical Indicators
Specifications Thermal Camera System Details
Monitoring Distance (HD Camera) 5000m - 10000m Depending on specific model configuration
Thermal Detector Pixel 640×512 High resolution infrared focal plane array
Spectral Range 3~5μm / 8~14μm Optional based on detector type
Video Resolution 25fps (2688×1520) Support dual stream, H.264/H.265 coding
PTZ Speed Pan: 0.01°~ 80°/s; Tilt: 0.01°~ 60°/s Precise control with ±0.05° accuracy
Environment Protection IP66 -25ºC~ +55ºC working temperature range
Product Display

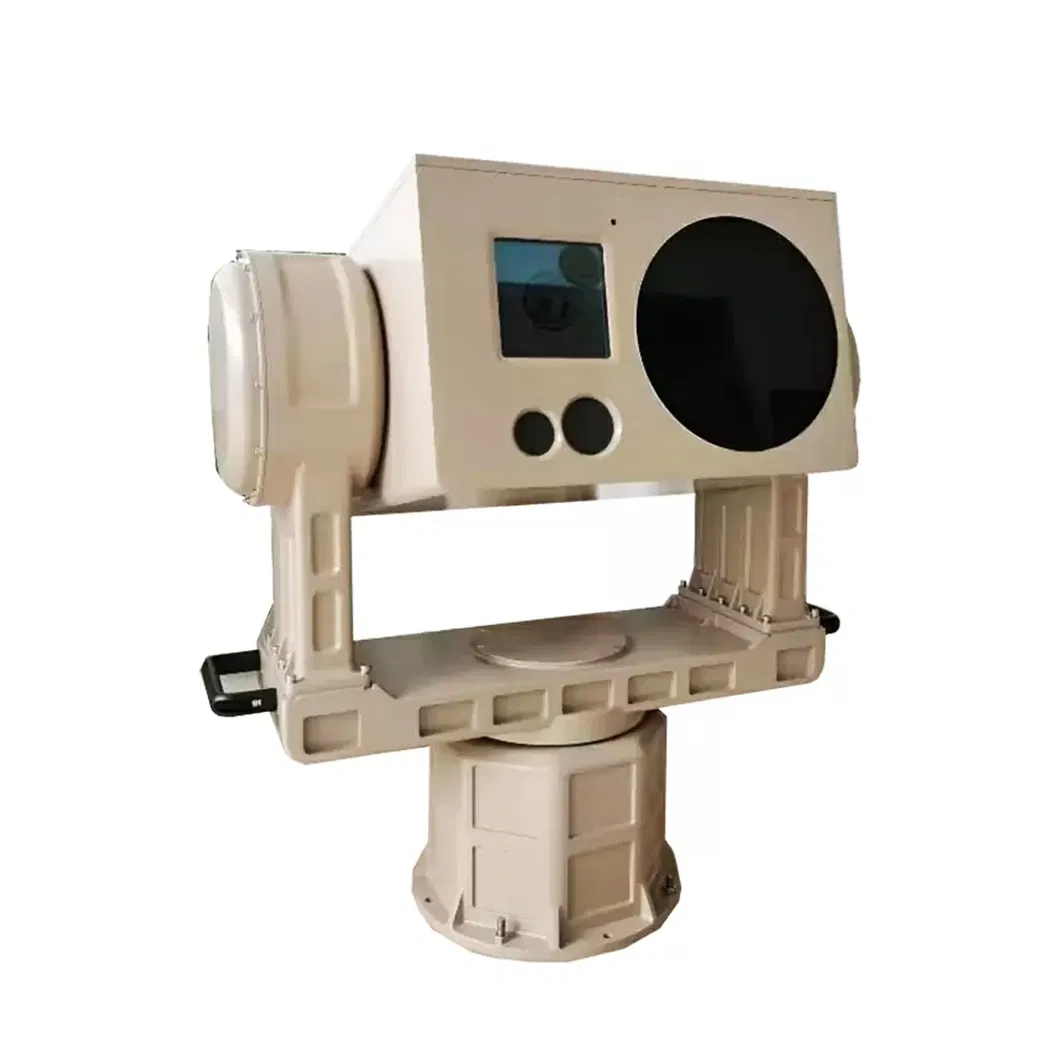

Thermal Camera System 1
Thermal Camera System 2
Thermal Camera System 3
Application & Demos

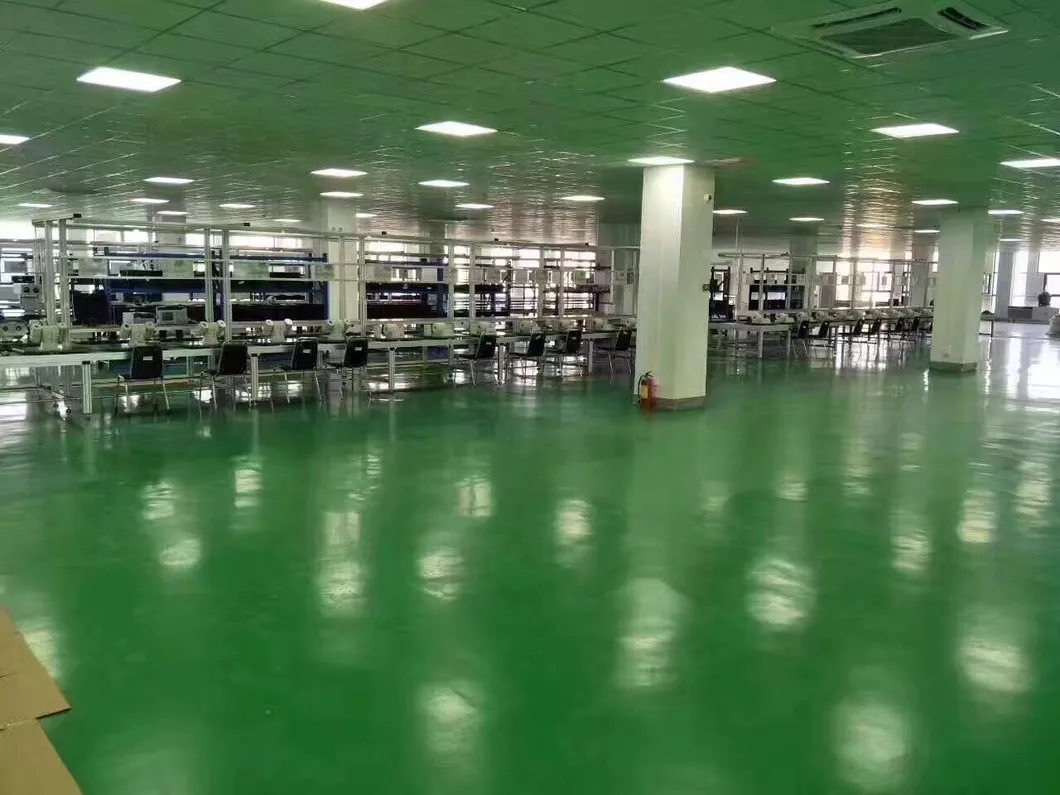

Demo 1

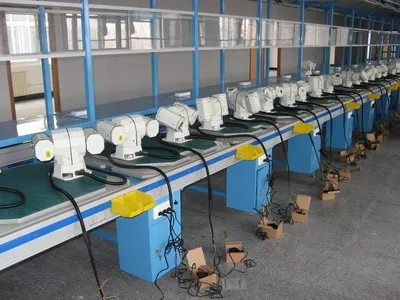

Demo 2

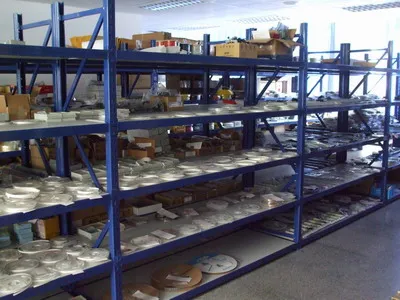

Demo 3
Visual Performance

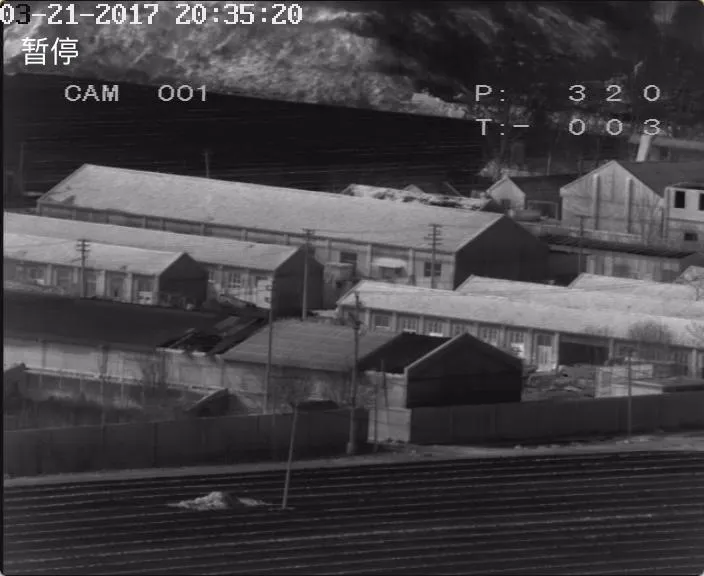

Effect Demo 1

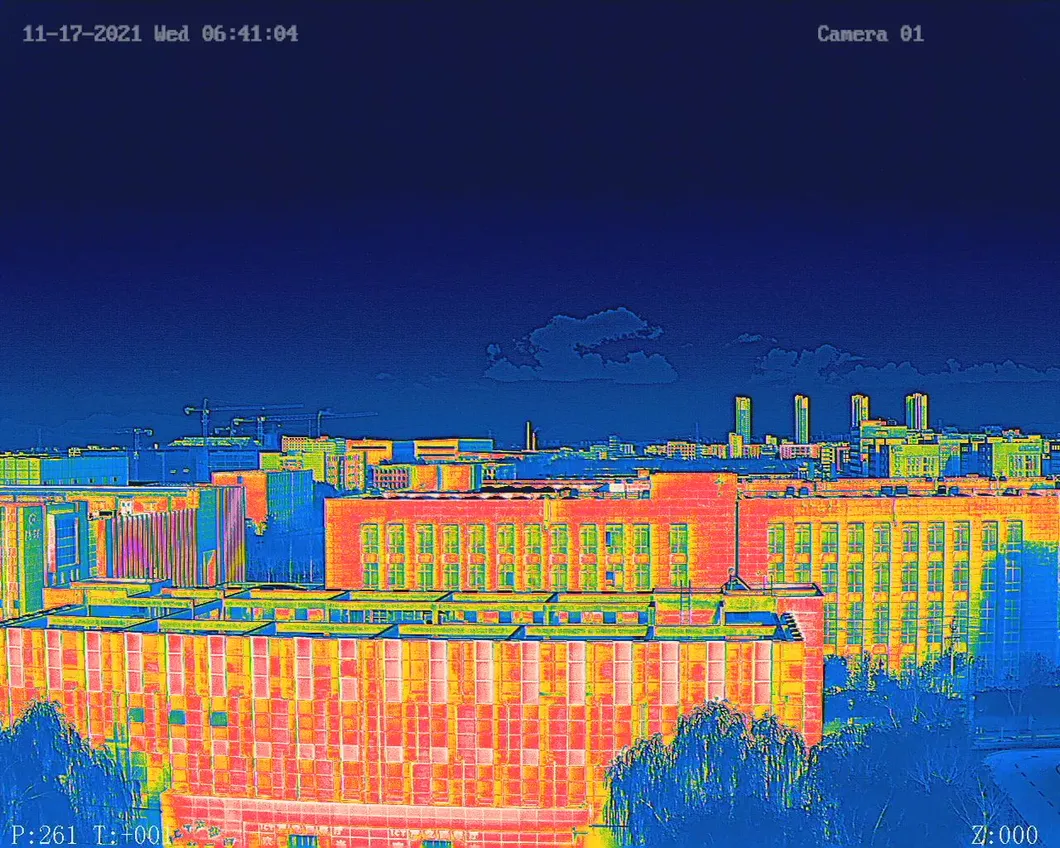

Effect Demo 2
Packaging & Usage
Shipping

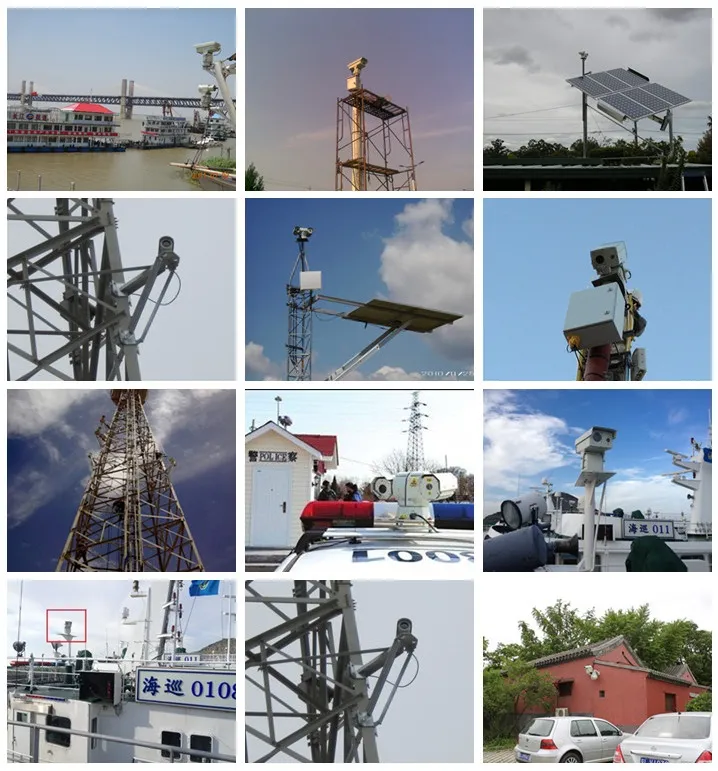

Application Chart
About Our Expertise

Founded in 2004, our company is a leading supplier of night vision equipment and rugged information solutions. We specialize in independent innovation, having developed advanced laser night vision cameras and uncooled continuous zoom infrared thermal imaging systems. Our technical standards in synchronous zoom laser technology and continuous zoom thermal imaging have reached international levels, serving a global market with high-performance surveillance solutions.

Frequently Asked Questions
What is the maximum monitoring distance of this system?
The system supports long-range monitoring with an effective distance of up to 14.4km for vehicle detection and up to 10km for HD camera surveillance, depending on environmental conditions.
Is the camera suitable for harsh outdoor environments?
Yes, it features an IP66 protection grade, is waterproof and weatherproof, and is built with high-reliability aluminum alloy to resist salt fog and extreme temperatures.
Does the system support day and night monitoring?
Absolutely. It combines a 640x512 high-resolution thermal detector with a 2-megapixel low-illuminance color camera to provide continuous monitoring in all lighting conditions.
What are the PTZ capabilities?
The unit offers a 360° continuous pan range and a tilt range from -60° to +20°, with high-speed rotation and precision preset accuracy of ±0.05°.
What imaging enhancements does the software provide?
The system includes Digital Detail Enhancement (DDE), pseudo-color processing, 3D locating, auto-focusing, and 3D digital noise reduction for superior image quality.
How is the device installed?
The system is designed for outdoor pedestal mounting, making it ideal for border security, coastal surveillance, and large-scale facility monitoring.
