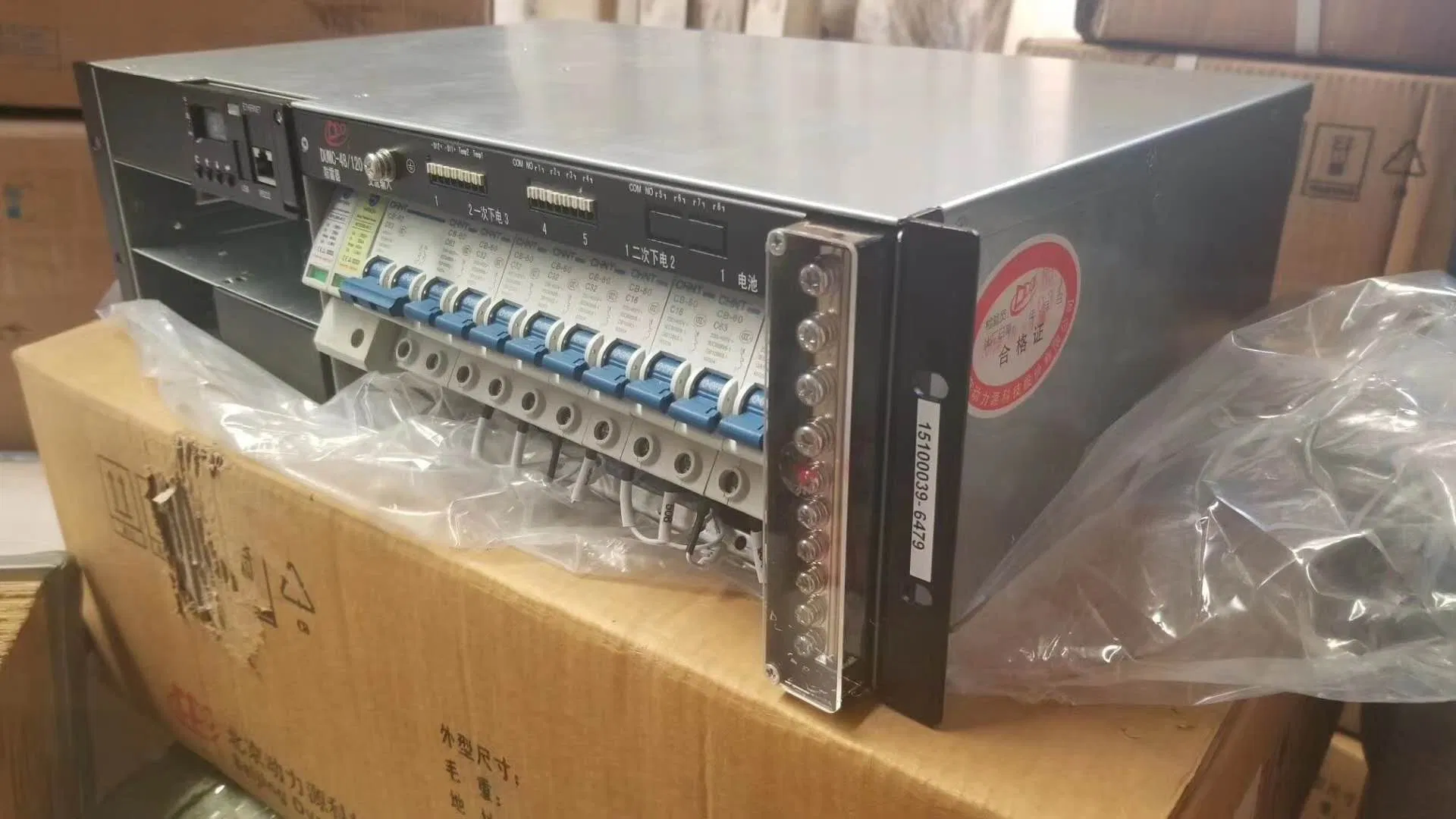

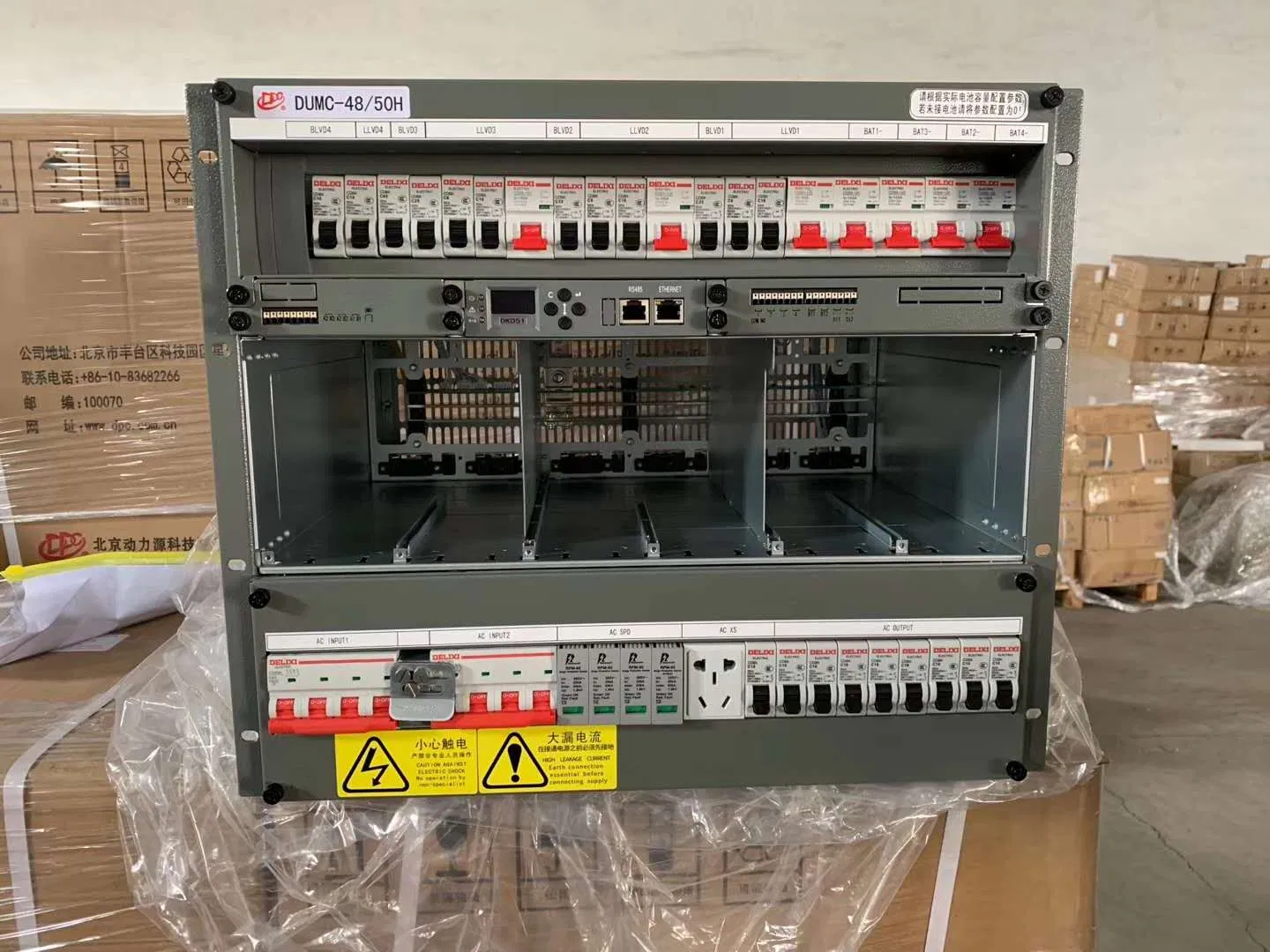

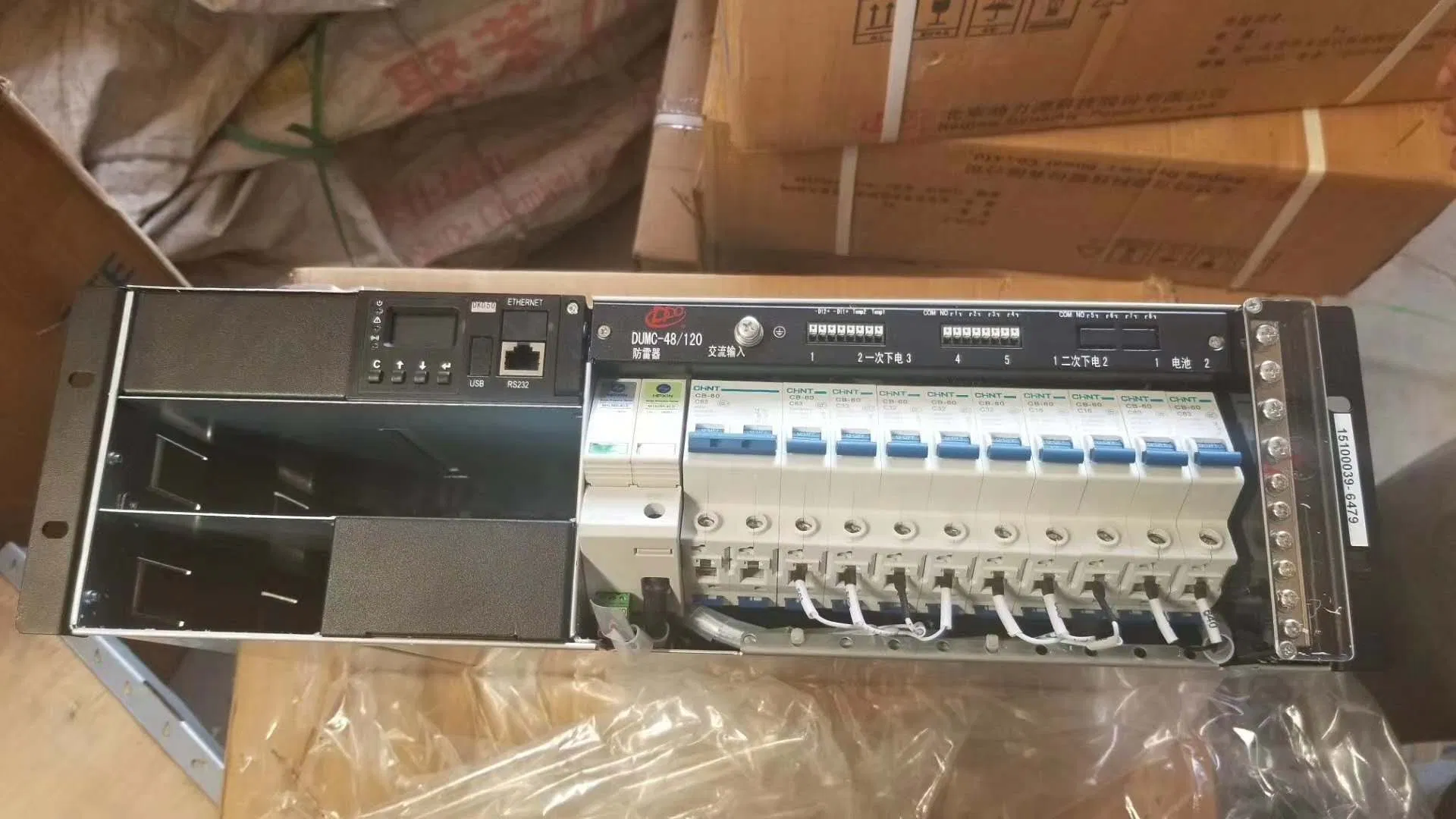

Smart Sys E2121300r48 Power System Dpc Dynamic Power
Smart Sys E2121300r48 Power System Dpc Dynamic Power
Smart Sys E2121300r48 Power System Dpc Dynamic Power
Smart Sys E2121300r48 Power System Dpc Dynamic Power
Smart Sys E2121300r48 Power System Dpc Dynamic Power
1 / 5
Smart Sys E2121300r48 Power System Dpc Dynamic Power
Smart Sys E2121300r48 Power System Dpc Dynamic Power
Smart Sys E2121300r48 Power System Dpc Dynamic Power
Smart Sys E2121300r48 Power System Dpc Dynamic Power
Smart Sys E2121300r48 Power System Dpc Dynamic Power

Smart Sys E2121300r48 Power System Dpc Dynamic Power

Customization: Available
Output Type: Multiple
Warranty: 1 Year
Send Inquiry

Product Description

Basic Info

Model NO.SYS E2121300R48
Output Power8kw
Input Voltage220V
Connection ModeSeries Switching Power Supply
Starting ModeSelf-excited Switching Power Supply
Voltage RegulatingFrequency Modulation Type
Power SystemTerminal Power Distribution Equipment
Energy TransmissionTwo-way Transmission
Modulation SystemPWM
CertificationCE, RoHS, ISO, CCC, CB, FCC
BrandDpc
Transport PackageCarton
OriginChina
HS Code8504401990
Production Capacity1000 Sets/Month

Product Overview

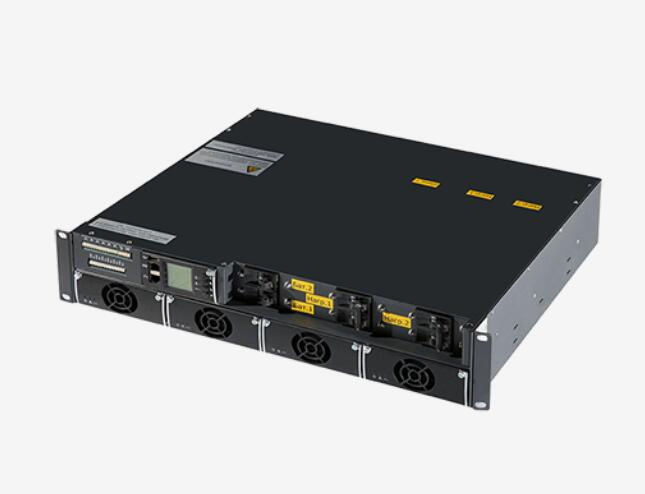

Smart SYS E2121300R48 system is a compact and intelligent power system. It is designed to house up to 4*2KW rectifiers and 1*SC500 controller, providing reliable dynamic power solutions for modern infrastructure.

  • Dry contact use front access and front operation
  • AC input and DC output use rear access and rear connection
  • Compact design with easy installation
  • Two levels Low Voltage Disconnect (LVD) protection
  • Dual battery MCBs configuration
  • Compatible with various rectifiers of the same size

Key Features

  • 19'' 2U sub-rack: Easily embedded into standard telecom equipment.
  • 8kW Capacity: High power density for demanding applications.
  • Power Factor: Up to 0.99 with intelligent fan-cooling.
  • Hot-swap: N+1 rectifier module redundancy for zero downtime.
  • Battery Management: Advanced monitoring and management.
  • ECO Mode: Optimized energy efficiency.

Technical Specifications

Input Voltage85VAC - 300VAC
Output Voltage-53.5V Rated output voltage
Input Current≤12A (Per rectifier)
Frequency45 ~ 65Hz
Voltage Regulation≤±1%
Current Sharing≤±5%
Efficiency≥92%
Ripple and Noise≤200mV Peak-Peak
Psophometric Noise≤2mV

Product Visuals

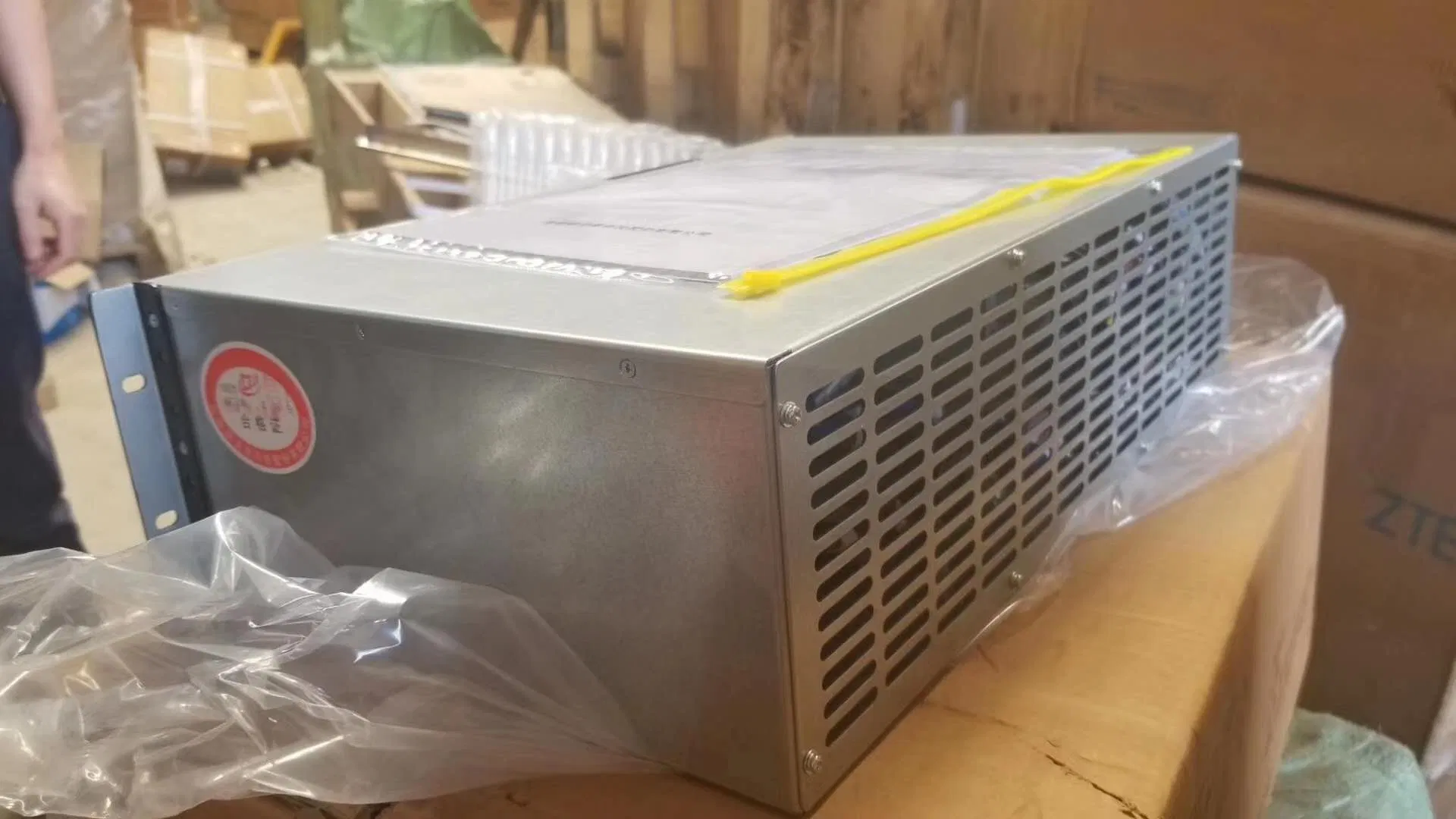

Smart Sys E2121300r48 Power System 1
Smart Sys E2121300r48 Power System 2
Smart Sys E2121300r48 Power System 3
Smart Sys E2121300r48 Power System 4

Frequently Asked Questions

What is the maximum capacity of the Smart SYS E2121300R48?
The system supports up to 8kW total capacity, utilizing up to 4 sets of 2kW rectifier modules.
Is the system compatible with standard server racks?
Yes, it features a standard 19-inch 2U sub-rack design, making it easy to embed into all standard telecom and networking equipment.
Does the power system support hot-swapping?
Yes, the rectifier modules support hot-swapping and N+1 redundancy, ensuring continuous operation during maintenance or module replacement.
What are the input voltage requirements?
The system accepts a wide input voltage range from 85VAC to 300VAC, with a rated output of -53.5V.
What safety certifications does this power system hold?
The product is fully certified with CE, RoHS, ISO, CCC, CB, and FCC standards, ensuring global compliance and safety.
What kind of battery protection is included?
It features two levels of Low Voltage Disconnect (LVD) protection and includes two dedicated battery MCBs for enhanced safety and battery life management.
