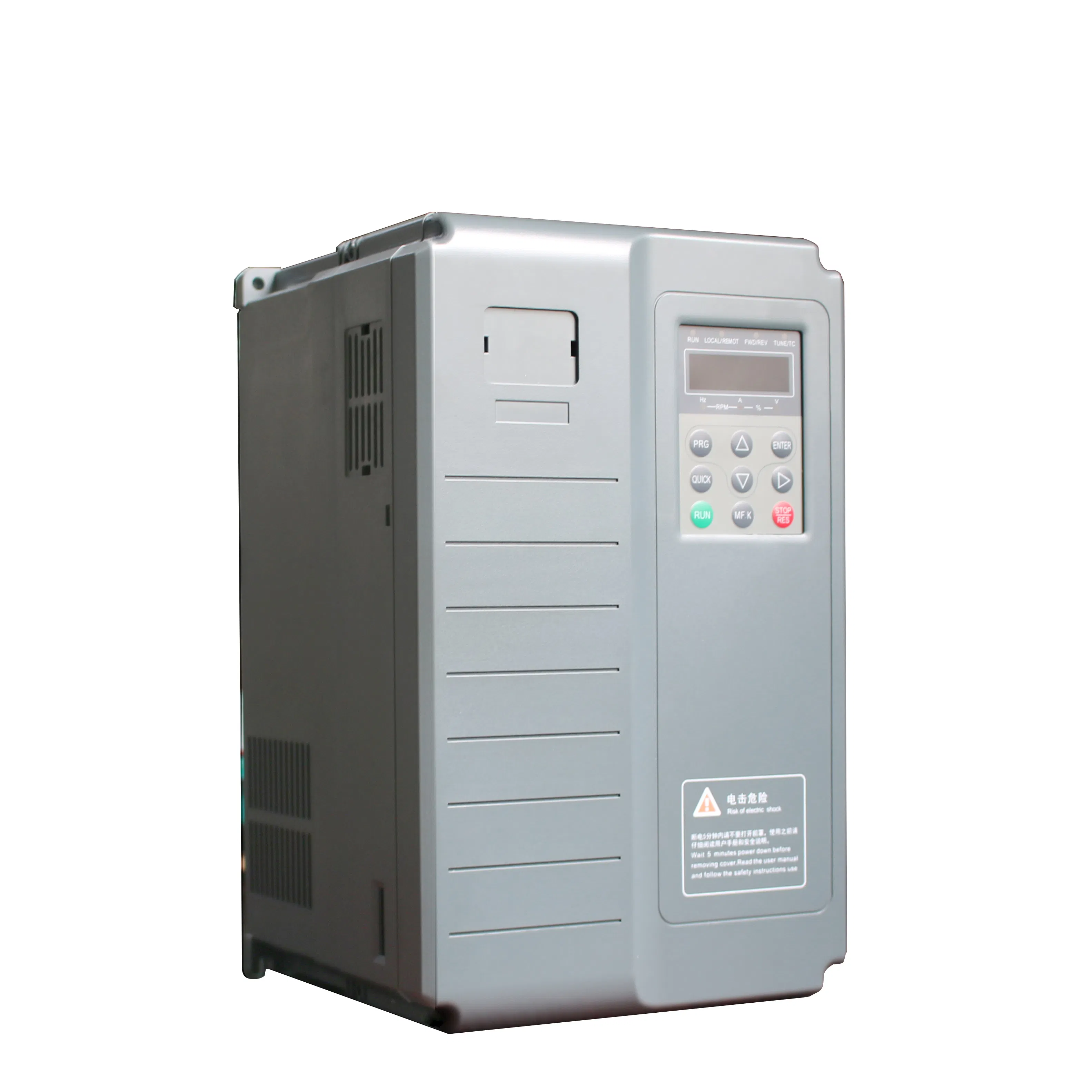

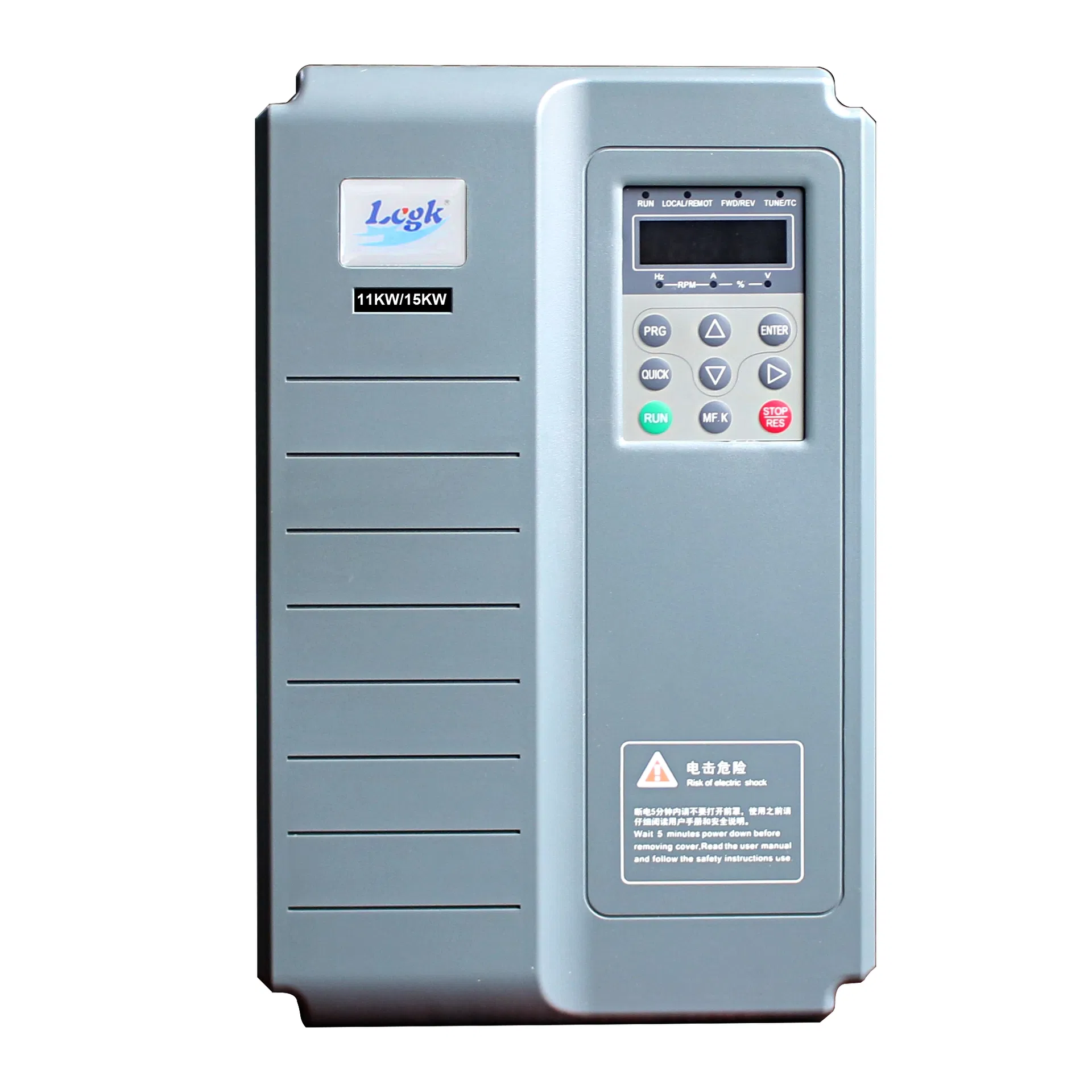

High-performance vector products integrate automatic control, motor drive, and system solution integration. These products include high-performance vector inverters, servo control systems, and AC permanent magnet synchronous motor drivers. They are widely used in petroleum, chemical, metallurgy, numerical control machinery, packaging machinery, textile machinery, food machinery, and various electrical control fields.
Equipped with key technologies such as high-performance vector frequency conversion and automatic control technology, the system ensures continuous core technology improvements and reliable performance for industrial applications.

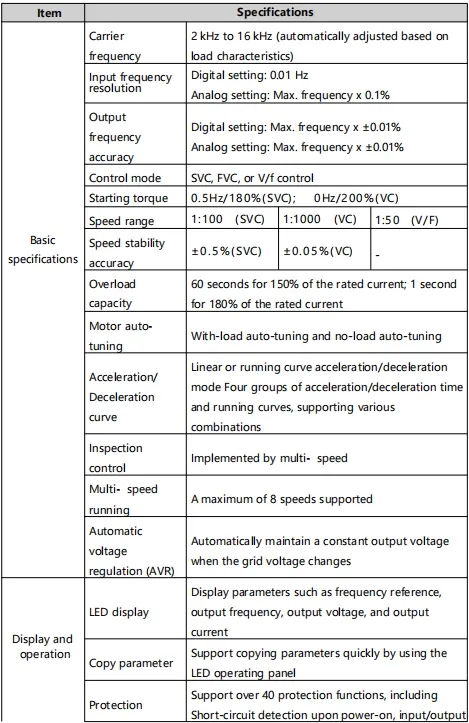

| Item | Technical Index | Specification |
|---|---|---|
| Input Voltage | Standard Range | 3AC 380V |
| Carrier Frequency | Adjustable Range | 2kHz~16kHz (Automatic adjustment) |
| Frequency Resolution | Digital Setting | 0.01Hz |
| Control Mode | Versatile options | V/f control, SVC (Sensorless), FVC (Close-loop) |
| Ramp Method | Acceleration/Deceleration | Linear or S-curve; 4 sets of time settings |
| Multi-speed | Operations | Up to 8 segments of speed operation |
| Power (kW) | Suitable Motor (kW) | Rated Output Current (A) |
|---|---|---|
| 7.5 | 7.5 | 18 |
| 11 | 11 | 27 |
| 15 | 15 | 33 |
| 18.5 | 18.5 | 39 |
