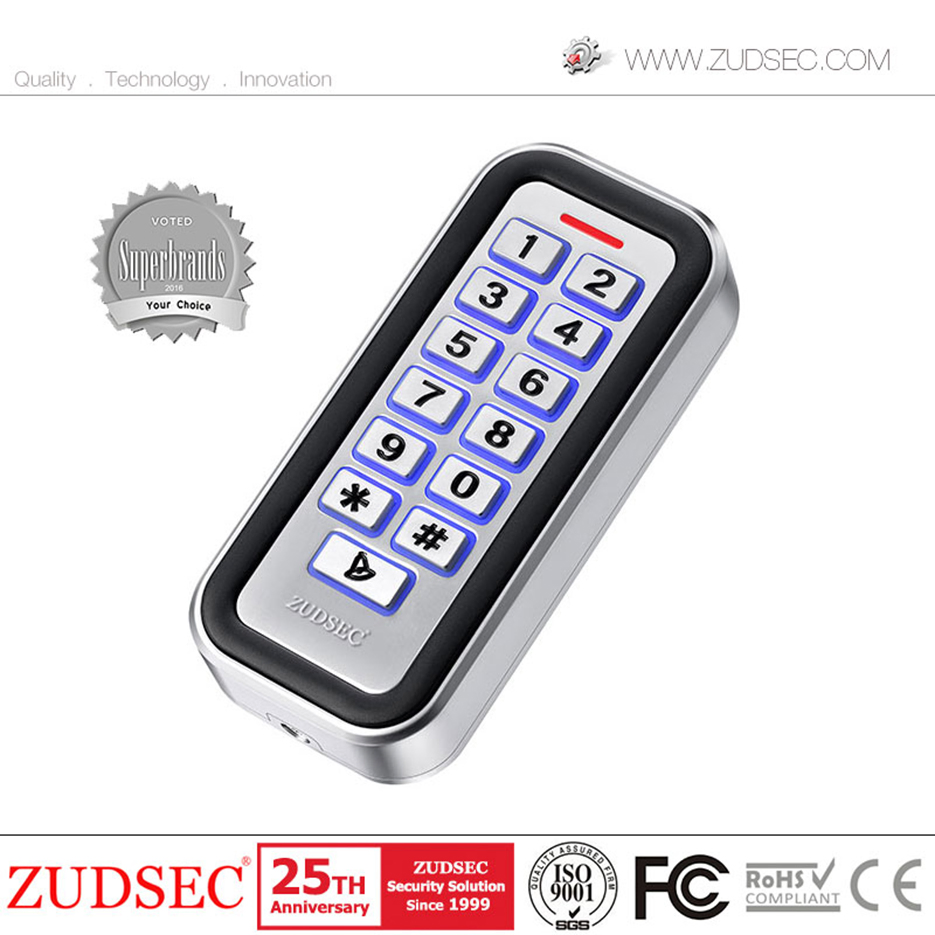

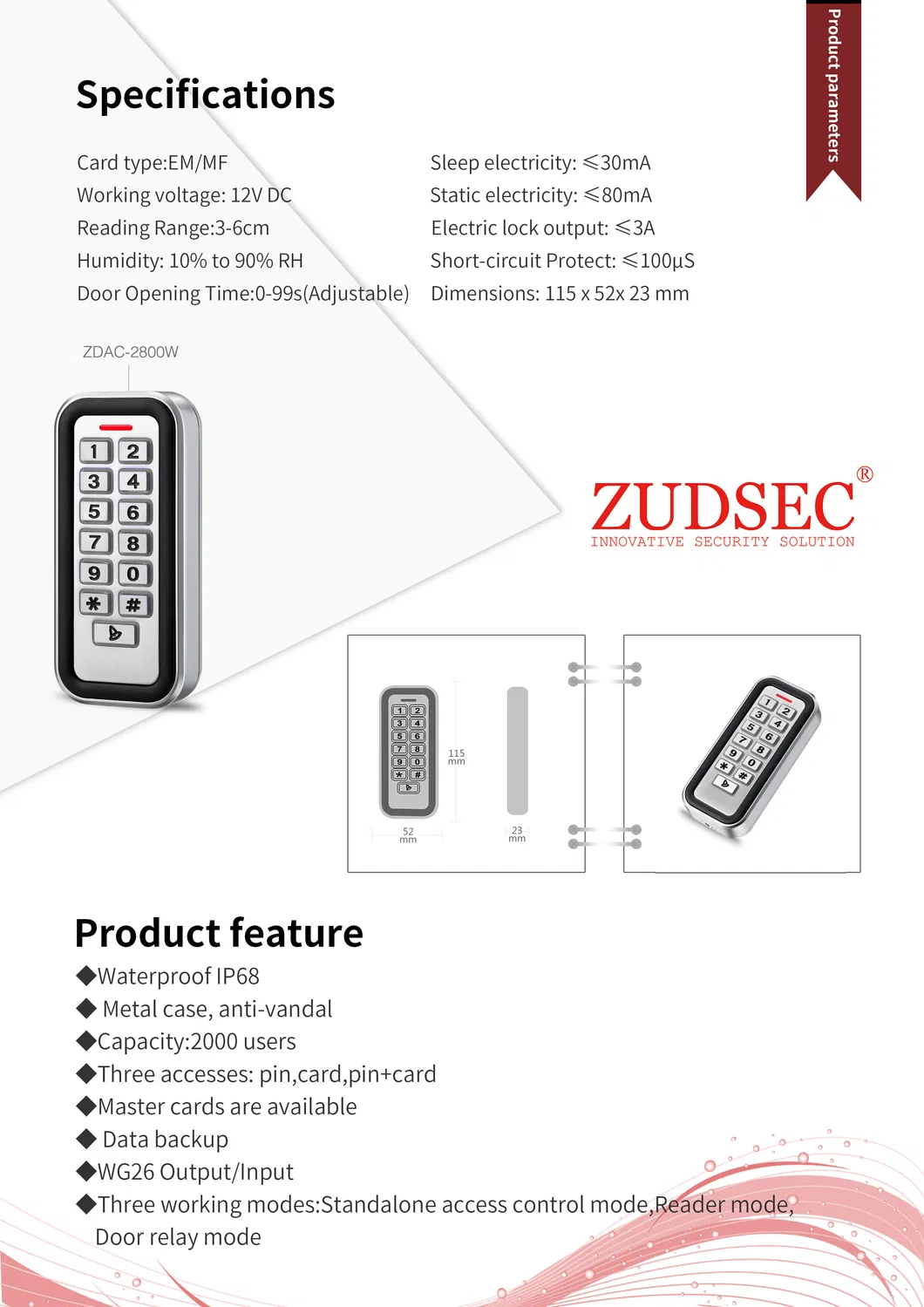

Slim Anti-Vandal Metal RFID Reader Standalone Access Control with IP 66 waterproof for Door Lock
The ZDAC-2800W suitable for mounting either indoor or outdoor in harsh environments. Exquisite designs with non-masking Metal shell, Keystroke backlight, Wiegand output. Supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option, with Doorbell function. These powerful features make this device an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and prisons.
| Model | ZDAC-2800W |
|---|---|
| Card Types | EM or EM compatible |
| Operating Voltage | DC 12V±10% |
| User Capacity | 2000 Users |
| Card Reading Distance | 3~6cm |
| Active Current | <60mA |
| Lock Output Load | Max 3A |
| Operating Temperature | -45ºC ~ 60ºC |
| Operating Humidity | 10% - 90% RH |
| Adjustable Door Relay time | 0 - 99 seconds |
| Wiegand Interface | Wiegand 26 bit |
| Keypad Housing | Metal Shell |
| Dimensions | 115mm x 52mm x 23mm |
| Weight | 500g |
