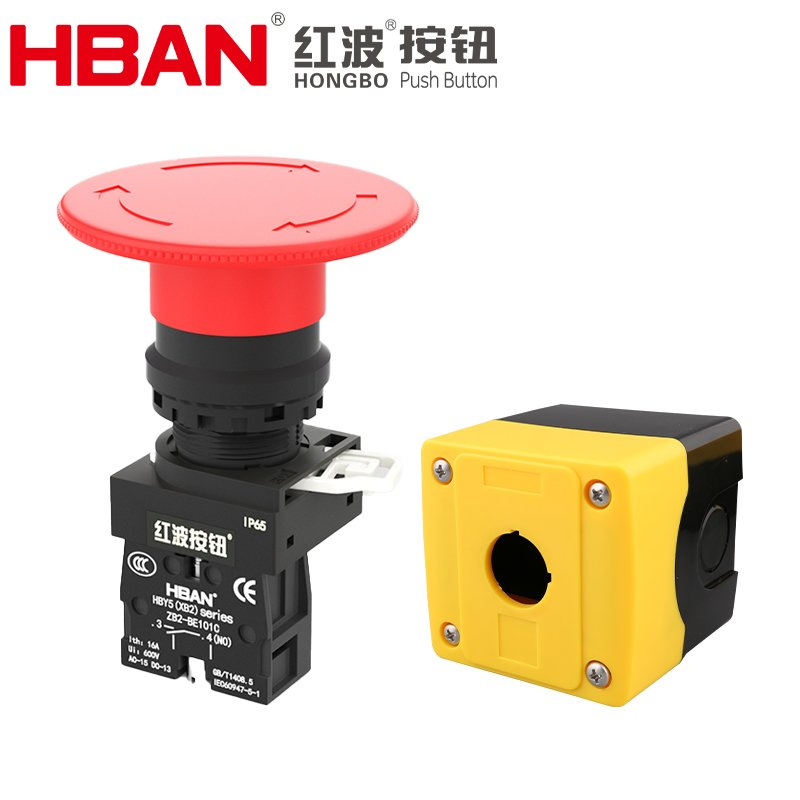

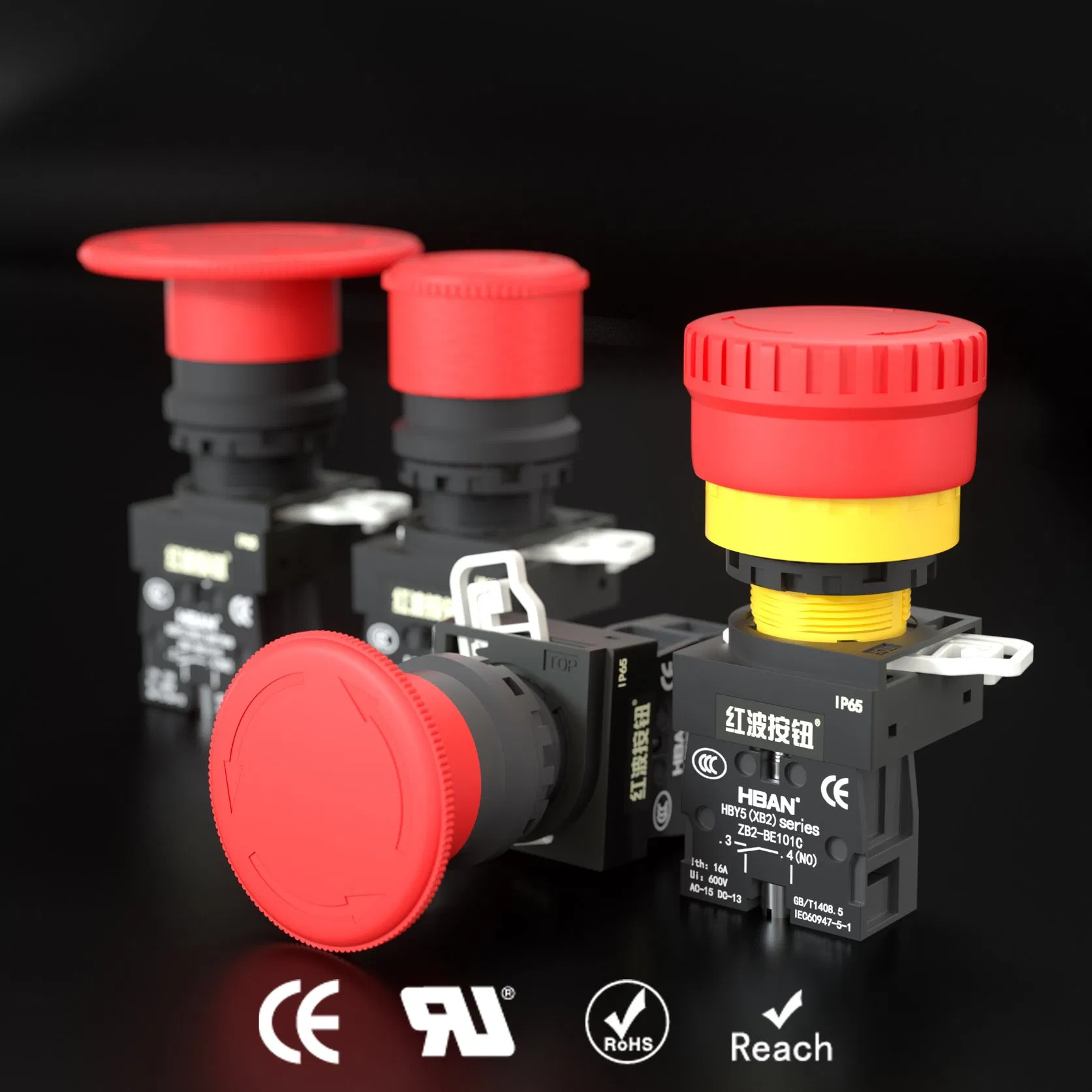

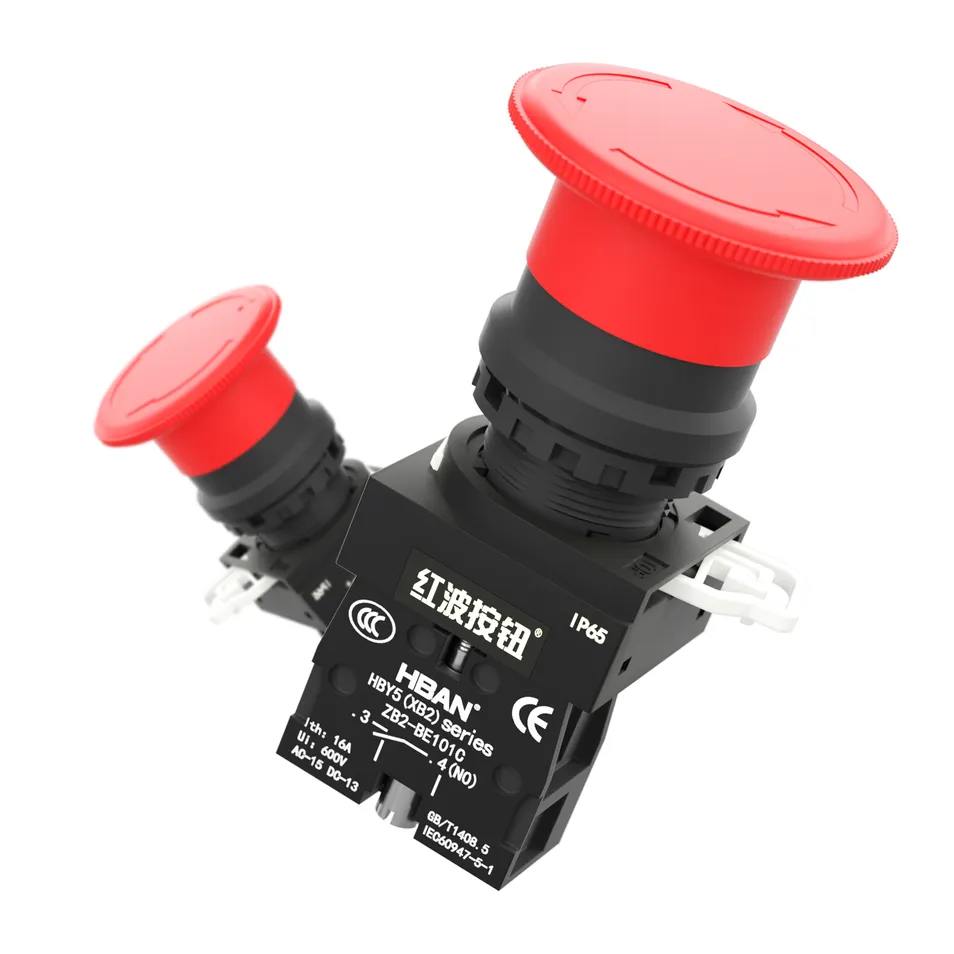

Just press down directly to quickly stop or release transmission parts of the device. To restart, simply rotate clockwise about 45° and the button will pop up. The IP65 waterproof rating ensures durability in challenging environments. The red shell is flame-retardant and high-quality construction prevents the head from falling off during rotation.

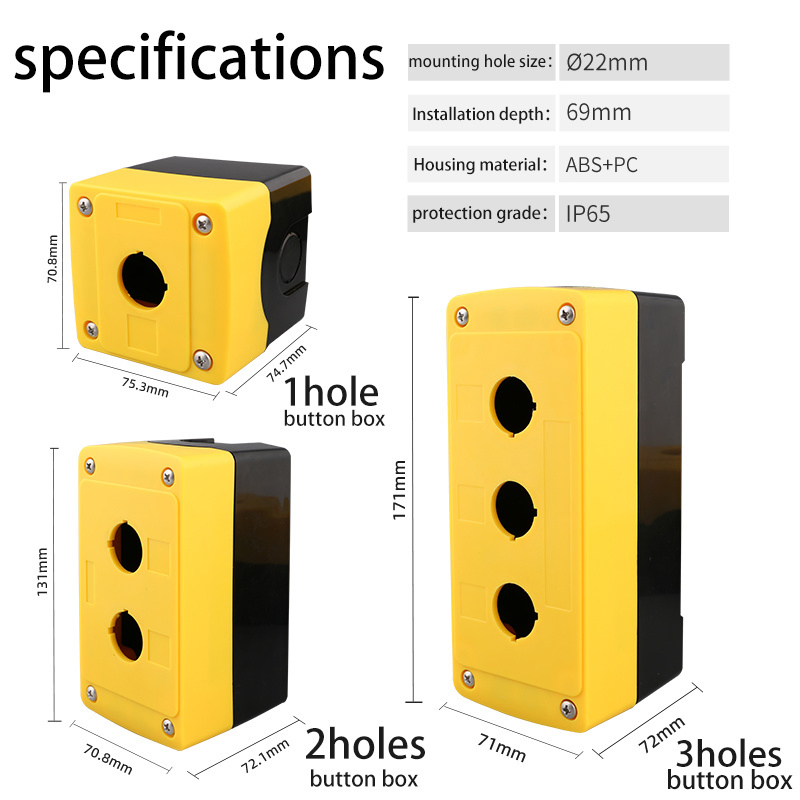

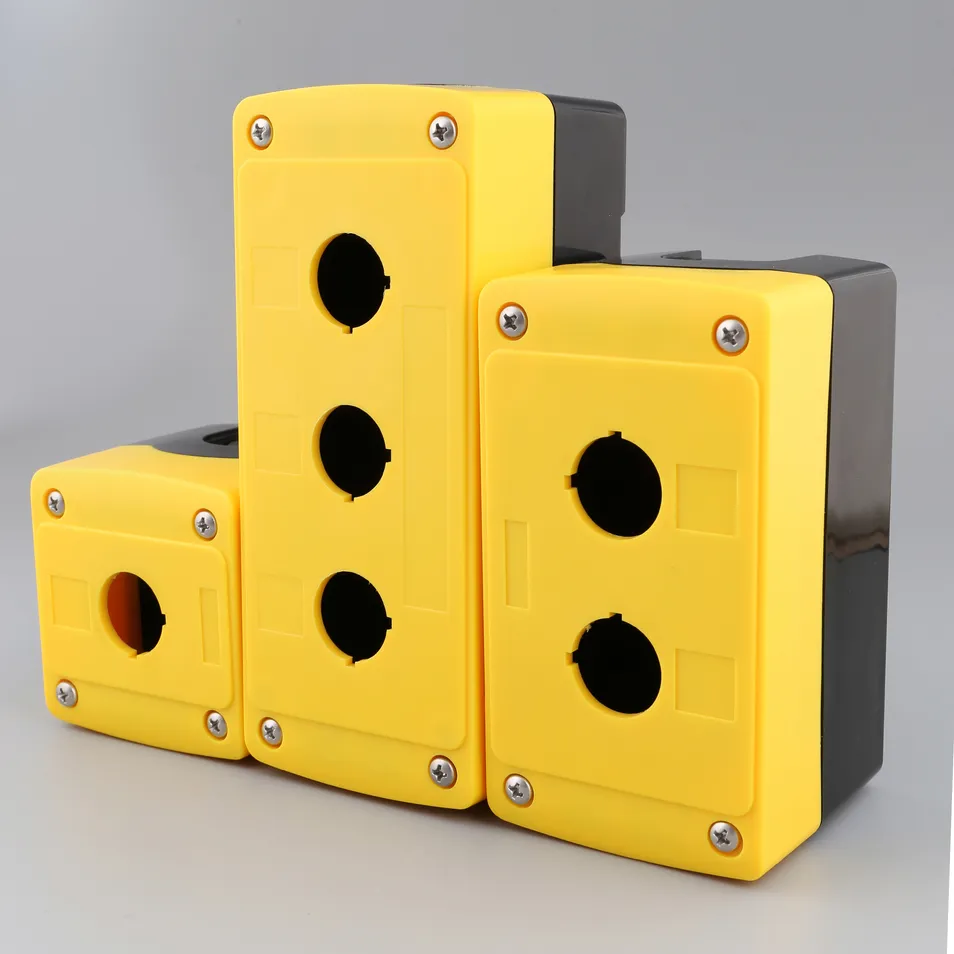

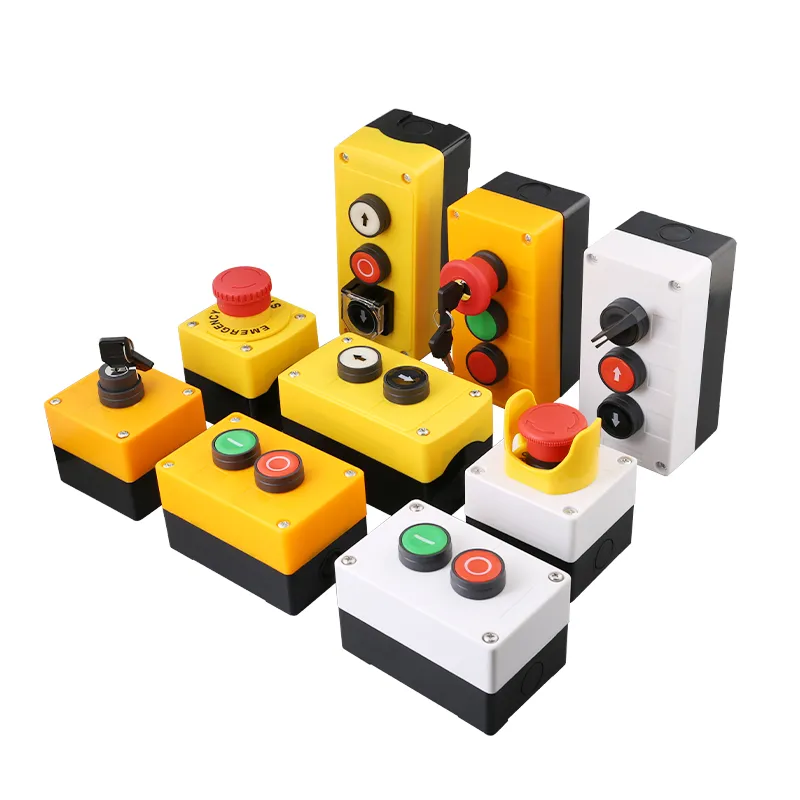

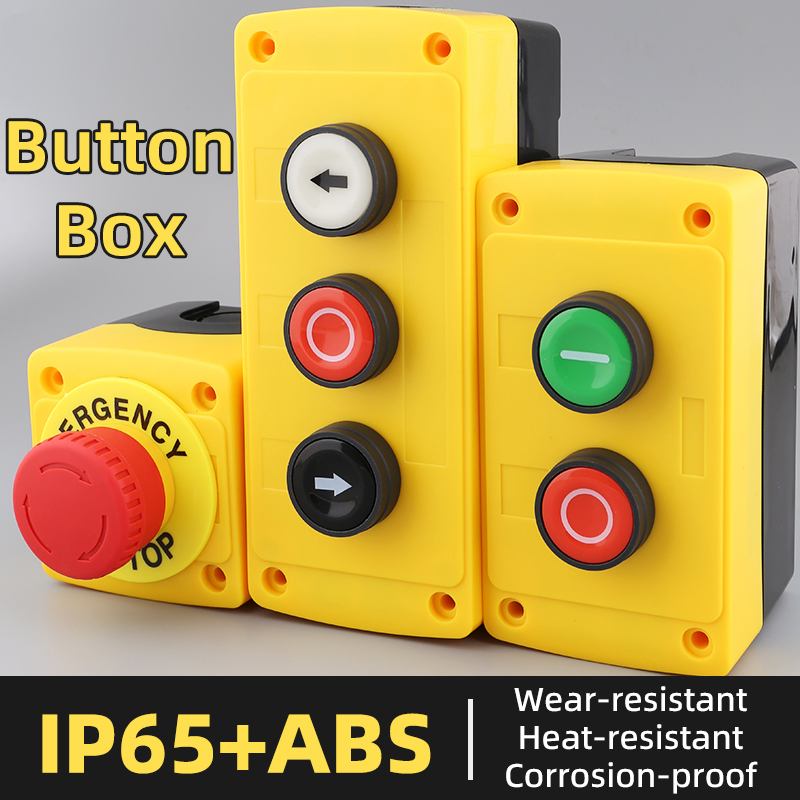

Multi-hole Button Box: 1 hole / 2 holes / 3 holes available. Custom numbers supported.

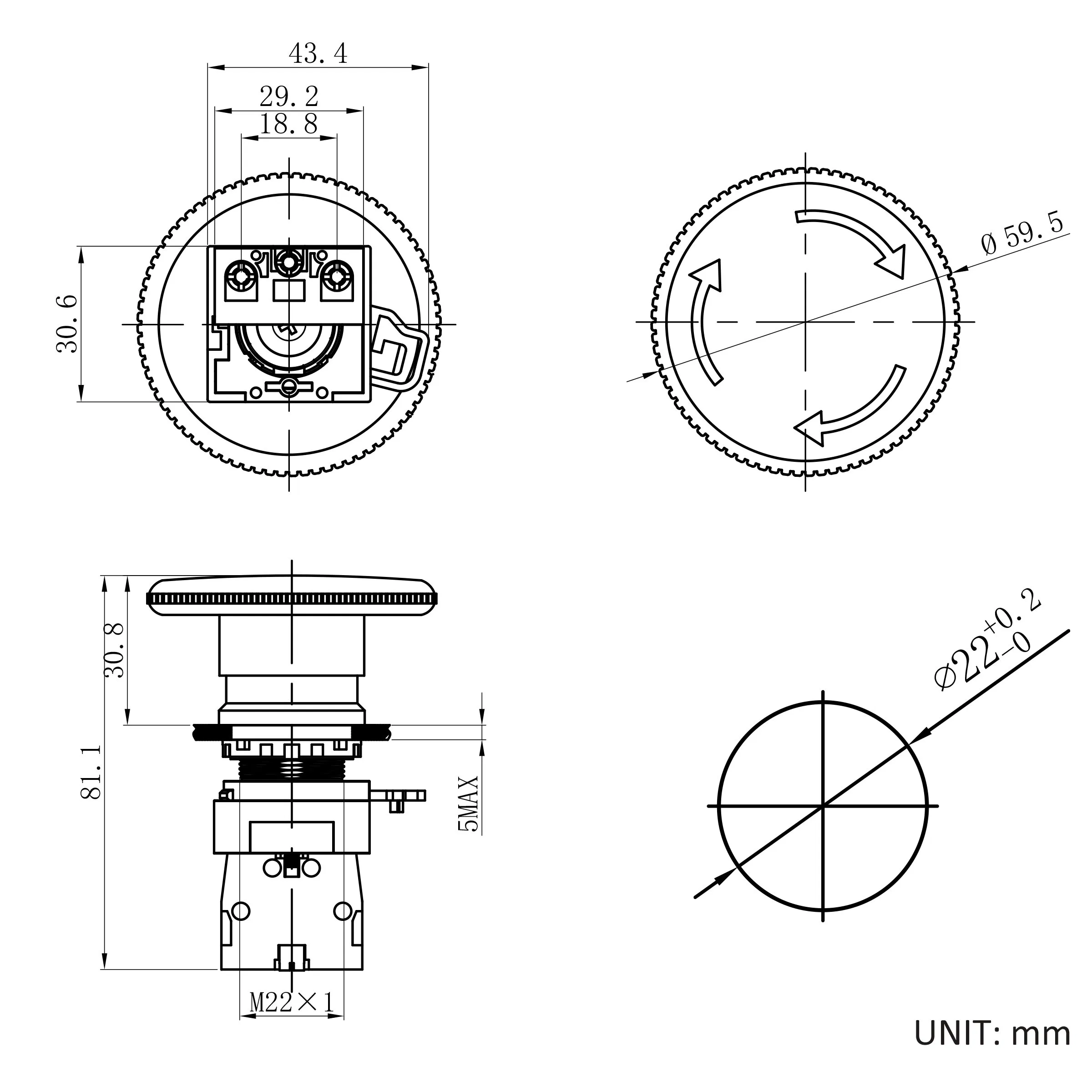

Installation: 22mm (0.866in) mounting hole. Tool-free rotation for quick removal and pre-wiring.

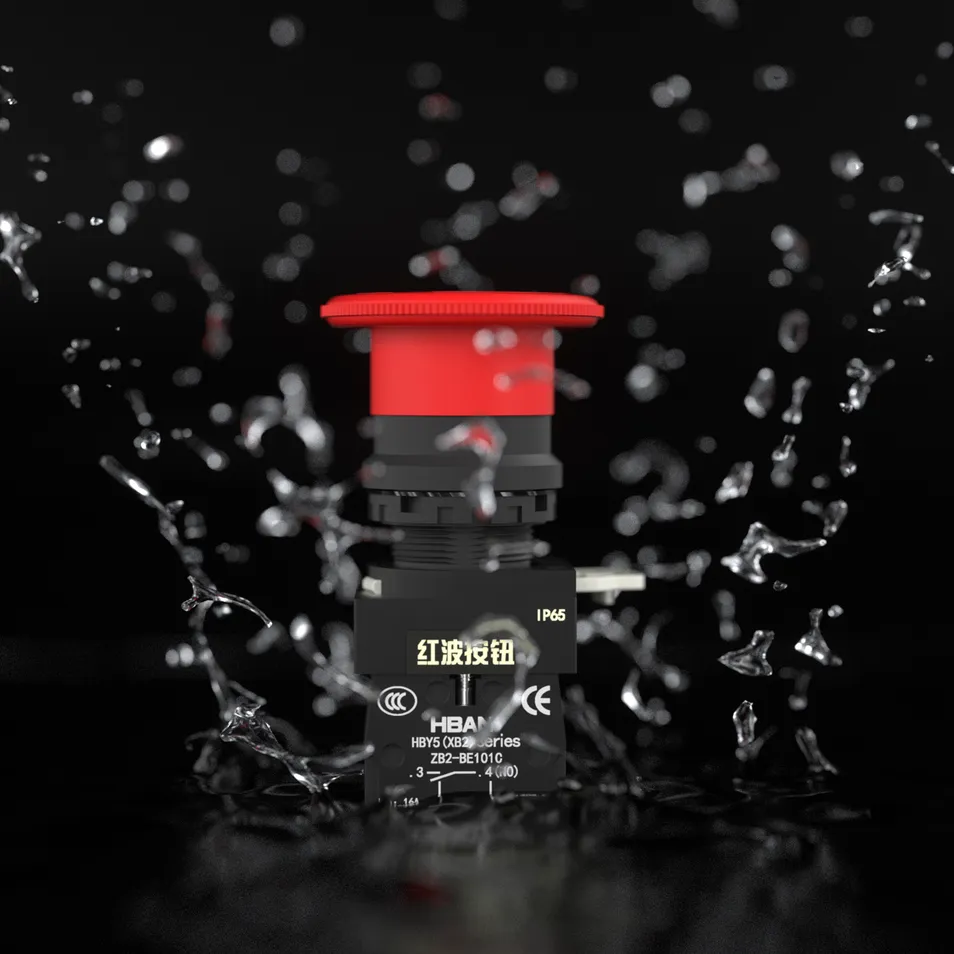

Protection: IP65 (Dust-tight and protected against water jets).

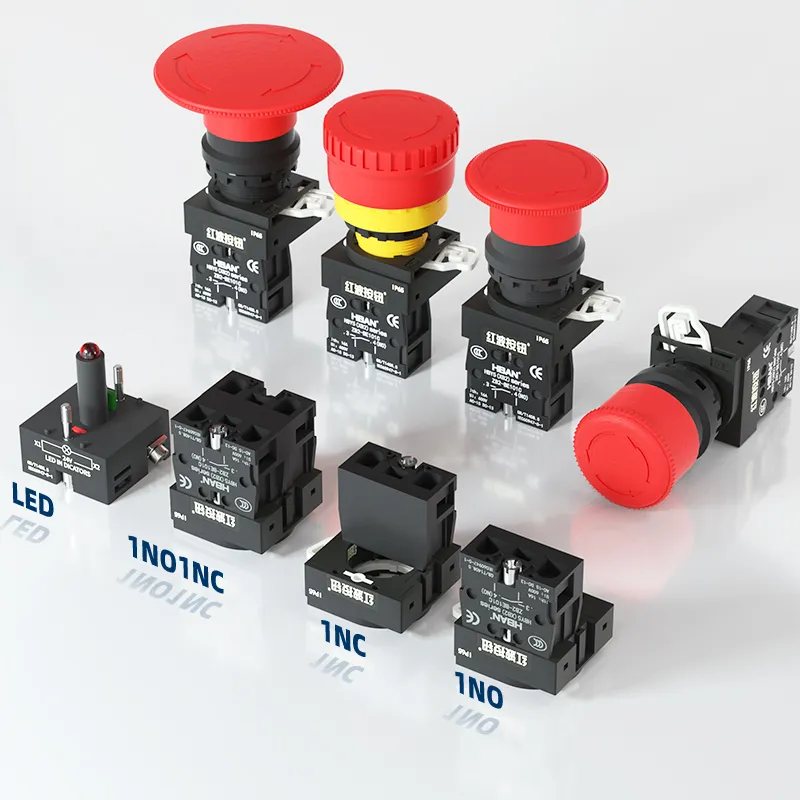

Work Life: 50,000 electrical cycles / 500,000 mechanical cycles. Rating: 10A/600V.
| Series Number: HBY5-K | ||
|---|---|---|
| Mounting Hole Size | KA: Ø22mm | KB: Ø22mm | KS: Ø30mm | Standard Sizes |
| Contact Configuration | 11: 1NO1NC | 22: 2NO2NC | 10: 1NO | Customizable |
| Lamp Type | D: Flat LED | GD: High LED | MD: Mushroom LED | TS: E-Stop | Various Styles |
| Operation Type | Momentary | Z: Latching | X: Selector | TS: Emergency Stop | Manual/Auto |
| LED Color | R (Red), G (Green), Y (Yellow), B (Blue), W (White) | All Colors |

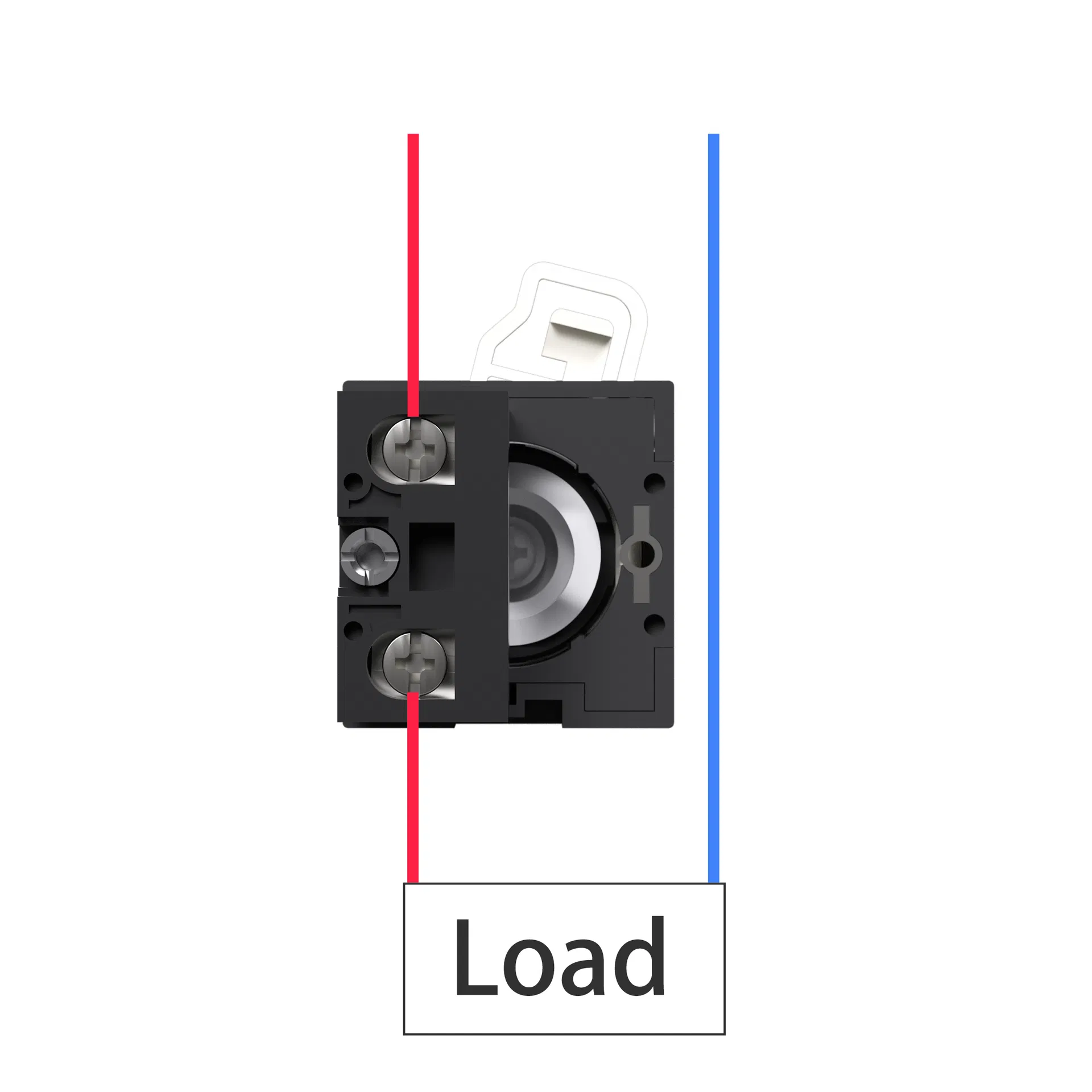

Note: Red represents the live wire; blue represents the neutral wire. Suitable for one normally open or one normally closed configuration.
Standard Packaging: 10pcs/box. Products are placed in separate foam boxes to prevent collision, then packed into corrugated paper boxes with strapping tape reinforcement.
Global Delivery: Typically shipped within 3-7 business days. Delivery time ranges from 3-8 business days depending on the destination.
