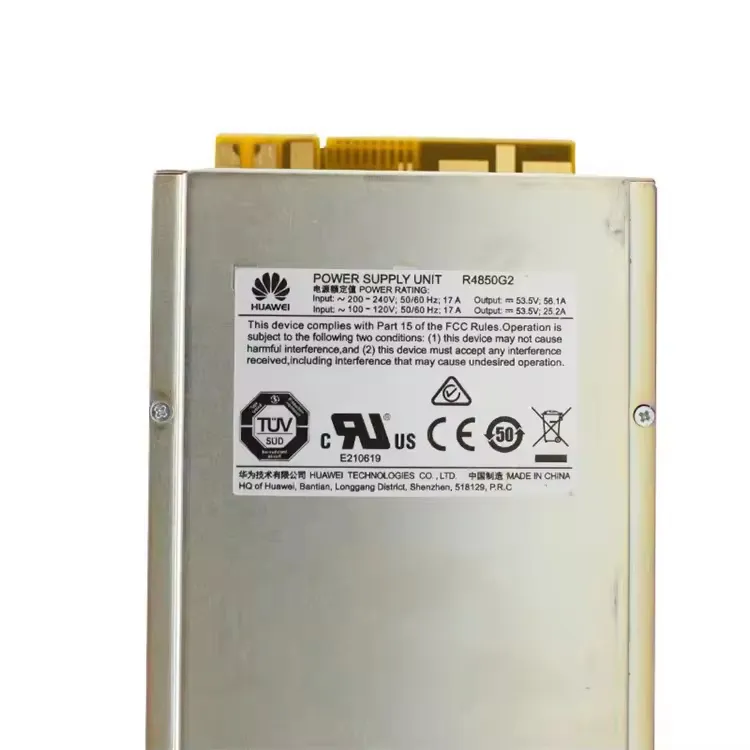

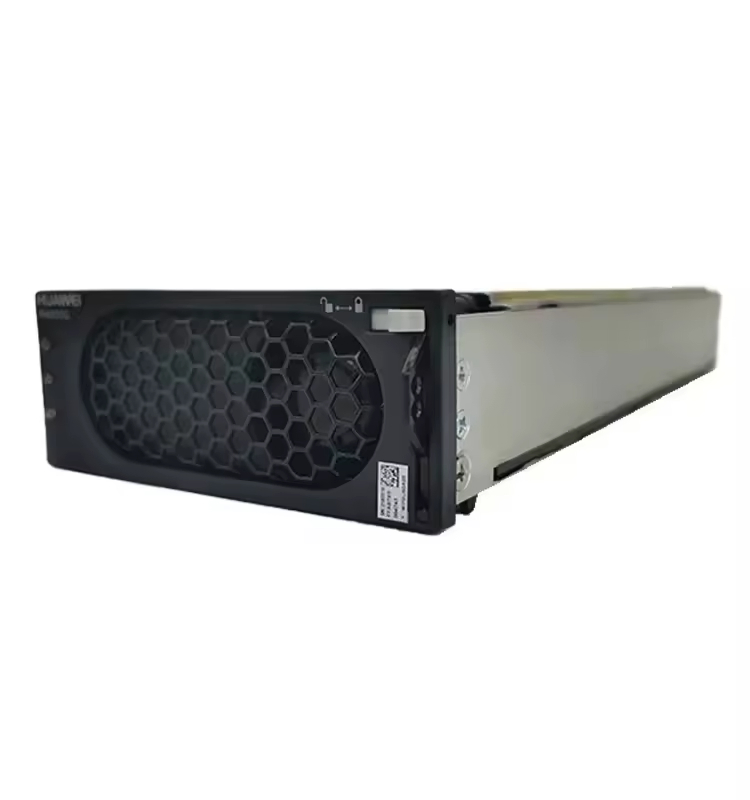

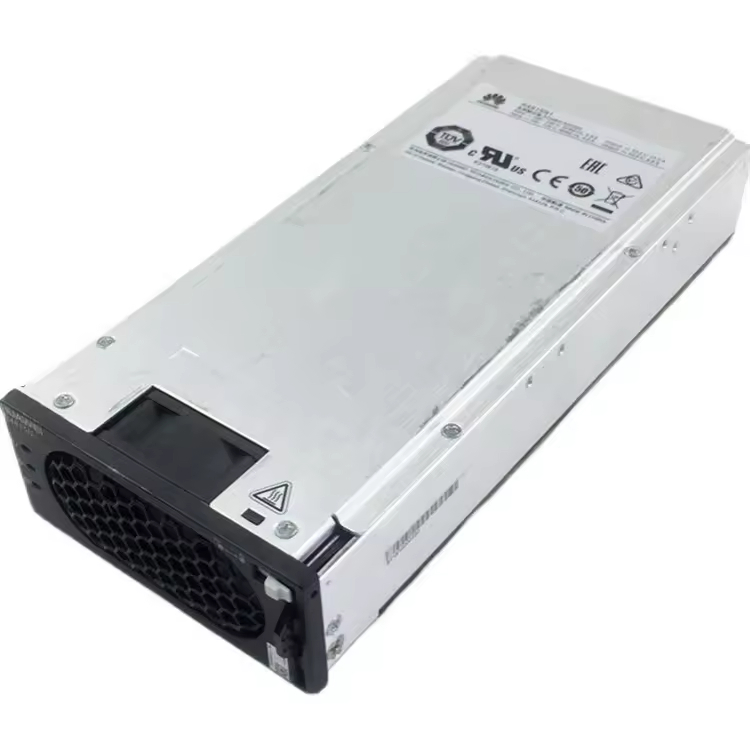

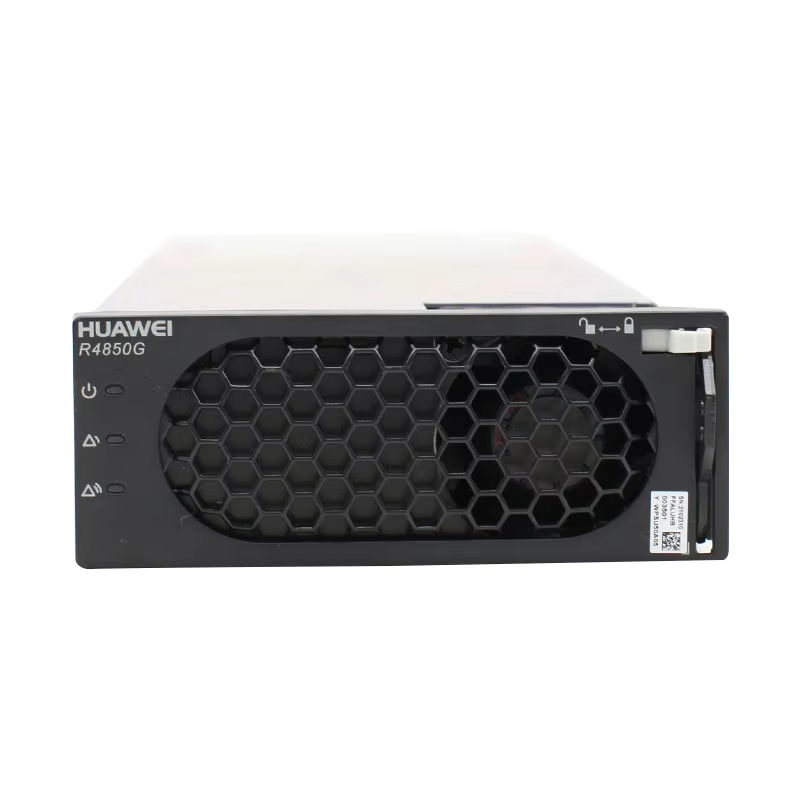

The R4850G2 Rectifier Module is a digital rectifier with high efficiency and power density converting 85-300 V AC input voltage to 53.5 V DC output voltage. The output voltage can be adjusted by the host. R4850G2 performs comprehensive protection functions and low noise, and soft start. With the latest power monitoring technology, states of the rectifier and load are monitored in real time. Multiple rectifiers can be paralleled.
| Input Features | |
|---|---|
| Operating voltage | 85-300 VAC |
| Frequency | 45-66 Hz Rated : 50Hz and 60 Hz |
| Rated input current | <17A |
| Power factor | >=0.99(load>=50% ) |
| THD | <=5% (load >=50%) |
| Output Features | |
| Output voltage | 42-58 VDC Rated voltage: 53.5 VDC |
| Output power | 3000 W (176-290 VAC); 1250 W (85-175 VAC decreased linearly) |
| Ripple and noise | <=200 mVp-p (Bandwidth<=20MHz) |
| Standby power | <=5W |
| Hold up time | >10 ms |
| Model | Input Voltage | Output Voltage | Output Power | Efficiency |
|---|---|---|---|---|
| R4805G1 | 85-300Vac | 42-58Vdc | 270W | 94 % |
| R4815G1 | 85-300Vac | 42-58Vdc | 870W | 96 % |
| R4830G2 | 85-300Vac | 42-58Vdc | 2000W | 96 % |
| R4850G1 | 85-300Vac | 42-58Vdc | 3000W | 96 % |
| R4850G2 | 85-300Vac | 42-58Vdc | 3000W | 96 % |
| R48100G1 | 260-530Vac | 42-58Vdc | 6000W | 96 % |
