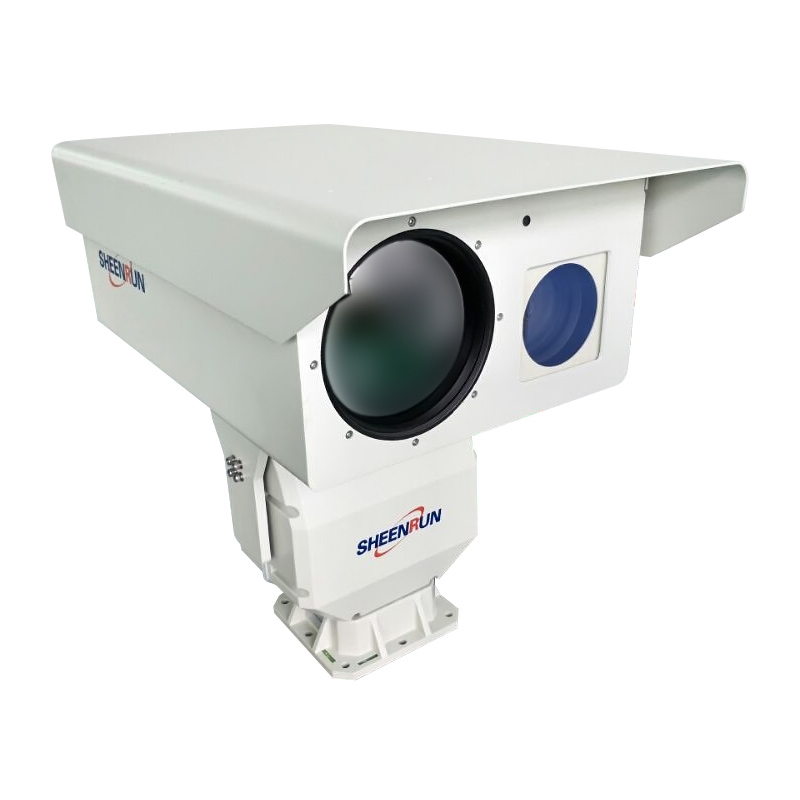

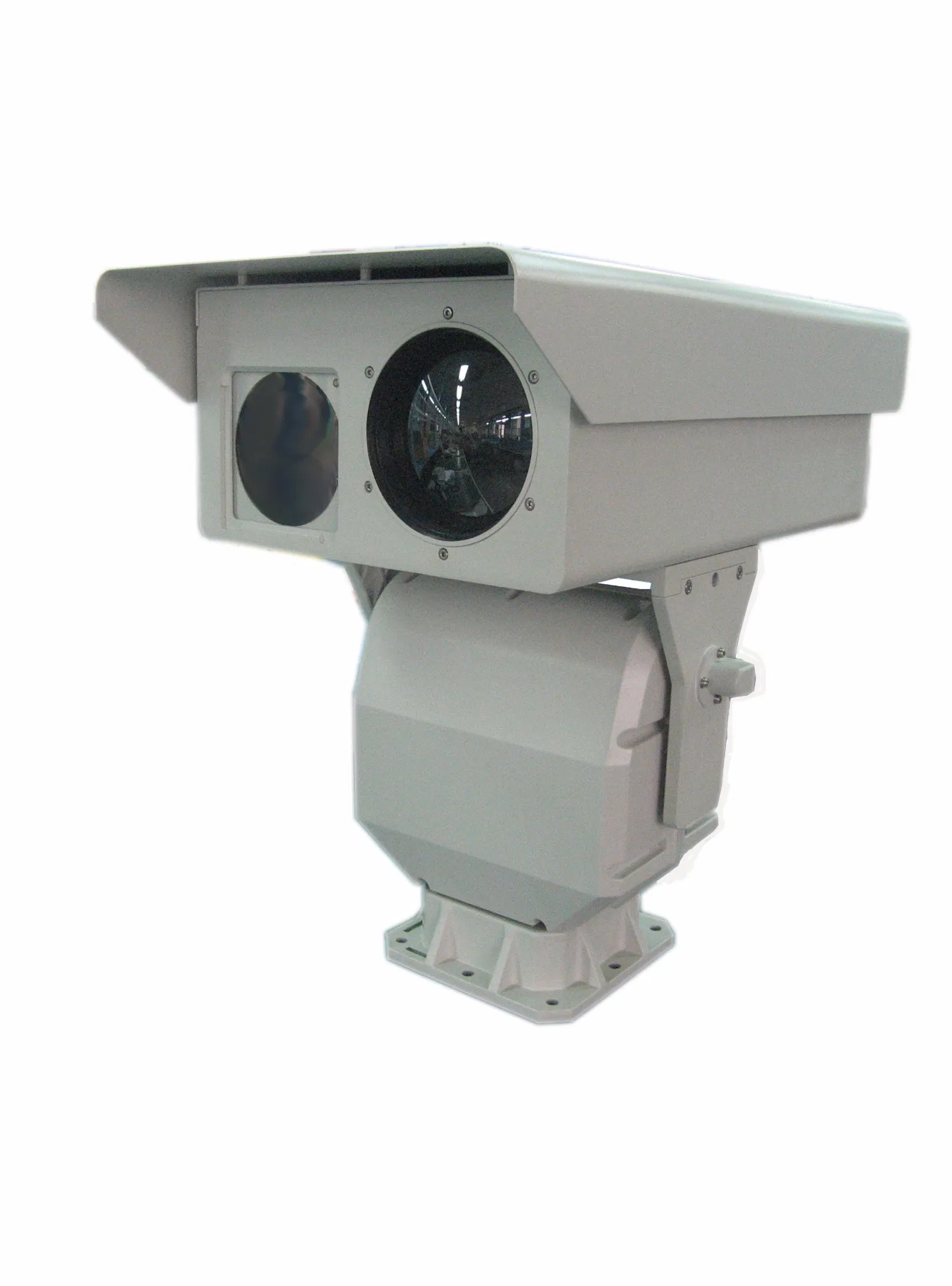

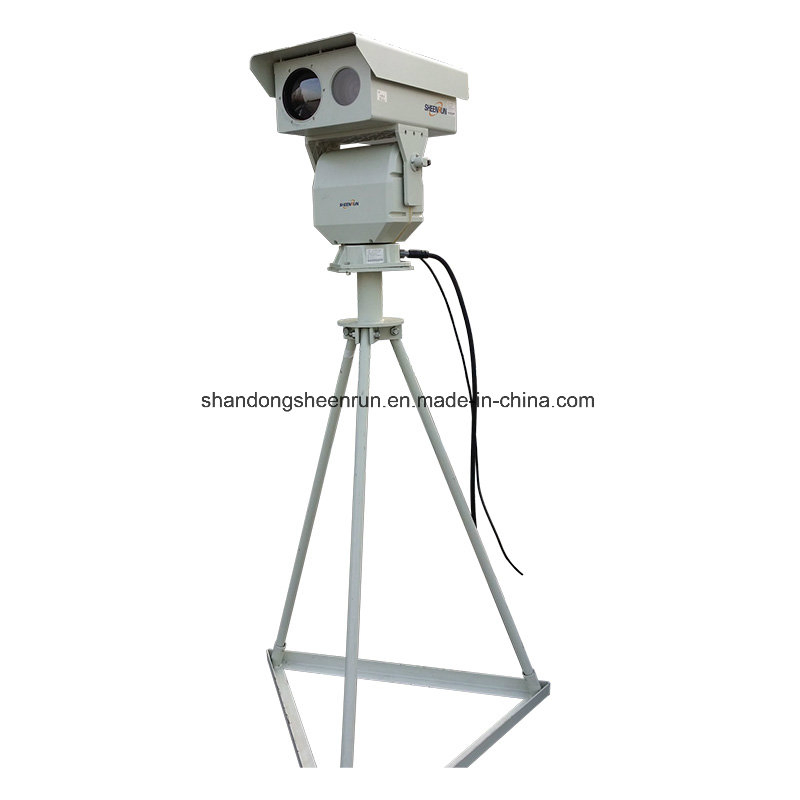

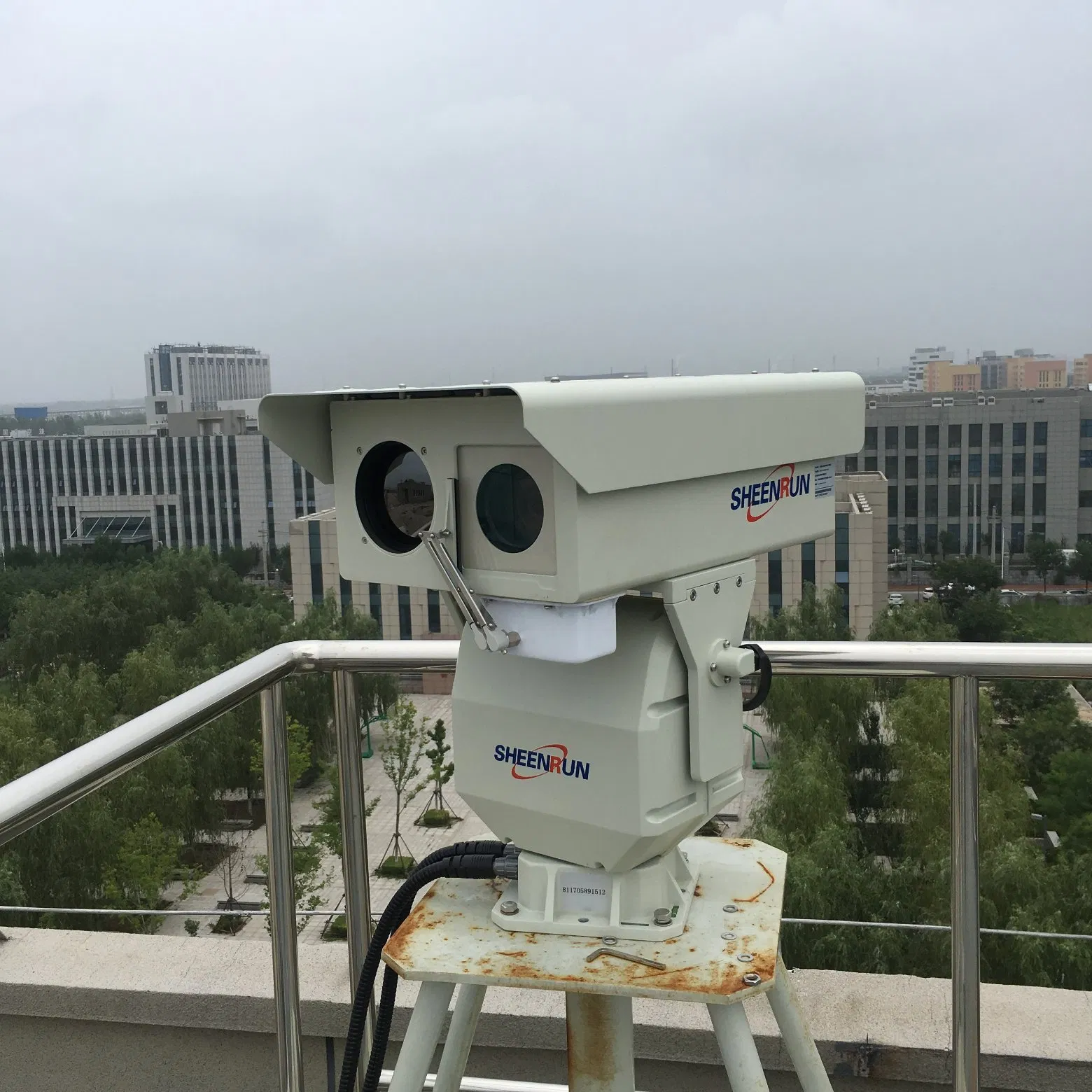

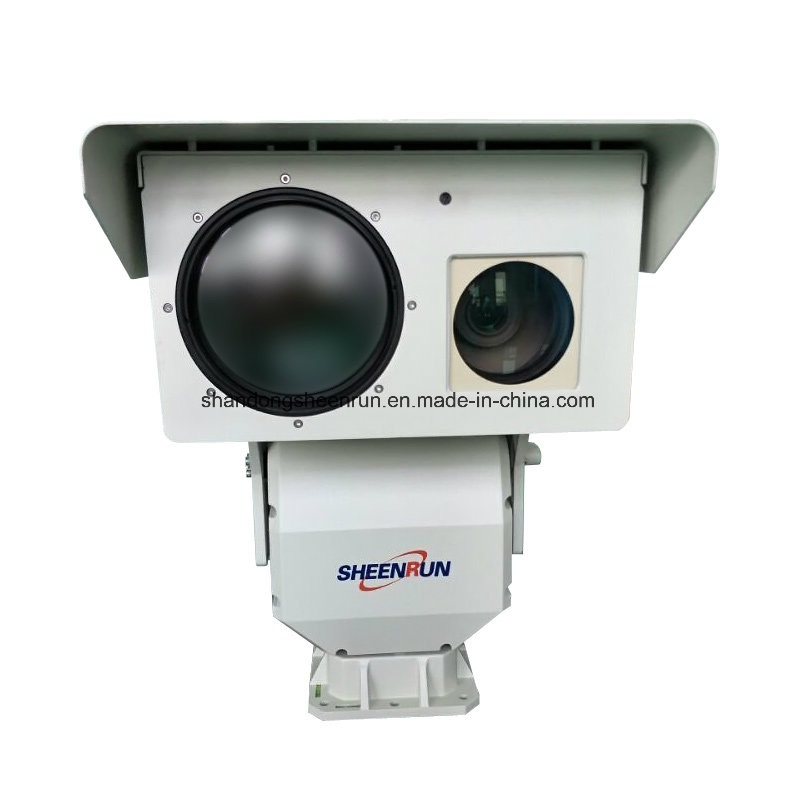

PTZ Dual-Sensor Uncooled / Cooled Visible and Thermal Camera System
PTZ Dual-Sensor Uncooled / Cooled Visible and Thermal Camera System
PTZ Dual-Sensor Uncooled / Cooled Visible and Thermal Camera System
PTZ Dual-Sensor Uncooled / Cooled Visible and Thermal Camera System
PTZ Dual-Sensor Uncooled / Cooled Visible and Thermal Camera System
1 / 5
PTZ Dual-Sensor Uncooled / Cooled Visible and Thermal Camera System
PTZ Dual-Sensor Uncooled / Cooled Visible and Thermal Camera System
PTZ Dual-Sensor Uncooled / Cooled Visible and Thermal Camera System
PTZ Dual-Sensor Uncooled / Cooled Visible and Thermal Camera System
PTZ Dual-Sensor Uncooled / Cooled Visible and Thermal Camera System

PTZ Dual-Sensor Uncooled / Cooled Visible and Thermal Camera System

Customization: Available
Technology: Infrared
Style: Pan/Tilt
Send Inquiry

Product Description

● Basic Information
Model NO.
SHR-WHLV1540AHVIR155
Type
IP Camera
Sensor
CCD
HDMI Format
1080P
Horizontal Resolution
480tvl
Kind
Autofocus Lens
Certification
CE, FCC, ISO9001: 2000
Effective Distance
≧30m
Sensor Size
1/3 inch
Protection Grade
IP66
Thermal Lens F Value
1.0
Monitor Distance
12km
Laser Power
10W
Installation
Outdoor Pedestal Mounting
● Product Description & Features

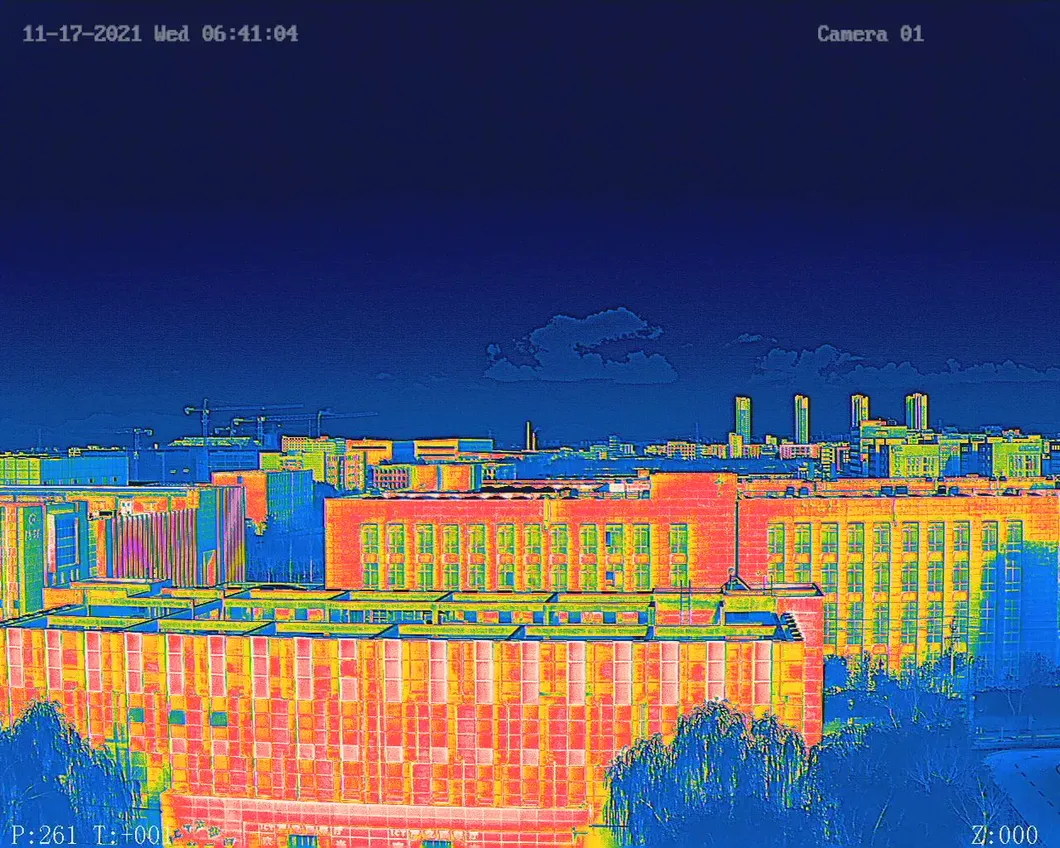

Camera System 1

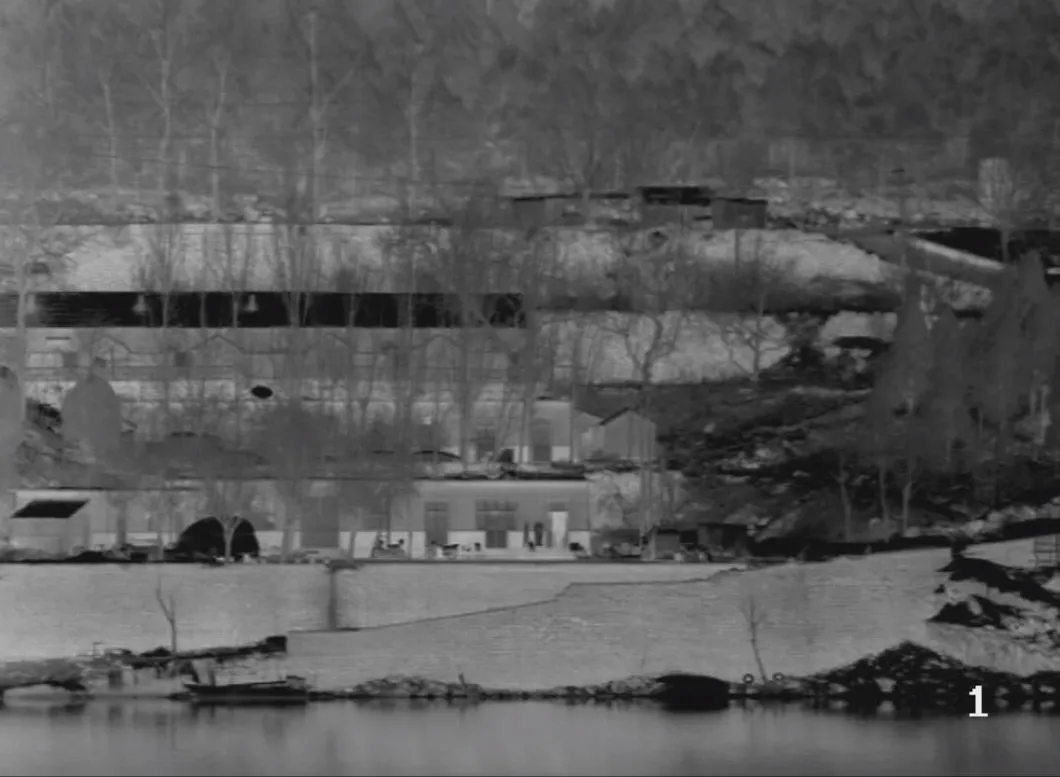

Camera System 2

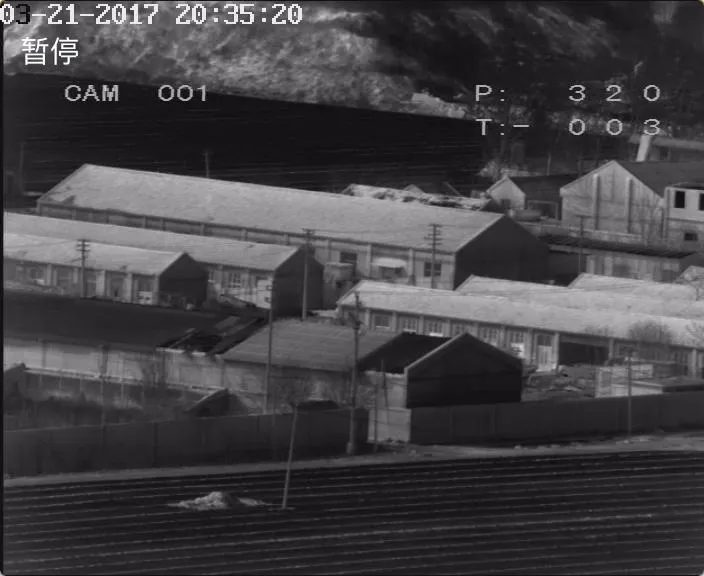

Camera System 3
  • ✔Integrated infrared thermal imaging, visible light camera and pan-tilt controlling system, realizing day and night omni-directional monitoring.
  • ✔Adopting thermal imaging technology, not limited by light source, imaging clearly even in total darkness.
  • ✔Day and night 2 megapixel low illuminance color camera, providing superior detail observation.
  • ✔High intelligence system, simple to operate, easy to use and maintain.
  • ✔3D locating function, realizing frame selection magnifying and clicking to center.
  • ✔Universal variable speed pan-tilt, realizing omni-directional no blind angle monitoring and high precision locating.

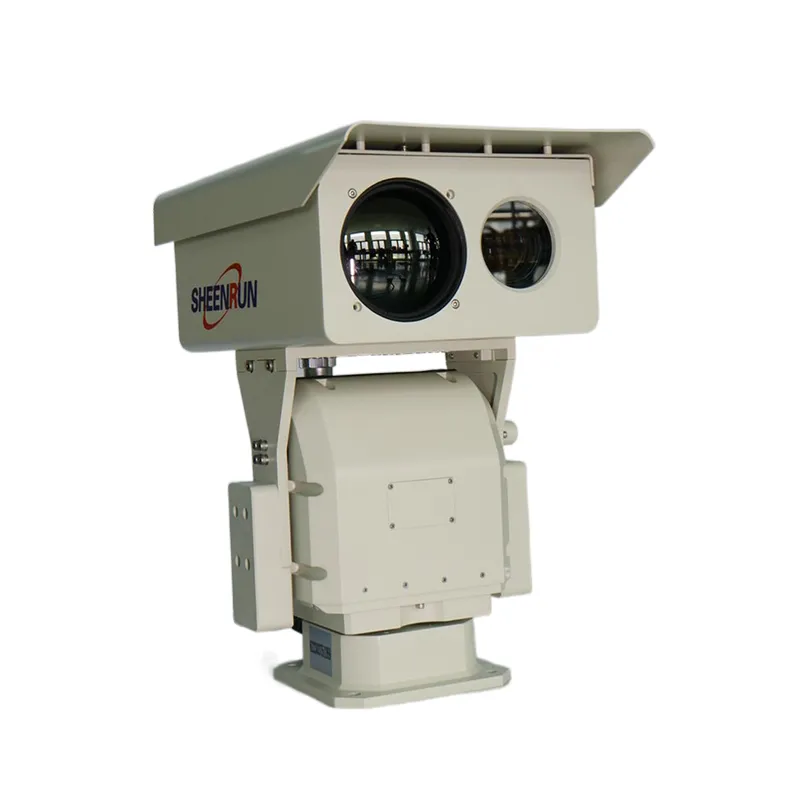

PTZ Thermal Camera

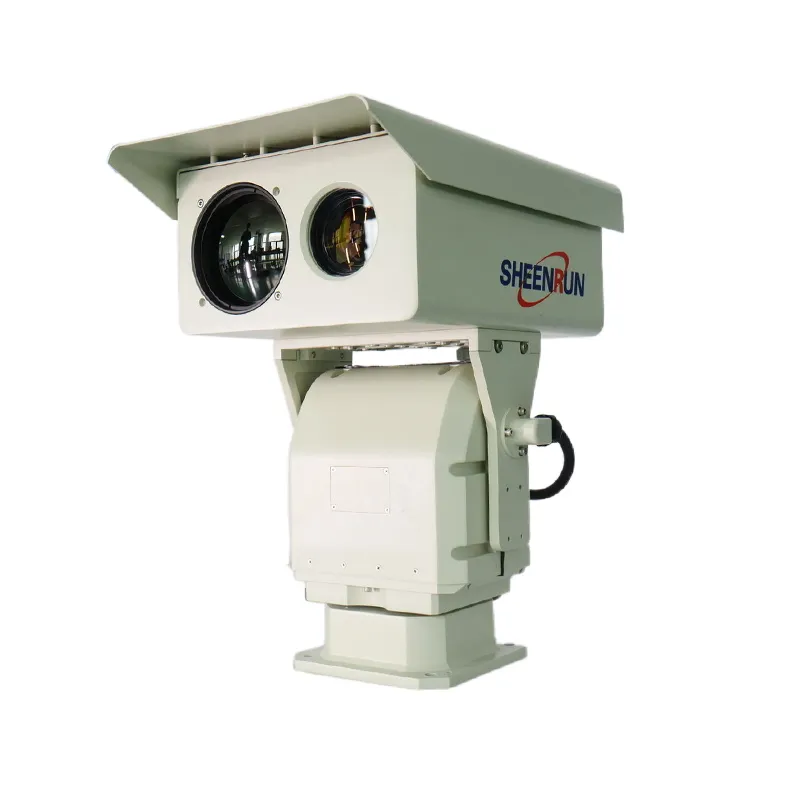

Internal components
● Technical Specifications
Category Feature HLV-1120LR114 HLV-1620R165 HLV-3120R196
Monitoring Distance HD Camera 2000~3000m 3000~5000m 5000~8000m
Thermal (Vehicle) 8000m 12000m 14400m
Thermal Detector Type Uncooled microbolometer focal plane array (Vox)
Pixel 640×512 (384×288 optional)
Spectral Range 8~14μm
Thermal Lens Focal Length 25~100mm 30~150mm 30~180mm
Optical Zoom 4× 5× 6×
HD Camera Sensor 1/1.8'' Progressive Scan CMOS
Resolution 2688×1520 (25fps)
Pan Tilt Angle Pan 0°~ 360°; Tilt -45°~ +45°
Environment Protection IP66
Applications: Safe city monitoring, forest fire-proof monitoring, high altitude monitoring, railway monitoring, harbor monitoring, oilfield monitoring, freeway monitoring, etc.

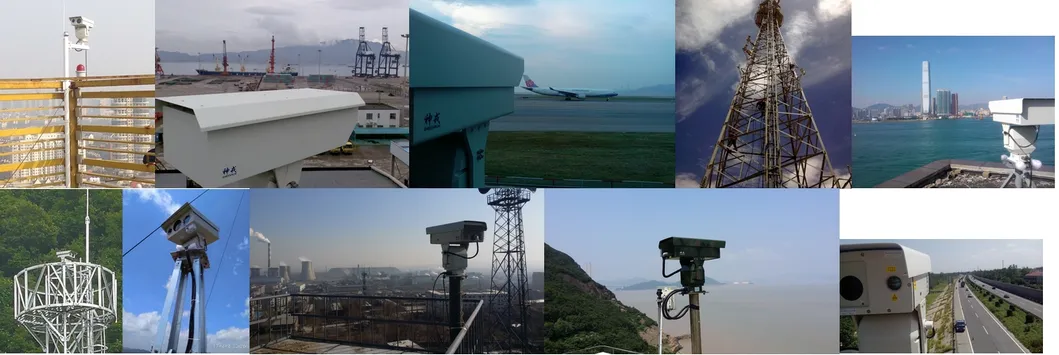

Application Scenarios
● Quality Assurance & Services
Certificates

Standard Services:

  • ★ One-year standard warranty with optional extensions.
  • ★ Life-long professional technical support.
  • ★ OEM and Customized product solutions available.
Frequently Asked Questions
What is the maximum monitoring distance for this system?
Depending on the model, the system can detect vehicles at distances up to 14.4km and humans at significant distances through thermal imaging, while the HD camera covers up to 8km.
Is this camera suitable for extreme outdoor weather?
Yes, it features an IP66 protection grade and can operate in temperatures ranging from -25ºC to +55ºC (with an optional -40ºC version available).
Does the thermal imaging work in total darkness?
Absolutely. Thermal imaging technology relies on heat signatures rather than light, allowing it to provide clear images in complete darkness, fog, or smoke.
What is the 3D locating function?
The 3D locating function allows operators to select a specific frame or point on the screen to automatically zoom in and center the target, greatly simplifying the tracking process.
Does it support integration with existing network systems?
Yes, it uses a standard RJ45 10Base-T/100Base-TX interface and supports H.264/H.265 coding formats for seamless network integration.
Can the zoom be controlled remotely?
Yes, the system features electronic zoom, electronic focus, and autofocus capabilities for both the visible and thermal lenses, all manageable via the control interface.
