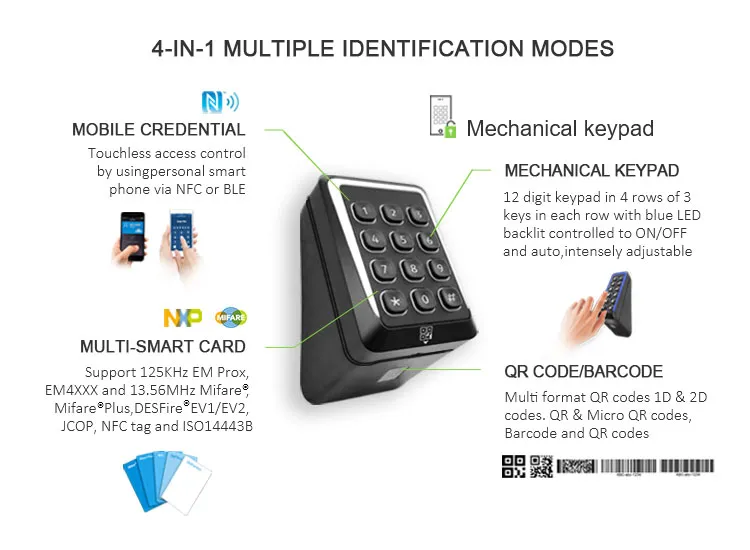

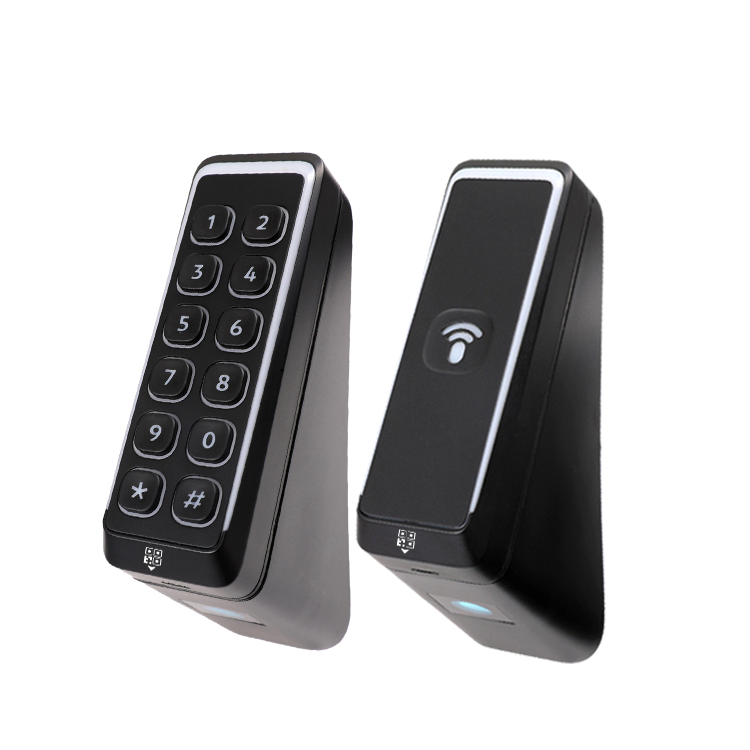

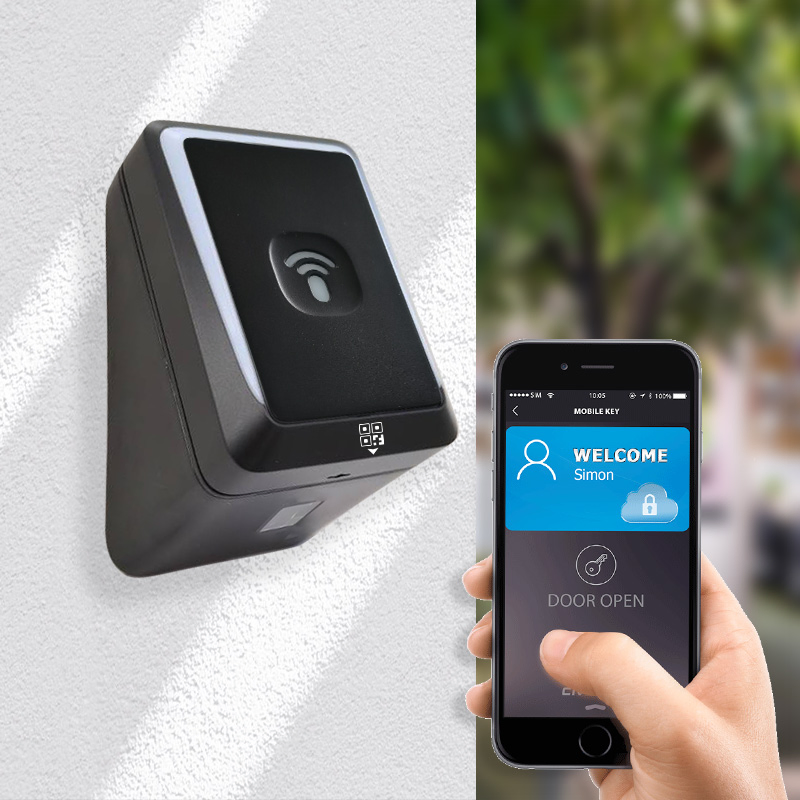

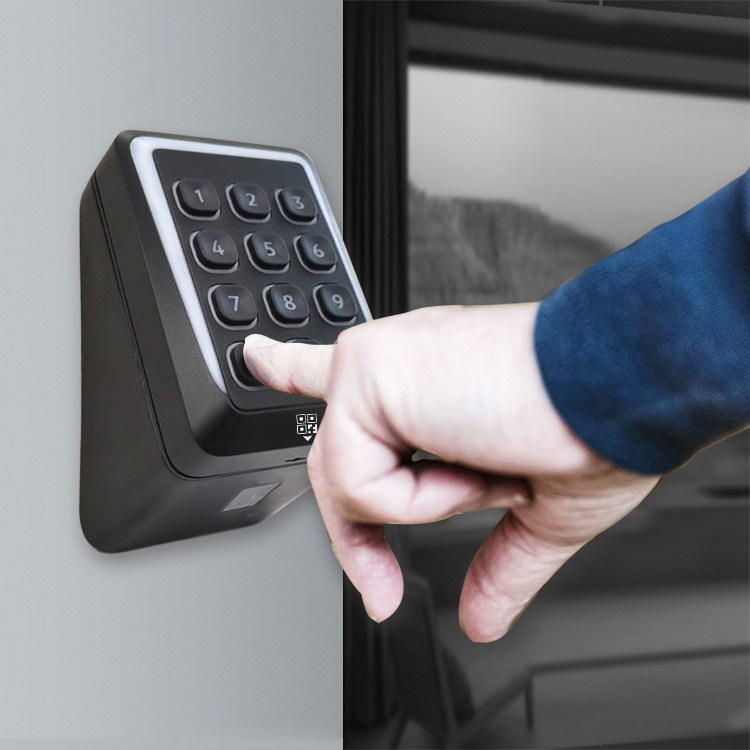

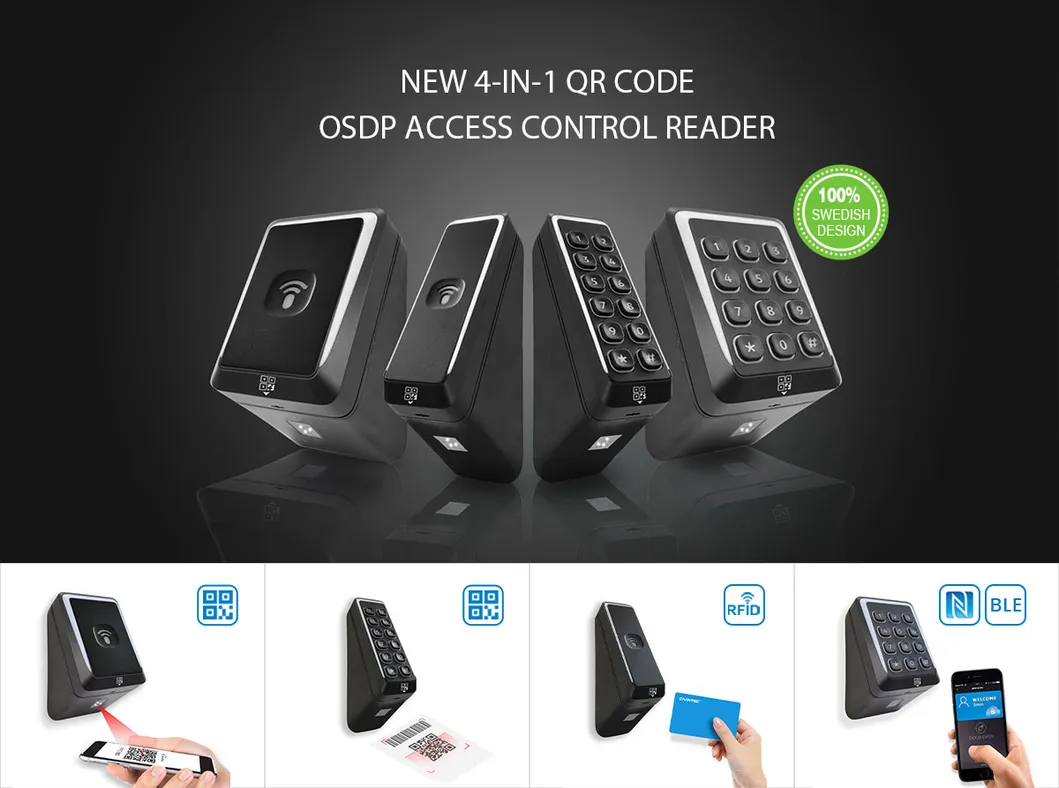

The Cidron QR Code access control reader's compatibility with secure RFID-technologies, BLE, NFC mobile credential and QR code incorporated in a robust, yet timeless design, makes them ideally suited for both indoor and outdoor installations in all kinds of physical access control applications.
| Operating Frequency | 125kHz & 13,56MHz |
| ISO Standard | ISO14443A/B, ISO18092 NFC |
| Contactless Cards | - EM Prox, EM4100, EM4200 - MIFARE Classic, MIFARE Plus, MIFARE DESFire EV1/EV2 - ISO18092 NFC tags |
| Mobile ID | ISO18092 NFC, BLE |
| QR Code Specs | - Area image 640 x 480 pixels, Field of View 68°(H) x 51(V) - Decode range: 20mm-150mm(QR 20MIL) - Multiple formats: QR, Micro QR, PDF417, Code 128, Code 39 |
| Communication | Wiegand, Clock/Data, RS485 (OSDP 1, OSDP 2, Secure channel), BLE |
| Environment | Temperature: -40° ~ +70°C | Humidity: 0 ~ 95% RHNC |
Software APP Development: Cidron QR Code offers a Software Development Kit (SDK) for developers to customize their own smartphone APP software.
Offering ODM customization on hardware, reader housing, firmware, and software design services. To stand out from the crowd, we provide the opportunity to profile your readers for increased recognition through laser engraved or printed logos in single or full color.
