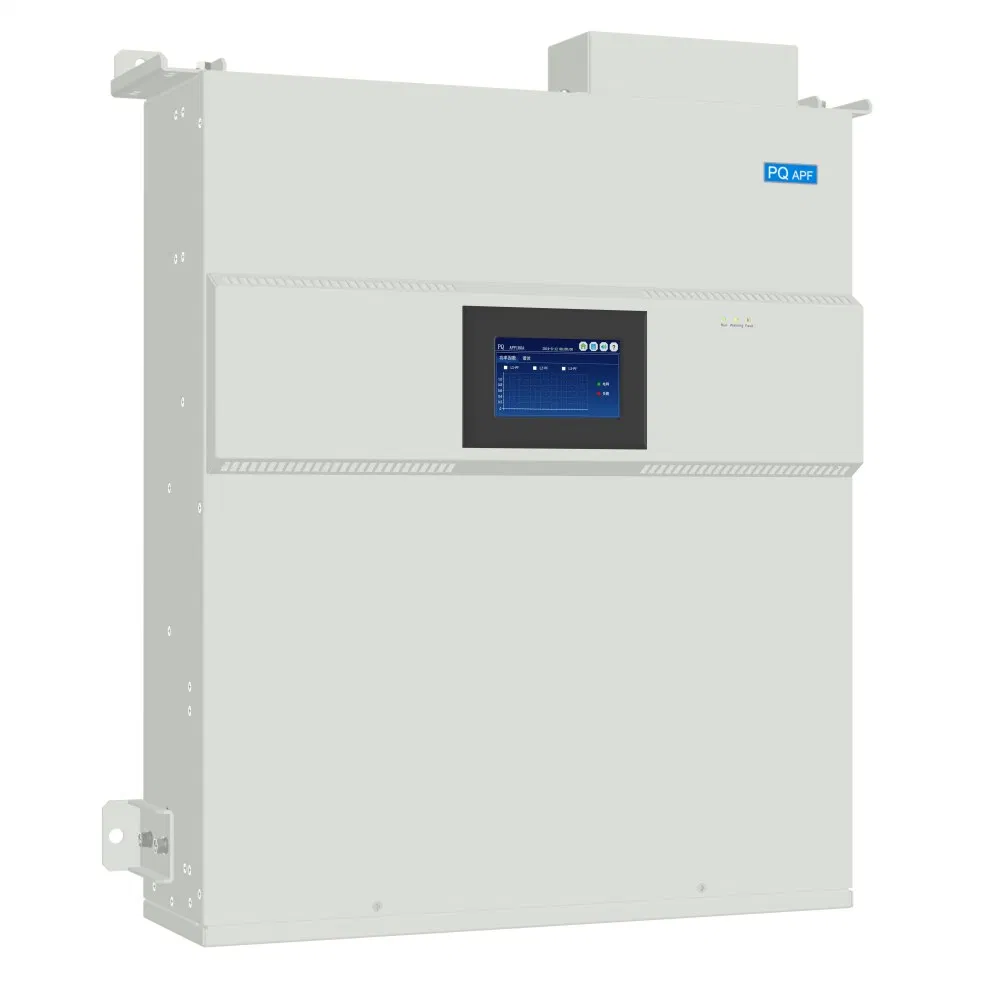

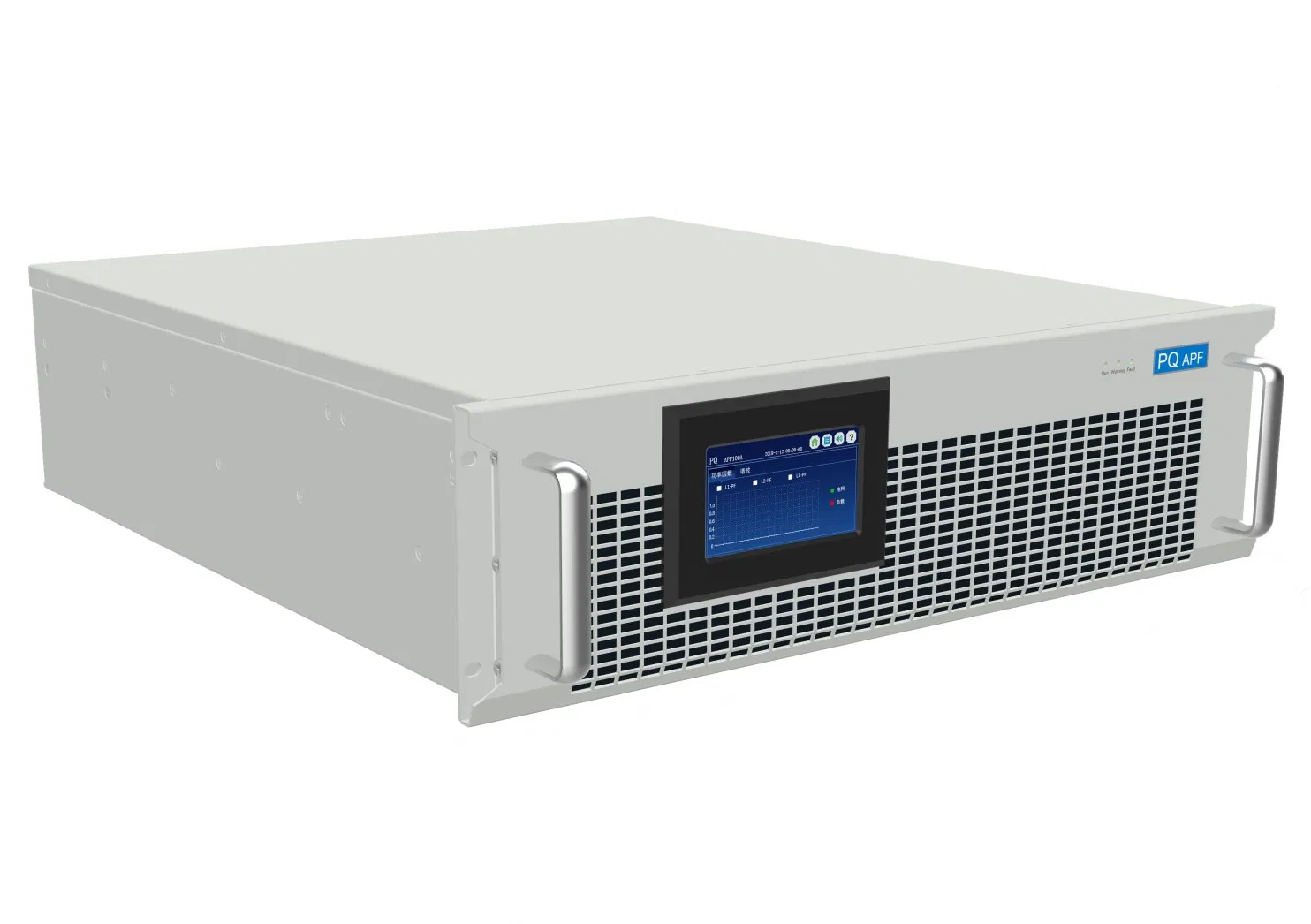

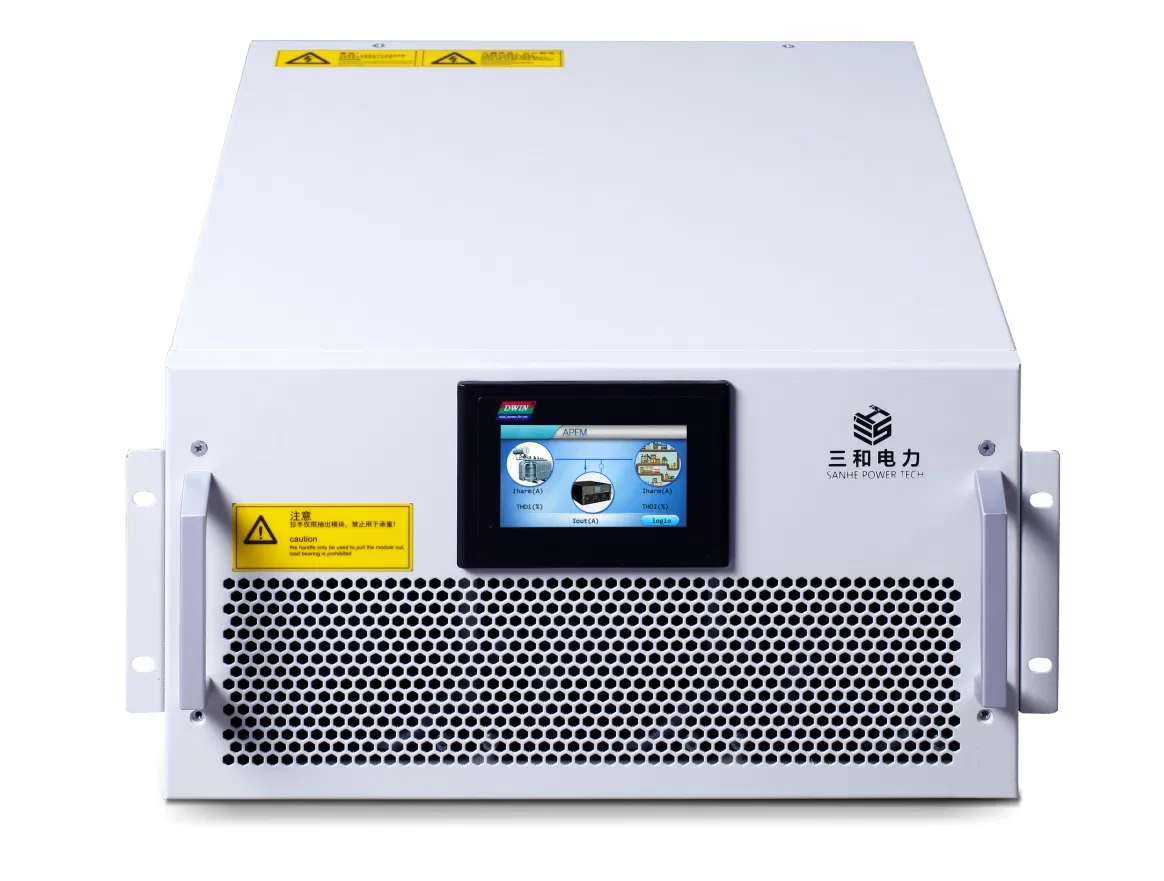

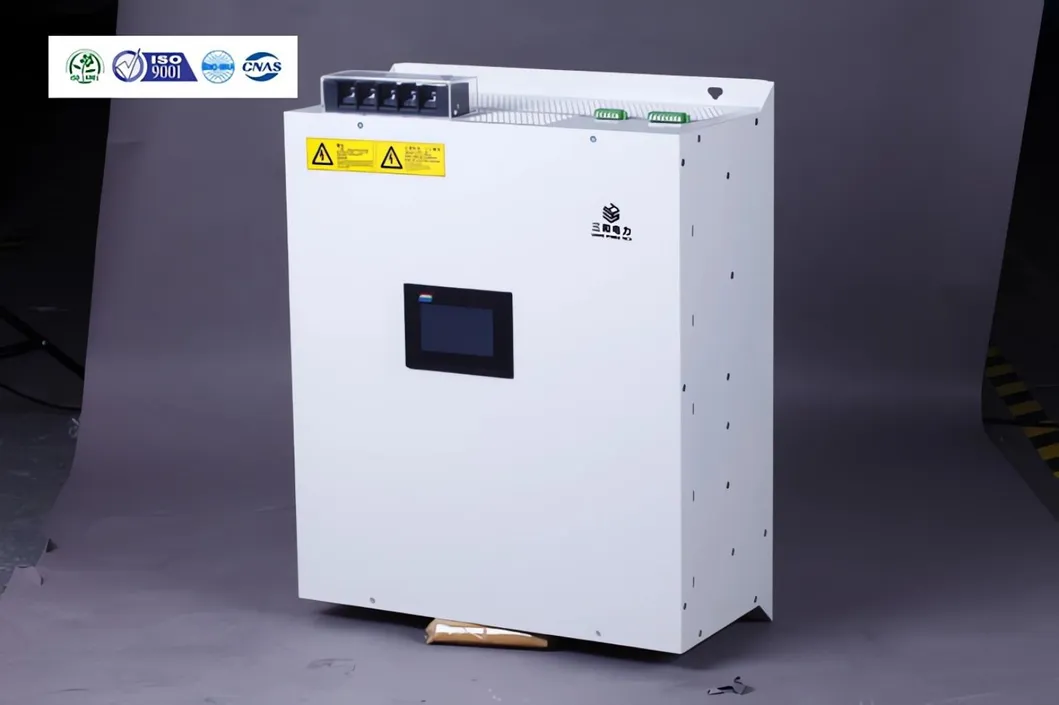

Neutral Current Management Device for Neutral Line

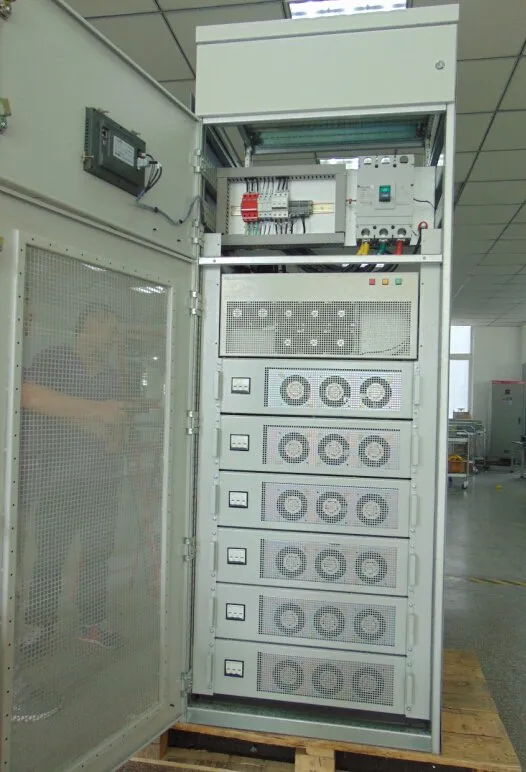

The SHAPF series neutral current management device provides a versatile range of capacity products from 20A to 600A. Designed for scalability, multiple products of the same specification can be combined in parallel to form a larger capacity system, effectively meeting the neutral harmonic current management needs of various large and medium-sized loads.

• Third harmonic current management from a systemic perspective, synchronously eliminating harmonics on both phase and neutral lines.

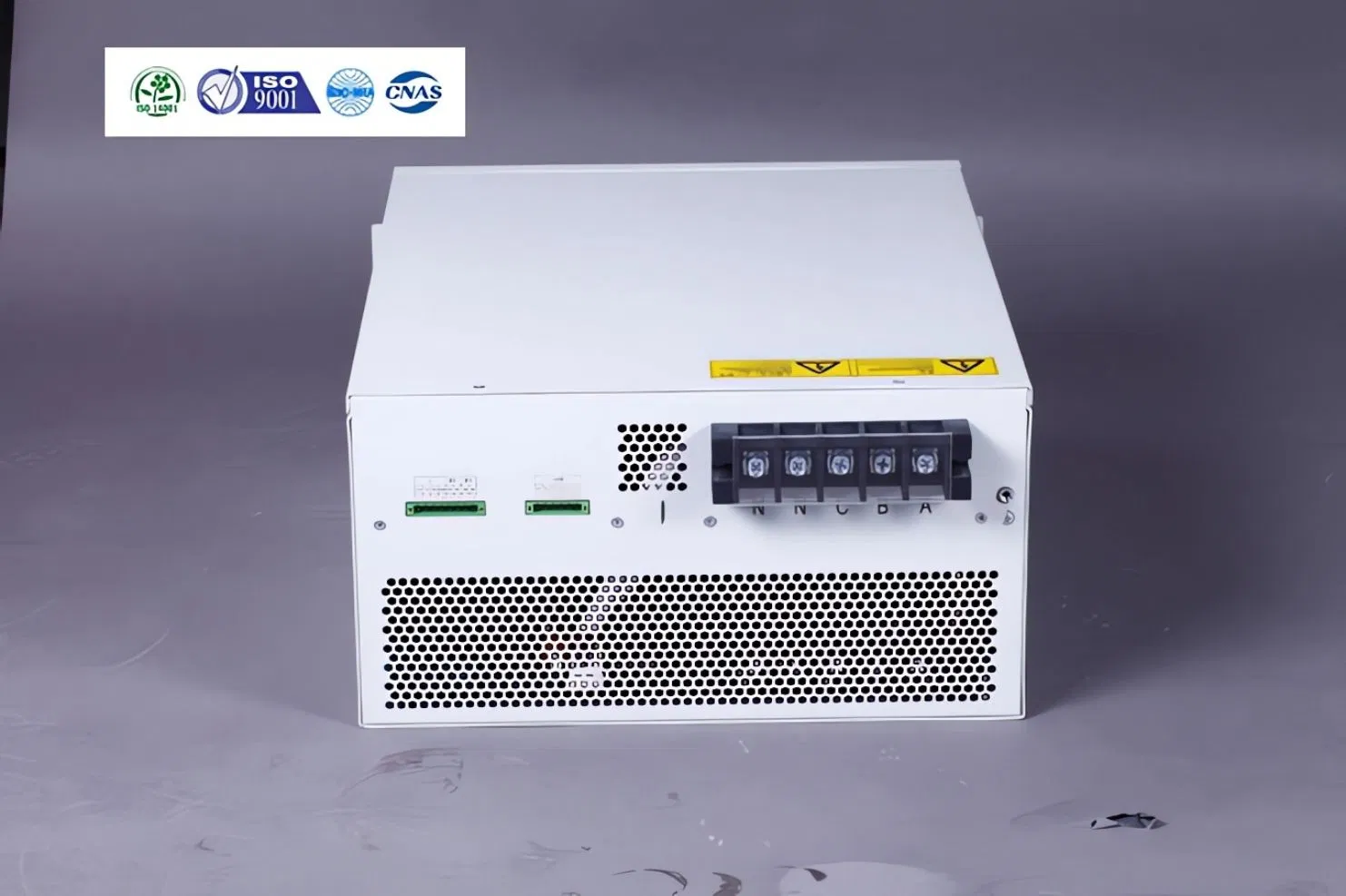

• Flexible connectivity: can be connected in series or parallel with simple and convenient wiring.
• Proprietary zero-line simulation technology maintains stable filtering during three-phase load fluctuations.
• High degree of automatic control; effective immediately upon connection without complex manual adjustments.
• Filters out more than 90% of the 3rd harmonic current, significantly reducing electrical fire hazards.
• Integrated residual neutral current monitoring system for comprehensive safety tracking.
• Equipped with a bypass switch to ensure continuous operation of load equipment under special circumstances.

The modular zero-sequence current controller is connected in parallel to the power grid. It utilizes external CTs to detect load current in real-time. Powered by DSP/FPGA/CPLD chips and advanced zero-sequence harmonic extraction technology, it analyzes the zero-line current content rapidly.

The system generates PWM pulses to drive a bidirectional converter using three-level IGBT modules, producing a compensation current that neutralizes the neutral line current and optimizes power quality.
