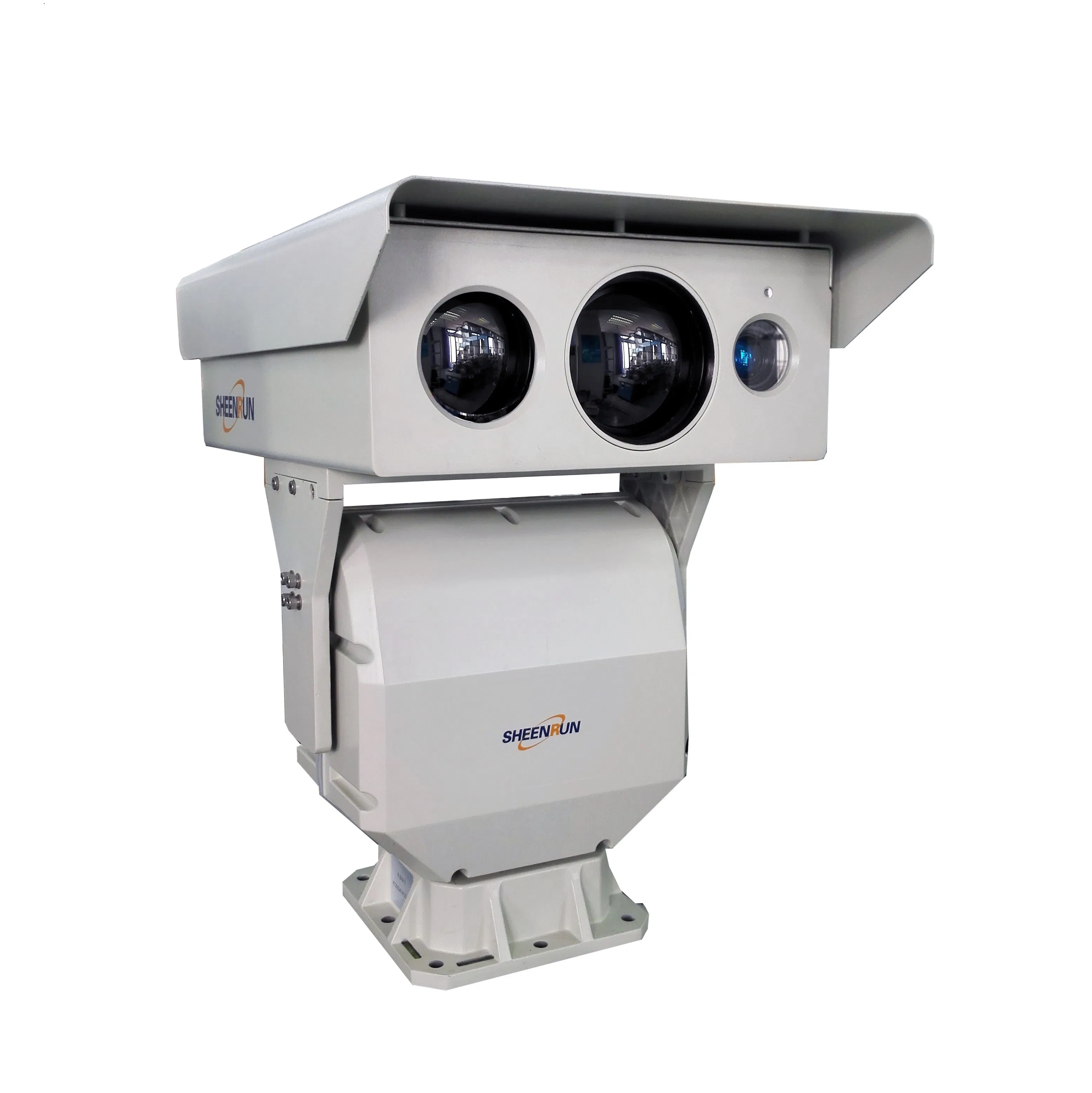

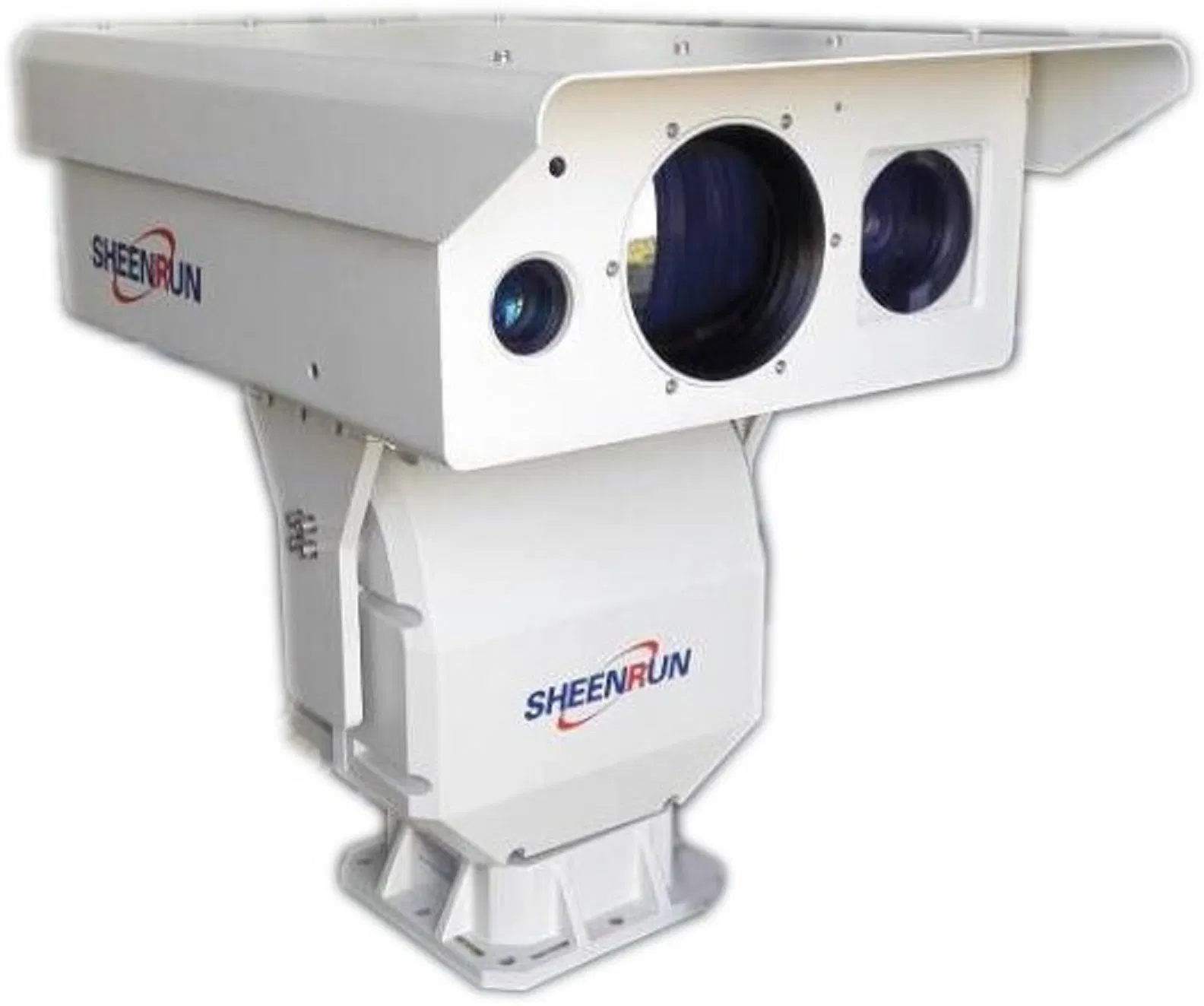

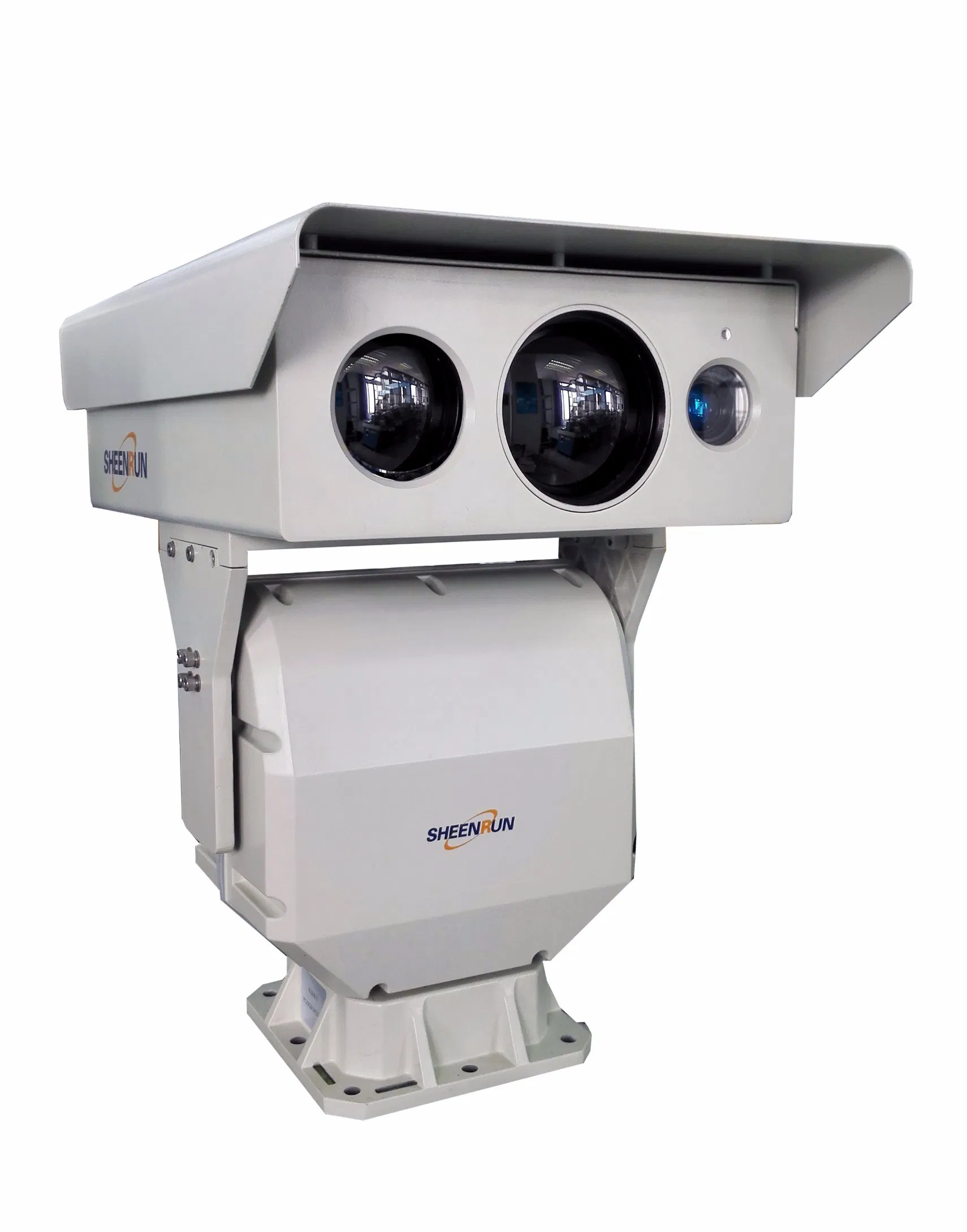

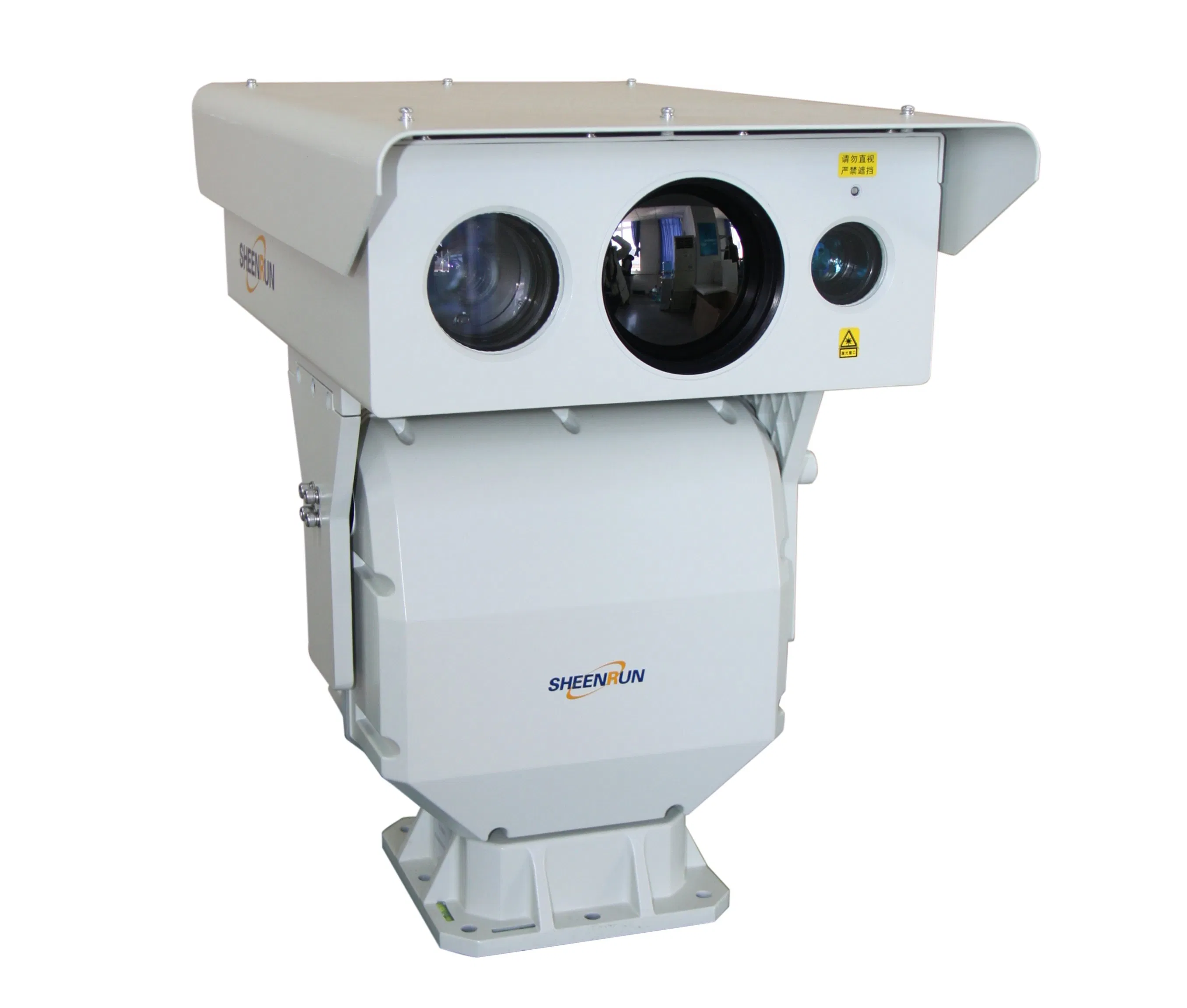

Multi Sensor Long Range PTZ Thermal and Daylight Security Laser Camera for Airport
Multi Sensor Long Range PTZ Thermal and Daylight Security Laser Camera for Airport
Multi Sensor Long Range PTZ Thermal and Daylight Security Laser Camera for Airport
Multi Sensor Long Range PTZ Thermal and Daylight Security Laser Camera for Airport
Multi Sensor Long Range PTZ Thermal and Daylight Security Laser Camera for Airport
1 / 5
Multi Sensor Long Range PTZ Thermal and Daylight Security Laser Camera for Airport
Multi Sensor Long Range PTZ Thermal and Daylight Security Laser Camera for Airport
Multi Sensor Long Range PTZ Thermal and Daylight Security Laser Camera for Airport
Multi Sensor Long Range PTZ Thermal and Daylight Security Laser Camera for Airport
Multi Sensor Long Range PTZ Thermal and Daylight Security Laser Camera for Airport

Multi Sensor Long Range PTZ Thermal and Daylight Security Laser Camera for Airport

Customization: Available
Type: Monitoring System
Application: All-Round Monitoring, Sound Monitoring
Send Inquiry

Product Description

Basic Specifications

Model NO.
SHR-WHLV3020AHNIR186Y
Feature
Waterproof / Weatherproof, High Definition
Video System
Wireless Transmission / Monitoring
Sensor
CMOS
Technology
Pan / Tilt / Zoom
Protection Grade
IP66
Thermal Monitor Distance
12km
Laser Power
10W
Effective Pixels
640X512
Package Size
57.00cm * 47.00cm * 32.00cm
Package Weight
12.500kg

Product Gallery

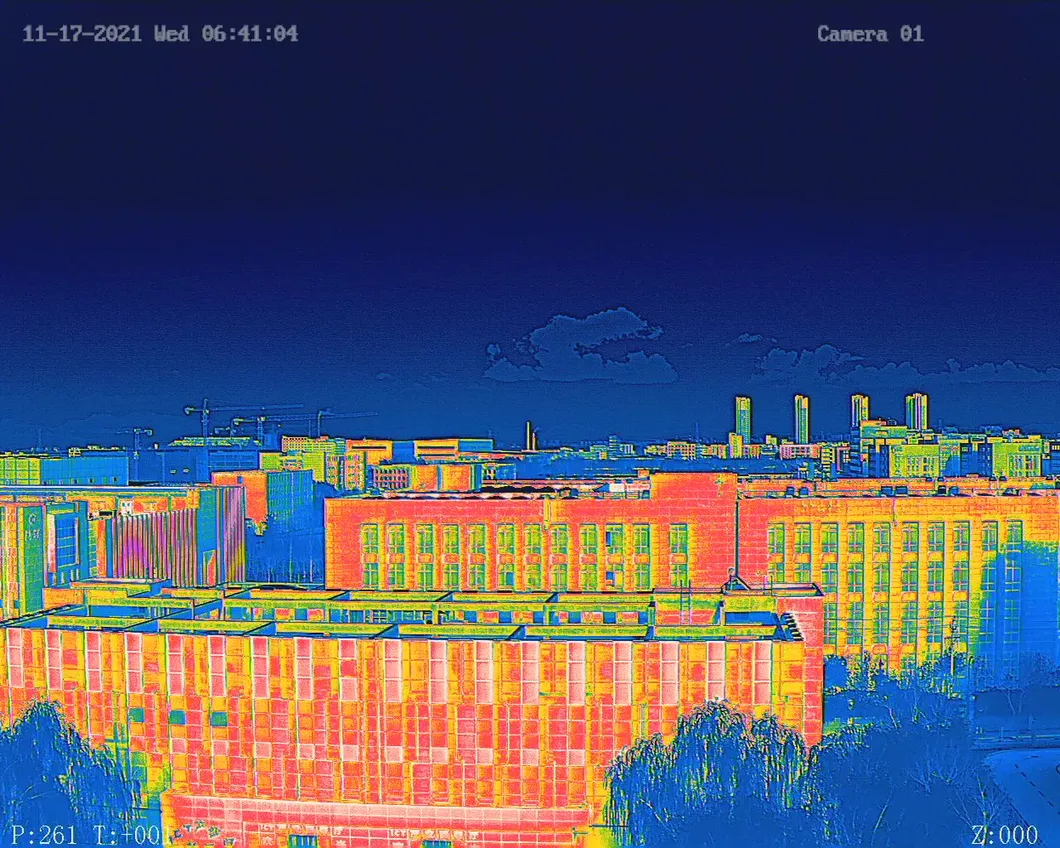

Security Laser Camera

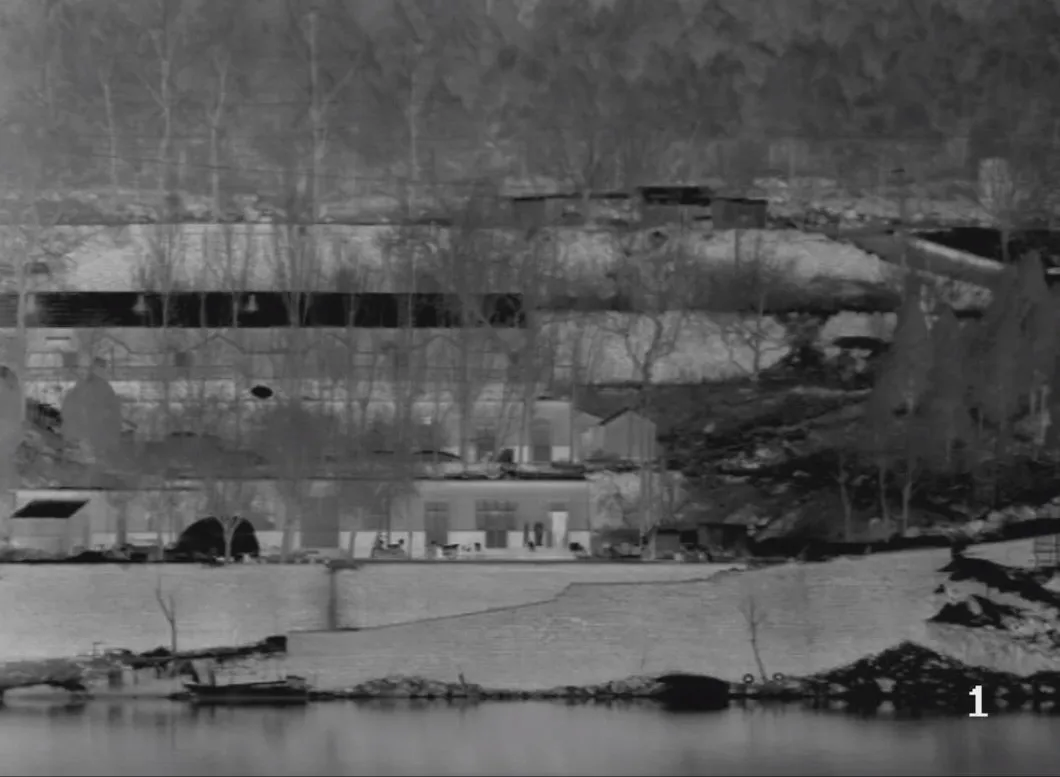

PTZ Thermal Camera

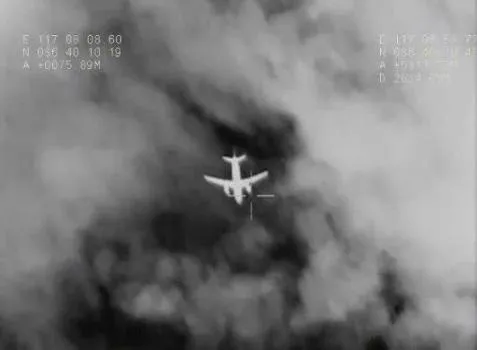

Security System

Key Features

  • Adopting continuous zooming thermal imaging technology for clear search in large areas and long-distance objective recognition.
  • Infrared detector with high temperature sensitivity, minimum resolution of 50mK.
  • 2 Megapixel low illuminance color camera for continuous 24/7 monitoring.
  • Advanced auto focusing and multiple triggering modes for efficient operation.
  • 3D locating function with frame selection magnifying and center clicking.
  • Professional rugged shell: anti-corrosion, waterproof, anti-acid rain, and high temperature resistant.

Technical Data

HD Camera Vision Night Vision: 3000m Day Vision: 8000m
Focal Lens: 12.5~750mm Sensor: 1/1.8" Progressive Scan CMOS
Thermal Imaging Human Detection: 5040m Vehicle Detection: 14400m
Resolution: 640x512 Focal Length: 30~180mm
Pan-Tilt Load: 50kg (Top Load) Rotation: 360° Continuous
Power & Environment Power: ≤160W (DC 30V) Rating: IP66, -25ºC~+55ºC

Wide Application Fields:

Perfectly suited for safe city monitoring, forest fire-proof monitoring, high altitude surveillance, railway security, harbor and oilfield monitoring, and freeway surveillance.

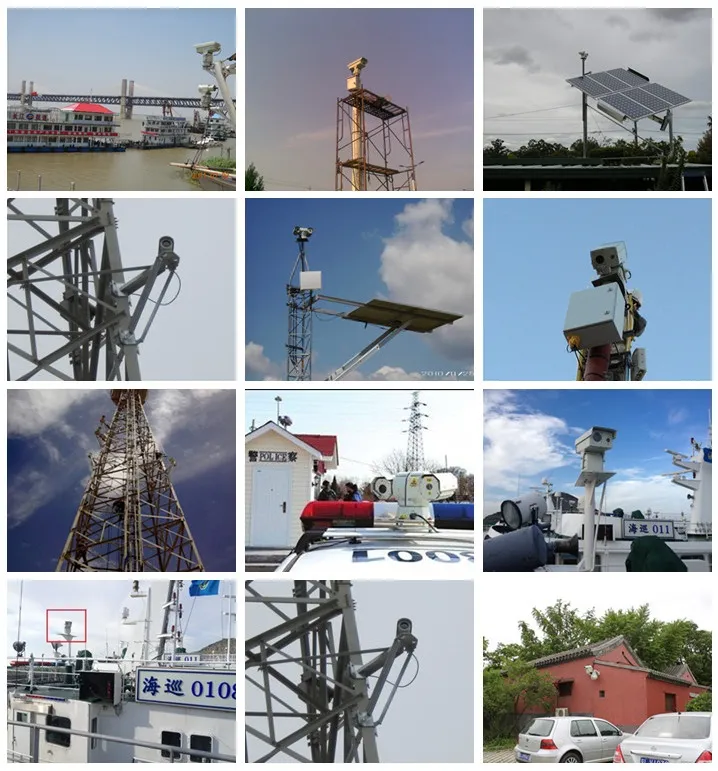

Application scenarios

Expertise & Quality

As a leading supplier of night vision and rugged information equipment, the facility adheres to independent innovation. We developed advanced laser night vision cameras and uncooled continuous zoom infrared thermal imaging technology. These solutions meet international standards and hold a significant position in the global security market.

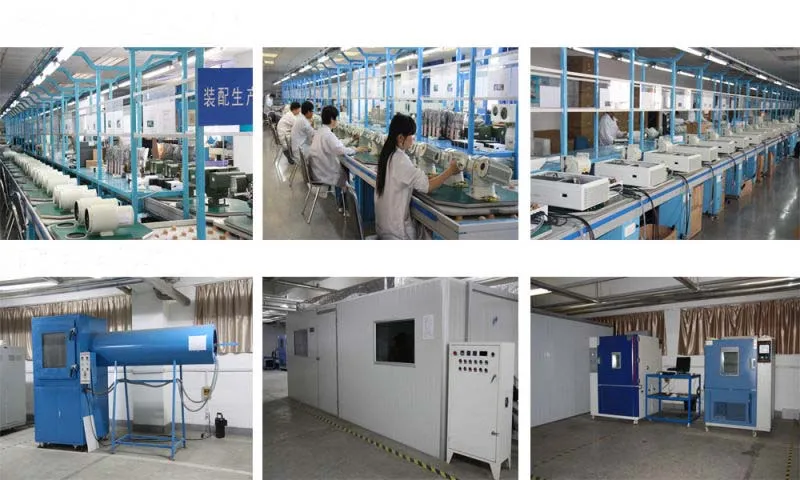

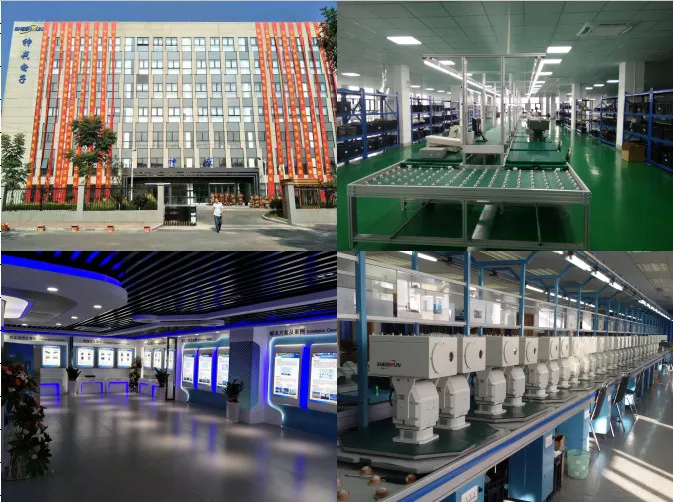

Production Facility
Research Center

Certified Quality

Certificates

Frequently Asked Questions

What is the maximum detection range for this camera?
The camera can detect humans at a distance of up to 5,040 meters and vehicles at up to 14,400 meters using thermal imaging technology.
Is the device suitable for extreme outdoor weather?
Yes, it features an IP66 protection grade, is anti-corrosion, waterproof, and can operate in temperatures ranging from -25ºC to +55ºC.
Does the camera support both day and night monitoring?
Absolutely. It combines a 2MP low-illuminance color camera for daylight and a thermal imaging system with a laser illuminator for clear night vision up to 3,000 meters.
What are the power requirements?
The device operates on a DC 30V power supply with a maximum power consumption of ≤160W. An AC90V~305V to DC30V waterproof power adapter is included.
Does it have PTZ capabilities?
Yes, it features a heavy-duty pan-tilt unit with 360° continuous horizontal rotation and a -45° to +45° pitching range, supporting up to 255 preset positions.
Can the camera handle lightning strikes?
The system is designed with 2000V anti-lightning protection to ensure durability in stormy environments.
