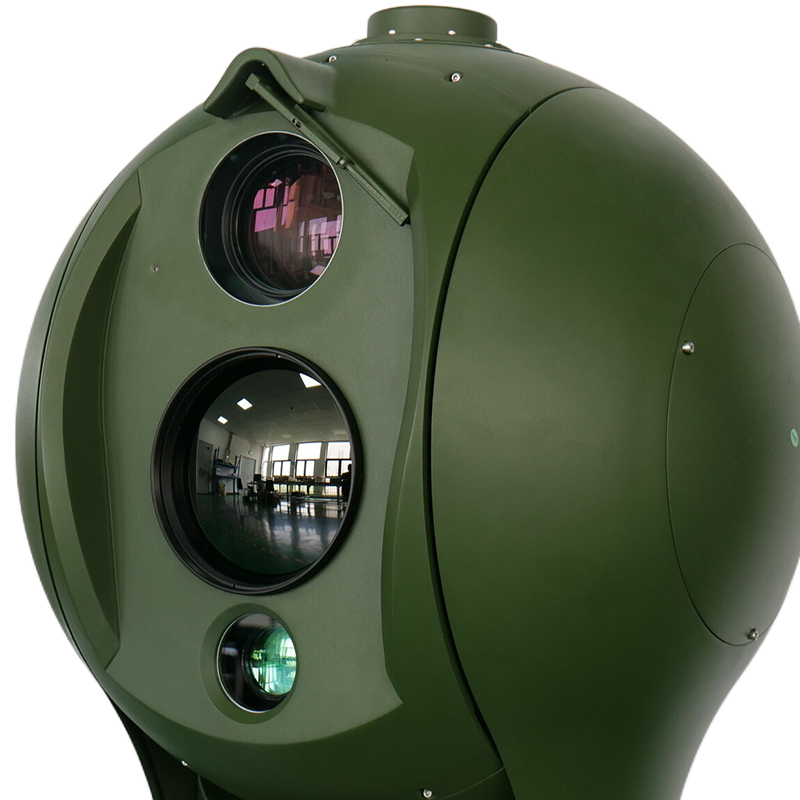

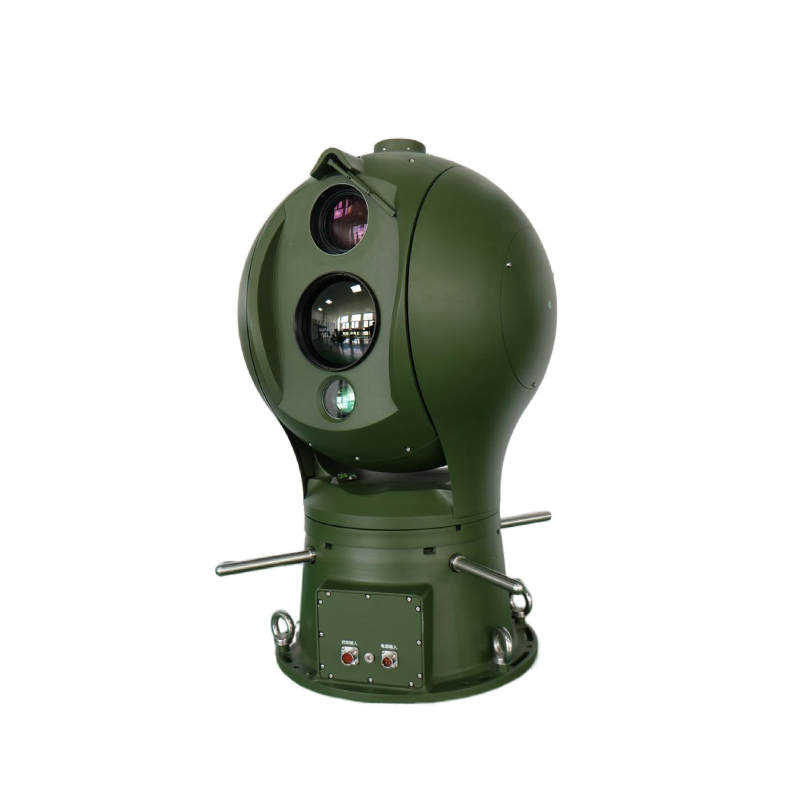

Multi Function PTZ CMOS Infrared Camera CCTV System with Gyro Stabilization
Multi Function PTZ CMOS Infrared Camera CCTV System with Gyro Stabilization
Multi Function PTZ CMOS Infrared Camera CCTV System with Gyro Stabilization
Multi Function PTZ CMOS Infrared Camera CCTV System with Gyro Stabilization
Multi Function PTZ CMOS Infrared Camera CCTV System with Gyro Stabilization
1 / 5
Multi Function PTZ CMOS Infrared Camera CCTV System with Gyro Stabilization
Multi Function PTZ CMOS Infrared Camera CCTV System with Gyro Stabilization
Multi Function PTZ CMOS Infrared Camera CCTV System with Gyro Stabilization
Multi Function PTZ CMOS Infrared Camera CCTV System with Gyro Stabilization
Multi Function PTZ CMOS Infrared Camera CCTV System with Gyro Stabilization

Multi Function PTZ CMOS Infrared Camera CCTV System with Gyro Stabilization

Customization: Available
Type: Monitoring System
Application: All-Round Monitoring, Sound Monitoring
Send Inquiry

Product Description

Basic Information
Model NO.PT550HLV4020ZIR75-300R
FeatureWaterproof / Weatherproof, High Definition
Video CaptureVideo Camera
SensorCMOS
TechnologyPan / Tilt / Zoom
Protection GradeIP66
Effective Distance9km
InstallationOutdoor Pedestal Mounting
Product Description

Main Features:

  • Adopting thermal imaging technology for clear imaging in large areas and long-distance objective recognition.
  • High resolution infrared detector with NETD ≤ 50mK.
  • Day and night 2 megapixels low illuminance color camera for continuous monitoring.
  • Optional auto focusing function with multiple triggering modes.
  • Thermal imaging camera presetting function to enhance working efficiency.
  • 3D locating function with frame selection magnification and click-to-center capability.
  • High reliability aluminum alloy electro-optical pantilt with reinforcement design against wind and salt fog.

Technical Indicators:

Model PT450HLV1020TIR155R PT550HLV3020HTIR210R PT550HLV4020ZIR75-300R
HD Camera Distance 2000m 6500m 9000m
Thermal (Human/Vehicle) 3600m / 9900m 5600m / 16000m 6270m / 15330m
Thermal Detector Uncooled microbolometer (Vox) Cooled detector
Pixel Resolution 324×256 640×512 324×256
Spectral Range 8~ 14μm
NETD ≤50mK ≤25mK
Thermal Lens Zoom 30~150mm, 5x 20~200mm, 10x 75/300mm Dual FOV
HD Camera Sensor 1/1.8'' Progressive Scan CMOS
HD Focal Length 10~320mm 16.7~1000mm
Pan/Tilt Range Pan: 0°~ 360°; Tilt: -45°~ +45°
Protection / Temp IP66 / -25ºC~ +55ºC
Product Showcase

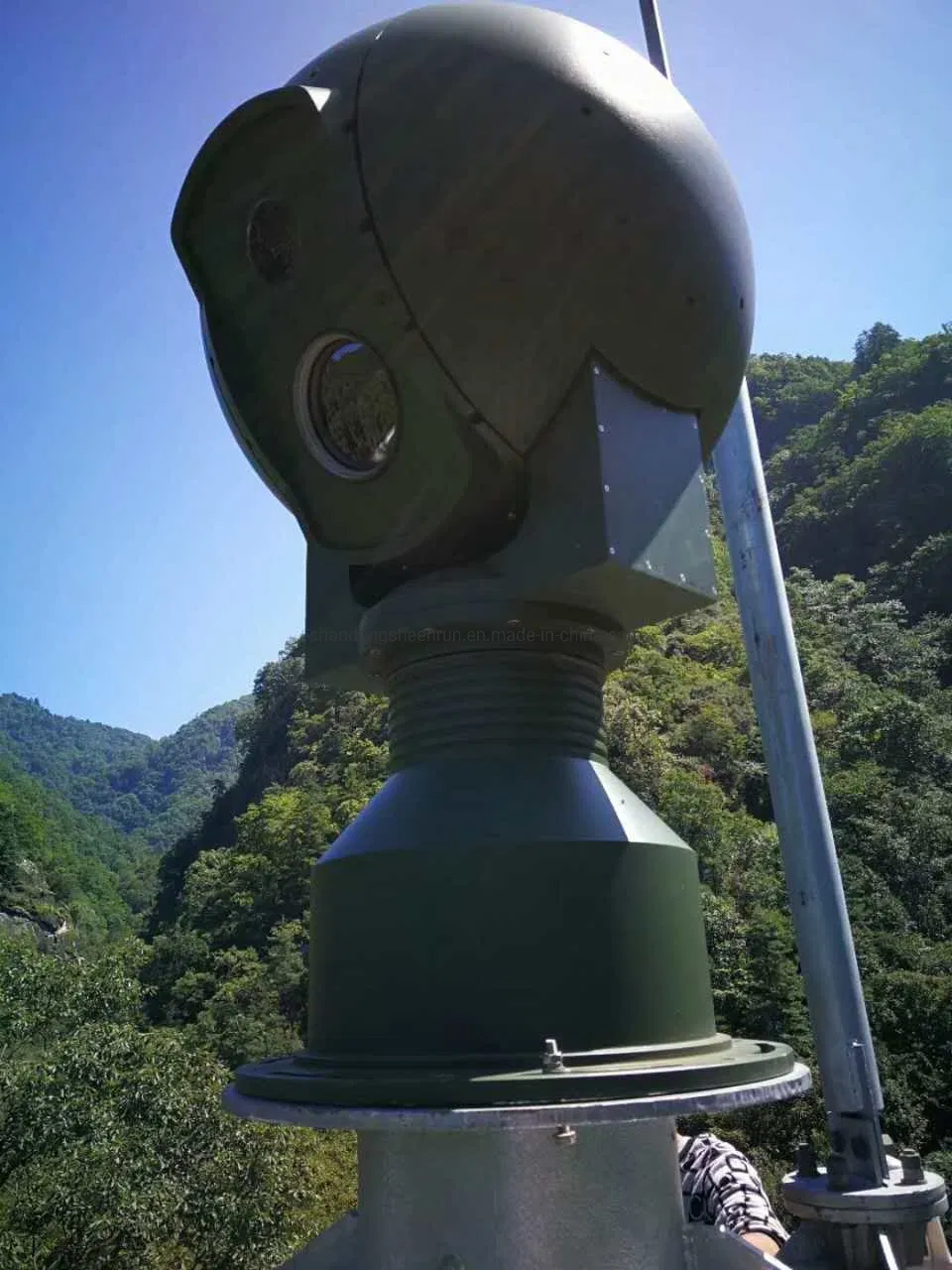

PTZ CMOS Infrared Camera

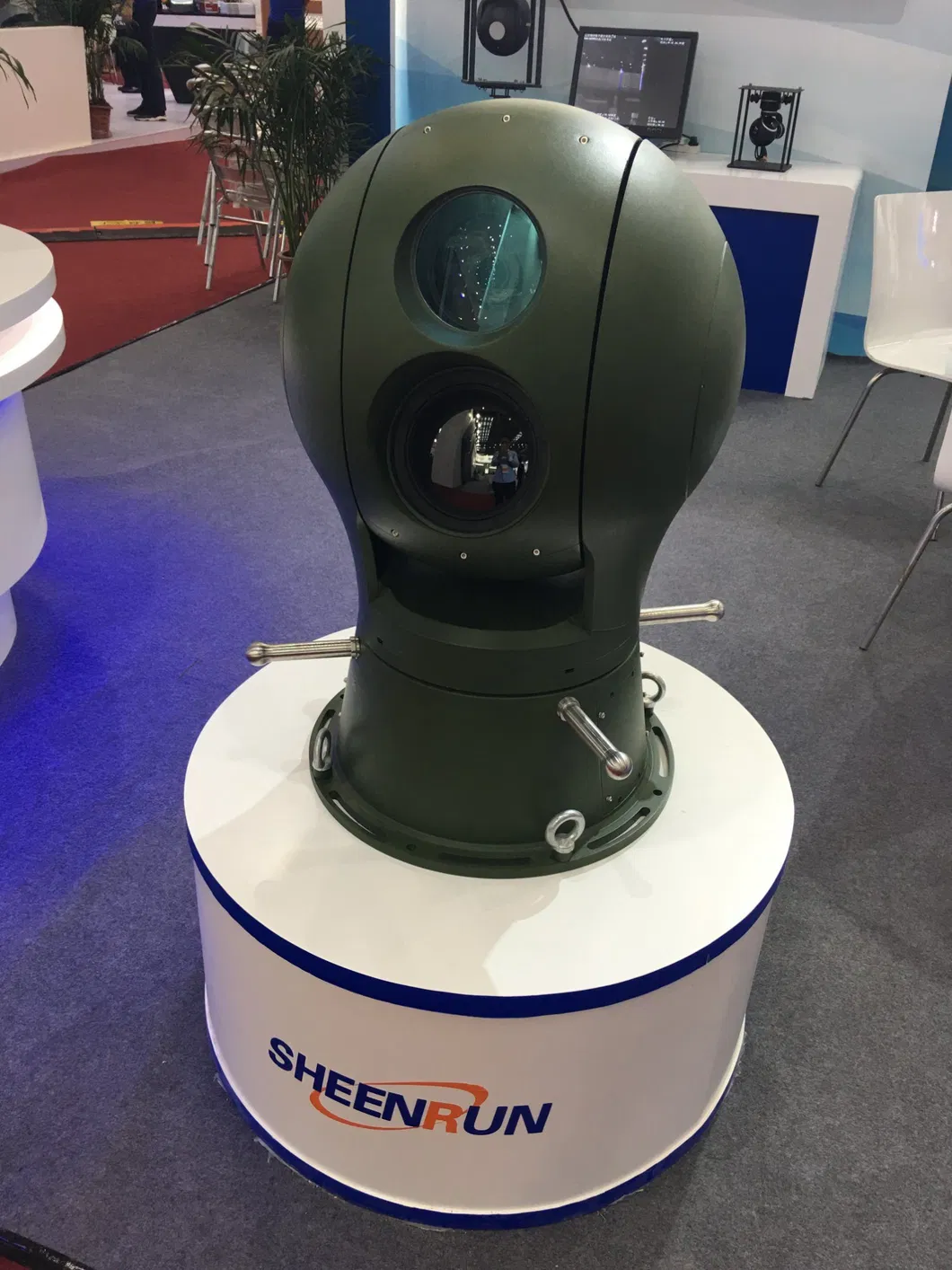

Camera Side View

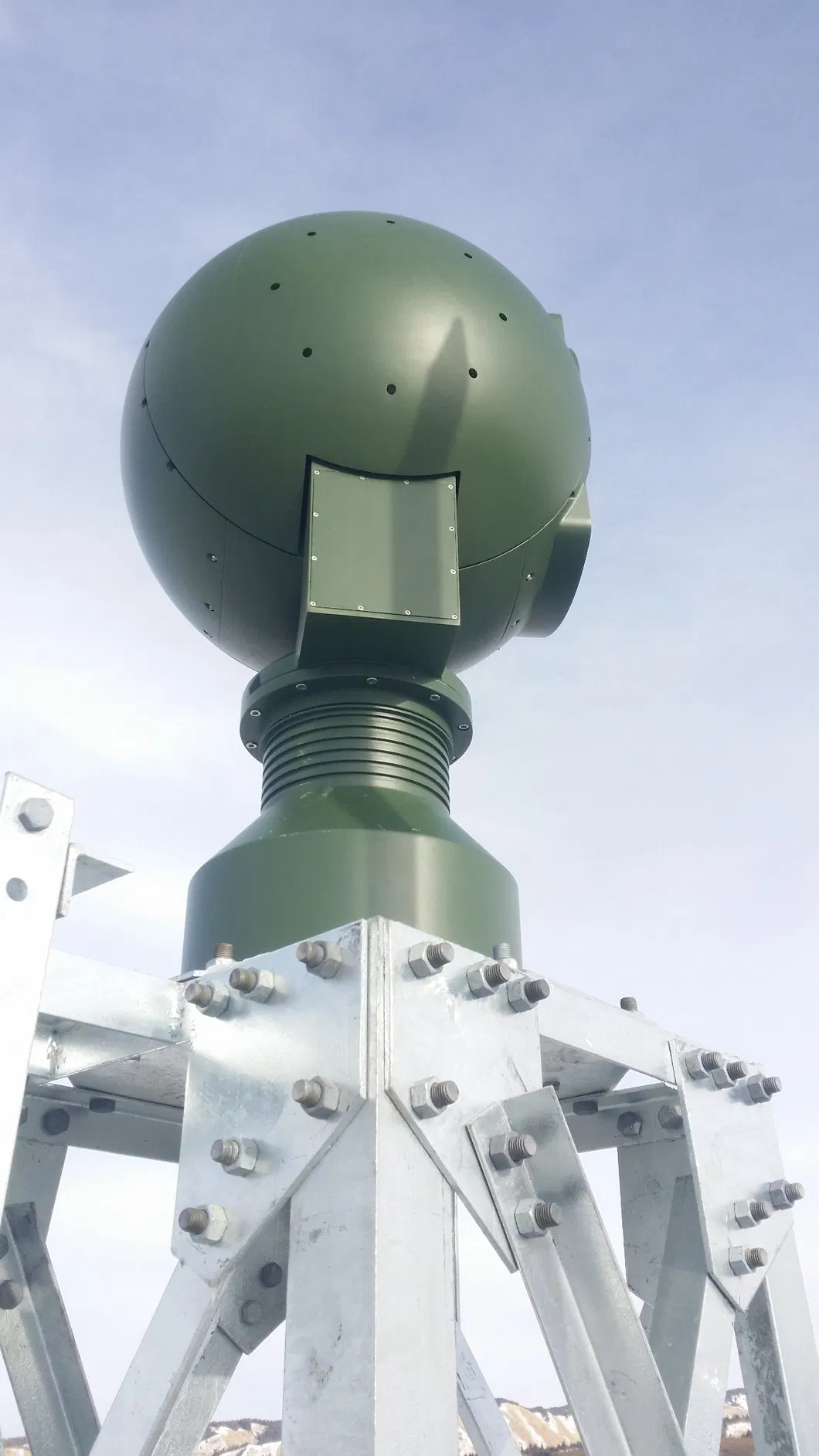

Camera Detail
Exhibition & Facility
Exhibition Image 1
Exhibition Image 2
About Our Expertise

Founded in 2004, our company is a leading night vision equipment and rugged information equipment supplier. We adhere to independent innovation and developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights. Our synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standards.

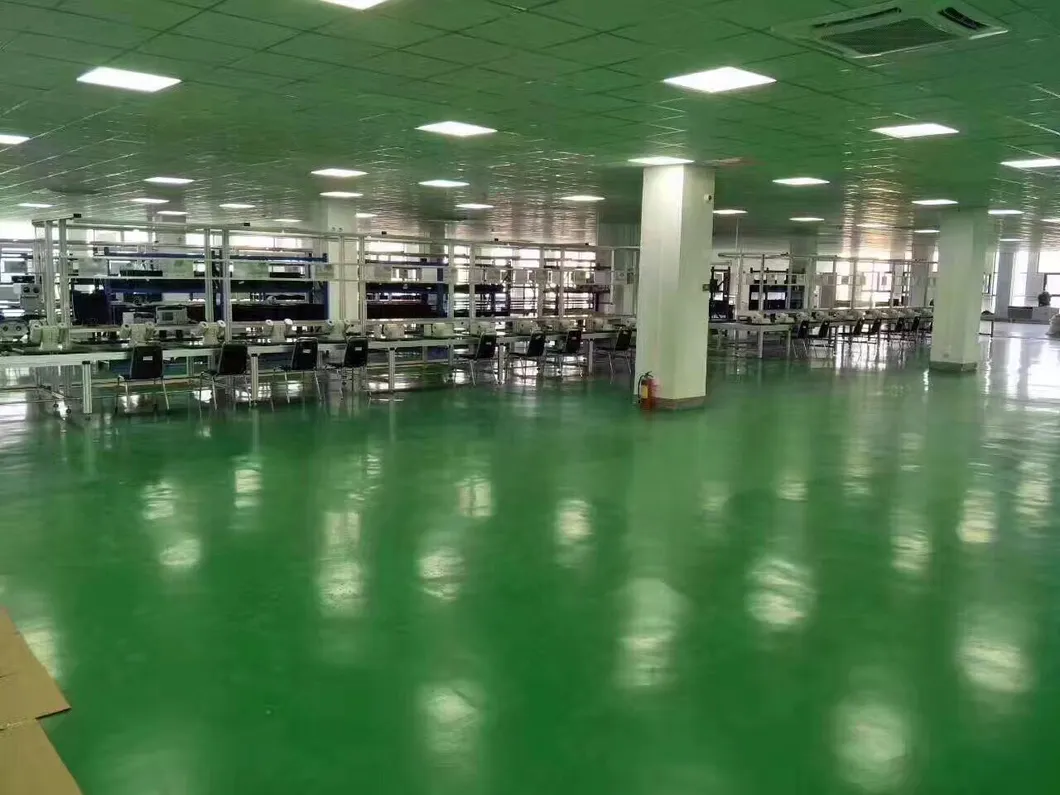

Facility 1

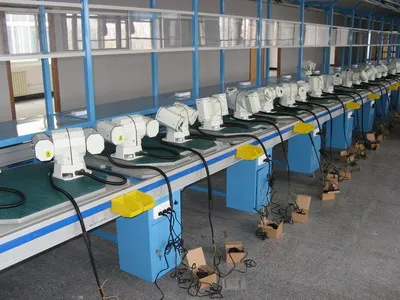

Facility 2
Facility 3
Effect Demo & Application

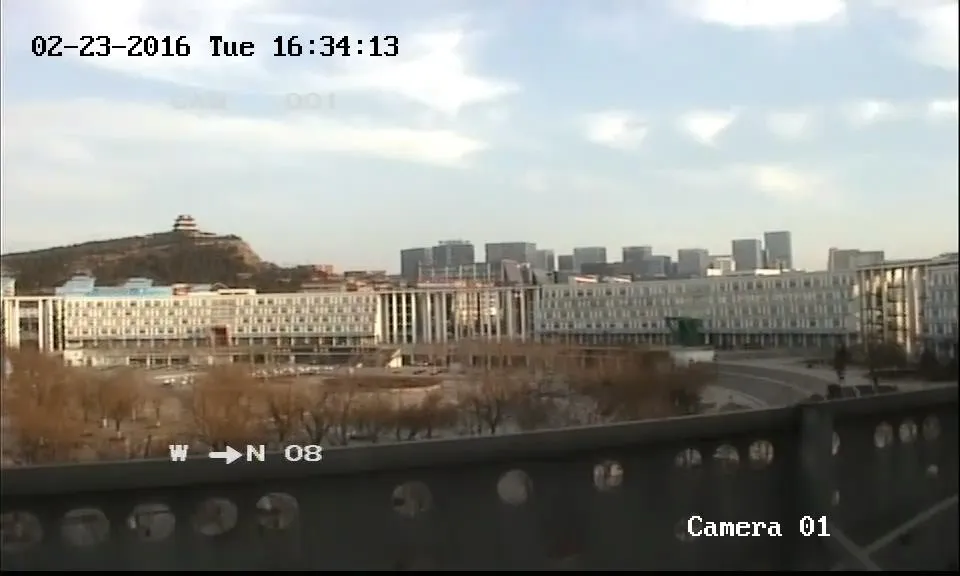

Thermal Effect 1

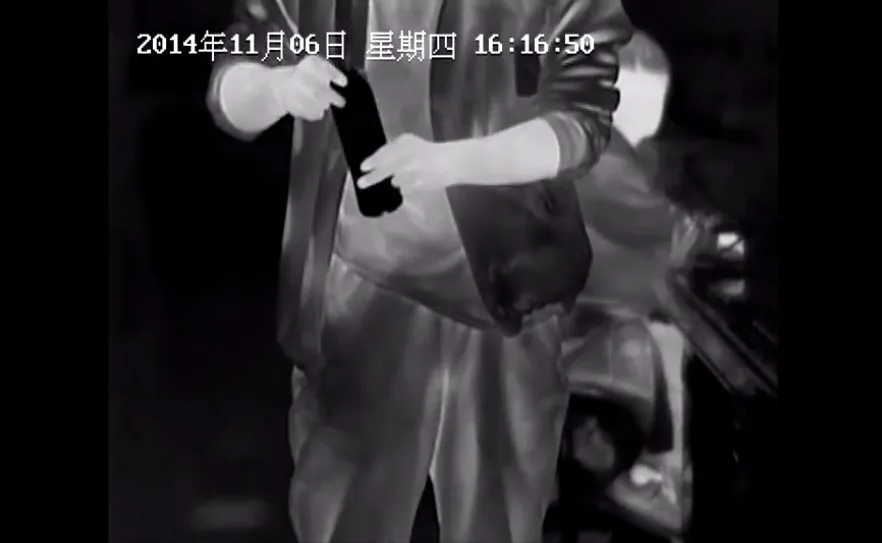

Thermal Effect 2

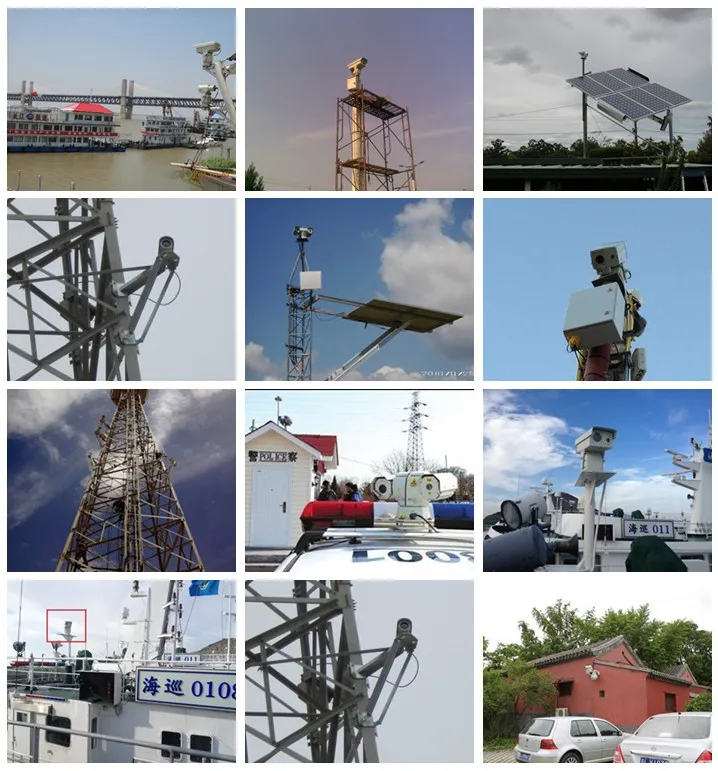

Application Chart
Frequently Asked Questions
1. What is the maximum monitoring distance for this system?
The system can detect vehicles at a distance of up to 15,330m and humans up to 6,270m using the thermal camera, while the HD camera supports monitoring up to 9,000m depending on the model.
2. Does the camera support both day and night monitoring?
Yes, it combines a 2-megapixel low-illuminance color camera for daytime and an infrared thermal imaging camera for nighttime and harsh weather visibility.
3. What is the protection rating for outdoor use?
The device is rated IP66, making it waterproof and weatherproof, suitable for high-reliability outdoor pedestal mounting.
4. Does the system include Pan-Tilt-Zoom (PTZ) functionality?
Yes, it features a high-reliability aluminum alloy electro-optical pantilt with 360° horizontal rotation and -45° to +45° tilt range.
5. Can the camera automatically focus on objects?
The system includes an optional auto-focusing function that supports multiple focusing and triggering modes for enhanced ease of use.
6. Is the system resistant to extreme environmental conditions?
Yes, the reinforcement design provides strong resistance against wind (up to Grade 12), salt fog, and extreme temperatures ranging from -25ºC to +55ºC (extendable to -40ºC).
