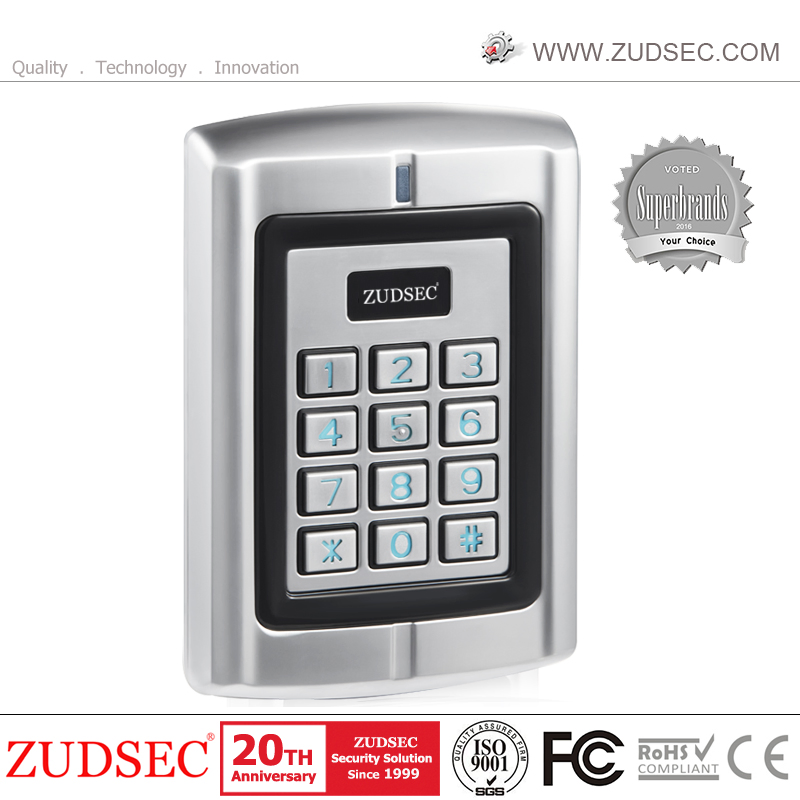

Metal Shell Outdoor Keypad RFID Door Access Control with 2000 Users
Metal Shell Outdoor Keypad RFID Door Access Control with 2000 Users
Metal Shell Outdoor Keypad RFID Door Access Control with 2000 Users
Metal Shell Outdoor Keypad RFID Door Access Control with 2000 Users
Metal Shell Outdoor Keypad RFID Door Access Control with 2000 Users
1 / 5
Metal Shell Outdoor Keypad RFID Door Access Control with 2000 Users
Metal Shell Outdoor Keypad RFID Door Access Control with 2000 Users
Metal Shell Outdoor Keypad RFID Door Access Control with 2000 Users
Metal Shell Outdoor Keypad RFID Door Access Control with 2000 Users
Metal Shell Outdoor Keypad RFID Door Access Control with 2000 Users

Metal Shell Outdoor Keypad RFID Door Access Control with 2000 Users

Customization: Available
Card Reader Quantity: 2
Control Gates: One Gate
Send Inquiry

Product Description

i

Basic Info

Model NO.
ZDAC-2000
Technology
32-Bit Technology
Way of Control
Hand Control
Type
One-way Controller
Product Name
Standalone Access Control
Card Type
125kHz Em ID Cards
Capacity
2000 Users
Housing
Metal Shell
Application
Office Building etc
Warranty
1 Year
★

Product Description

Metal Shell Outdoor Keypad RFID Door Access Control with 2000 Users

Standalone Access Control: The ZDAC-2000 is suitable for mounting either indoor or outdoor in harsh environments. Exquisite designs with non-masking Metal shell, Keystroke backlight, Wiegand output. Supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option, with Doorbell function. These powerful features make ZDAC-2000 an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and prisons.

✔

Key Features

  • Exquisite designs with non-masking Metal shell
  • Keystroke backlight for night visibility

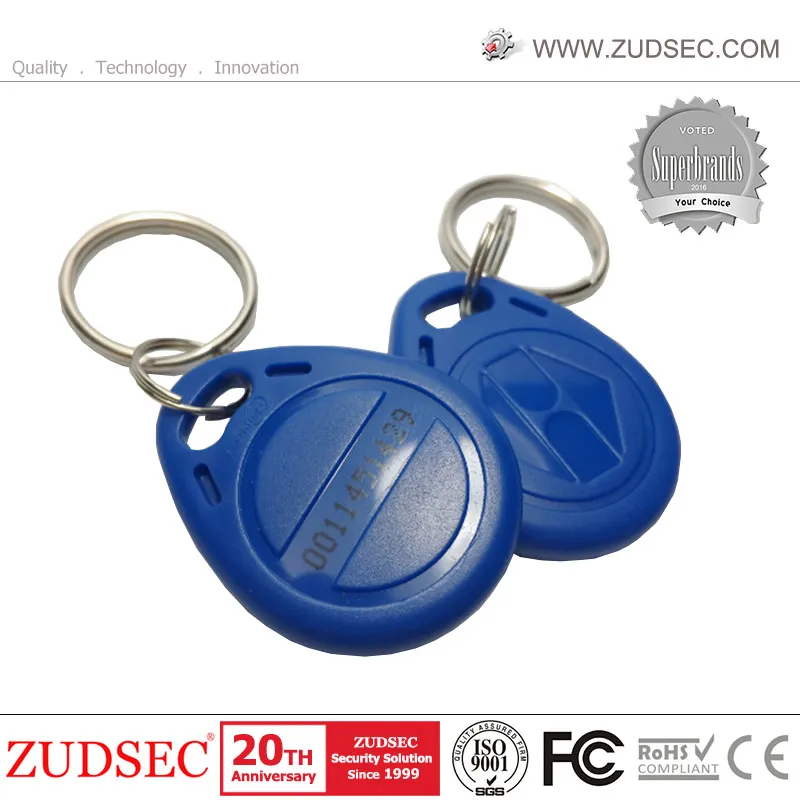

  • Supports 125kHz EM ID cards
  • WG26 output, usable as an access reader
  • Large Capacity: 2000 users
  • Multiple Access: Cards, code, card & code

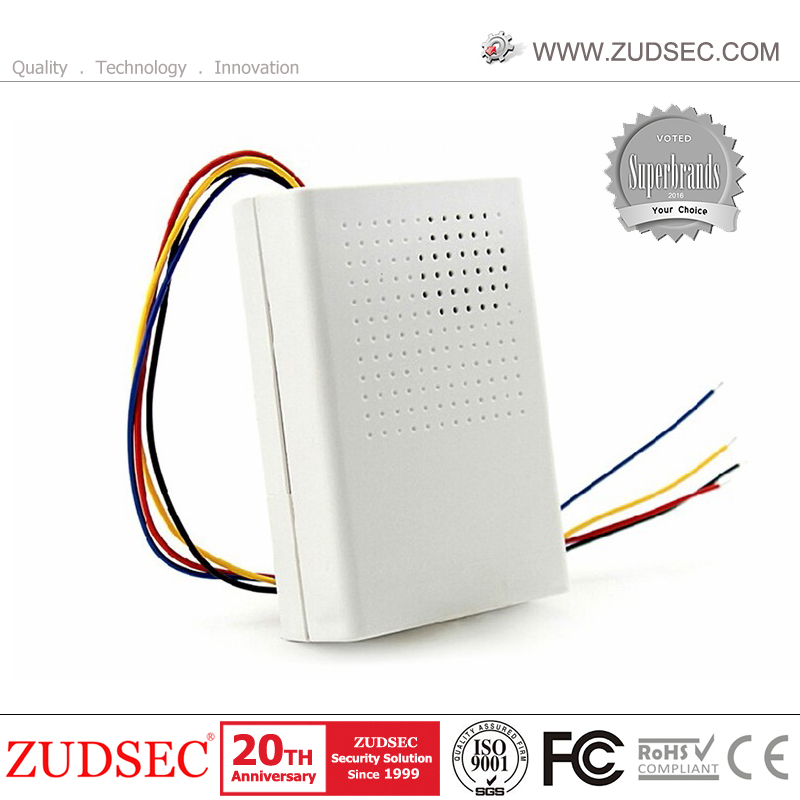

  • Built-in Doorbell key interface
  • Low power: Static current less than 30mA
  • Open-door time: 0~99 seconds (adjustable)
  • Fast search speed: less than 0.1s
  • Short-circuit protection for output safety
  • Keypad deletion of lost cards
⚙

Product Parameters

ModelZDAC-2000
Card TypesEM or EM compatible
Operating VoltageDC 12V±10%
User Capacity2000
Card Reading Distance3~6cm
Active Current<60mA
Lock Output LoadMax 3A
Operating Temperature-45ºC~60ºC
Operating Humidity10%- 90% RH
Wiegand InterfaceWiegand 26 bit
Dimensions128mm X 82mm X 28mm
Weight500g
📷

Product Display

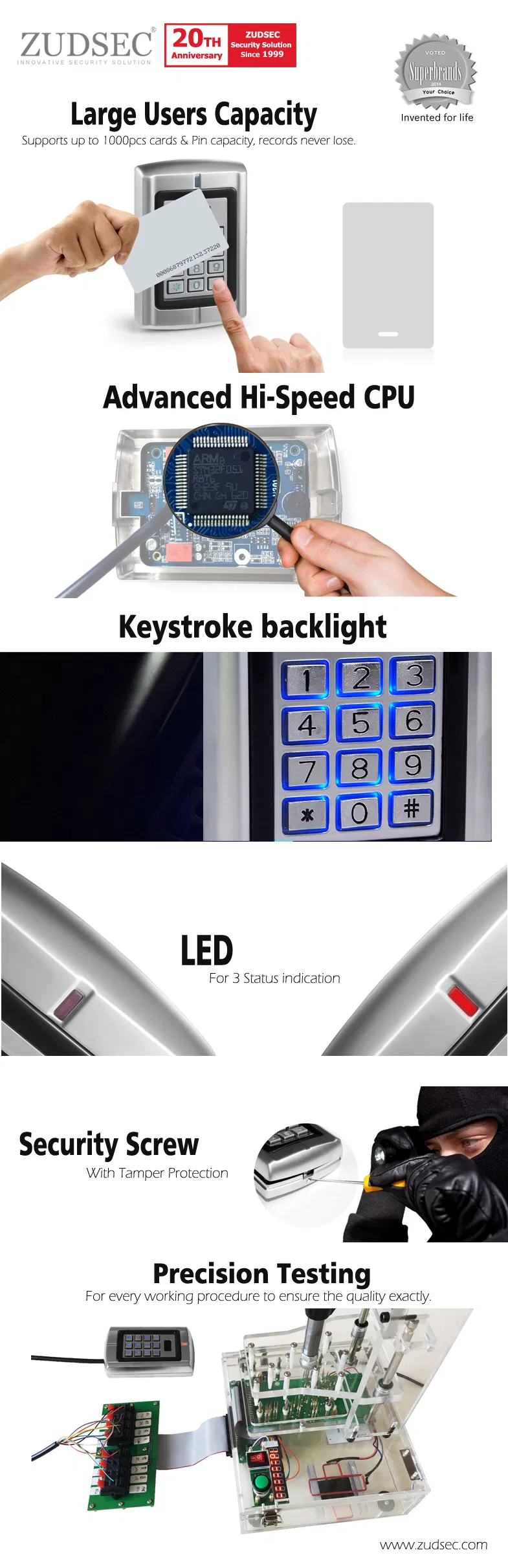

Access Control Overview
Access Control Front View

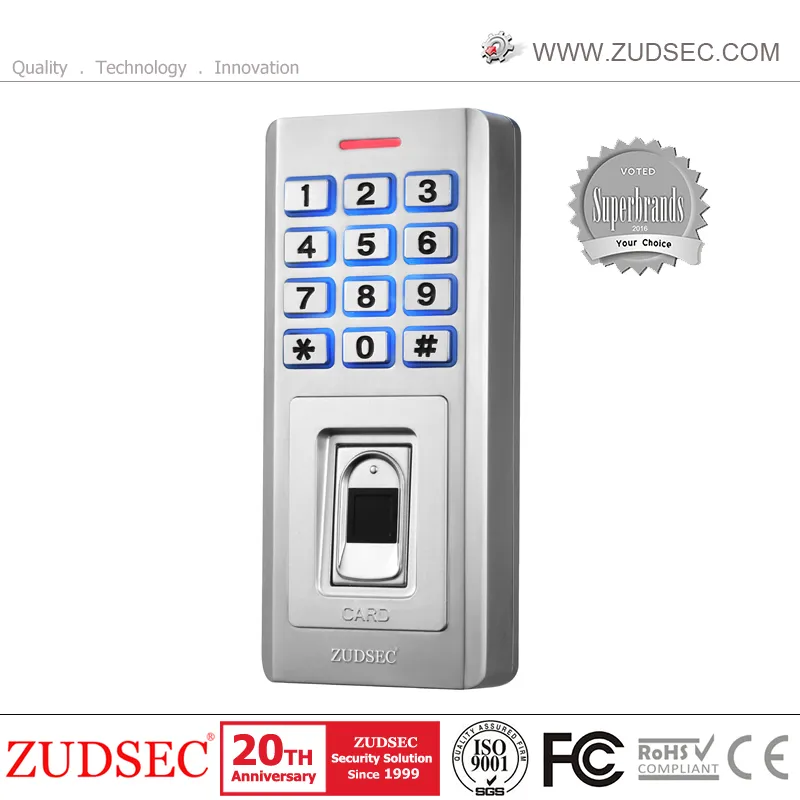

Access Control Side View
Keypad Backlight
Metal Housing Detail
Installation View
🔗

Related Products

Related Model 1
Related Model 2

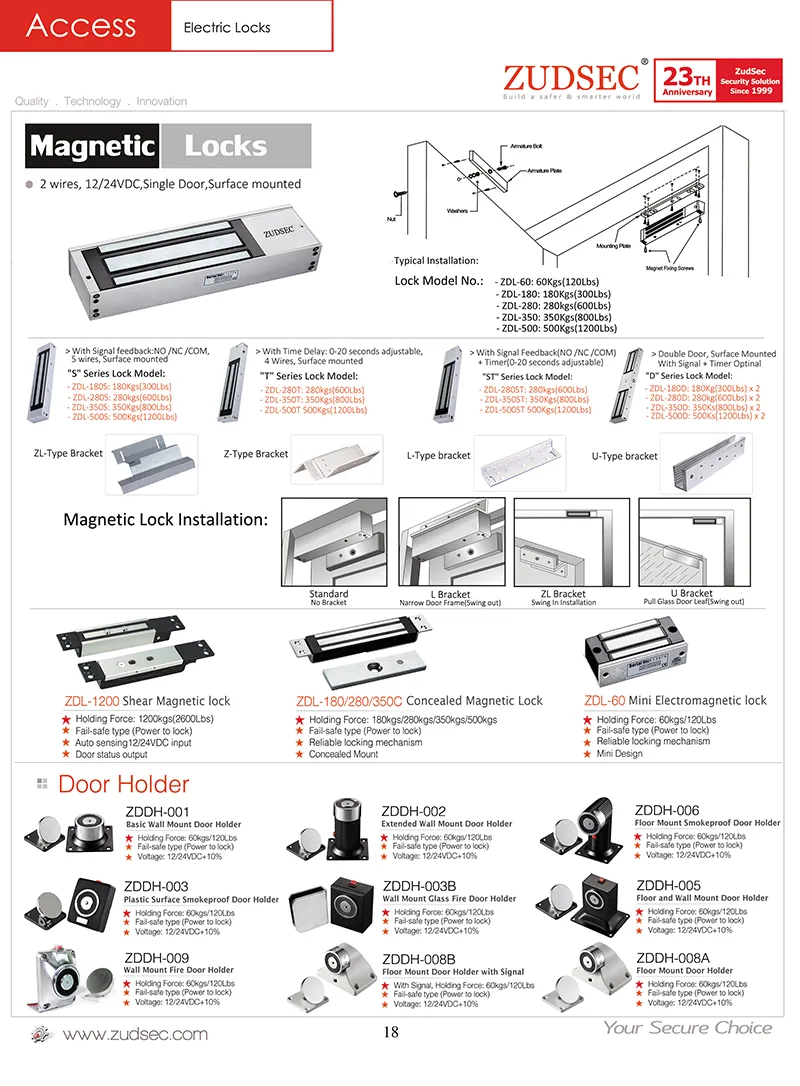

Related Model 3

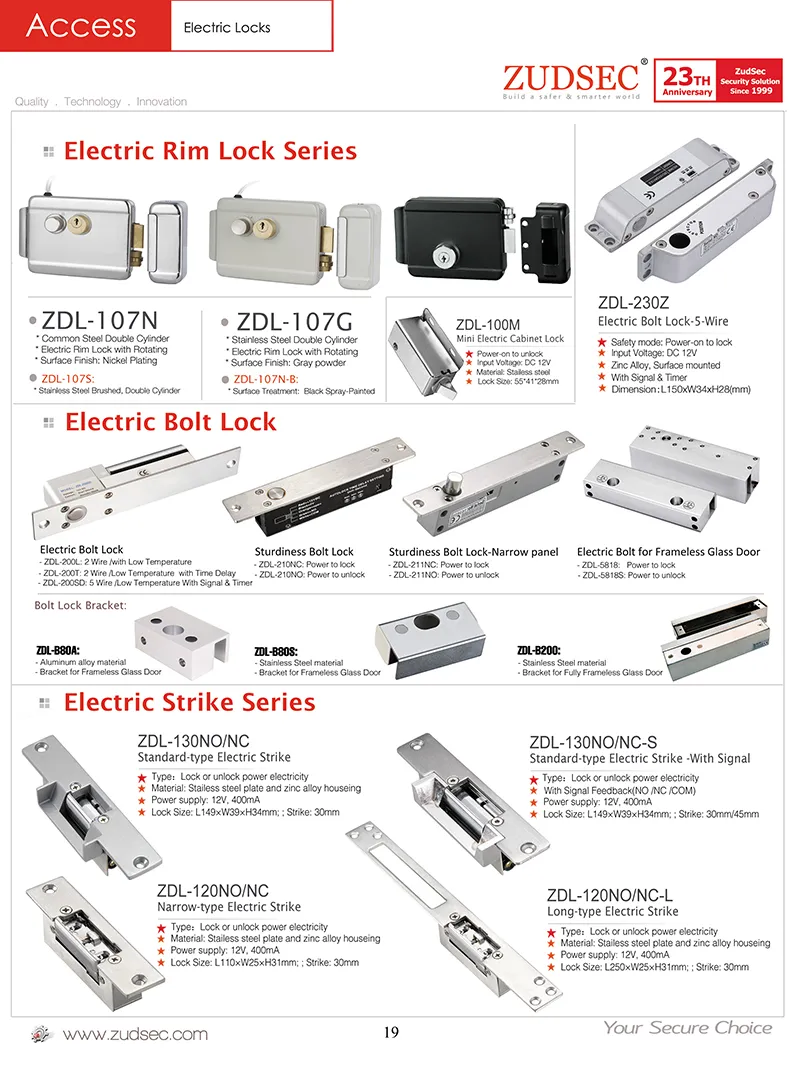

Related Model 4

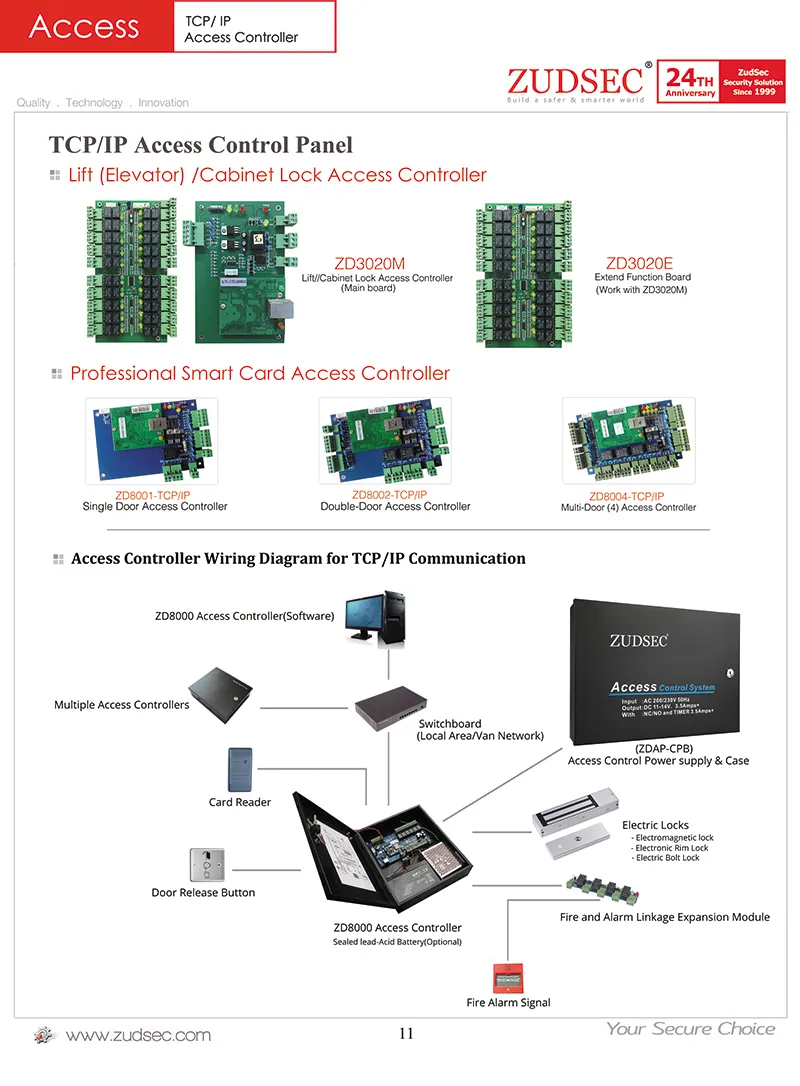

Related Model 5
Related Model 6
?

Frequently Asked Questions

Q1: How many users does the ZDAC-2000 support?
A: The device supports up to 2000 users, each with their own card or PIN code.
Q2: Can this access control be installed outdoors?
A: Yes, it is designed with a durable metal shell and is suitable for both indoor and outdoor mounting, even in harsh environments.
Q3: What are the available access methods?
A: Users can gain access using an EM Card, a 4-digit PIN, or a combination of Card + PIN.
Q4: Does the keypad have a backlight?
A: Yes, it features a keystroke backlight, making it easy to operate in dark or low-light conditions.
Q5: What happens if a card is lost?
A: For security, you can use the keypad to manually delete lost cards from the system immediately.
Q6: What is the reading range for the RFID cards?
A: The standard reading range is approximately 3 to 6 cm depending on the environment and card type.
