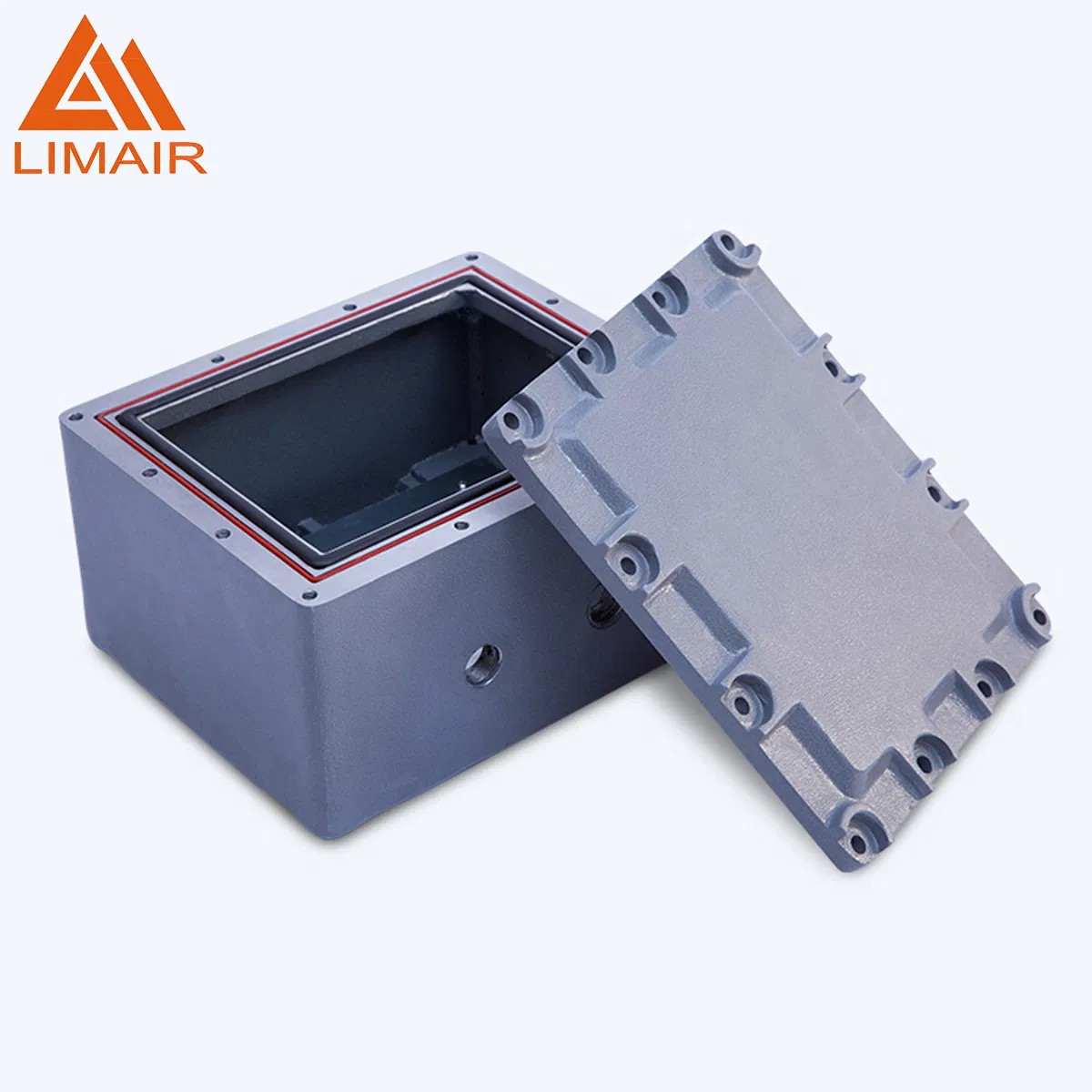

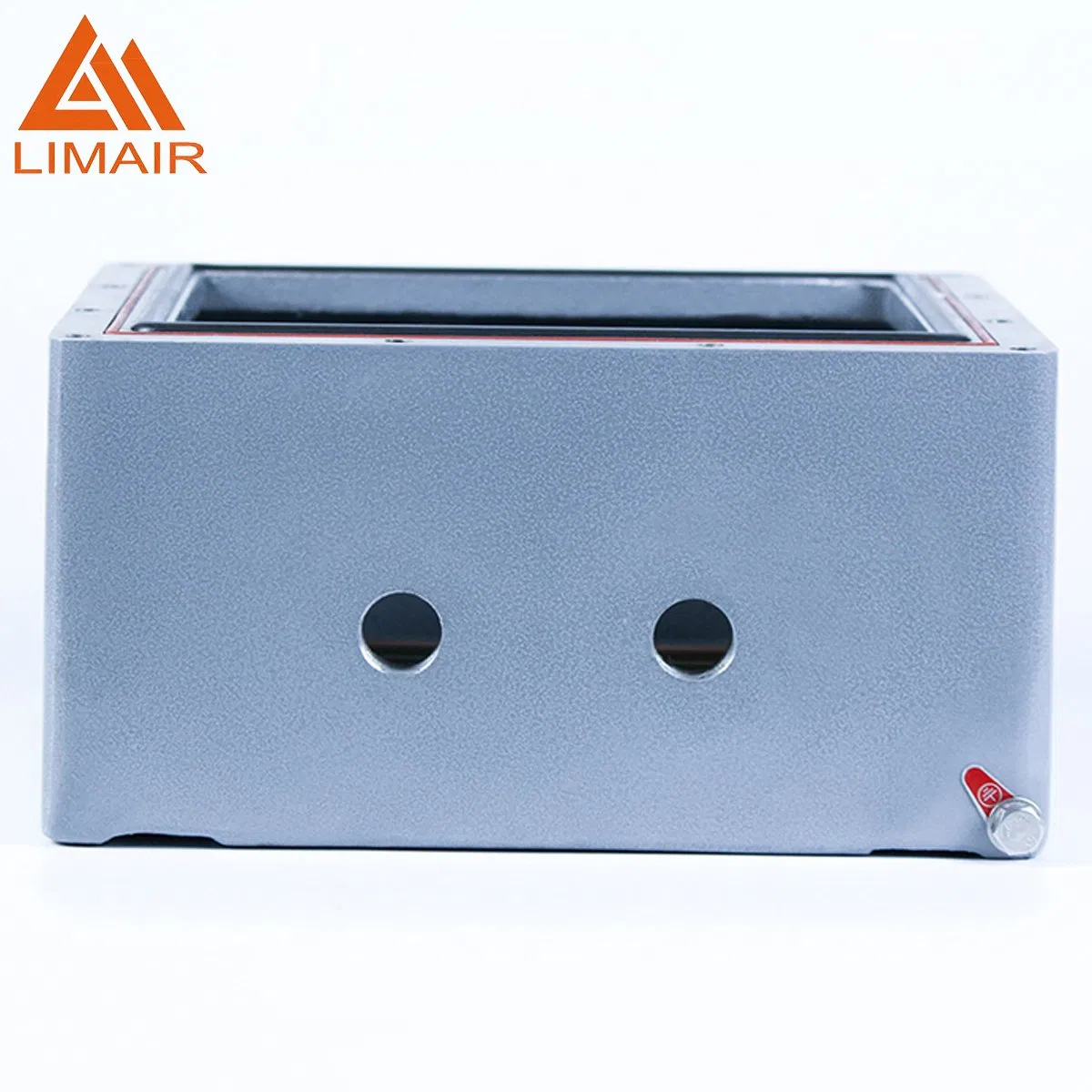

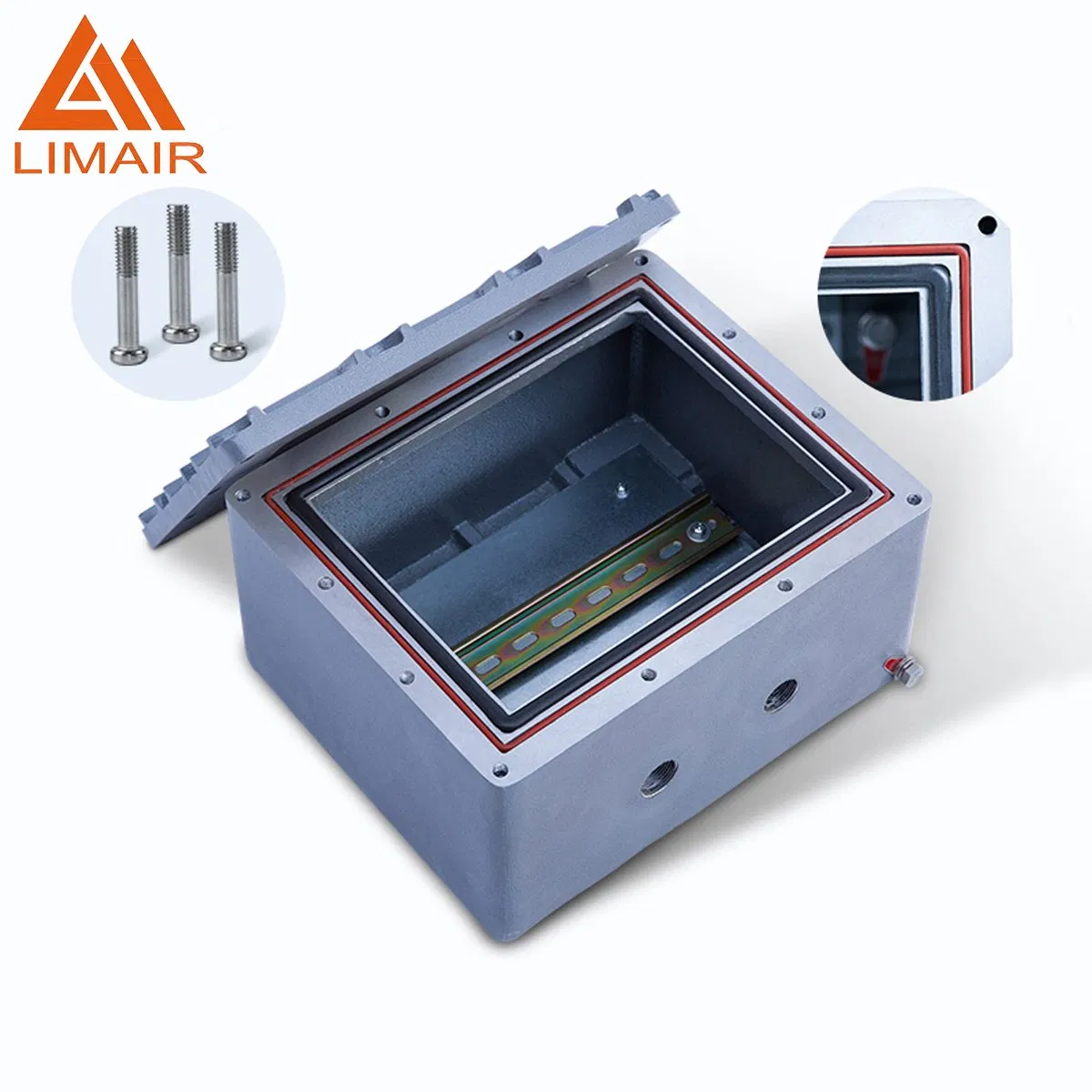

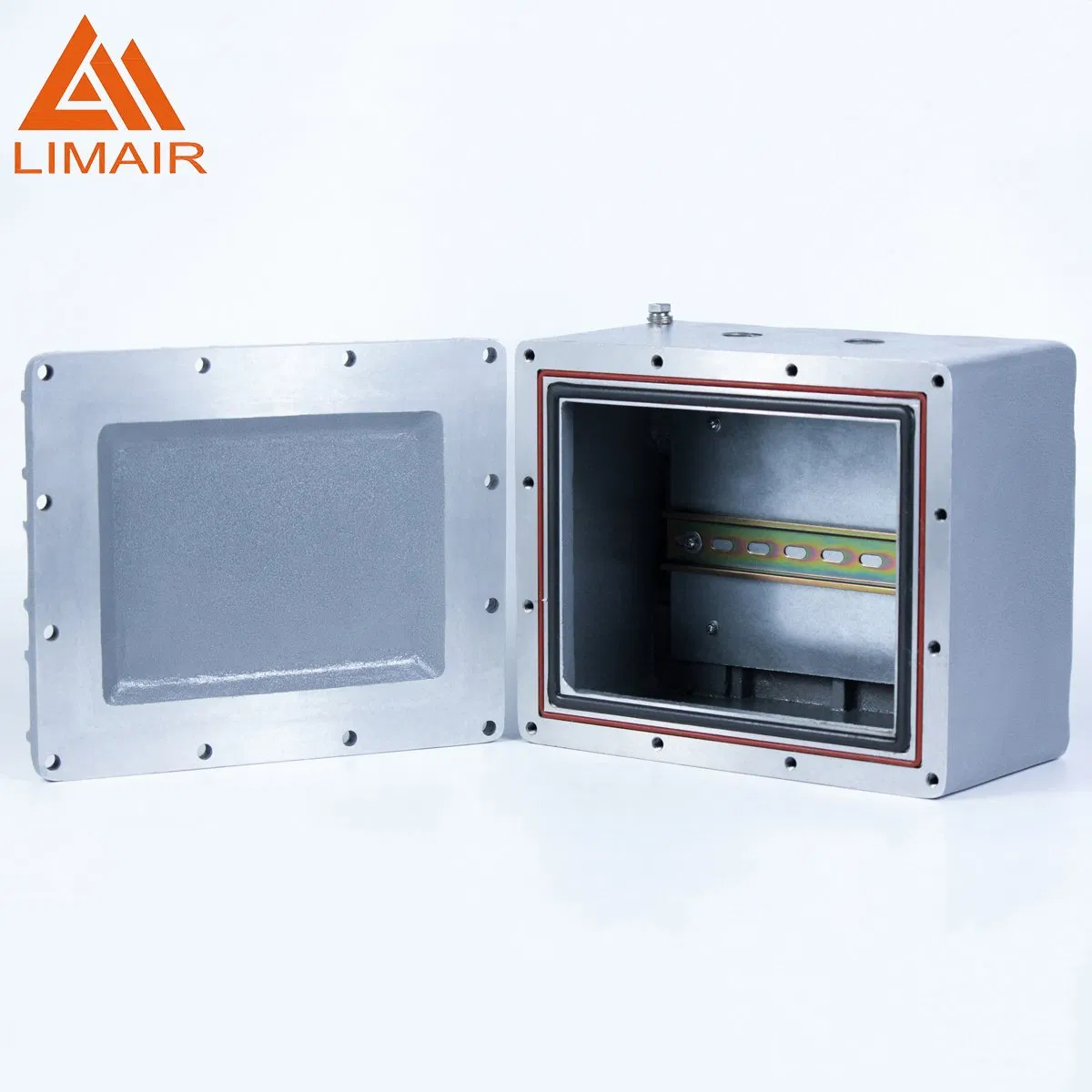

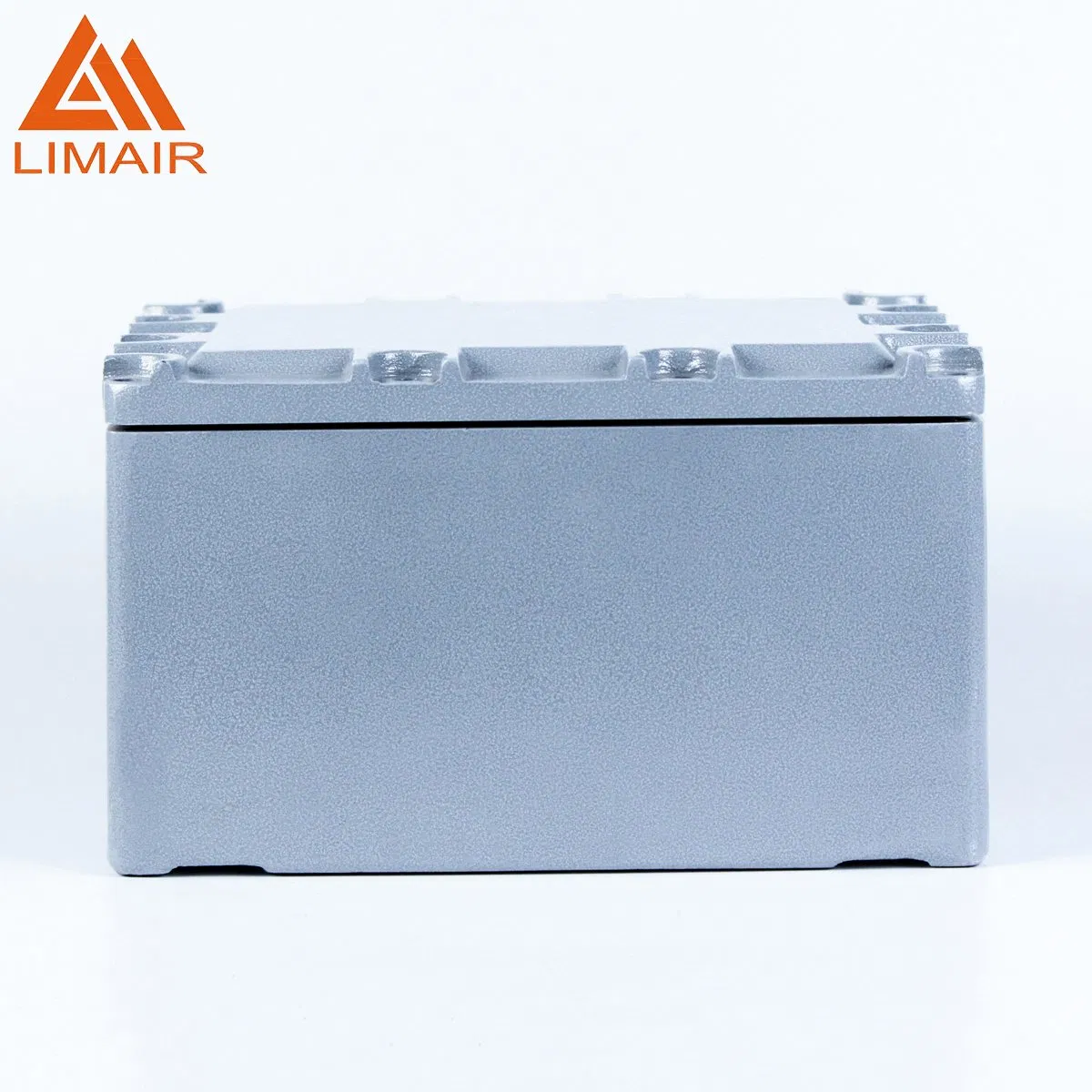

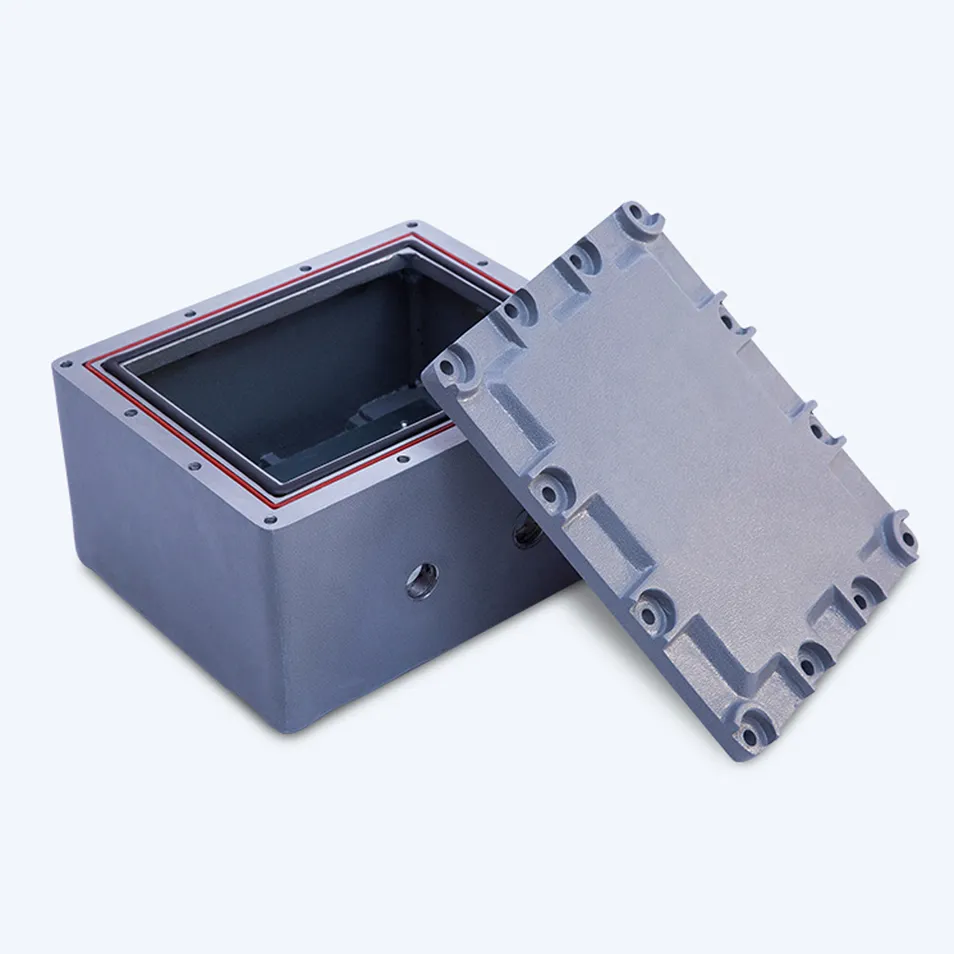

Metal Case Junction Box Die Cast Aluminum Enclosure Double Sealing Outdoor Waterproof Box

Customization:	Available
Type:	Distribution Metering Box
Structure:	Protection

i

Basic Information

Model NO.

FSH

Certification

ISO9001:2000, CCC

Form

All-packaged Type

Operation Voltage

Low Voltage

Shell Material

Steel Plate / Cast Aluminum

Protection Grade

IP66 to IP68/IP69

Temperature

-40℃ ~ +100℃

Surface

Powder Coating

★

Product Description

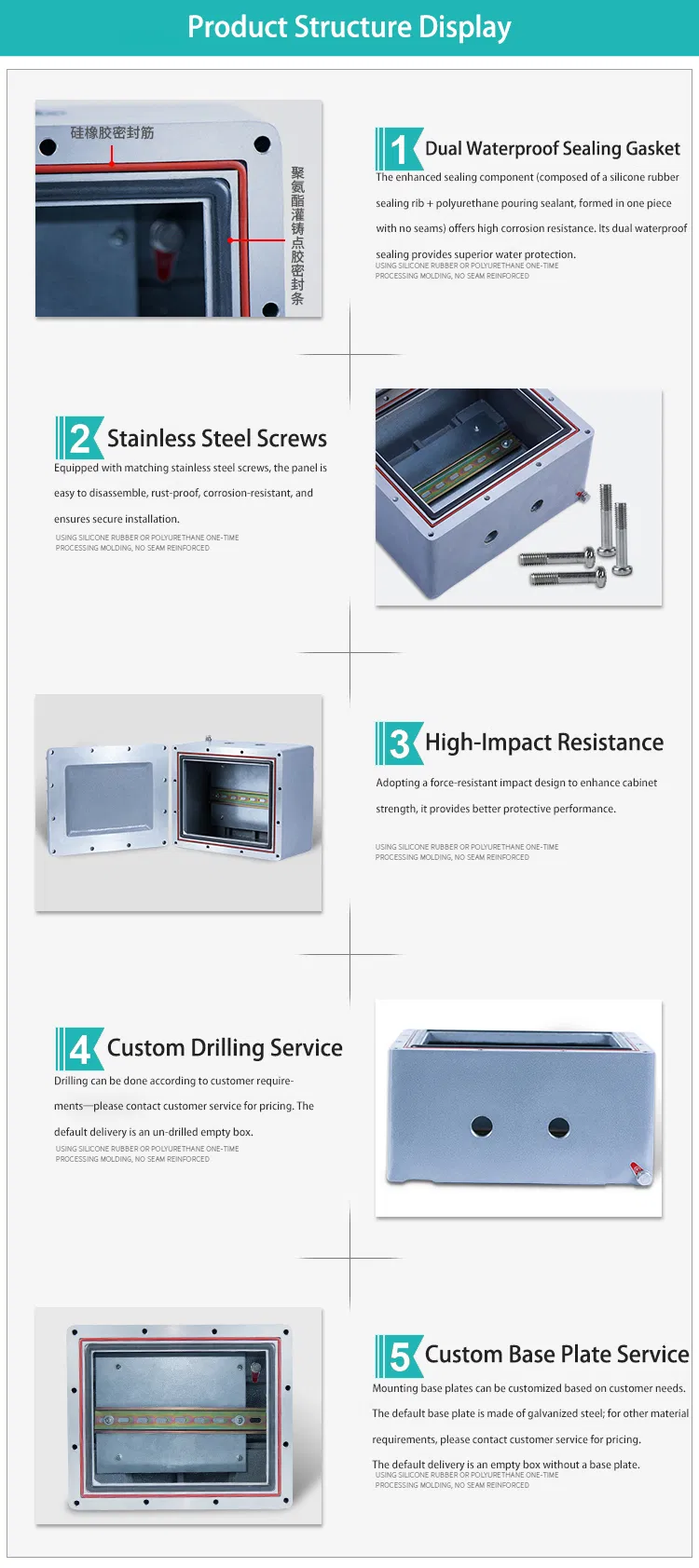

Key Features:

Aluminum shell with ergonomic and durable design.
All fasteners utilized are high-grade stainless steel screws.
Adopts a sophisticated double sealing structure for maximum protection.
Superior waterproof performance and anti-corrosion shell capable of absorbing specific pressure levels.

⚙

Technical Data

Parameter	Specifications
Material	Cast aluminium (special materials available upon request)
Ingress Protection	IP66 to IP68/IP69 IEC60529
Sealing	VMQ (silicone) seal or PUR (polyurethane) seal
Temperature Range	-40℃ ~ +100℃ (other ranges available)
Surface Finish	Powder coating, RAL7001 (custom colors available)

☰

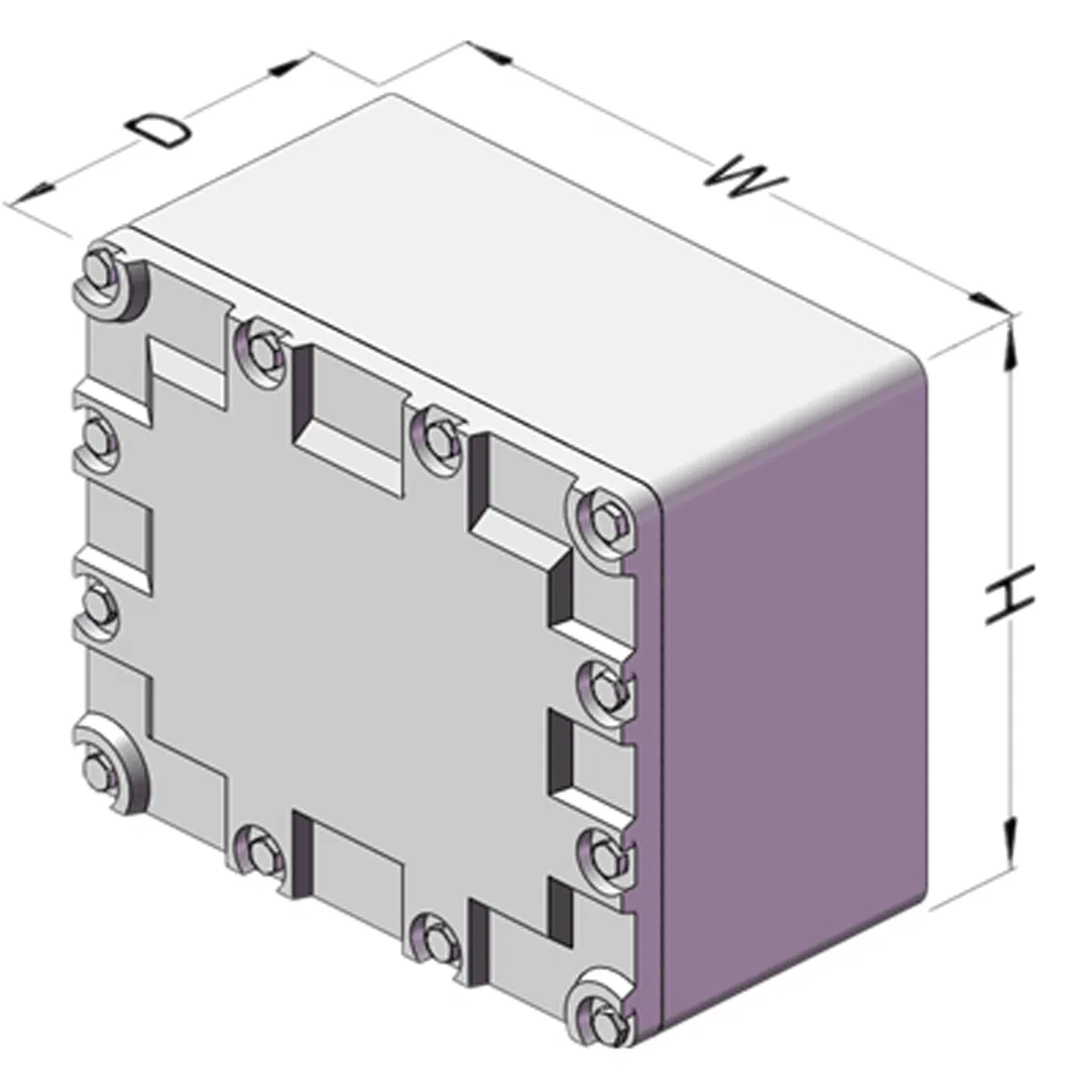

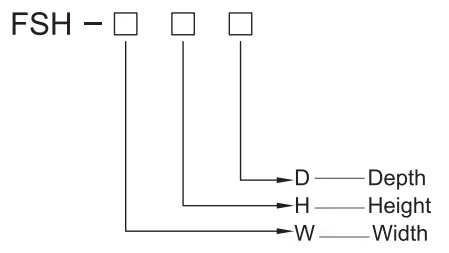

Model Meaning & Selection

Box Model	Dimensions WHD (mm)	Mounting Plate Model
FSH-201512	200×150×120	SDPA-2015
FSH-202016	200×200×160	SDPA-2020
FSH-282316	280×230×160	SDPA-2823
FSH-352316	350×230×160	SDPA-3523
FSH-452316	450×230×160	SDPA-4523
FSH-423222	420×320×220	SDPA-4232
FSH-675624	670×560×240	SDPA-6756
FSH-362818	360×280×180	SDPA-3628

✔

Manufacturing Capability

Our company is dedicated to providing professional electrical safety protection products. With extensive experience in grounding, lightning protection, and electrical enclosures, we serve industries such as petrochemical, nuclear power, and telecommunications.

Electrical Solutions:

Enclosures & Panels
Flexible pipes & Cable glands
Installation accessories

Grounding & Lightning:

Exothermic welding materials
Conductors & Rods
Equipotential testing

📜

Certifications

📦

Packaging & Shipping

Package Size

22.00cm * 18.00cm * 12.00cm

Gross Weight

7.000kg

Transport Package

Standard Carton + Pallet

?

Frequently Asked Questions

Q1: Are you a manufacturer or trading company?

We are a direct manufacturer with our own factory, controlling the entire process from R&D and processing to assembly to ensure quality and timely delivery.

Q2: Can you offer samples?

Yes, sample orders are accepted for initial cooperation. For small items, we strive to provide samples free of charge, with the customer covering only the freight costs.

Q3: Do you support fully customized solutions?

Absolutely! We specialize in non-standard customization and can tailor products to your specific technical requirements.

Q4: What is your minimum order quantity (MOQ)?

Our MOQ starts from 1 unit, catering to both small and large scale projects.

Q5: What is your typical production lead time?

For customized projects, the lead time typically ranges from 10 to 25 days depending on the complexity and volume.

Q6: Do you accept production based on customer-provided designs?

Yes, we can manufacture according to your specific drawings. We prefer files in CAD or SolidWorks formats.
