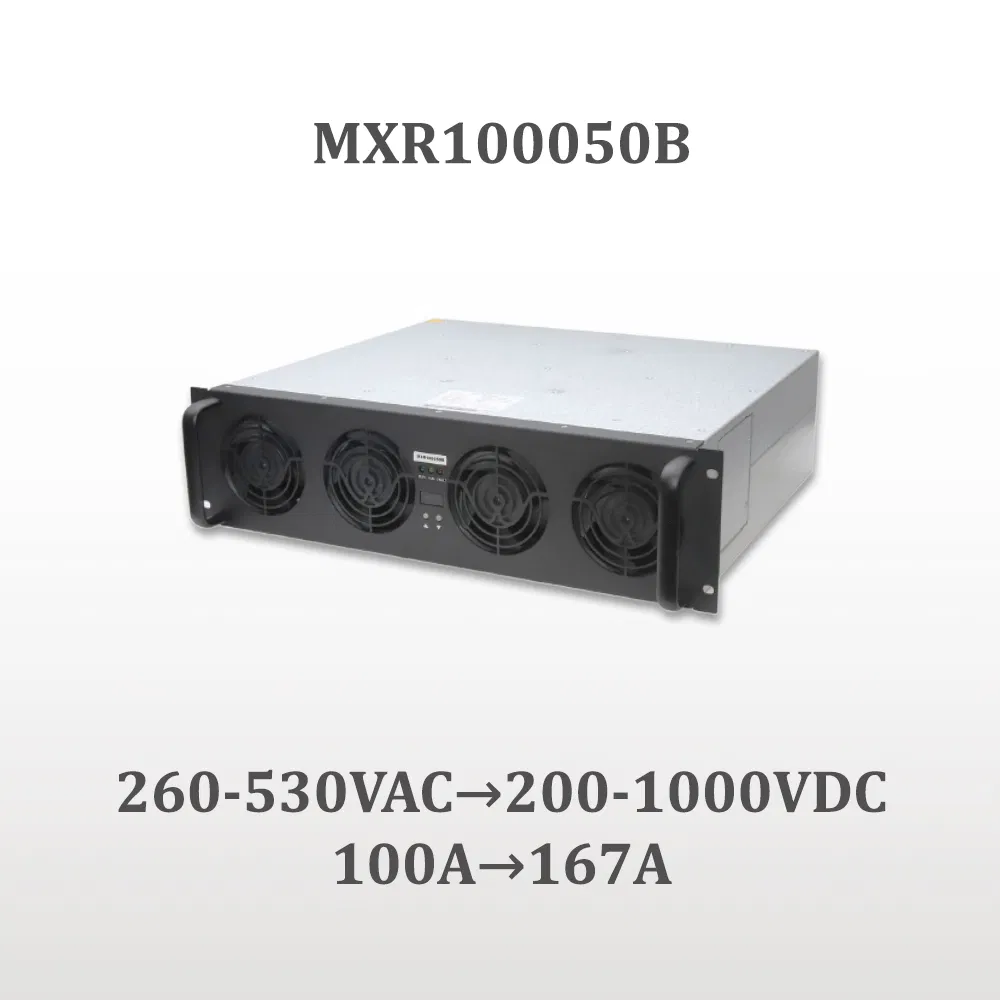

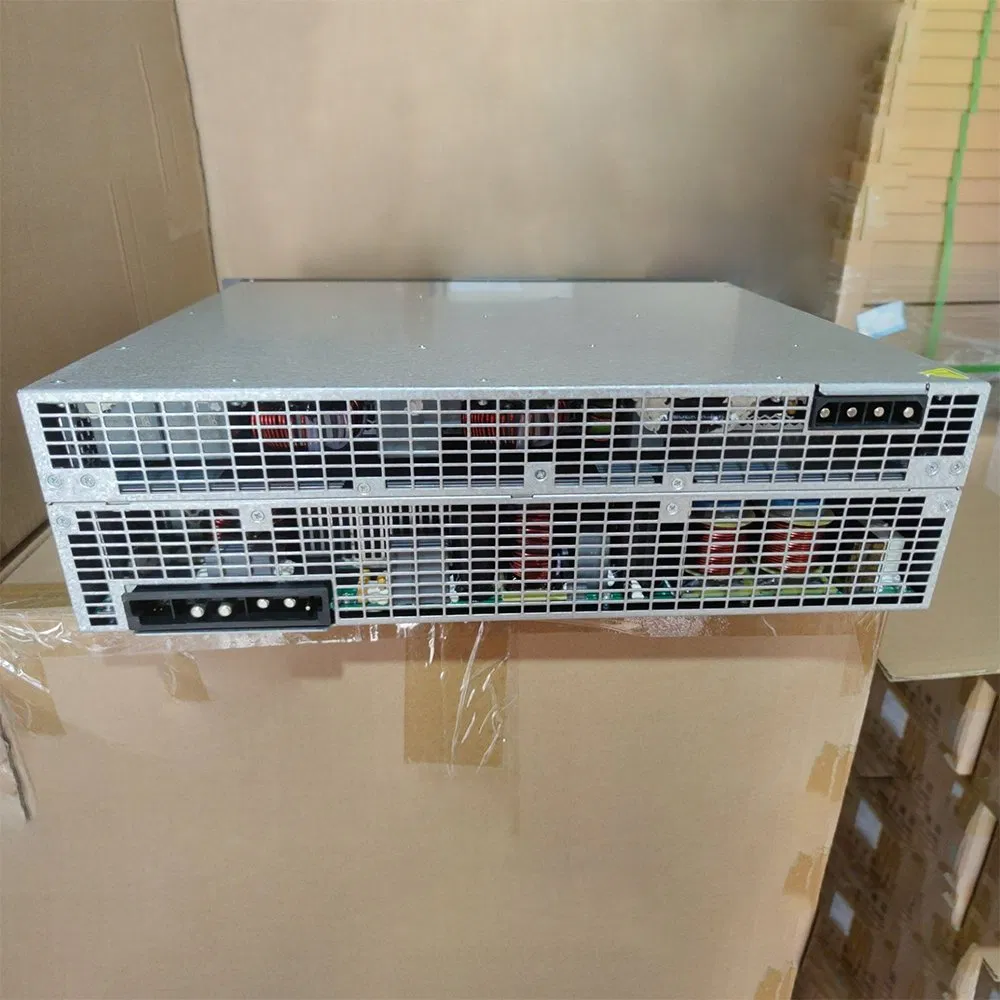

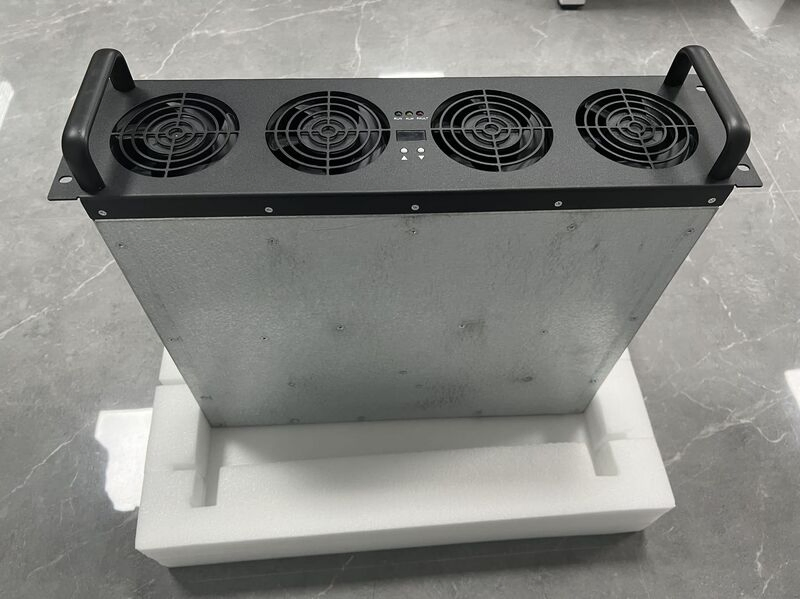

Maxwell CE Approved 50kw EV Charger Module for Fast EV Charging Station

Basic Information

Model NO.

MXR100050B

Product Name

EV DC Charging Module

Output Voltage

200VDC-1000VDC

Output Current

0-167A

Power Supply

3phase+PE

Efficiency

>95.5%

Certification

CE, ISO, TUV, RoHS

Start Mode

Credit Card, Mobile Remote, RFID

Product Description

MXR100050B is a high-performance charging power module designed for the fast-growing EV charging industry. It excels in ultra-high full-load operating temperatures and an ultra-wide constant power range. Key characteristics include high reliability, high efficiency, high power factor, and high power density. With its wide output voltage range, low noise, and minimal standby power consumption, it offers superior EMC performance for modern charging stations.

Dimension & Weight	125(H)440(W)380(D)mm \| ≤30kg
Communication	CAN bus
Input Voltage	260Vac-530Vac, three phase+PE
Efficiency	>95.5%

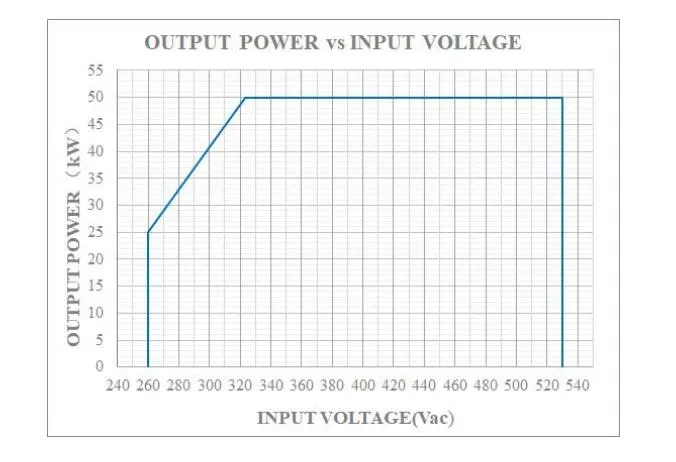

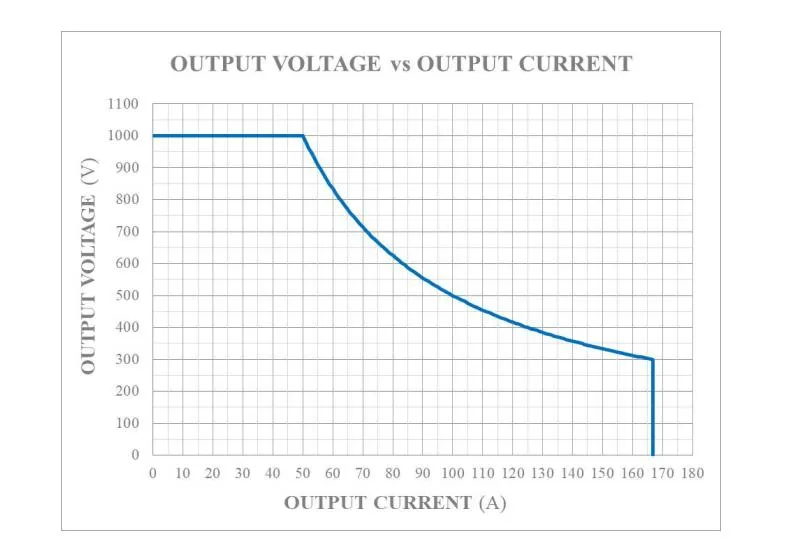

Output Power	50kW @ output voltage ≥300Vdc
Voltage Range	200Vdc-1000Vdc
MTBF	>500,000 hours

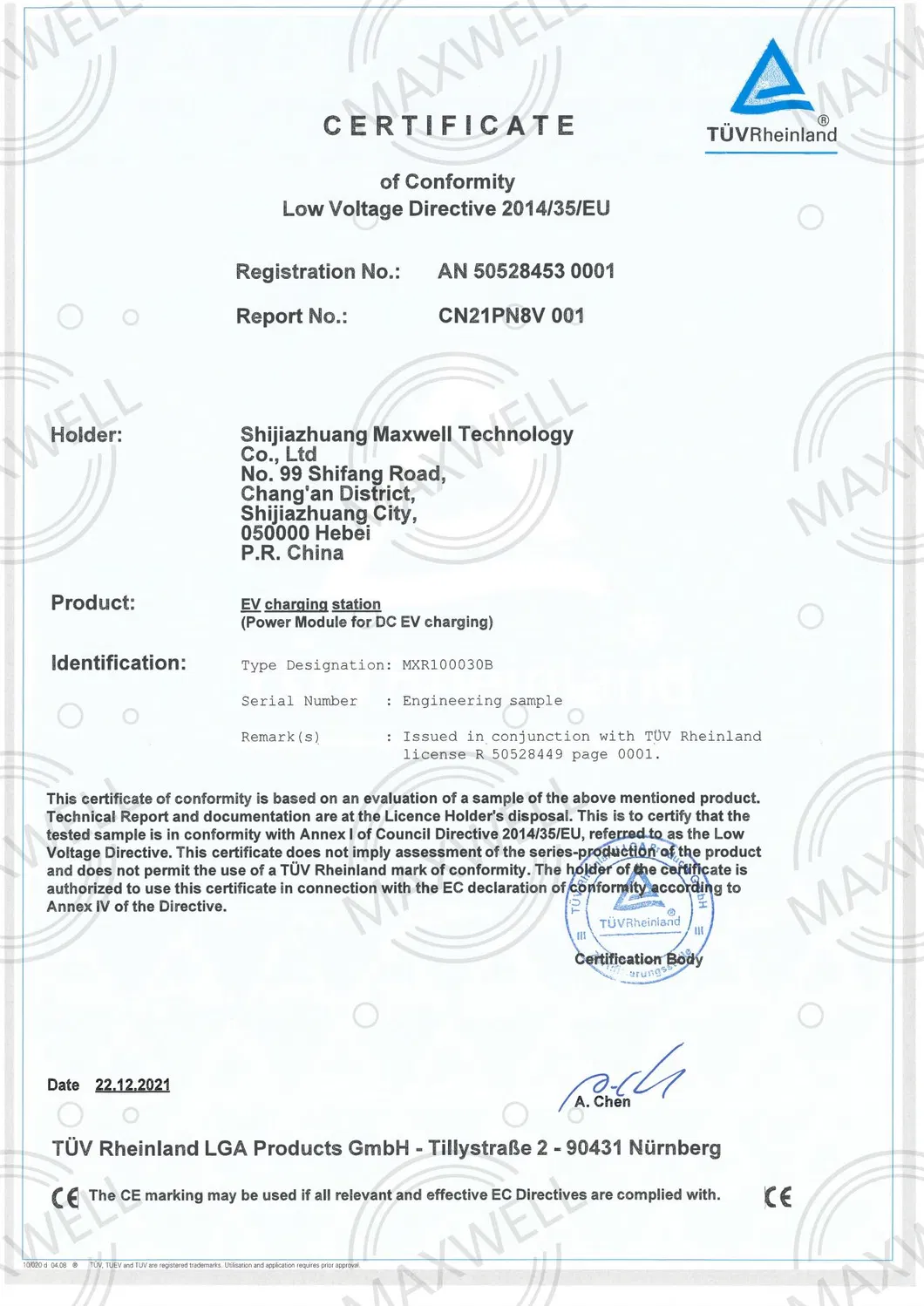

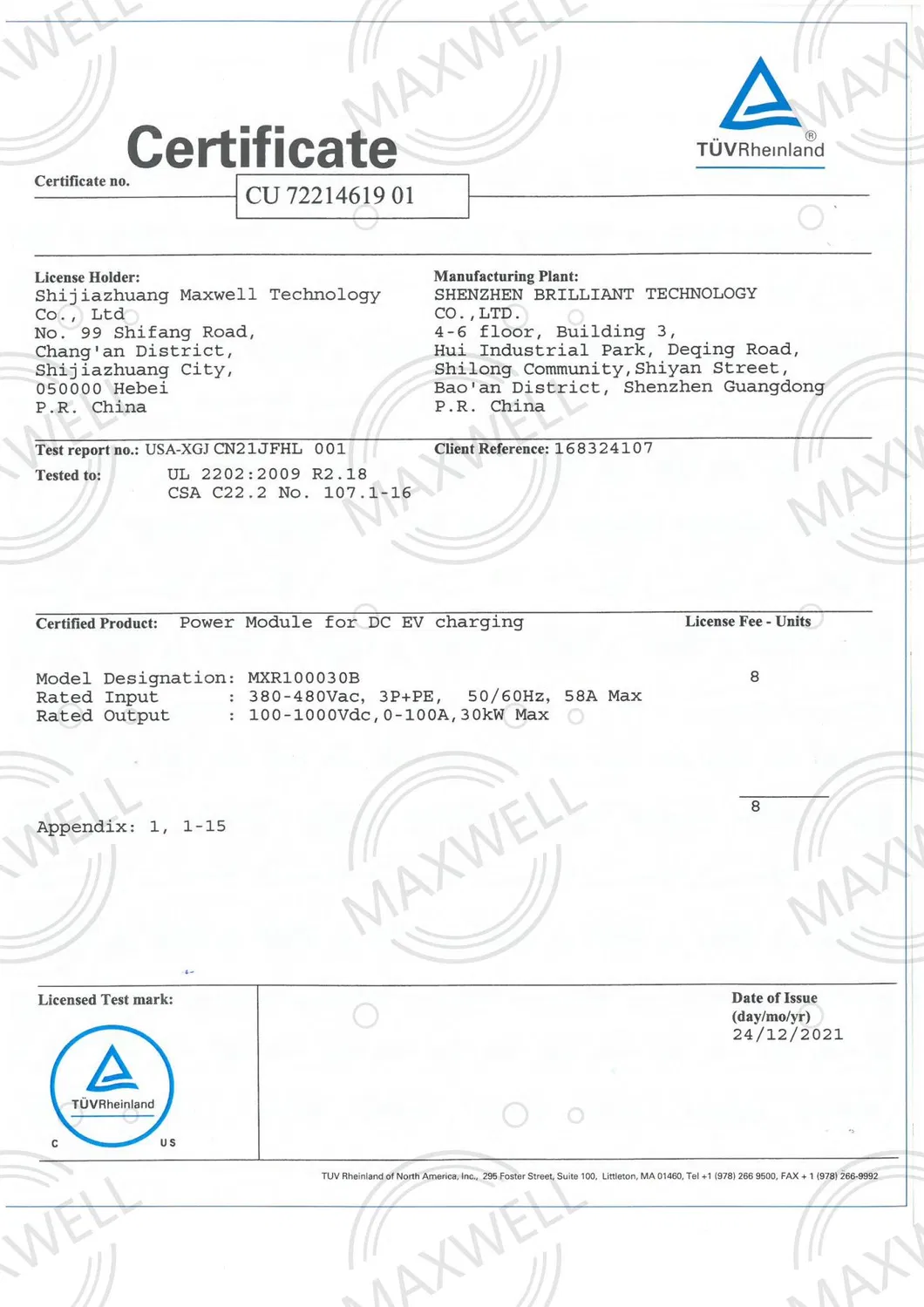

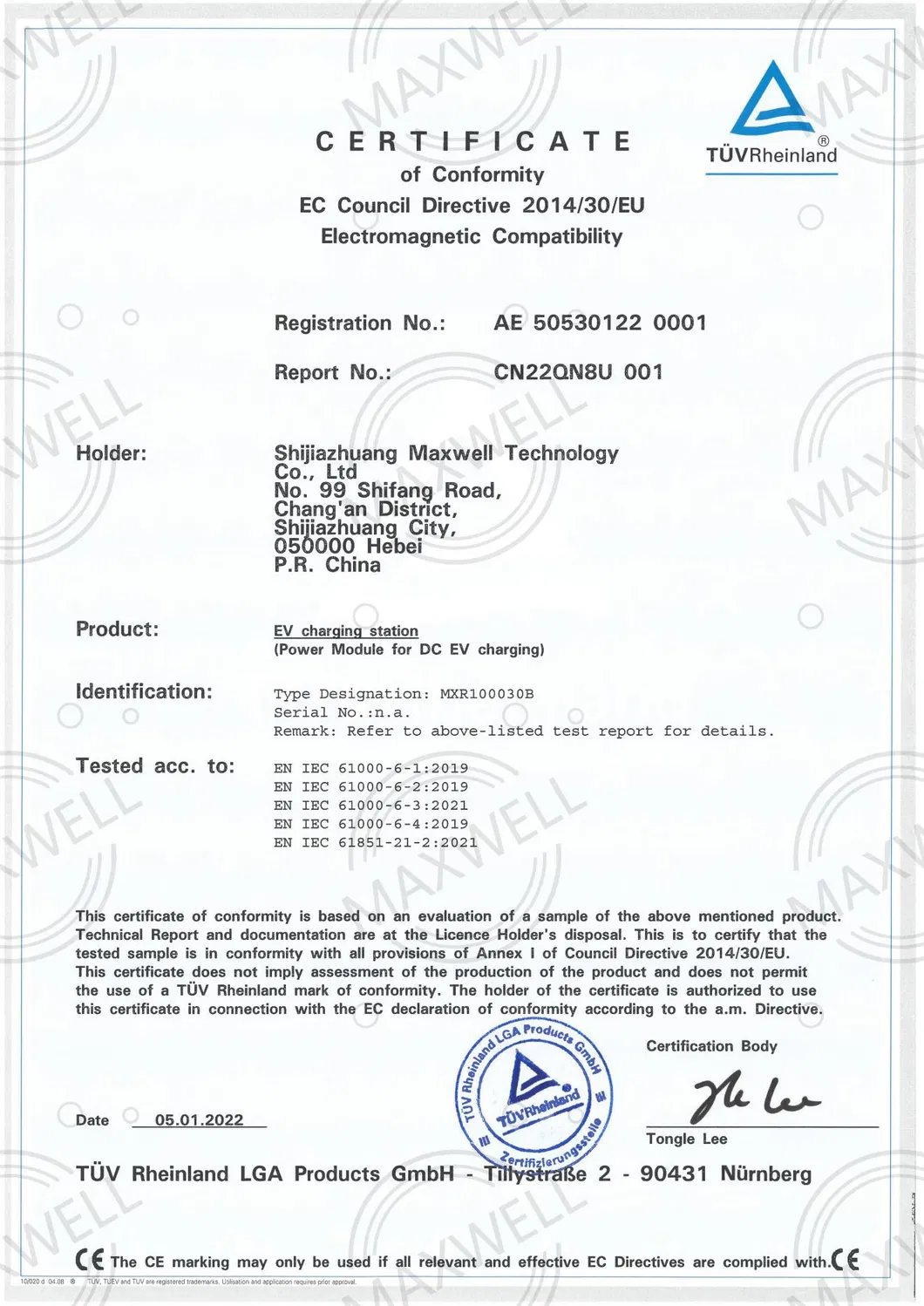

Certifications & Standards

Technical Highlights

⚡

Wide Range Charging

Models support 50V~750V or 100V~1000V charging voltages to accommodate various EV batteries.

🛡️

Integrated Protection

Comprehensive over/under voltage, surge, over-current, and short-circuit protection on both AC and DC sides.

⚙️

Smart Control

Digital power control with active PFC achieving 0.99 power factor and soft-start functionality.

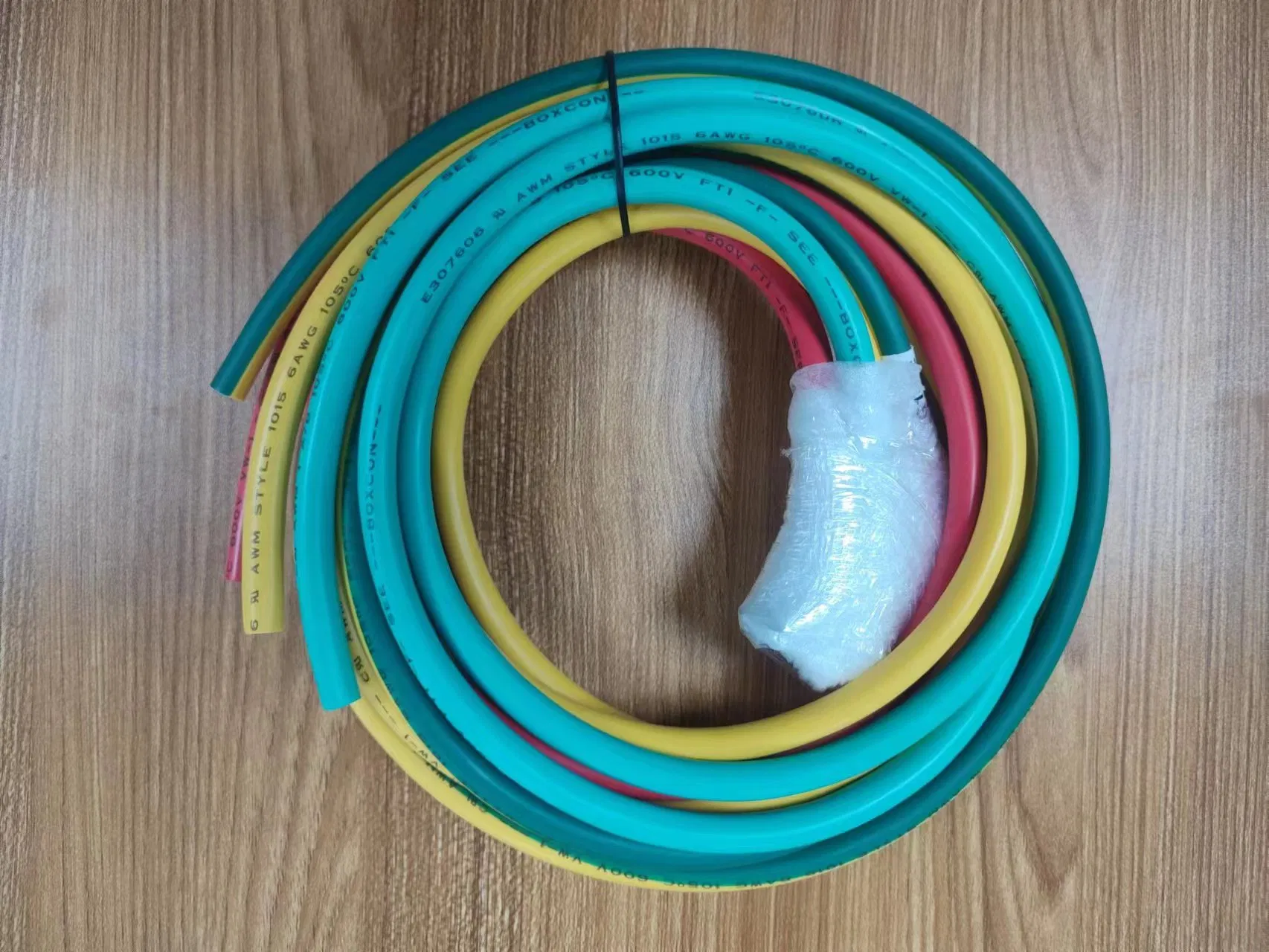

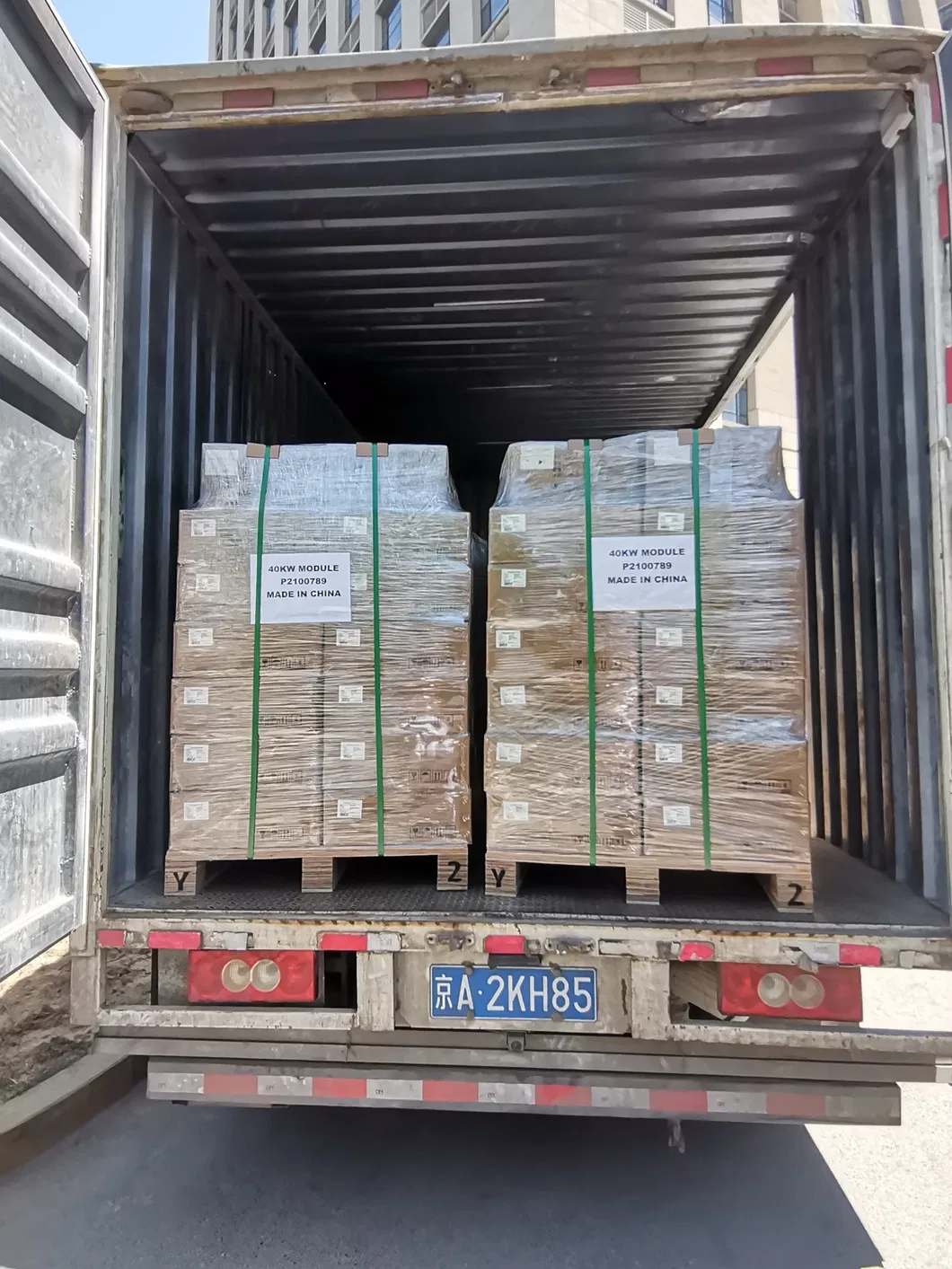

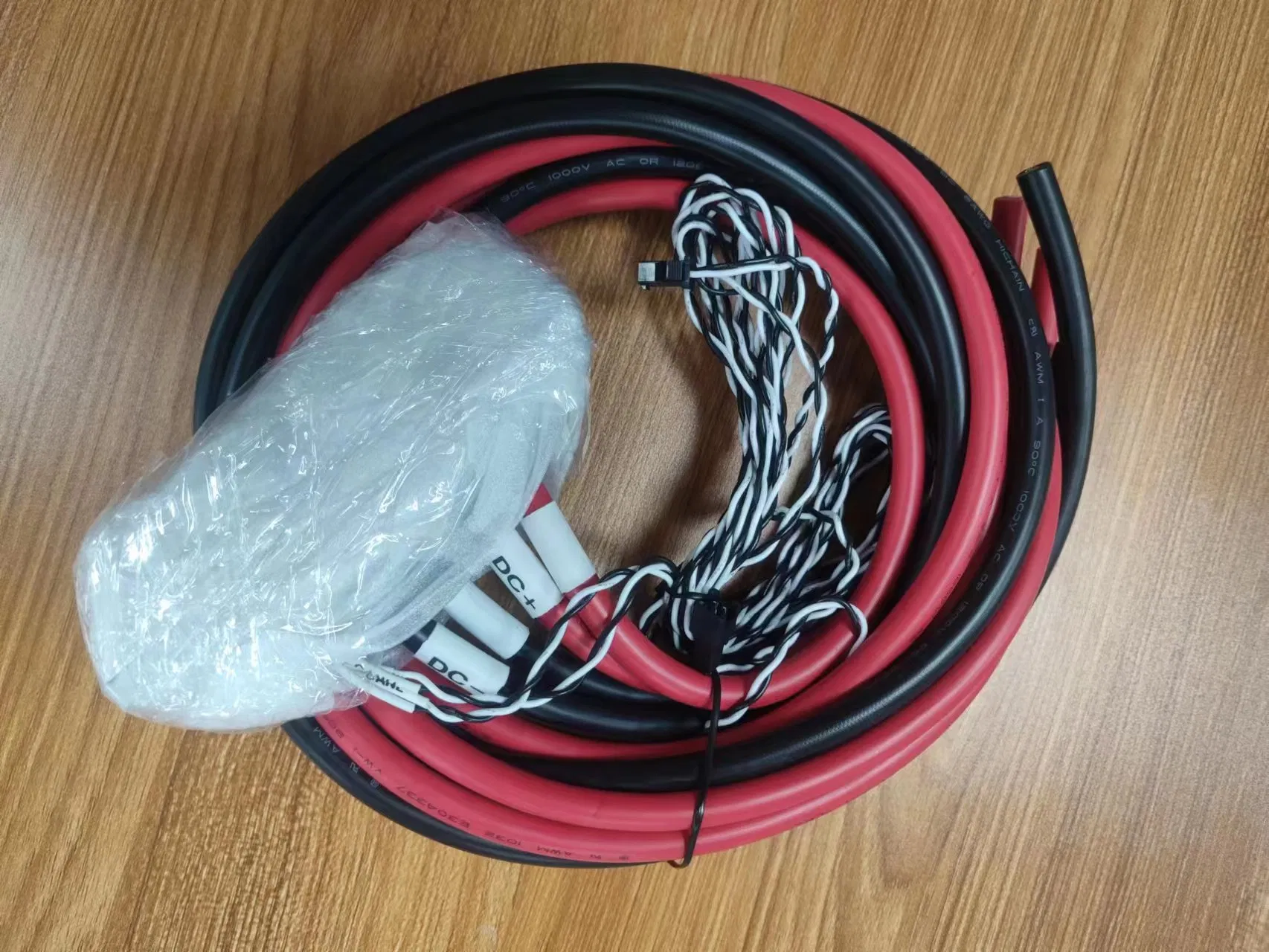

Packaging & Delivery

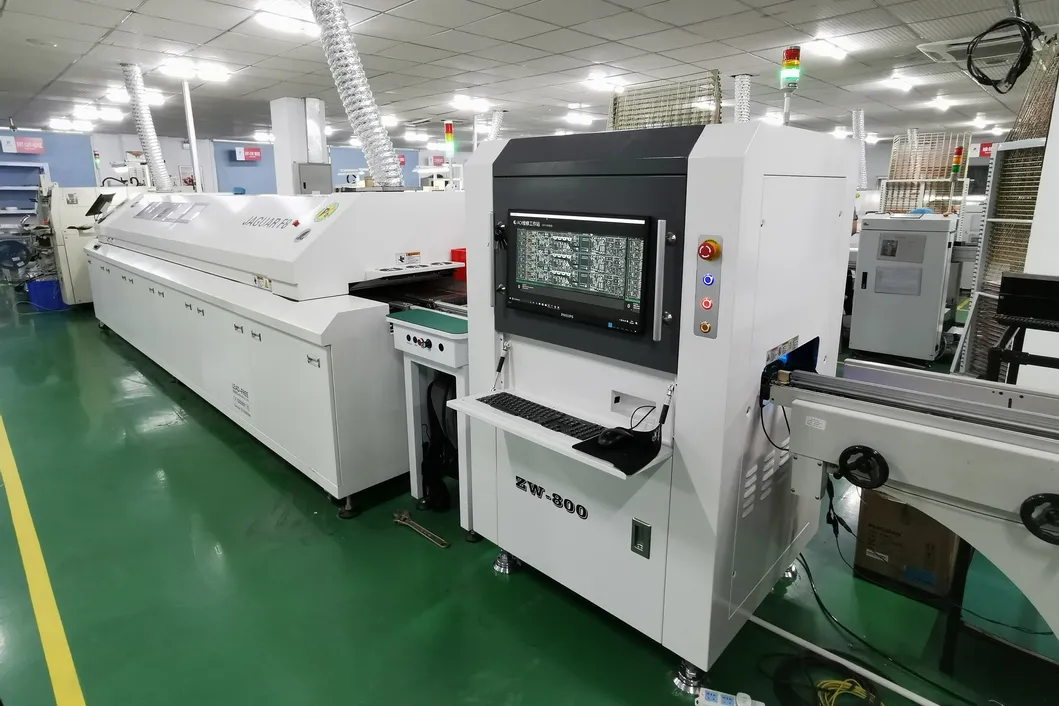

Production & Capability

With over ten years of industry experience, we focus on the R&D and manufacturing of power electronic products. Our products are widely used in automotive, electric power, metallurgy, and communications fields globally. We offer a series of modules including 15kW, 20kW, 30kW, 40kW, and 50kW.

Frequently Asked Questions

What is the expertise behind your charging modules?

We are a professional manufacturer and supplier of EV charger power modules and DC charging stations with over 12 years of experience and CE/UL certifications.

What charging standards do your products support?

Our modules are designed to comply with global standards including CCS-1, CCS-2, CHAdeMO, and GB/T.

How do you ensure product reliability?

Our products feature an MTBF of over 500,000 hours and have passed various laboratory standard tests and real-world application scenarios.

What kind of after-sales support do you provide?

We provide comprehensive technical training, including written materials and videos. In urgent cases, professional technicians can be deployed for support.

What are the terms of payment and delivery?

We typically accept T/T in advance or Irrevocable L/C at sight. Delivery is usually made within 2-3 weeks after order confirmation.

Can the modules be used in parallel?

Yes, the modules support parallel configuration with a maximum quantity of up to 60 units for high-power applications.
