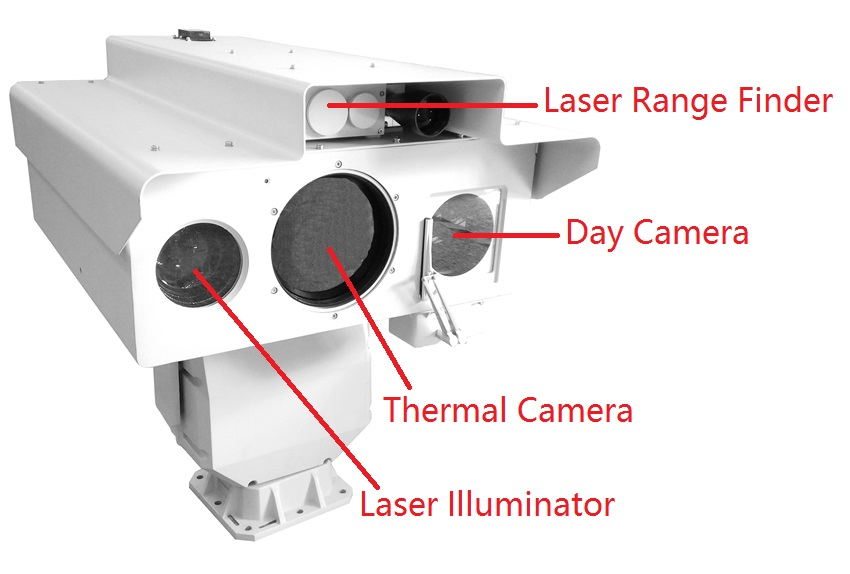

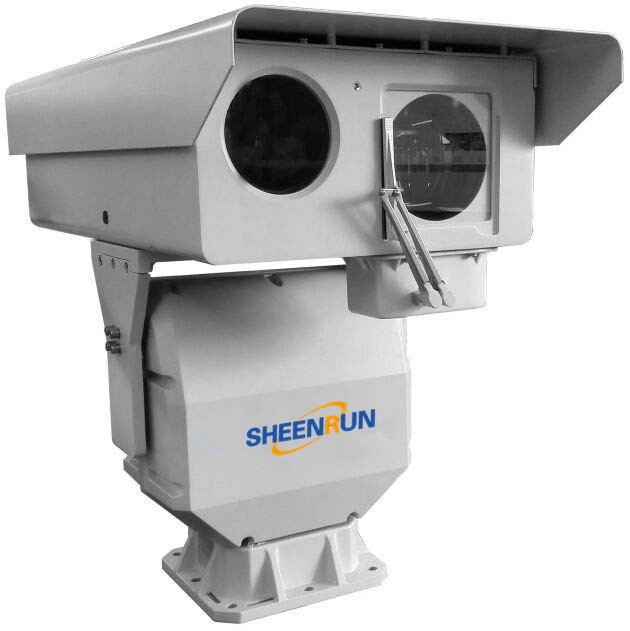

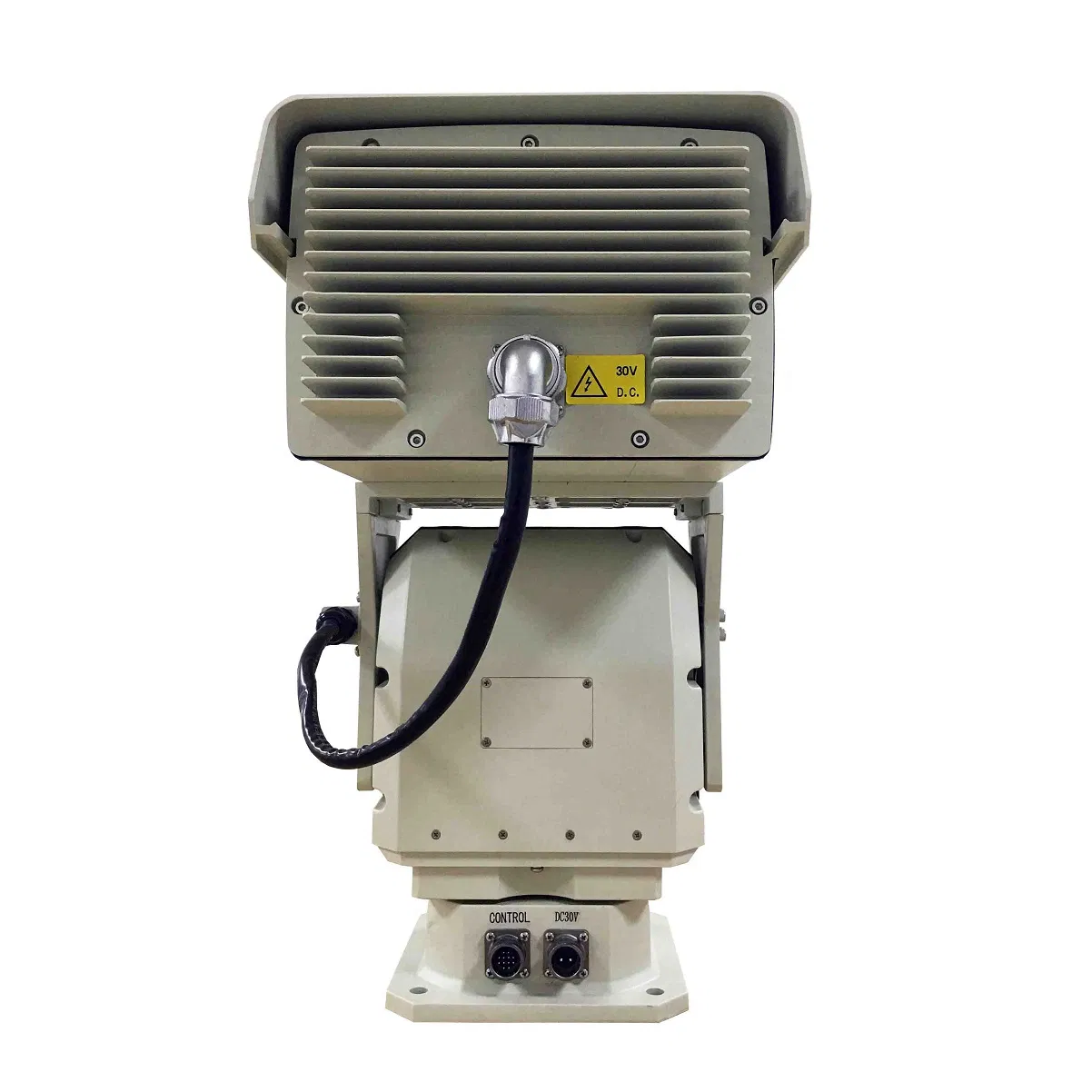

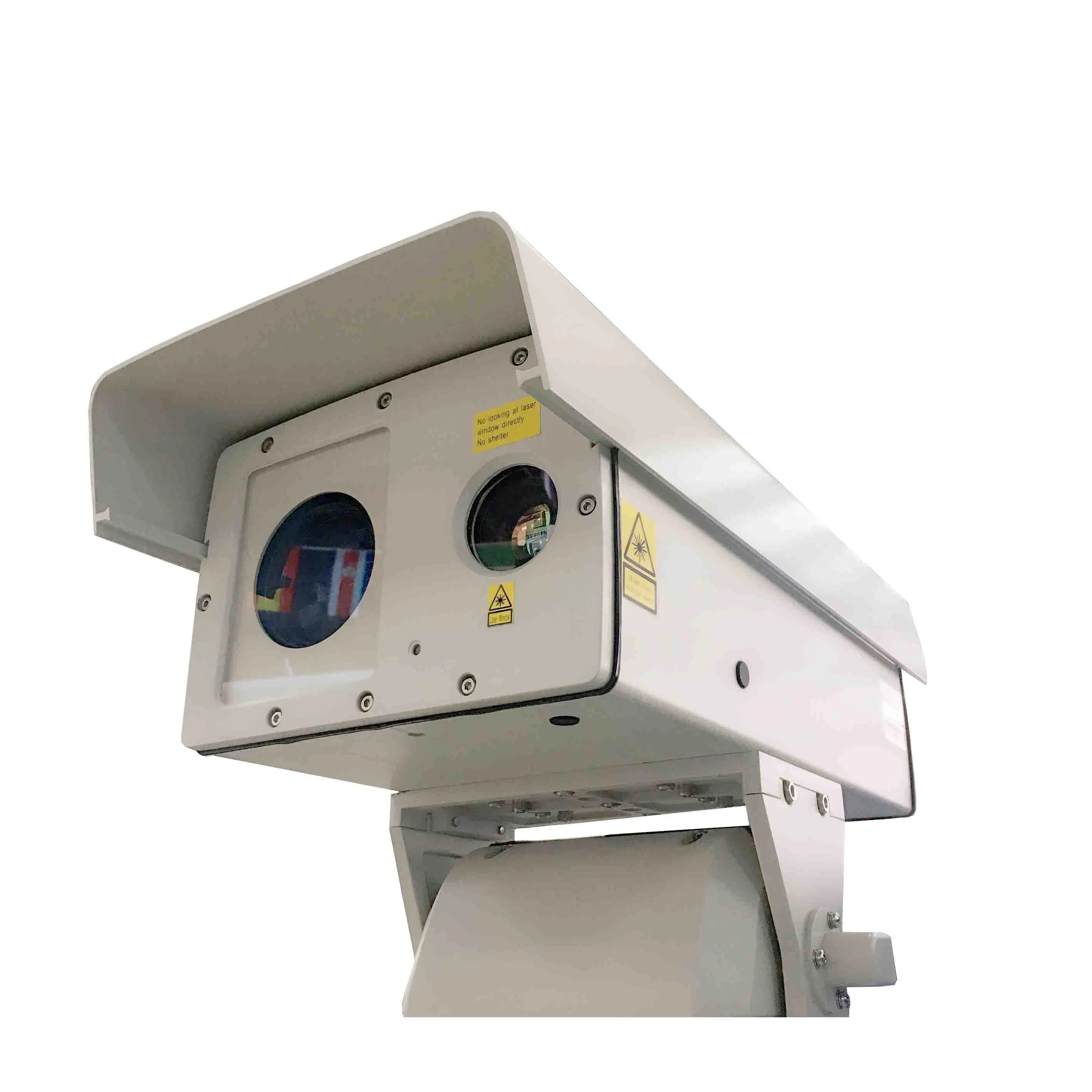

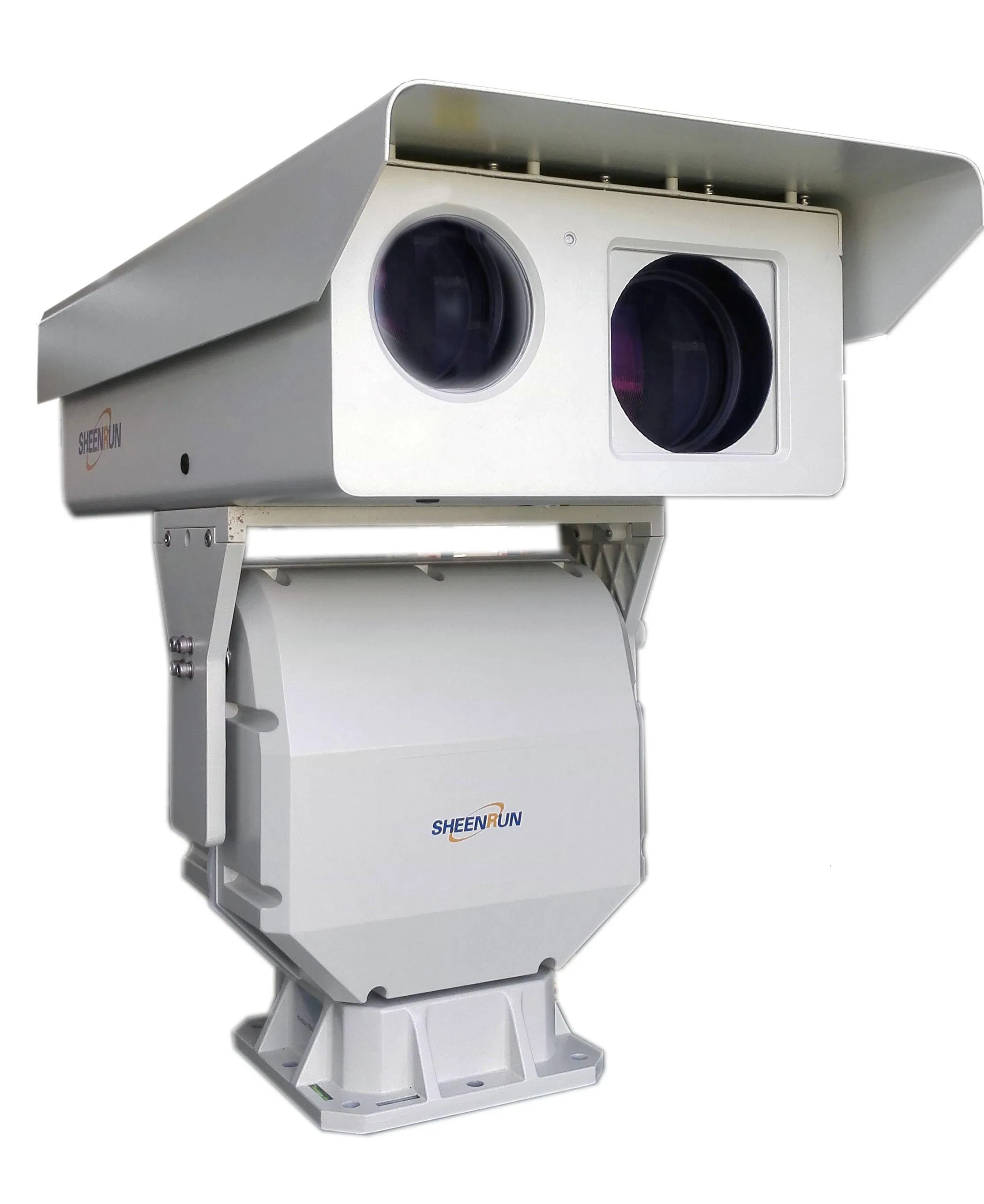

Long Range 10km Thermal and Laser Camera System
Long Range 10km Thermal and Laser Camera System
Long Range 10km Thermal and Laser Camera System
Long Range 10km Thermal and Laser Camera System
Long Range 10km Thermal and Laser Camera System
1 / 5
Long Range 10km Thermal and Laser Camera System
Long Range 10km Thermal and Laser Camera System
Long Range 10km Thermal and Laser Camera System
Long Range 10km Thermal and Laser Camera System
Long Range 10km Thermal and Laser Camera System

Long Range 10km Thermal and Laser Camera System

Customization: Available
Type: Monitoring System
Application: All-Round Monitoring, Sound Monitoring
Send Inquiry

Product Description

Basic Information

Model NO.SHR-HLV1520YADIR155A
FeatureWaterproof / Weatherproof, High Definition
Video CaptureVideo Camera
TransmissionWireless Transmission
Software UsageVehicle & Computer Monitoring
Sensor TypeCMOS
TechnologyPan / Tilt / Zoom
Protection GradeIP66
Monitor Distance12km (Thermal)
Laser Power10W

Product Overview

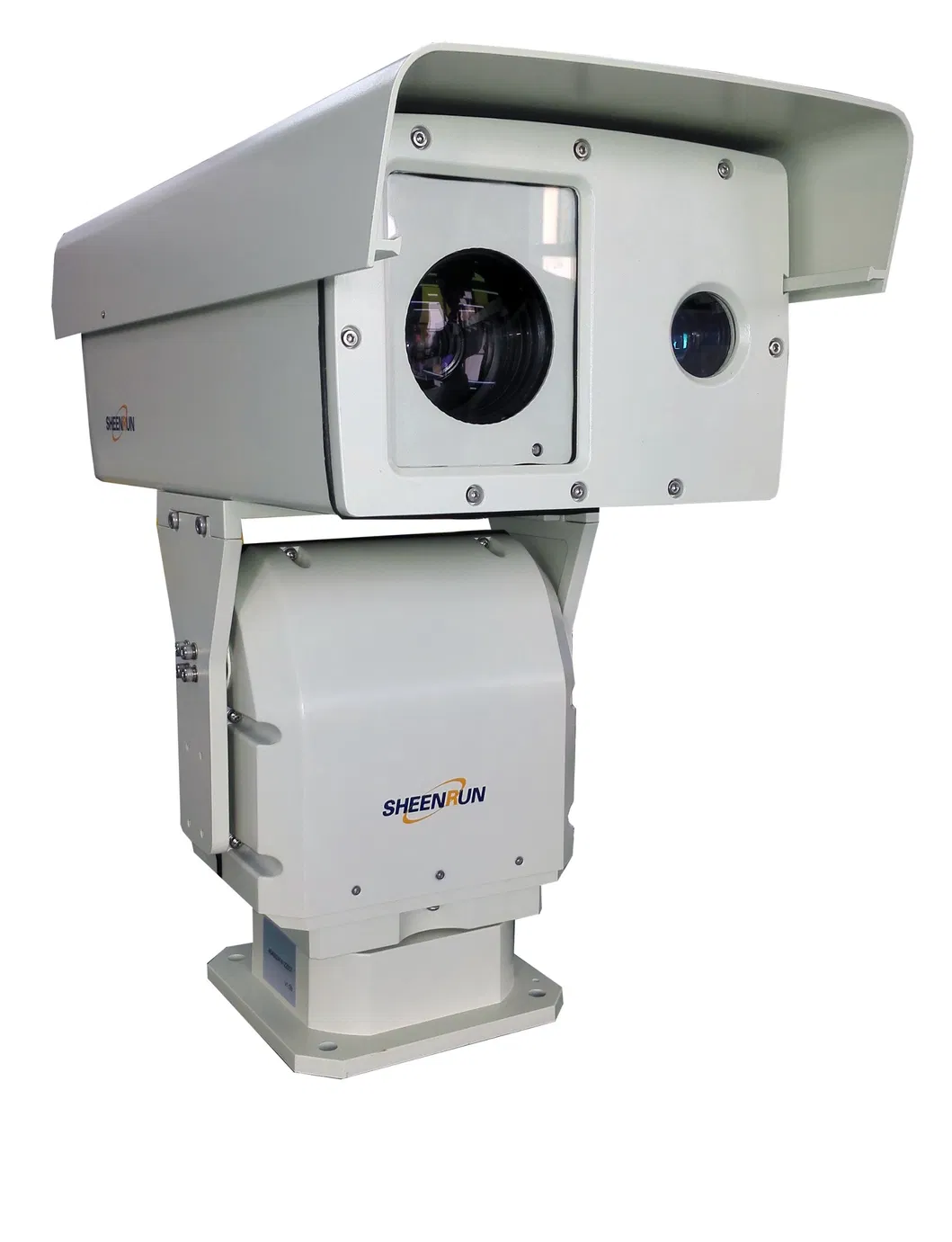

Long Range System

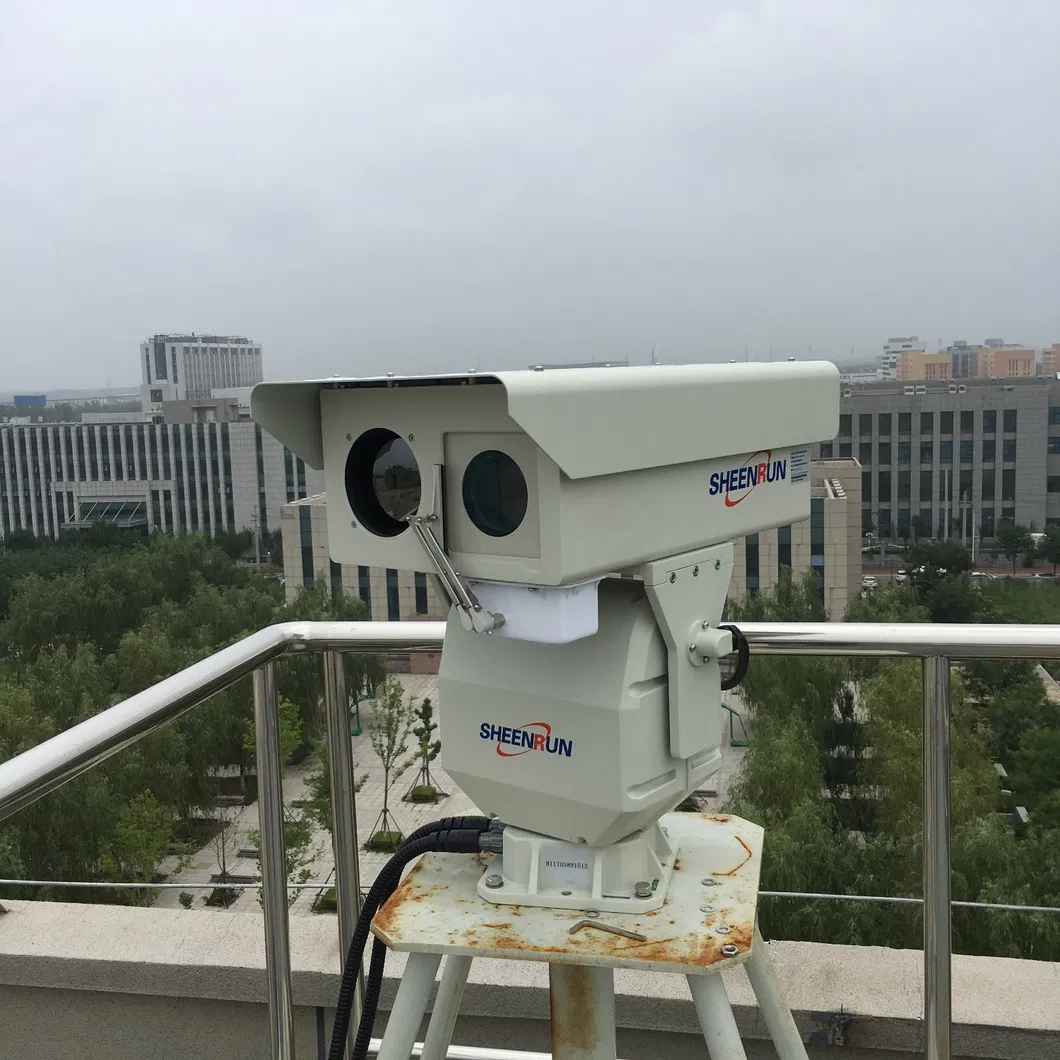

Camera Details

Key Features

✓ Synchronous zooming laser illuminating system, long distance monitoring in 0Lux complete black.
✓ 2 megapixels color to black camera for continuous day and night monitoring.
✓ MCIC light homogenization technology, no speckle and dark ring, high edge definition.
✓ Supports fog penetration, backlight compensation, and multistage wide dynamic range.
✓ Optional auto focusing function and 3D locating function.
✓ Professionally designed shell: anti-corrosion, waterproof, anti-acid rain, and anti-high temperature.

Technical Data

Monitor Distance Detection: People (4050m), Vehicle (11400m) / Recognition: People (1012m), Vehicle (2850m)
HD Camera Focal Length: 15.2~500mm; FOV: 0.8°~25.6°; Auto Aperture
Sensor 1/1.8" Progressive Scan CMOS; 1080p Resolution; H.265/H.264
Infrared Lens Focal Length: 30~150mm; 5x Optical Zoom; F1.0~F1.2
Thermal Detector Uncooled microbolometer focal plane array; 384x288 pixels; 8~14μm Spectral range
Pan Tilt 360° Continuous rotation; Pitching -45°~+45°; 255 Preset bits; Load capacity 50kg
Environment Working Temp: -25ºC~+55ºC; Protection: IP66
Physical Dimension: 637×377×573mm; Weight: ≤45kg

Effect Demo

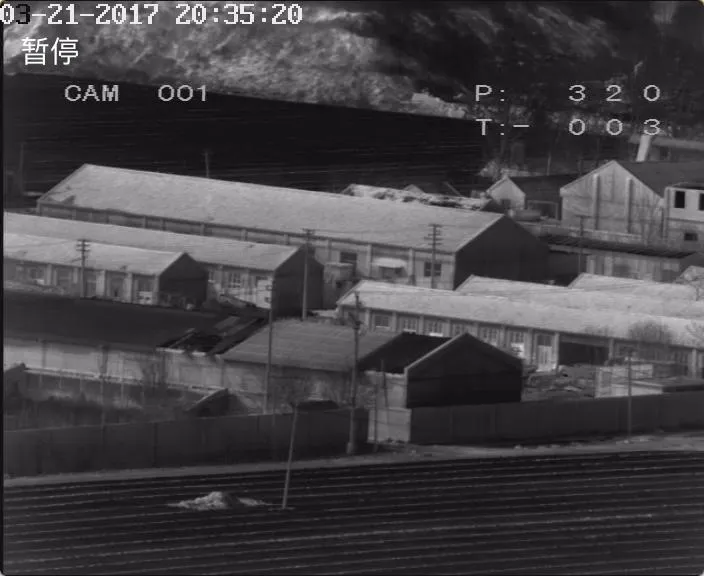

Demo 1

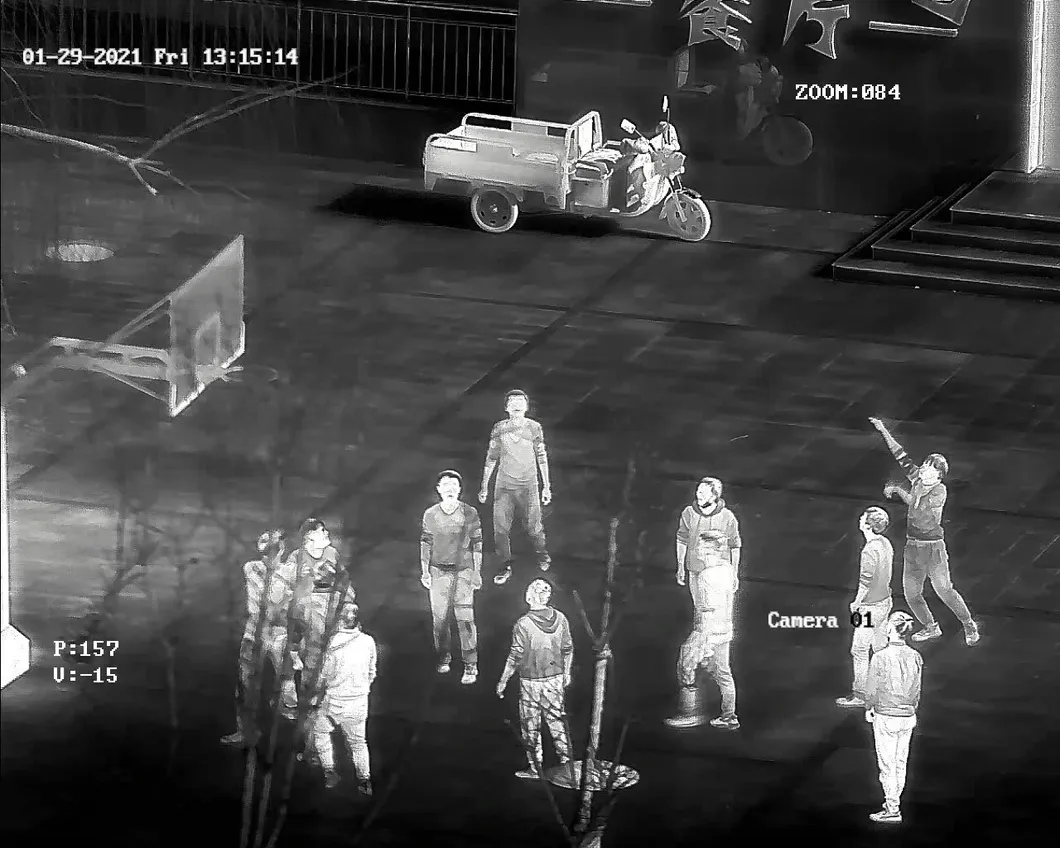

Demo 2

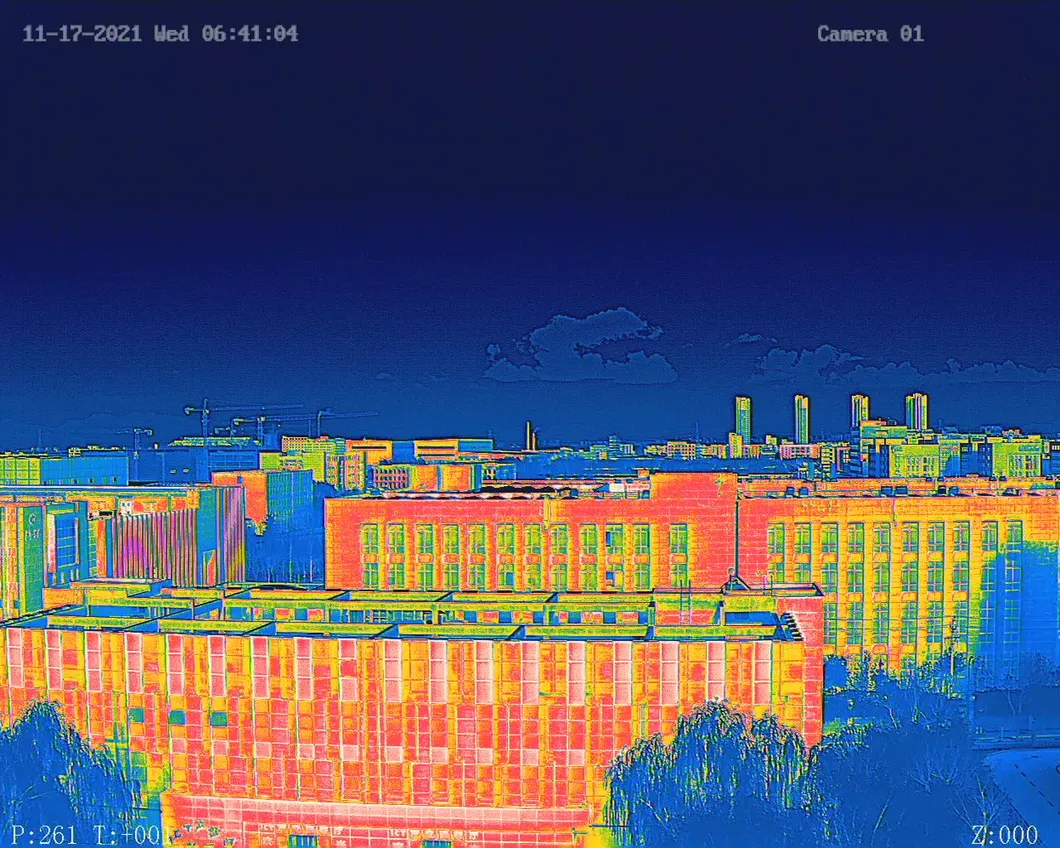

Demo 3

Applications

Ideal for: Safe city monitoring, forest fire-proof monitoring, high altitude monitoring, railway, harbor, oilfield, and freeway monitoring.

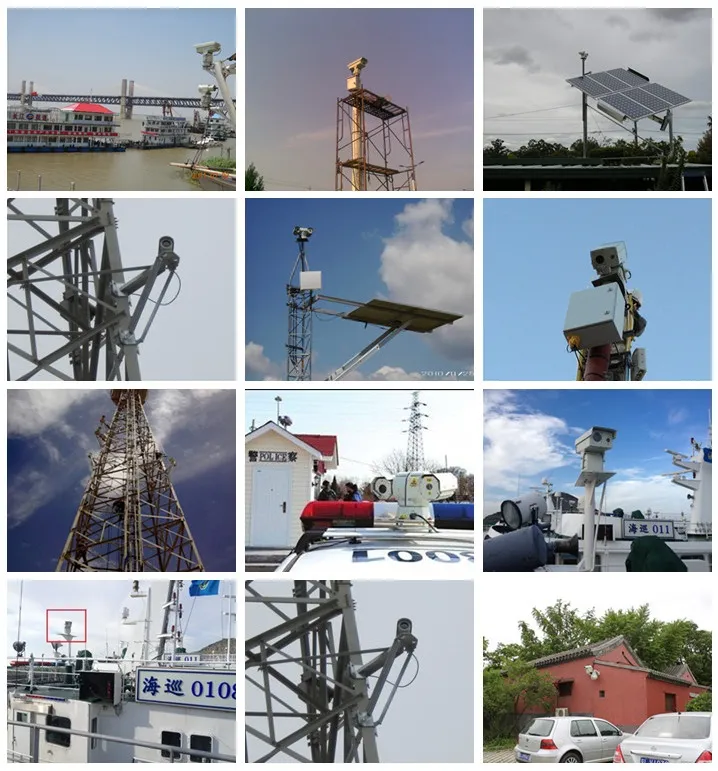

Application fields
Field usage

Packaging & Delivery

Package Size64.00cm * 38.00cm * 58.00cm
Gross Weight12.500kg

Frequently Asked Questions

What is the maximum monitoring distance of this system?
The system features a thermal camera with a detection range of up to 11.4km for vehicles and 4.05km for people, with a day vision distance of up to 5km.
Does the camera work in total darkness?
Yes, it utilizes a synchronous zooming laser illuminating system and uncooled infrared thermal imaging, allowing for clear monitoring in 0Lux complete black conditions.
Is the device suitable for harsh outdoor environments?
Absolutely. The unit is rated IP66 waterproof and dustproof, with a professionally designed shell that is anti-corrosion, anti-acid rain, and capable of operating in temperatures from -25ºC to +55ºC.
What video resolution does the system support?
The system provides 1080p HD resolution using a 1/1.8" Progressive Scan CMOS sensor, supporting H.265/H.264/MJPEG coding formats.
Does it support remote control and Pan-Tilt-Zoom functions?
Yes, it features a heavy-duty pan-tilt with 360° continuous horizontal rotation and -45° to +45° pitching, supporting 255 preset positions and 3D locating functions.
Can the system penetrate through fog?
Yes, the camera supports an optional fog penetration mode along with backlight compensation and 3D digital noise reduction for clear images in adverse weather.
