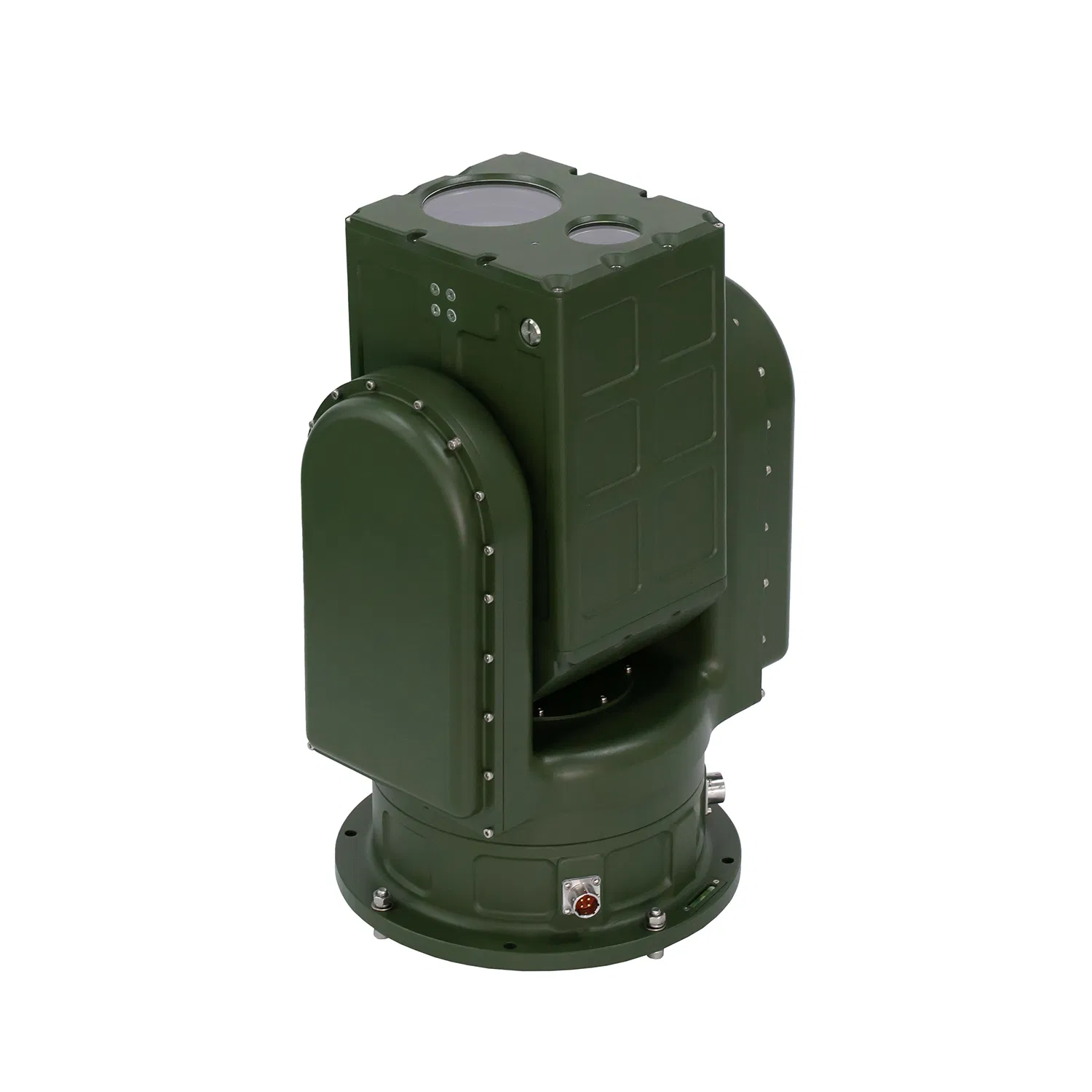

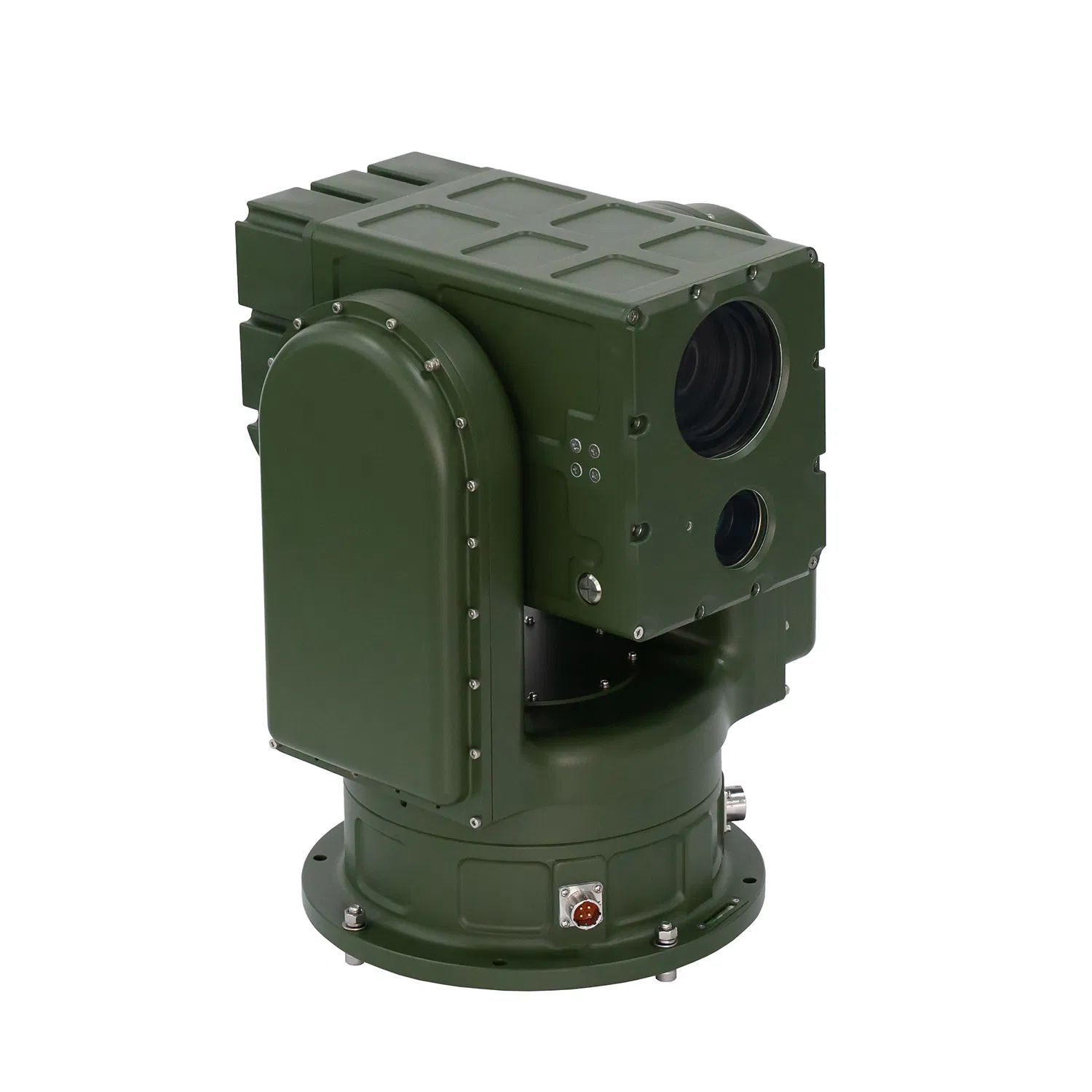

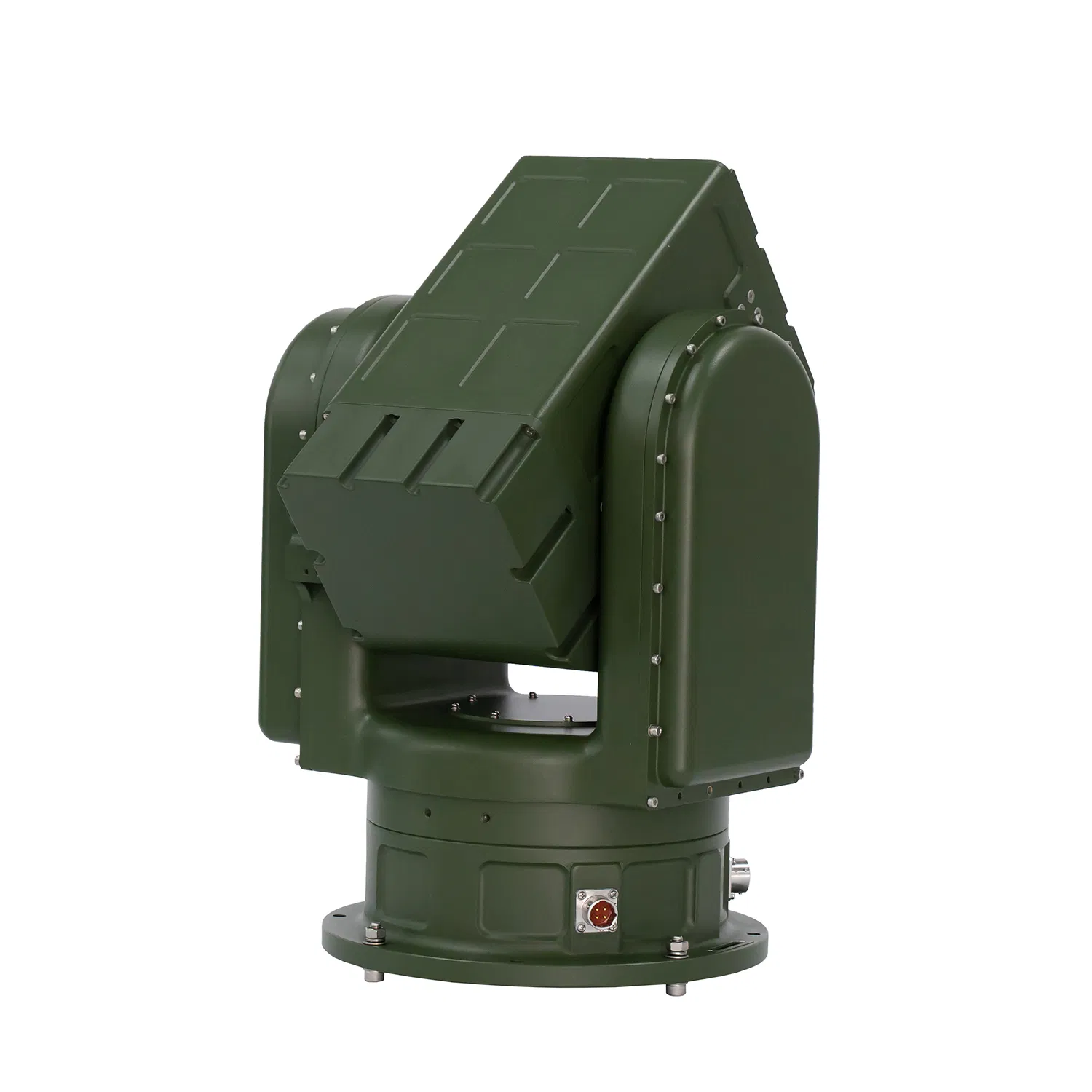

Long Range 10km Security Network PTZ Camera Multi-Spectrum Optical Thermal Electronical Platform Surveillance System
Long Range 10km Security Network PTZ Camera Multi-Spectrum Optical Thermal Electronical Platform Surveillance System
Long Range 10km Security Network PTZ Camera Multi-Spectrum Optical Thermal Electronical Platform Surveillance System
Long Range 10km Security Network PTZ Camera Multi-Spectrum Optical Thermal Electronical Platform Surveillance System
Long Range 10km Security Network PTZ Camera Multi-Spectrum Optical Thermal Electronical Platform Surveillance System
1 / 5
Long Range 10km Security Network PTZ Camera Multi-Spectrum Optical Thermal Electronical Platform Surveillance System
Long Range 10km Security Network PTZ Camera Multi-Spectrum Optical Thermal Electronical Platform Surveillance System
Long Range 10km Security Network PTZ Camera Multi-Spectrum Optical Thermal Electronical Platform Surveillance System
Long Range 10km Security Network PTZ Camera Multi-Spectrum Optical Thermal Electronical Platform Surveillance System
Long Range 10km Security Network PTZ Camera Multi-Spectrum Optical Thermal Electronical Platform Surveillance System

Long Range 10km Security Network PTZ Camera Multi-Spectrum Optical Thermal Electronical Platform Surveillance System

Customization: Available
Technology: Pan / Tilt / Zoom
Style: Mini Camera
Send Inquiry

Product Description

Basic Information
Model NO.
UPTHLV3020HVIR186
Type
IP Camera
Sensor
CMOS
HDMI Format
1080P
Kind
Autofocus Lens
Certification
CE, FCC, ISO9001
Protection Grade
IP66
Effective Distance
14.4km
PTZ Angle
P: 0~360° T: -60°~+20°
Thermal Detector
640/1280 Optional
Product Features
Thermal imaging technology for clear search in large areas and long-distance recognition.
640×512 high-resolution infrared detector with NETD ≤ 50mK.
Day and night 2 megapixels low illuminance color camera for continuous monitoring.
Optional auto-focusing function with multiple triggering modes.
3D locating function for frame selection magnification and center-click usability.
High-reliability aluminum alloy electro-optical pantilt with anti-wind and anti-corrosion design.
Technical Indicators
Model UPTHLV4020HZIR1120-LRF UPTHLV3020HVIR186
Monitoring Distance (Human) 17800m (Detection) 5000m (Detection)
Monitoring Distance (Vehicle) 21600m (Detection) 14400m (Detection)
Thermal Detector Cooled detector Uncooled microbolometer (Vox)
Pixel / Spectral Range 640×512 / 3~5μm 640×512 / 8~14μm
Thermal Lens Focal Length 55~1100mm 30~180mm
HD Camera Sensor 1/1.8'' Progressive Scan CMOS, H.264/H.265
HD Lens Focal Length 16.7~1000mm, 60× 12.5~750mm, 60×
Product Showcase

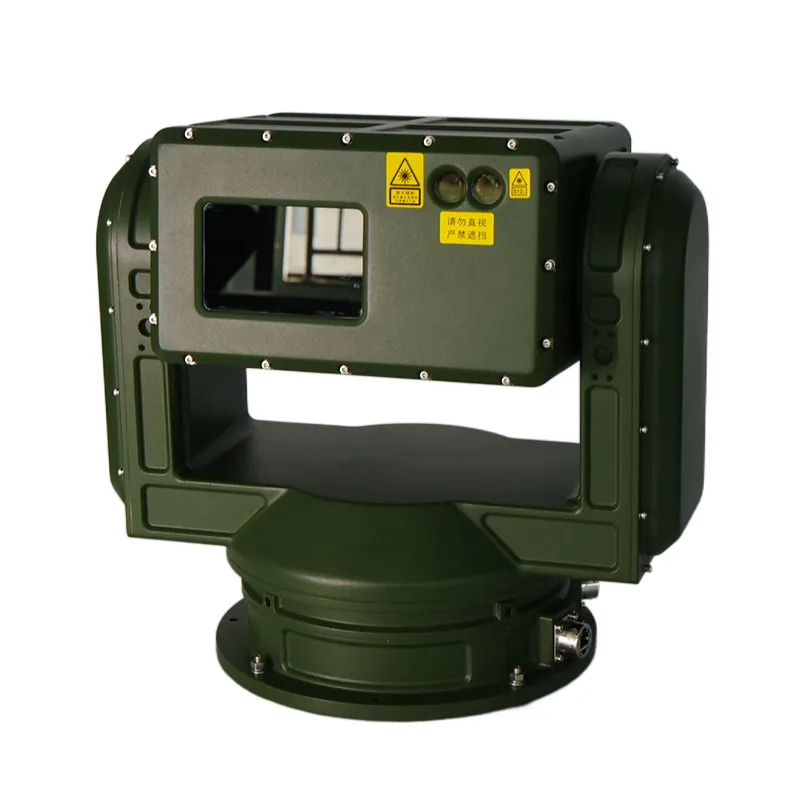

PTZ Camera 1

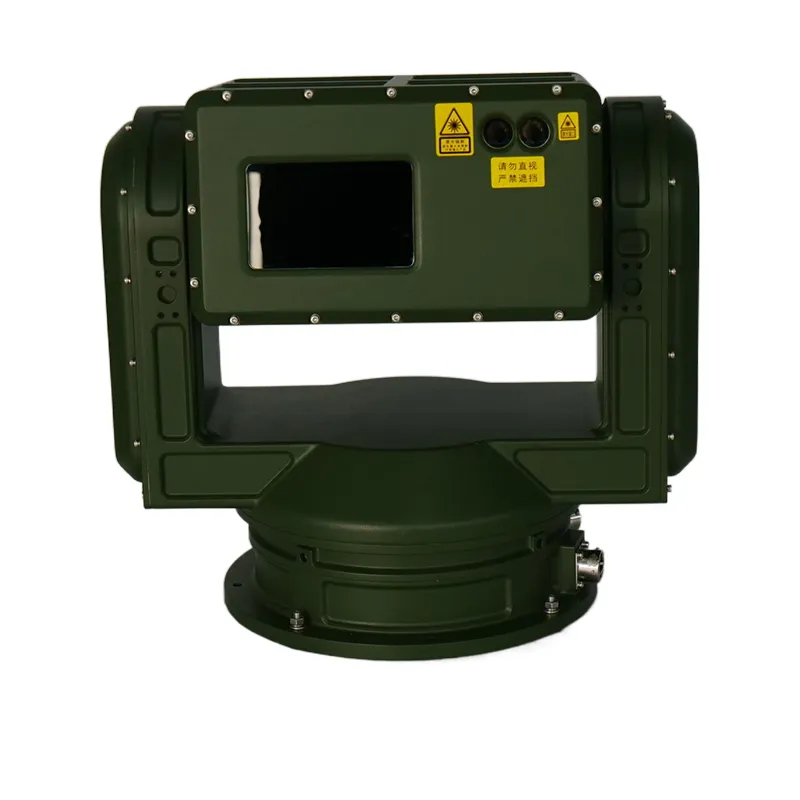

PTZ Camera 2

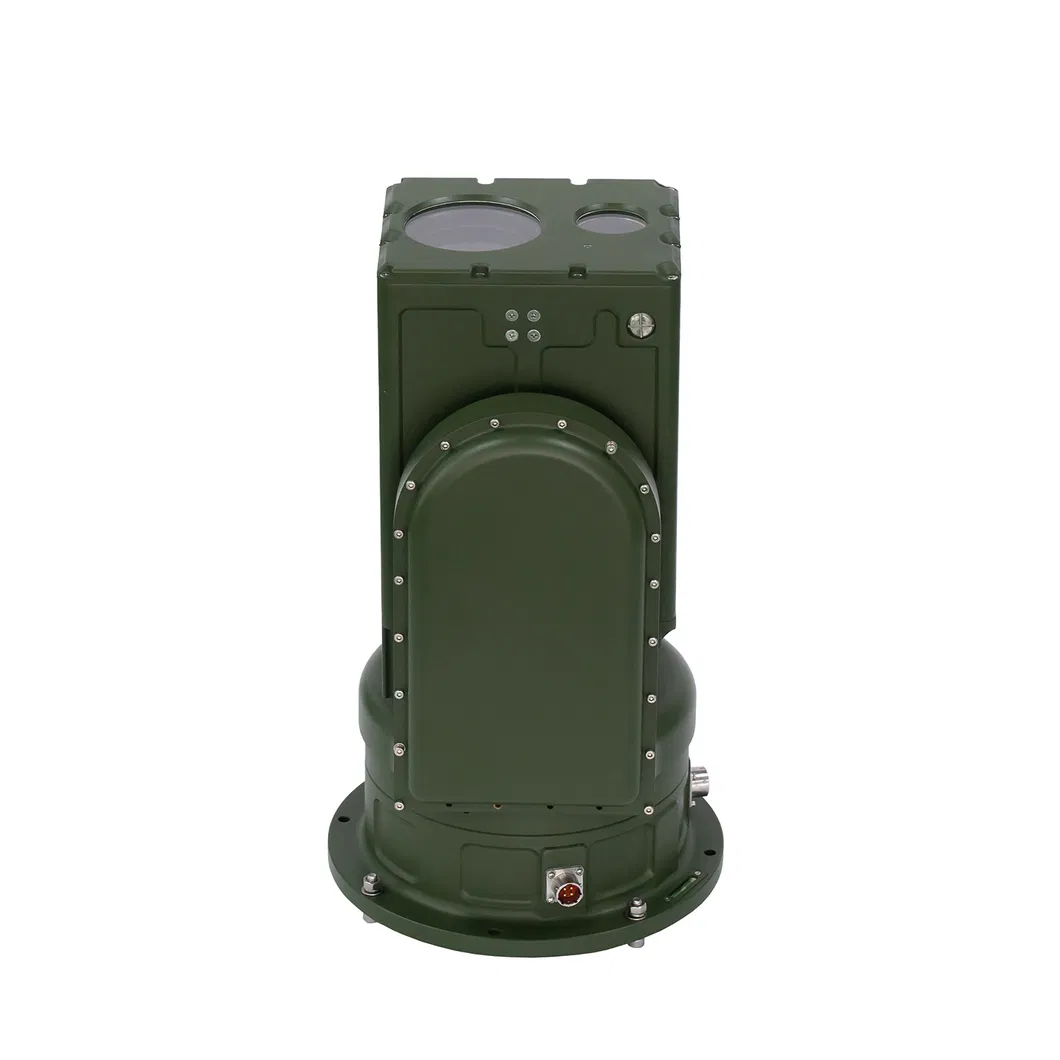

PTZ Camera 3
Effect Demo

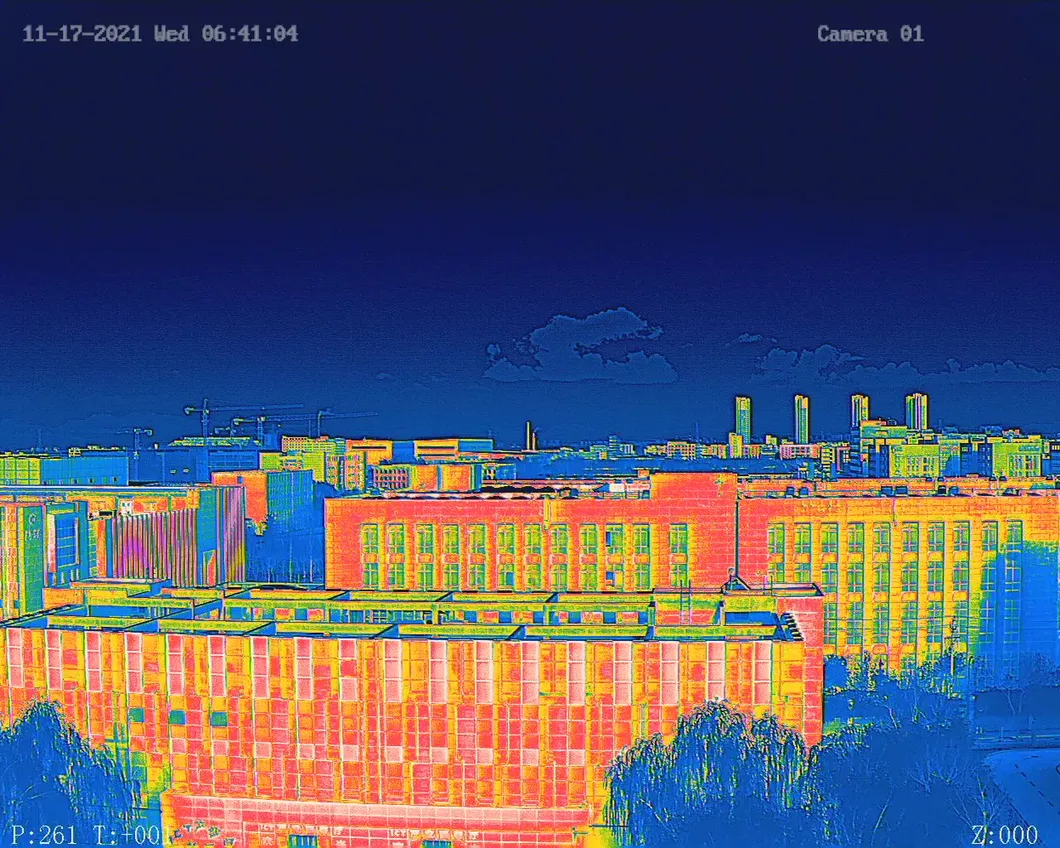

Effect Demo 1

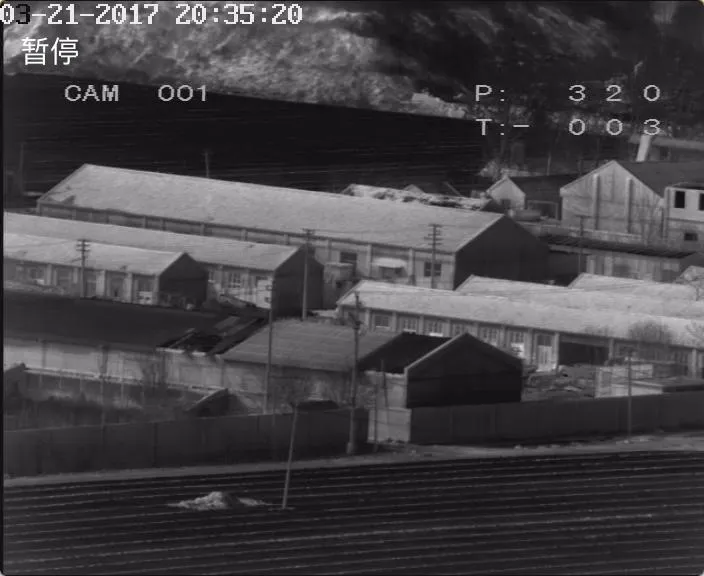

Effect Demo 2
Company Overview

Founded in 2004, we are a leading supplier of night vision equipment and rugged information systems. As a recognized engineering technology research center, we prioritize independent innovation. Our portfolio includes the development of advanced laser night vision cameras and uncooled continuous zoom infrared thermal imaging systems. Our core technologies in synchronous zoom and thermal imaging have reached international standards, serving a global market with high-performance surveillance solutions.

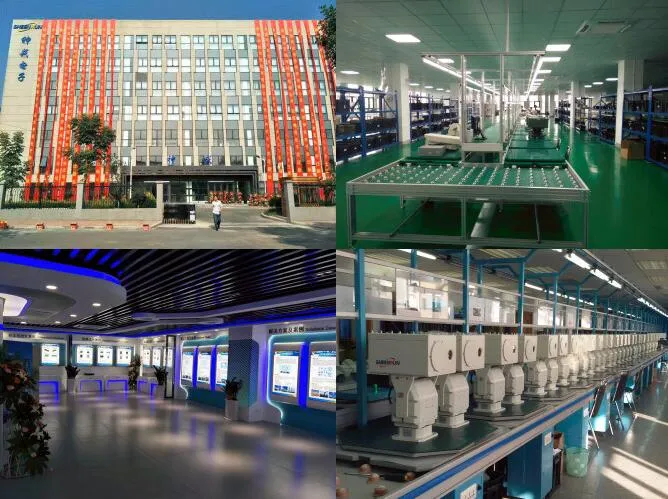

Facility
Application & Packaging

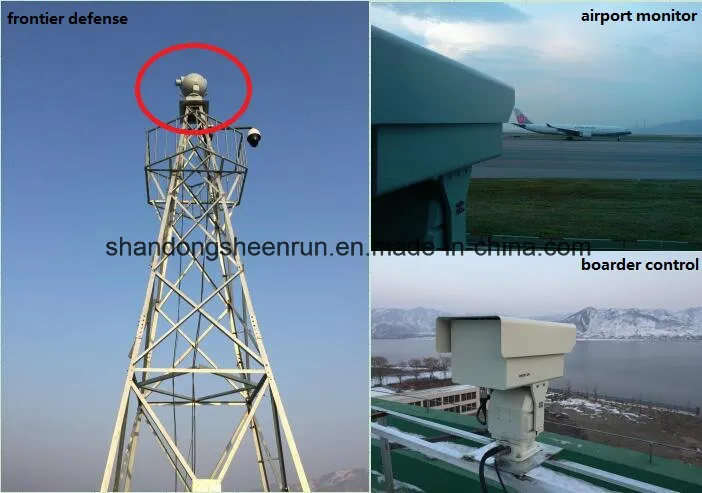

Application
Packaging
Frequently Asked Questions
What is the maximum monitoring distance of this PTZ system?
The system can detect vehicles up to 14.4km and humans up to 5km depending on the specific model and environmental conditions.
Is the camera suitable for harsh weather conditions?
Yes, the device features an IP66 protection grade and is constructed from high-reliability aluminum alloy, making it resistant to wind, salt fog, and extreme temperatures.
Does the thermal camera support auto-focusing?
Yes, it includes an optional auto-focusing function that supports multiple focusing modes to enhance operational efficiency.
What imaging technologies are integrated into this platform?
It combines high-resolution thermal imaging (640×512) with a 2-megapixel low-illuminance color HD camera for comprehensive day and night surveillance.
Can the PTZ be controlled remotely?
Yes, the system supports remote control via network interface (RJ45) and includes 255 presets with 3D locating functions.
What are the power requirements for installation?
The system uses a wide-range waterproof power adapter (AC90-295V) with a maximum power consumption of ≤180W.
