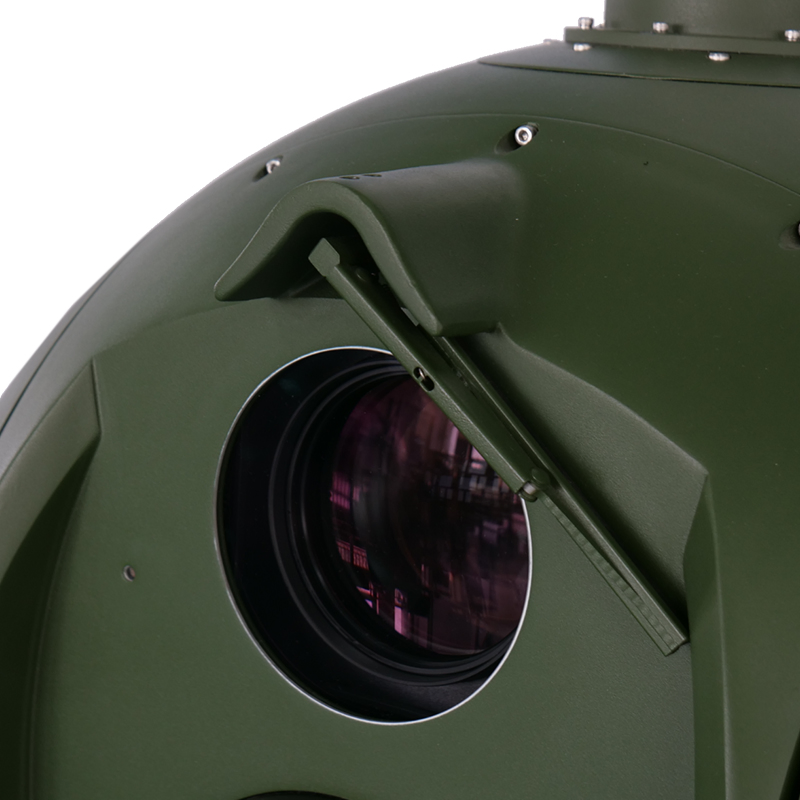

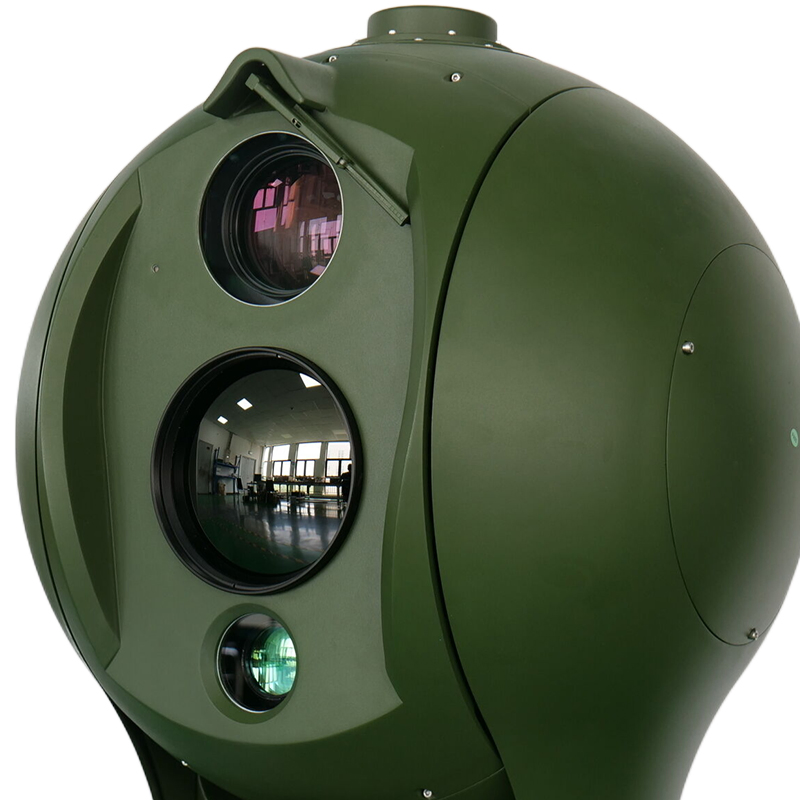

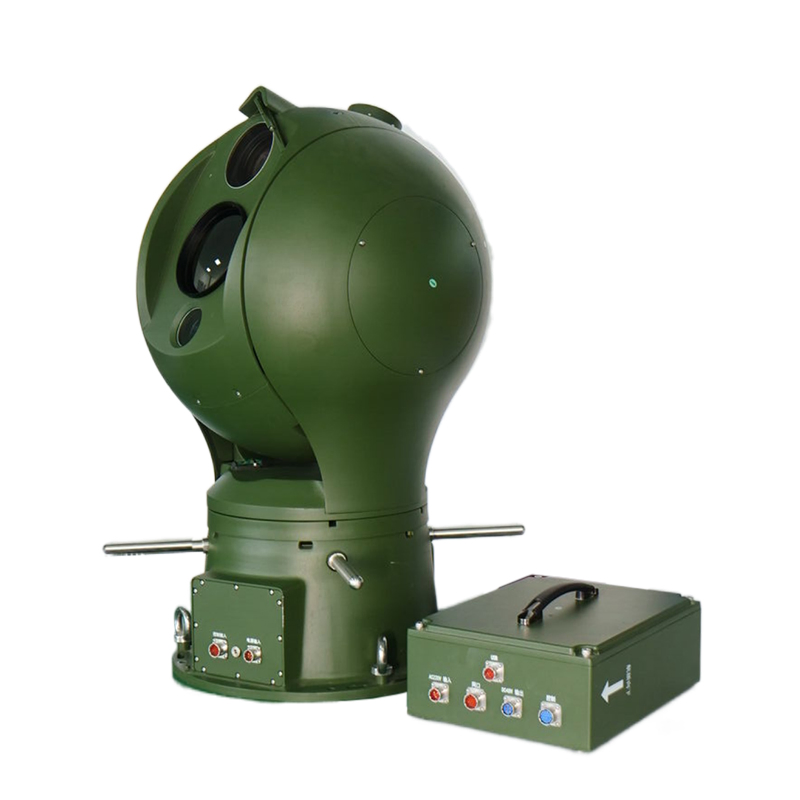

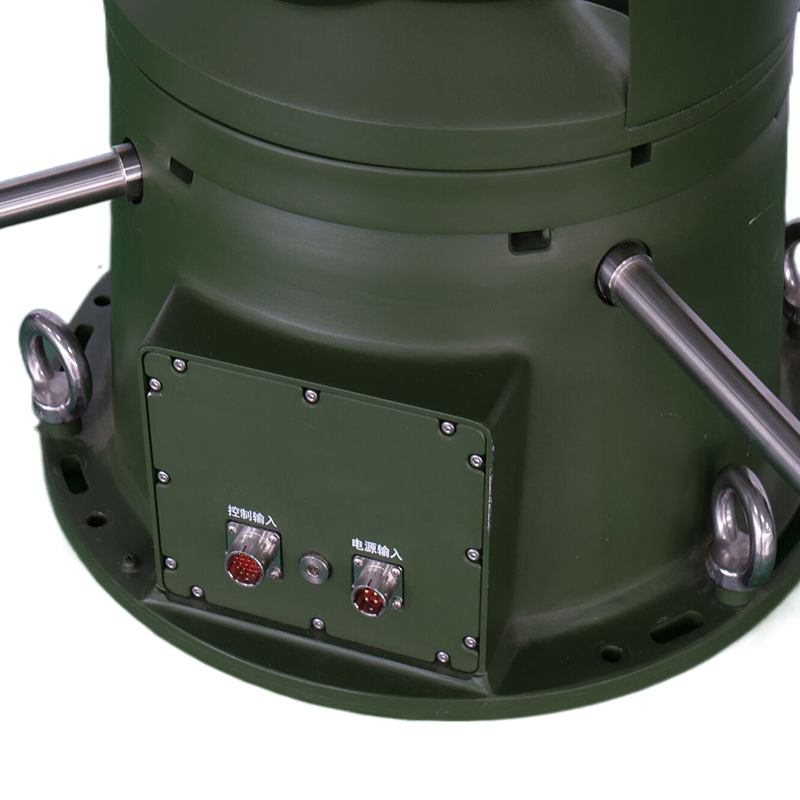

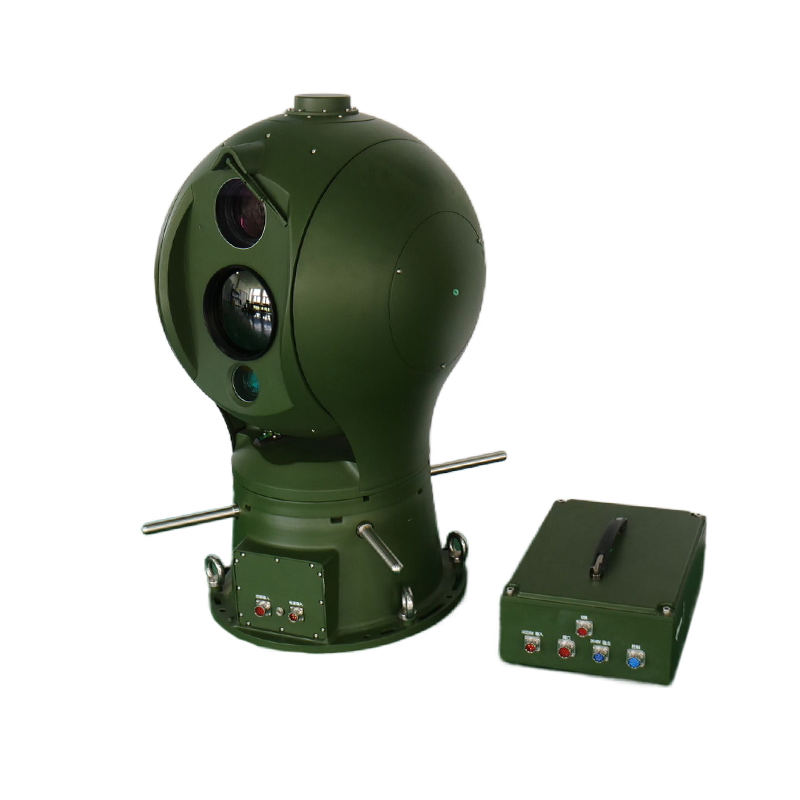

Long Range PTZ Thermal Security Camera HD Multi-Spectrum Thermal Infrared Tracking Camera System
Long Range PTZ Thermal Security Camera HD Multi-Spectrum Thermal Infrared Tracking Camera System
Long Range PTZ Thermal Security Camera HD Multi-Spectrum Thermal Infrared Tracking Camera System
Long Range PTZ Thermal Security Camera HD Multi-Spectrum Thermal Infrared Tracking Camera System
Long Range PTZ Thermal Security Camera HD Multi-Spectrum Thermal Infrared Tracking Camera System
1 / 5
Long Range PTZ Thermal Security Camera HD Multi-Spectrum Thermal Infrared Tracking Camera System
Long Range PTZ Thermal Security Camera HD Multi-Spectrum Thermal Infrared Tracking Camera System
Long Range PTZ Thermal Security Camera HD Multi-Spectrum Thermal Infrared Tracking Camera System
Long Range PTZ Thermal Security Camera HD Multi-Spectrum Thermal Infrared Tracking Camera System
Long Range PTZ Thermal Security Camera HD Multi-Spectrum Thermal Infrared Tracking Camera System

Long Range PTZ Thermal Security Camera HD Multi-Spectrum Thermal Infrared Tracking Camera System

Customization: Available
Technology: Pan / Tilt / Zoom
Style: Mini Camera
Send Inquiry

Product Description

Overview & Basic Info

Model NO.
PT501HLV3020HZIR620
Type
Video Camera
Sensor
CMOS
HDMI Format
1080P
Horizontal Resolution
480tvl
Kind
Autofocus Lens
Certification
CE, FCC, ISO9001: 2000
Feature
Waterproof / Weatherproof, High Definition
Effective Distance
9km
Sensor Size
1/3 Inch
Protection Grade
IP66
Thermal Detector
640/1280 Optional

Product Description

Main Features

  • Adopting thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance.
  • High resolution infrared detector with NETD≤ 50mK.
  • Day and night 2 megapixels low illuminance color camera, realizing day and night continuous monitoring.
  • Optional auto focusing function, realizing multiple focusing mode and triggering mode.
  • Optional thermal imaging camera presetting function, remembering FOV of each preset bit.
  • 3D locating function, can realize frame selection magnifying function and clicking to center function.
  • High reliability aluminum alloy electro-optical pantilt, reinforcement design, strong ability of anti-wind, anti-salt fog.

Technical Indicators

Model PT500HLV1520HNIR155 PT501HLV3020HZIR620
Monitoring distance HD camera 3000-5000m 5000-8000m
Thermal camera Human (1.8m×0.5m) Vehicle (2.3×2.3) Human (1.8m×0.5m) Vehicle (2.3×2.3)
4200m / 1400m 12000m / 3000m 14500m / 6400m 19900m / 11700m
700m 1500m 3510m 7500m
Thermal detector Detector Uncooled microbolometer (Vox) Cooled detector
Spectral range 8~14μm 3~5μm
NETD ≤50mK ≤25mK
Thermal lens Focal length 30~150mm, 5× zoom 30~600mm, 20× zoom
F value F1.0~ F1.2 F4.0
HD Camera Sensor type 1/1.8'' Progressive Scan CMOS
Pantilt Angle Pan: 0°~ 360°; Tilt: -45°~ +45°
Environment Protection IP66 Waterproof

Product Visuals

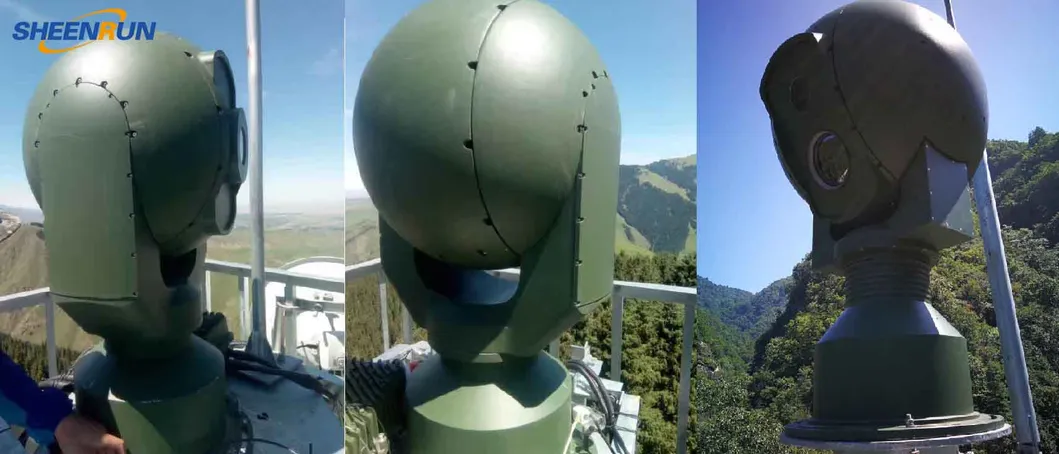

Long Range PTZ Thermal Security Camera Technical Specifications Diagram

Exhibition & Facilities

Exhibition View 1
Exhibition View 2

Production Environment

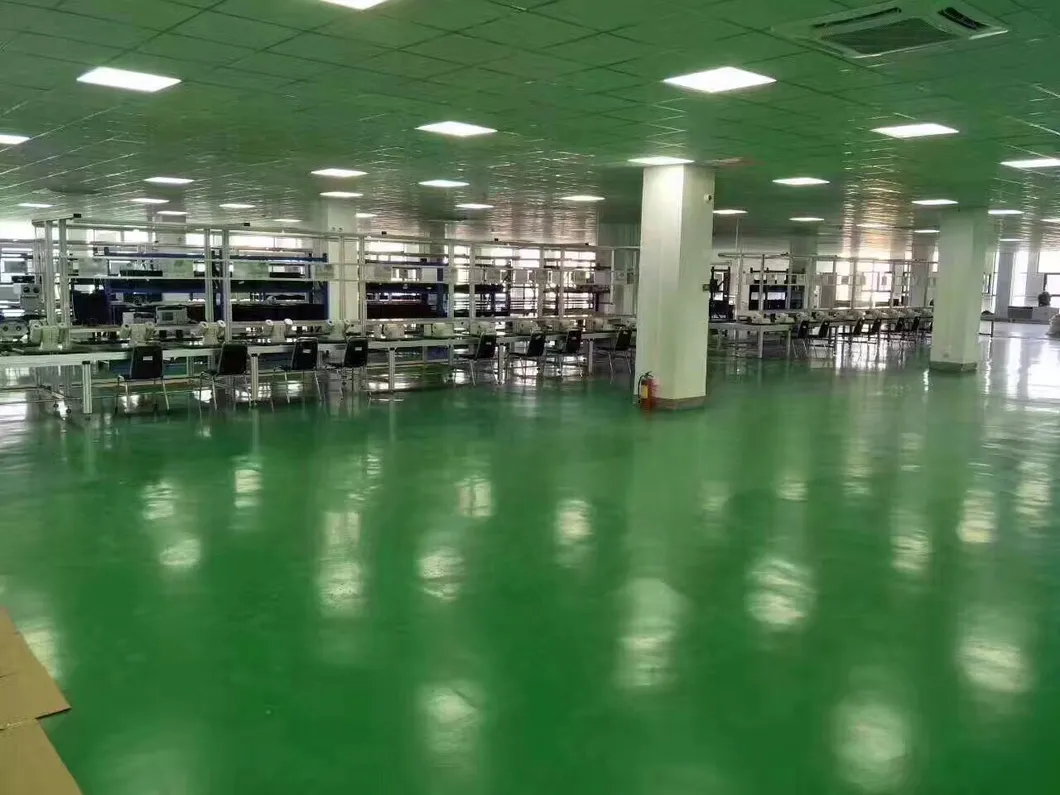

Facility 1

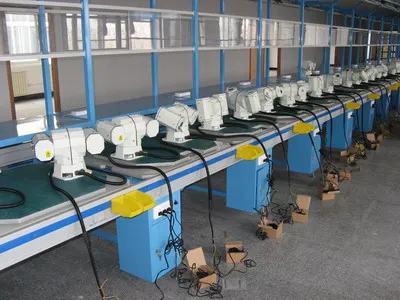

Facility 2

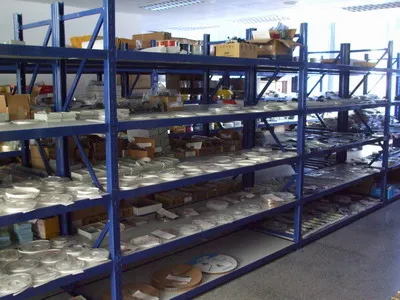

Facility 3

Performance & Application

Founded in 2004, the manufacturer is a leading night vision equipment and rugged information equipment supplier. With independent intellectual property rights, the synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standards.

Effect Demonstration

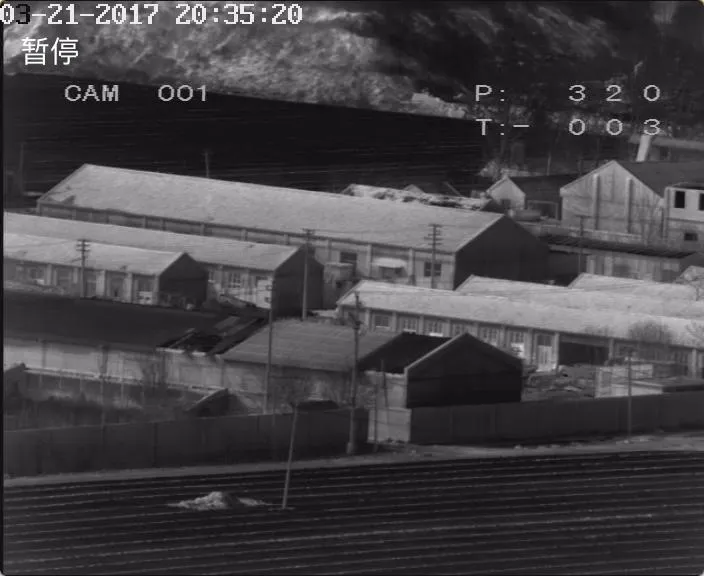

Effect Demo 1

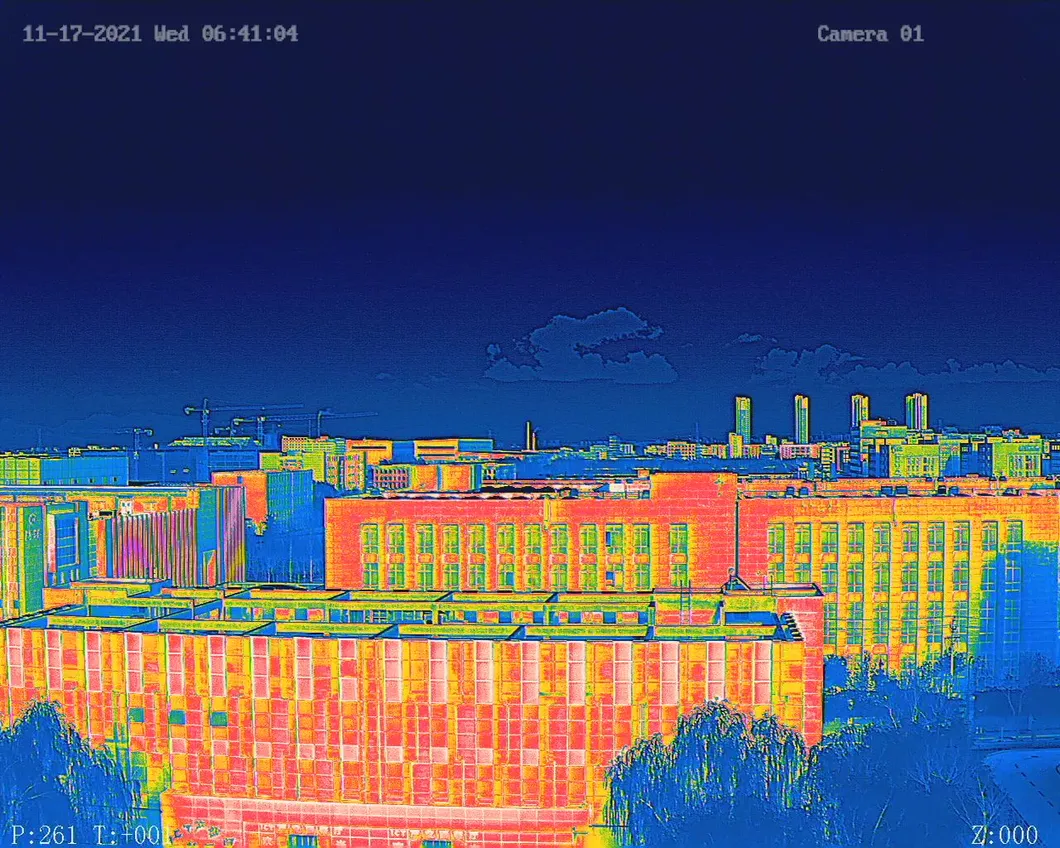

Effect Demo 2

Global Applications

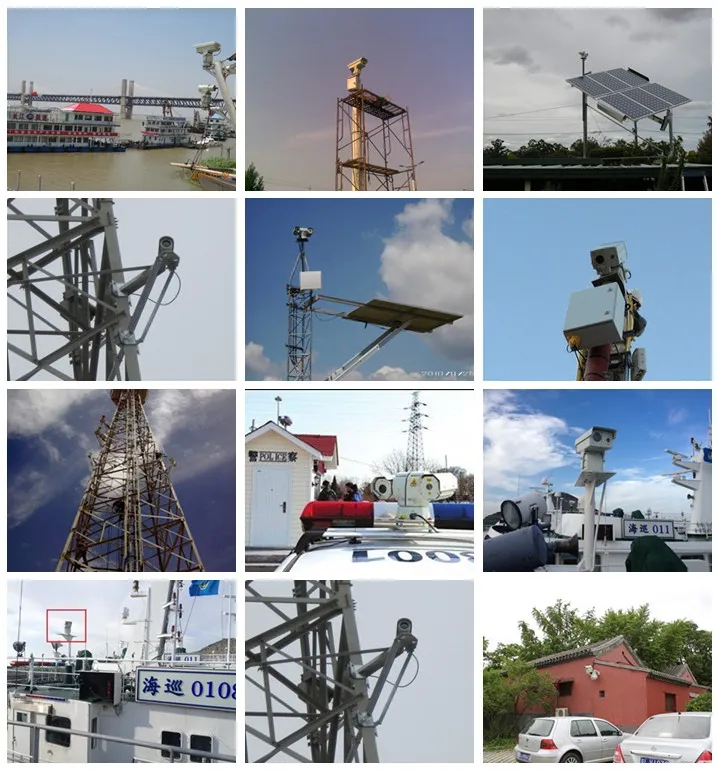

Application Scenarios

Frequently Asked Questions

Q1: What is the maximum monitoring distance for this system?
The system can provide effective thermal imaging distance up to 9km for detection, with vehicle monitoring distances reaching up to 19,900m depending on the specific model and detector type.
Q2: Can the camera operate in harsh outdoor environments?
Yes, the system is rated IP66 for protection against dust and powerful water jets. It features a high-reliability aluminum alloy housing with anti-wind and anti-salt fog designs.
Q3: Does the camera support day and night monitoring?
Yes, it integrates a 2 megapixels low illuminance color camera for daylight and a high-resolution thermal detector for night operations, ensuring 24/7 continuous monitoring.
Q4: What are the differences between the cooled and uncooled detector options?
The uncooled detector is more cost-effective for standard ranges (NETD ≤ 50mK), while the cooled detector offers higher sensitivity (NETD ≤ 25mK) and significantly longer detection ranges.
Q5: What is the movement range of the PTZ (Pantilt) unit?
The pantilt unit supports a full 360° continuous pan rotation and a tilt range from -45° to +45°, with preset accuracy of ±0.05°.
Q6: Does the system support automated tracking or scanning?
Yes, it supports auto cruise functions with 2 paths and up to 64 presets per path, along with a 3D locating function for easy target centering.
