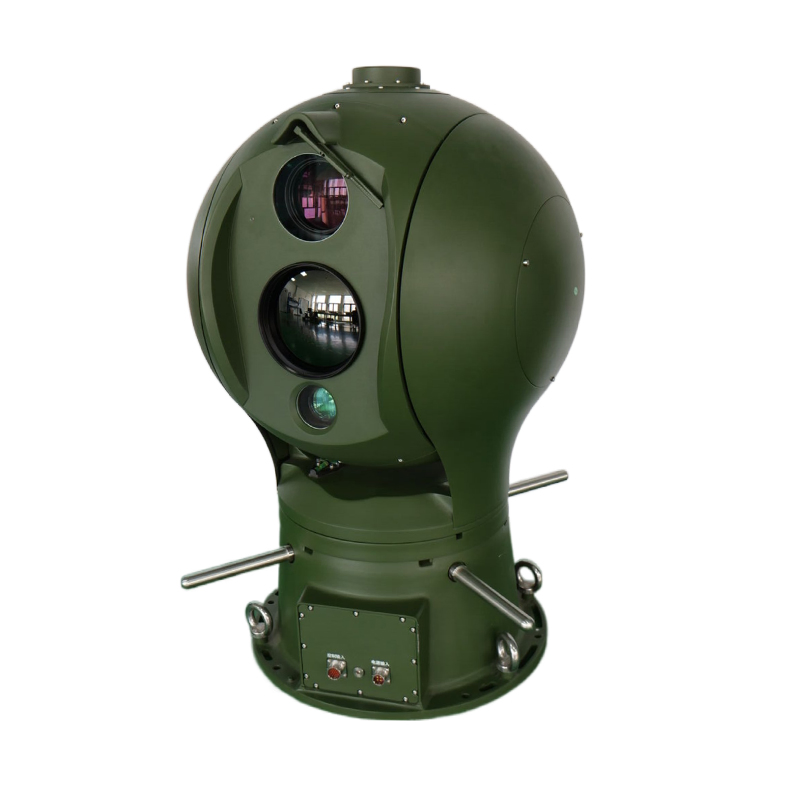

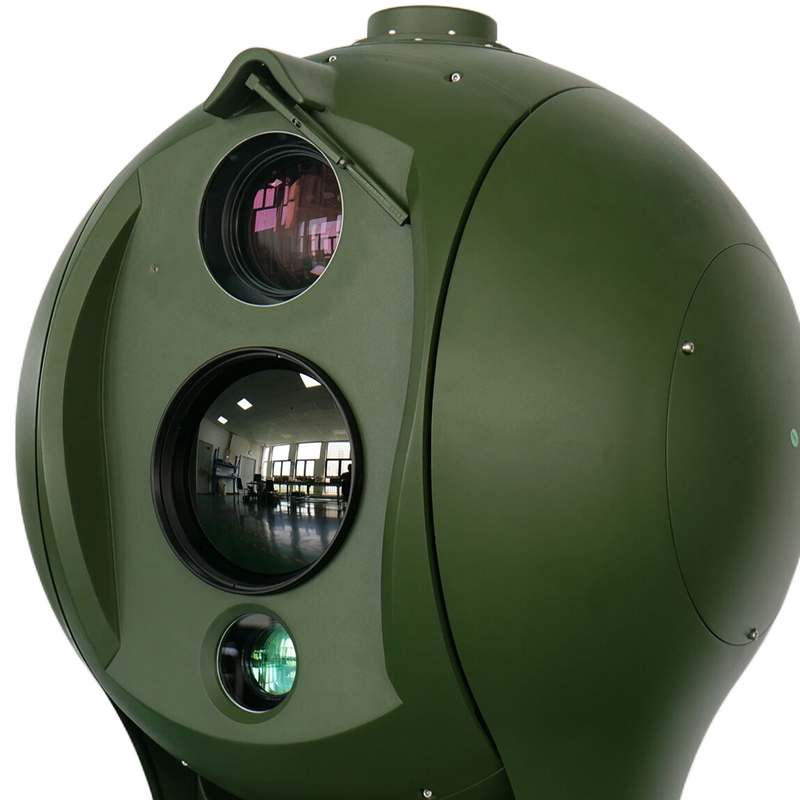

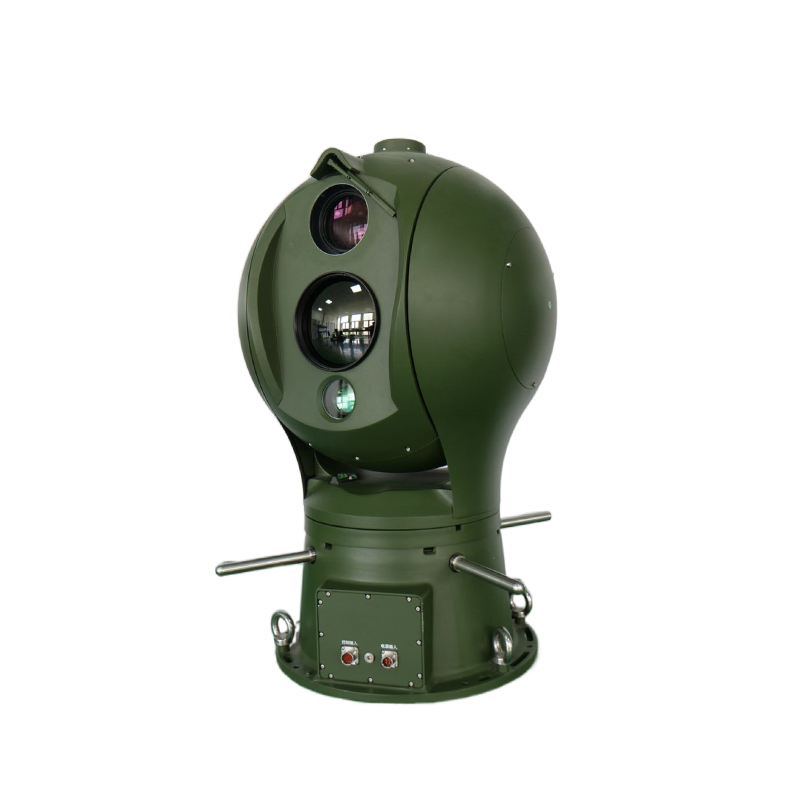

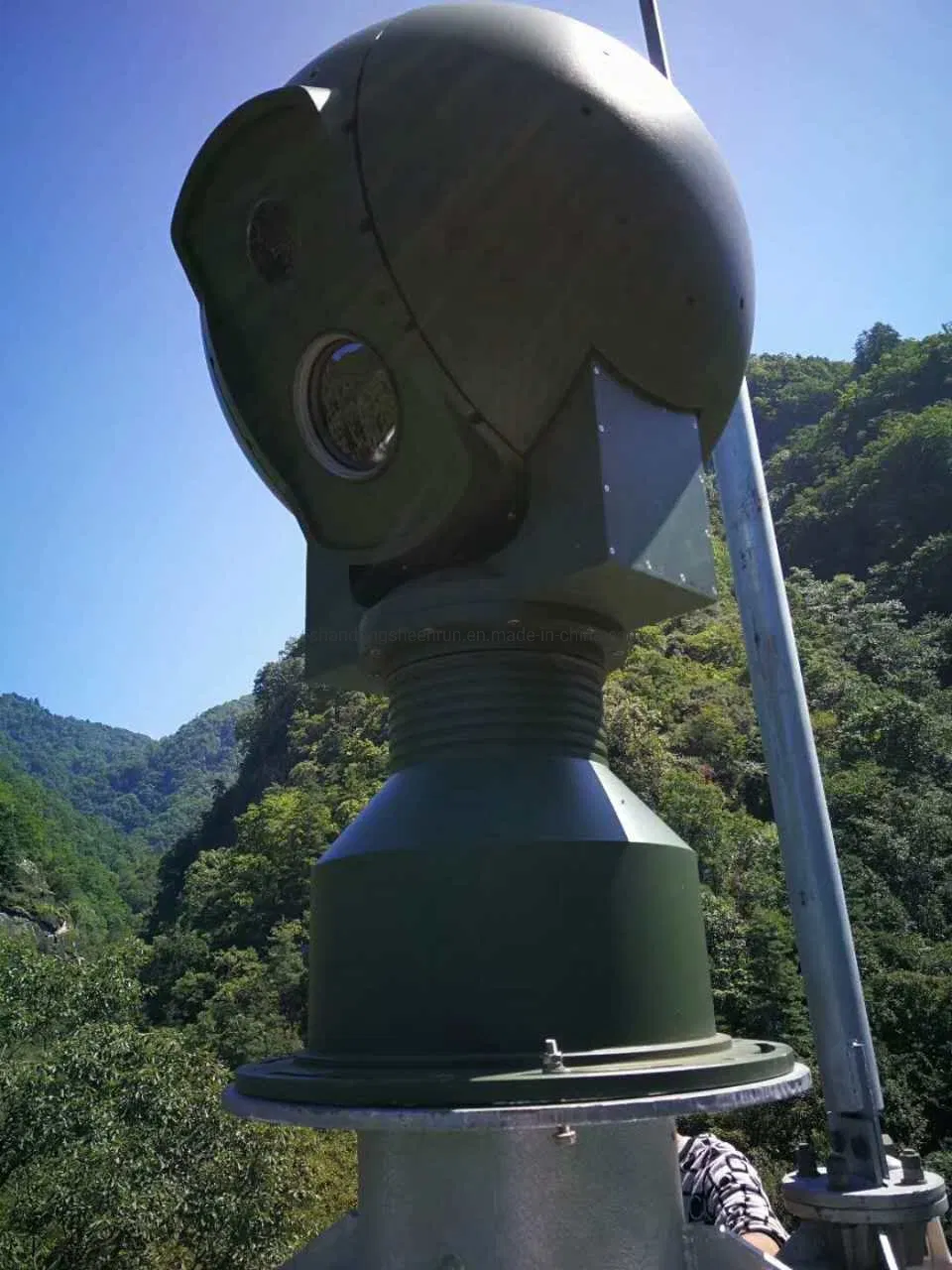

High resolution infrared detector with NETD≤ 50mK. Day and night 2 megapixels low illuminance color camera, realizing day and night continuous monitoring. Optional auto focusing function, realizing multiple focusing mode and triggering mode.

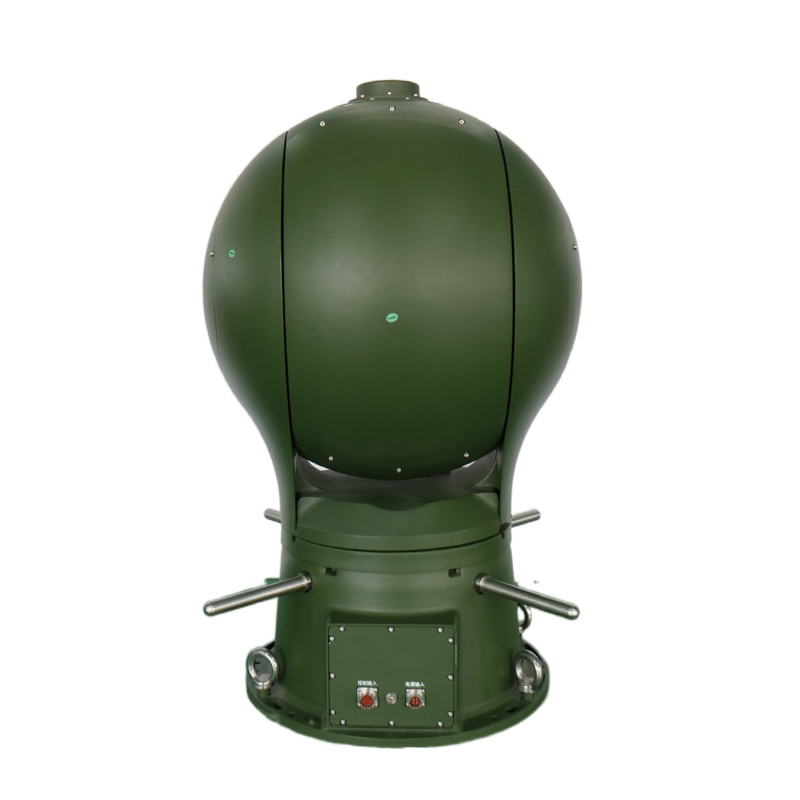

3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability. High reliability aluminum alloy electro-optical pantilt, reinforcement design, strong ability of anti-wind, anti-salt fog, low and high temperature resistance.
Technical Indicators| Model | PT500HLV1520HNIR155 | PT501HLV3020HZIR620 | ||
| Monitoring distance (HD Camera) | 3000-5000m | 5000-8000m | ||
| Thermal Detector | Uncooled microbolometer (Vox) | Cooled detector | ||
| Pixel / Spectral range | 640×512 / 8~14μm | 640×512 / 3~5μm | ||
| Thermal Lens Zoom | 30~150mm, 5× zoom | 30~600mm, 20× zoom | ||
| HD Camera Sensor | 1/1.8'' Progressive Scan CMOS, H.264/H.265 | |||
| Video Resolution | 25fps (2688×1520), support dual stream | |||
| Pantilt Angle | Pan: 0°~ 360°; Tilt: -45°~ +45° | |||
| Protection Grade | IP66 | |||
Founded in 2004, we are a leading night vision equipment and rugged information equipment supplier. Adhering to independent innovation, we developed advanced laser night vision cameras and uncooled continuous zoom infrared thermal imaging cameras. Our technologies have reached international advanced standard levels, serving a global market with high-performance surveillance solutions.
