LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell

1 / 5

LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell

Customization:	Available
Voice Service:	Without Voice Service
Clock:	Without Clock

Send Inquiry

Product Description

Basic Info

Model NO.

ZDAC-T4FWL-WiFi

Color

Silver

Screen

Color Screen

Interface

Wiegand 26 & WiFi

Fingerprint Capacity

300 (System capacity 10,000)

Card Capacity

10,000

Card Type

125kHz Em ID Card

Waterproof

IP68

Material

Metal Case, Anti-Vandal

Voltage

DC12V

Product Description

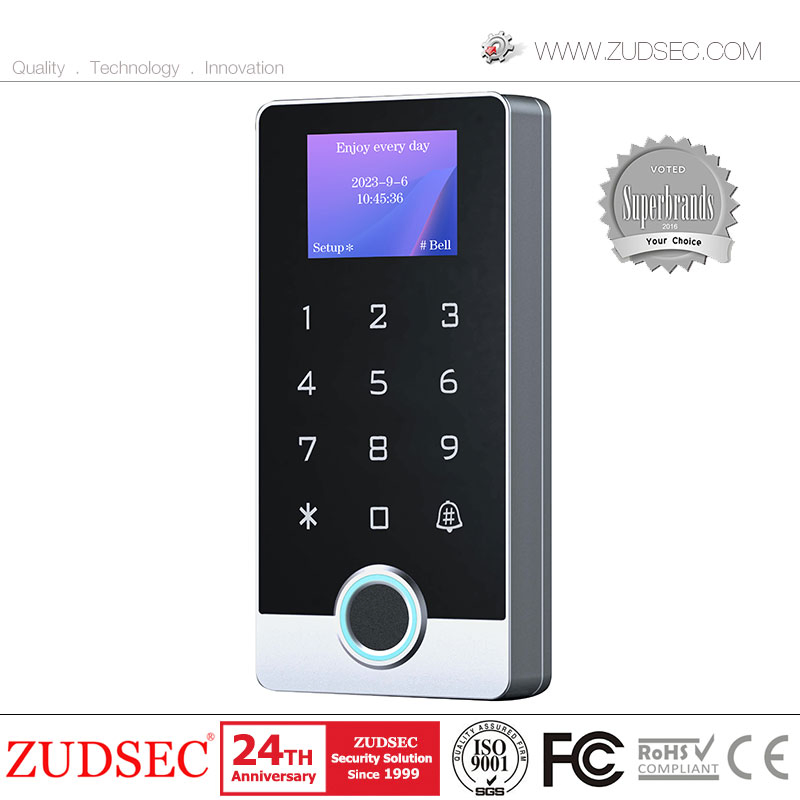

LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control

Featuring an LCD screen and voice function, this touch keypad device is housed in a durable metal case. It supports App Control (Optional) and is designed with anti-vandal properties. This new generation multifunctional standalone access control utilizes a powerful ARM core 32-bit microprocessor, ensuring stability and reliability. It is widely applied in offices, residential communities, villas, banks, and more.

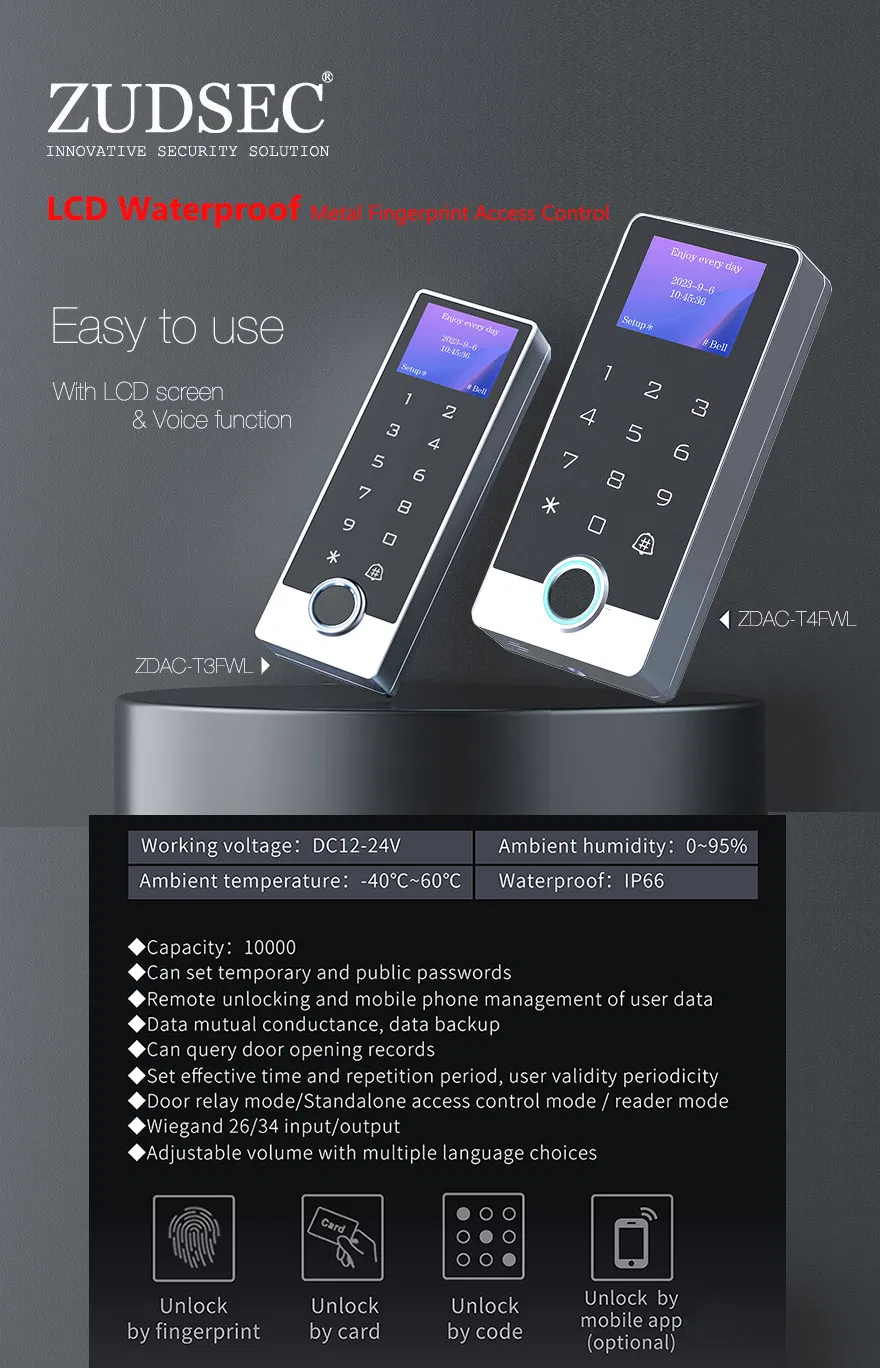

Available Models:
* ZDAC-T4FWL (Metal shell with IP68 Waterproof)
* ZDAC-T4FWL-WiFi (Metal shell with WiFi + IP68 Waterproof)

Main Features

Full message LCD menu & voice function for easy setting

Touch Keypad supporting fingerprint, ID card, and password

300 Fingerprint users, 10,000 RFID users & PIN

Wiegand output and input (can connect as slave reader)

Metal shell with anti-vandal and anti-magnetic design

Lock output current short protection

High searching speed: <0.1s for full users

Supports HID, 13.56MHz Mifare, or 125KHz EM cards

Product Parameters

Access Ways	Fingerprint, Card, Code, Mobile App (Optional)
Keypad	Capacitive touch keypad
Admin Management	Support admin add card and admin delete card

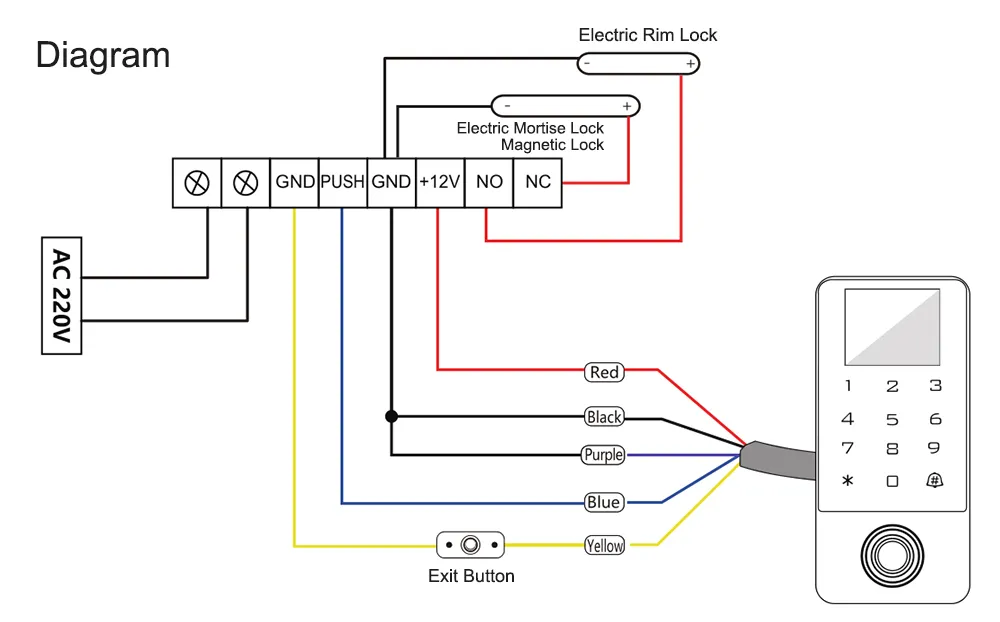

Unlock Signal	NO, NC, COM relay output
Alarm Output	MOS tube output (Optional)
Operating Voltage	DC12-24V
Operating Current	≤100mA (Standby ≤60mA)
Environment	Temp: -40ºC to 60ºC; Humidity: 0%-95%

Related Products

Frequently Asked Questions

What is the waterproof rating of this device?

The device features an IP68 waterproof rating, making it suitable for outdoor installation and harsh weather conditions.

How many users can the system store?

It supports up to 10,000 RFID card/PIN users and 300 fingerprint users.

Can I control the door via my smartphone?

Yes, the WiFi version (ZDAC-T4FWL-WiFi) supports Tuya Smart App control for remote management.

What kind of cards does the reader support?

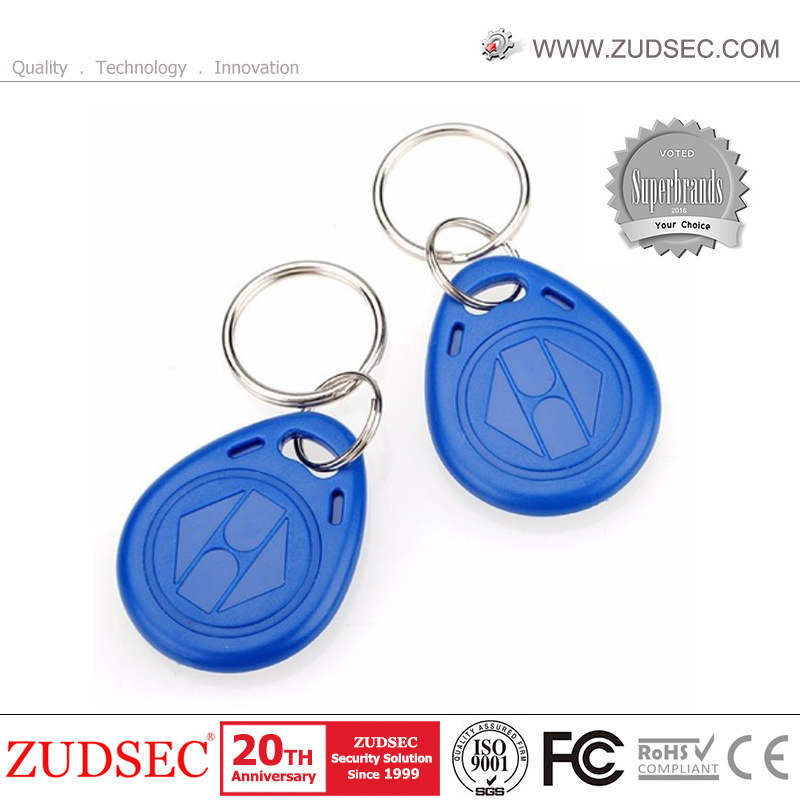

It standardly supports 125KHz EM cards, and there is support for 13.56MHz Mifare cards or HID cards.

What is the construction material?

The device is built with a rugged metal shell that is anti-vandal and durable for high-security areas.

What is the working voltage?

The device operates on a wide voltage range of DC12V to DC24V.
