| Model NO. | L931 PLUS |
| Mathematical Model | Linear |
| Signal | Continuous |
| Function | Automatic Control, Protection, Monitoring, Measurement |
| Certification | ISO: 9001, CE |
| Material | ABS |
| Rated Output Power | 0.75-4kw(1HP-5.5HP) 5.5-11kw(7.5HP-15HP) 15kw(20HP) |
| Protection Grade | IP54 |
| Rated Input Voltage | AC380V/AC400V Three Phase |
| Weight | 2.3kg |
| Specification | 300*240*120mm |
| Package Size | 32.00cm * 26.00cm * 15.00cm |
| Package Gross Weight | 4.300kg |

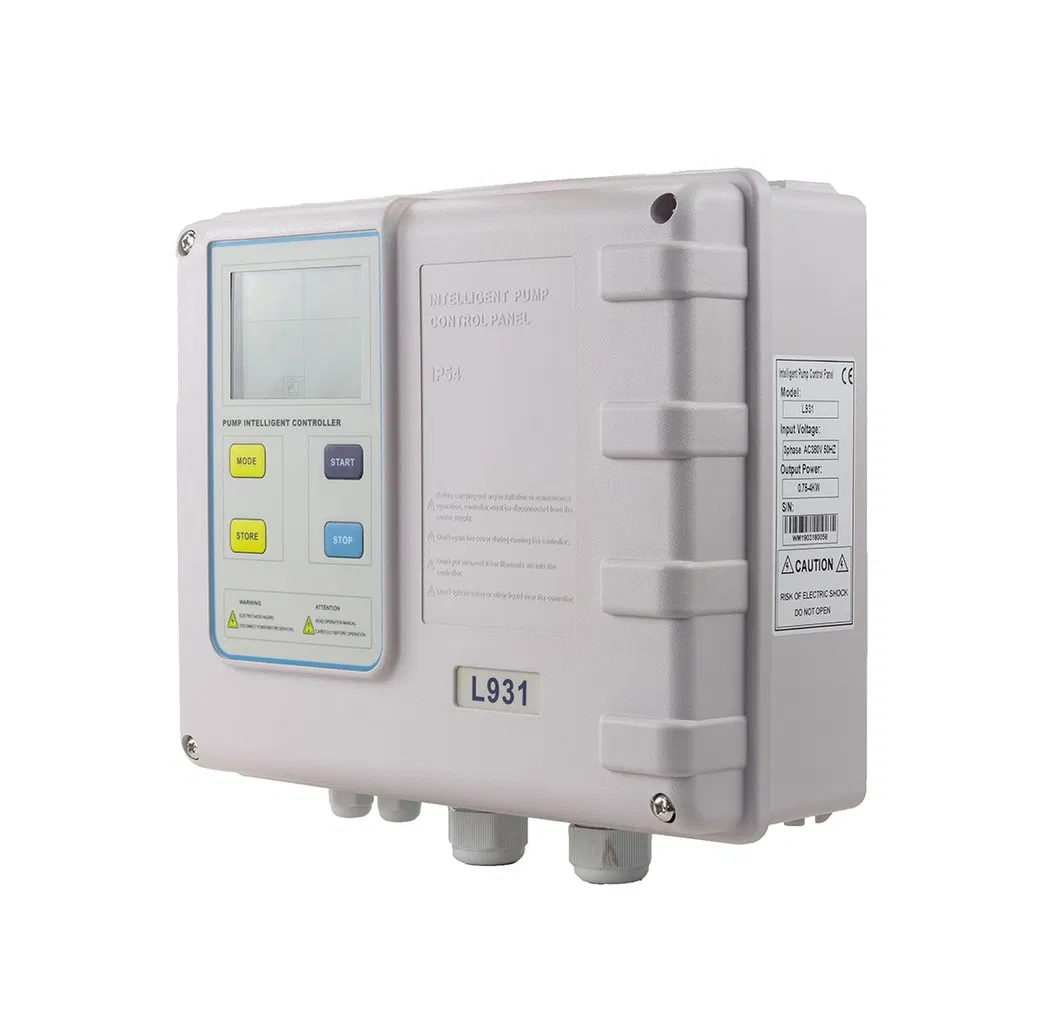

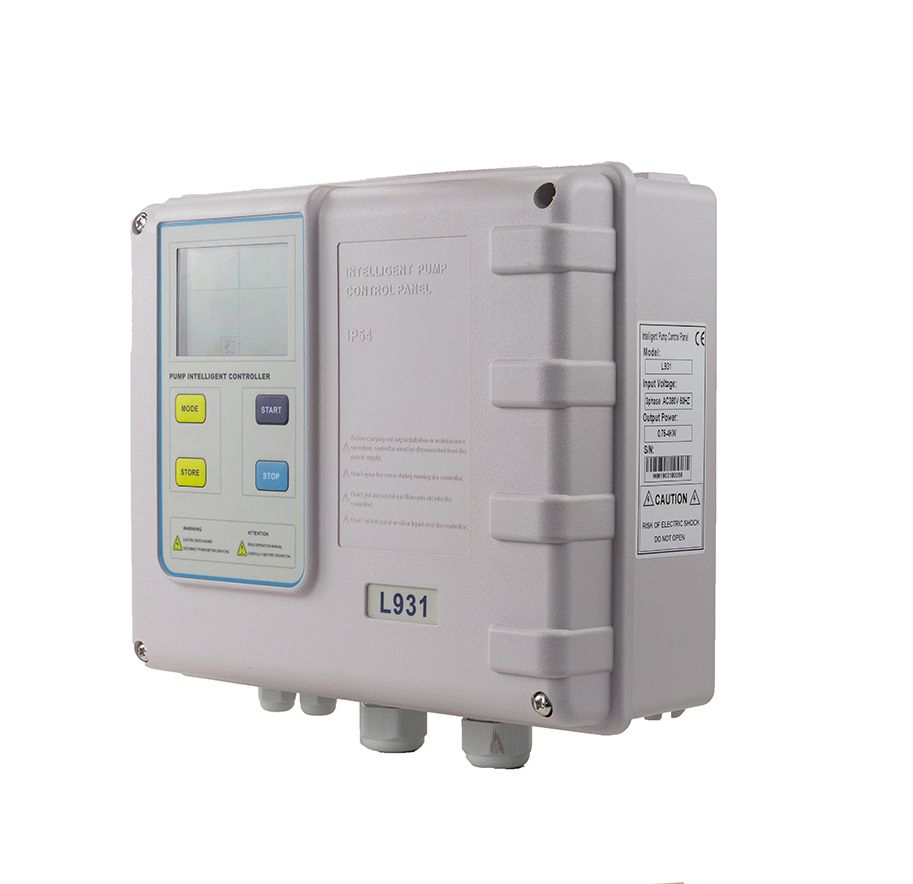

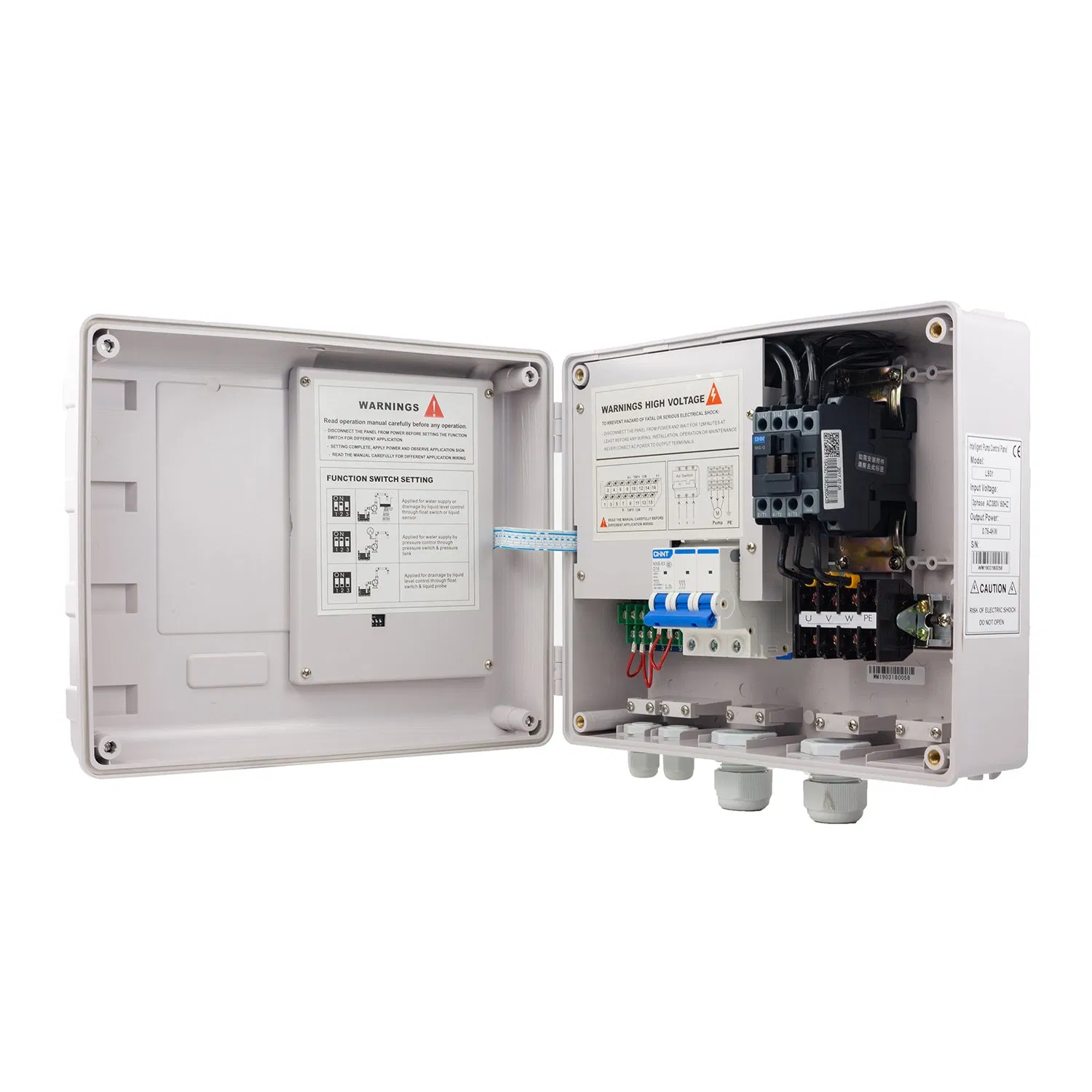

Digital Pump Control Panel / Single Phase Pump Smart Controller

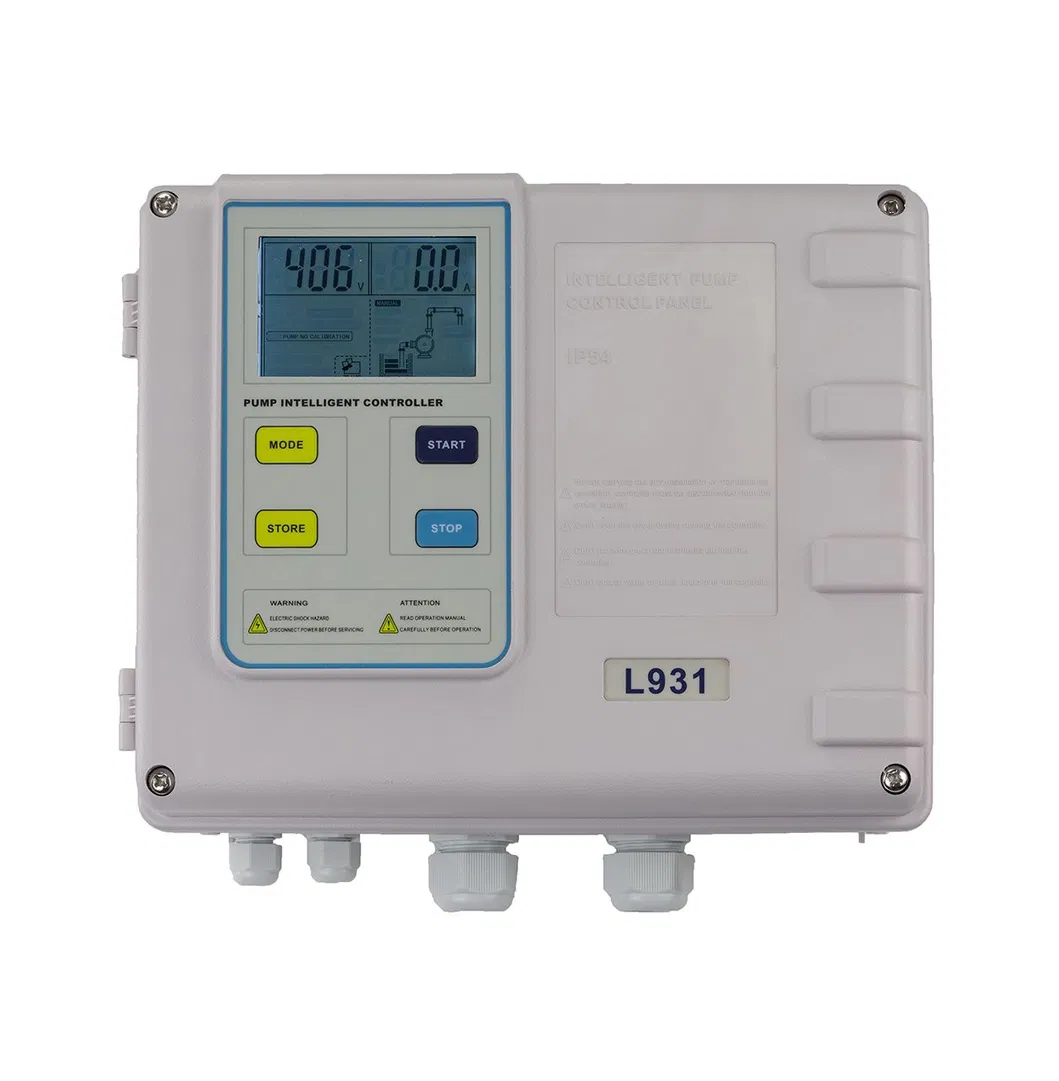

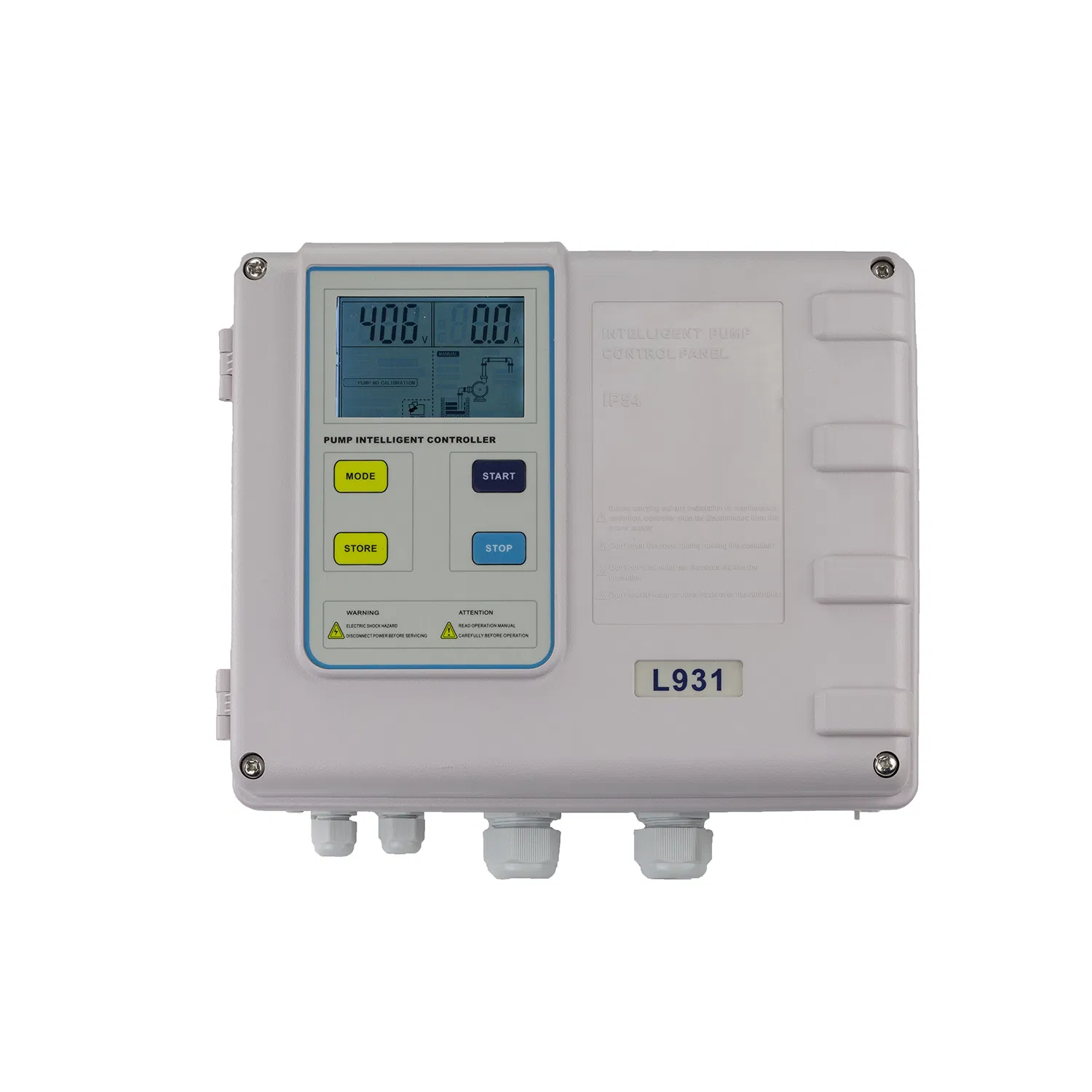

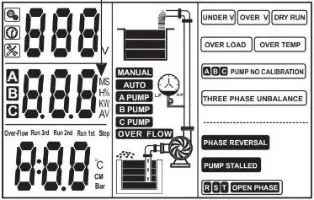

Stay informed with the LCD screen of the New product L931 PLUS Three phase pump control panel. Monitor pump running status effortlessly.
| Start type | Direct on line |
| Qty of controlled pump | Single pump |
| Rated input voltage | AC380V/AC400V Three phase; 50HZ/ 60HZ |
| Protection function | Over load, Pump stalled, Dry run, Under voltage, Over voltage, Repeat start, Open phase, Over temperature protection |

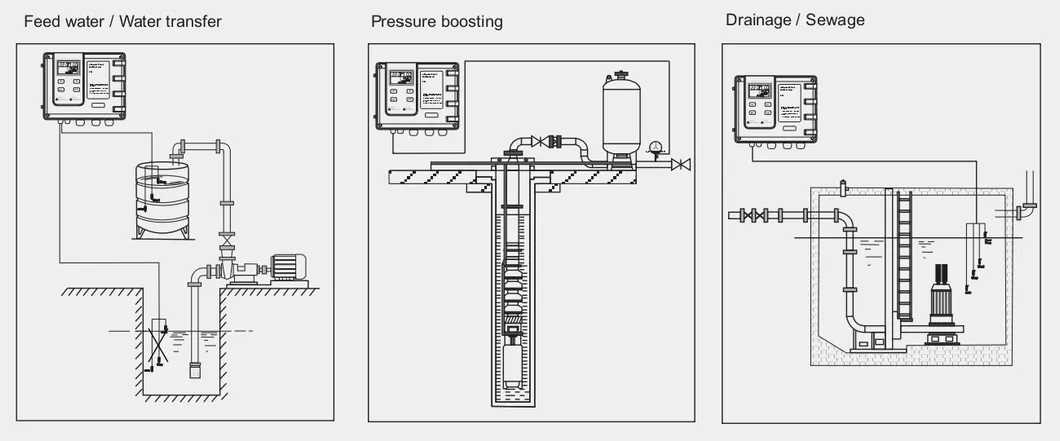

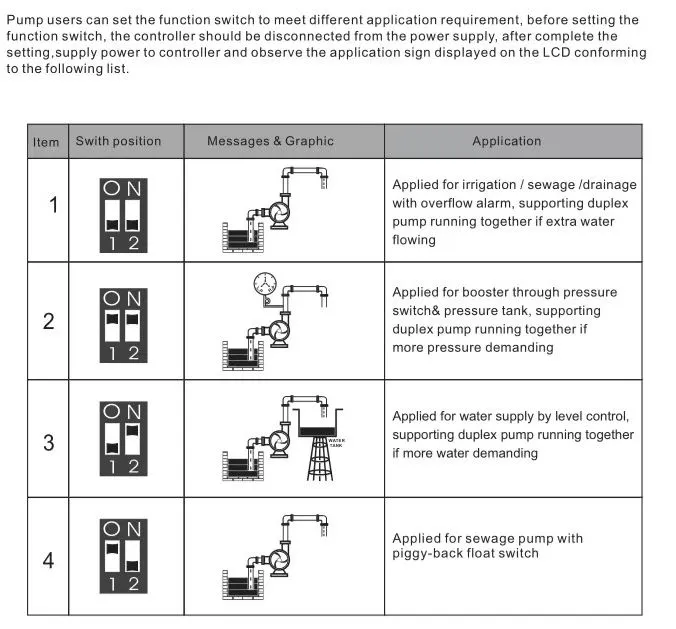

| Application | Water supply/drainage by liquid level control, pressure control via switches or 4-20mA transmitters |
| Other features | Last five faults record, cumulative running time, shaft anti-rust, push button calibration |
| Working Environment | -25ºC to +55ºC; 20%--90%RH |

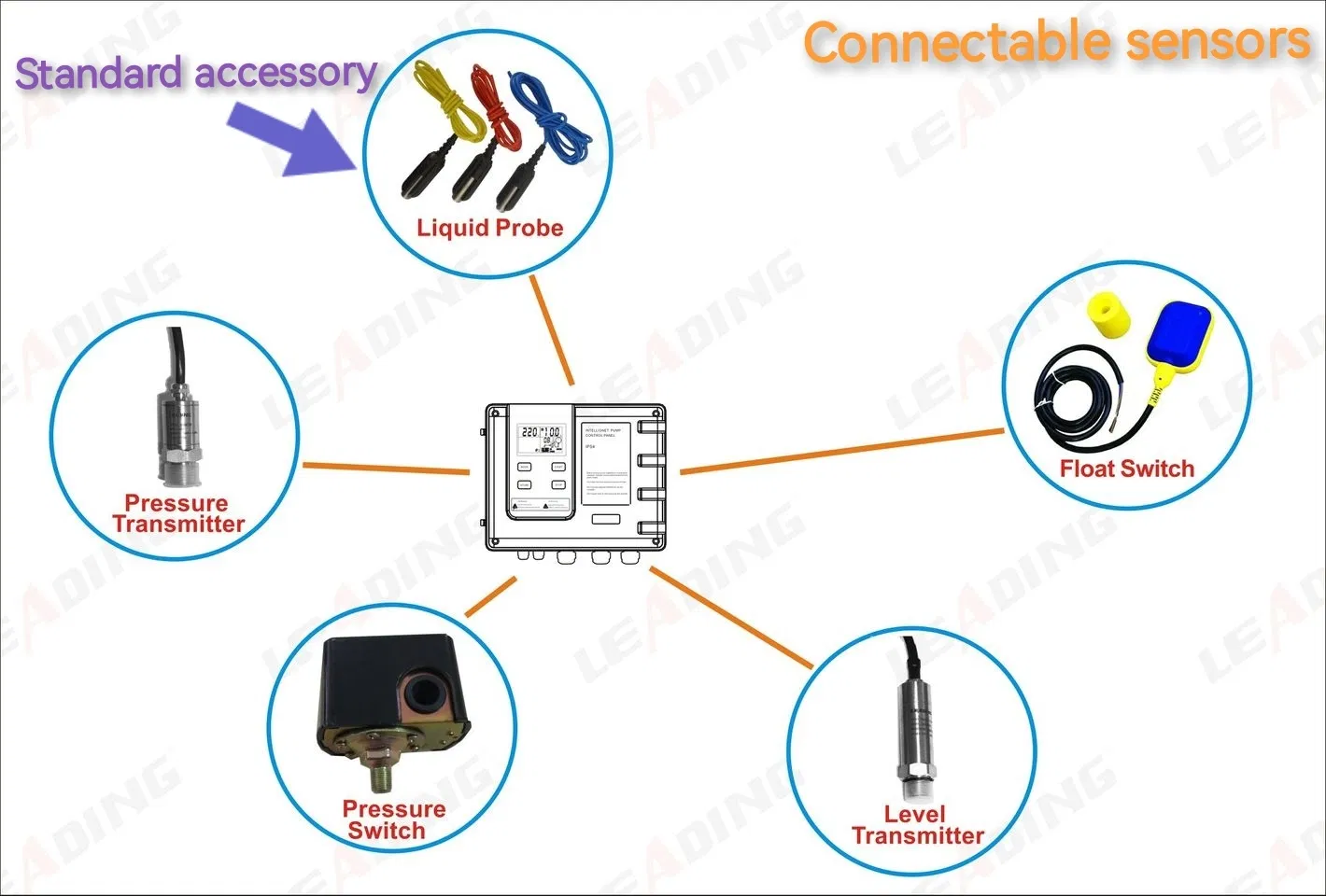

Connectable sensors: Liquid probe, Pressure switch, Float switch, 4-20mA transmitter.
