Wiring
Null Line and Live Line
Principle

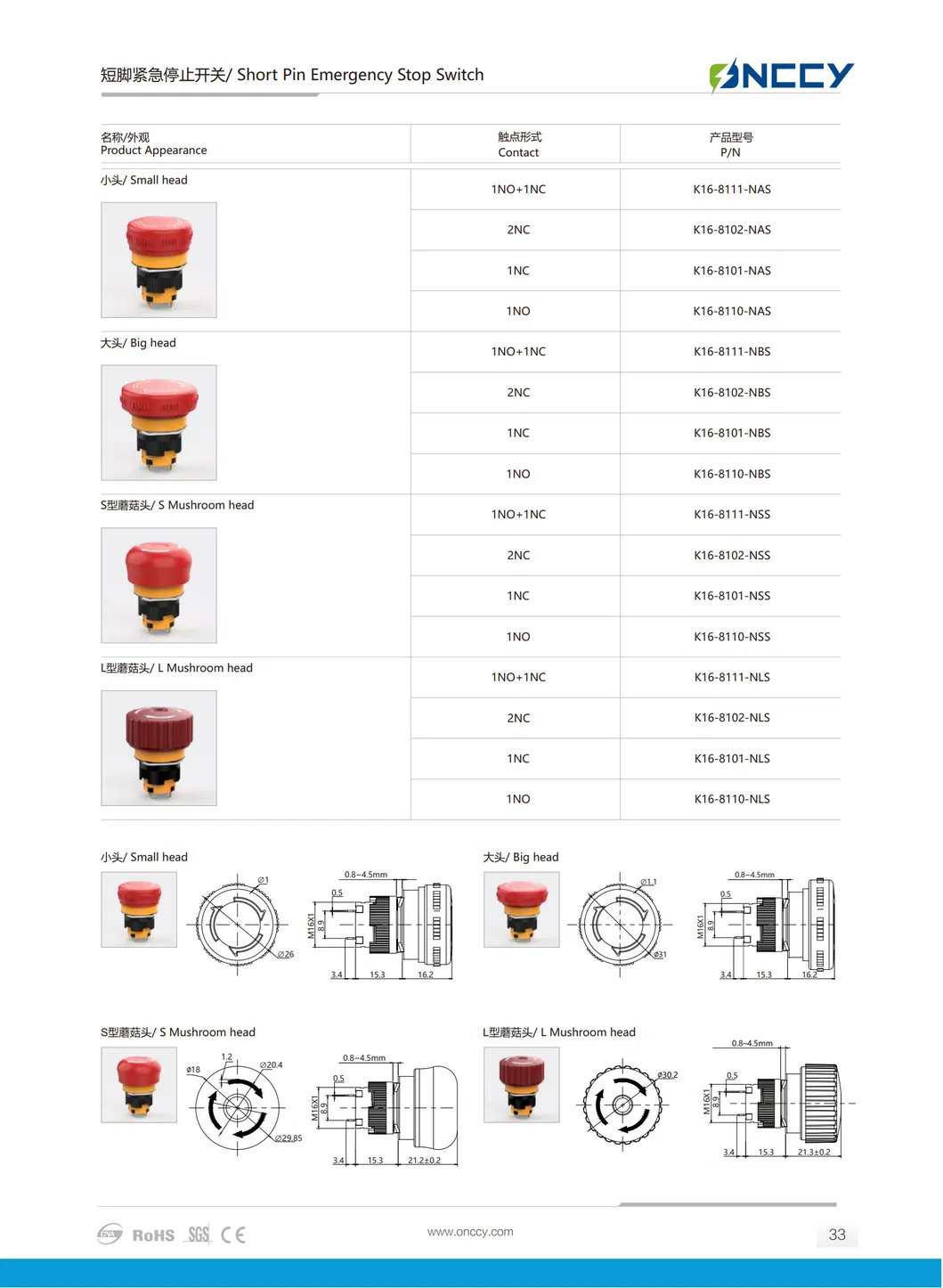

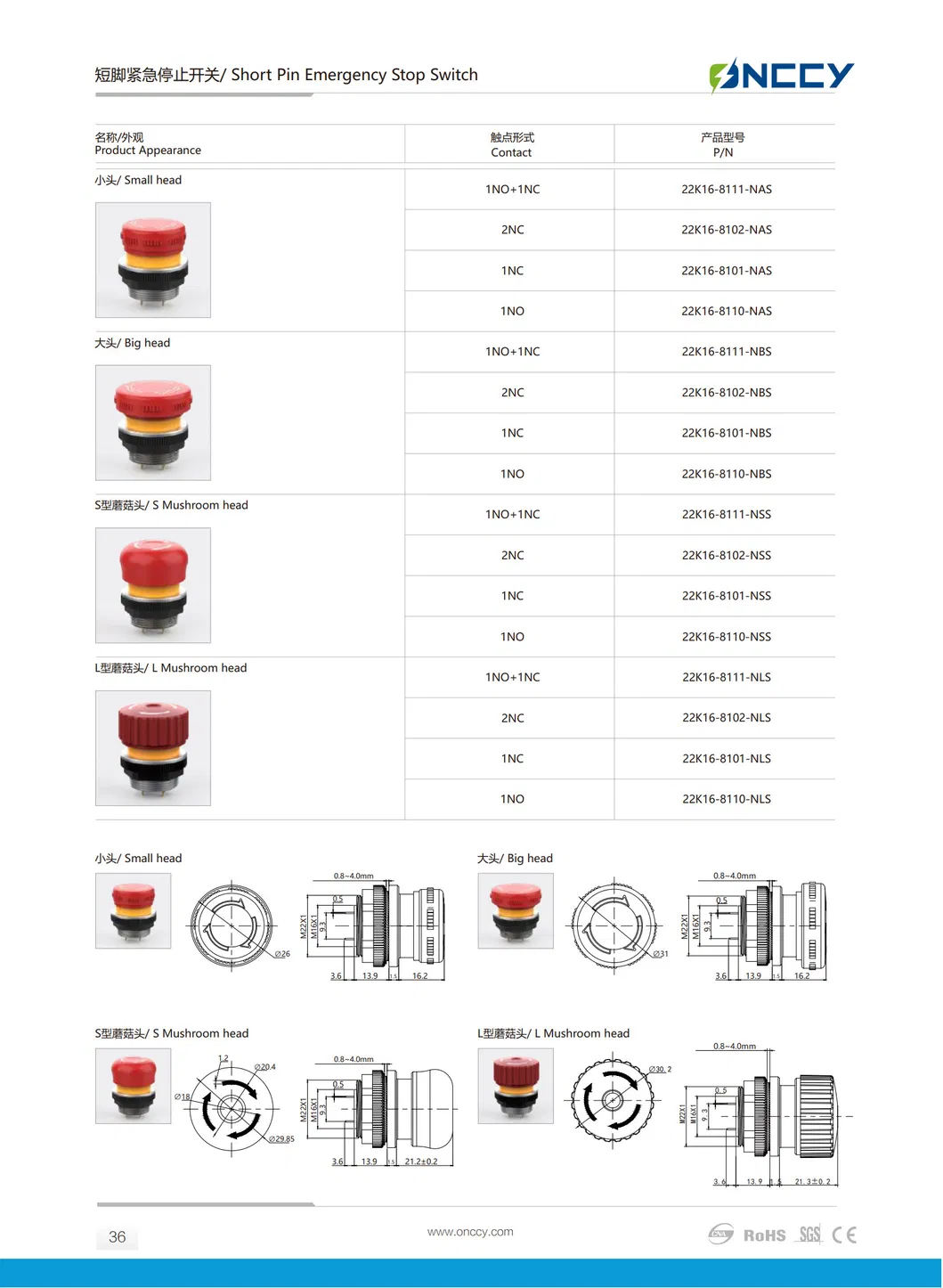

Short Pin Emergency Stop Switch
Application
Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home
Number of Switch
Single Control Switch
Structure

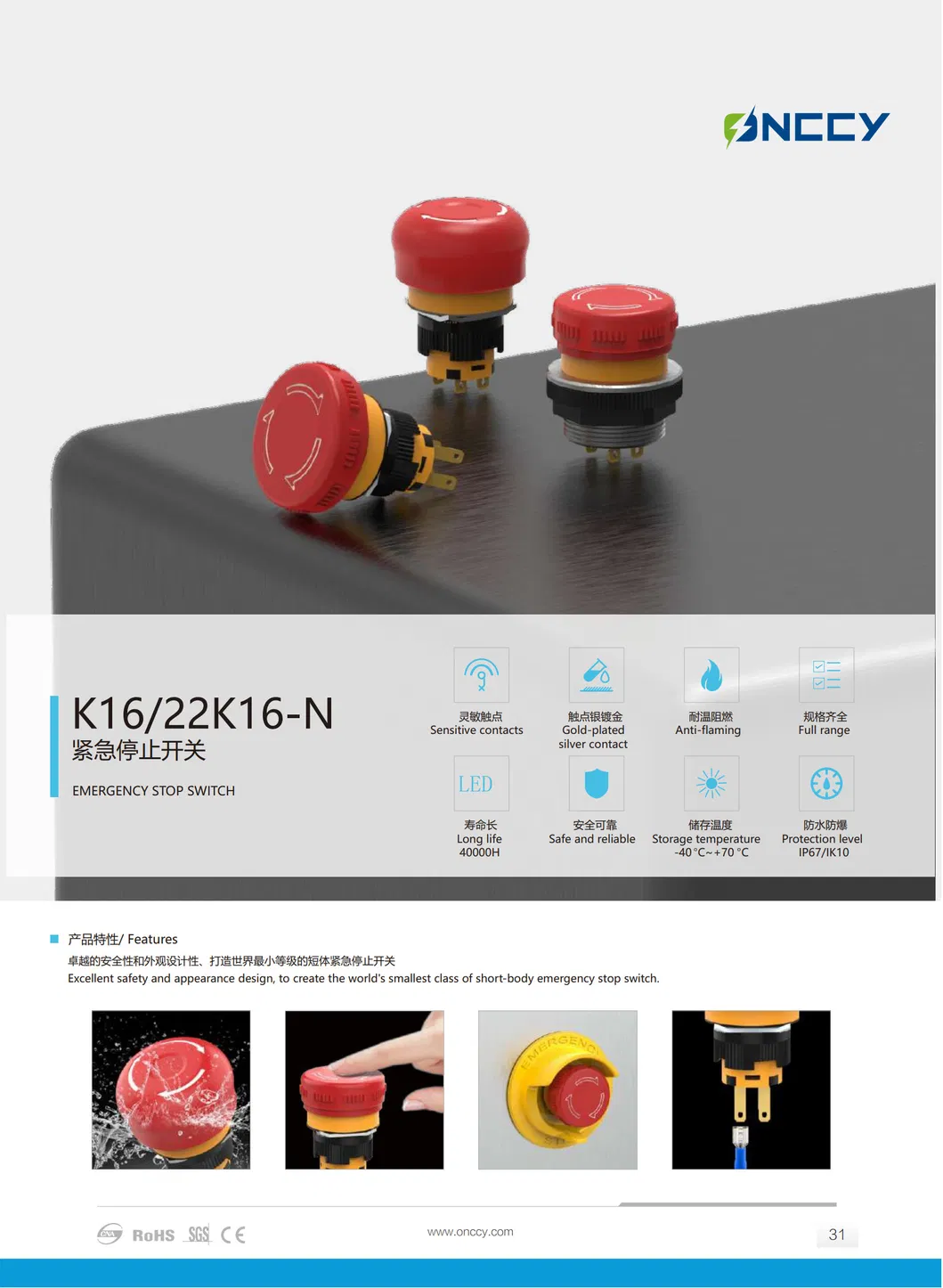

Emergency Stop Switch
Usage
Control Button, Limit Button, Reset Button, Control Switch
Kind
Single-pole on-off Switch
Contact Type
Emergency Stop Switch
Detection Method
Correlation Type

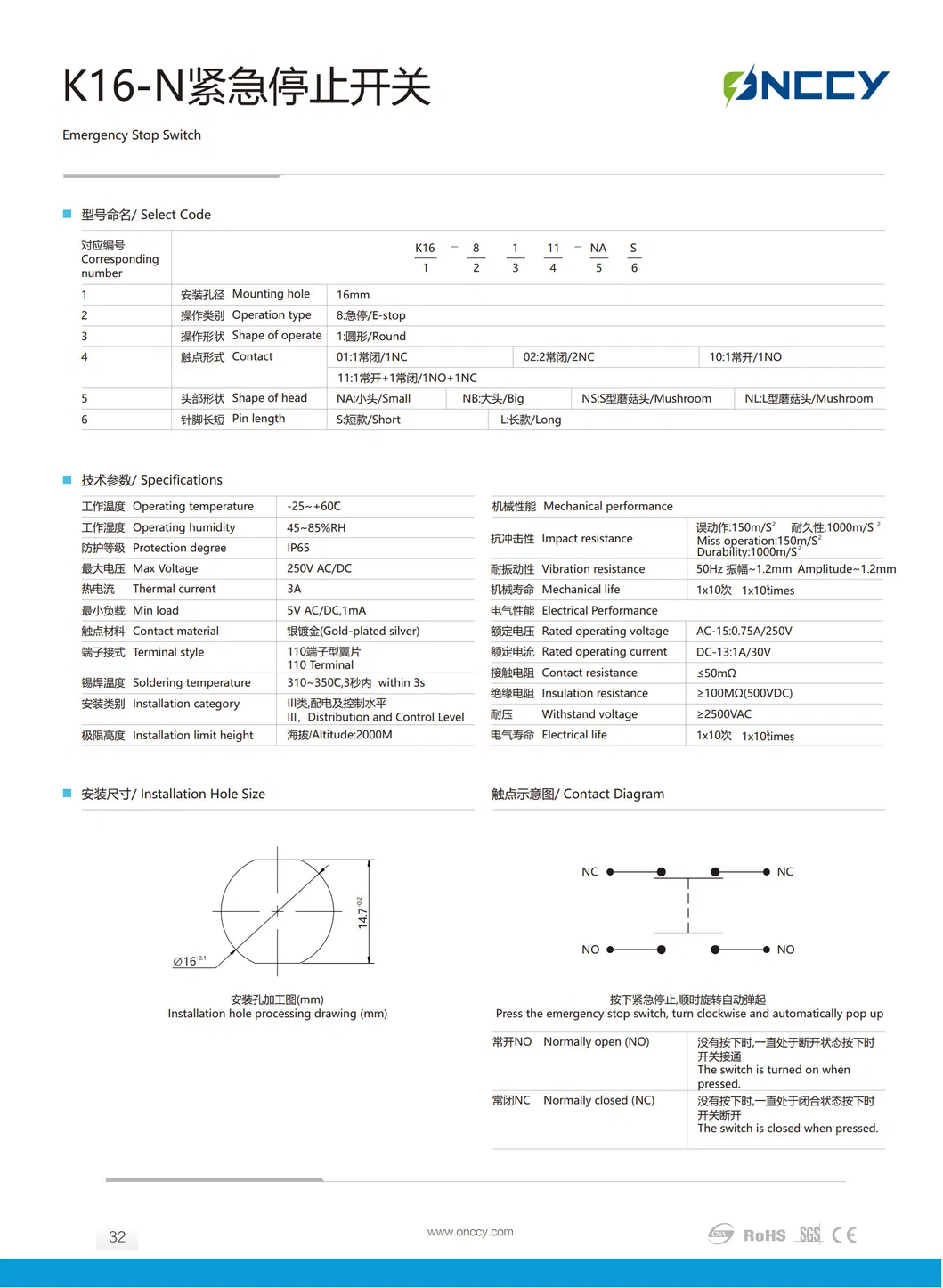

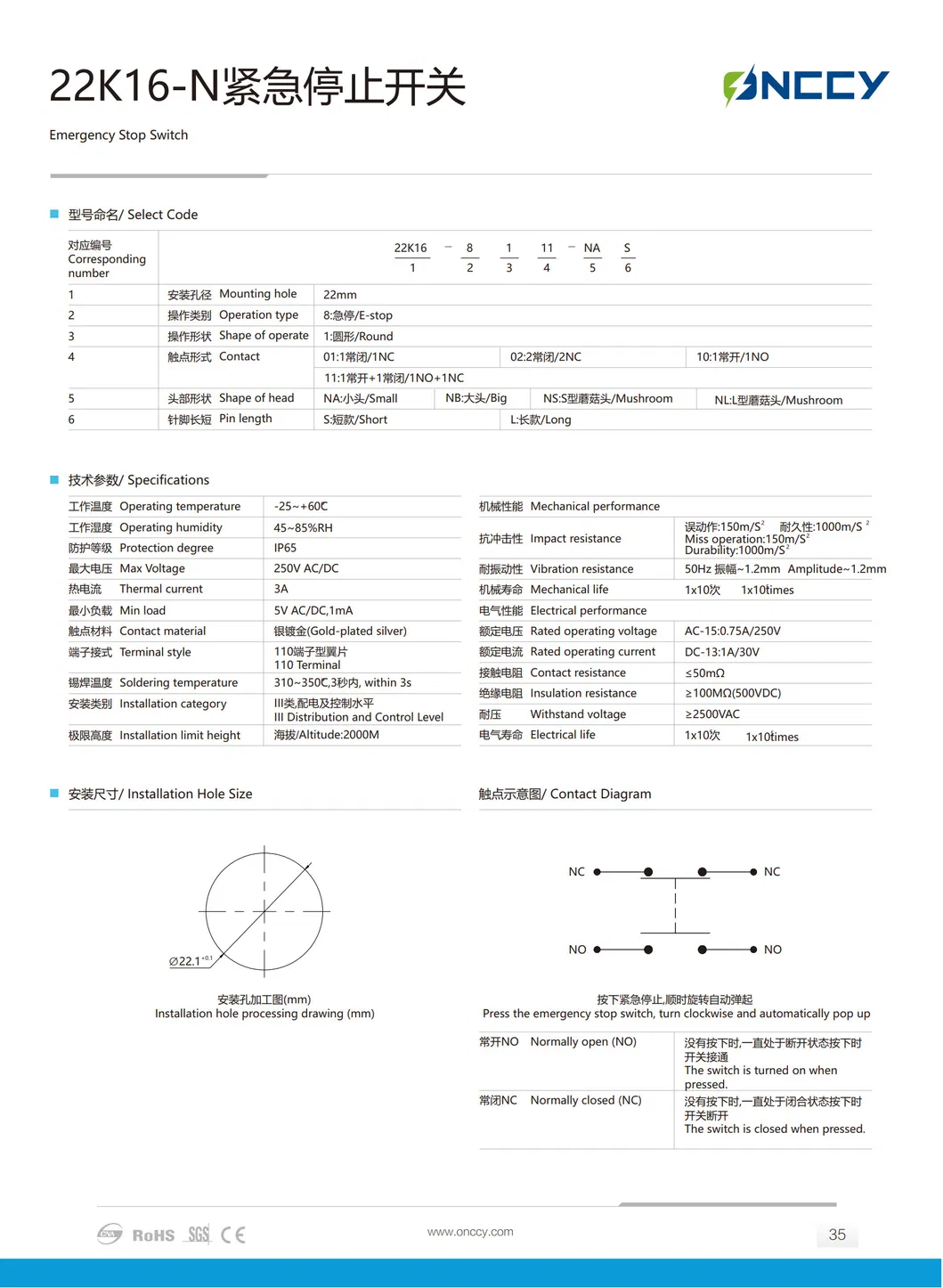

Specification
10cm × 10cm × 10cm
Package Gross Weight
1.000kg
What is an emergency stop button?
The emergency stop button is a safety device used to immediately halt the operation of a machine or equipment in an emergency. It is typically designed as a large button or switch that is easy to operate and highly visible, enabling personnel to quickly locate and press it in an emergency. The function is to cut off the power supply, preventing accidents or reducing their consequences. Once pressed, the equipment stops instantly and usually requires a manual reset to restart.
1
Quick Stop in Emergency Situations
Designed to immediately stop equipment operation. Whether due to machine failure or operator error, it quickly cuts off power to safeguard both workers and machinery.
3
Easy to Reset
Includes a manual reset mechanism. After an emergency stop, operators must manually reset it before restarting, ensuring a thorough safety inspection of the environment first.
Determine Location: Identify a location easily accessible to the operator and quickly locatable, preferably close to the work area.
Prepare Mounting Holes: Use a drill or hole-punch to create holes aligning with the button's mounting points on a flat surface.
Install the Button: Insert the main body into the holes and secure it using screws or nuts for a stable and reliable installation.
Frequently Asked Questions
What is the primary purpose of an emergency stop button?
It is a safety device designed to immediately halt machine operation in emergency situations to protect workers and equipment by cutting off the power supply.

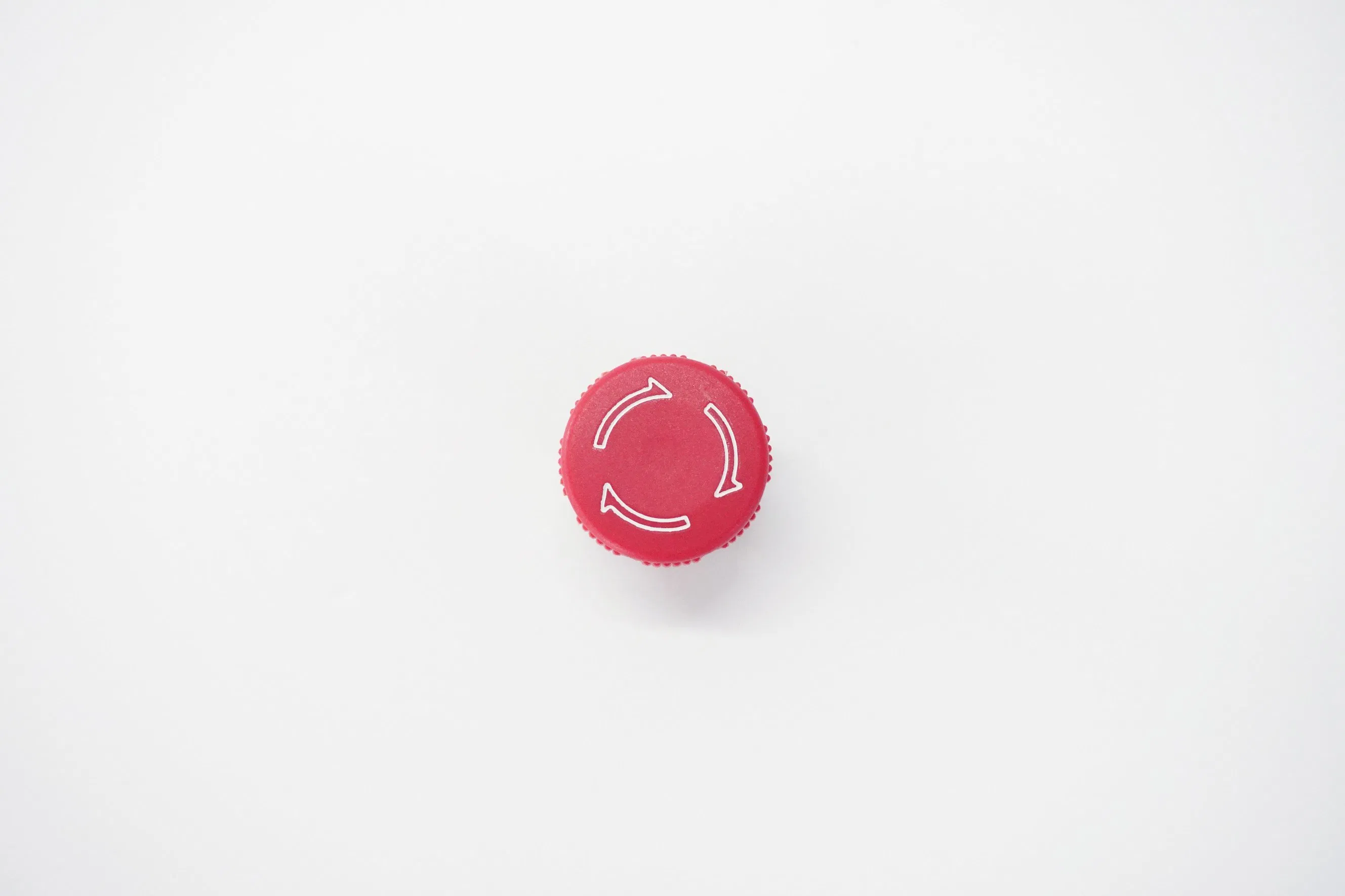

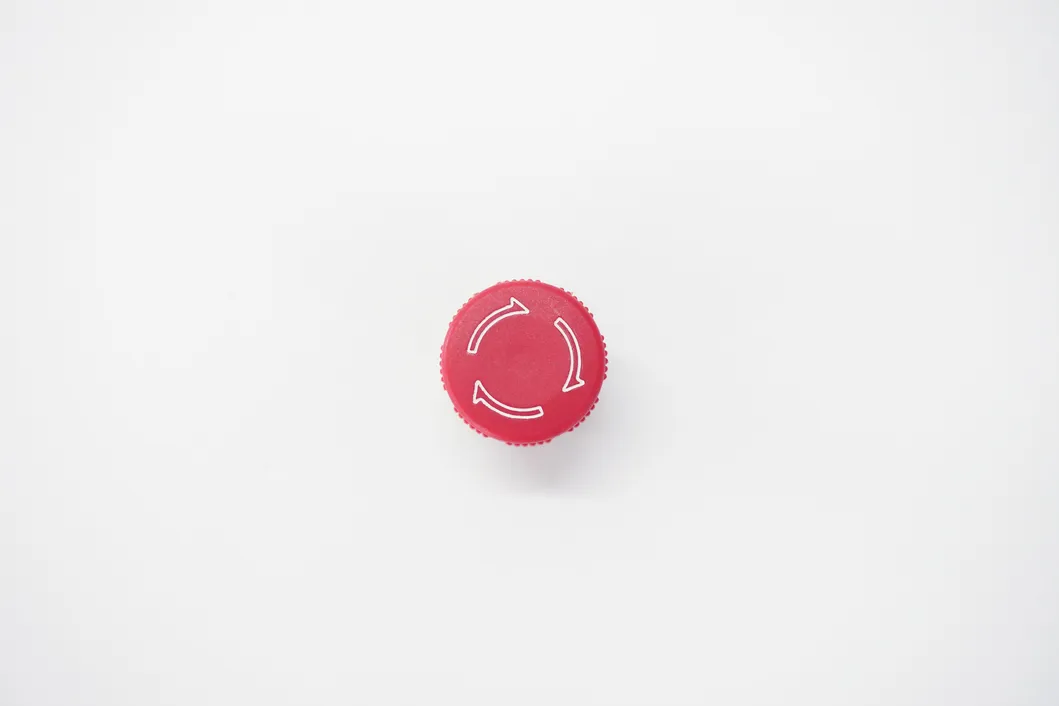

Why is the mushroom-shaped head red?
The distinctive red color and large shape ensure high visibility and ease of operation, allowing personnel to respond rapidly during high-stress emergency scenarios.
Does the machine restart automatically after releasing the button?
No, emergency stop switches generally require a manual reset. This ensures that operators can inspect the equipment for safety before resuming operation.
Where is the best place to install an E-stop switch?
It should be installed in a location that is easily accessible and quickly locatable by the operator, preferably very close to their primary work area.
What applications is this switch suitable for?
It is versatile and can be used for home appliances, industrial production lines, electronics, commercial lighting, and hotel or apartment safety systems.
What does "Normal Close" mean for this switch?
"Normal Close" (NC) refers to the contact state where the circuit is closed during normal operation and opens immediately to cut power when the button is pressed.
