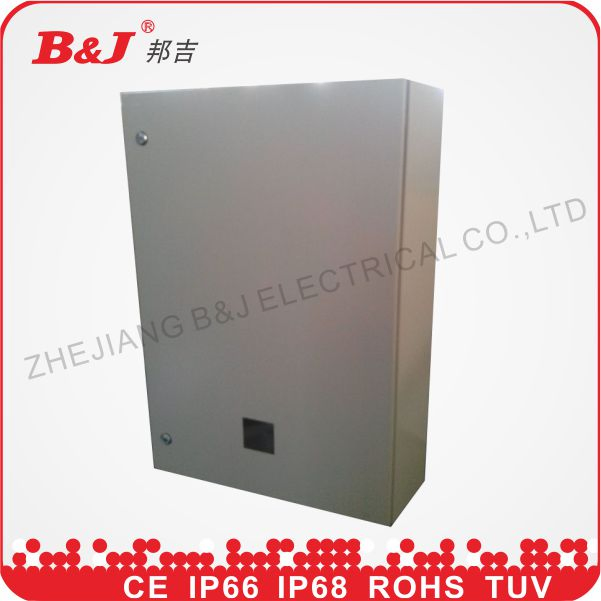

Distribution Board/IP55 Enclosure Outdoor Waterproof

Basic Specifications

Model NO.

BJS1

Operation Voltage

Low Voltage

Application Range

Electrical

Shell Material

Steel Plate

Protection Grade

IP66 / IP68 / IK10

Thickness

1.2mm, 1.5mm, 2.0mm

Paint Finish

Epoxy Polyester Coating

Color

Ral7035 or Ral7032

Certificates

CE, IEC, RoHS, TUV, SGS

Production Capacity

100,000 PCS/Month

Product Description

Material Quality

Enclosure: Sheet steel 1.2mm (up to size BJS1-88/300), 1.5mm for larger sizes.

Door: Sheet steel 1.2mm (up to size BJS1-66/300), 1.5mm for larger sizes.

Mounting Plate: 2.0mm heavy-duty steel.

Surface & Protection

Dipcoat-primed and powder-coated with textured RAL7032 or RAL7035 on the outside. Mounting plate options include RAL2000 or galvanized finish. High resistance with IP66 protection degree and IK10 impact resistance.

Supply Includes:

Enclosure of all-round solid construction

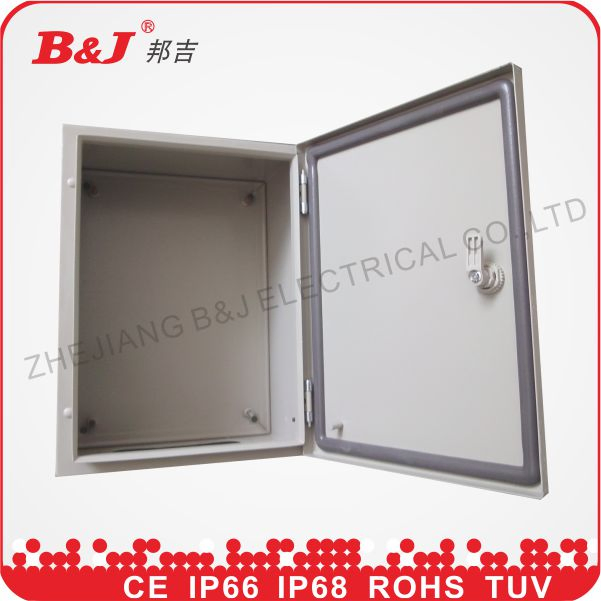

Gland plate with sealing gasket

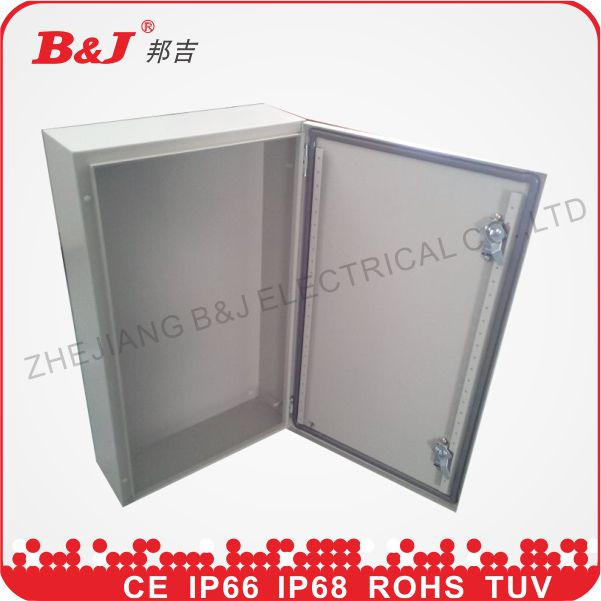

Door with integrated lock system

Technical Model List

NO.	Code No.	Height (mm)	Width (mm)	Depth (mm)
1	BJS1-2020/150	200	200	150
2	BJS1-2520/150	250	200	150
3	BJS1-3020/150	300	200	150
8	BJS1-3030/150	300	300	150
11	BJS1-4030/150	400	300	150
15	BJS1-4040/150	400	400	150
19	BJS1-5030/150	500	300	150
27	BJS1-5050/150	500	500	150
31	BJS1-6040/150	600	400	150
39	BJS1-6060/150	600	600	150
53	BJS1-8060/200	800	600	200
60	BJS1-1060/200	1000	600	200
71	BJS1-1260/200	1200	600	200

* Detailed sizing from 200x200x150mm up to 1400x1200x300mm is available upon request.

Product Gallery

Packaging & Delivery

Package Size

220.00cm * 220.00cm * 170.00cm

Package Gross Weight

11.000kg

Transport Package

Standard Export Carton

Frequently Asked Questions

What is the protection rating of this enclosure?

The BJS1 series features an IP66 protection grade, making it highly resistant to dust and high-pressure water jets, suitable for outdoor waterproof applications.

What material is the enclosure made of?

The enclosure and door are made from high-quality sheet steel with thicknesses ranging from 1.2mm to 1.5mm depending on the size, and a 2.0mm mounting plate.

Do you offer customized sizes?

Yes, customized sizes are accepted. We provide a wide range of standard dimensions from 200x200x150mm up to 1400x1200x300mm and can adjust according to specific requirements.

What kind of surface finish is applied?

The enclosures undergo a dipcoat-primed process followed by a textured powder coating in RAL7032 or RAL7035, ensuring the color remains durable for over 5 years.

What certifications do these products have?

Our enclosures are certified by CE, IEC, RoHS, TUV, and SGS, meeting international standards for electrical safety and quality.

What is the warranty period?

We provide a 1-year warranty. Equivalent replacements can be provided for products broken due to non-artificial factors within this period.
