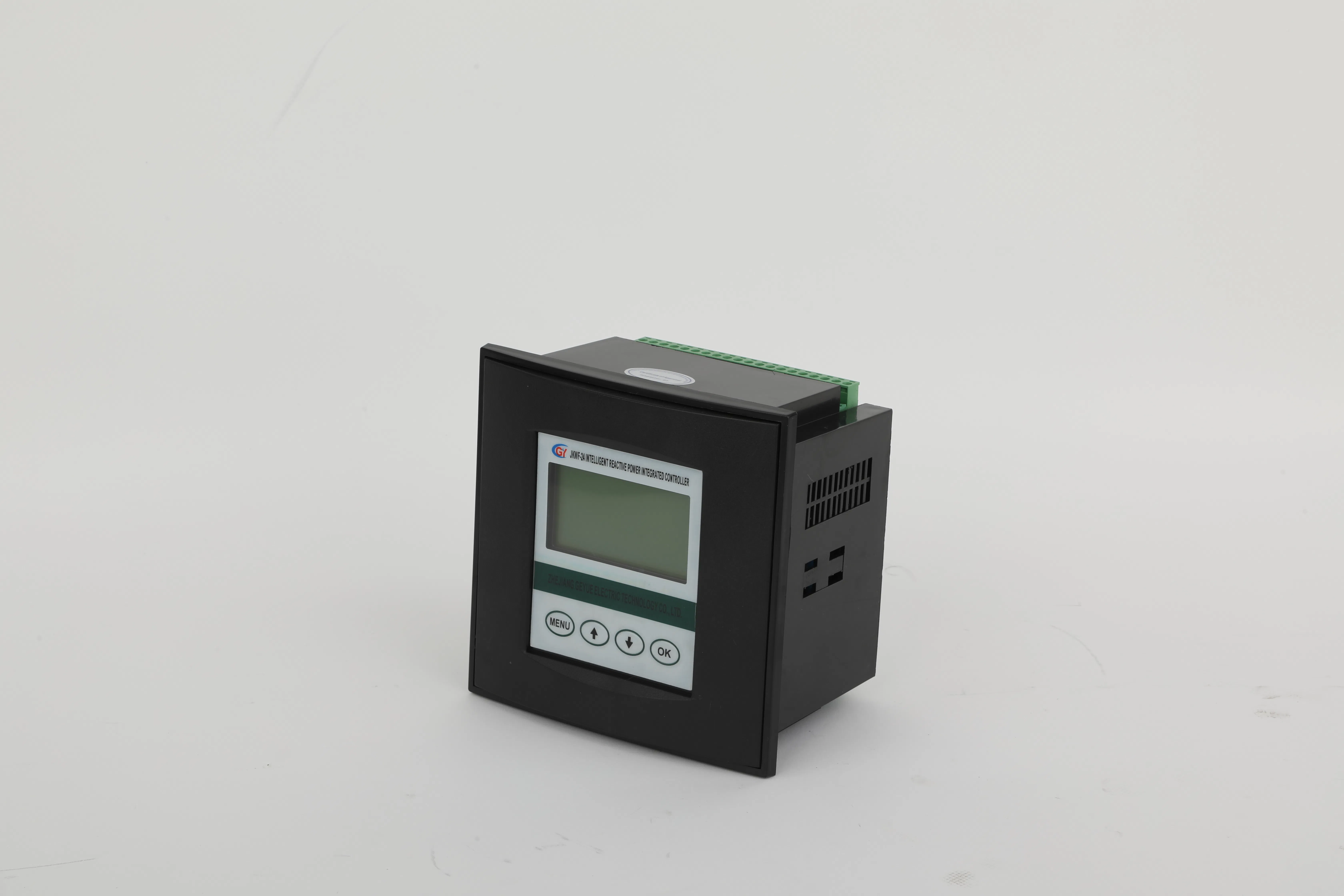

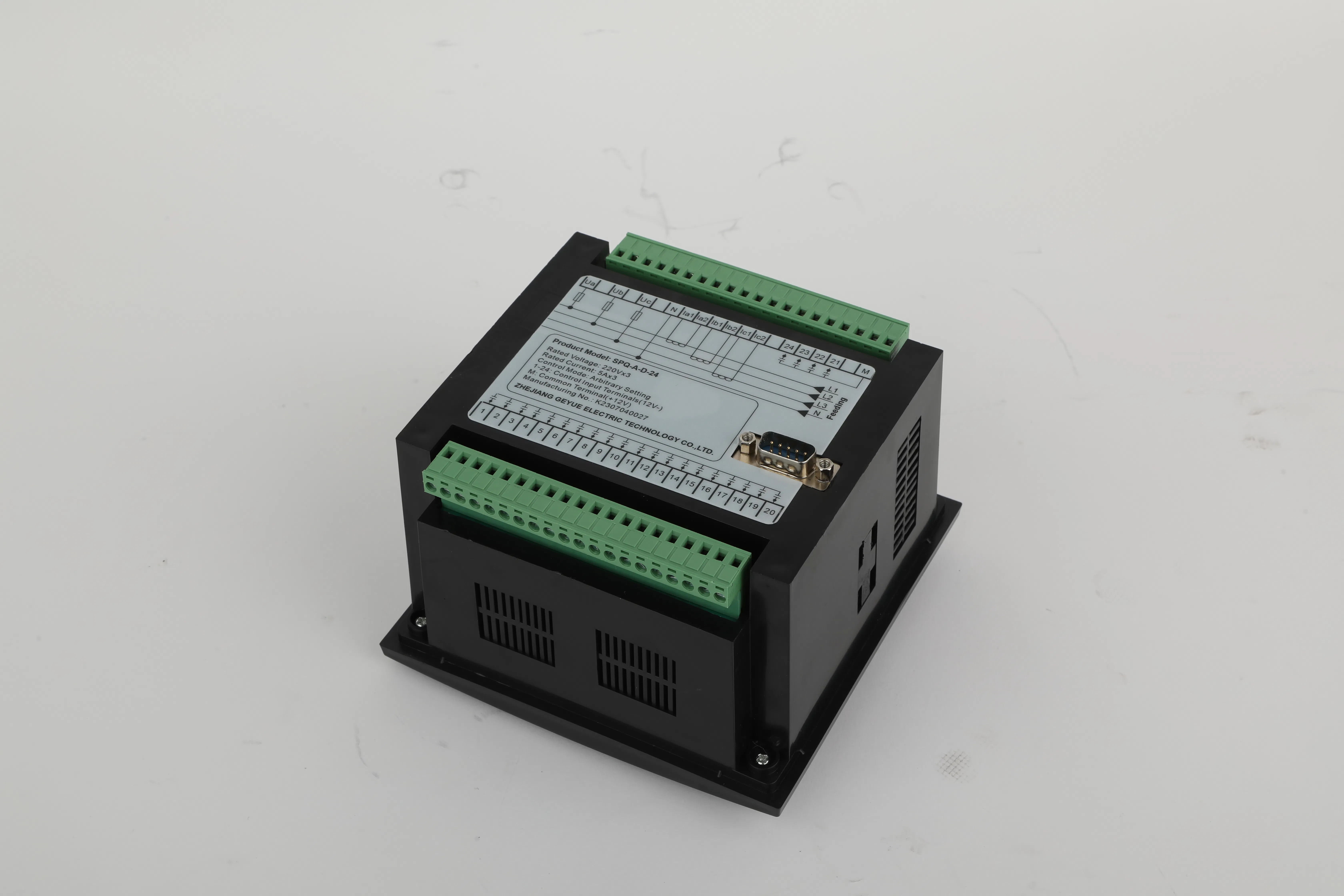

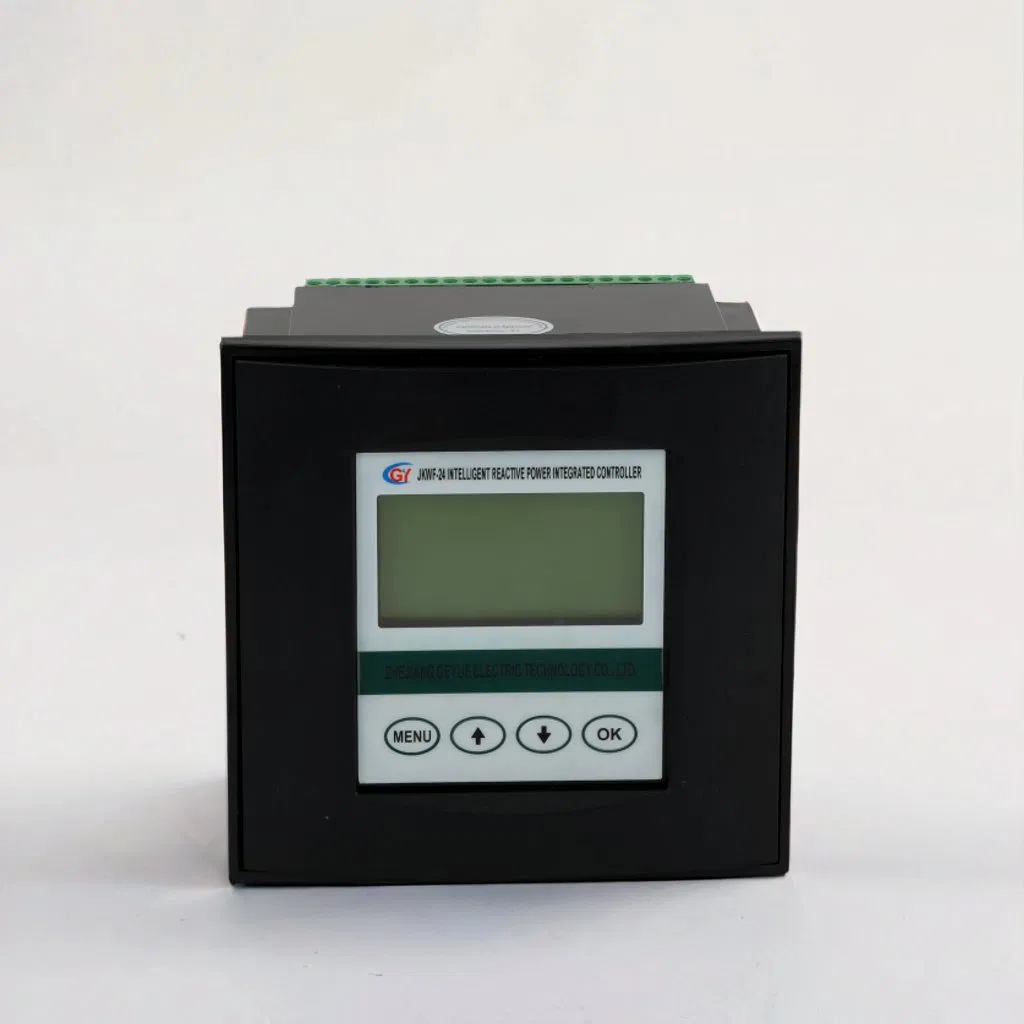

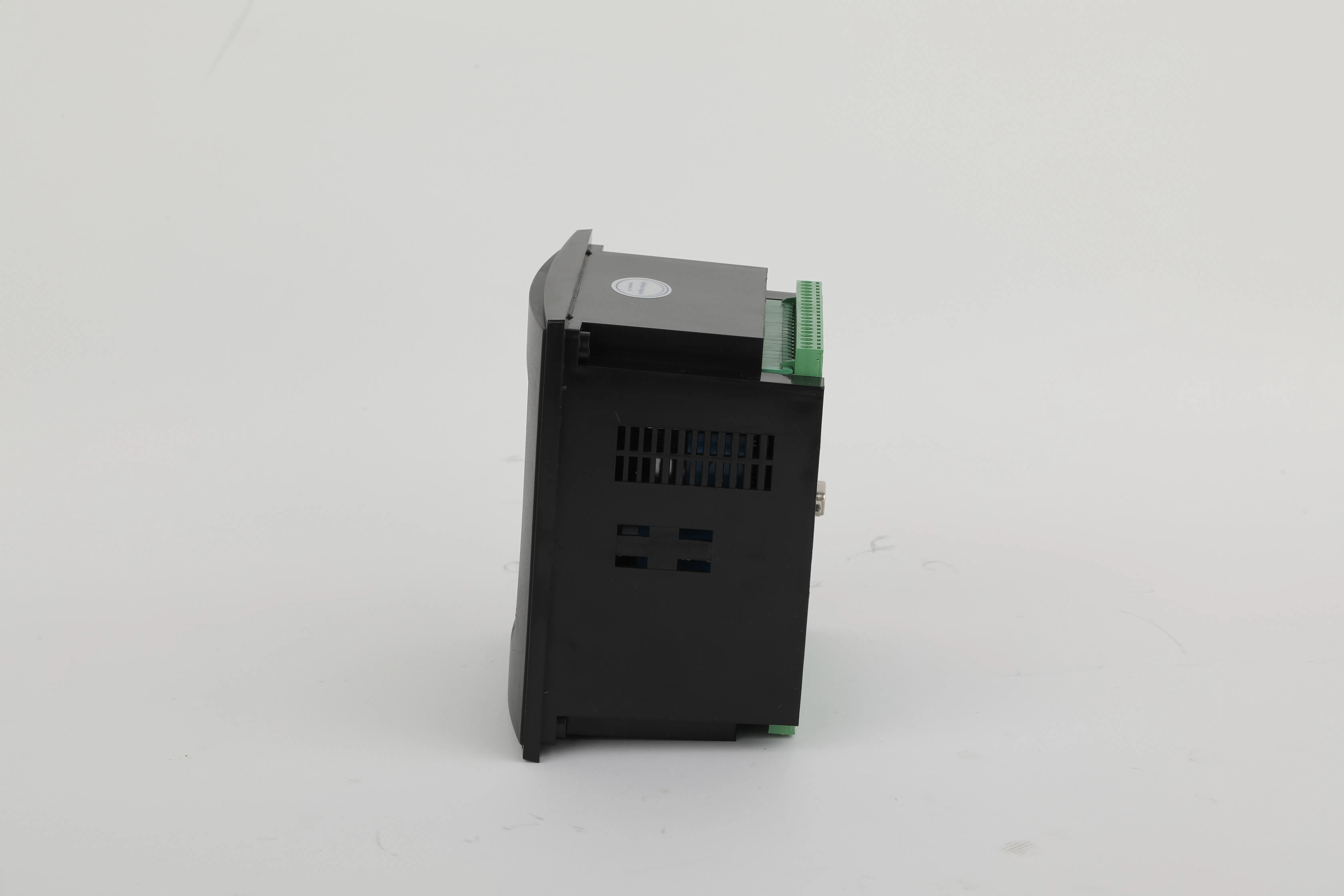

Advanced Intelligent Power Management for AC220V & AC380V Applications

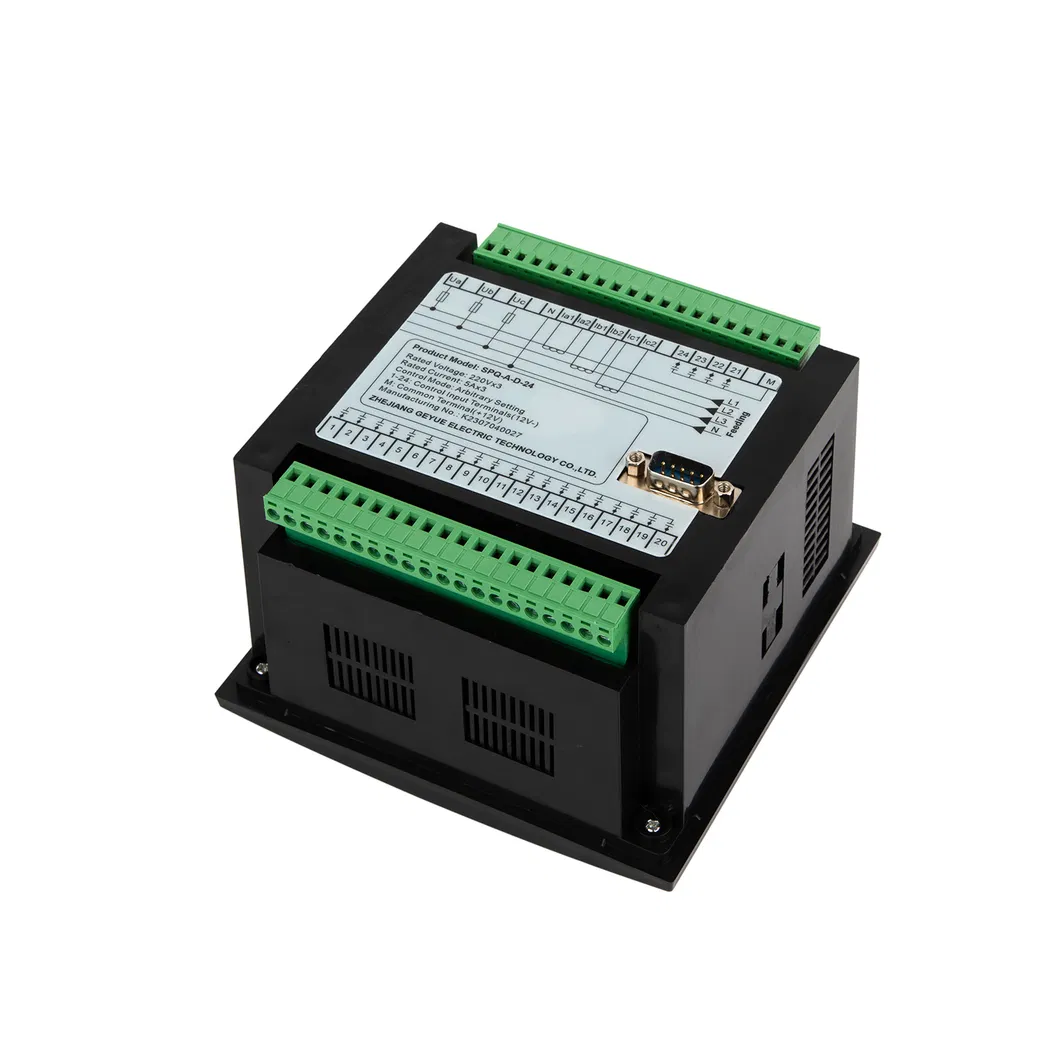

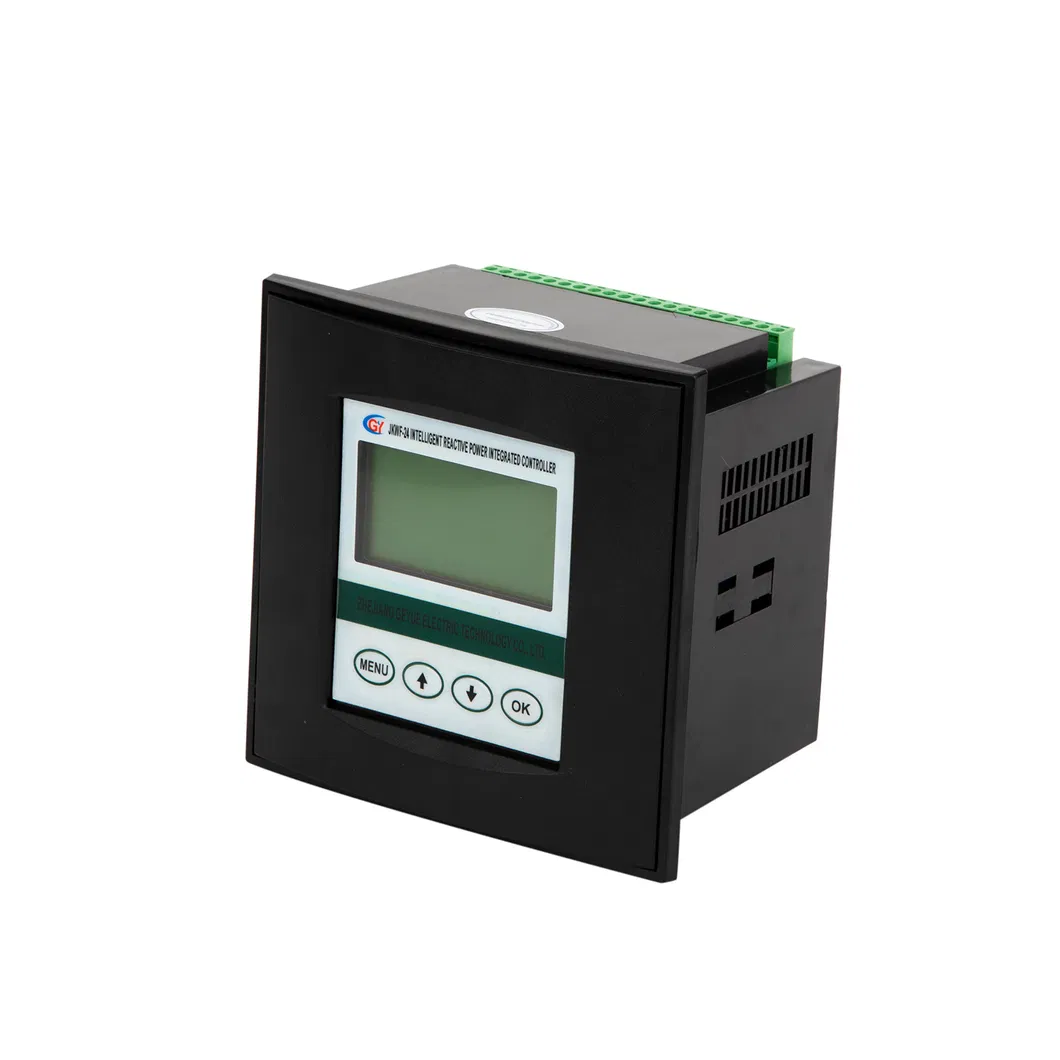

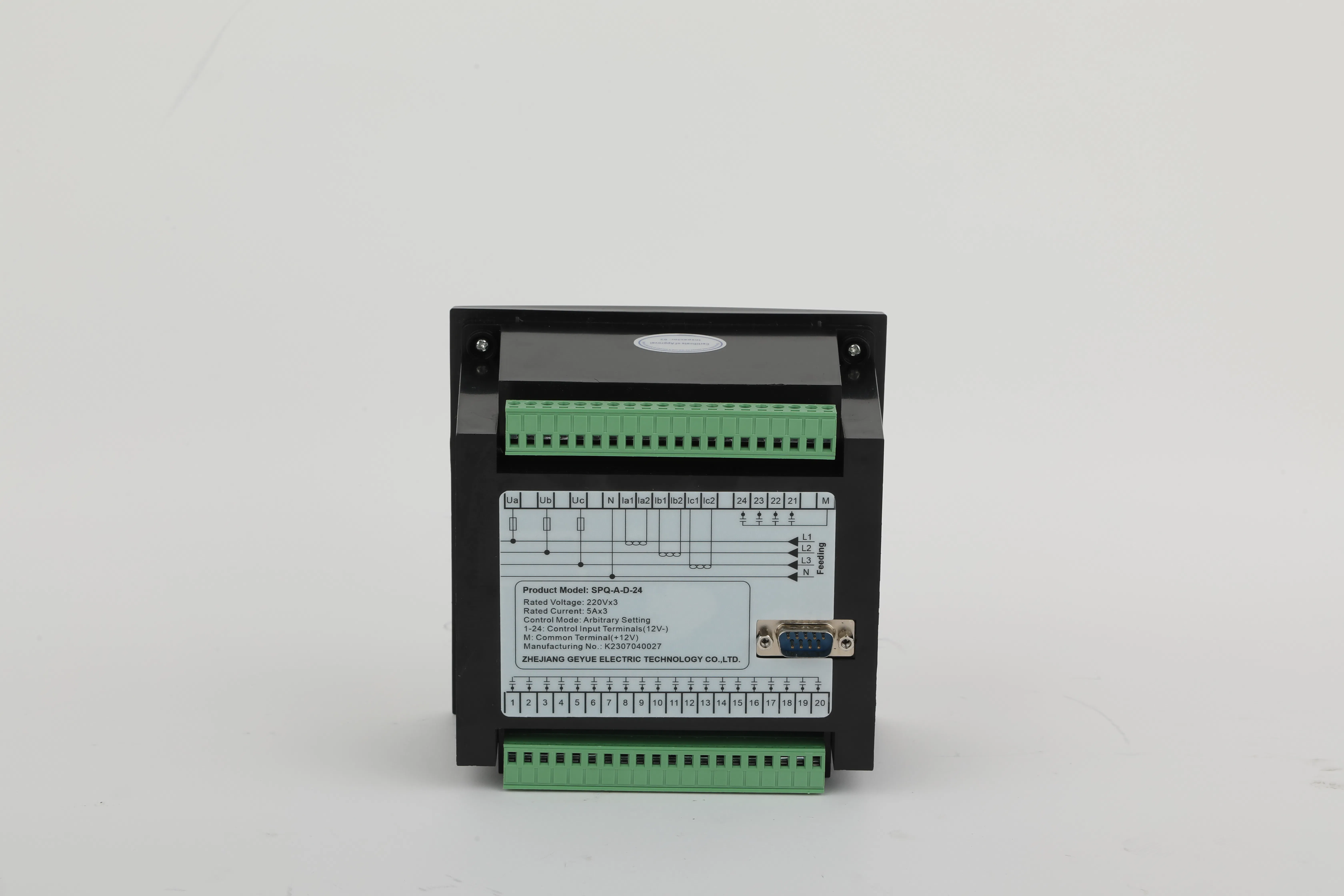

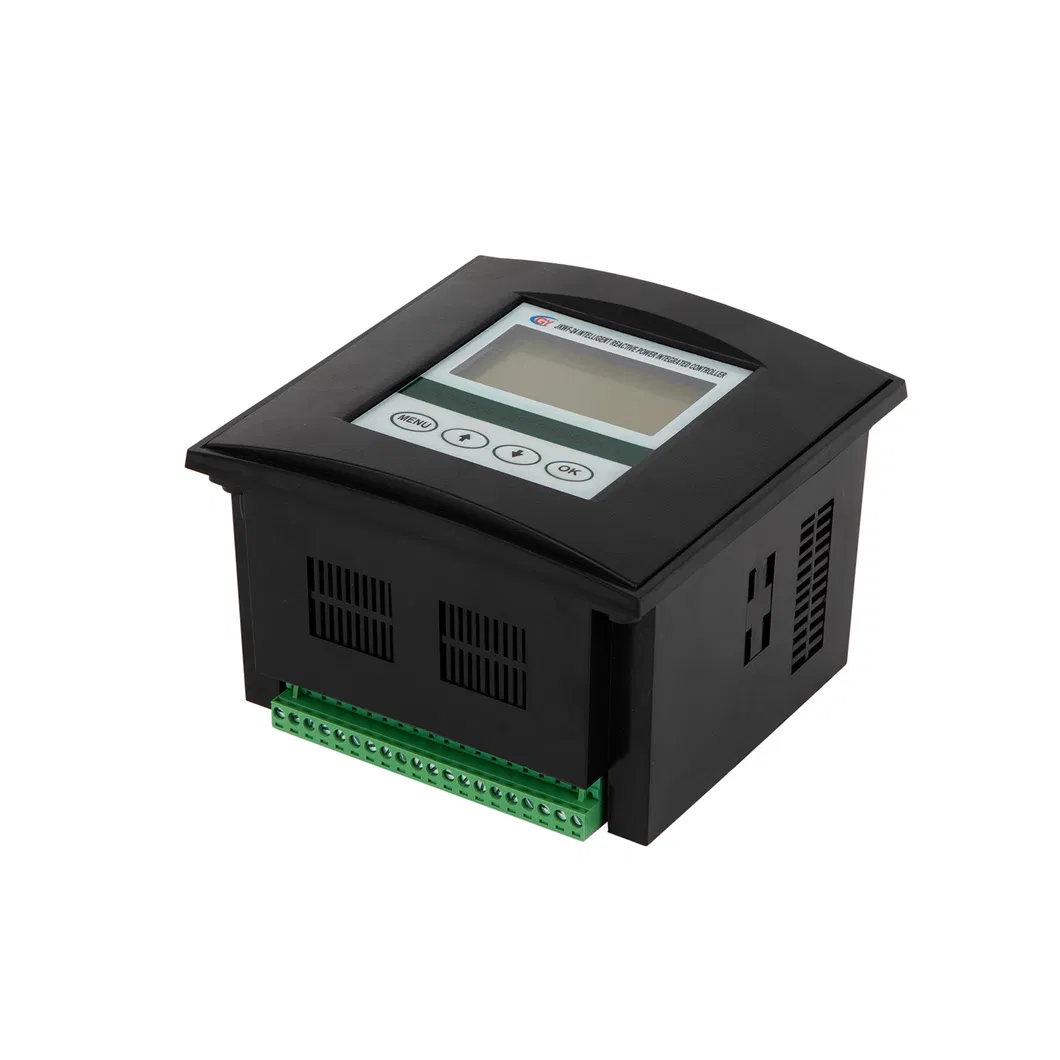

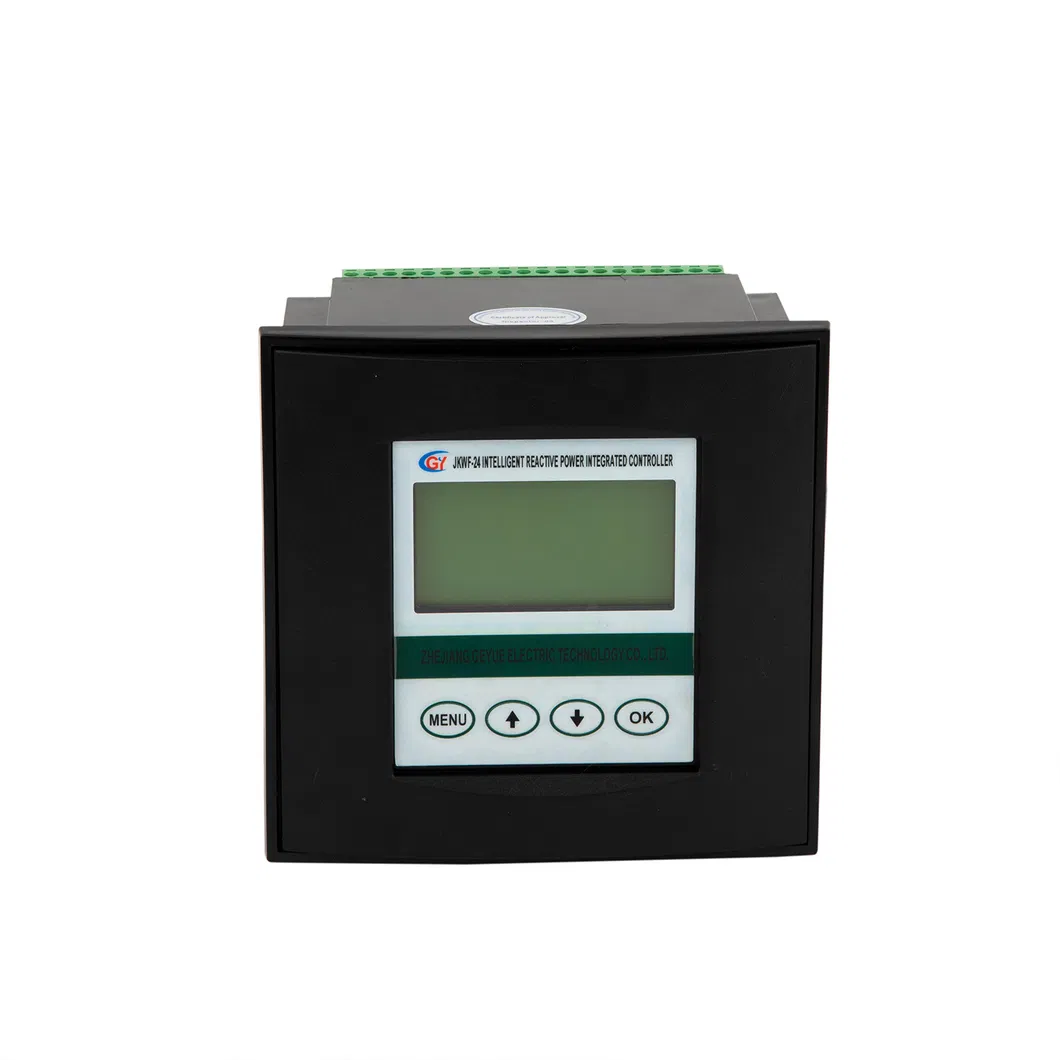

The JKFG series controller, powered by an 8-bit microcontroller, utilizes a split-phase sampling and supplementation control scheme. It is specifically designed for reactive power compensation in AC 50Hz, 0.4kV three-phase load imbalance power systems.

• Dynamic digital display for three-phase voltage, current, active/reactive power, power factor, and grid frequency.
• Robust anti-interference: withstands pulses up to 2000V directly from the power supply.
• High control accuracy using reactive power as the primary control physical quantity.
• Customizable parameters with non-volatile memory during power failures.
• Automatic phase recognition function ensures sampling signal consistency.
• Safety protections: Over-voltage, under-voltage, and phase loss protection.
• Versatile compensation: split-phase, three-phase, or combined modes.

1. Basic Parameters: Rated voltage AC220V±10%, Rated current AC0-5A, Frequency 50Hz±5%.

2. Control Energy: Sensitivity 100mA, COSΦ range 0.80-0.99, Switching delay 100ms-30s.

3. Measurement Accuracy: Voltage & Current ±0.5%, Power factor ±10%, Active/Reactive power ±10%.

Products adhere strictly to JB/T, GB/T, and IEC standards, ensuring exceptional reliability and performance for global power management needs.

Standard shipping terms include EXW, FCA, and FOB. Flexible arrangements for DDU and DDP are available upon request.

• Express delivery: Door-to-door service.
• Air freight: Fast transport to designated airports.
• Sea transportation: FCL or LCL options.
