Core
Core-type Transformer
Cooling Method
Dry-type Transformer
Winding Type
Two-winding Transformer
Certification
ISO9001, ISO9001-2000
Transport Package
Wooden Box
Production Capacity
5000PCS/Year
| Project |
Unit |
FKN12-12 Load switch |
FZN25-12 Vacuum load switch |
| Rated voltage | KV | 10 |
| Maximum working voltage | KV | 12 |
| Rated frequency | HZ | 50 |
| Rated current | A | 630 |
| Thermally stable current | KA/S | 20/2 | 20/4 |
| Dynamic steady current | KA | 50 | 50 |
| Mechanical life | T | 2000 | 10000 |
| Lightning impulse voltage | KV | 75 | 75 |

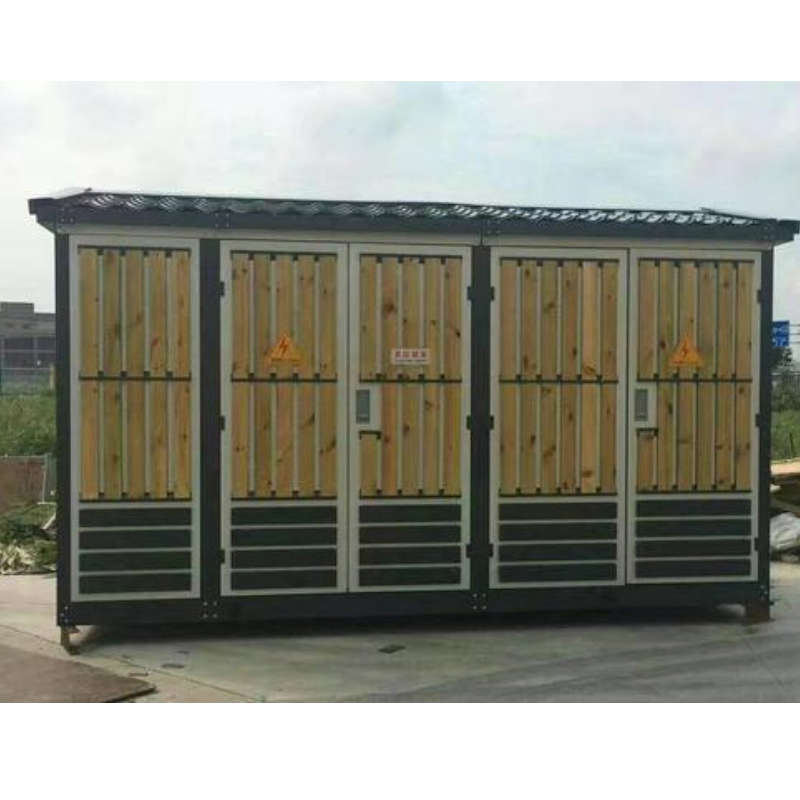

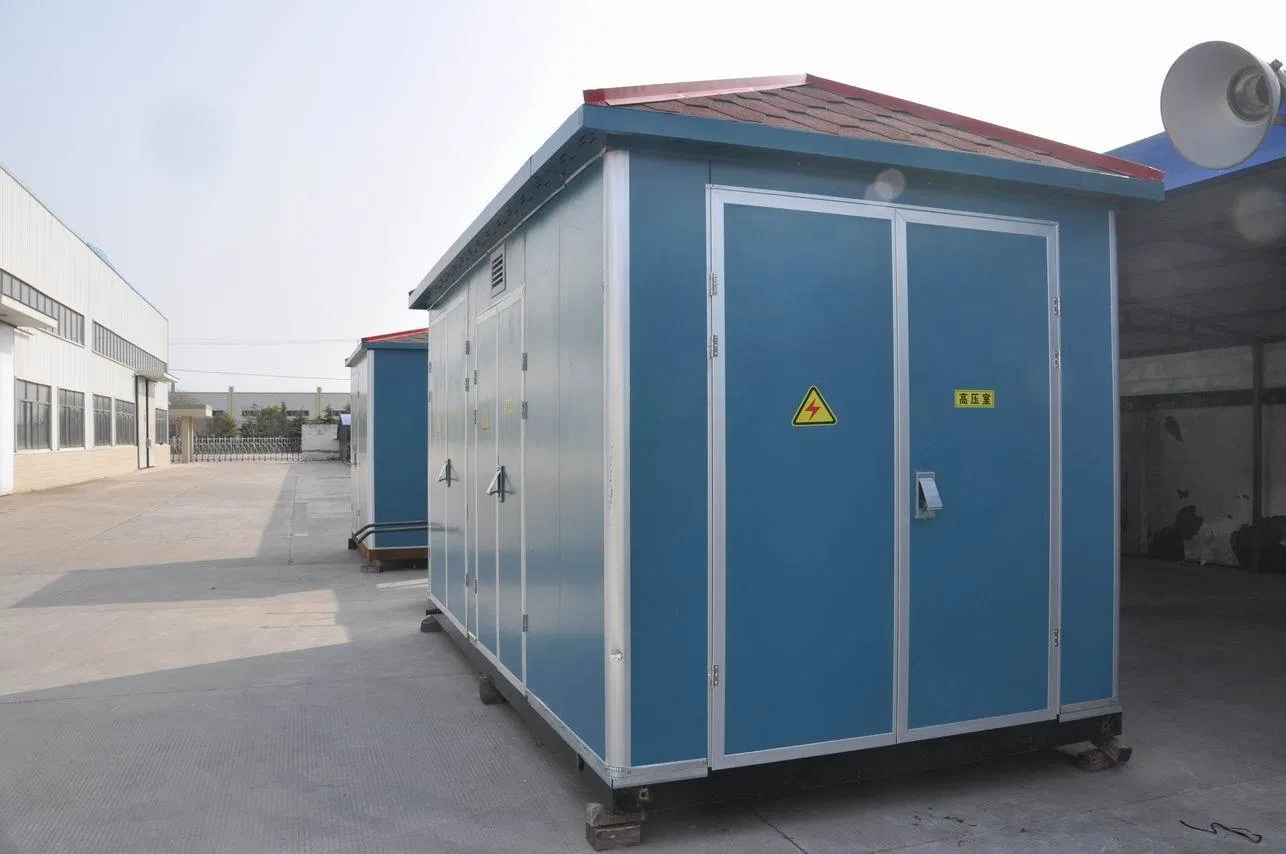

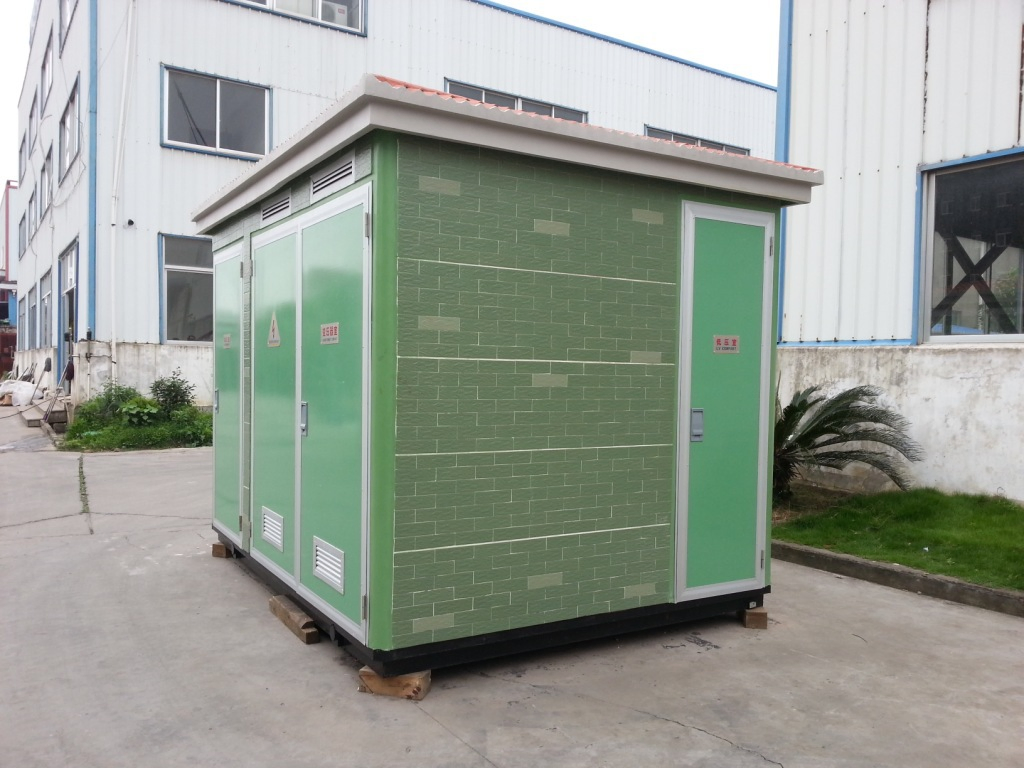

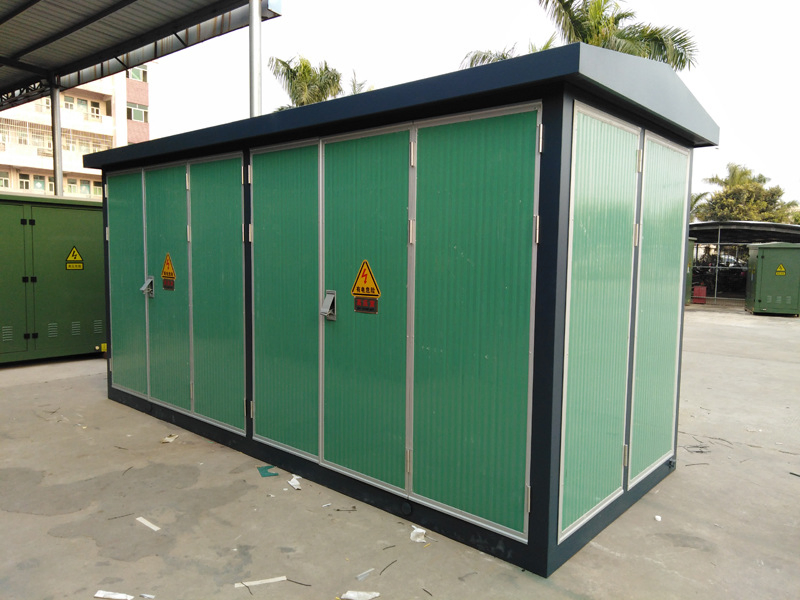

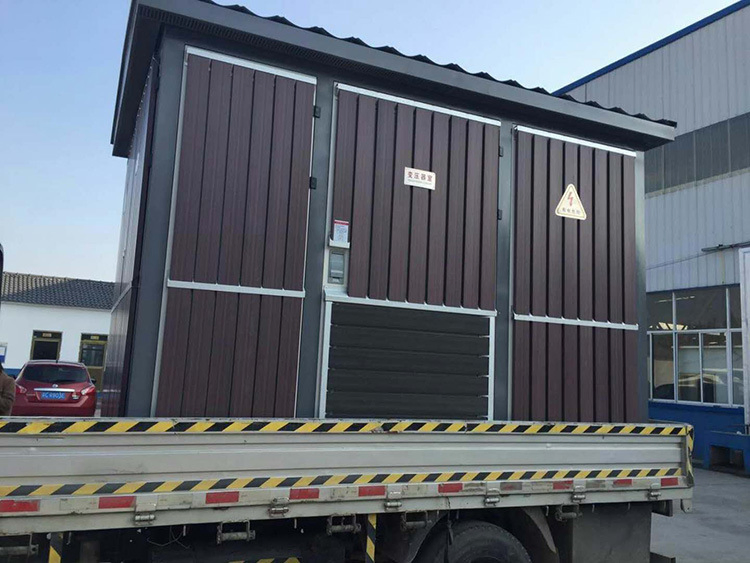

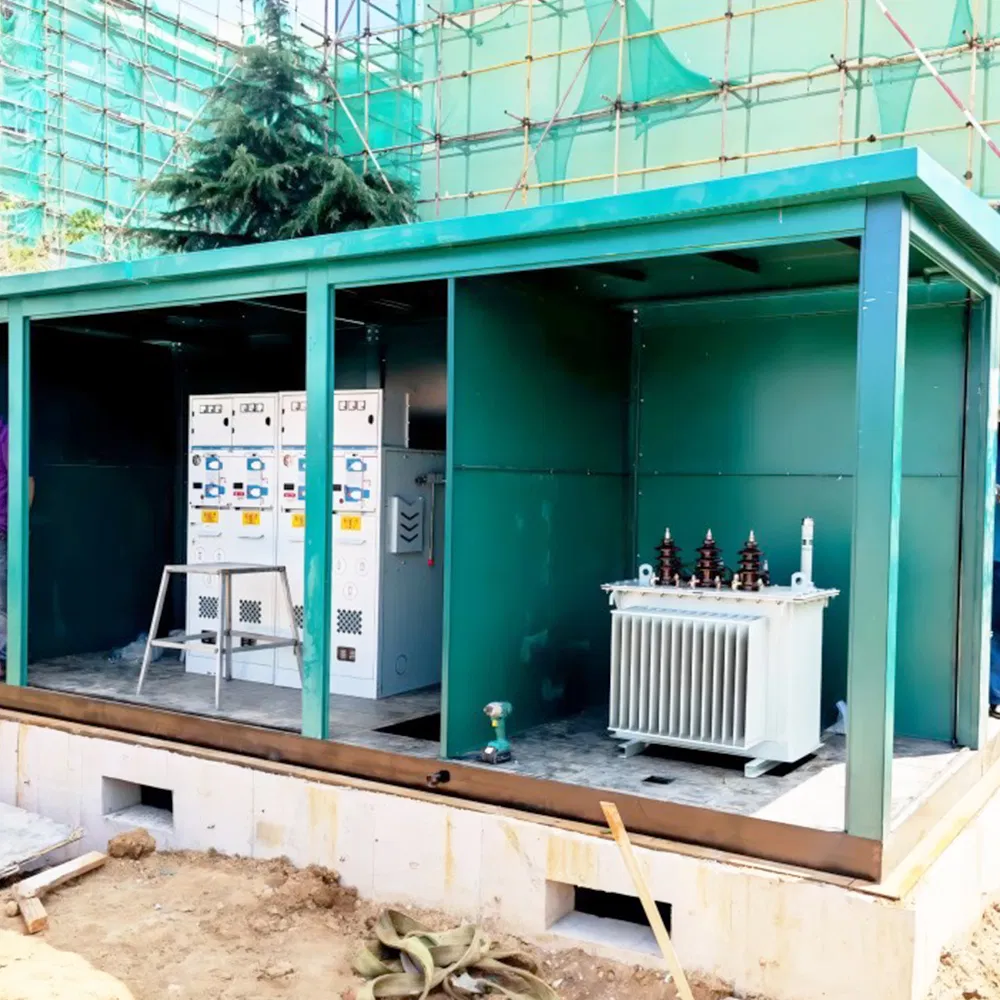

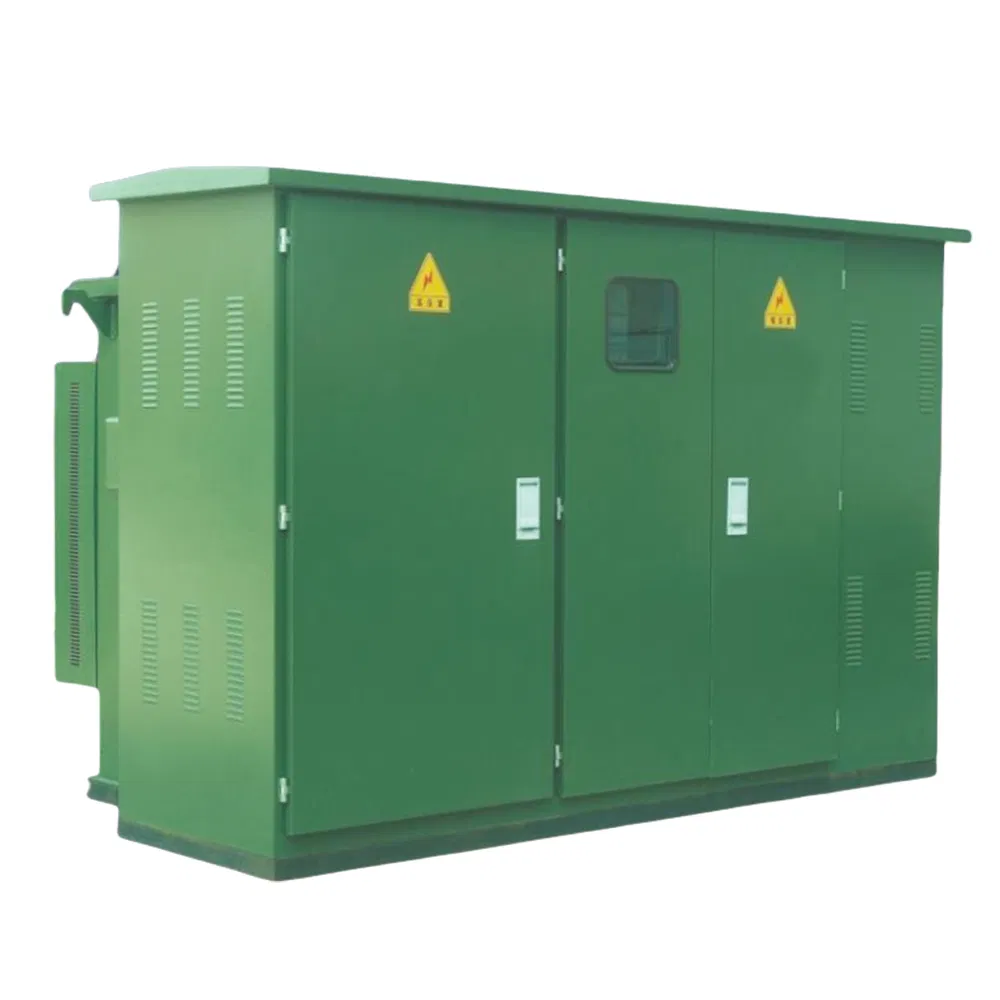

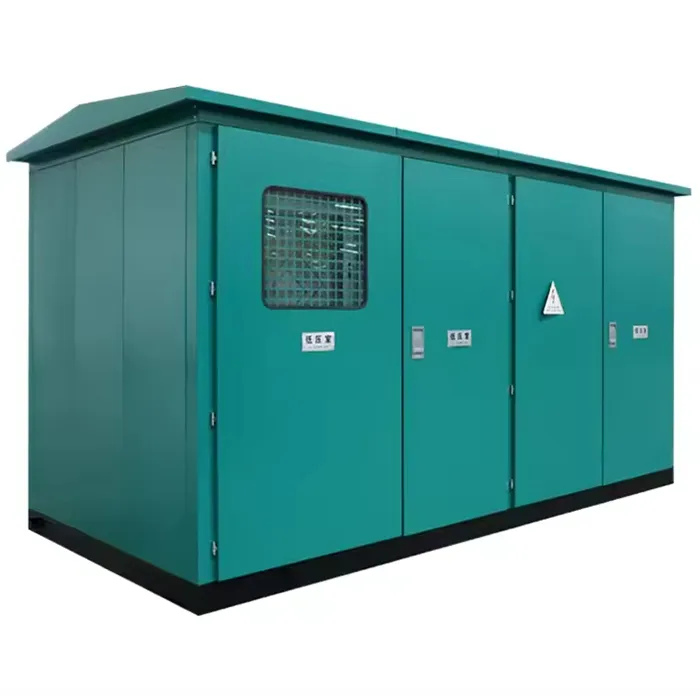

Box-type substation is a compact, efficient and reliable power transformation equipment. It combines high-voltage switchgear, transformers and low-voltage distribution devices in a metal box. It has the advantages of small size, less floor space, and easy installation.
It can effectively ensure the stability and security of power supply and is widely used in urban power grid transformation, industrial and mining enterprises, residential areas and other places. It is an indispensable and important component of the power system.
Transformer substation plays the role of voltage conversion equipment. Substation equipment also includes open and close circuit switchgear, current collection bus, measurement and control transformers, relay protection devices, and lightning protection devices.
Substations are also widely used in wind farms, photovoltaic power stations, hydropower stations, nuclear power plants, and backbone power grids.

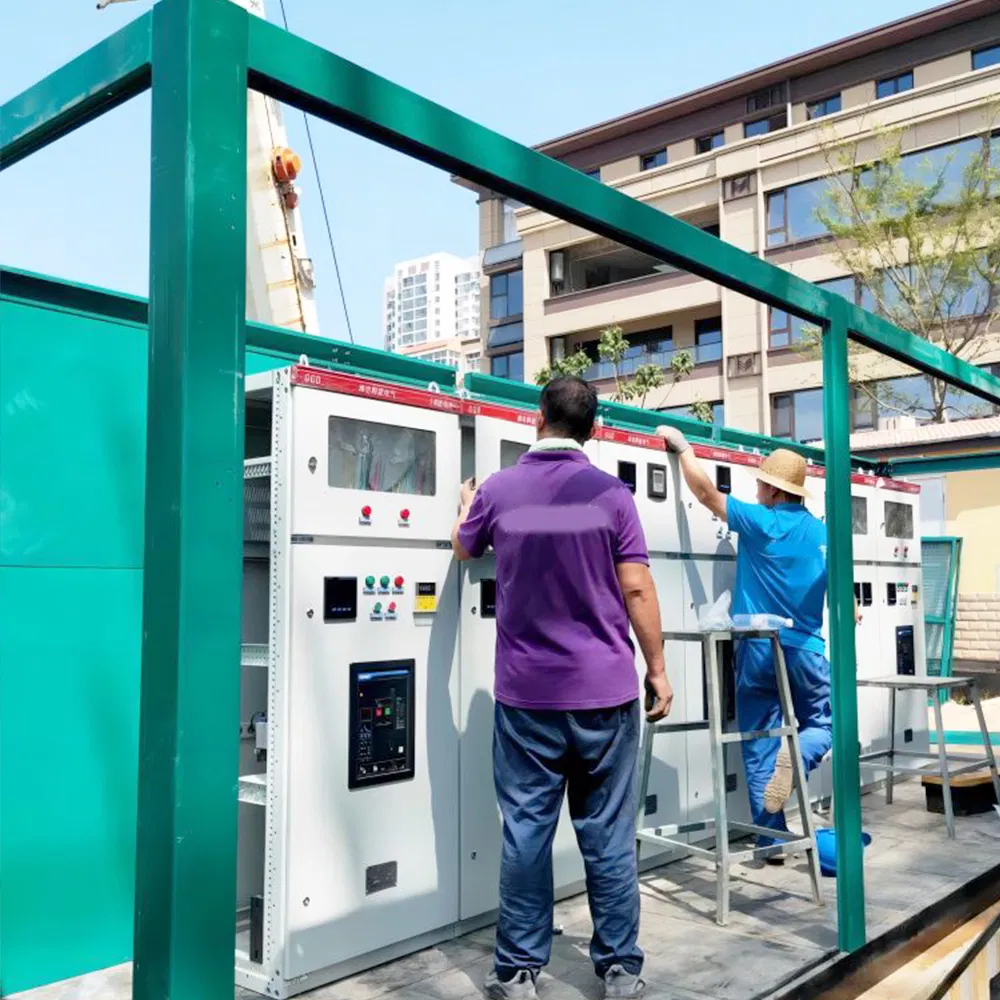

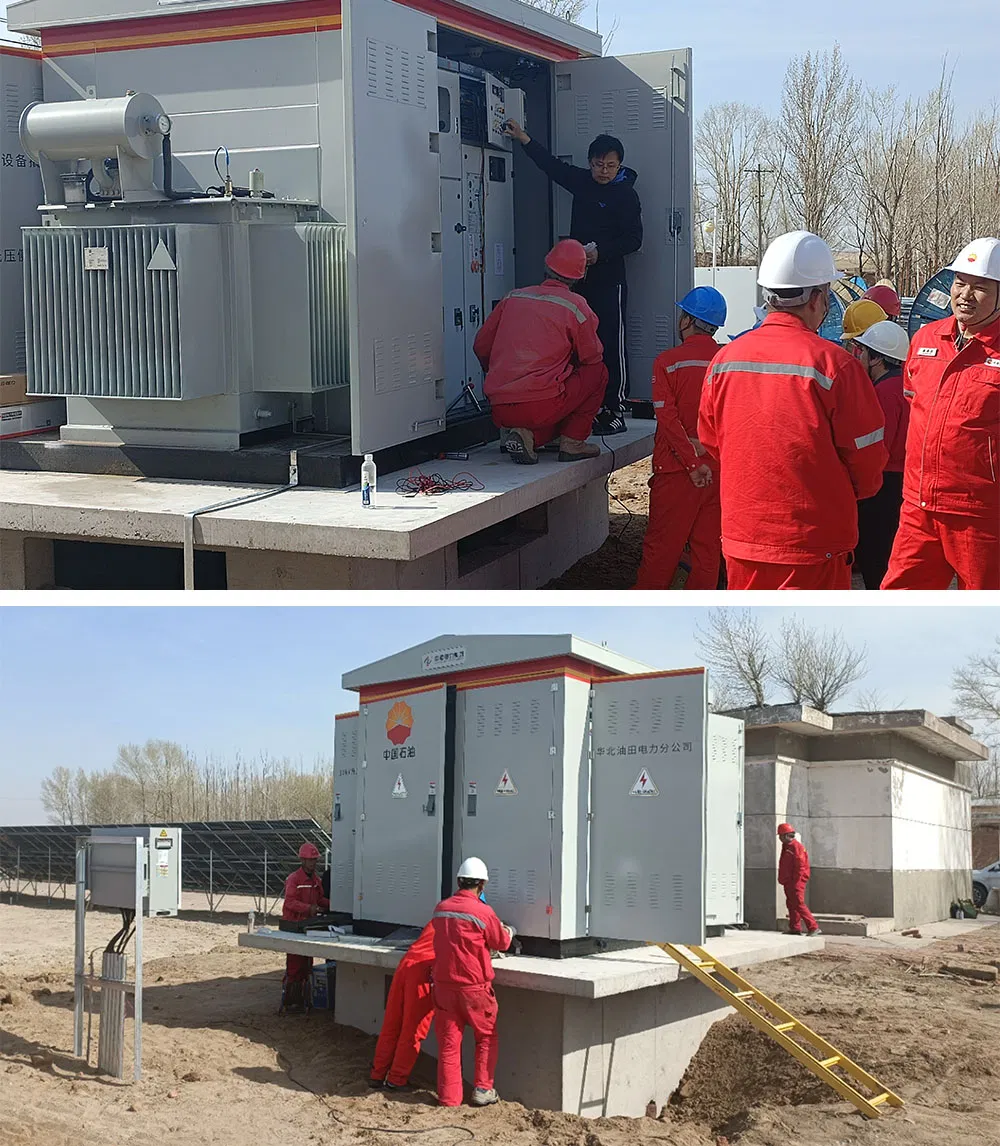

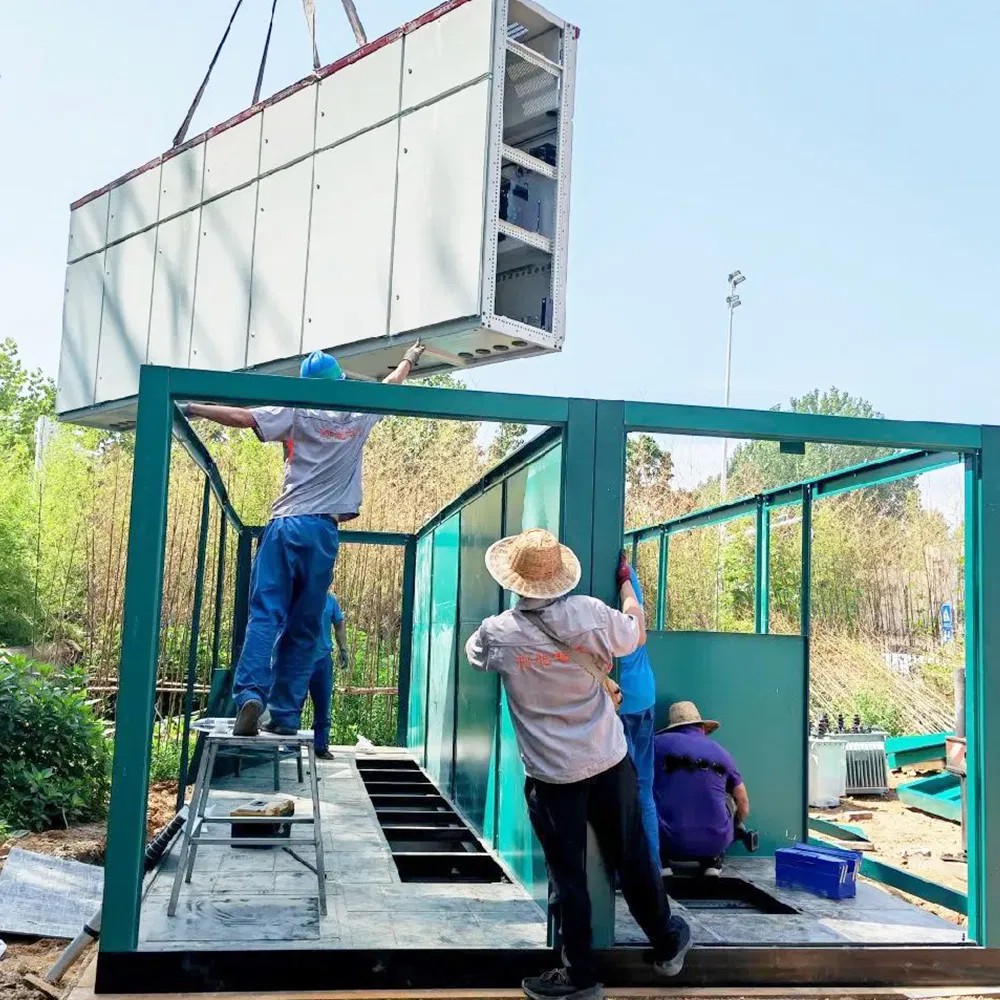

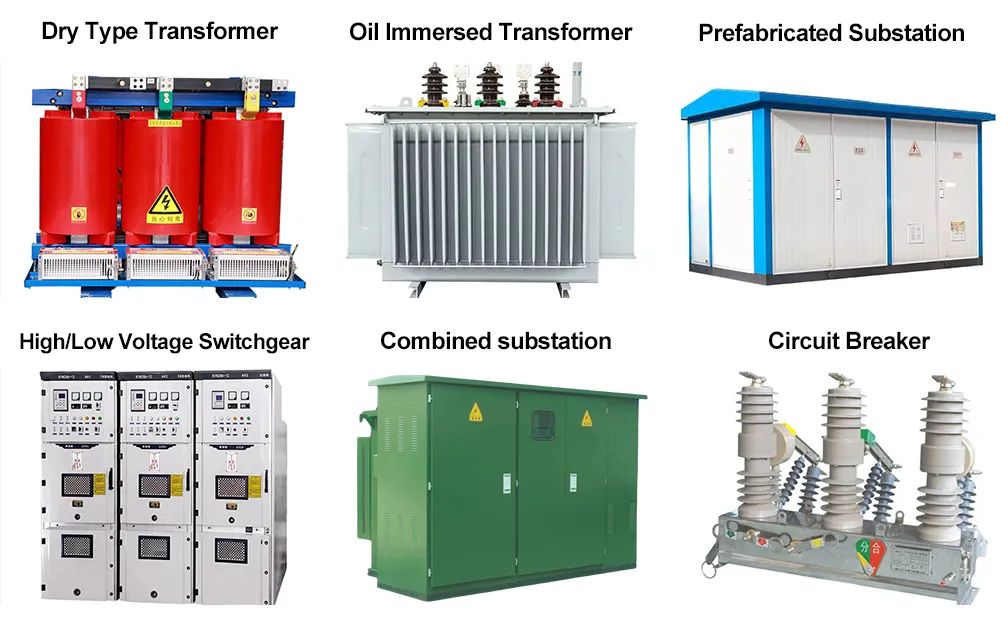

Main Product & Installation
Technological Innovation

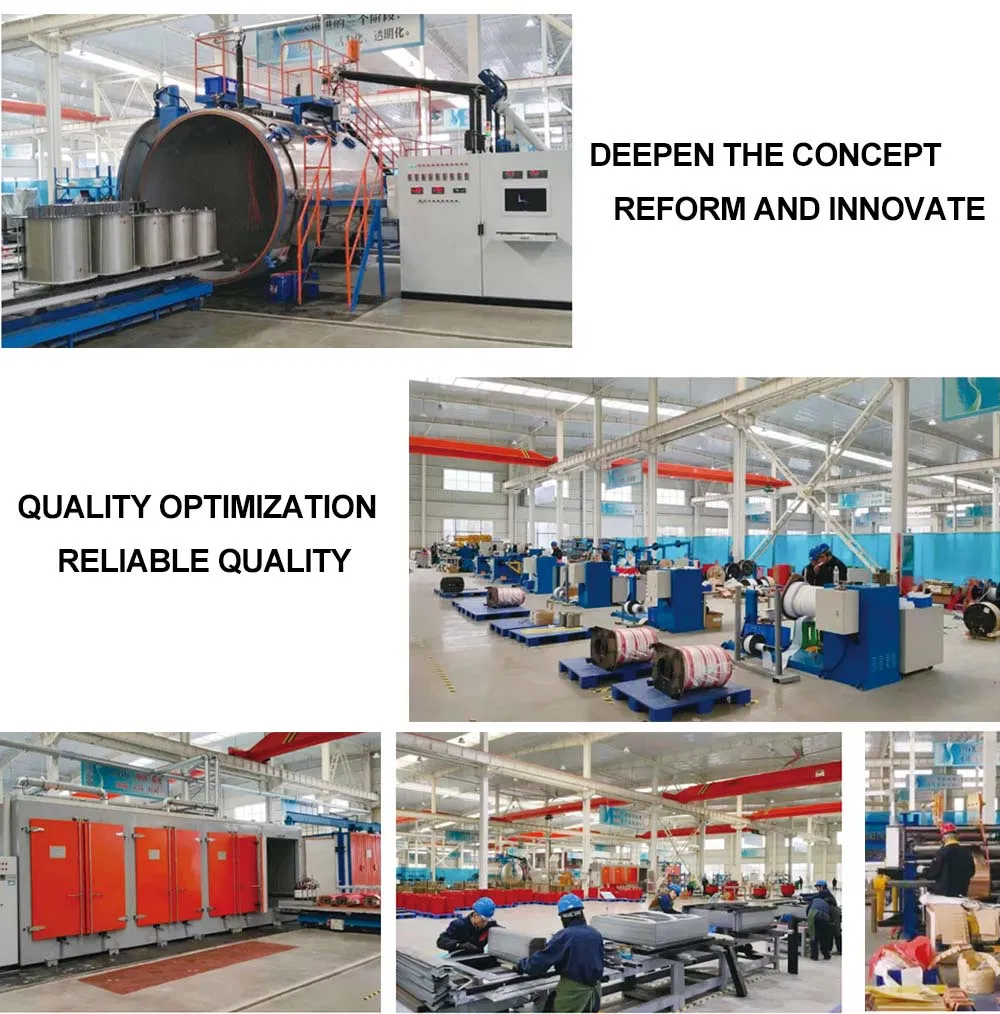

Utilizing cutting-edge technology and production equipment, we adhere to rigorous standards. The computer-aided design process ensures environmentally friendly, energy-saving, low-carbon, and high-quality products tailored to the unique characteristics of each region. We prioritize high-reliability, maintenance-free, and intelligent power transmission equipment.
Frequently Asked Questions
What are the main advantages of a box-type substation?
Box-type substations offer a compact design, small footprint, low investment costs, and a short production cycle. They are also easy to move and install compared to traditional substations.
What components are integrated into the modular transformer substation?
It typically integrates high-voltage switchgear, the power transformer, and low-voltage distribution devices into a single, unified metal enclosure for maximum efficiency.
Are these transformers suitable for renewable energy projects?
Yes, they are widely used in wind farms, photovoltaic (solar) power stations, and hydropower stations due to their reliability and weather-resistant design.
What is the difference between FKN12 and FZN25 load switches?
FKN12 is a standard load switch, while FZN25 is a vacuum load switch. The vacuum version offers a significantly higher mechanical life (up to 10,000 times) and better breaking capacity.
Can the 11KV oil transformers be customized?
Yes, our 11KV oil transformers are available in various capacities and can be fully customized to meet specific regional voltage and application requirements.
How do you ensure the quality of the power equipment?
We adhere to the ISO9000 quality certification system and use computer-aided design along with standardized production management to ensure high-reliability and low-maintenance products.
