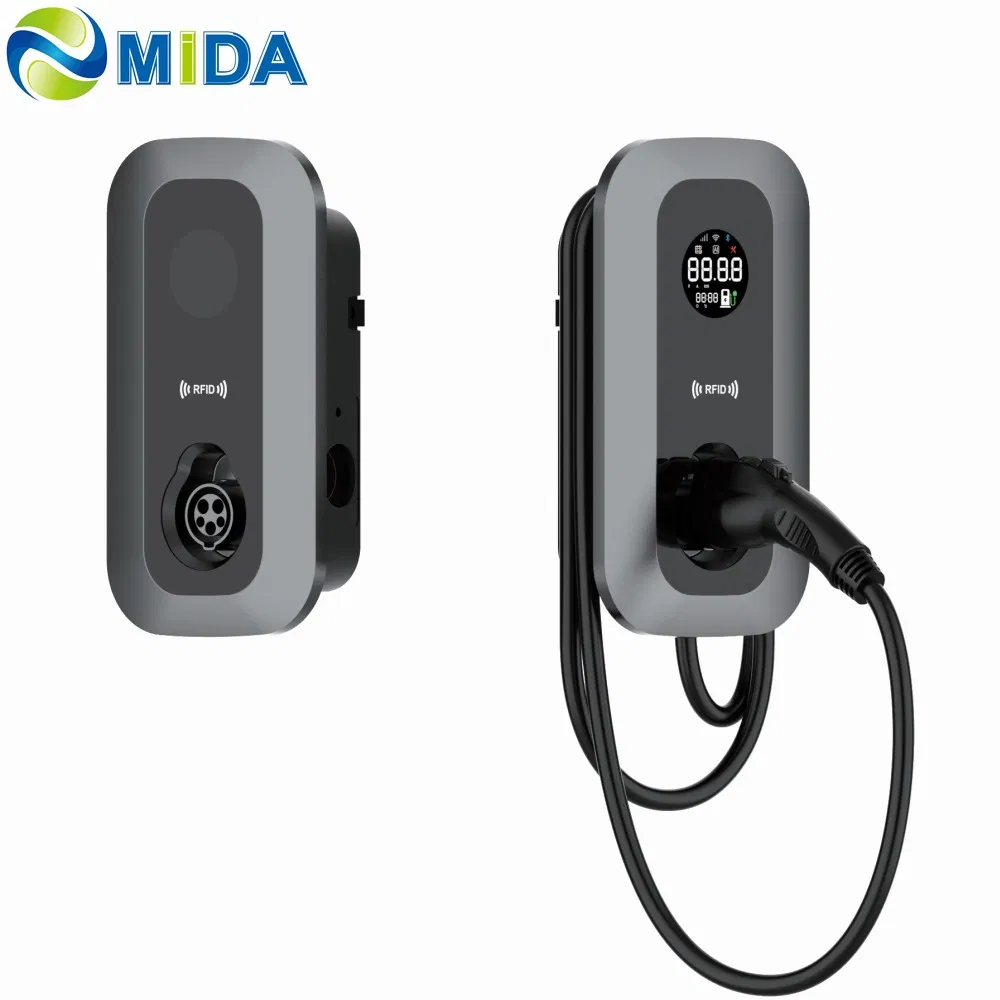

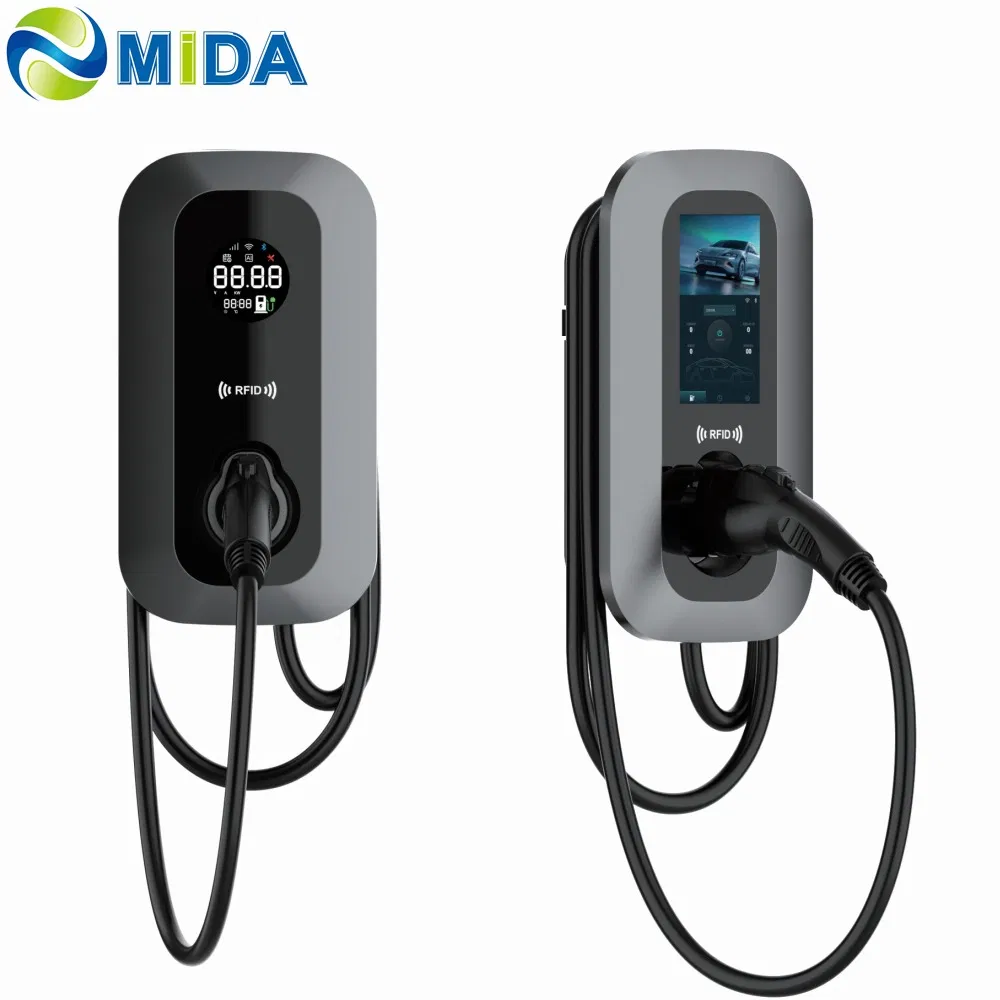

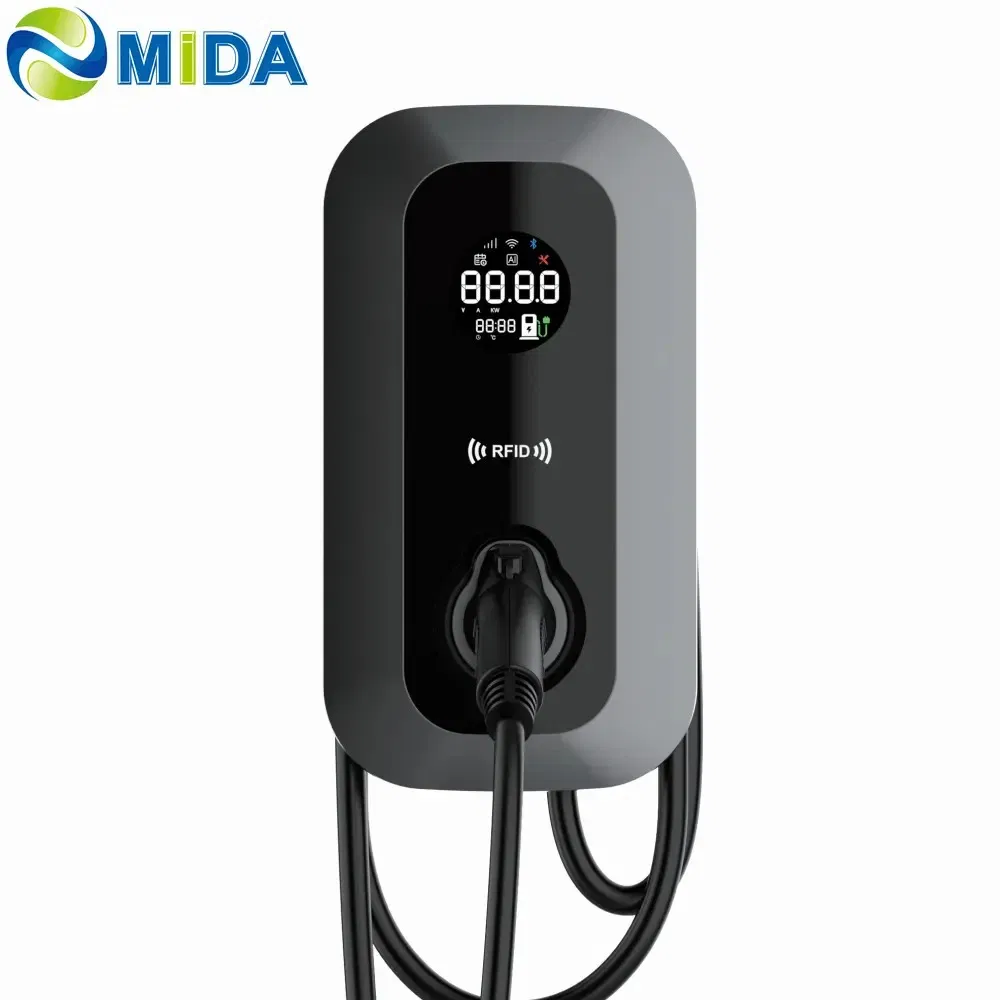

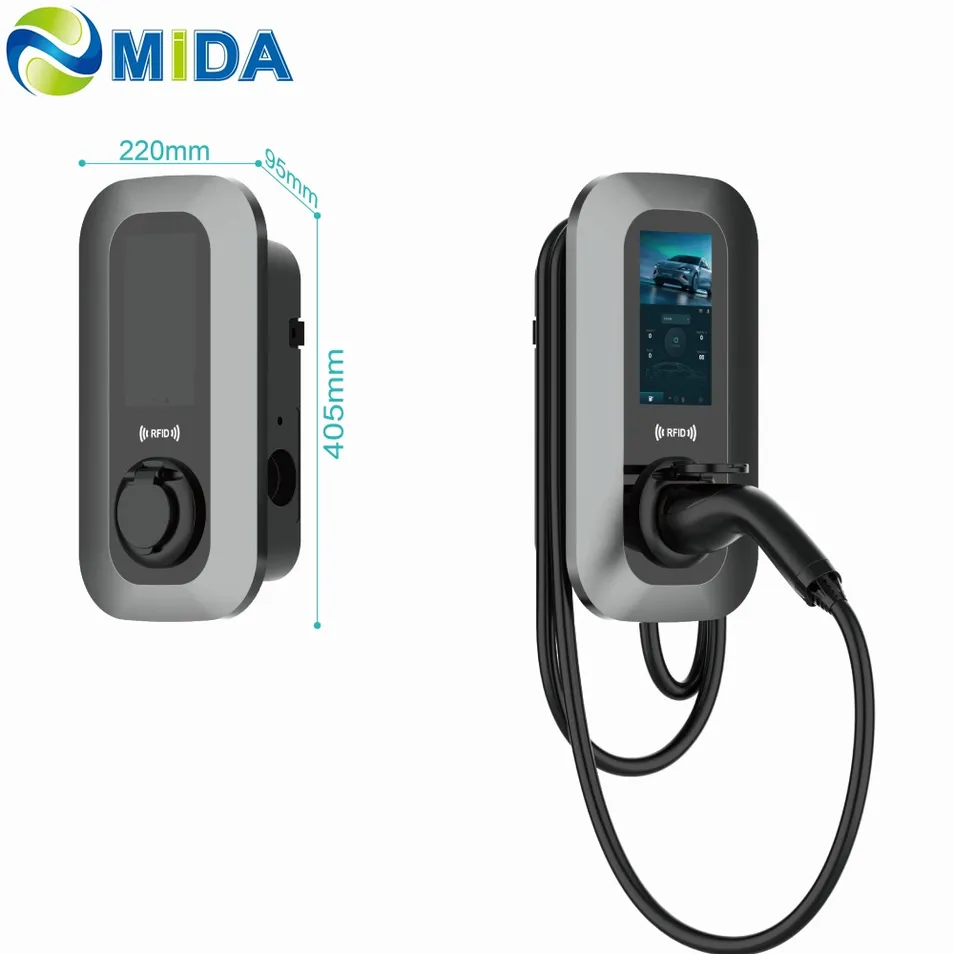

7kw 11kw 22kw Home EV Wallbox with IP55 Protection 7-Inch Screen and Type 2 Cable

1 / 5

7kw 11kw 22kw Home EV Wallbox with IP55 Protection 7-Inch Screen and Type 2 Cable

Customization:	Available
Connector Type:	CCS2
Start Mode:	APP Control, Book Charging, Remote Control, RFID Card

Send Inquiry

Product Description

7kW 11kW 22kW Home EV Wallbox with IP55 Protection 7-Inch Screen and Type 2 Cable

📋 Basic Specifications

Model

EVST-7KW/11KW/22KW

Interfaces

One Pile with Multiple Charges

Installation

Wall Mounted

Rated Current

32AMP

Voltage

AC 250V / 400V

Protection

IP55 / Type B RCD

Material

Aluminum Alloy

Temperature

-30°C to +60°C

Certification

TUV, CE Approved

Dimensions

350mm x 215mm x 110mm

🚀 Key Features

Powerful Performance

Heavy duty and outdoor-ready EV charging station designed for fast and reliable charging.

Smart Connectivity

Equipped with Bluetooth & WiFi connectivity. Supports App control and OTA remote firmware updates.

Innovative Design

Features an aesthetic LED breathing light that shows charging status without glaring.

Universal Compatibility

Uses Type 2/J1772 connectors compatible with virtually every EV on the market.

🏠 Applicable Scenes

Residential: Perfect for homeowners seeking a convenient private charging solution.

Workplace: Ideal for office buildings or factories for employee vehicle support.

Public Areas: Suitable for public parking lots, commercial common areas, and garages.

Fleet Management: High power output helps keep business fleets productive and ready.

⚙ Technical Data

Parameter	7.2 kW Model	11 kW / 22 kW Model
Electrical Parameter	32A Max	16A / 32A Max
Nominal Voltage	1x230VAC 50-60 Hz	3x400VAC 50-60 Hz
Input Cord	Hard wired by licensed electrician
Output Cable	16.4FT (5.0m) Standard / 26.2FT (8.0m) Optional
Connectivity	Built-in Wi-Fi / Bluetooth / RFID (Optional)
Standards	IEC 61851-1, IEC 62196-2, OCPP 1.6

📷 Gallery

❓ Frequently Asked Questions

Is this wallbox compatible with my electric car?

Yes, it uses standard Type 2 (IEC62196-2) connectors, which are compatible with almost all modern electric vehicles in the market.

Can I install the charger outdoors?

Absolutely. The charger features IP55 protection, making it waterproof and dustproof, suitable for both indoor and outdoor installations in various weather conditions.

What is the advantage of a 22kW charger over a 7kW one?

A 22kW charger can charge a vehicle up to three times faster than a 7kW charger, provided your vehicle's on-board charger supports three-phase charging.

Does it support smart phone control?

Yes, the charger includes Bluetooth and WiFi connectivity, allowing you to monitor and manage charging sessions through a dedicated mobile app.

How do I know the current status of the charging?

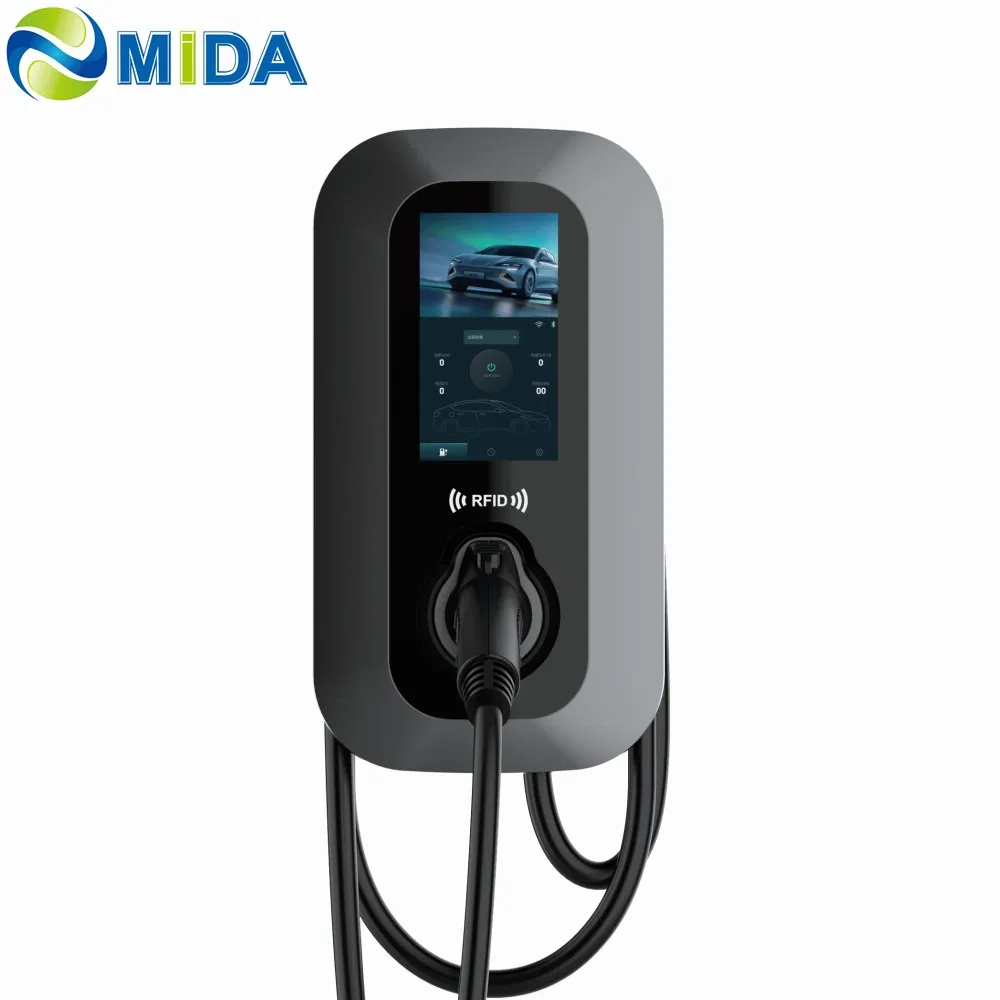

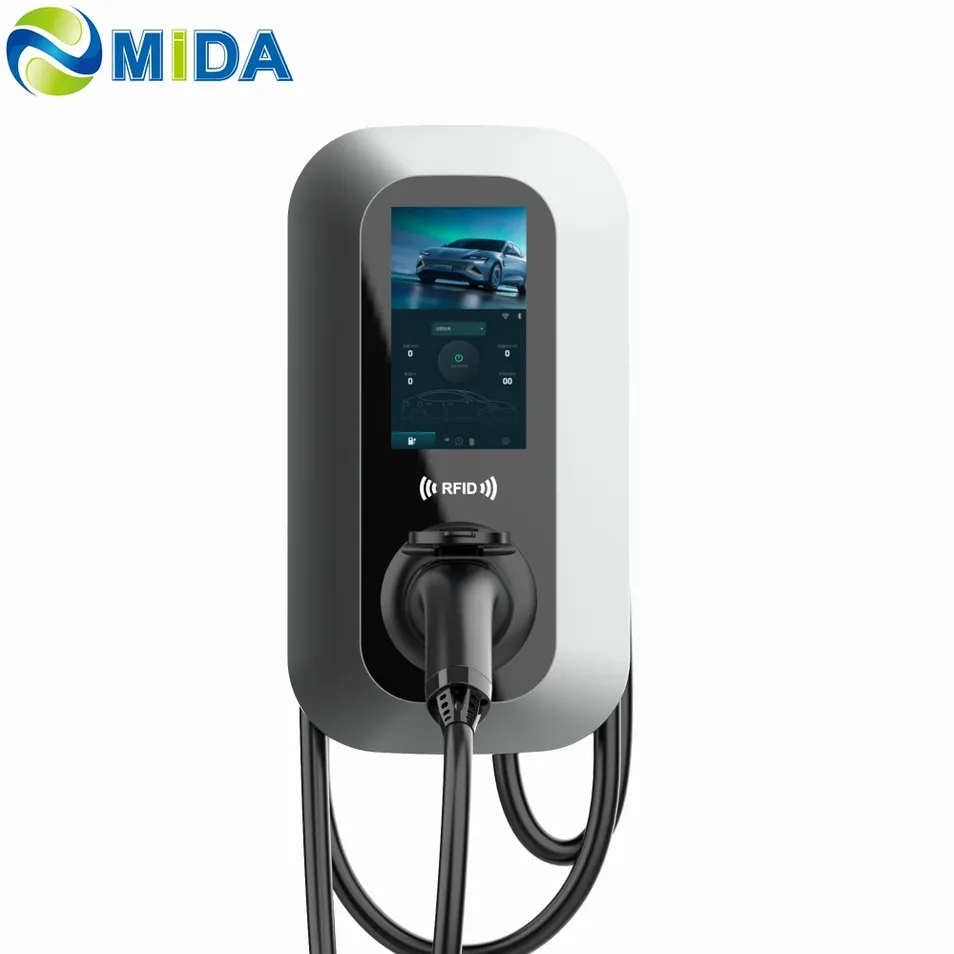

The 7-inch screen provides real-time data, and the LED breathing light indicator changes color to signal standby, charging, or fault status.

What safety protections are included?

It includes Type B RCD/RCCB leakage protection, over-voltage, under-voltage, over-temperature, and short-circuit protection to ensure total safety during use.
