Customization: Available
Card Reader Quantity: 2
Control Gates: One Gate
Send Inquiry

Product Description

Basic Specifications

Model NO.
ZDAC-2300
Technology
32-Bit Technology
Control Mode
Computer Control
Type
One-way Controller
Card Type
EM or EM Compatible
Voltage
DC 12V±10%
Capacity
2000 Users
Housing
Metal Shell
Dimensions
128mm X 82mm X 28mm
Reading Range
3~6cm

Product Description

High Quality Standalone Access Control System with Key Panel Backlight Keypad

The ZDAC-2300 is designed for mounting in either indoor or outdoor harsh environments. It features an exquisite non-masking metal shell, keystroke backlight, and Wiegand output. Supporting up to 2000 users via Card, 4-digit PIN, or Card + PIN options, it also includes a doorbell function. This robust system is ideal for small shops, domestic households, and high-security commercial applications like warehouses, laboratories, and banks.

Key Features

✓ Exquisite designs with non-masking Metal shell
✓ Backlit keystrokes for low-light use
✓ Support 125kHz EM ID cards
✓ WG26 output, usable as an Access reader
✓ Large capacity: 2000 users
✓ Multi-access: Card, Code, or Card+Code
✓ Integrated Doorbell key connection
✓ Low power consumption (<30mA static)
✓ Fast search speed (<0.1s)
✓ Short-circuit protection for output safety

Product Parameters

ModelZDAC-2300
Card TypesEM or EM compatible
Operating VoltageDC 12V±10%
User Capacity2000 Users
Reading Distance3~6cm
Active Current<60mA
Lock Output LoadMax 3A
Operating Temp-45ºC ~ 60ºC
Wiegand InterfaceWiegand 26 bit
Wiring ConnectionsElectric Lock, Exit Button, Alarm, External reader
Housing MaterialMetal
Dimensions128mm x 82mm x 28mm

Visual Presentation

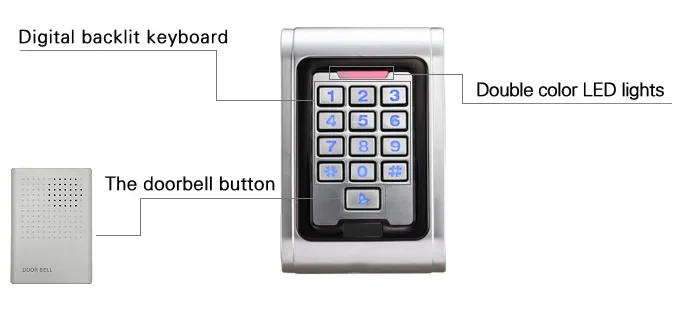

Access Control Overview

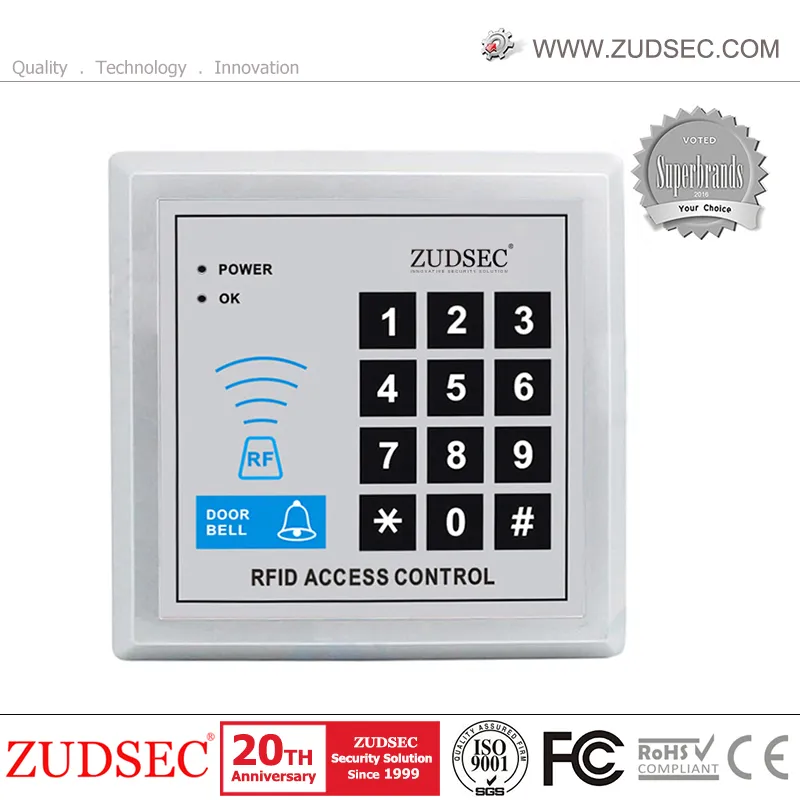

Metal Keypad Detail

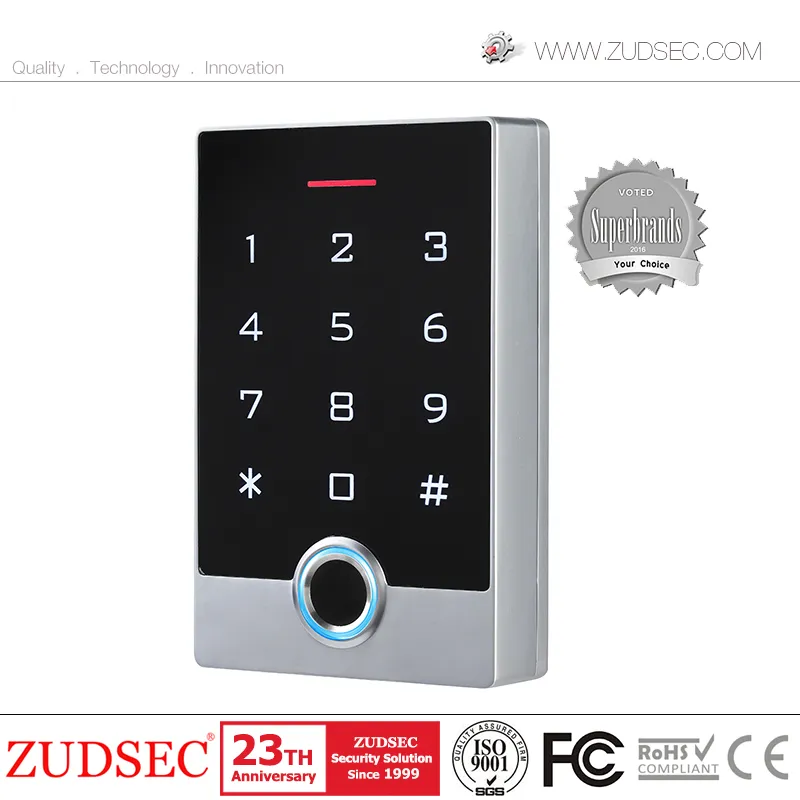

Backlight Display
Mounting View
Connection Interface
Security Lock

Related Products

Related Model A
Related Model B
Related Model C
Related Model D
Related Model E
Related Model F

Frequently Asked Questions

Q1: How many users can the ZDAC-2300 manage?
The system supports up to 2,000 users with either a card, a 4-digit PIN, or a card + PIN combination.
Q2: Is this access control system suitable for outdoor use?
Yes, it features a rugged, non-masking metal shell designed to withstand harsh environments.
Q3: Does the keypad have a backlight?
Yes, it includes a keystroke backlight, making it easy to operate in dark or low-light conditions.
Q4: What happens if there is a short circuit at the output?
The system includes a short-circuit protection feature that automatically closes the output within 100μS for safety.
Q5: Can I connect an external doorbell to this device?
Yes, the ZDAC-2300 comes with a dedicated doorbell key and can be connected to any standard external doorbell.
Q6: What is the card reading range?
The device has an effective reading distance of 3 to 6 cm for 125kHz EM or compatible cards.
