Basic Specifications
| Model No. | KPS-KJ-9002 | Material | Aluminum Alloy |
|---|
| Authentication | Biometric, CE | Operating System | Android/iOS |
|---|
| Installation | Pole Mount | Power Supply | AC220V±10% 50Hz |
|---|
| Technology | LPR Technology | Warranty | Technical Support |
|---|
| Protection | IP44 | Motor Speed | 1500r/Min |
|---|
Product Description
Product Overview
🚀Compact side fixation movement structure.
🚀Die-cast aluminum alloy body for fast heat dissipation.
🚀Helical gear reduction transmission for high efficiency.
🚀DC brushless movement with stable transmission.
🚀Safe 24V DC motor voltage.
Technical Conditions
Insulation Resistance: ≥100MΩ
Electrical Strength: 700V/S without breakdown
Motor Noise: ≤55dB
Working Temp: -35℃ to 80℃
Humidity: ≤90% (No condensation)

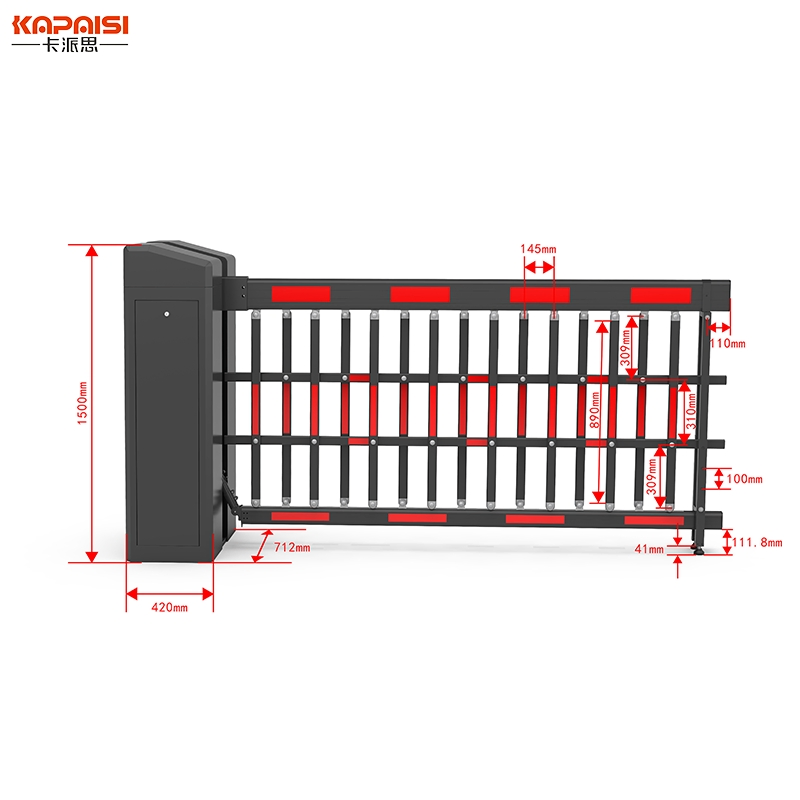

Full Technical Parameters
| Parameter |
Specification |
| Working Temperature | -40°C - +85°C |
| Remote Distance | ≤ 30 Meters |
| Motor Power | 24V DC 150W Brushless |
| Lifting Time | 1.5S - 6S Adjustable |
| Pole Height | 830MM |
| Chassis Thickness | 1.5MM |
| Direction | Left/Right Swappable |

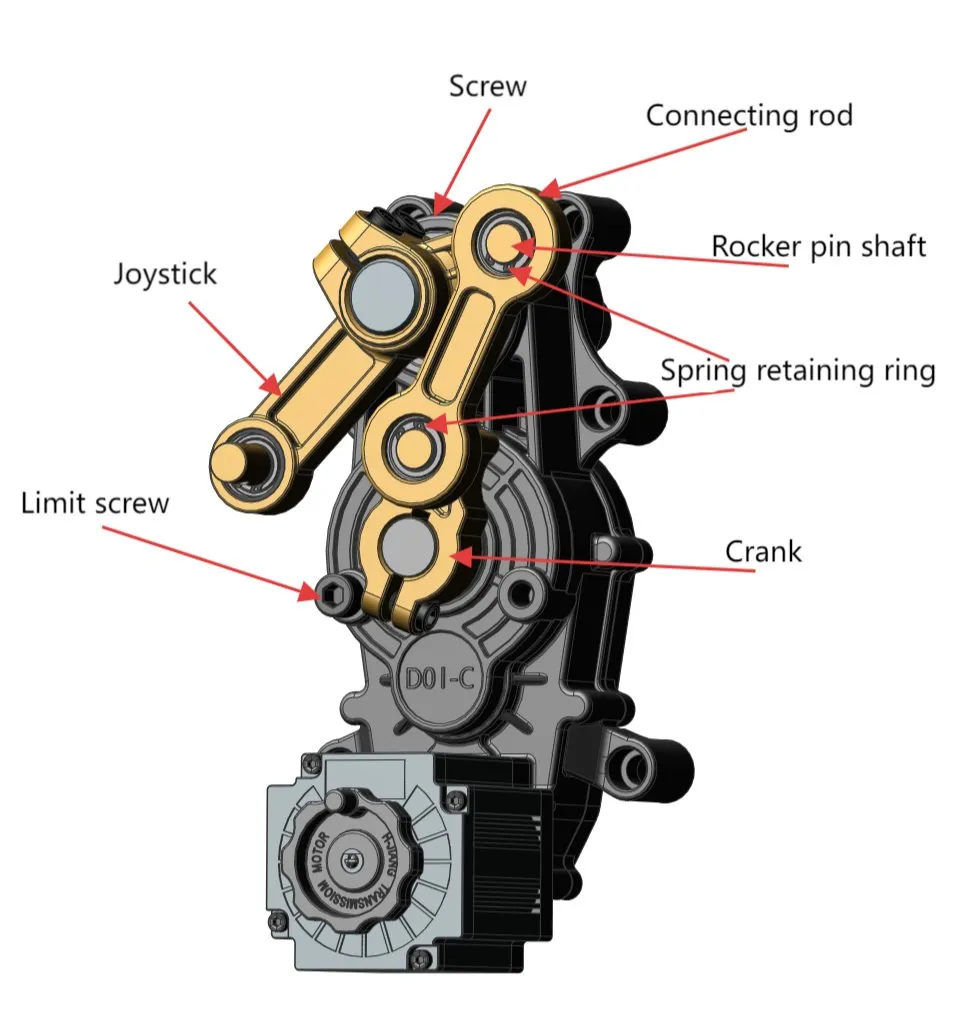

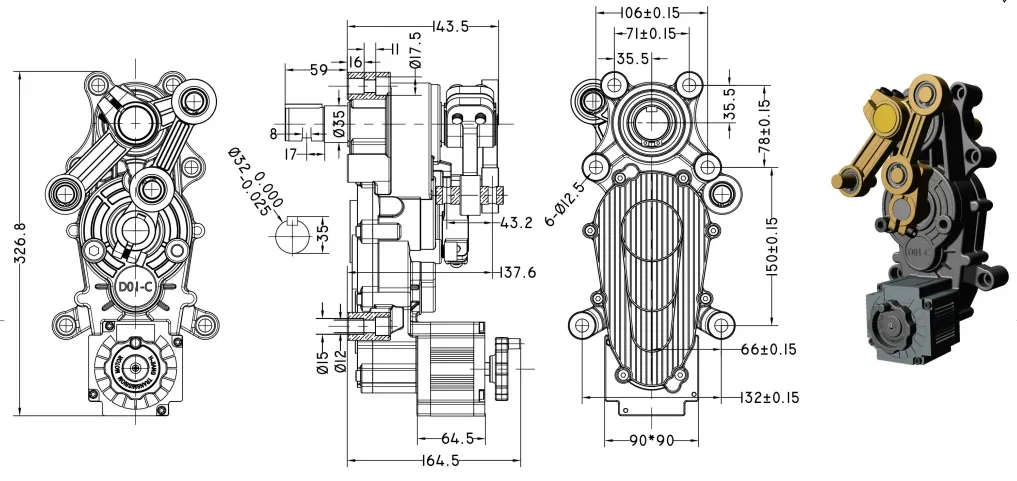

Motor Parameters
| Model | D01-C/3.0S/DC24L-120W |
|---|
| Rated Torque | 129.9 N·m |
|---|
| Rated Speed | 10 r/min ±10% |
|---|
| Protection Class | IP44 |
|---|
| Insulation Class | B |
|---|

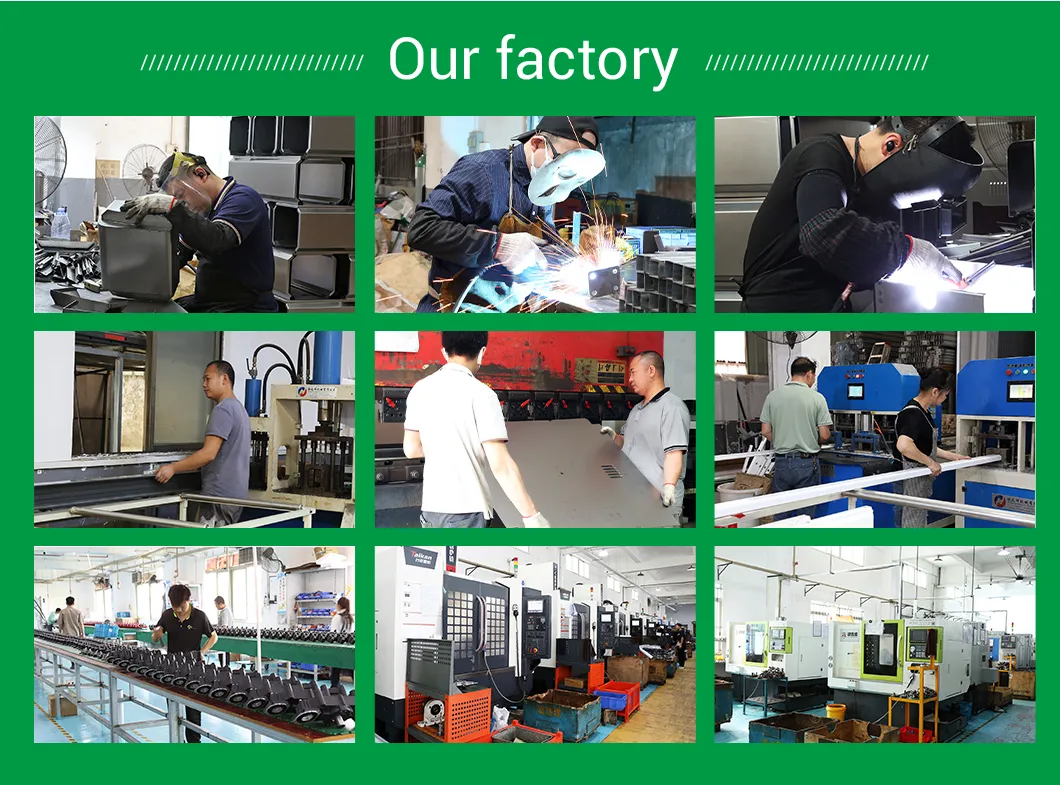

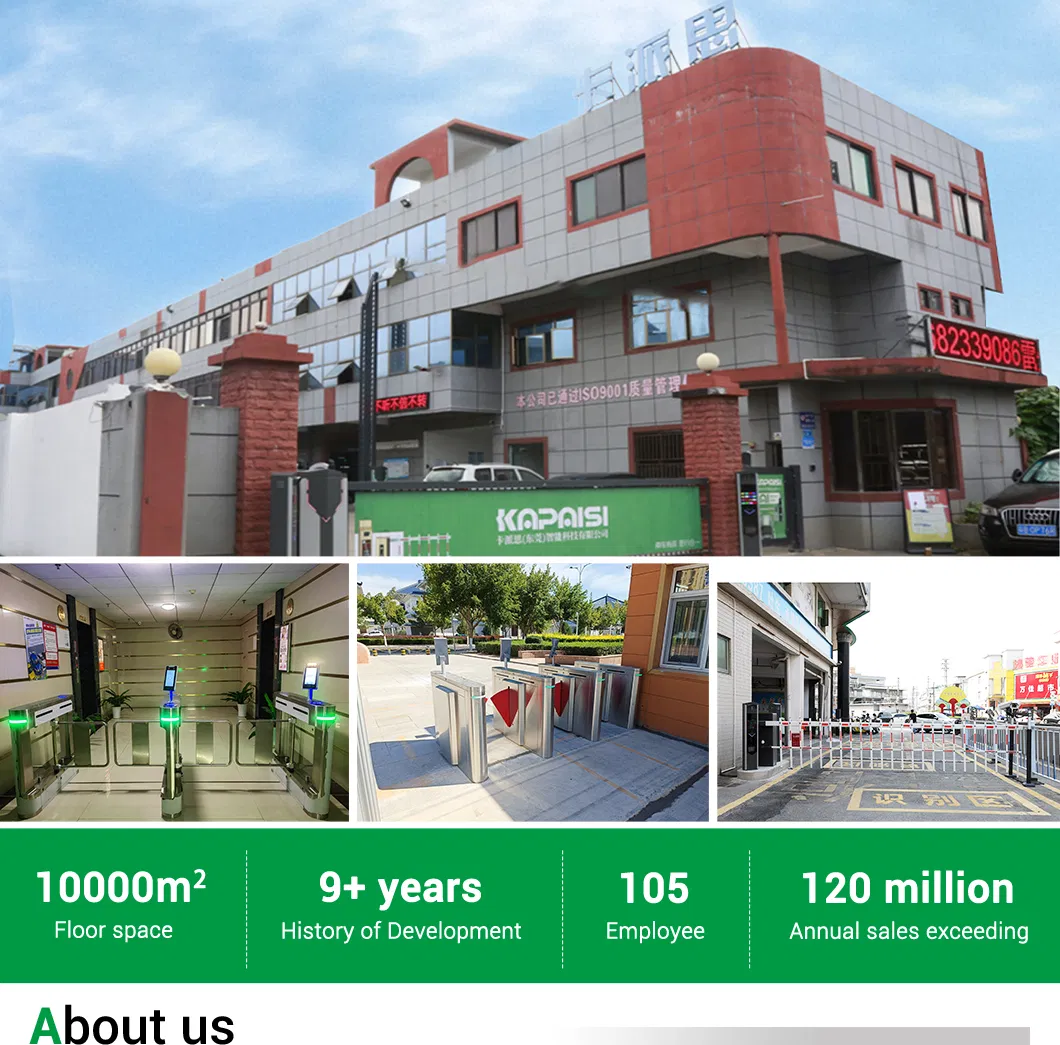

Manufacturing Excellence
Our manufacturing facility integrates R&D, production, and sales, holding ISO9001:2015 quality certification. We specialize in heavy-duty barrier gates, intelligent passage systems, and facial recognition hardware. The facility spans approximately 10,000 square meters with a professional management system and high-quality technical personnel.
Advantages & Certifications
Packaging & Shipping
Frequently Asked Questions
In which scenarios are your barrier gates suitable?
They are widely used in residential/commercial entrances, parking lot charging systems, expressway toll stations, logistics parks, and schools.
What triggering methods are supported?
The series supports remote control, license plate recognition (LPR) linkage, ground induction loops, Bluetooth/WIFI mobile control, and smart platform integration.
Can it operate under extreme weather conditions?
Yes, it features IP54 (customizable IP68) protection, an operating range of -40℃ to +80℃, and built-in lightning protection modules.

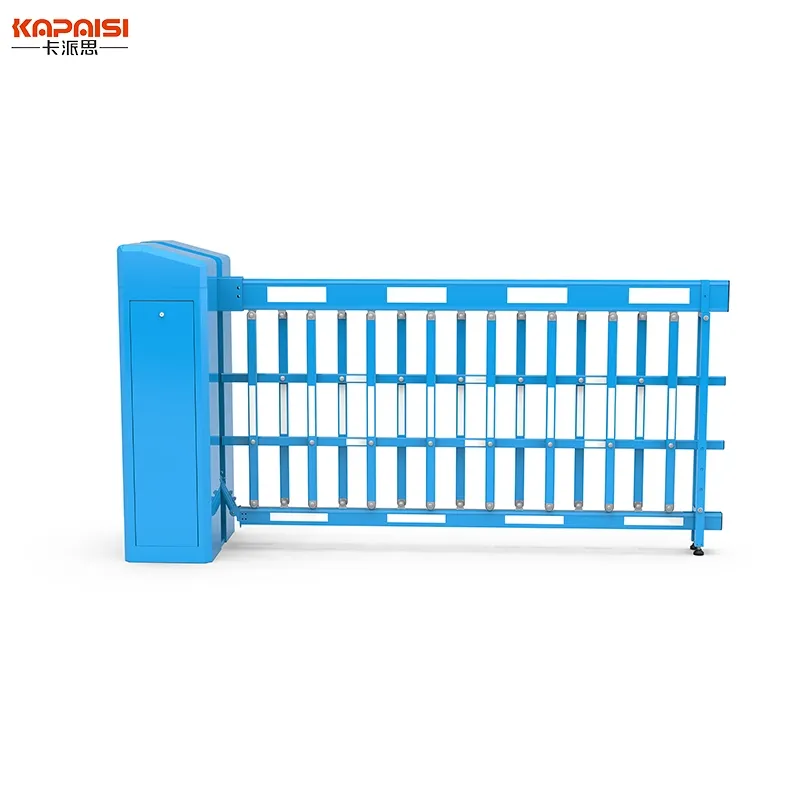

What types of barrier poles are available?

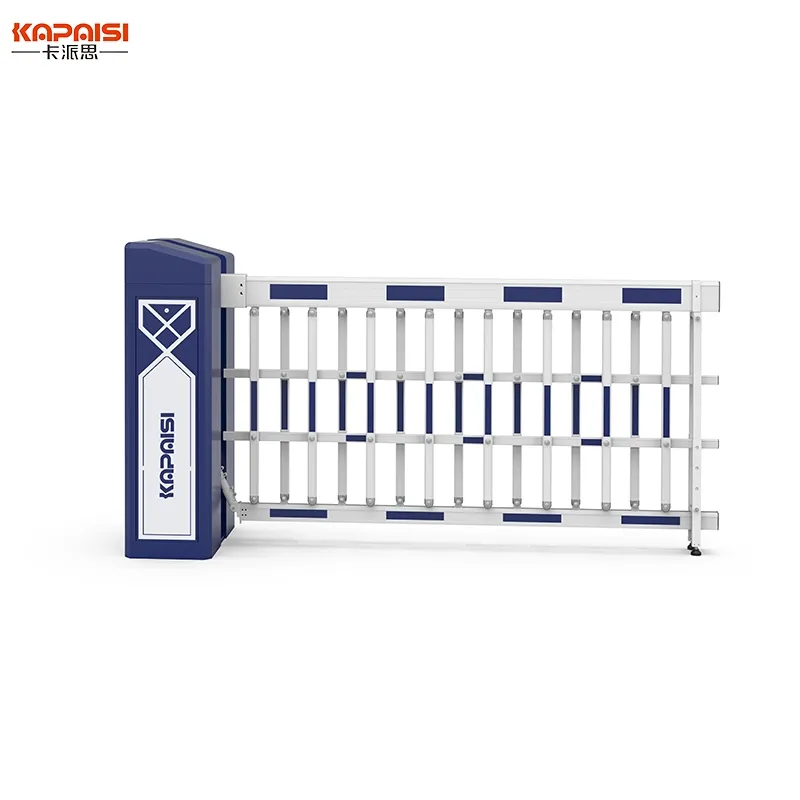

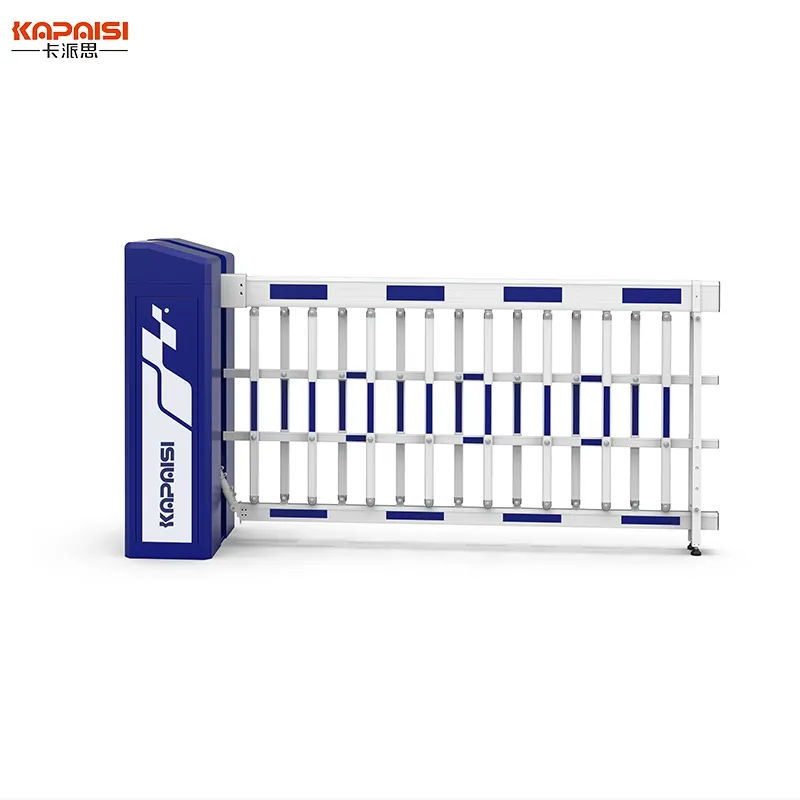

Options include standard straight rods (2-6m), curved rods for low ceilings, fence poles for anti-climbing, and LED advertising poles.
Why use a 24V DC brushless motor?
It offers higher safety compared to AC motors, generates less heat, provides stable transmission with large torque, and allows for adjustable buffer speeds.
Is the motor transmission durable?
Yes, it uses helical gear reduction with carburizing heat treatment and high-precision gear grinding for shock resistance and a long service life.
