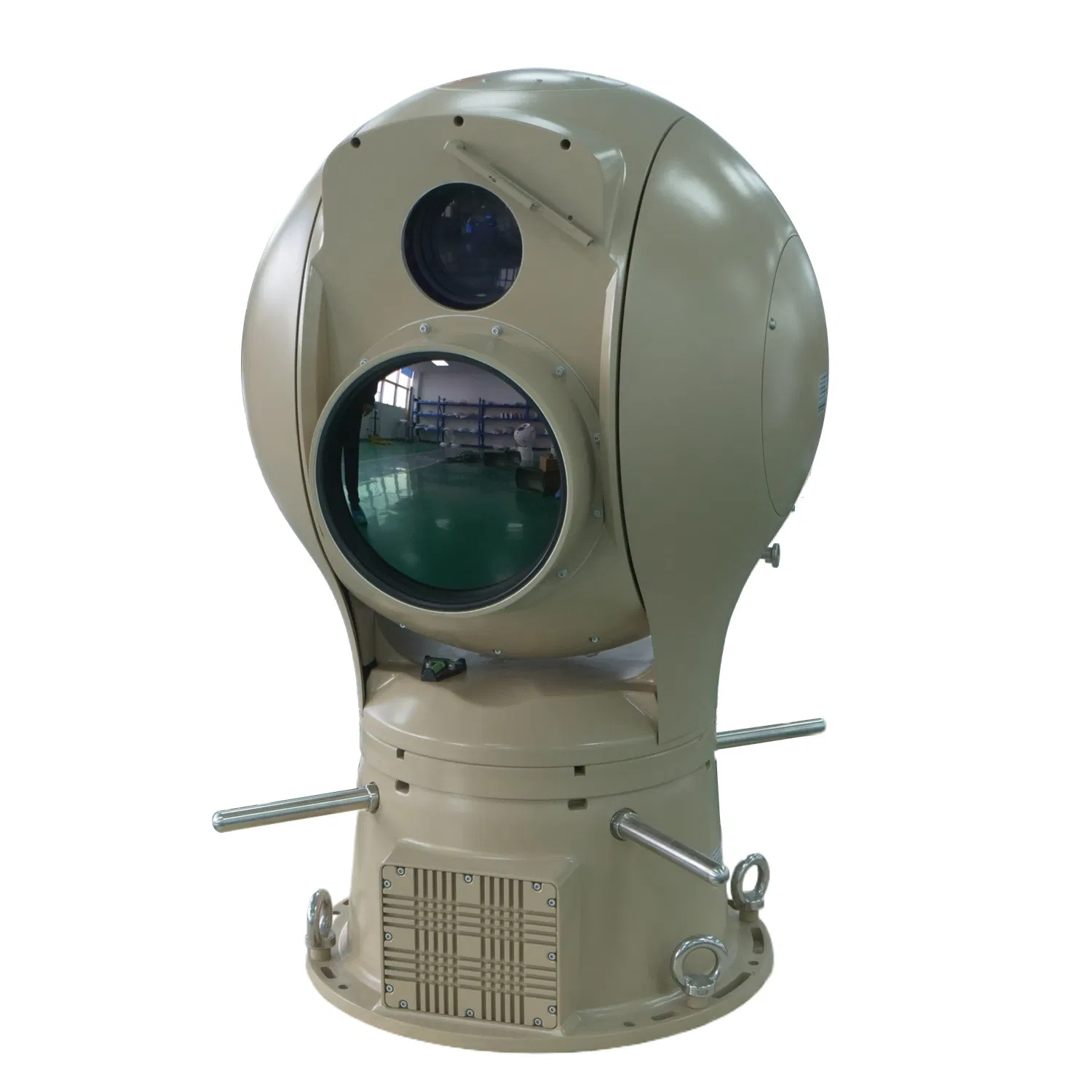

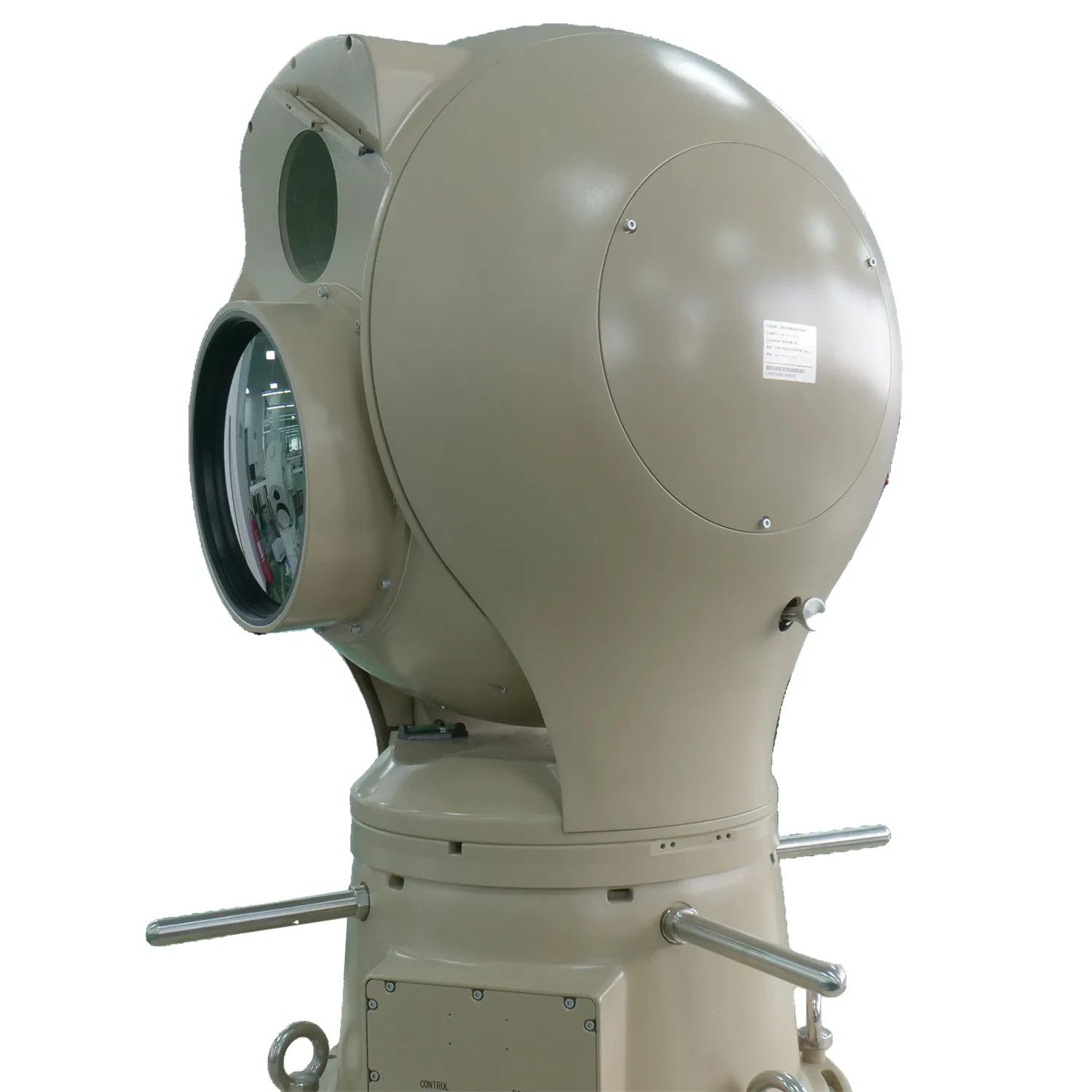

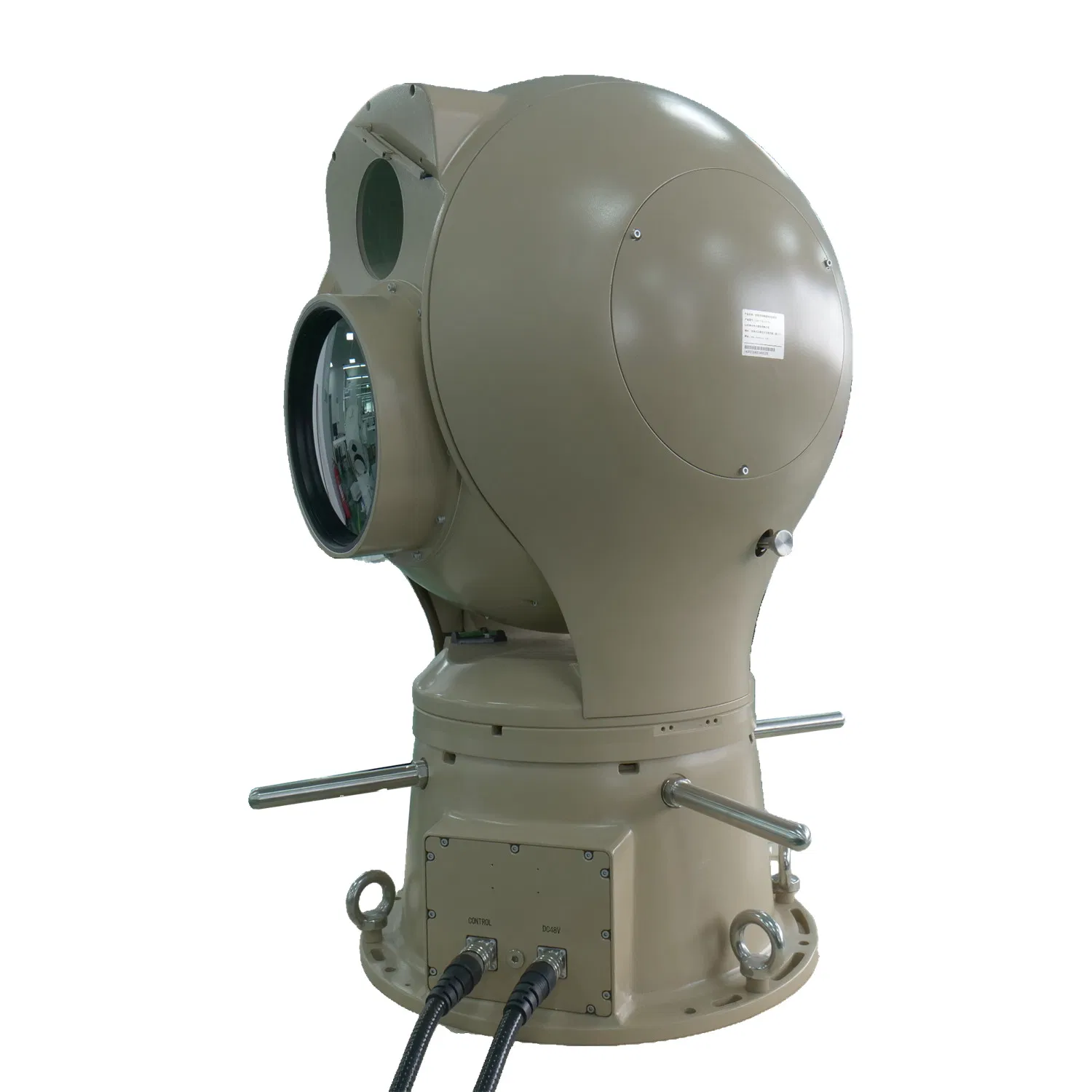

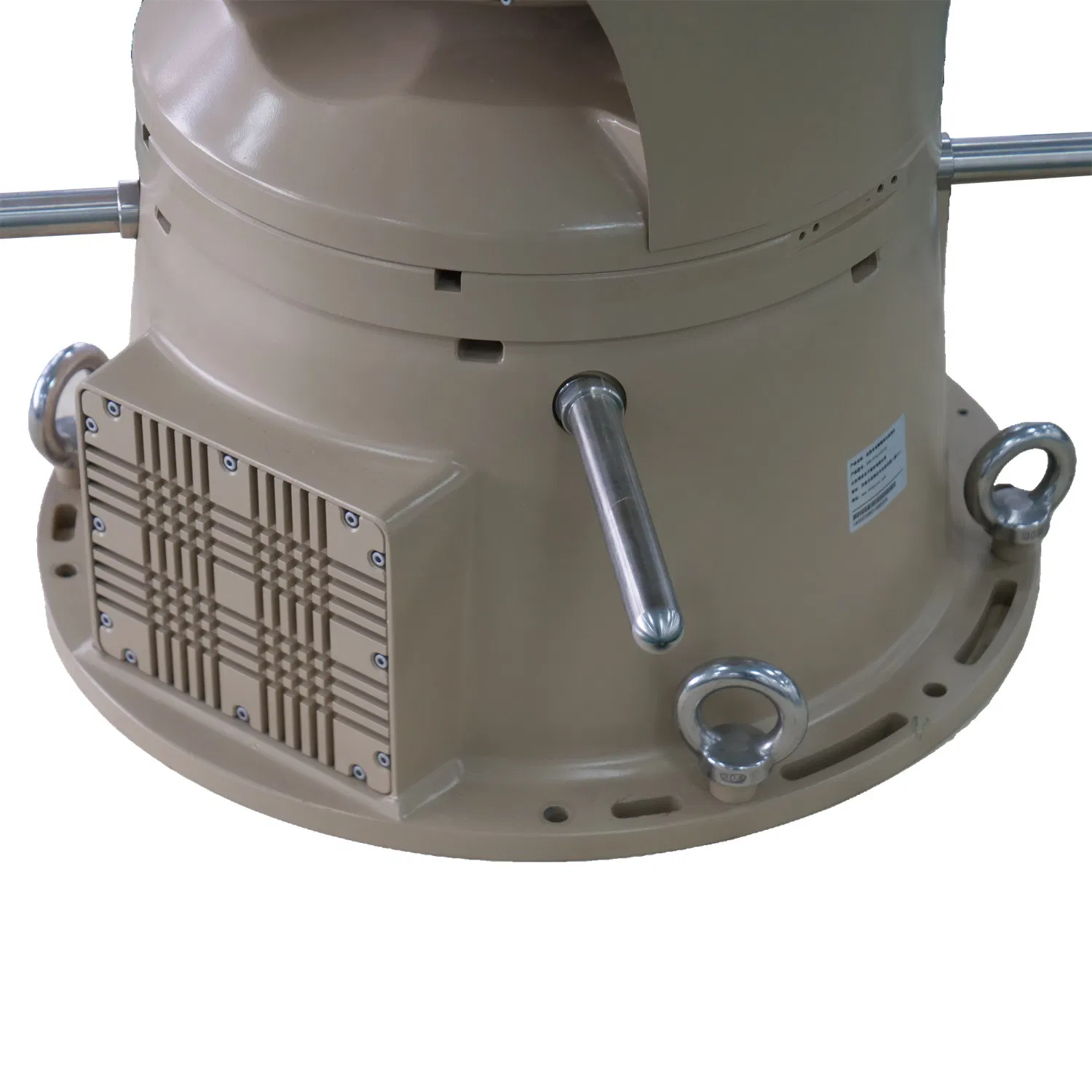

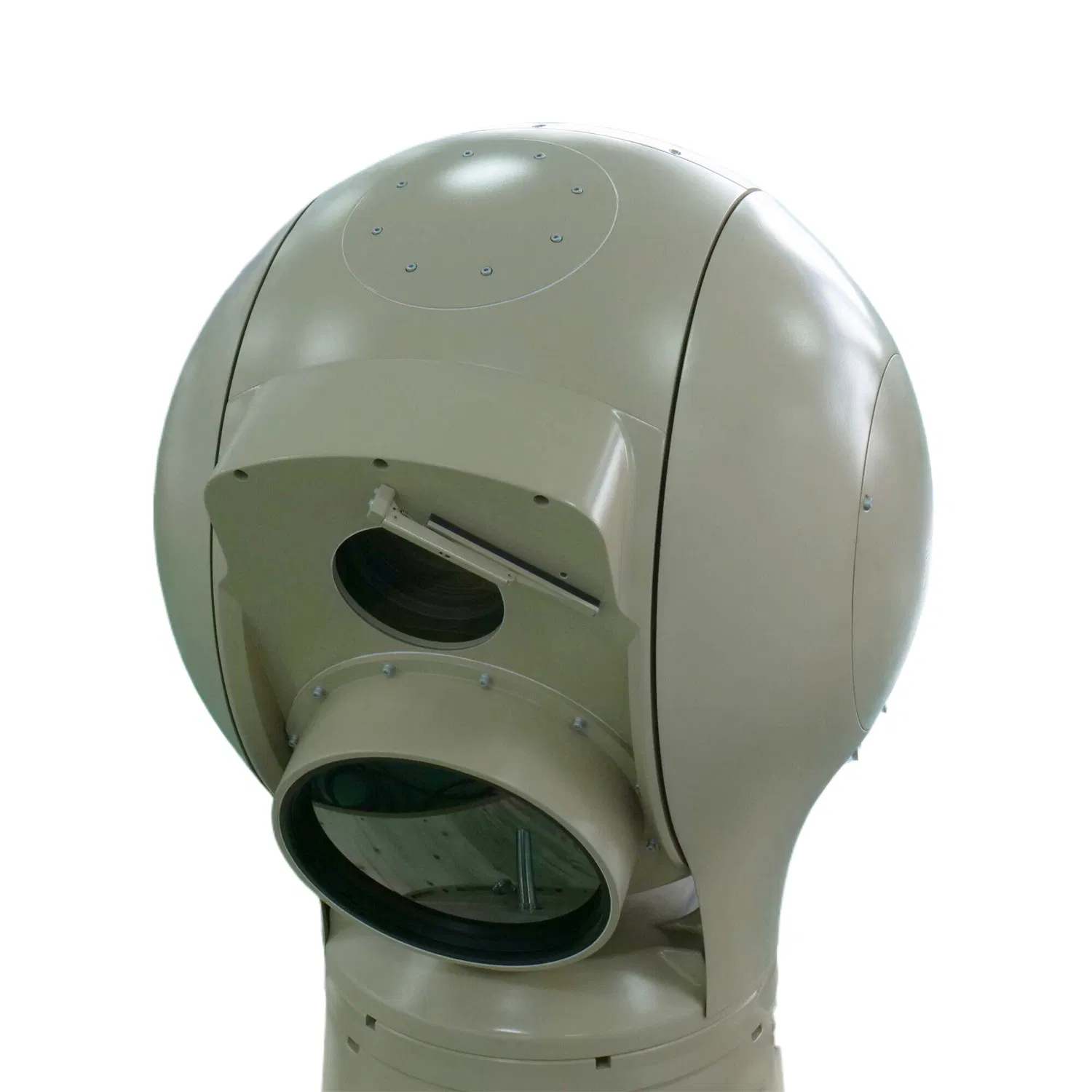

Frontier Defence 16km Long Distance Dual Sensor HD IP Security Thermal Camera System
Frontier Defence 16km Long Distance Dual Sensor HD IP Security Thermal Camera System
Frontier Defence 16km Long Distance Dual Sensor HD IP Security Thermal Camera System
Frontier Defence 16km Long Distance Dual Sensor HD IP Security Thermal Camera System
Frontier Defence 16km Long Distance Dual Sensor HD IP Security Thermal Camera System
1 / 5
Frontier Defence 16km Long Distance Dual Sensor HD IP Security Thermal Camera System
Frontier Defence 16km Long Distance Dual Sensor HD IP Security Thermal Camera System
Frontier Defence 16km Long Distance Dual Sensor HD IP Security Thermal Camera System
Frontier Defence 16km Long Distance Dual Sensor HD IP Security Thermal Camera System
Frontier Defence 16km Long Distance Dual Sensor HD IP Security Thermal Camera System

Frontier Defence 16km Long Distance Dual Sensor HD IP Security Thermal Camera System

Customization: Available
Type: Monitoring System
Application: All-Round Monitoring, Sound Monitoring
Send Inquiry

Product Description

Basic Specifications
Model
PT501HLV3020HZIR620
Feature
Waterproof / Weatherproof, High Definition
Transmission
Wireless Transmission
Software
Vehicle & Computer Monitoring
Sensor
CMOS
Technology
Pan / Tilt / Zoom
Protection
IP66
Sensor Size
1/3 Inch
Effective Distance
9km
Resolution
480tvl
Installation
Outdoor Pedestal Mounting
Capacity
1000piece/Month
Packaging & Delivery
Package Size
60.00cm * 50.00cm * 40.00cm
Gross Weight
25.500kg
Key Features
✓
Adopting thermal imaging technology for clear imaging, enabling large area searches and long-distance objective recognition.
✓
High resolution infrared detector with NETD≤ 50mK.
✓
2 megapixels low illuminance color camera for continuous day and night monitoring.
✓
Optional auto focusing and thermal imaging camera presetting functions to enhance efficiency.
✓
3D locating function with frame selection magnification and click-to-center capabilities.
✓
High reliability aluminum alloy electro-optical pantilt with anti-wind, anti-salt fog, and extreme temperature resistance.
Technical Indicators
Model PT500HLV1520HNIR155 PT501HLV3020HZIR620
Monitoring Distance HD camera 3000-5000m 5000-8000m
Thermal camera Human (1.8m×0.5m) Vehicle (2.3×2.3) Human (1.8m×0.5m) Vehicle (2.3×2.3)
4200m 12000m 14500m 19900m
1400m 3000m 6400m 11700m
Thermal detector Detector Uncooled microbolometer (Vox) Cooled detector
Pixel 640×512
Spectral range 8~14μm 3~5μm
Thermal lens Focal length 30~150mm, 5× zoom 30~600mm, 20× zoom
Lens control E-zoom, e-focus, auto focus
HD Camera Sensor type 1/1.8'' Progressive Scan CMOS
Video resolution 25fps (2688×1520), dual stream
Environment Protection IP66, Working Temp: -25ºC~ +55ºC
Product Display

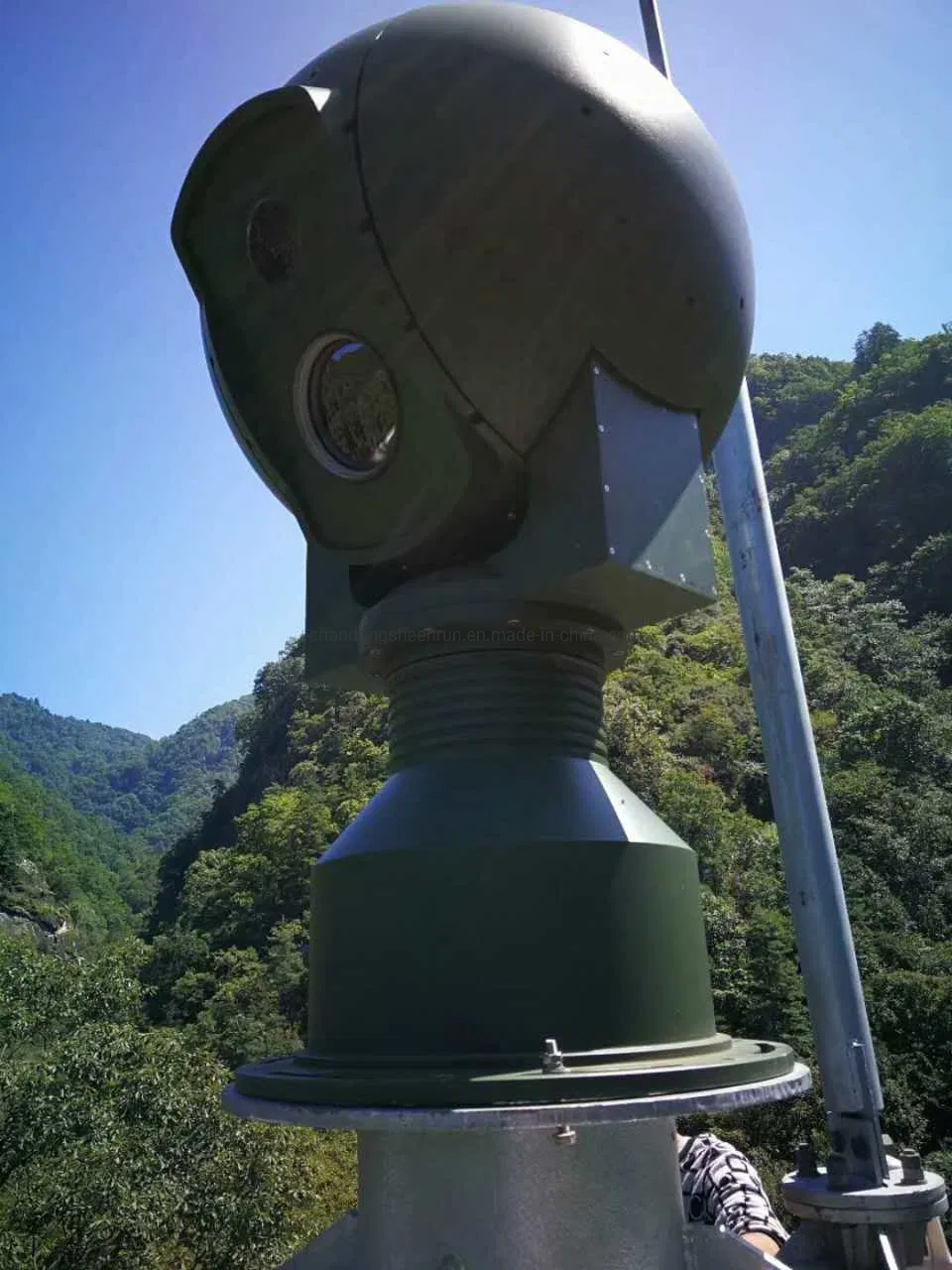

HD IP Security Thermal Camera System

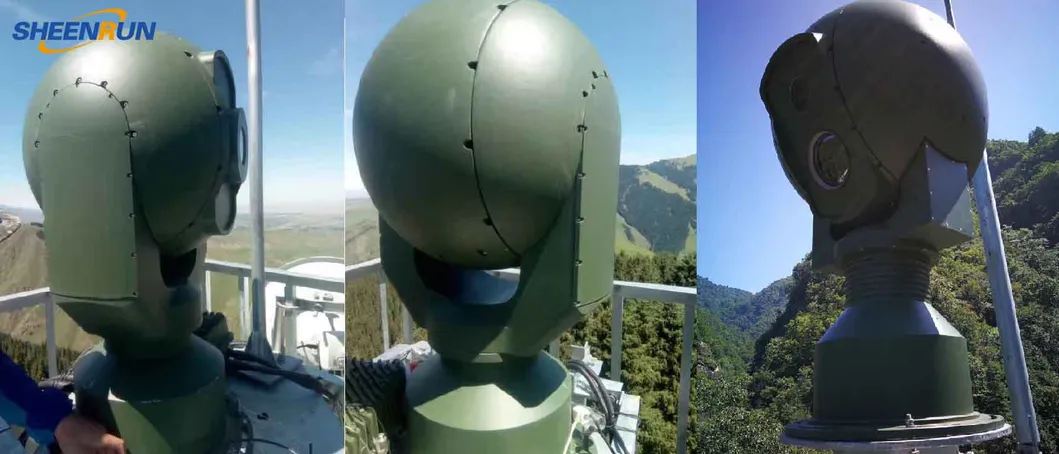

Long Distance Camera System
Profile

Founded in 2004, we are a leading night vision equipment and rugged information equipment supplier. Our research center focuses on high-end surveillance engineering and technology. We adhere to independent innovation, having developed advanced laser night vision cameras and uncooled continuous zoom infrared thermal imaging cameras. Our synchronous zoom and continuous zoom technologies meet international advanced standards, serving a significant global market share.

Production Facility
Effect Demonstration

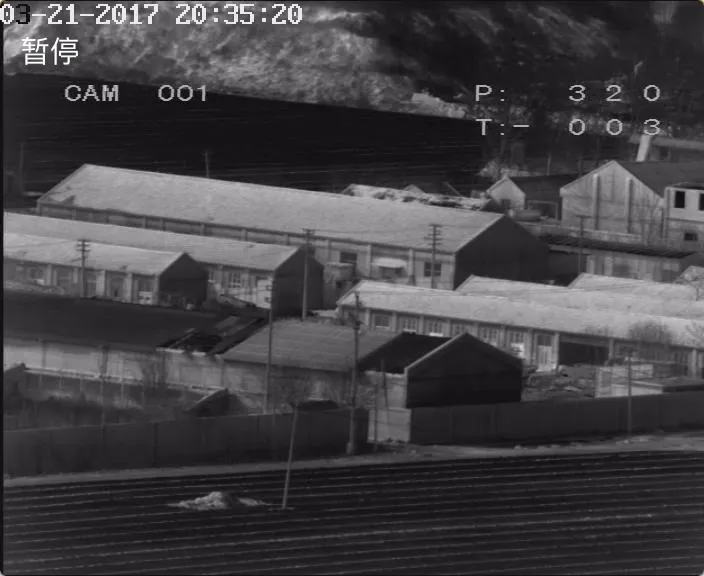

Monitoring Effect 1

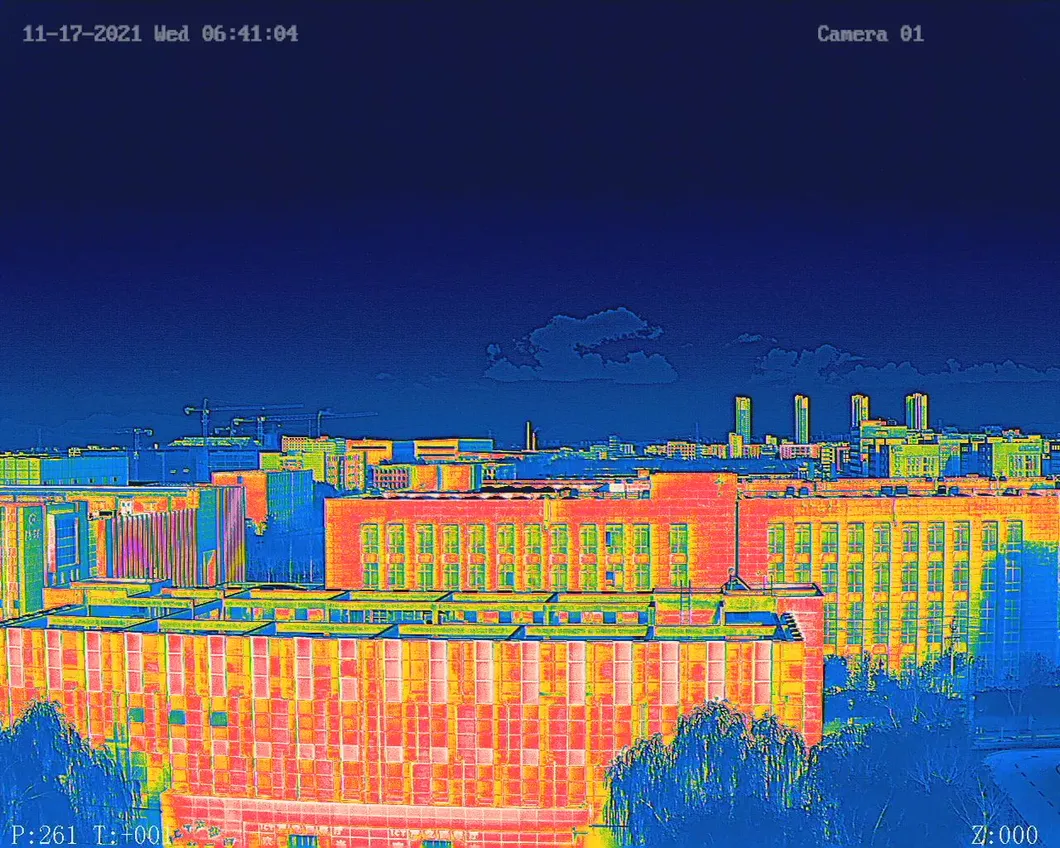

Monitoring Effect 2
Frequently Asked Questions
What is the maximum effective distance of this camera?
The system offers different configurations with effective monitoring distances ranging from 9km up to 19.9km for vehicle detection, depending on the specific model and sensor selected.
Is this thermal camera suitable for extreme weather?
Yes, the system is rated IP66 for waterproof and weatherproof protection. It is constructed with a high-reliability aluminum alloy designed to resist wind, salt fog, and extreme temperatures.
Does the system support automatic tracking or focusing?
The camera includes an optional auto-focusing function and 3D locating capabilities, which allow for frame selection magnification and click-to-center operations to reduce difficulty in usage.
Can it be used for both day and night surveillance?
Absolutely. It features a dual-sensor design combining a high-resolution thermal imaging camera with a 2-megapixel low-illuminance color camera for 24/7 continuous monitoring.
What kind of power supply does the unit require?
The system utilizes a wide-range waterproof power adapter (AC90-295V) with a power consumption of ≤180W.
How many preset positions can the PTZ handle?
The photoelectric pod supports up to 255 preset positions and includes auto-cruise functionality with 2 paths, accommodating 64 presets each.
