| Model NO. | MXR100030 |
| Power Supply | 3phase+PE |
| Communication Mode | Can Bus |
| Input Current | <60A |
| Input Voltage | 285VAC to 475VAC |
| Output Current | 0-100A |
| Output Voltage | 100VDC to 1000VDC |
| Parallel Quantity | Max Number Is 60 |
| Warranty | 12 Months |

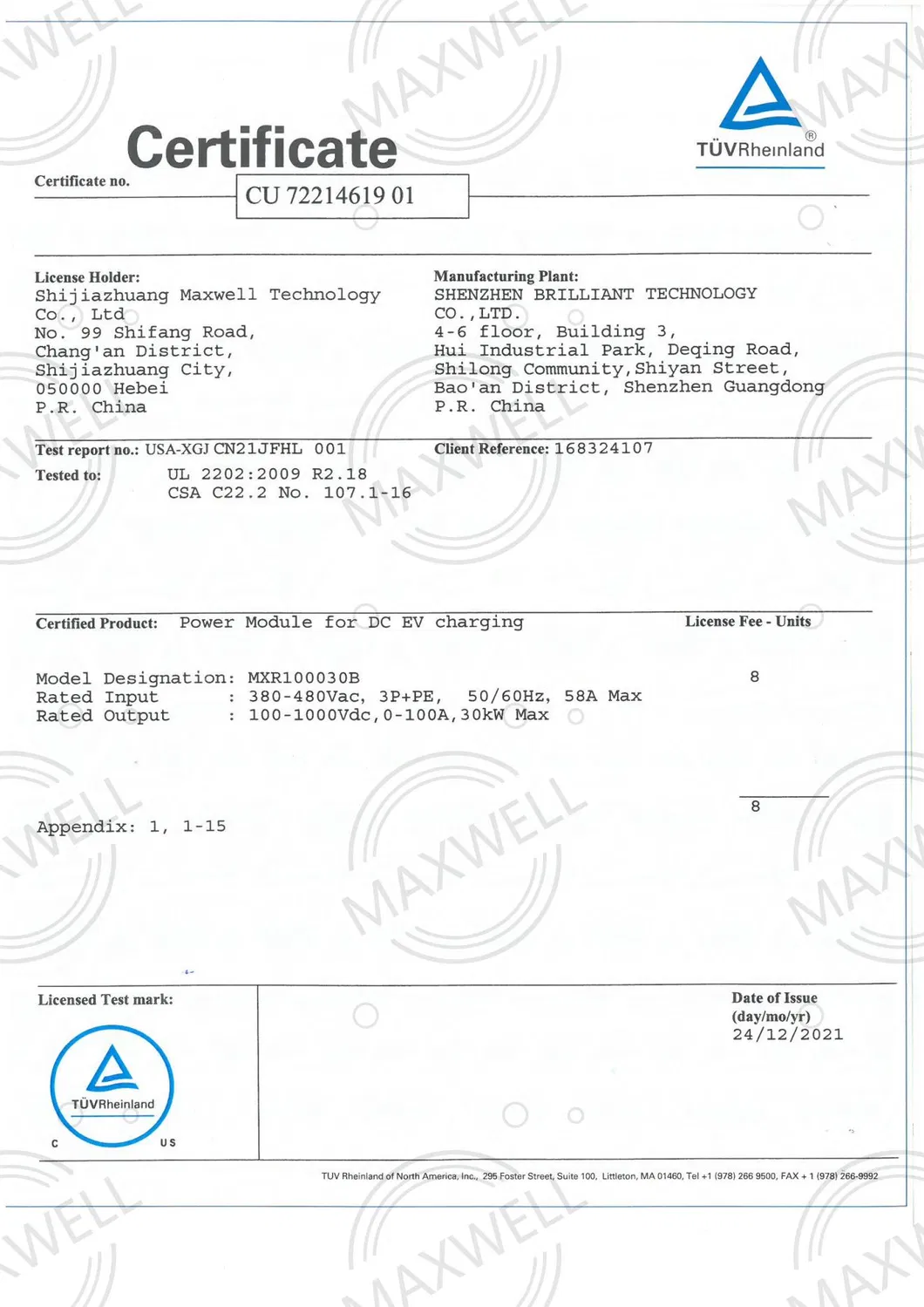

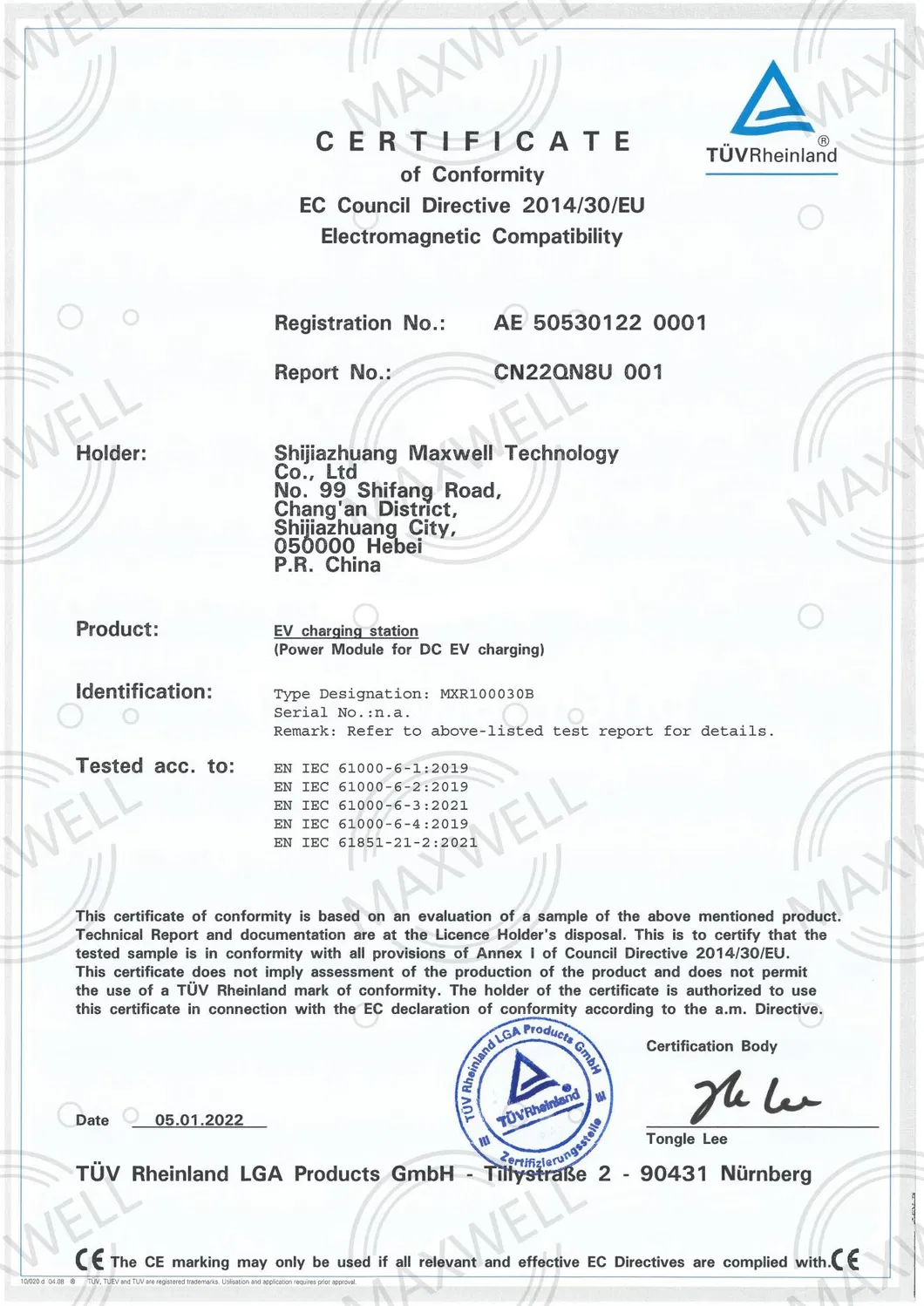

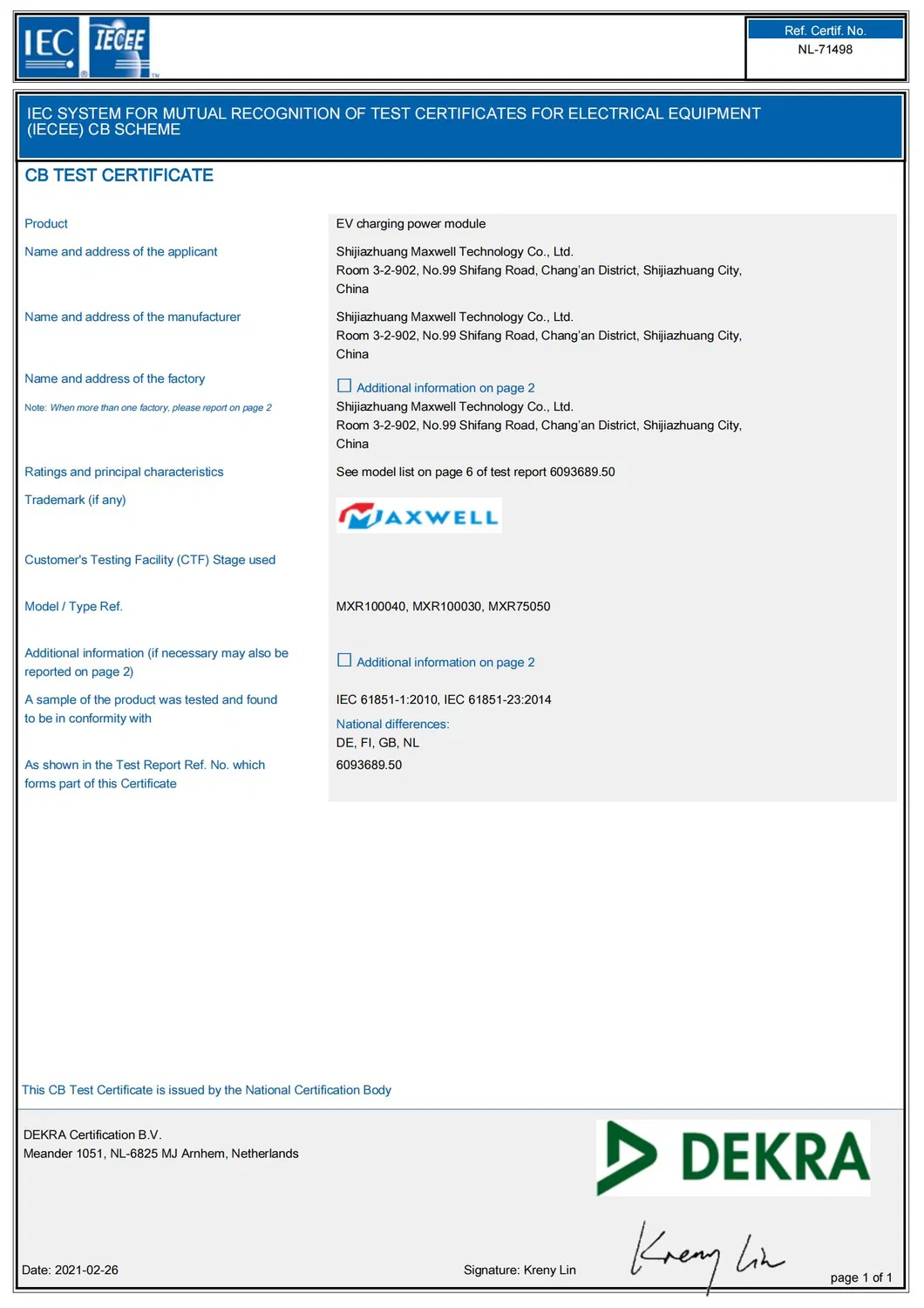

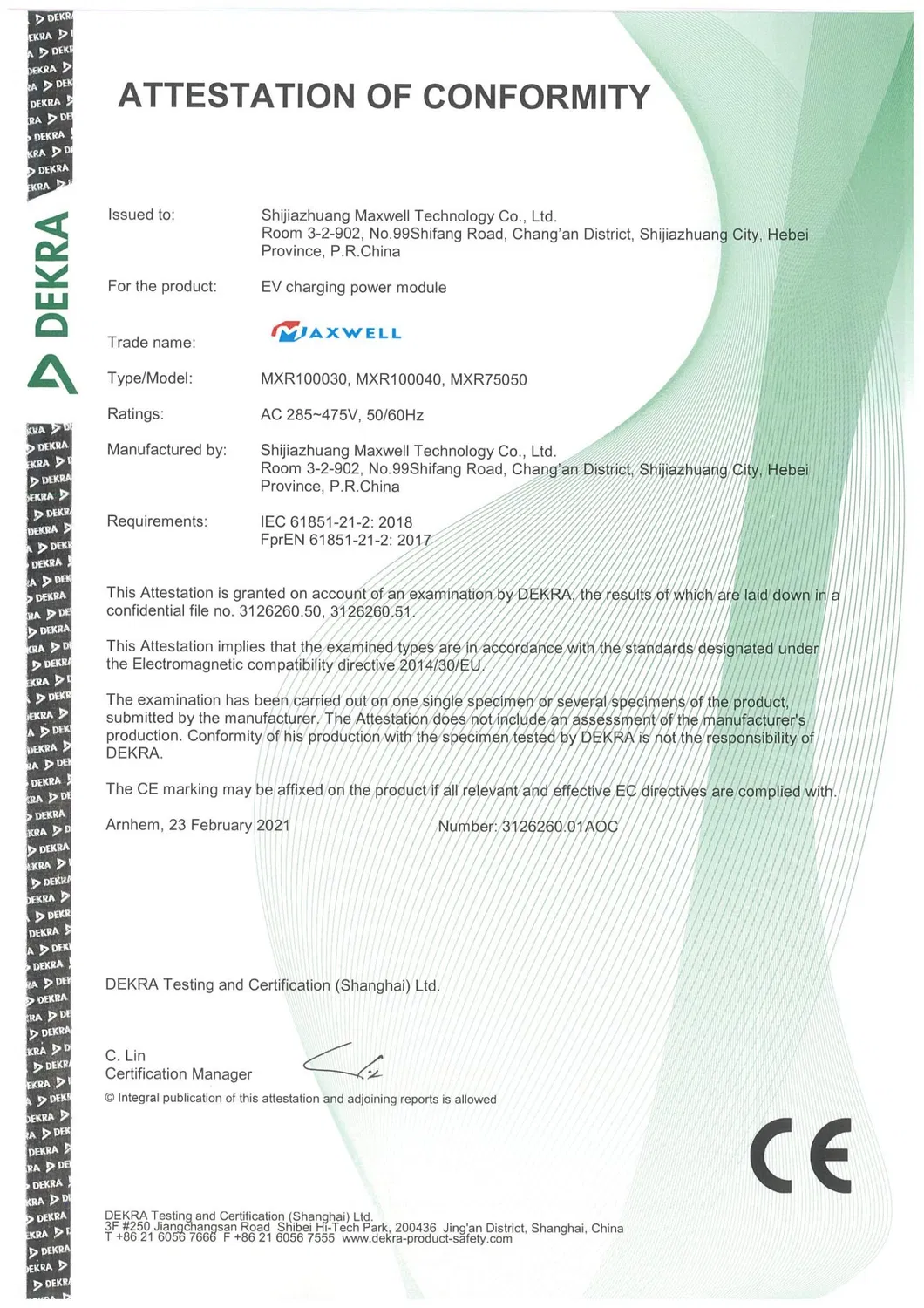

| Certification | CE, ISO, TUV, RoHS |
| Specification | 459*360*82mm |
| HS Code | 8504409999 |
| Production Capacity | 10,000/PCS Per Month |

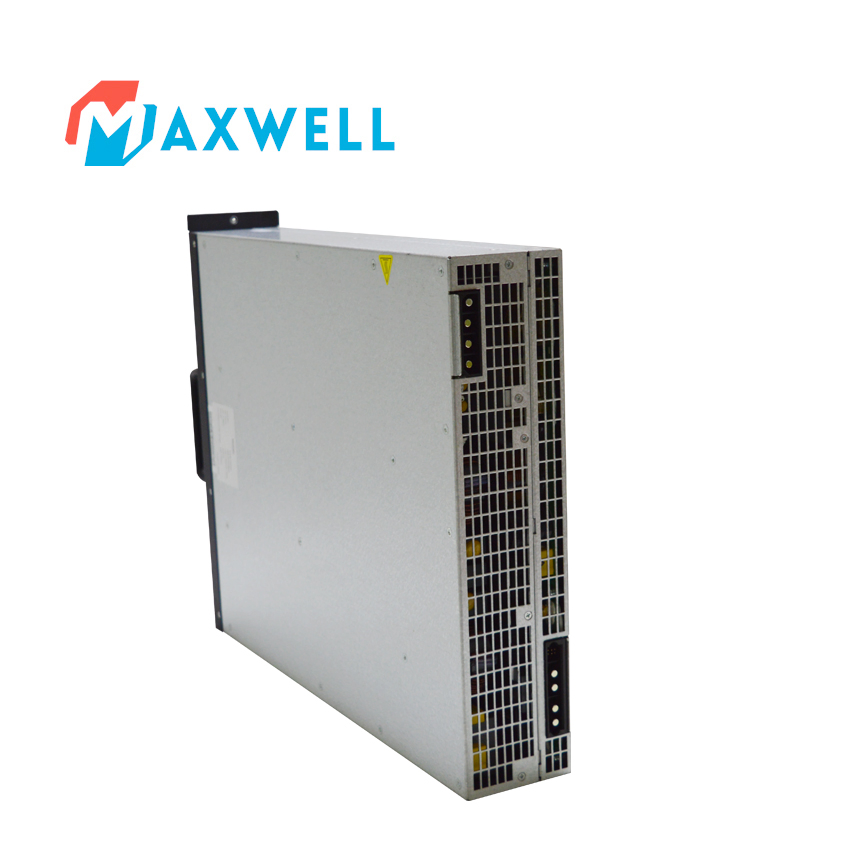

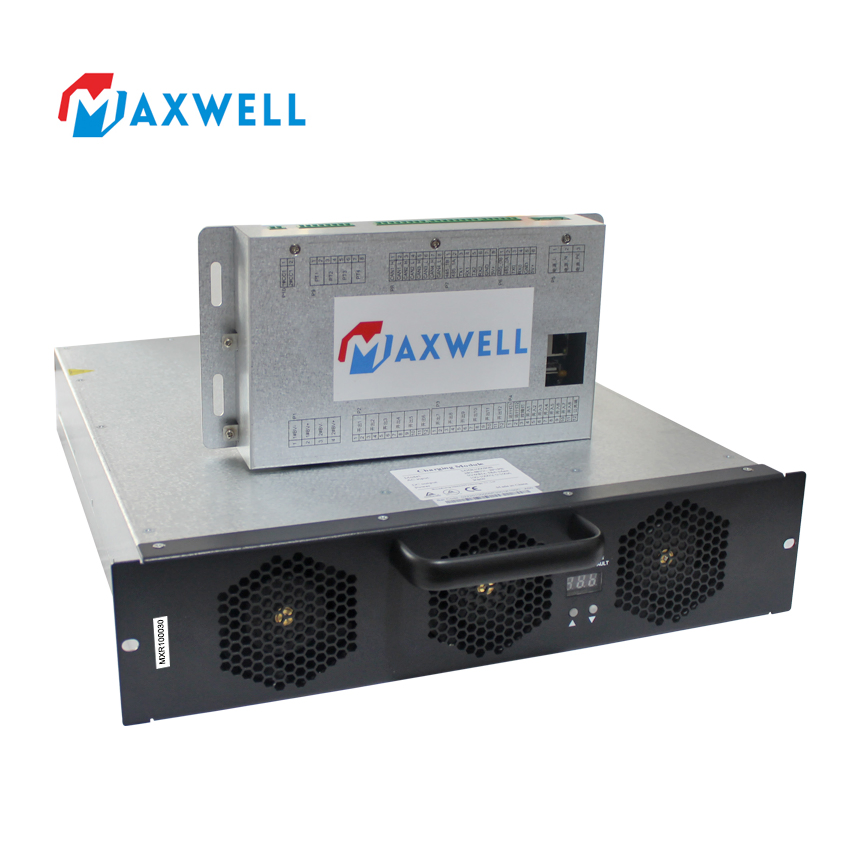

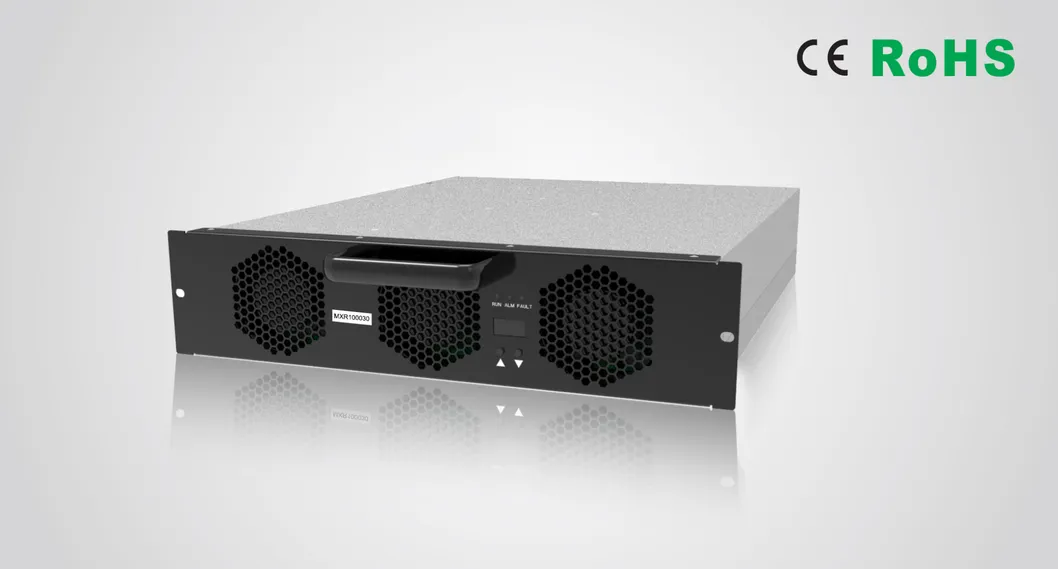

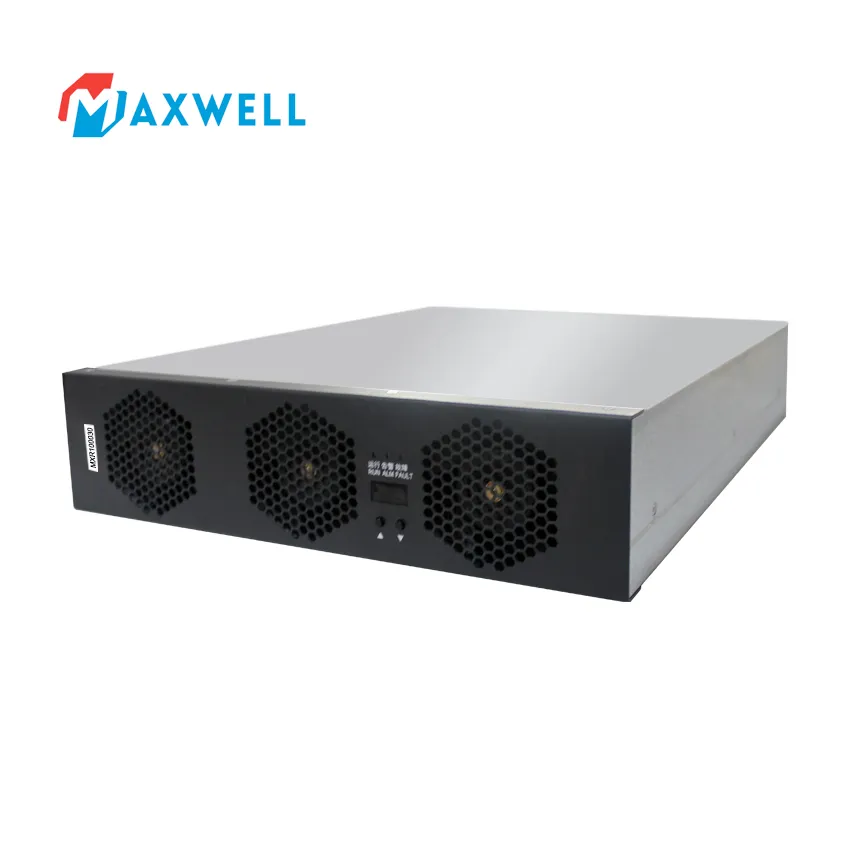

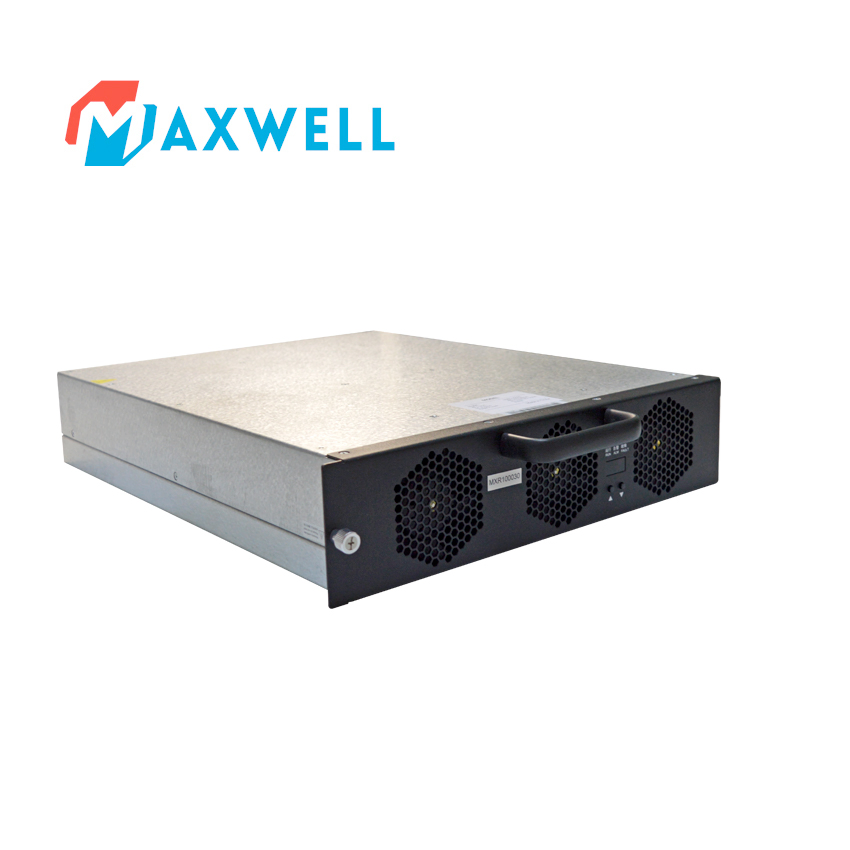

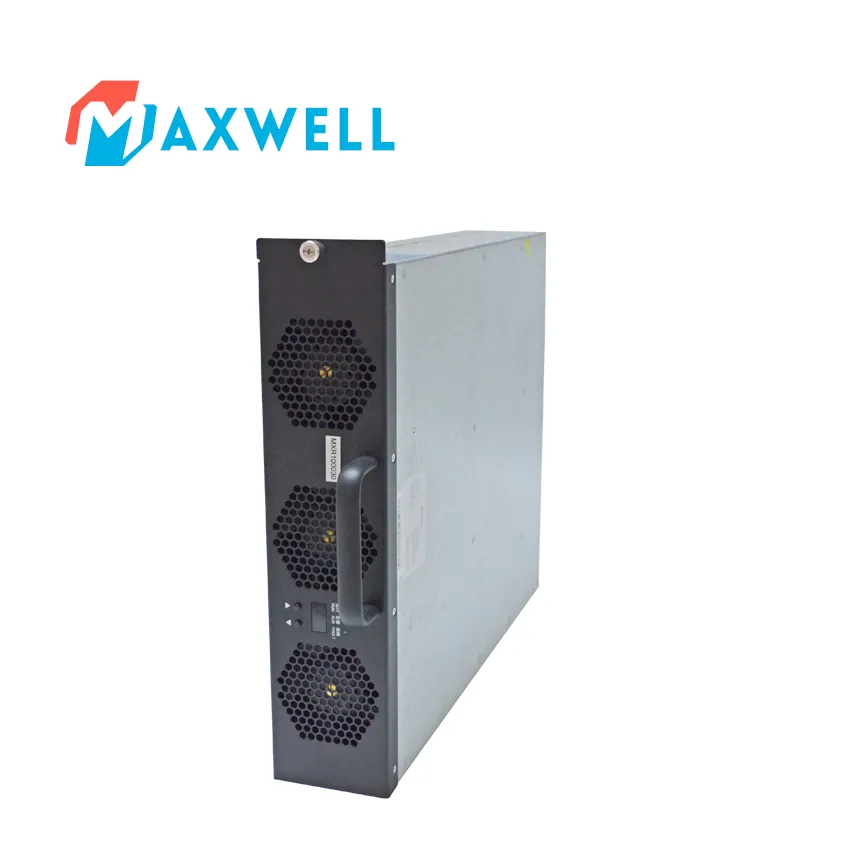

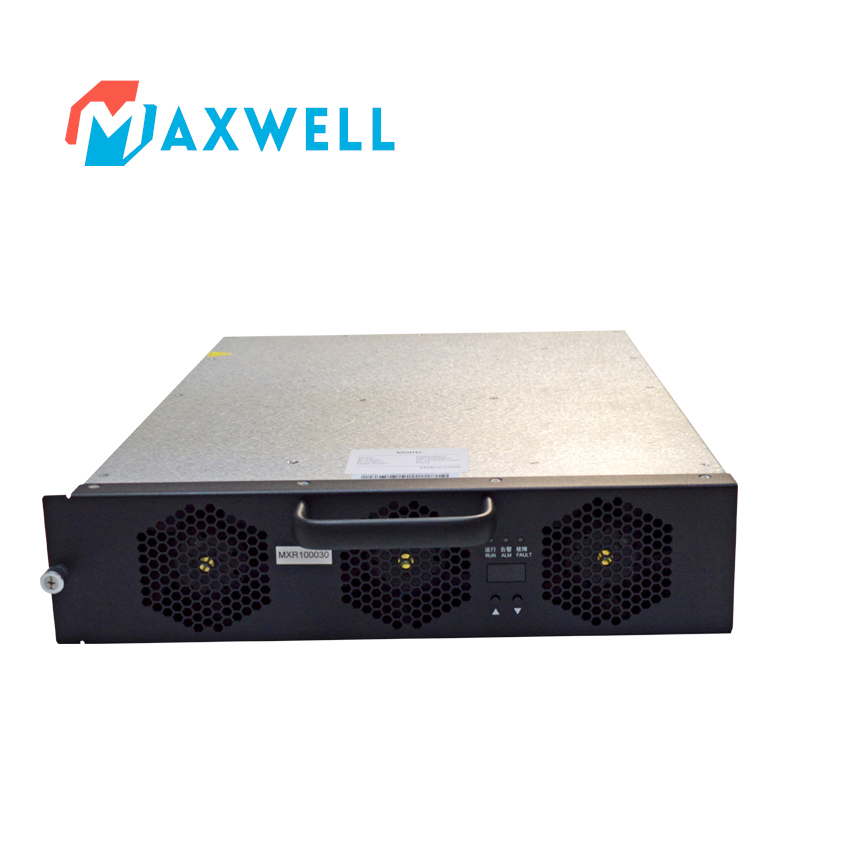

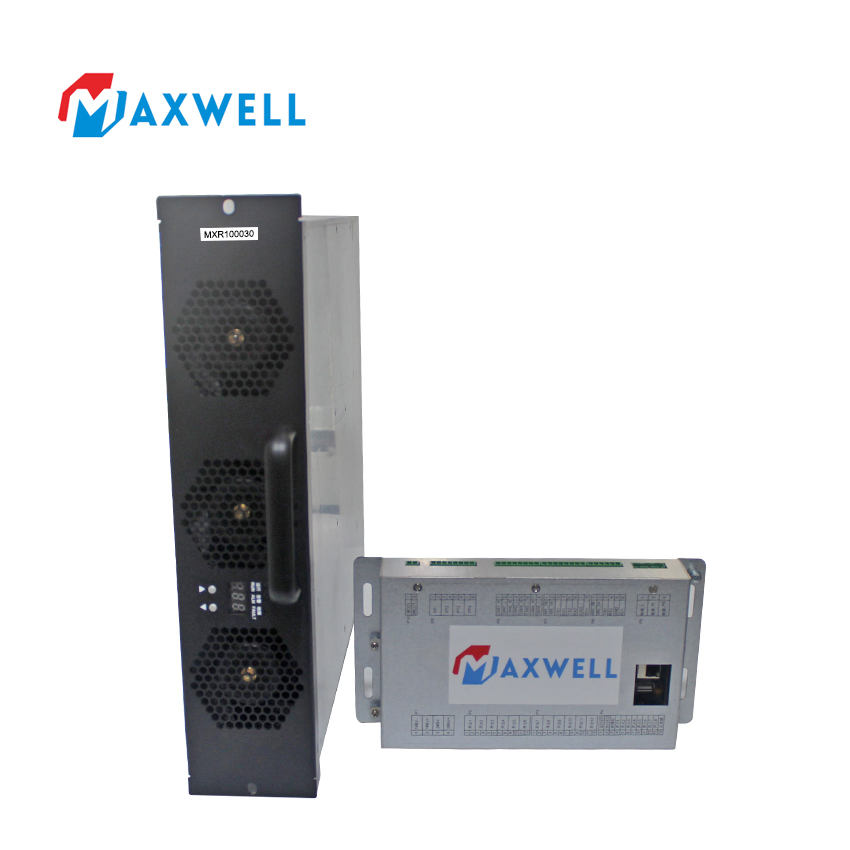

MXR100030 is a charging power module developed for the shortage of charging pile industry. It has prominent advantages in the two major industries of ultra-high full-load operating temperature and ultra-wide constant power range. At the same time, high reliability, high efficiency, high power factor, high power density, wide output voltage range, low noise, low standby power consumption and good EMC performance are also the main characteristics of the module.
| Dimensions | 85mm(H)*360mm(W)*459mm(D) |
| Communication Mode | CAN bus |

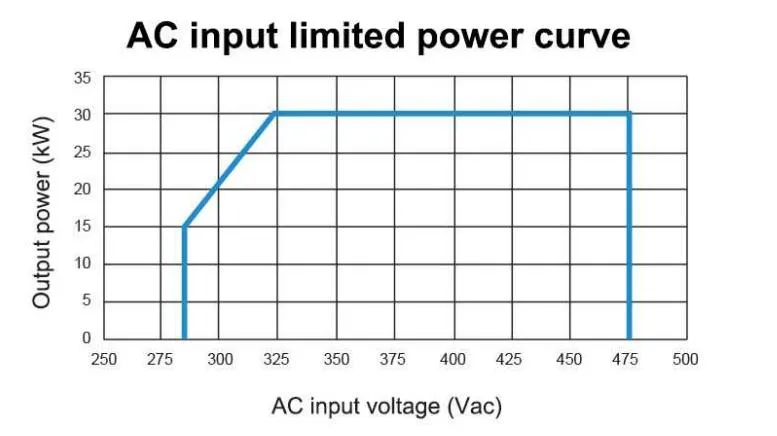

| Input Voltage | 285Vac-475Vac, three phase+PE |
| Power Factor | ≥0.99 |

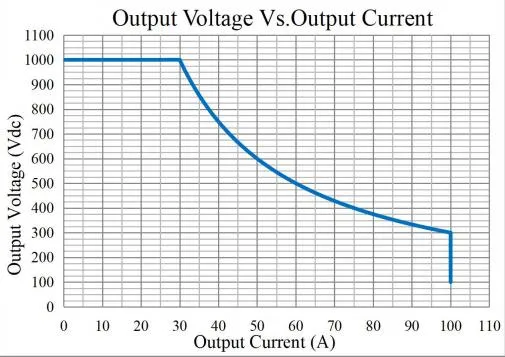

| Output Power | 30kw @ ≥300Vdc |
| Voltage Range | 100Vdc-1000Vdc (Default: 200Vdc) |
| Operating Temp | -40°C to +75°C |
| Standards | IEC61851-21-2:2018; EN61851-21-2-2017 |
As a state-level high-tech enterprise and one of the leading enterprises of new energy and energy internet, we focus on the research and development, production and sales of power electronic products. We provide services for mid-to-high-end DC power supply system manufacturers, based on owning independent intellectual property rights, insisting on technological innovation in the course of operation.
With over ten years of establishment, the company has built a high-quality R&D team, serving as a practitioner of technological innovation in the power supply industry. We offer more than 20 models of products including 15kW, 20kW, 30kW, 40kW, and 50kW series. Our products are widely used in automotive, electric power, railway, metallurgy, and communications fields globally.
