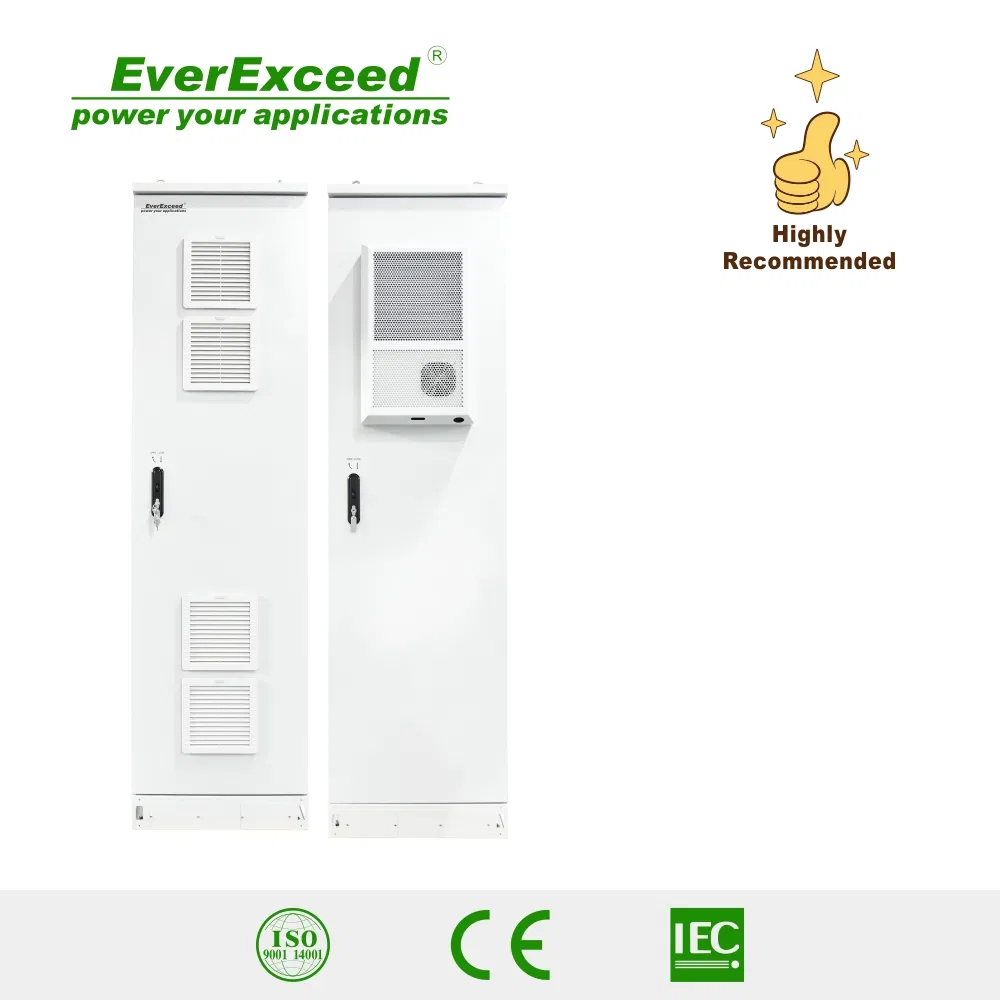

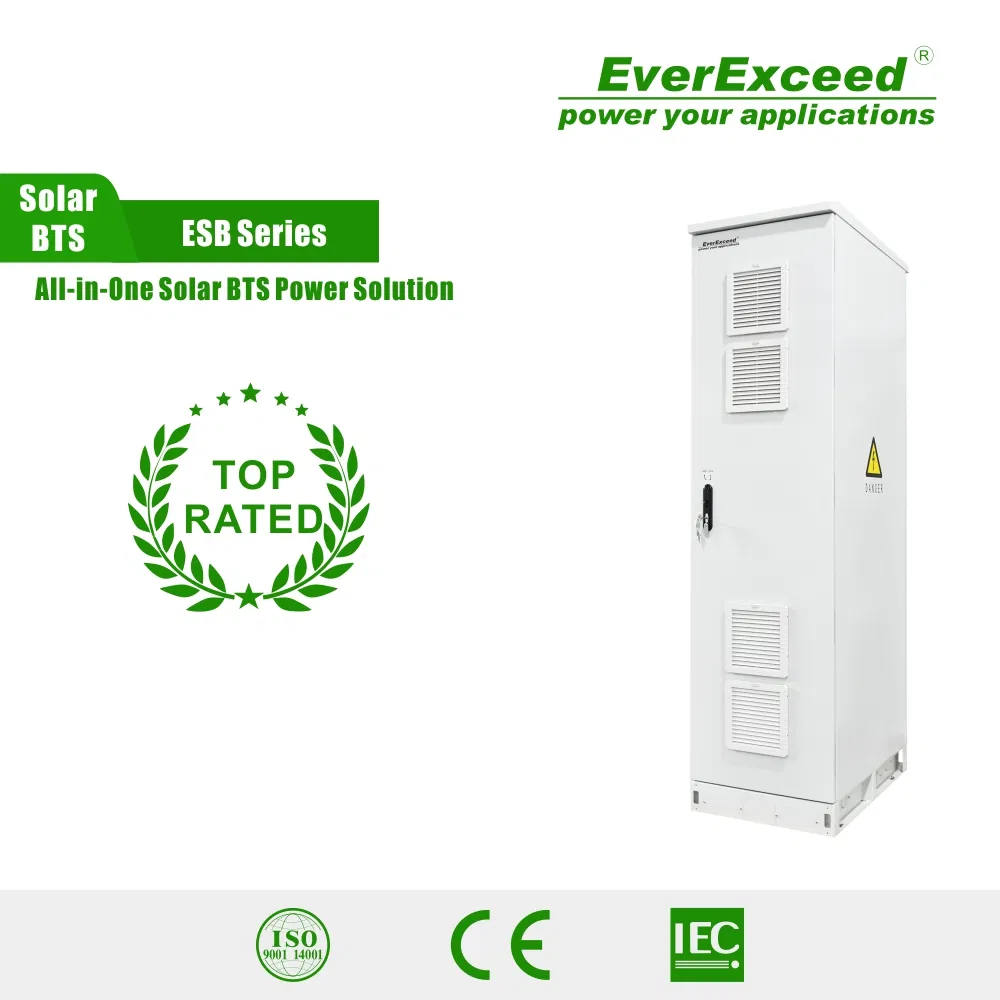

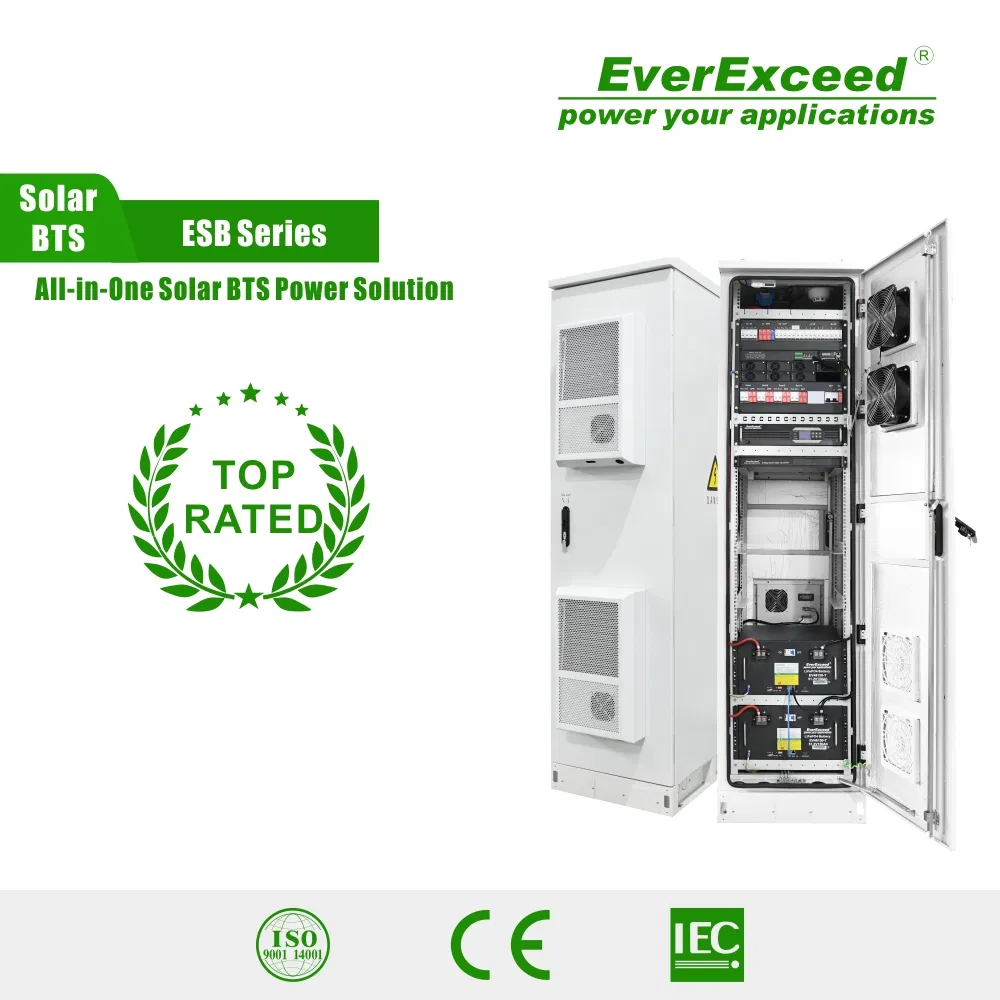

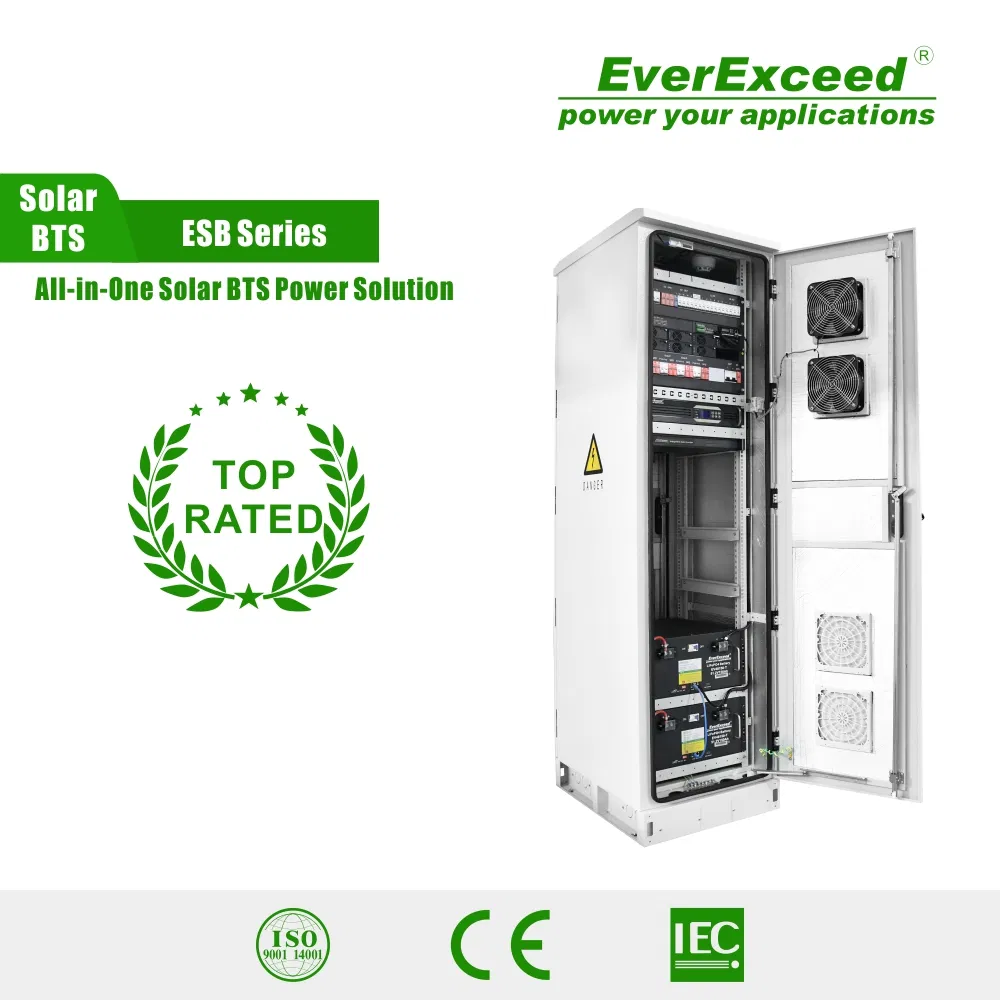

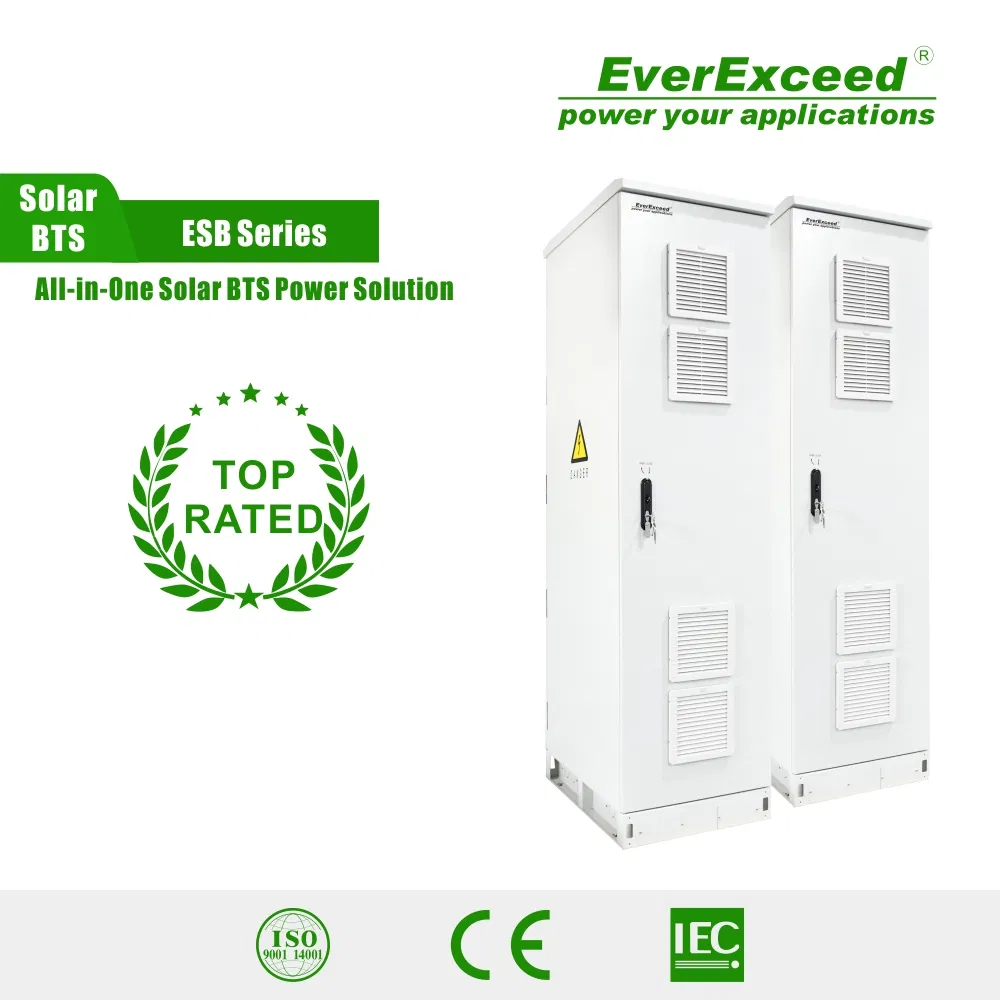

Energy-Efficient Hybrid Telecom Power for Modern Networks
Energy-Efficient Hybrid Telecom Power for Modern Networks
Energy-Efficient Hybrid Telecom Power for Modern Networks
Energy-Efficient Hybrid Telecom Power for Modern Networks
Energy-Efficient Hybrid Telecom Power for Modern Networks
1 / 5
Energy-Efficient Hybrid Telecom Power for Modern Networks
Energy-Efficient Hybrid Telecom Power for Modern Networks
Energy-Efficient Hybrid Telecom Power for Modern Networks
Energy-Efficient Hybrid Telecom Power for Modern Networks
Energy-Efficient Hybrid Telecom Power for Modern Networks

Energy-Efficient Hybrid Telecom Power for Modern Networks

Customization: Available
After-sales Service: /
Warranty: /
Send Inquiry

Product Description

Basic Information
Model NO.
E2460
Condition
New
Certification
ISO, CE
Application
Outdoor
Specification
Normal, 670*720*990mm
Product Type
Hybrid Telecom Power System
Protection Level
IP65
Color
White
Energy Efficiency
98%
Transport Package
Carton Box or Wooden Pallets
HS Code
850131000
Packaging & Delivery
Package Size
42.00cm * 68.00cm * 168.00cm
Package Gross Weight
136.000kg
Energy-Efficient Hybrid Telecom Power
Energy-Efficient Hybrid Telecom Power
Telecom Power System Features
🛡️ Safer

1. Reliable uptime and lower maintenance costs.
2. Enhanced support with a dedicated team of experts.

💡 Smarter

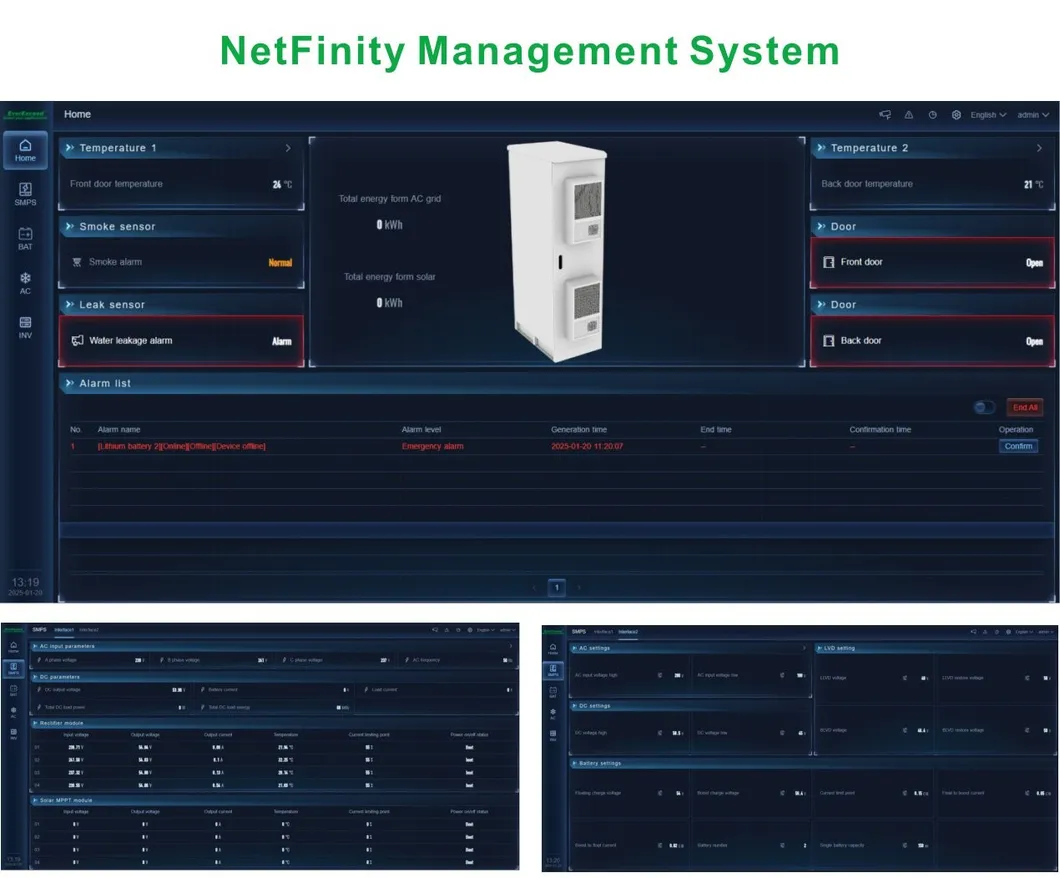

1. 24x7 remote and on-site monitoring for real-time visibility.
2. Compatible with smart lithium and lead-acid batteries to reduce CAPEX.

⚙️ Simpler

1. Factory pre-installed simple design.
2. Minimized energy consumption and flexible module expansion.

Technical Specifications
MPPT Module (ECM48-50V2)
MPPT Input Voltage Range100~400VDC (derate @100-200VDC)
Max PV Array Power3000W
Efficiency≥96%
Operating Temperature-40ºC to +75ºC
Rectifier Module (ERC48-50V2)
Input Voltage Range90~300VAC
Peak Efficiency96%
Rated Power3000W
Nominal Output Voltage48VDC
Monitoring & General Data
Communication PortRS485/SNMP
Protection LevelIP20 (Up to IP65)
Cabinet ColorRAL7035
Altitude2000m Max without derating

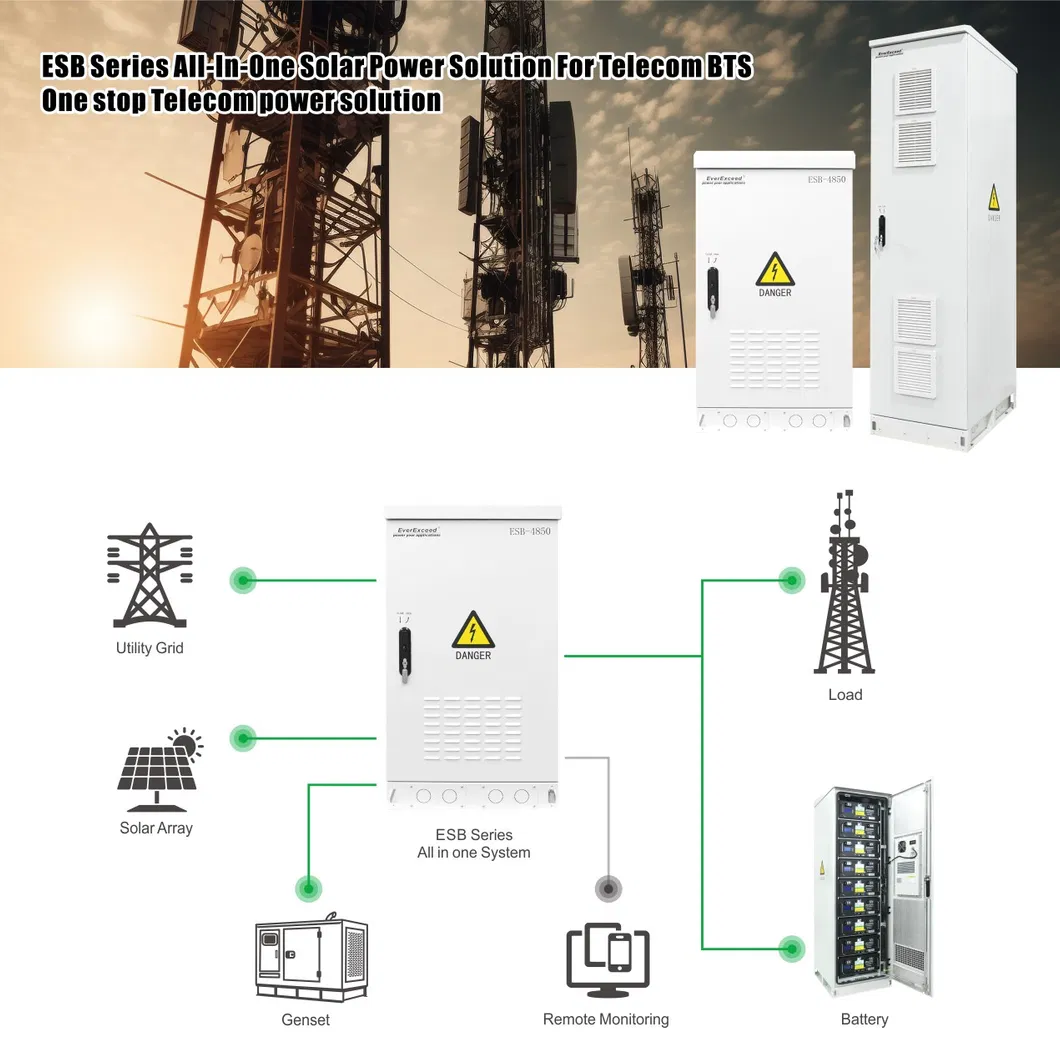

System Component Diagram
Applications

Telecom Base Stations, Solar Power Systems, Backup Power, Critical Power Systems, Remote Energy Solutions

Application Scenarios
Our Factory

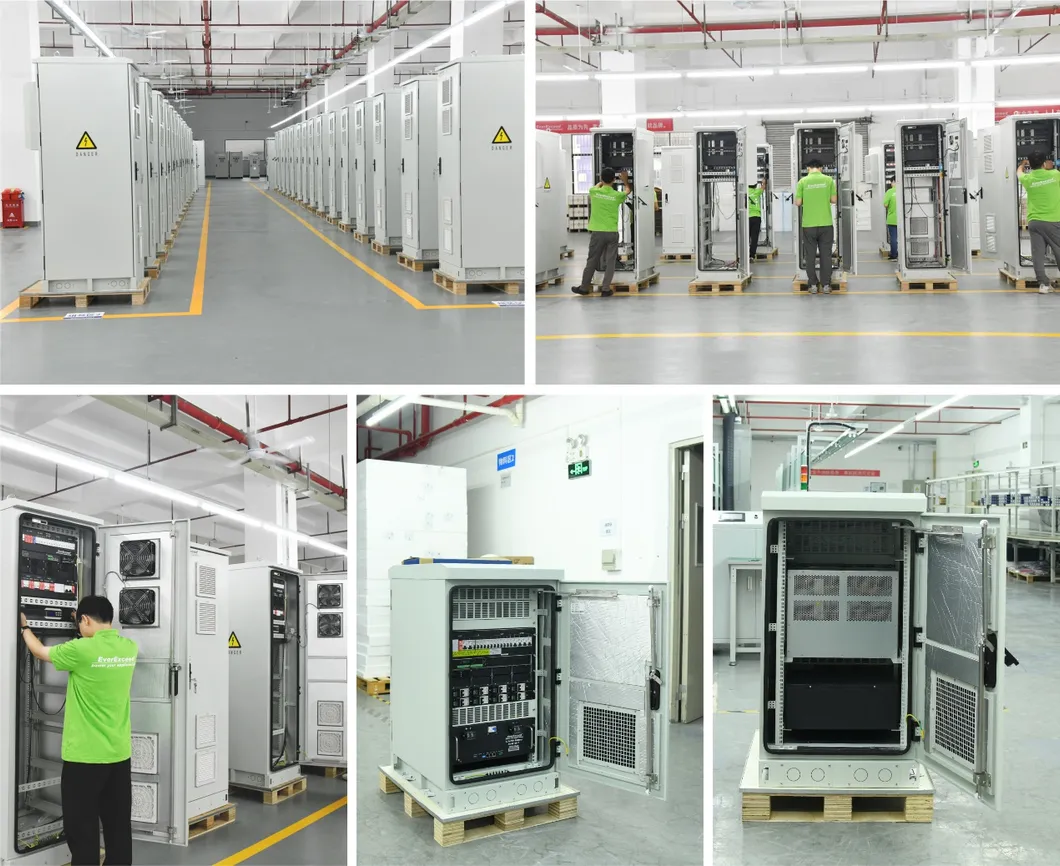

Production Facility
Frequently Asked Questions
What is the energy efficiency of this hybrid system?
The system features an overall energy efficiency of 98%, with MPPT and Rectifier modules reaching peak efficiencies of ≥96%.
Is the system suitable for outdoor environments?
Yes, the system is designed for outdoor applications with a protection level of IP65, ensuring durability against dust and water.
Does the power system support remote monitoring?
Absolutely. It features 24x7 remote and on-site monitoring via RS485/SNMP communication ports for real-time visibility and immediate anomaly detection.
Can I use different types of batteries together?
Yes, the smarter power system allows smart lithium, lead-acid, and standard lithium batteries to be used together, helping to reduce CAPEX.
What are the main application areas for this system?
It is primarily used for Telecom Base Stations, Solar Power Systems, Backup Power, Critical Power Systems, and Remote Energy Solutions.
What is the operating temperature range?
The general data lists an operating temperature of -10ºC to +45ºC, while specific modules like the MPPT can operate from -40ºC to +75ºC.
