Basic Specifications
Operation Voltage
Low Voltage
Application Range
Power Plants
Shell Material
Steel Plate
Protection Grade
IP65 / IK10
Specification
300*200*200MM

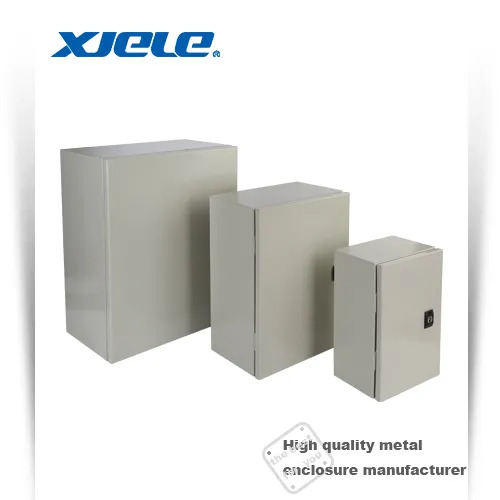

Product Overview
- Premium Material: Body and Door made from 1.2mm to 1.5mm sheet steel.
- Surface Finish: Epoxy polyester powder coating textured finish for body/door; flat finish for mounting plate.
- Protection: High protection degree IP65 against dust/water and IK10 against mechanical impacts.

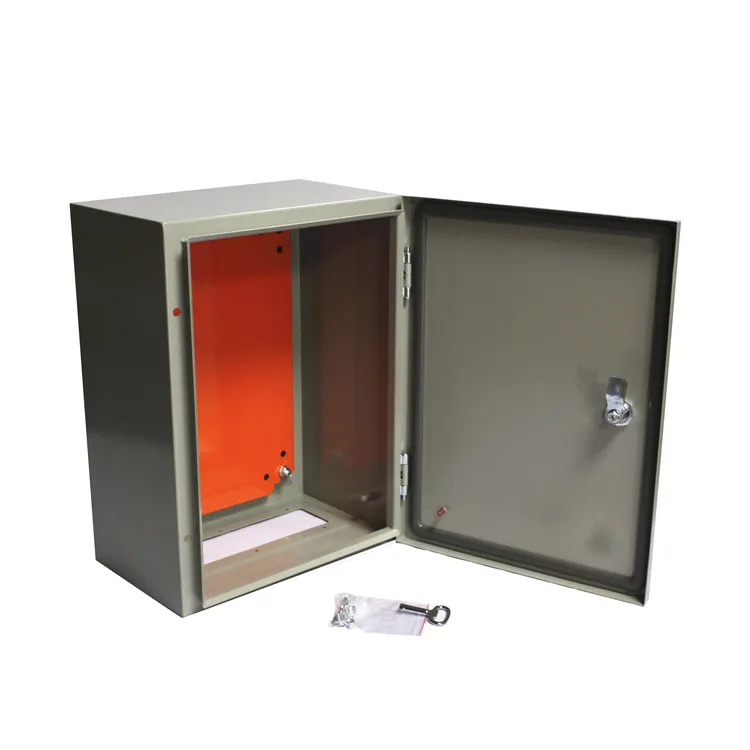

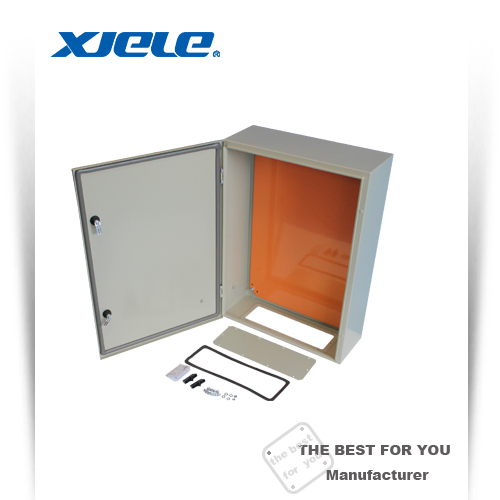

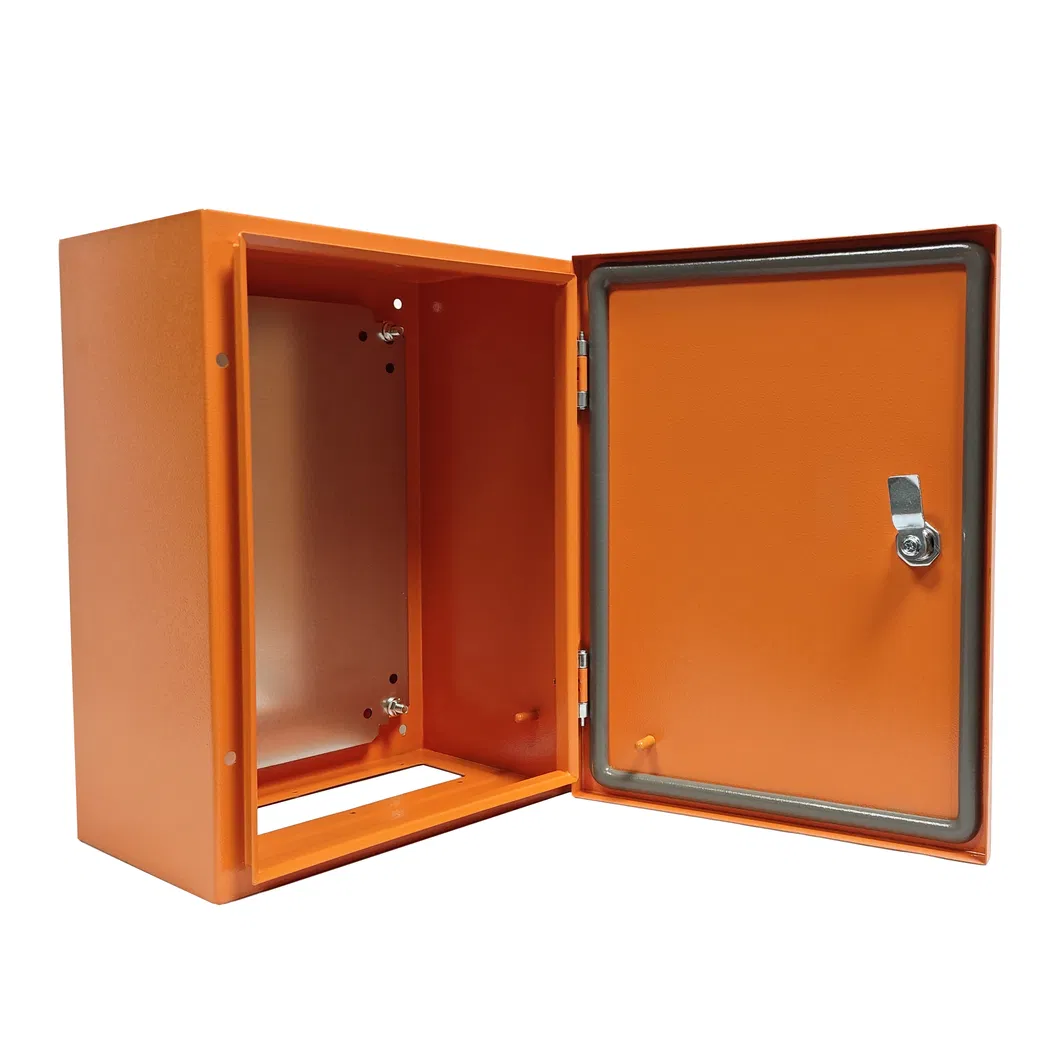

- Complete Supply: Includes enclosure, door, galvanized or orange painted mounting plate, locking system, gland plate, sealing gasket, and fixing accessories.
- Versatile Application: Ideal for electrical sheet metal waterproof outdoor distribution panel boards.
Product Details Gallery
Dimension Reference Table
| MODE |
H(MM) |
W(MM) |
D(MM) |
MODE |
H(MM) |
W(MM) |
D(MM) |
| XJBS-A 2020/15 | 200 | 200 | 150 | XJBS-A 6060/30 | 600 | 600 | 300 |
| XJBS-A 2520/15 | 250 | 200 | 150 | XJBS-A 7050/15 | 700 | 500 | 150 |
| XJBS-A 3020/15 | 300 | 250 | 150 | XJBS-A 7050/20 | 700 | 500 | 200 |
| XJBS-A 3025/20 | 300 | 250 | 200 | XJBS-A 7060/20 | 700 | 600 | 200 |
| XJBS-A 3030/15 | 300 | 300 | 150 | XJBS-A 8060/20 | 800 | 600 | 200 |
| XJBS-A 4030/20 | 400 | 300 | 200 | XJBS-A 8080/30 | 800 | 800 | 300 |
| XJBS-A 5040/25 | 500 | 400 | 250 | XJBS-A 10080/30 | 1000 | 800 | 300 |
| XJBS-A 6050/30 | 600 | 500 | 300 | XJBS-A 12080/40 | 1200 | 800 | 400 |
Frequently Asked Questions
What is the protection rating of this sheet metal enclosure?
The enclosure features an IP65 protection grade, ensuring it is dust-tight and protected against water jets. It also carries an IK10 rating against mechanical impacts.
What materials are used in the construction?
The body and door are made from 1.2mm sheet steel for standard sizes and 1.5mm for larger units. The mounting plate utilizes 1.5mm to 2.0mm sheet steel.
Can I request a customized size or thickness?
Yes, we accept customized sizes, specific thickness requirements, and various processing requirements to meet your project needs.
What is included in the standard supply package?
The supply includes the enclosure, door, a mounting plate (galvanized or orange painted), locking system, gland plate, sealing gasket, and all necessary fixing accessories.
What type of surface finish is applied?
We use a high-quality epoxy polyester powder coating. The body and door feature a textured finish, while the mounting plate has a flat finish.
What are the common applications for this product?
It is widely used in power plants and for outdoor distribution panel boards where waterproof and durable protection is required for electrical components.
