Dpc Dynamic Power Smart Sys E3121300r48 DC Power System
Dpc Dynamic Power Smart Sys E3121300r48 DC Power System
Dpc Dynamic Power Smart Sys E3121300r48 DC Power System
Dpc Dynamic Power Smart Sys E3121300r48 DC Power System
Dpc Dynamic Power Smart Sys E3121300r48 DC Power System
1 / 5
Dpc Dynamic Power Smart Sys E3121300r48 DC Power System
Dpc Dynamic Power Smart Sys E3121300r48 DC Power System
Dpc Dynamic Power Smart Sys E3121300r48 DC Power System
Dpc Dynamic Power Smart Sys E3121300r48 DC Power System
Dpc Dynamic Power Smart Sys E3121300r48 DC Power System

Dpc Dynamic Power Smart Sys E3121300r48 DC Power System

Customization: Available
Output Type: Multiple
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications

Model NO.Smart SYS E3121300R48
Output Power8kw
Input Voltage220V
Connection ModeSeries Switching Power Supply
Starting ModeSelf-excited Switching Power Supply
Voltage RegulatingFrequency Modulation Type
Energy TransmissionTwo-way Transmission
Modulation SystemPWM
CertificationCE, RoHS, ISO, CCC, CB, FCC
ConditionBrand New

Product Description

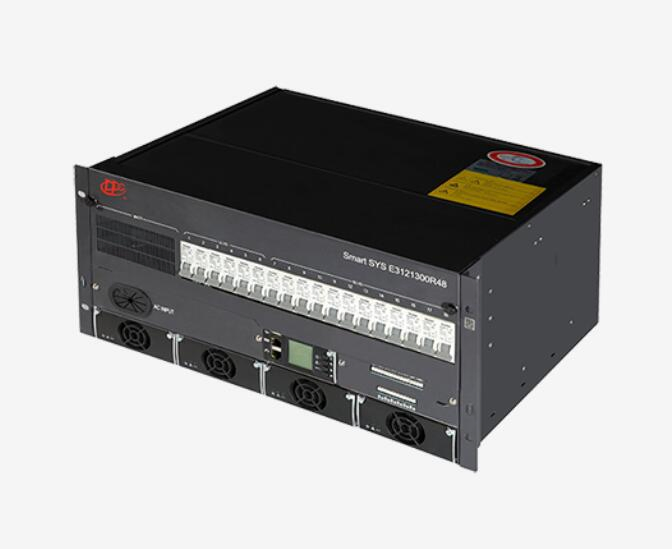

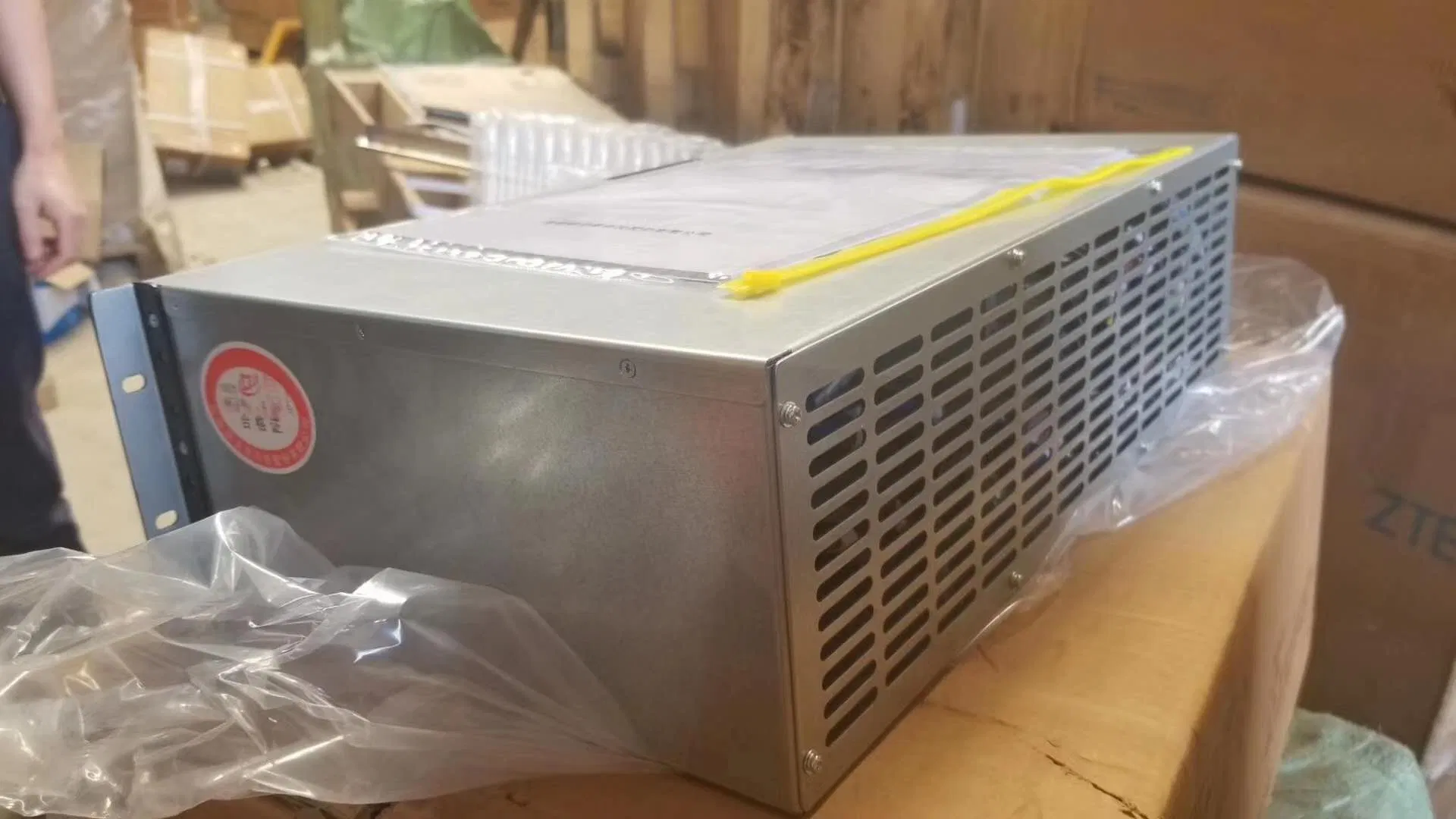

The Smart SYS E3121300R48 system is a compact and intelligent power system designed for modern telecommunications requirements. It is engineered to house up to 4x2KW rectifiers and 1xSC500 controller, providing a robust and reliable power solution in a minimal footprint.

✓Front access and operation for AC input, DC output, and dry contacts.
✓Compact design for easy installation in various environments.
✓Dual-level Low Voltage Disconnect (LVD) protection.
✓Equipped with two battery MCBs for enhanced safety.
✓Broad compatibility with rectifiers of the same form factor.

Key Features

⚡19'' 5U sub-rack for standard telecom equipment embedding.
⚡Up to 8KW total system capacity.
⚡High efficiency with up to 0.99 power factor.
⚡Intelligent fan-cooling rectifier modules.
⚡Hot-swap support for seamless maintenance.
⚡N+1 rectifier module redundancy.
⚡Advanced battery monitoring and ECO mode for energy saving.

Technical Specifications

Input Voltage85VAC-300VAC
Output Voltage-53.5V Rated
Input Current≤12A (Per rectifier)
Frequency45~65Hz
Voltage Regulation≤±1%
Efficiency≥93%
Ripple and Noise≤200mV Peak-Peak
Psophometric Noise≤2mV

Compatible Hotsale Modules

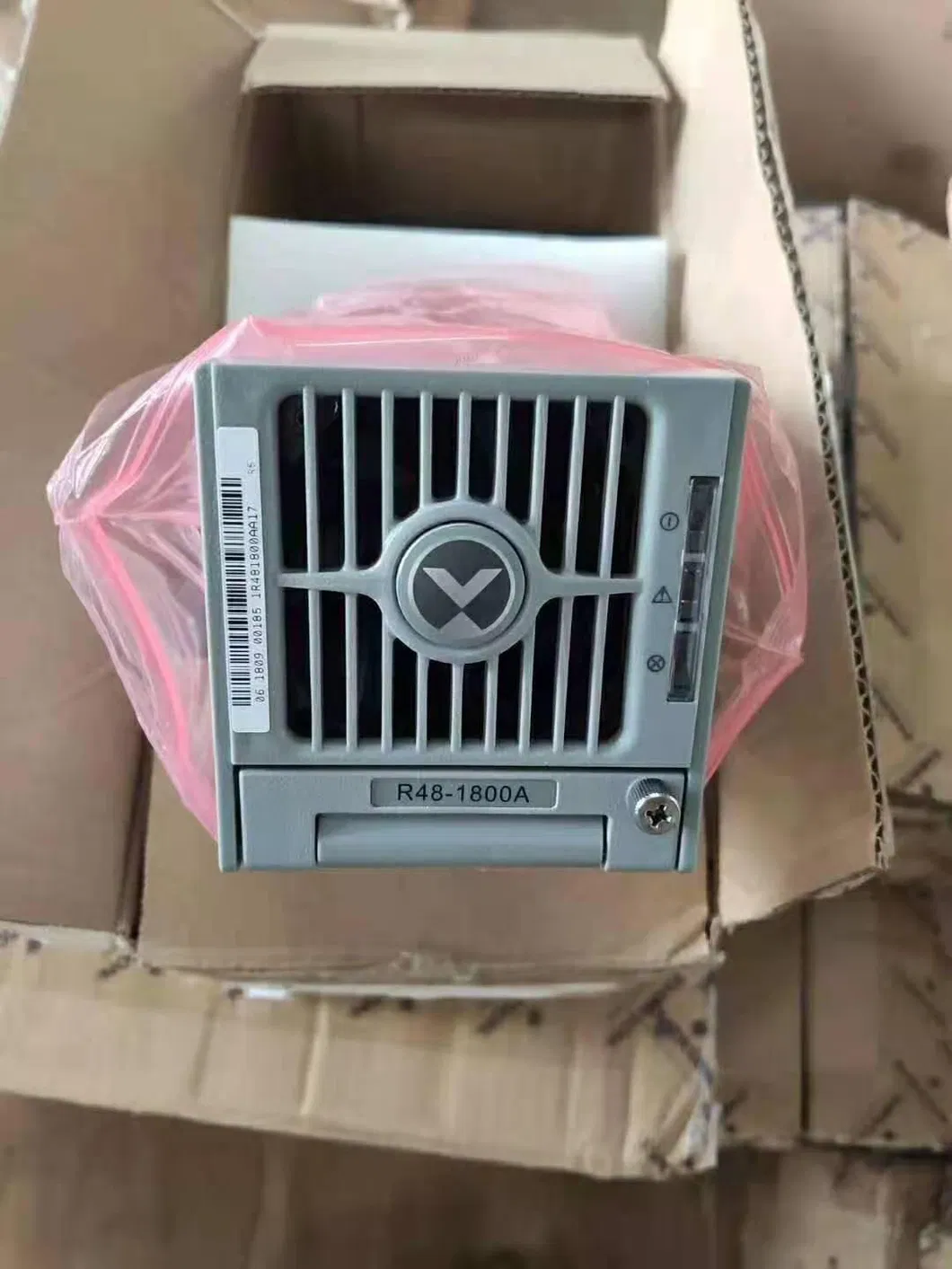

R48-1800A
Emerson/Vertiv R48-1800A

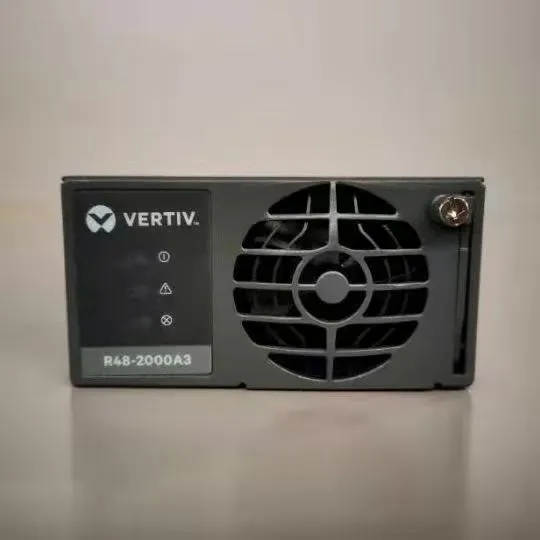

R48-2000A3
Emerson/Vertiv R48-2000A3

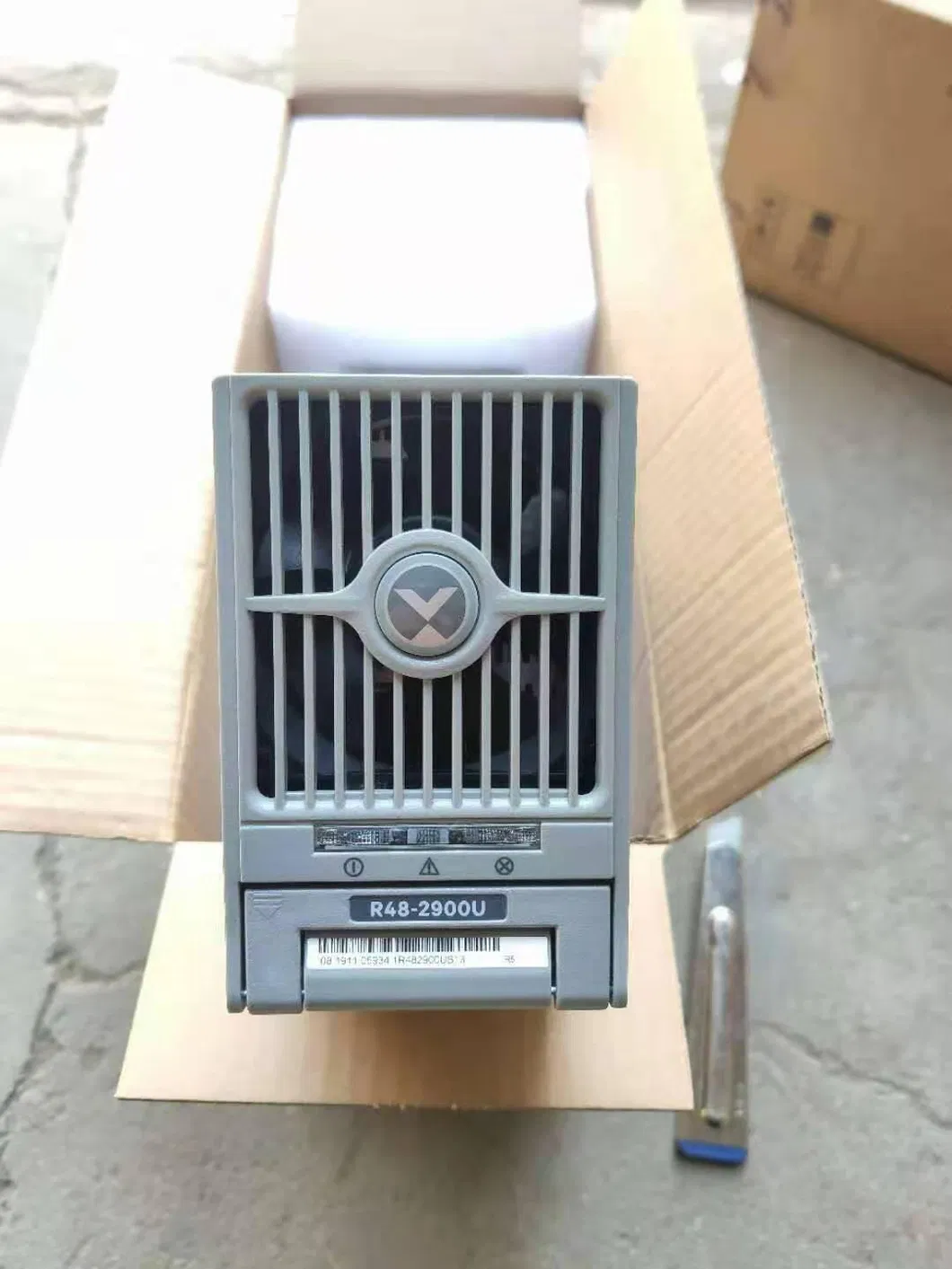

R48-2900U
Emerson/Vertiv R48-2900U

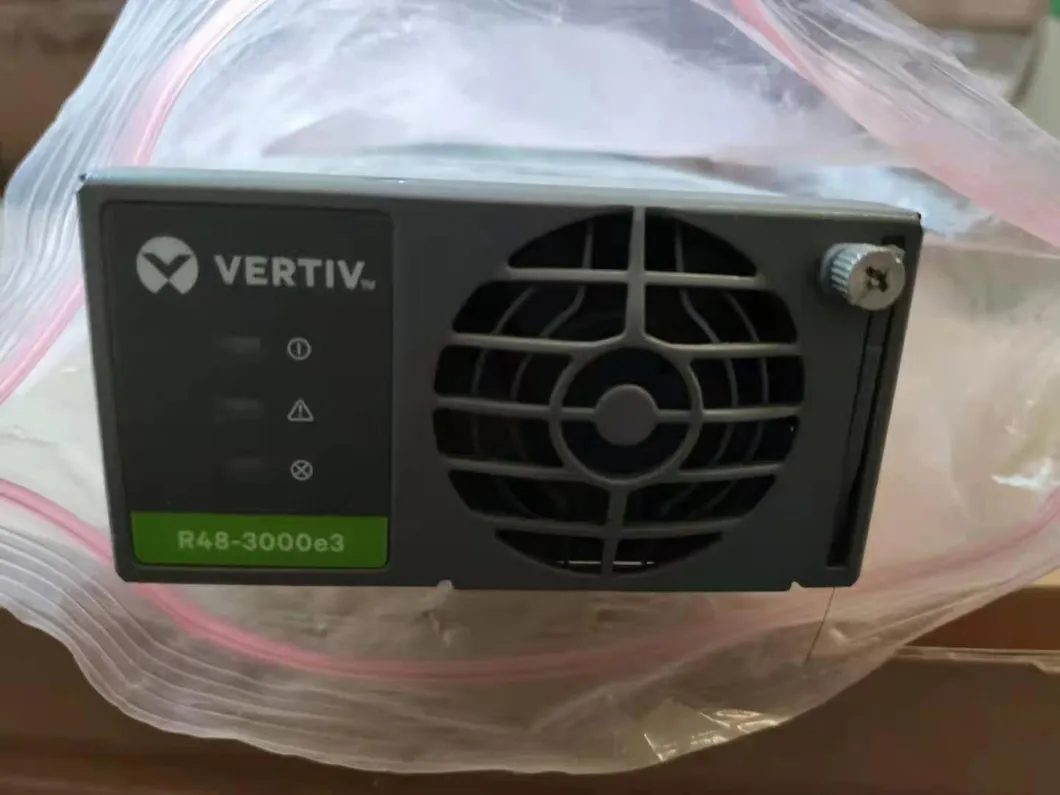

R48-3000e3
Emerson/Vertiv R48-3000e3

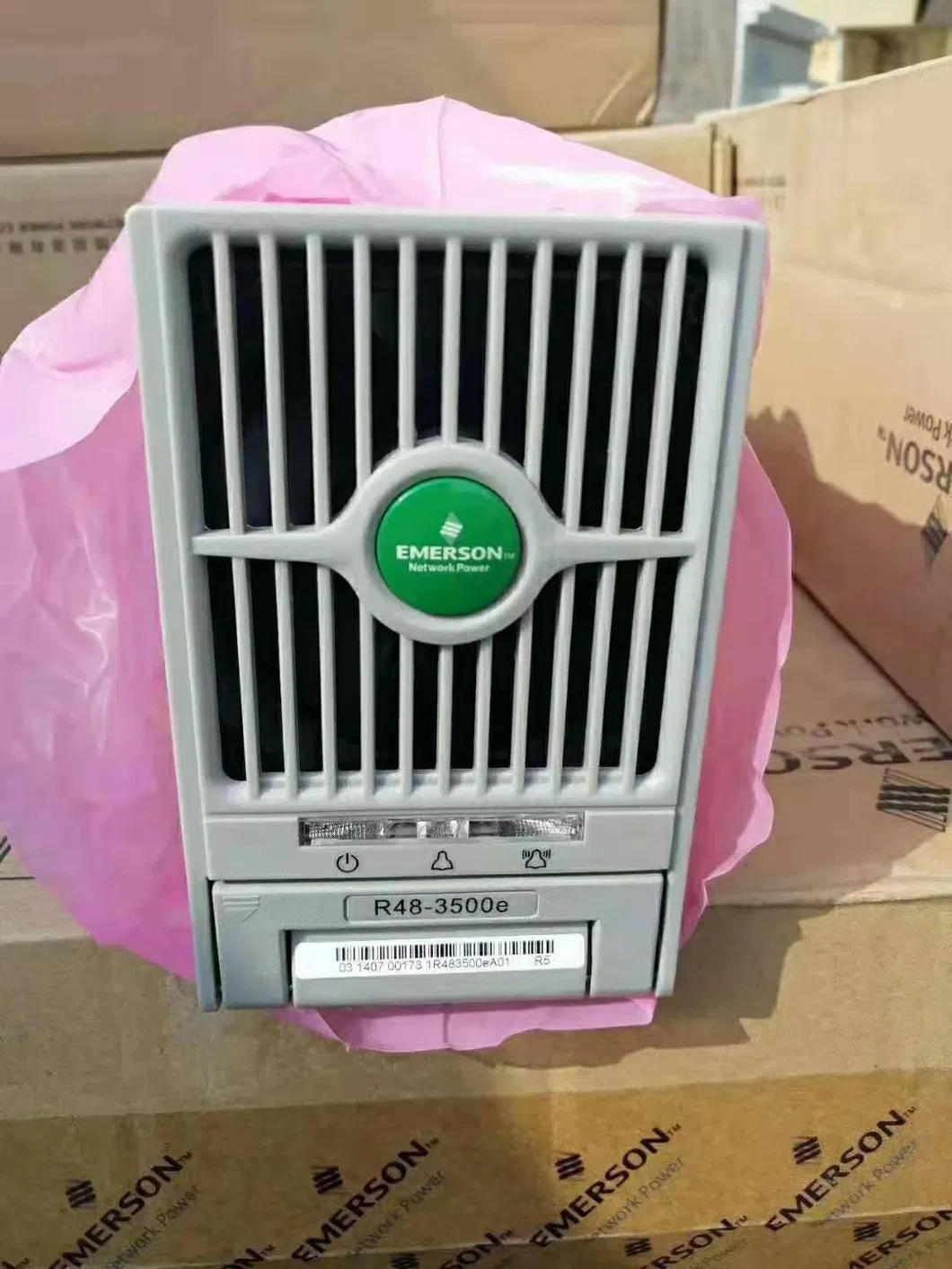

R48-3500e
Emerson/Vertiv R48-3500e
R48-5800A
Emerson/Vertiv R48-5800A

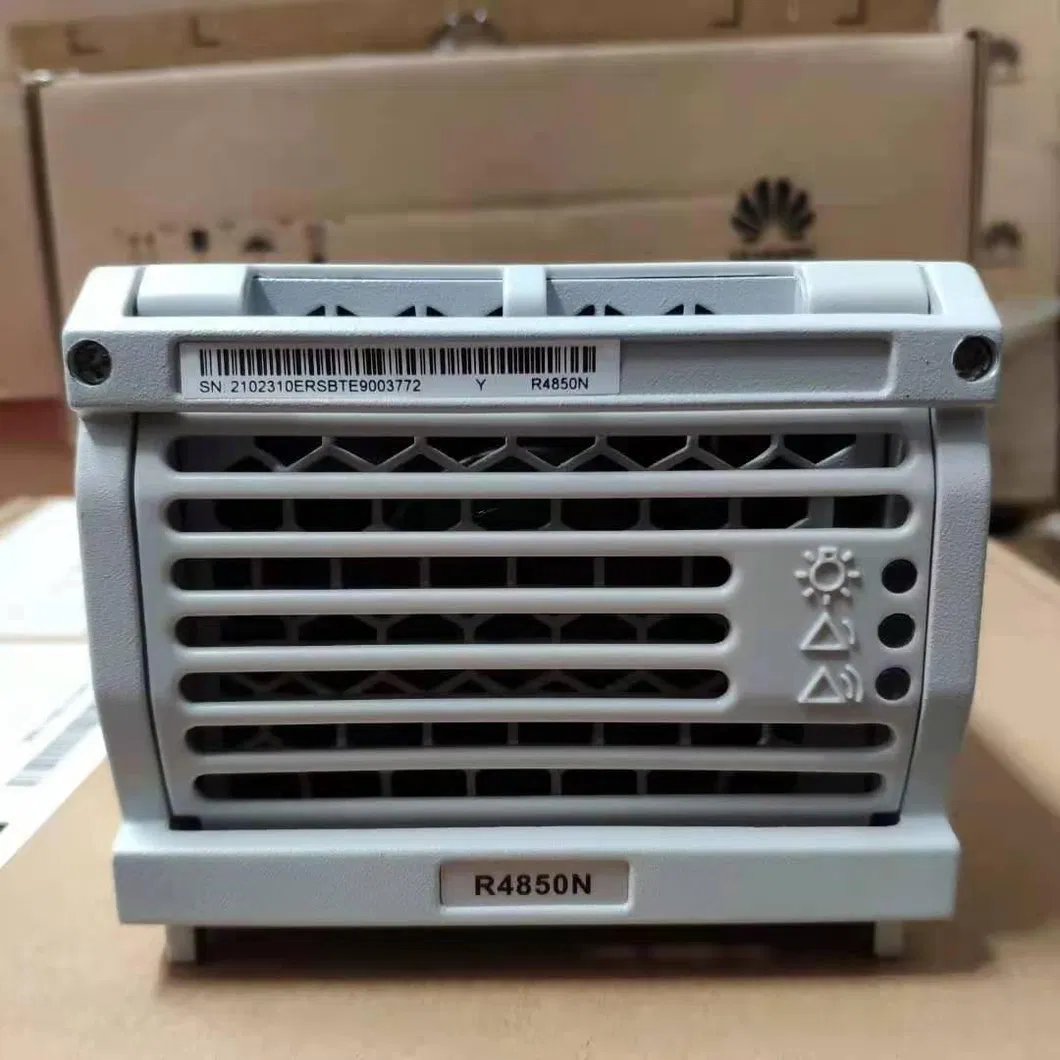

R4850N1
Huawei R4850N1

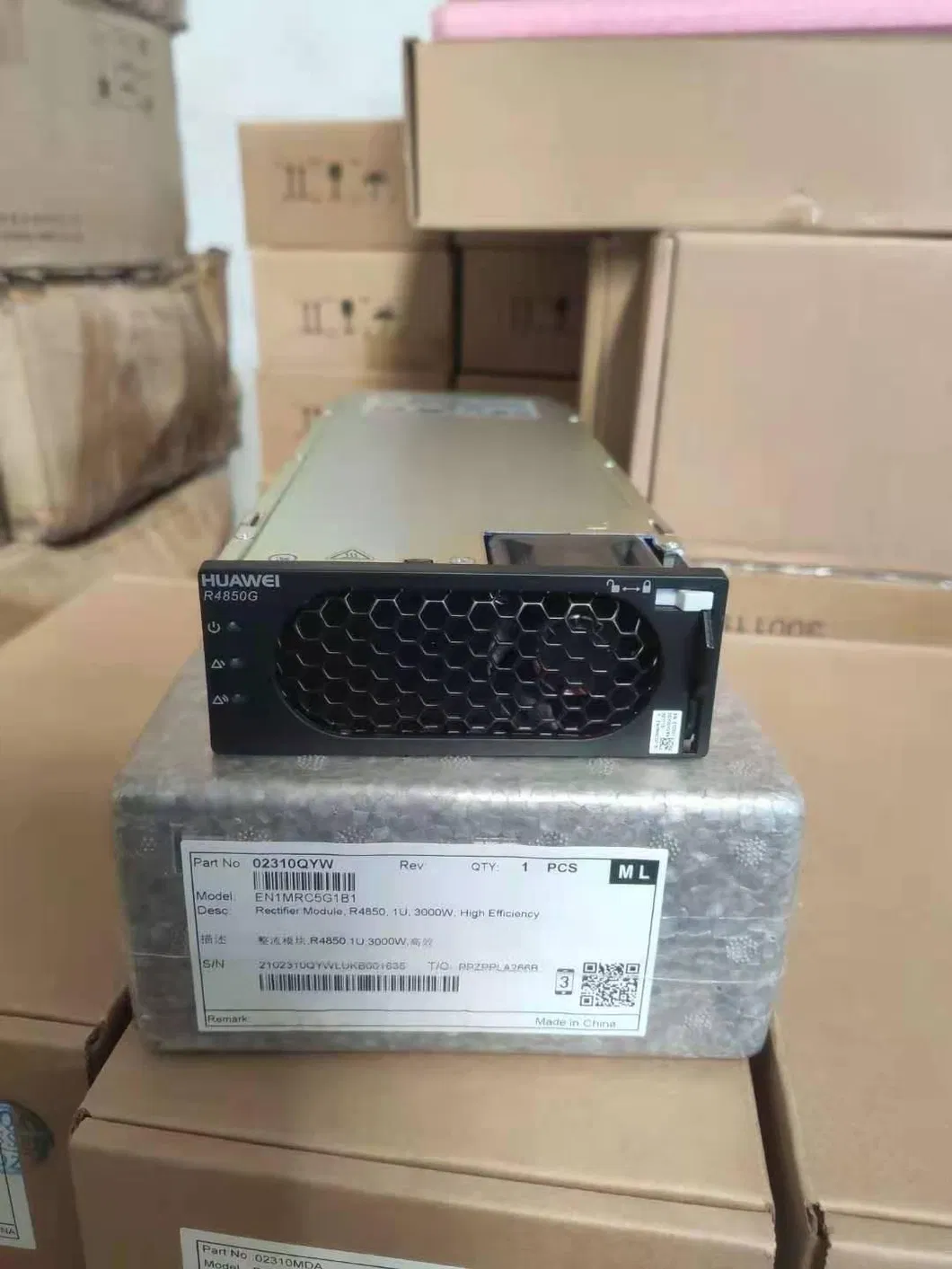

R4850G1
Huawei R4850G1

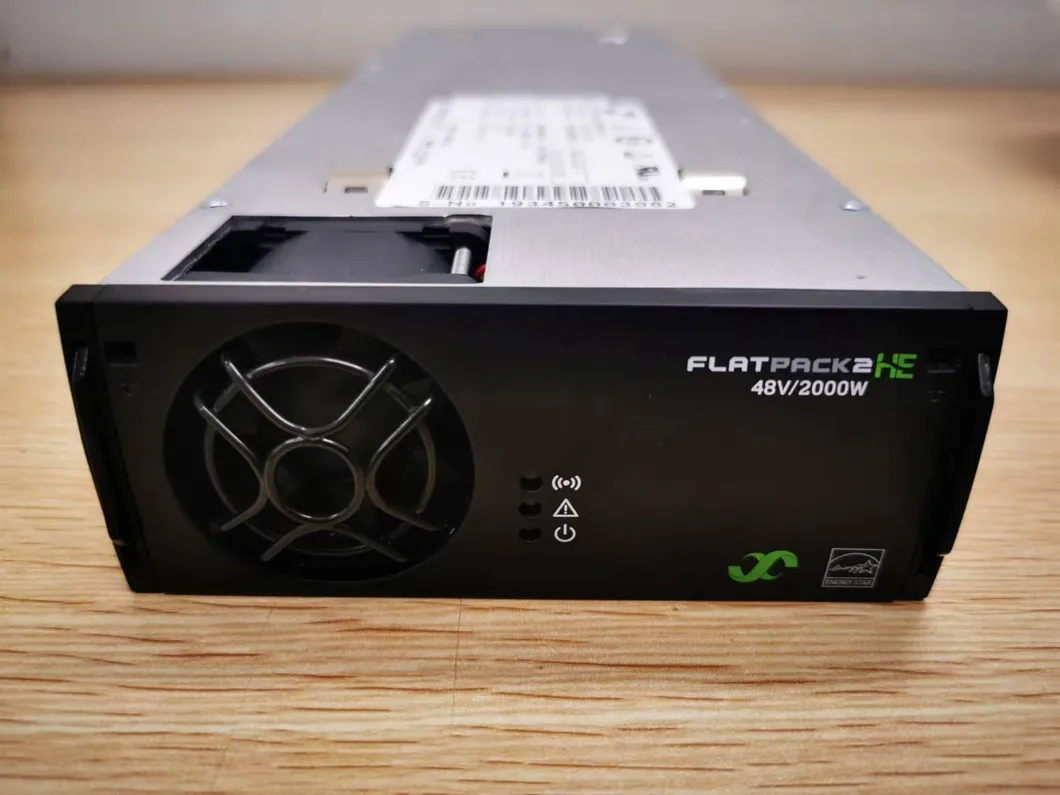

Flatpack2 HE
Eltek Flatpack2 48/2000 HE

Frequently Asked Questions

What is the maximum capacity of the Smart SYS E3121300R48?
The system supports a maximum capacity of up to 8KW, housing up to four 2KW rectifier modules.
Is the system compatible with different brands of rectifiers?
Yes, the sub-rack is designed to be compatible with various standard rectifiers of the same size, including models from Emerson, Huawei, and Eltek.
Does the power system support hot-swapping?
Absolutely. The modules support hot-swap functionality, allowing for easy maintenance and replacement without interrupting the power supply.
What kind of protection does the system offer for batteries?
The system includes two levels of Low Voltage Disconnect (LVD) protection and is equipped with two dedicated battery MCBs for advanced safety management.
Can this system be installed in a standard telecom rack?
Yes, it features a standard 19-inch 5U sub-rack design, making it very easy to embed into any standard telecom equipment setup.
