| Model NO. | ZCF AC Series |
| Charging Interfaces | One Pile with Multiple Charges |
| Installation | Floor Type / Wall-mounted |
| Charge Method | AC Charger |
| Certification | CE, ISO9001, ISO14001, ISO45001 |
| Communication | 4G, Bluetooth, WiFi |
| Power Output | 7 Kw |
| IP Class | IP 54 |
| Input/Output Voltage | AC220V +/- 15% |
| Standby Power | ≤5W |

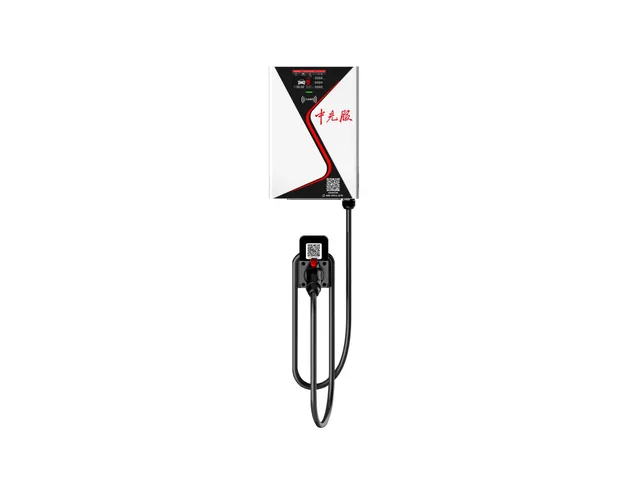

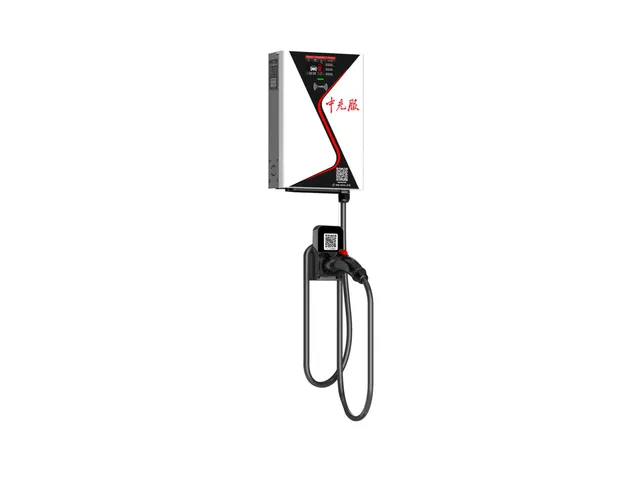

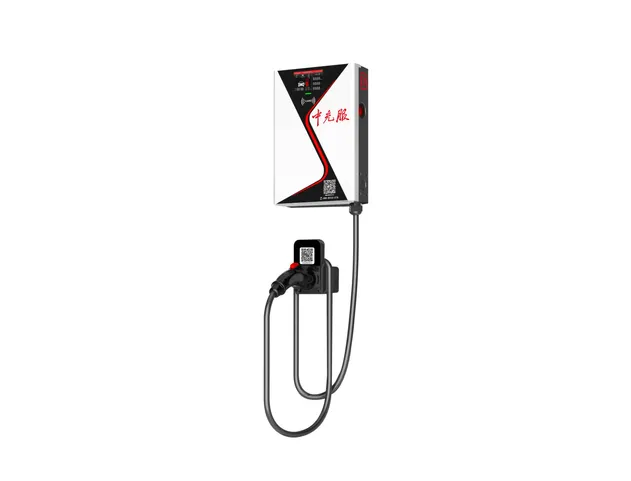

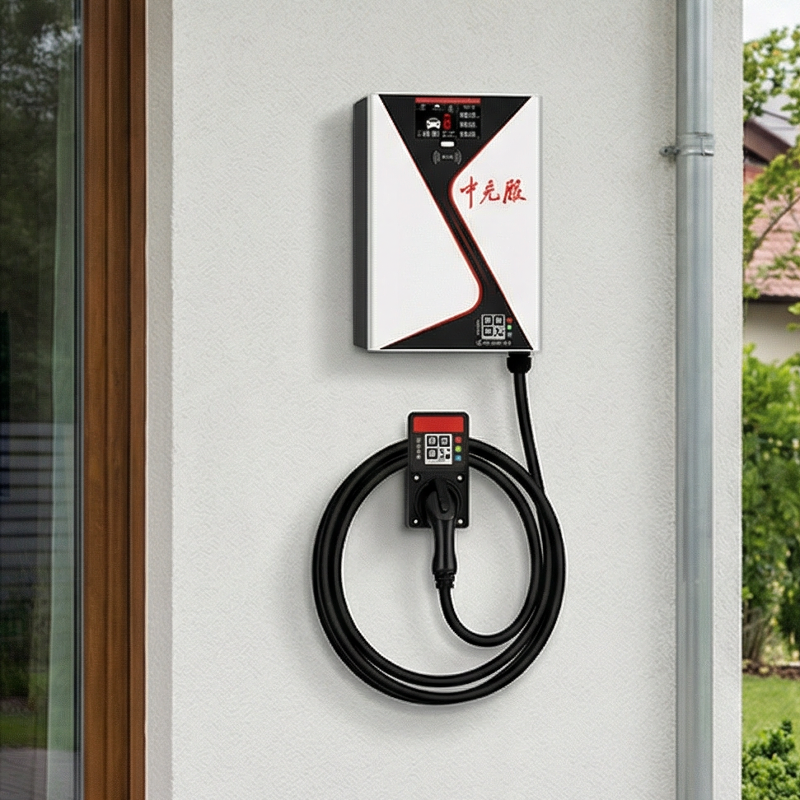

The 7kW AC charging pile is a compact, wall-mounted solution for slow charging, using alternating current for EVs via onboard chargers. Key attributes include 7kW output (~30–40 km/hour, ideal for overnight/extended charging), global EV standard compatibility (IEC 61851, GB/T 20234), and intelligent safety protections (overcurrent, overvoltage, leakage, temperature control) for safe residential/commercial operation.
Features a user-friendly interface (QR code for app control, payment, remote monitoring), IP54 rating for dust/water resistance, and easy installation. With 95% energy efficiency and low standby power, it balances performance and energy savings.
| Parameter Item | Value |
|---|---|
| Material | ABS+PC / Metal |
| Cable Length | Default 5m |
| Display Method | With Screen / Without Screen |
| Payment Method | Scanning / Smart Card / Plug and Play |
| Maximum Output Current | 32A (Single Gun) / 64A (Dual Guns) |
| Environmental Temperature | -20℃ to 50℃ |
| Measurement Accuracy | ≤2% |
| Voice Navigation | Supported |
| Package Size | 40.00cm * 20.00cm * 140.00cm |
| Gross Weight | 60.000kg |
| Transport Package | Wood Box for Free Fumigation |
