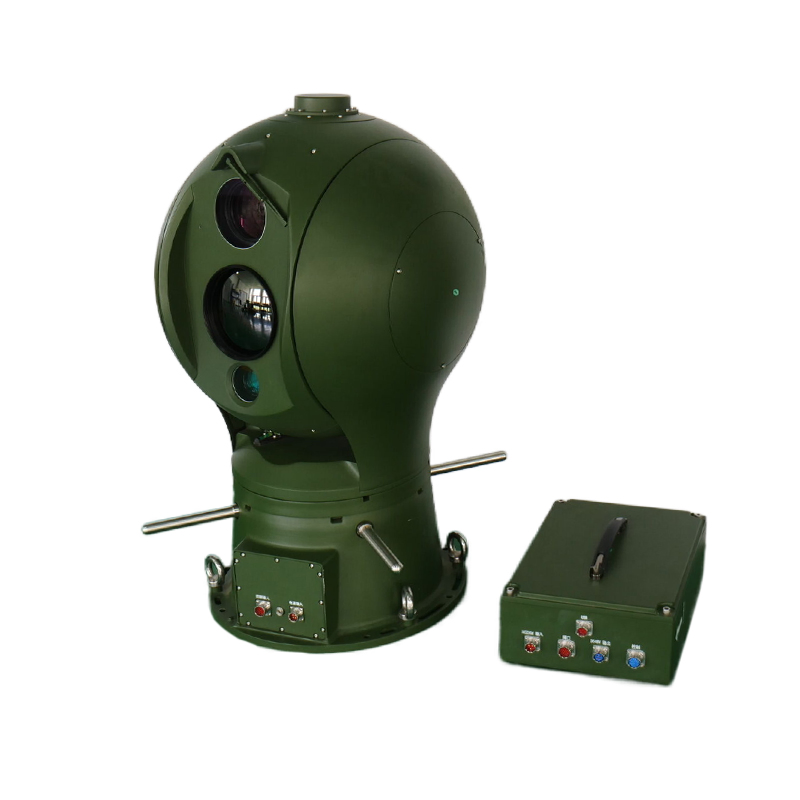

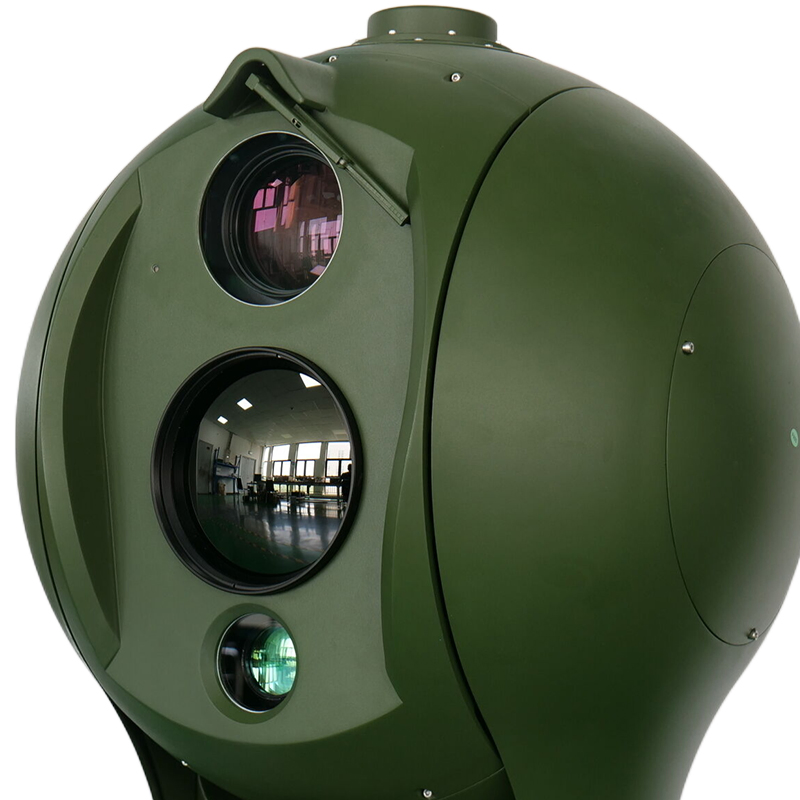

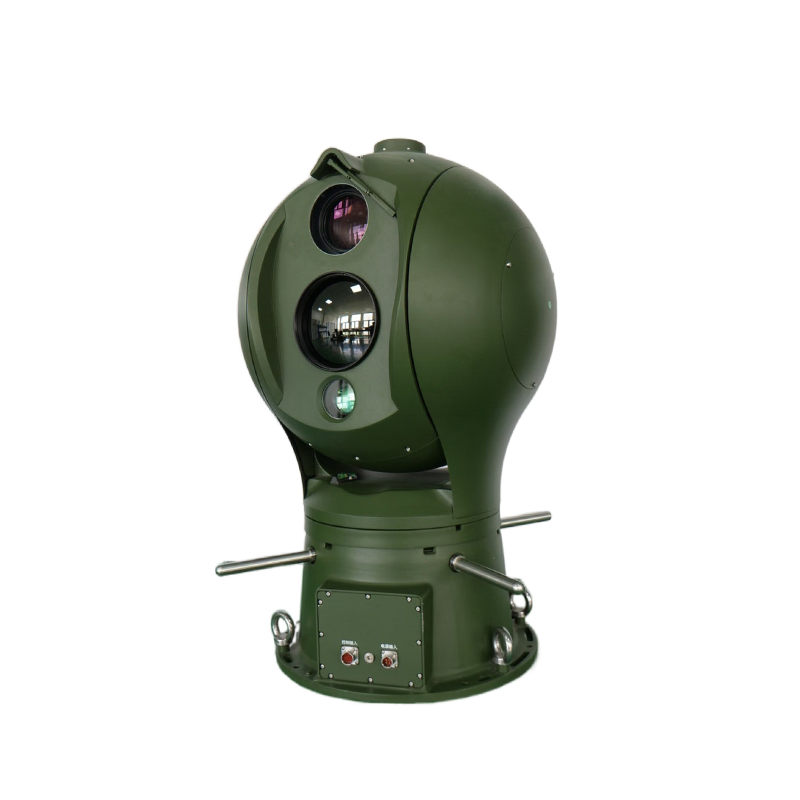

Dual Sensor Electro-Optical Drone Auto Tracking PTZ Night Vision Thermal Camera System

Customization: Available
Type: Monitoring System
Application: All-Round Monitoring, Sound Monitoring

Product Description

Basic Info.
Model NO.
SHR-PT500HLV1540TIR155R
Feature
Waterproof / Weatherproof, High Definition
Video Capture System
Video Camera
Video Transmission
Wireless Transmission
Software Function
Monitoring
Usage
Vehicle & Computer Monitoring
Sensor
CMOS
Technology
Pan / Tilt / Zoom
Protection Grade
IP66
Effective Distance
9km
Anti-Wind
Grade 12
Video Resolution
1080P
Product Description

Main Features

  • Adopting thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance
  • High resolution infrared detector with NETD ≤ 50mK
  • Day and night 2 megapixels low illuminance color camera, realizing day and night continuous monitoring
  • Optional auto focusing function, realizing multiple focusing mode and triggering mode
  • Optional thermal imaging camera presetting function, remembering FOV of each preset bit
  • 3D locating function, can realize frame selection magnifying function and clicking to center function
  • High reliability aluminum alloy electro-optical pantilt, strong ability of anti-wind, anti-salt fog
Model PT450HLV1020TIR155R PT550HLV3020HTIR210R PT550HLV4020ZIR75-300R
Monitoring distance HD camera 2000m 6500m 9000m
Thermal (Human) 3600m 5600m 6270m 15330m 1570m 3830m
Detector Uncooled microbolometer focal plane array(Vox) Cooled detector
Pixel 324×256 640×512 324×256
Thermal lens Focal length 30~150mm, 5x zoom 20~200mm,10x zoom 75/300mm dual FOV lens
F value F1.0~ F1.2 F1.0~ F1.2 F2.3
HD Camera Sensor type 1/1.8'' Progressive Scan CMOS
Video resolution 1080P,CIF,supporting three stream
Pan-tilt Anti-wind Grade 12

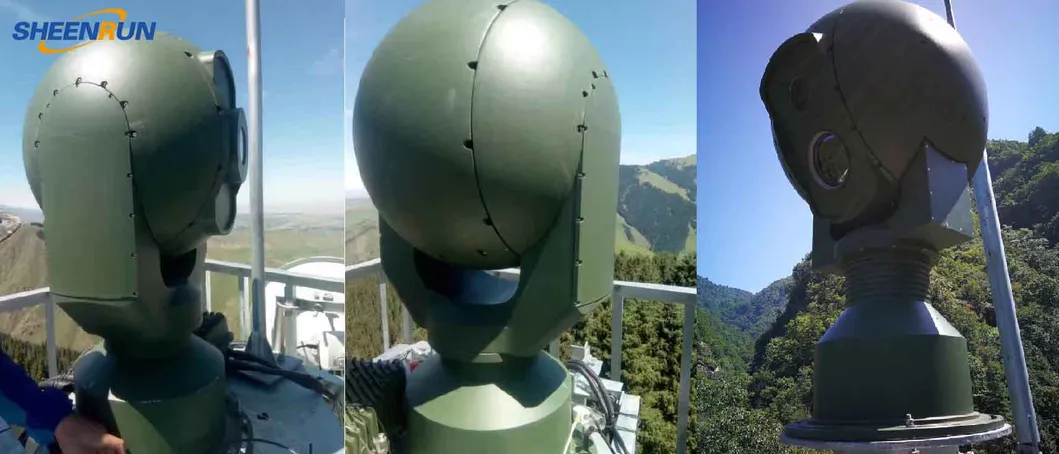

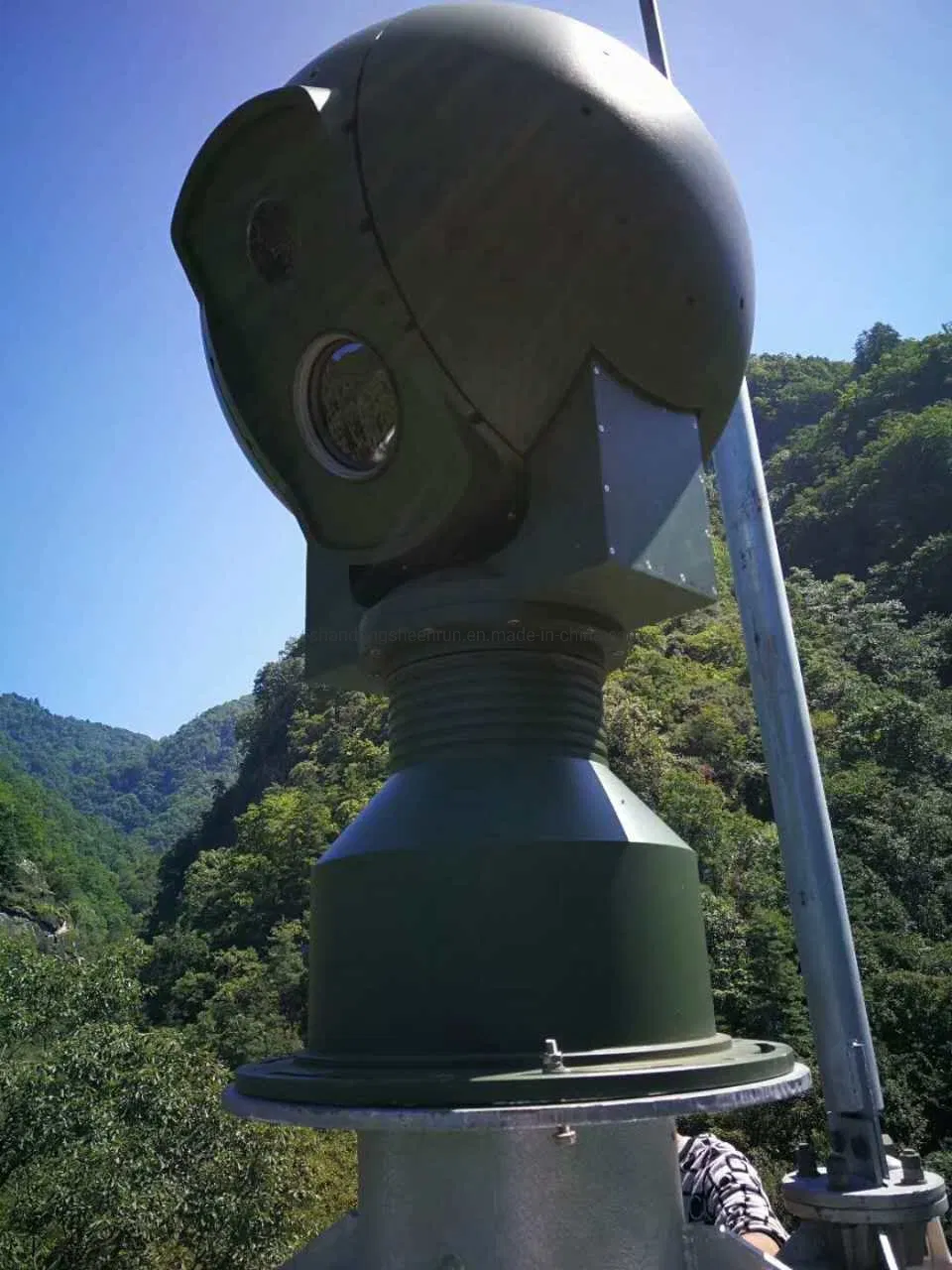

PTZ Thermal Camera System Camera Components
Company Profile

Founded in 2004, our company is a leading night vision equipment and rugged information equipment supplier. We adhere to independent innovation and developed the world's first laser night vision camera and uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights. Our synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard levels.

Production Facility

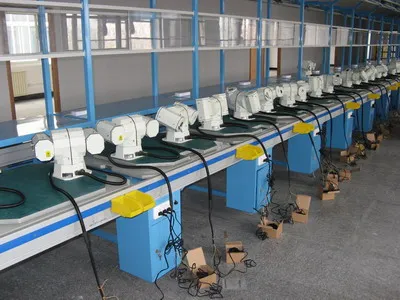

Testing Center
Workshop
Packaging & Shipping
Shipping Logistics

Effect Demo

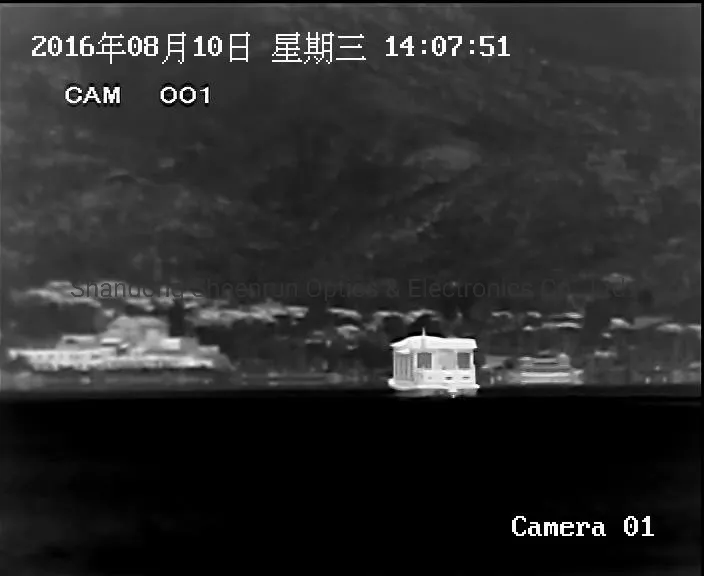

Night Vision Demo 1

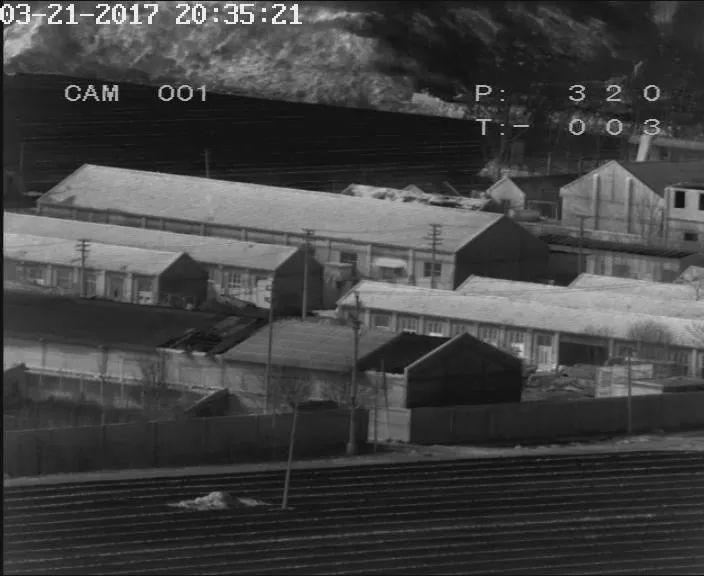

Night Vision Demo 2

Application Scenarios

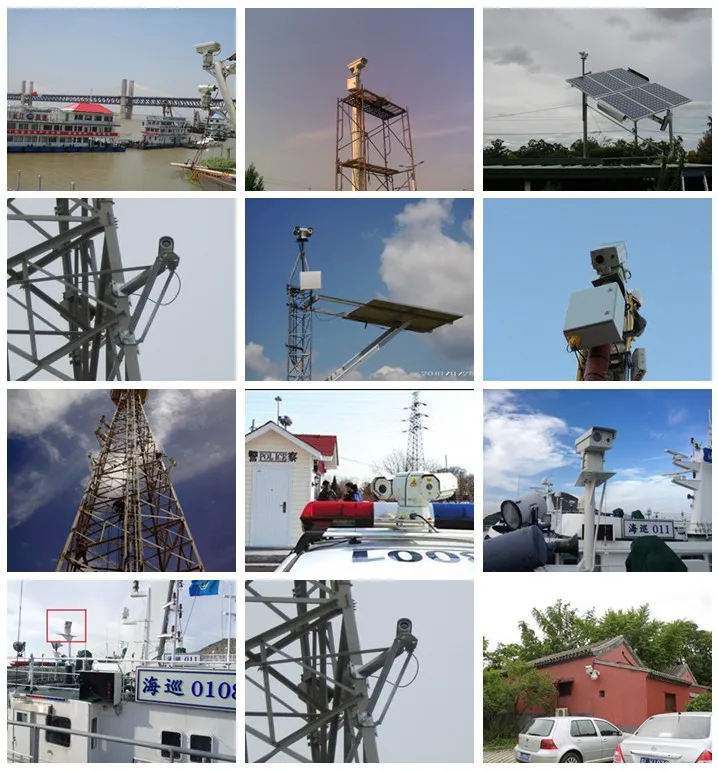

Application Fields
Frequently Asked Questions
Q1: What is the maximum monitoring distance of this system?
A1: The HD camera can monitor up to 9000m, while the thermal imaging system can detect vehicles at even greater distances depending on the specific model configuration.
Q2: Is the camera system weather-resistant?
A2: Yes, the system features an IP66 protection grade and is designed with Grade 12 anti-wind capability, making it suitable for harsh outdoor environments.
Q3: Does the system support night-time monitoring?
A3: Absolutely. It integrates both thermal imaging technology and a low illuminance color camera to provide clear, continuous 24/7 monitoring.
Q4: What are the main applications for this PTZ camera?
A4: It is widely used for border surveillance, coastal defense, forest fire prevention, and long-range security monitoring for critical infrastructure.
Q5: What power supply is required for operation?

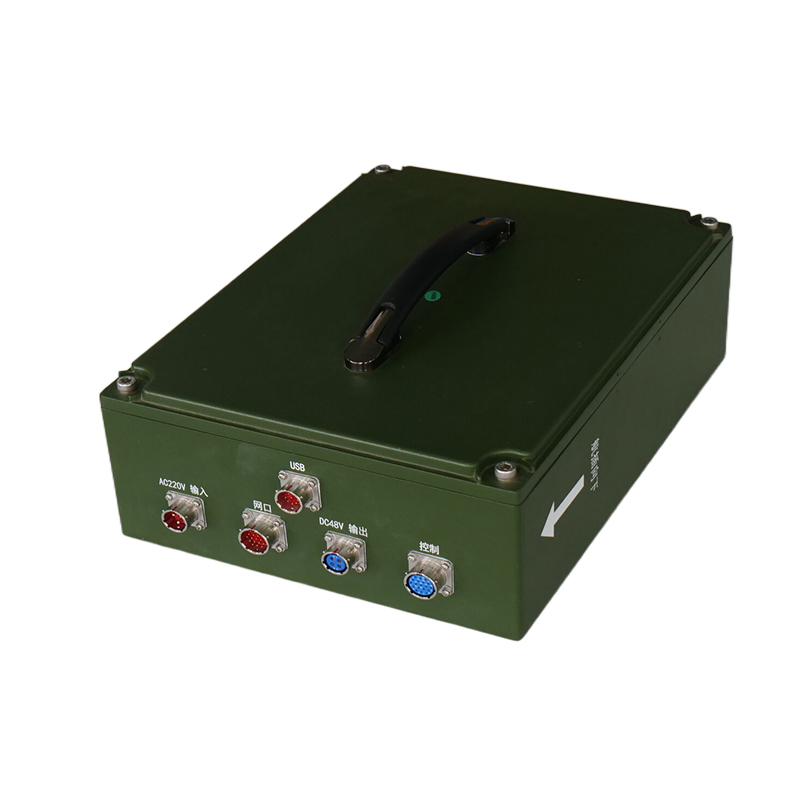

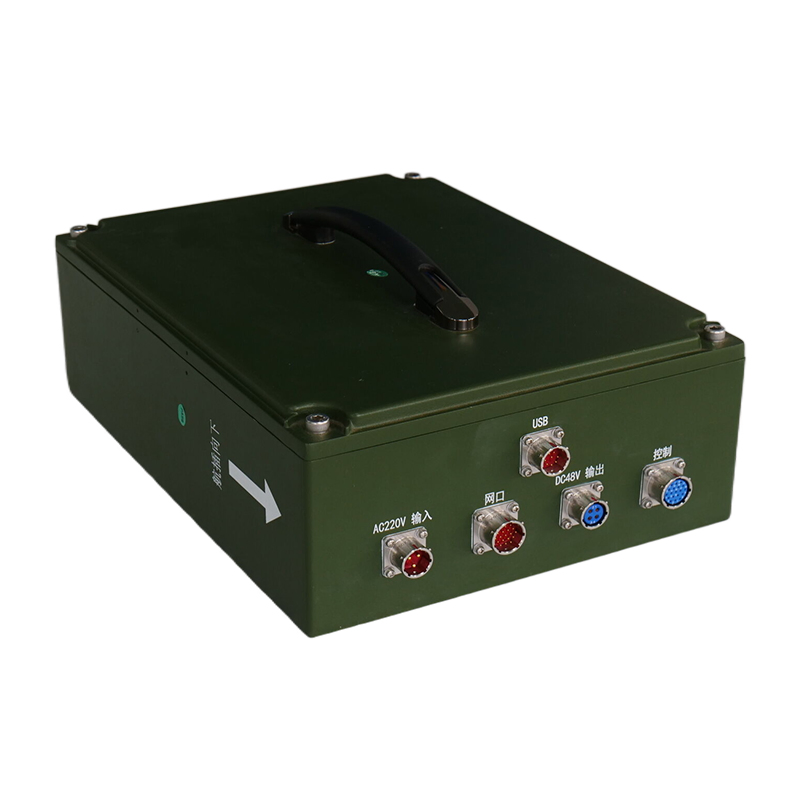

A5: The system operates on a DC30V power supply, with a wide range power input (AC90~305V) to DC30V/10A anti-water power supply included.
