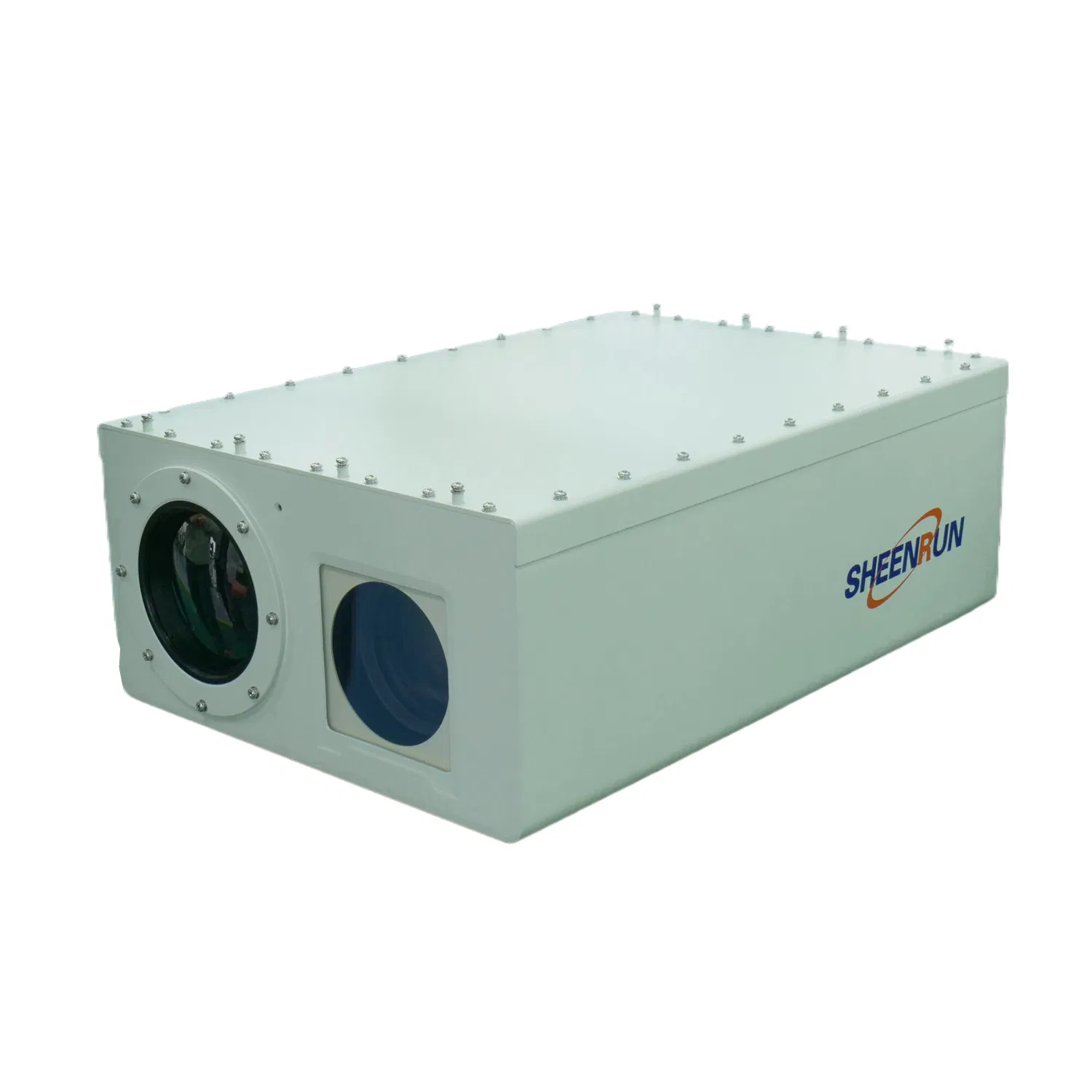

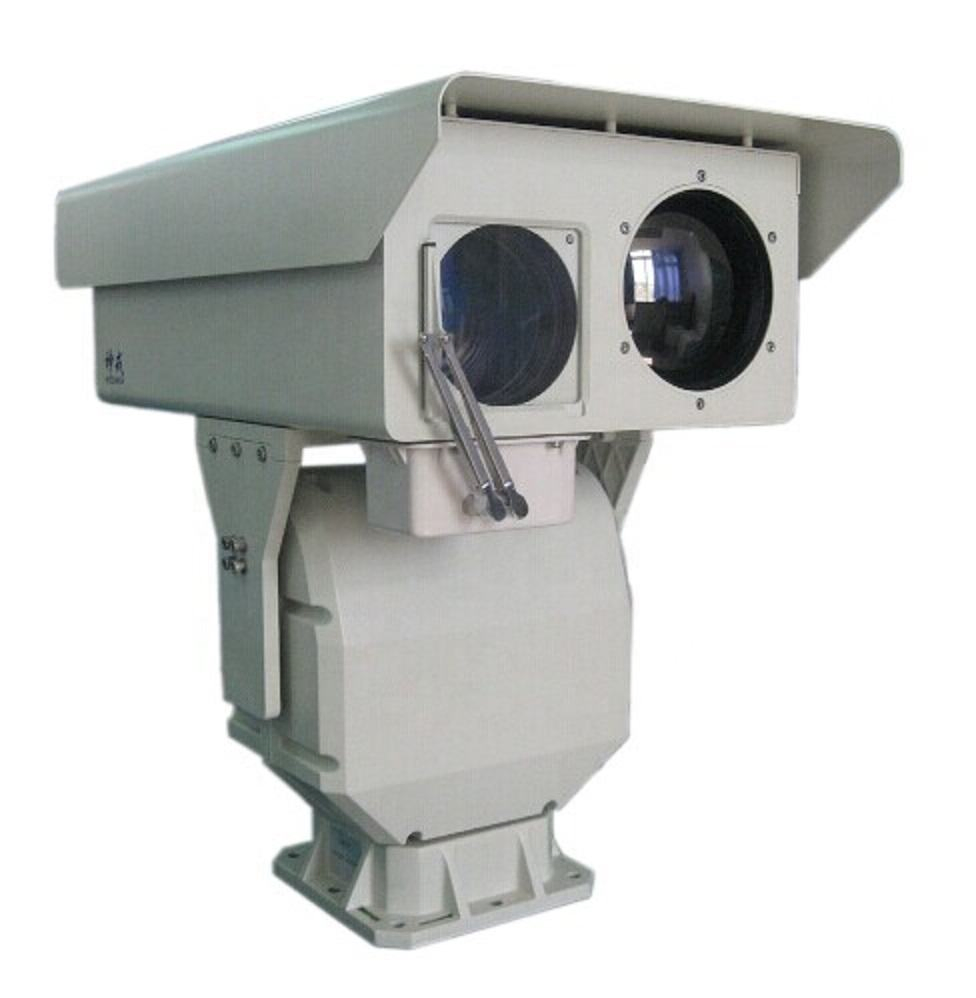

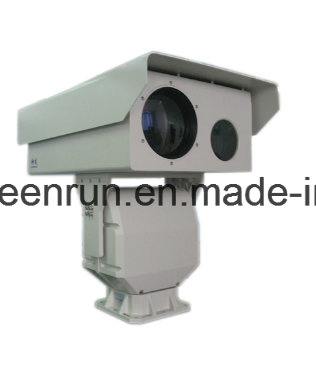

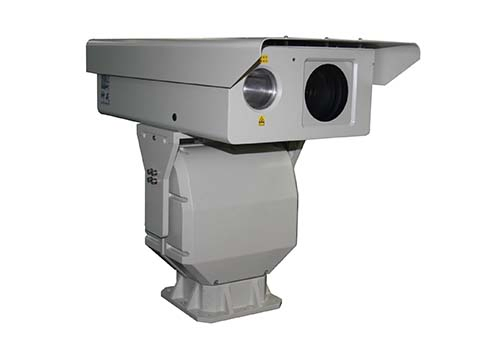

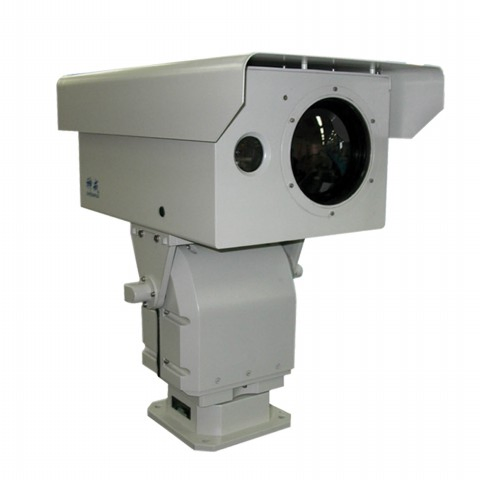

Dual-Lens PTZ Camera Thermal Imaging Cameras System for Oilfield Monitoring
Dual-Lens PTZ Camera Thermal Imaging Cameras System for Oilfield Monitoring
Dual-Lens PTZ Camera Thermal Imaging Cameras System for Oilfield Monitoring
Dual-Lens PTZ Camera Thermal Imaging Cameras System for Oilfield Monitoring
Dual-Lens PTZ Camera Thermal Imaging Cameras System for Oilfield Monitoring
1 / 5
Dual-Lens PTZ Camera Thermal Imaging Cameras System for Oilfield Monitoring
Dual-Lens PTZ Camera Thermal Imaging Cameras System for Oilfield Monitoring
Dual-Lens PTZ Camera Thermal Imaging Cameras System for Oilfield Monitoring
Dual-Lens PTZ Camera Thermal Imaging Cameras System for Oilfield Monitoring
Dual-Lens PTZ Camera Thermal Imaging Cameras System for Oilfield Monitoring

Dual-Lens PTZ Camera Thermal Imaging Cameras System for Oilfield Monitoring

Customization: Available
Technology: Pan / Tilt / Zoom
Style: Mini Camera
Send Inquiry

Product Description

Key Specifications

Model NO.
SHR-HLV1540AHVIR155
Type
IP Camera
Sensor
CMOS
HDMI Format
1080P
Protection Grade
IP66
Effective Distance
≧30m
Thermal Monitor Distance
12km
Power Supply
DC12V

PTZ Thermal Camera Features

Integrated infrared thermal imaging, visible light camera and pan-tilt controlling system for day and night omni-directional monitoring.
Adopting advanced thermal imaging technology, independent of light sources for clear imaging.
Day and night 2 megapixel low illuminance color camera for detailed observation.
3D locating function, realizing frame selection magnifying and clicking to center.
Universal variable speed pan-tilt, realizing omni-directional monitoring with no blind spots.

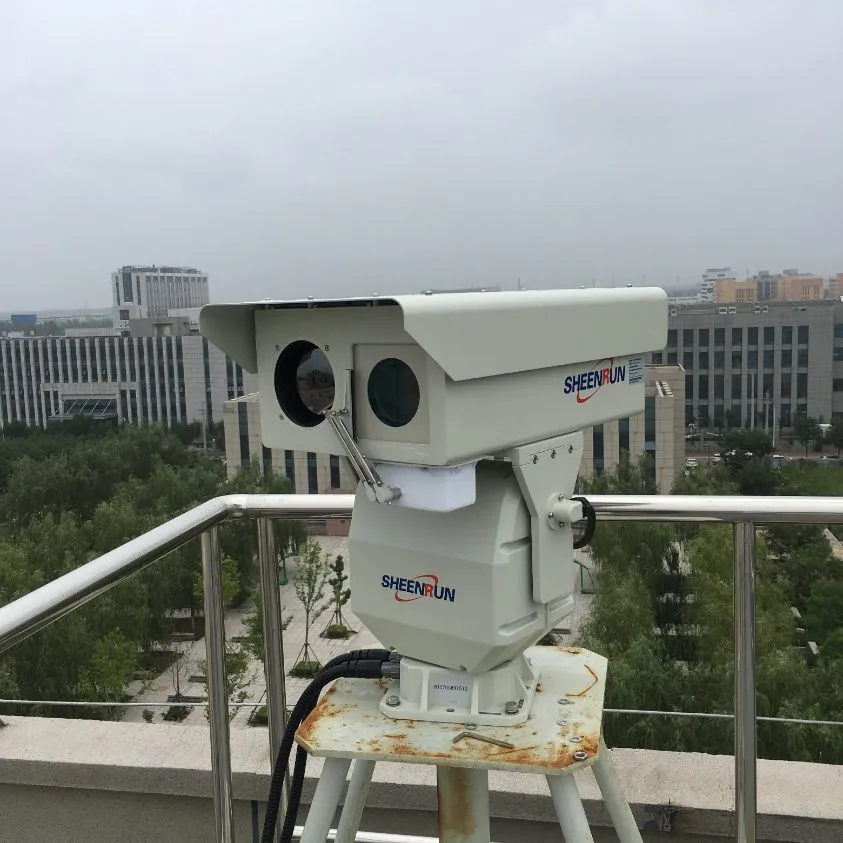

Dual-Lens PTZ Camera System

Technical Data

Thermal Detector Uncooled microbolometer focal plane array(Vox)
Pixel 640×512 (384×288 optional)
Spectral Range 8~14μm
Thermal Lens Focal Length 25~100mm 30~150mm 30~180mm
HD Sensor Type 1/1.8'' Progressive Scan CMOS
Video Resolution 25fps (2688×1520)
Pan/Tilt Angle Pan 0°~ 360°; Tilt -45°~ +45°
Protection Grade IP66

Applications

This system is suitable for various professional fields including safe city monitoring, forest fire-proof monitoring, high altitude monitoring, railway surveillance, harbor monitoring, oilfield monitoring, and freeway monitoring.

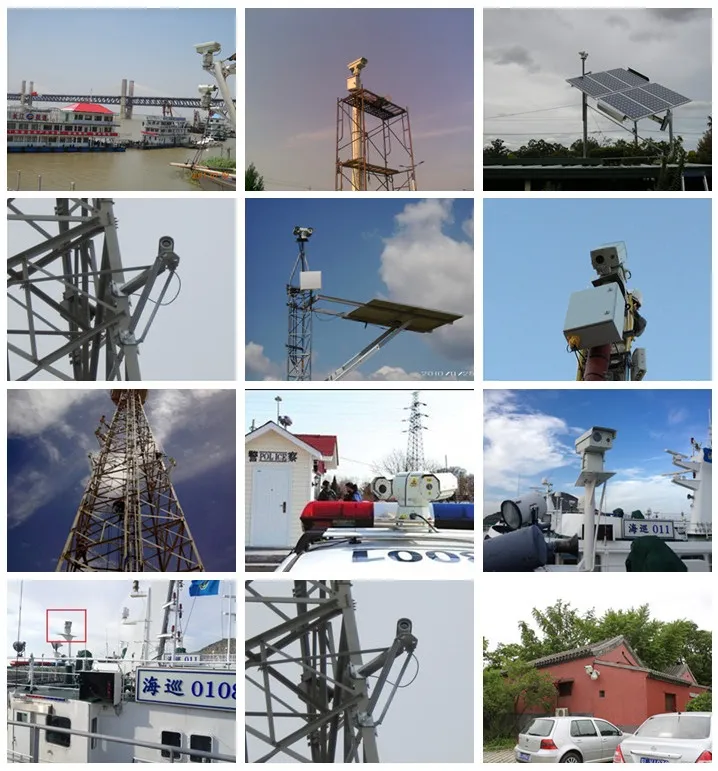

System Application Diagram
Oilfield Monitoring

Product Certificates

Certificates

Frequently Asked Questions

What is the maximum monitoring distance for the thermal camera?
The system supports long-range monitoring with a thermal monitoring distance of up to 12km depending on the specific configuration.
Is the camera suitable for extreme outdoor weather?
Yes, it features an IP66 protection grade and can operate in temperatures ranging from -25ºC to +55ºC (with an optional -40ºC version).
What is the advantage of the 3D locating function?
The 3D locating function simplifies operation by allowing users to select a frame for magnification or click on a point to center the camera automatically.
Does it support high-definition video recording?
Yes, the visible light camera provides 2 megapixel (2688×1520) resolution with H.264/H.265 coding formats.
What environments are best suited for this PTZ system?
It is ideal for large-scale outdoor environments such as oilfields, railways, harbors, and forest fire monitoring where day/night surveillance is critical.
