Dpc Dynamic Power Smart Sys E4121300r48 DC Power System
Dpc Dynamic Power Smart Sys E4121300r48 DC Power System
Dpc Dynamic Power Smart Sys E4121300r48 DC Power System
Dpc Dynamic Power Smart Sys E4121300r48 DC Power System
Dpc Dynamic Power Smart Sys E4121300r48 DC Power System
1 / 5
Dpc Dynamic Power Smart Sys E4121300r48 DC Power System
Dpc Dynamic Power Smart Sys E4121300r48 DC Power System
Dpc Dynamic Power Smart Sys E4121300r48 DC Power System
Dpc Dynamic Power Smart Sys E4121300r48 DC Power System
Dpc Dynamic Power Smart Sys E4121300r48 DC Power System

Dpc Dynamic Power Smart Sys E4121300r48 DC Power System

Customization: Available
Output Type: Multiple
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.
Smart SYS E4121300R48
Output Power
8kw
Input Voltage
220V
Connection Mode
Series Switching Power Supply
Starting Mode
Self-excited Switching Power Supply
Voltage Regulating Mode
Frequency Modulation Type
Power Supplying System
Terminal Power Distribution Equipment
Energy Transmission
Two-way Transmission
Modulation System
PWM
Certification
CE, RoHS, ISO, CCC, CB, FCC
Condition
New
Transport Package
Carton
HS Code
8504401990
Production Capacity
1000 Sets/Month
Product Description

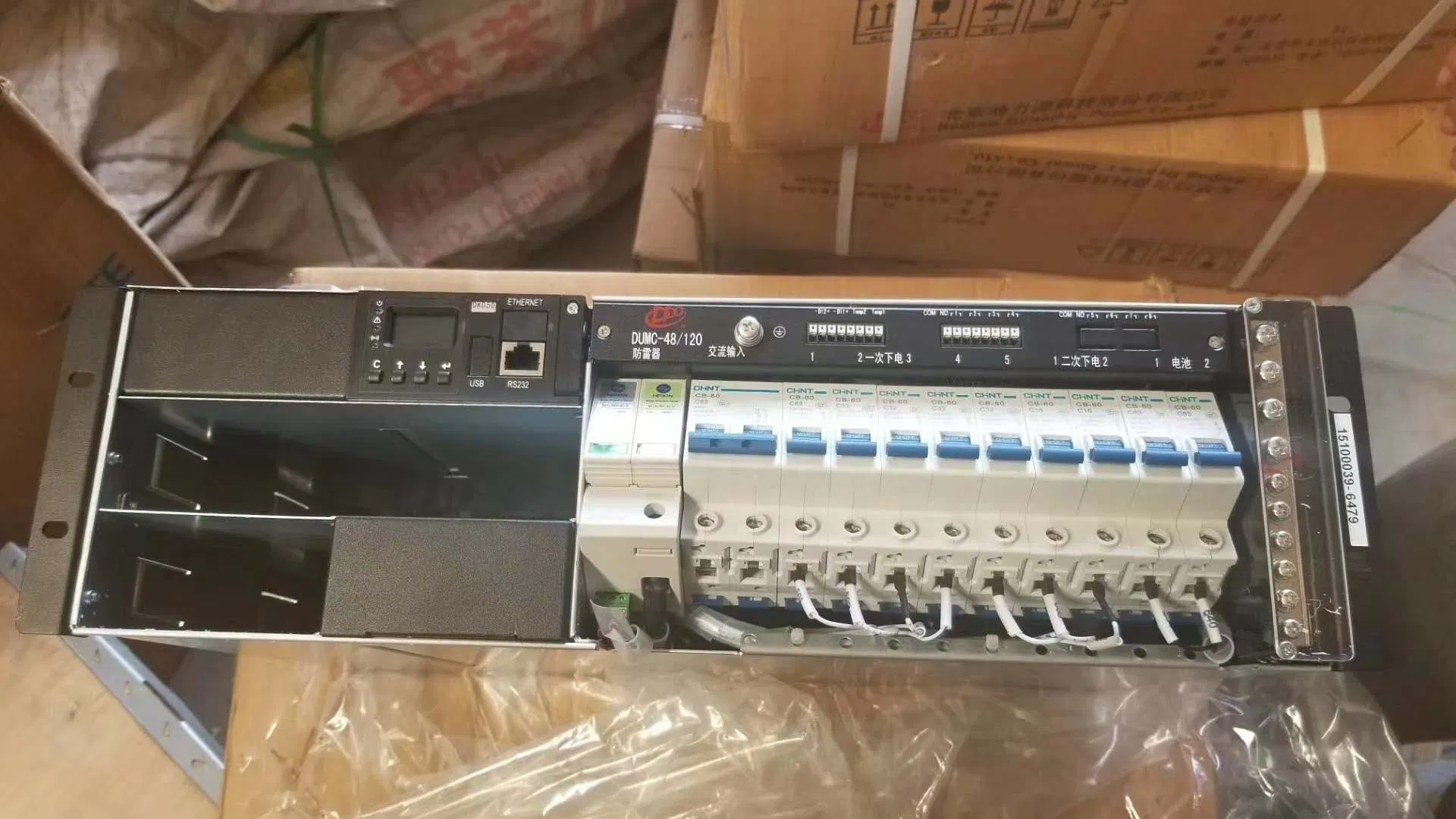

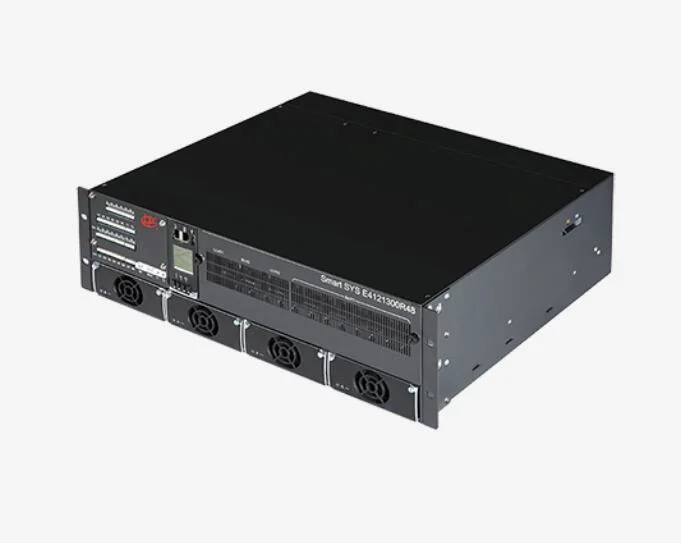

The Smart SYS E4121300R48 system is a compact and intelligent power system. It is designed to house up to 4*2KW rectifiers and 1*SC501 controller, providing a robust DC power solution for telecom and industrial applications.

  • AC input, DC output and dry contact use front access and front operation
  • Compact design for easy installation and space saving
  • Two levels Low Voltage Disconnect (LVD) protection
  • Two battery MCBs included
  • Highly compatible with rectifiers of the same size
Key Features
19'' 3U sub-rack, easy to be embedded into standard equipment
Up to 8KW system capacity
Up to 0.99 power factor
Intelligent fan-cooling Rectifier
Hot-swap modules for easy maintenance
N+1 rectifier module redundancy
Advanced batteries monitoring and management
ECO mode for energy efficiency
High power density design
Technical Specifications
Input Voltage85VAC-300VAC
Output Voltage-53.5V Rated output voltage
Input Current≤12A (Per rectifier)
Frequency45~65Hz
Voltage Regulation≤±1%
Current Sharing≤±5%
Efficiency≥93%
Ripple and Noise≤200mV Peak-Peak
Psophometric Noise≤2mV
Compatible Hotsale Modules

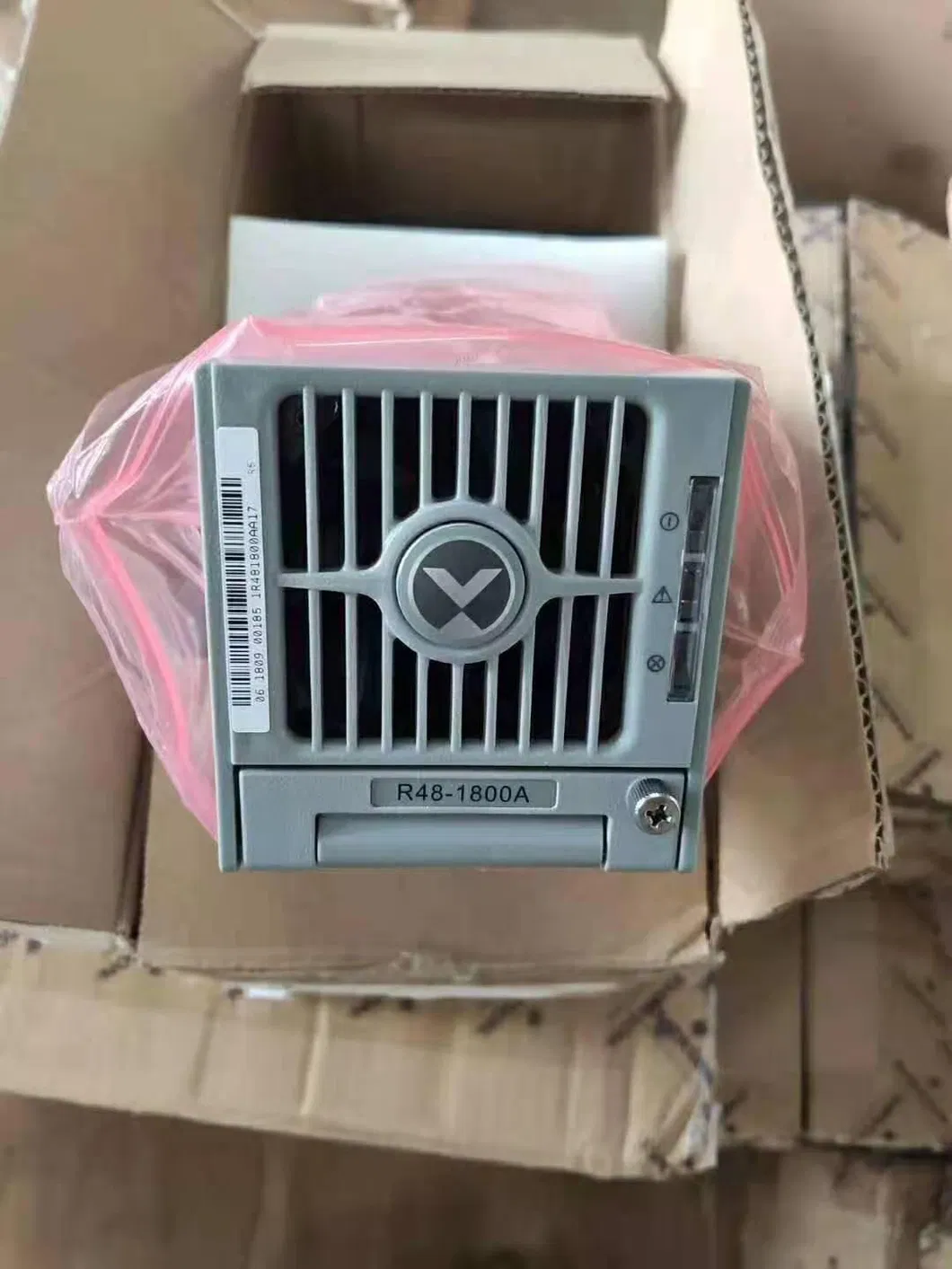

R48-1800A
R48-1800A

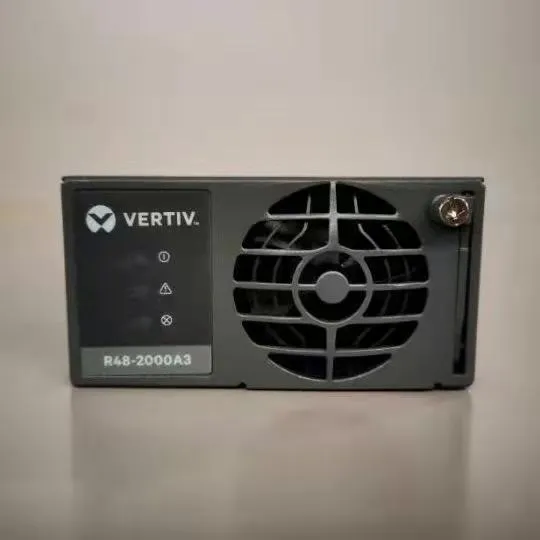

R48-2000A3
R48-2000A3

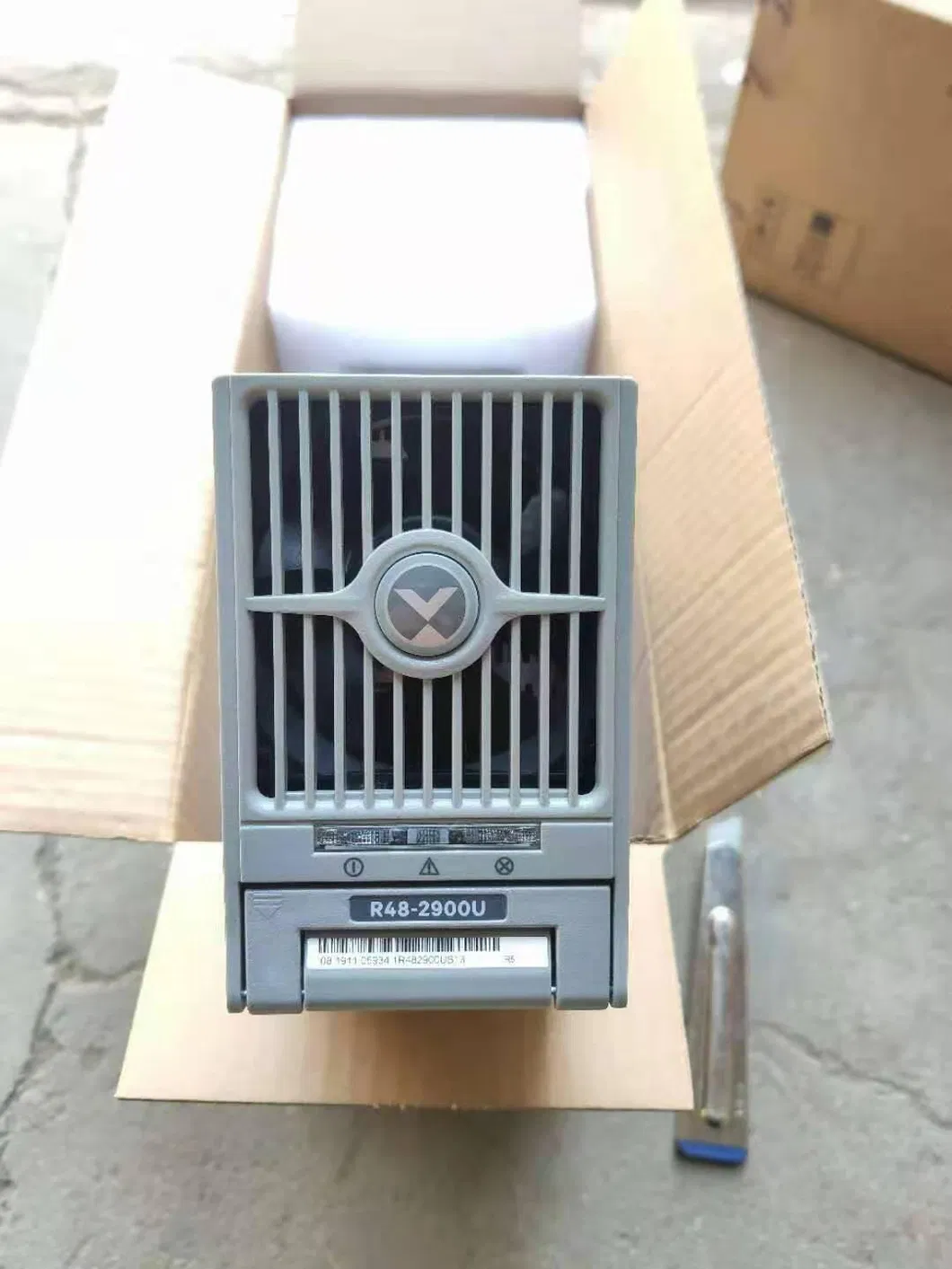

R48-2900U
R48-2900U

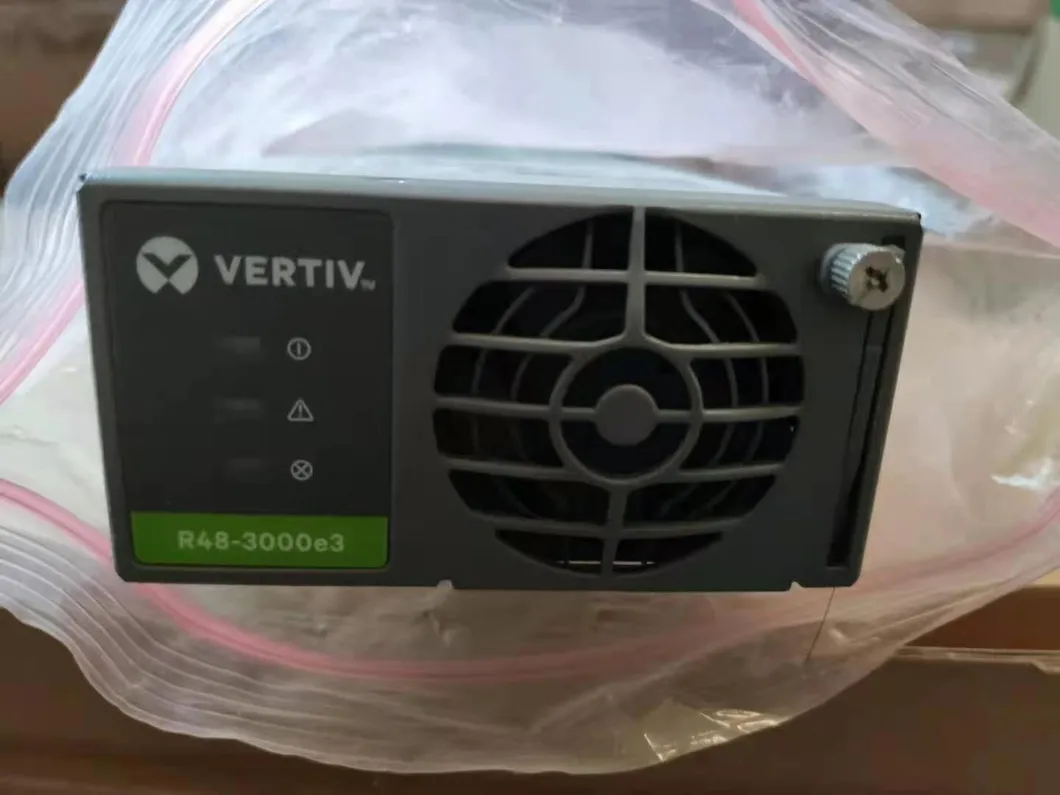

R48-3000e3
R48-3000e3

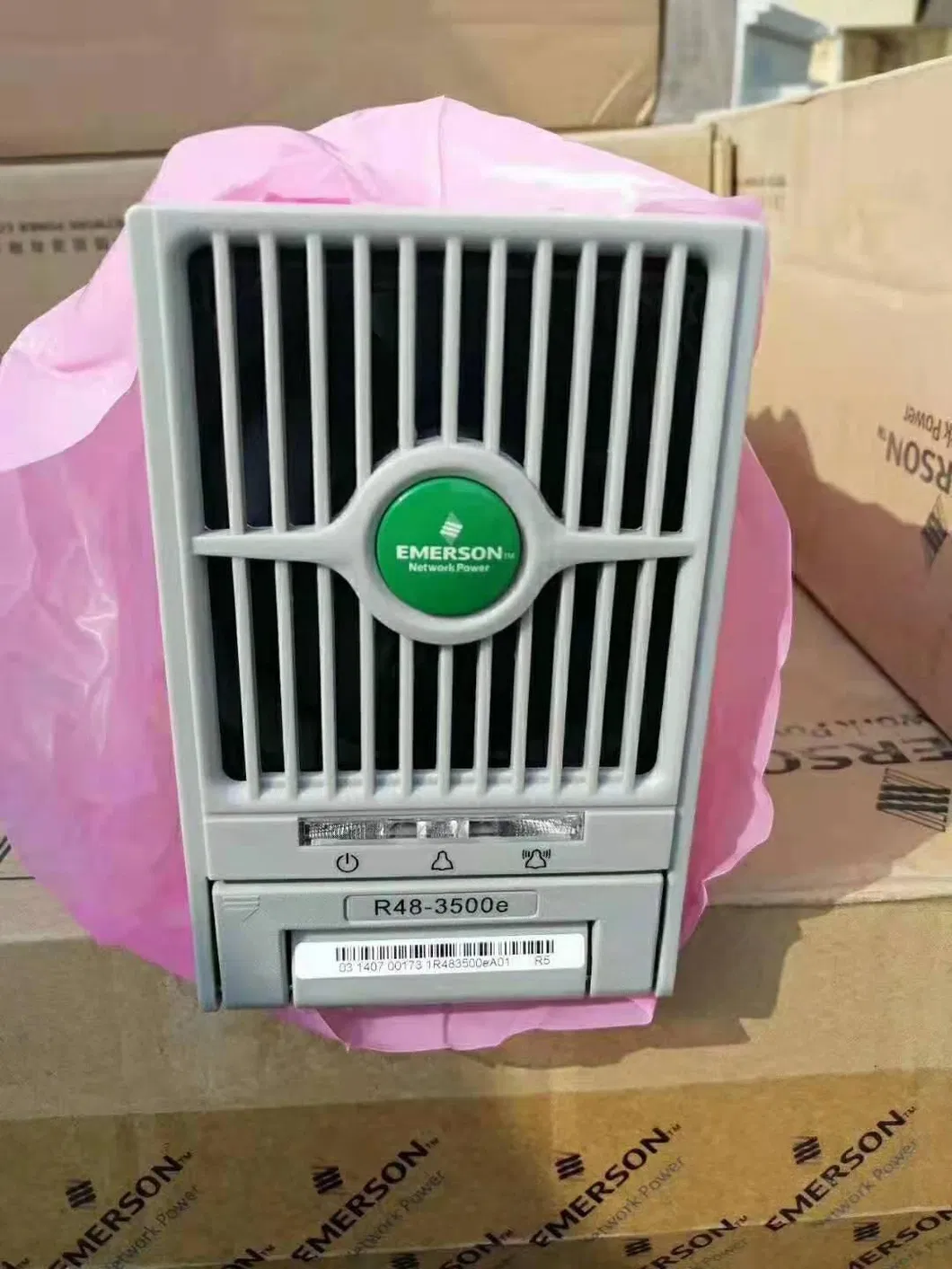

R48-3500e
R48-3500e

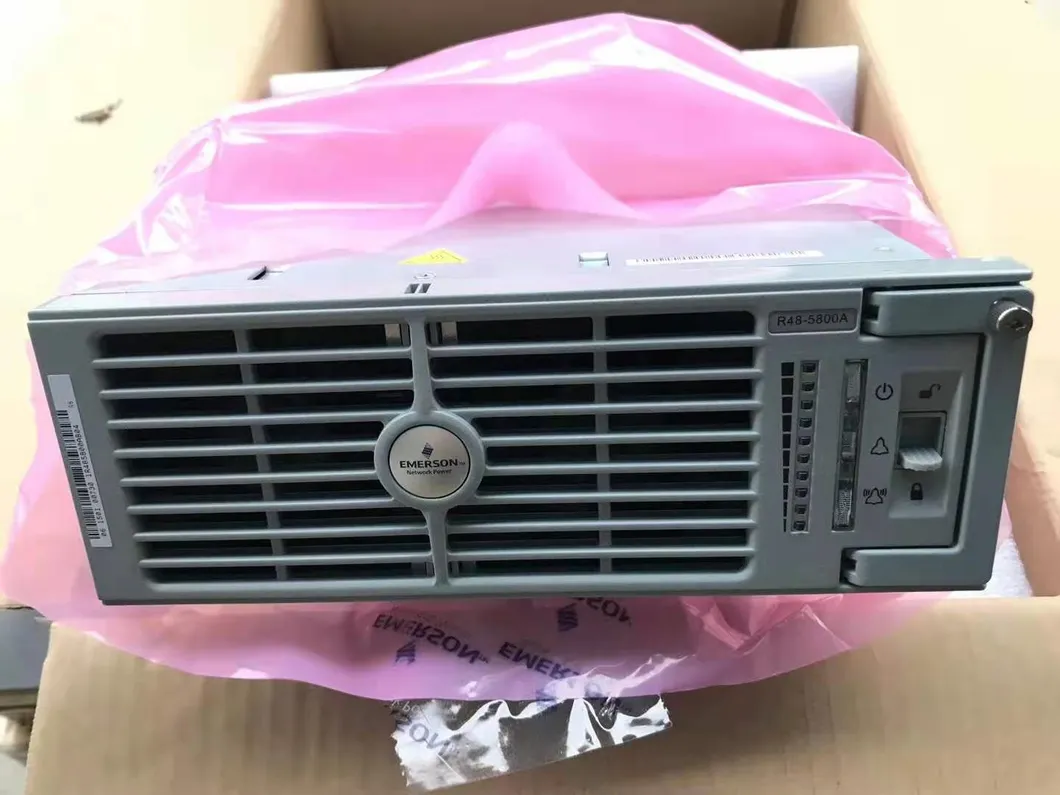

R48-5800A
R48-5800A

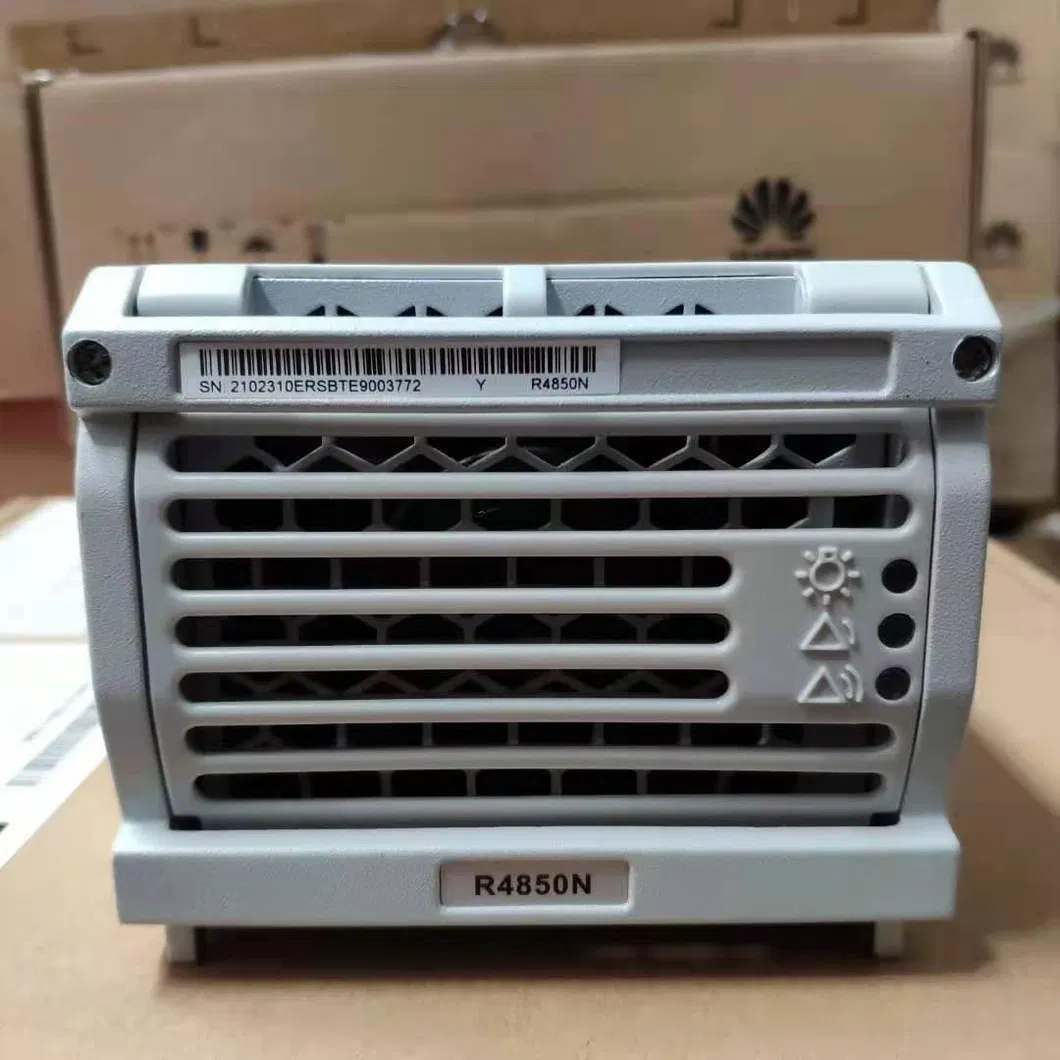

R4850N1
R4850N1

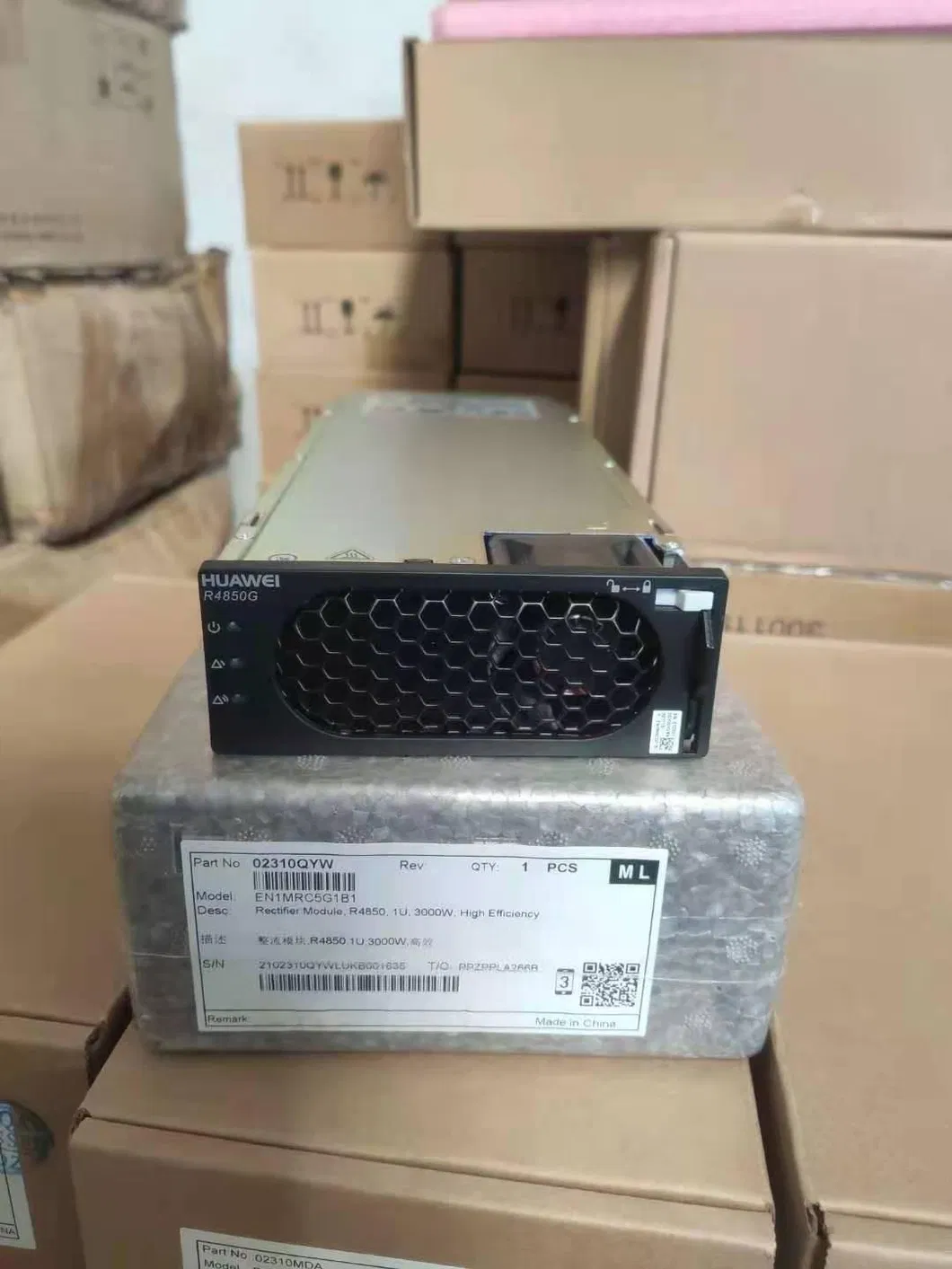

R4850G1
R4850G1

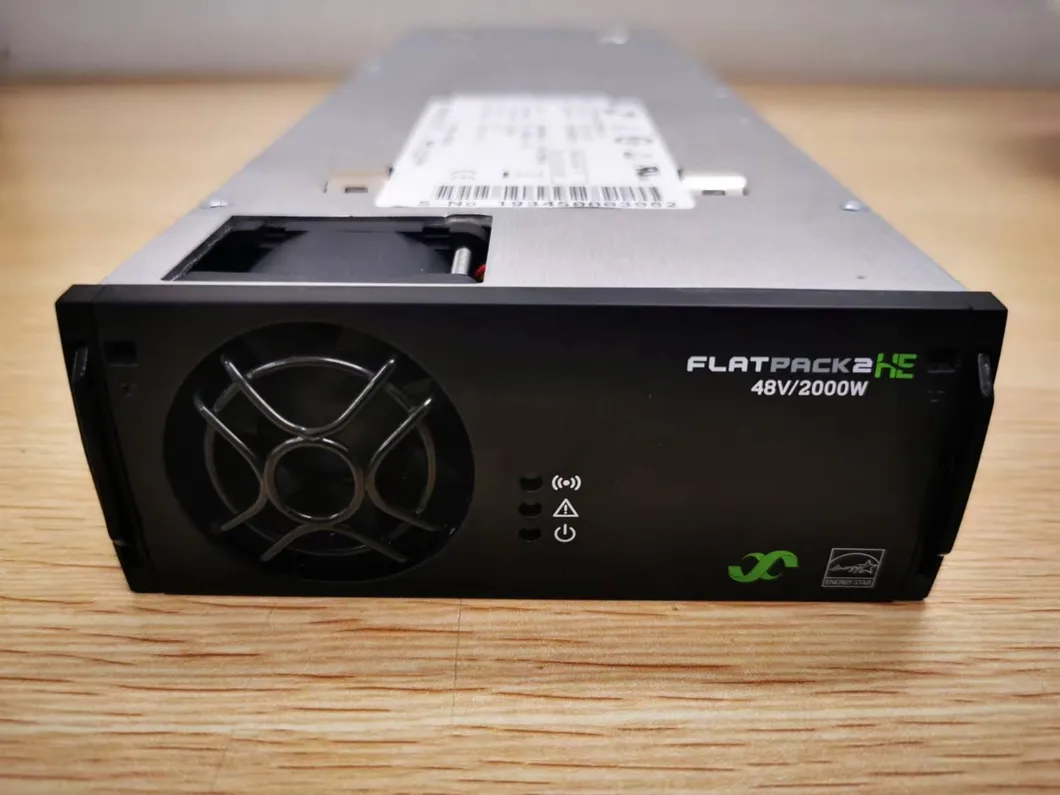

Flatpack2 48/2000 HE
Flatpack2 48/2000 HE
Flatpack2 48/1000 HE
Flatpack2 48/1000 HE

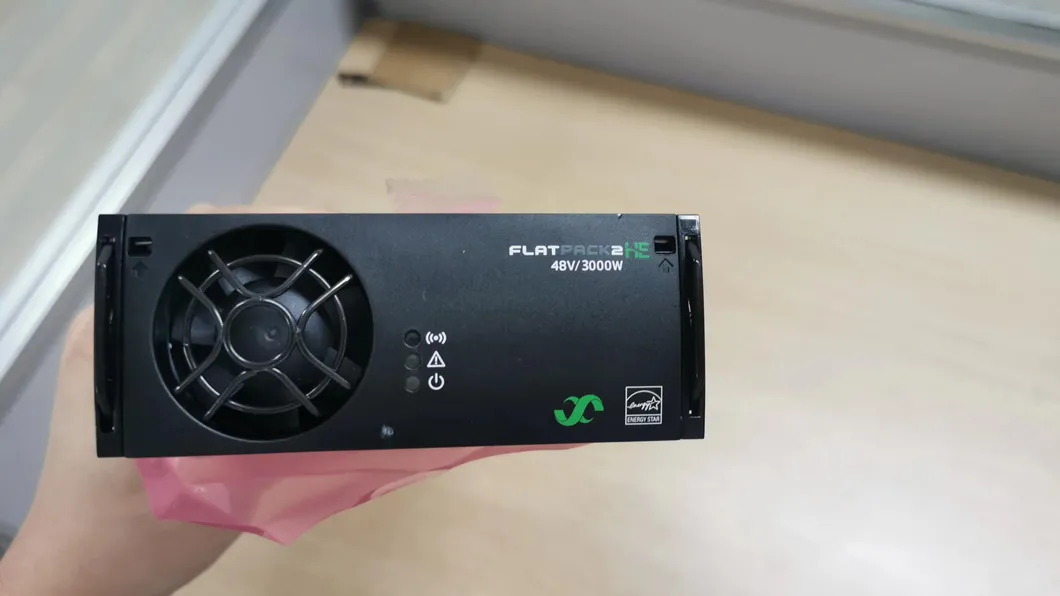

Flatpack2 48/3000 HE
Flatpack2 48/3000 HE

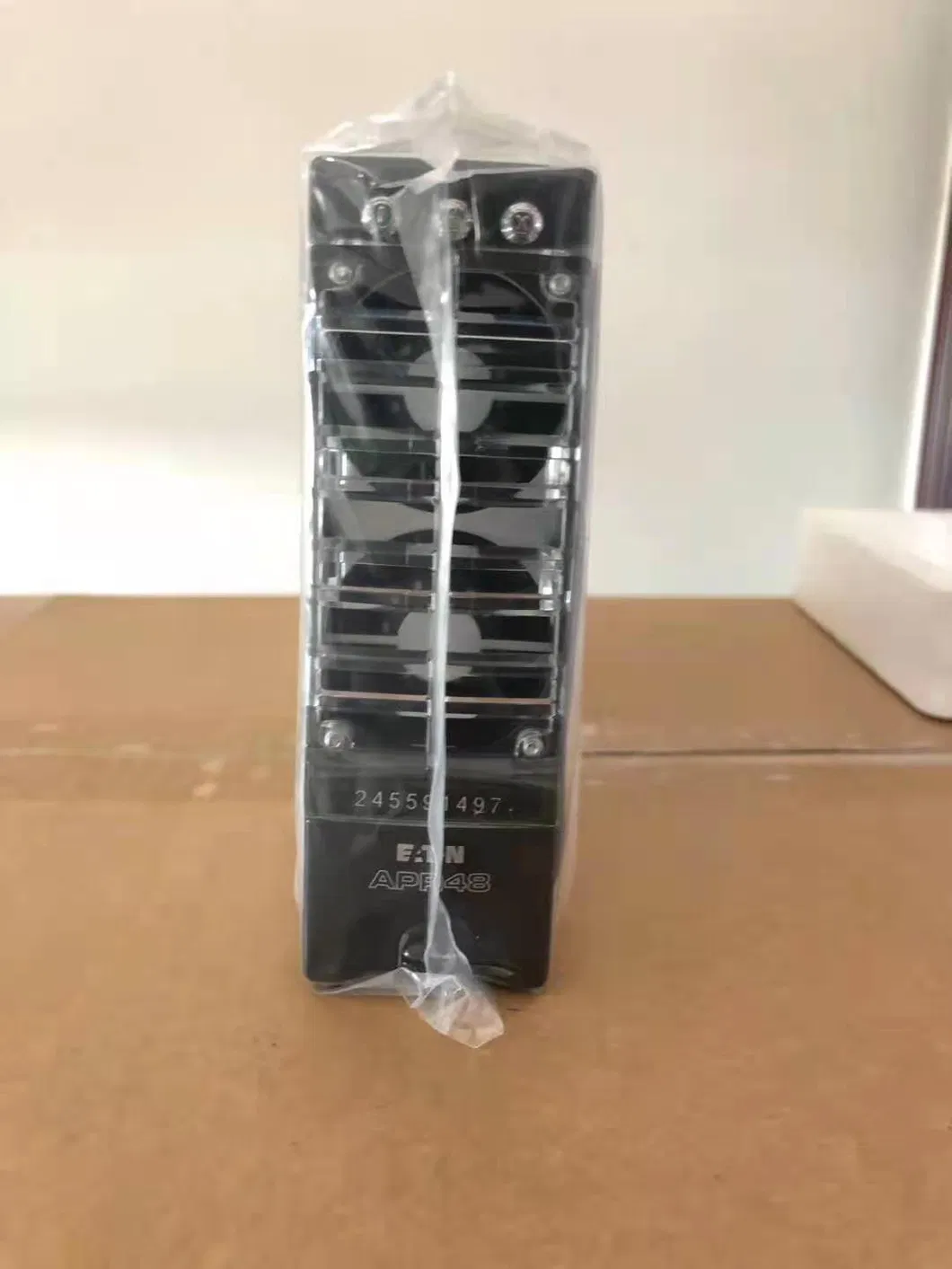

APR24-3G
APR24-3G
Frequently Asked Questions
What is the total power capacity of the Smart SYS E4121300R48? The system supports a maximum capacity of 8KW, housing up to four 2KW rectifier modules.
Is this power system suitable for standard telecom racks? Yes, it features a 19-inch 3U sub-rack design, making it easy to embed into all standard telecom equipment.
Does the system support hot-swapping? Yes, the rectifier modules are designed for hot-swap operation, allowing for maintenance without interrupting power.
What kind of battery protection does it offer? The system includes two levels of Low Voltage Disconnect (LVD) protection and two battery MCBs for enhanced safety.
What is the efficiency rating of the rectifiers? The rectifiers provide high efficiency of ≥93%, ensuring energy savings and reduced heat generation.
What are the input and output voltage specifications? The input voltage ranges from 85VAC to 300VAC, with a rated output voltage of -53.5V DC.
