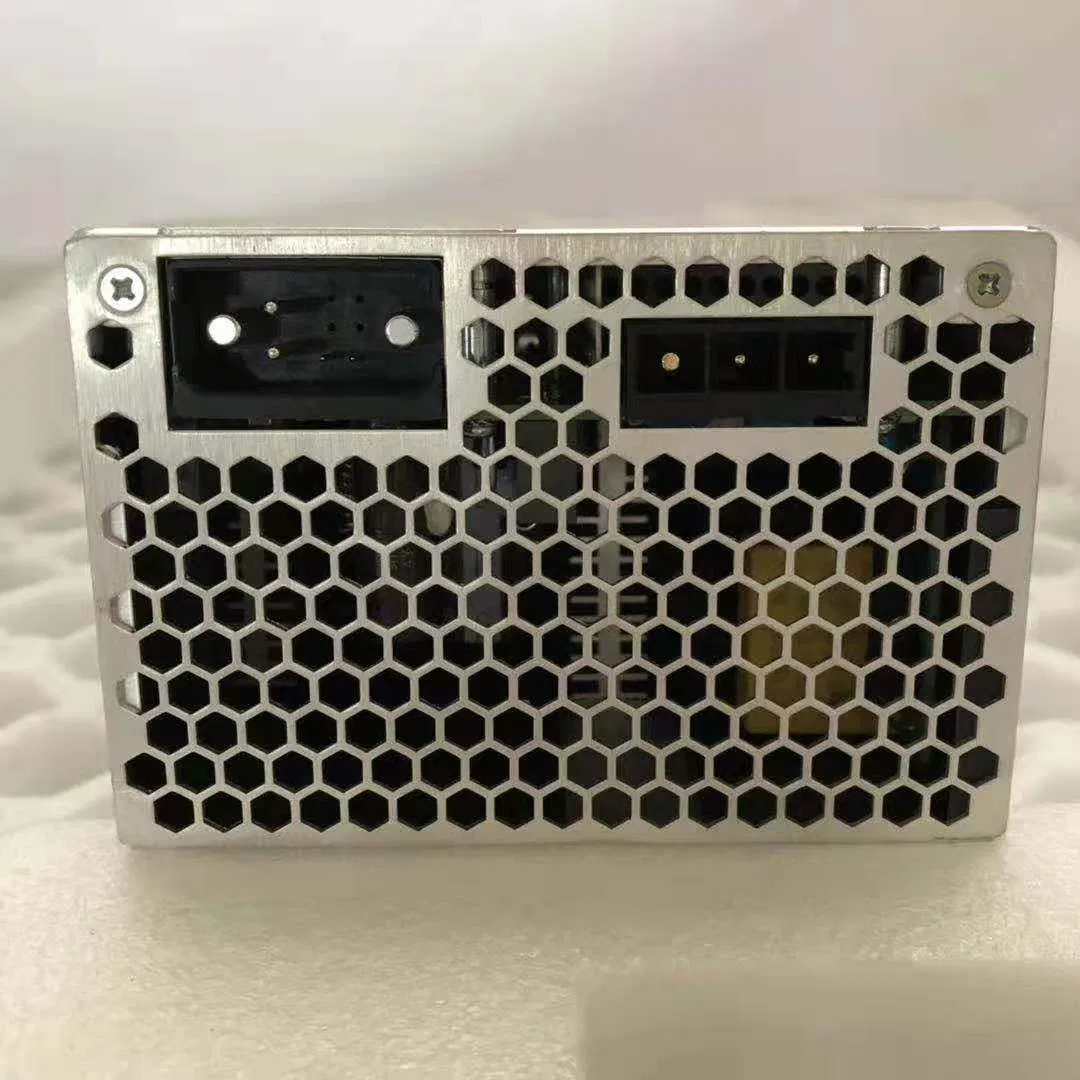

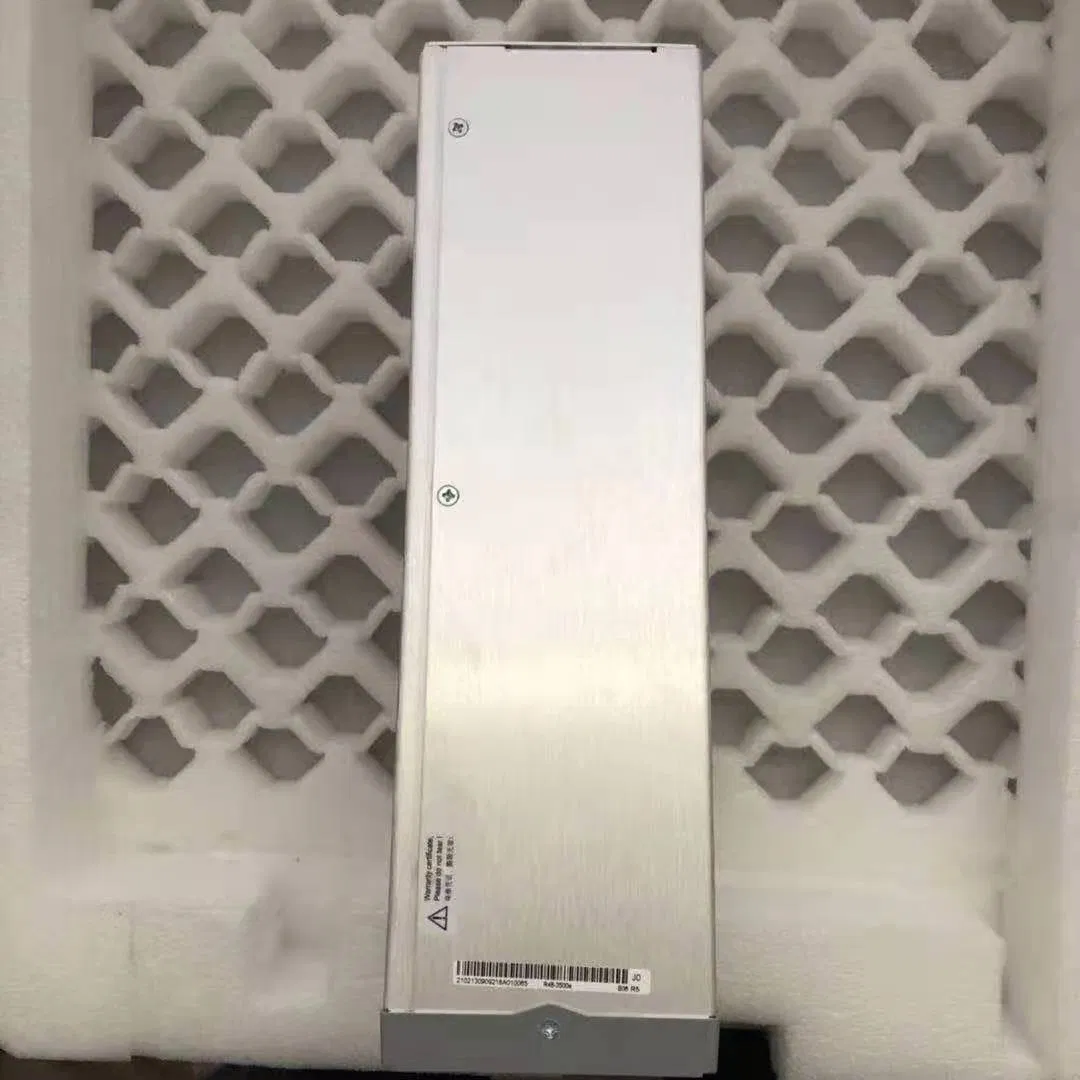

Dpc Dynamic Power Dzy48/05h DC Power System Rectifier
Dpc Dynamic Power Dzy48/05h DC Power System Rectifier
Dpc Dynamic Power Dzy48/05h DC Power System Rectifier
Dpc Dynamic Power Dzy48/05h DC Power System Rectifier
Dpc Dynamic Power Dzy48/05h DC Power System Rectifier
1 / 5
Dpc Dynamic Power Dzy48/05h DC Power System Rectifier
Dpc Dynamic Power Dzy48/05h DC Power System Rectifier
Dpc Dynamic Power Dzy48/05h DC Power System Rectifier
Dpc Dynamic Power Dzy48/05h DC Power System Rectifier
Dpc Dynamic Power Dzy48/05h DC Power System Rectifier

Dpc Dynamic Power Dzy48/05h DC Power System Rectifier

Customization: Available
Usage: Telecom Power Supply
Type: Wired
Send Inquiry

Product Description

Basic Information
Model NO.
DZY48/05H
Support Network
3G/4G/5G
Information Content
Data
Certification
CE, ISO, RoHS, GS
Condition
New
Transport Package
Carton
Origin
China
HS Code
8504401990
Production Capacity
5000PCS/Month
Product Description

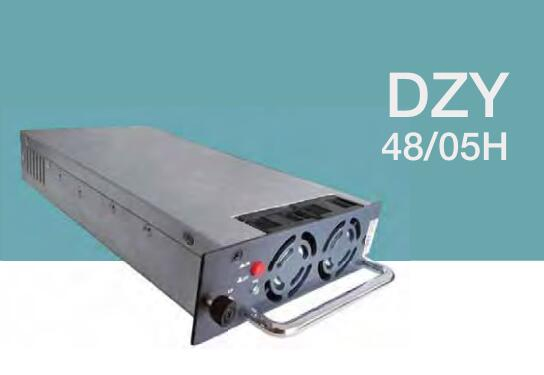

DZY48/05H is a digitalized rectifier module with outstanding reliability. The series is part of the -48V DC power system family, designed to meet global demands for telecom applications with wide operating temperatures and wide input voltage ranges.

Key Features
⚡High Efficiency

Typical 86% efficiency and 4.0W/in³ power density for optimized energy usage.

⚙️Digitalized Control

Primary and secondary digital controls realize excellent monitoring and regulation.

🛡️High Reliability

Front-to-back air flow with advanced thermal solutions ensures a stable working environment.

⚠️Input Protection

Automatically disconnects mains to protect the module during hazardous input voltage levels.

📡EMC Performance

Lower interference and excellent susceptibility provide superior module reliability.

🌍Global Approvals

CE marked and certified for worldwide applications across various telecommunication standards.

Applications
  • ✅ Wireless communication systems
  • ✅ Broadband and network access
  • ✅ Satellite communication ground stations
  • ✅ 3G/4G/5G base stations
  • ✅ Telecom roadside cabinets
Technical Specifications
Input Voltage85~300VAC (Nominal 220VAC)
Output Voltage42~58VDC (Nominal 53.5VDC)
Frequency50Hz~60Hz
Power270W
Maximum Current5A at 48VDC
Static Voltage Regulation<0.6%
Ripple<200mV peak to peak
EfficiencyTypical 86%
Startup Time3~8S
Hotsale Modules Display

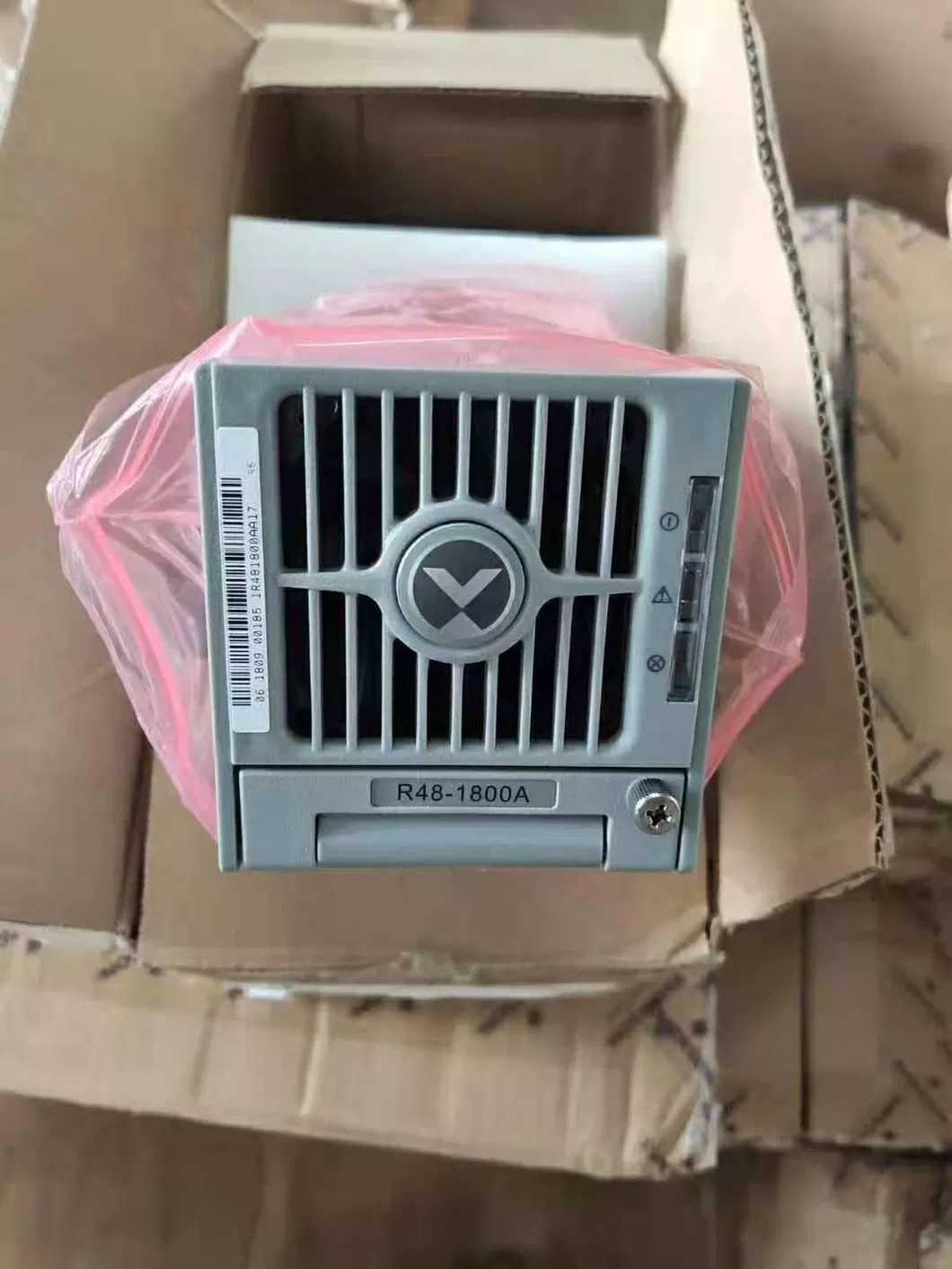

R48-1800A
R48-1800A Module

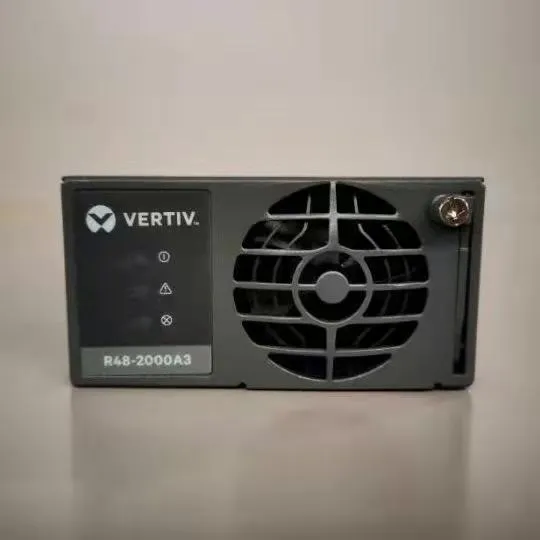

R48-2000A3
R48-2000A3 Module

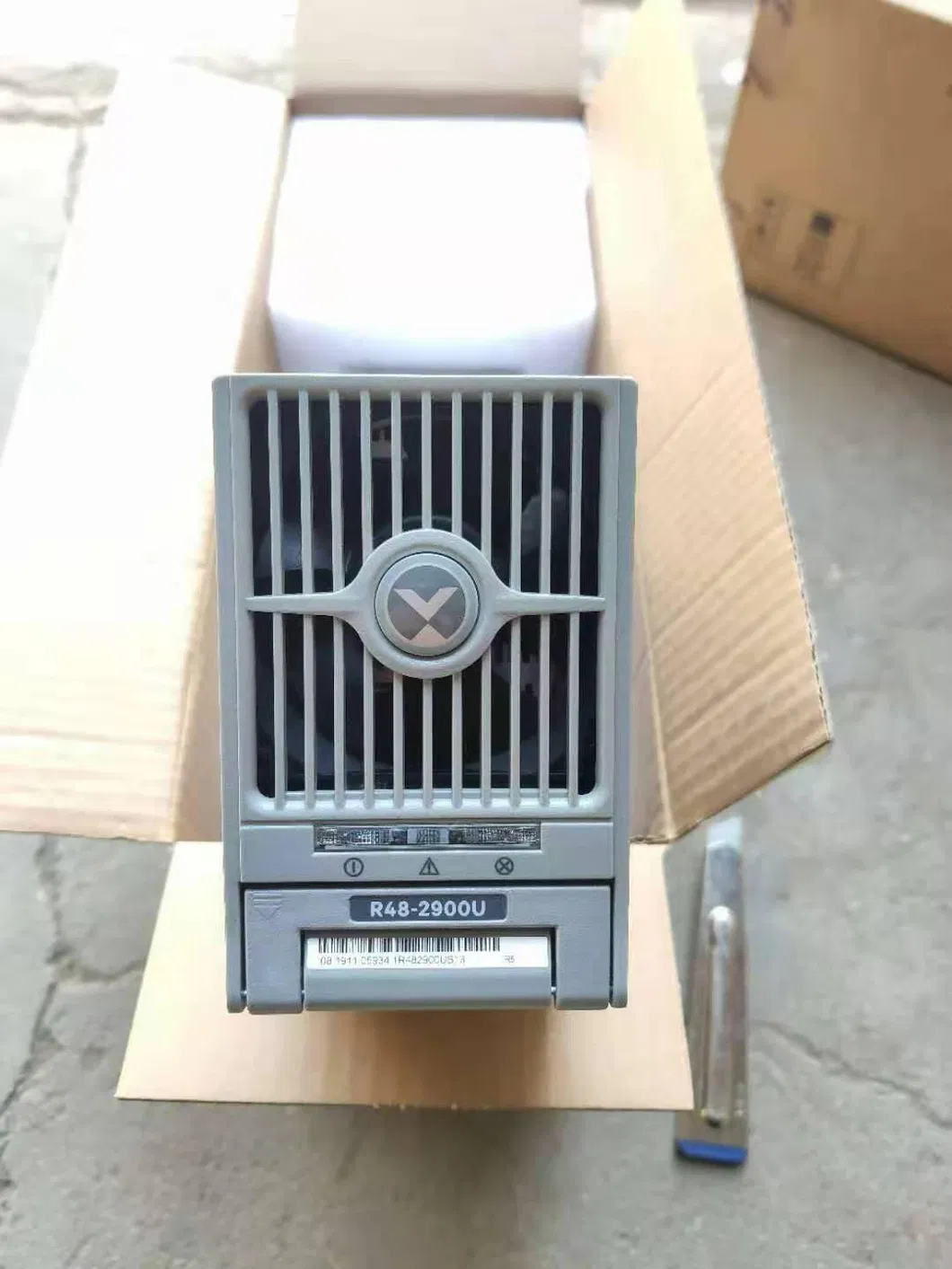

R48-2900U
R48-2900U Module

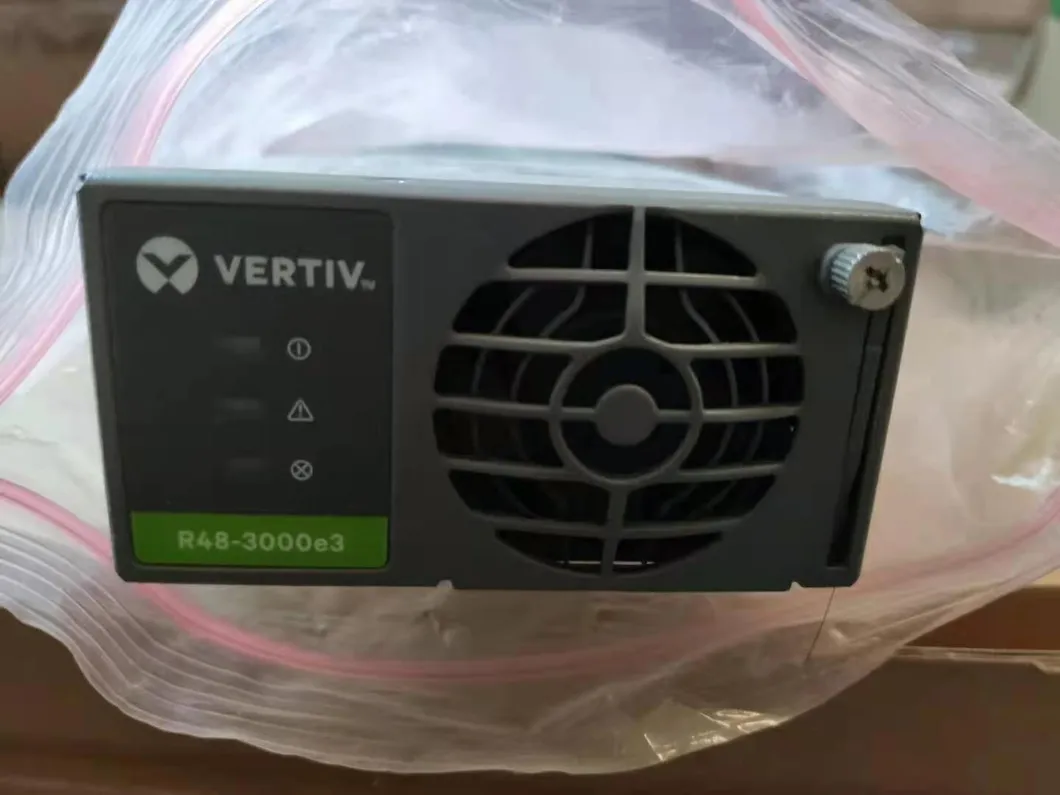

R48-3000e3
R48-3000e3 Module

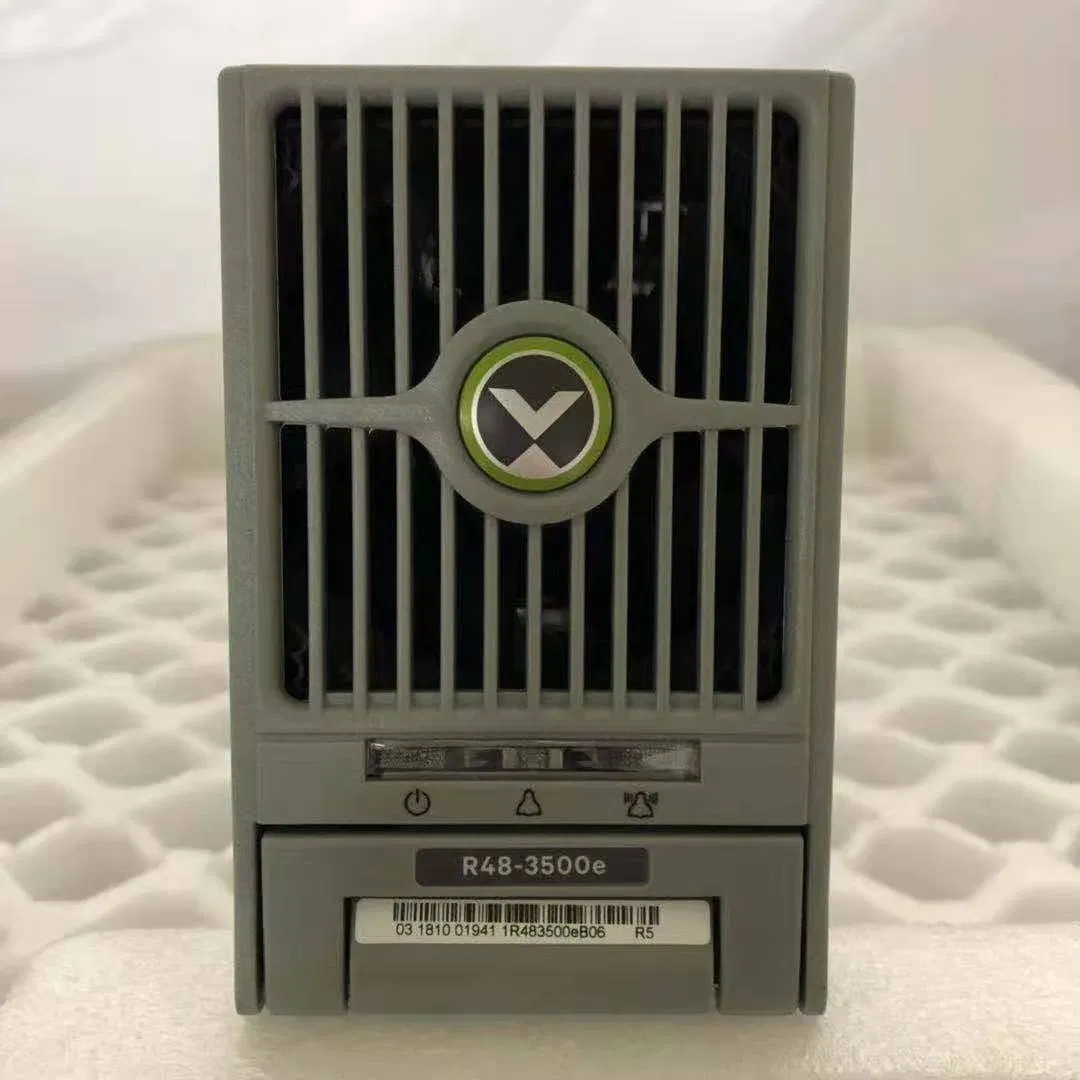

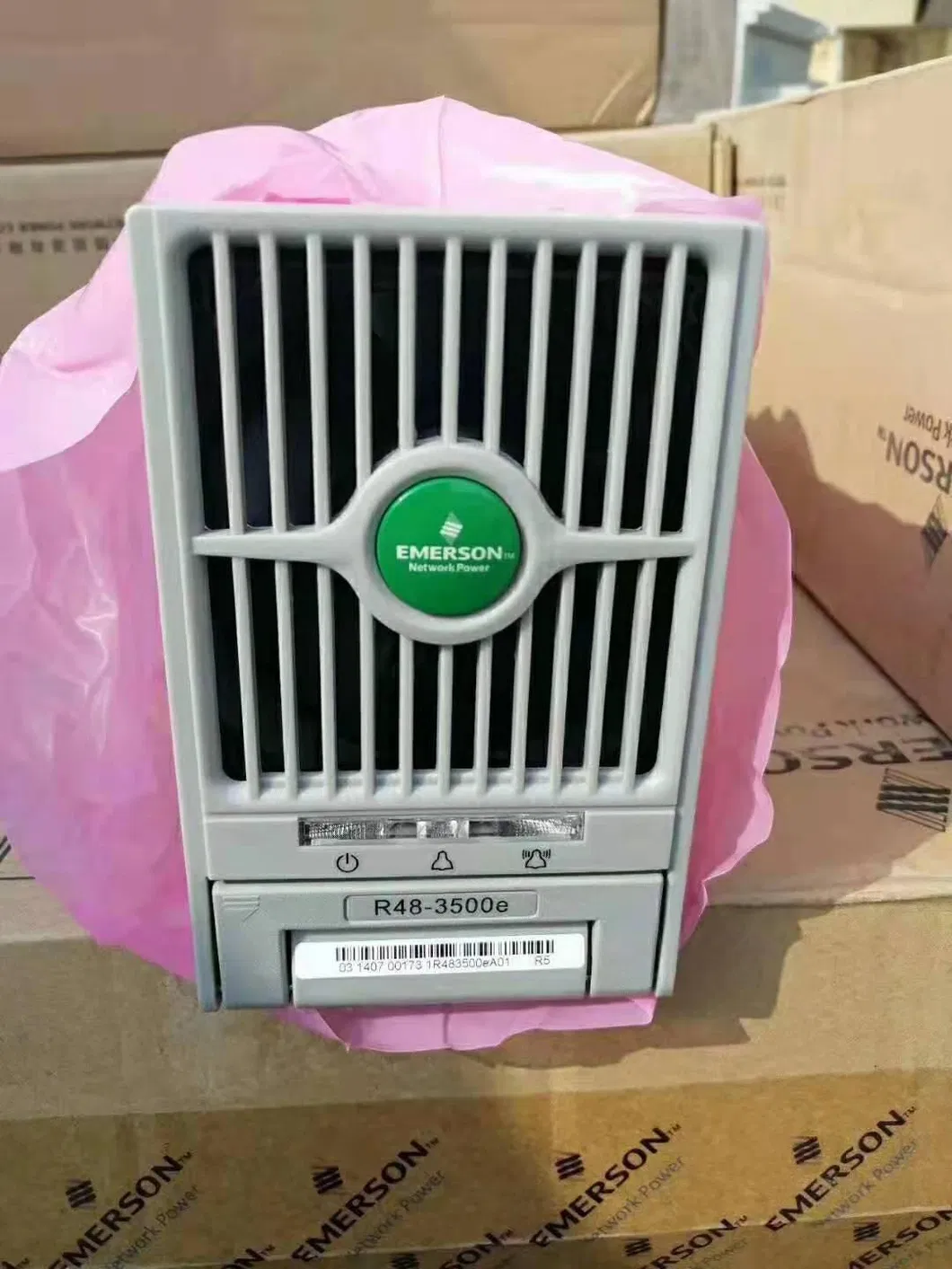

R48-3500e
R48-3500e Module

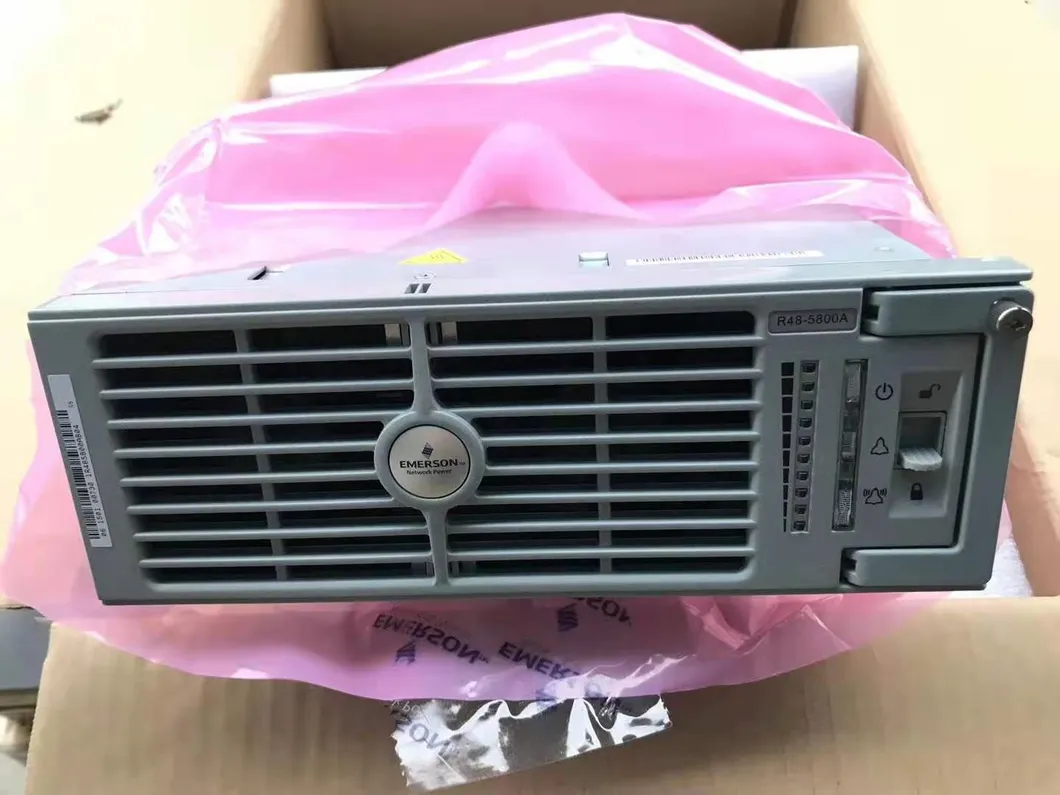

R48-5800A
R48-5800A Module

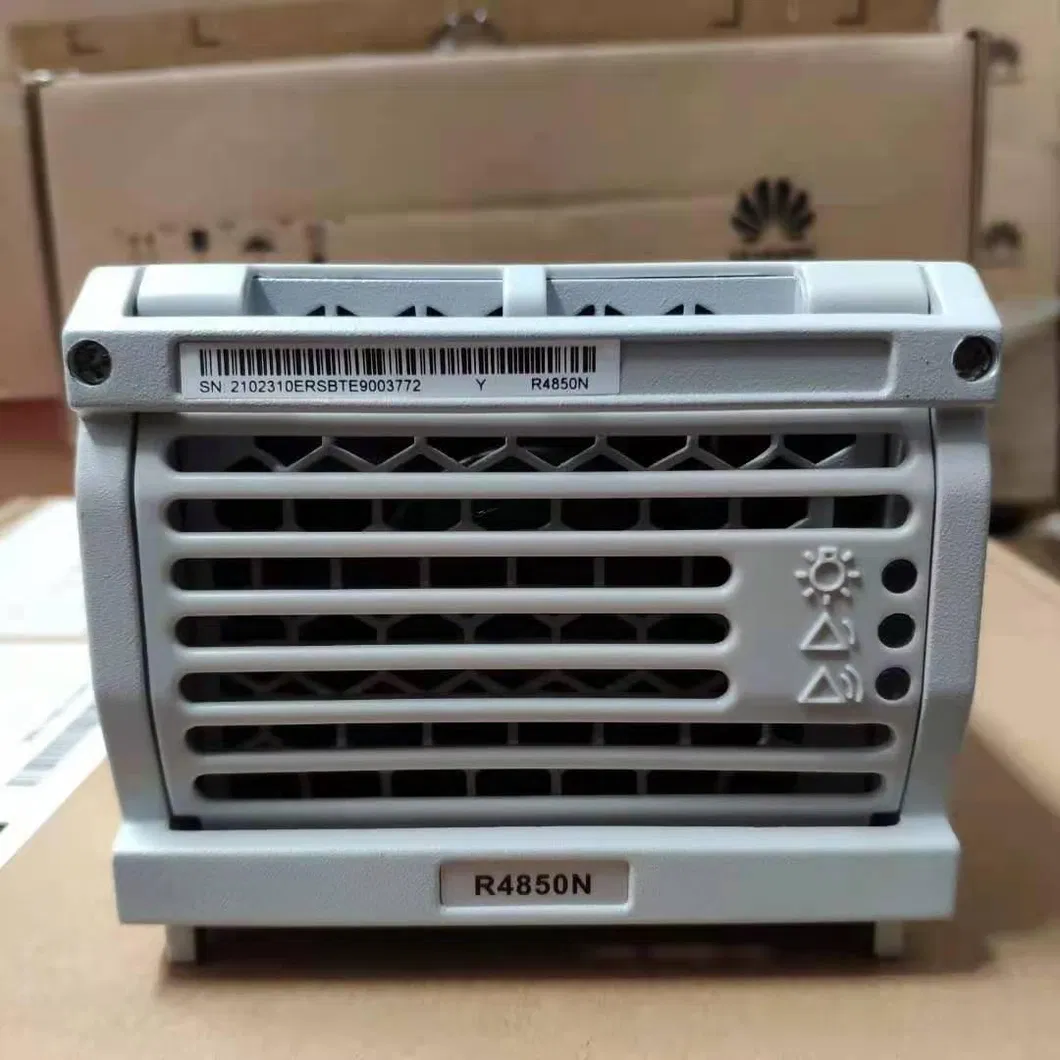

R4850N1
R4850N1 Module

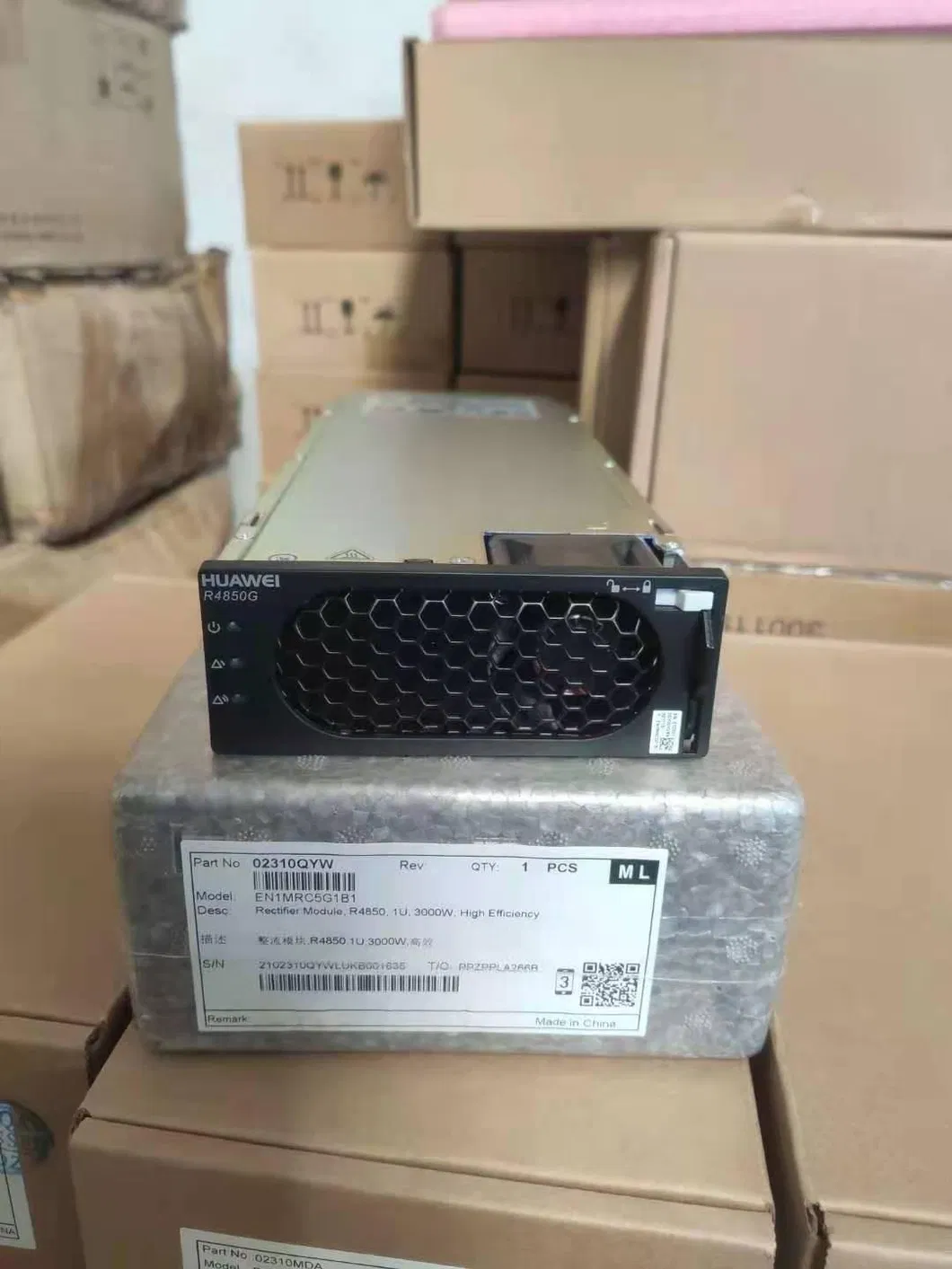

R4850G1
R4850G1 Module

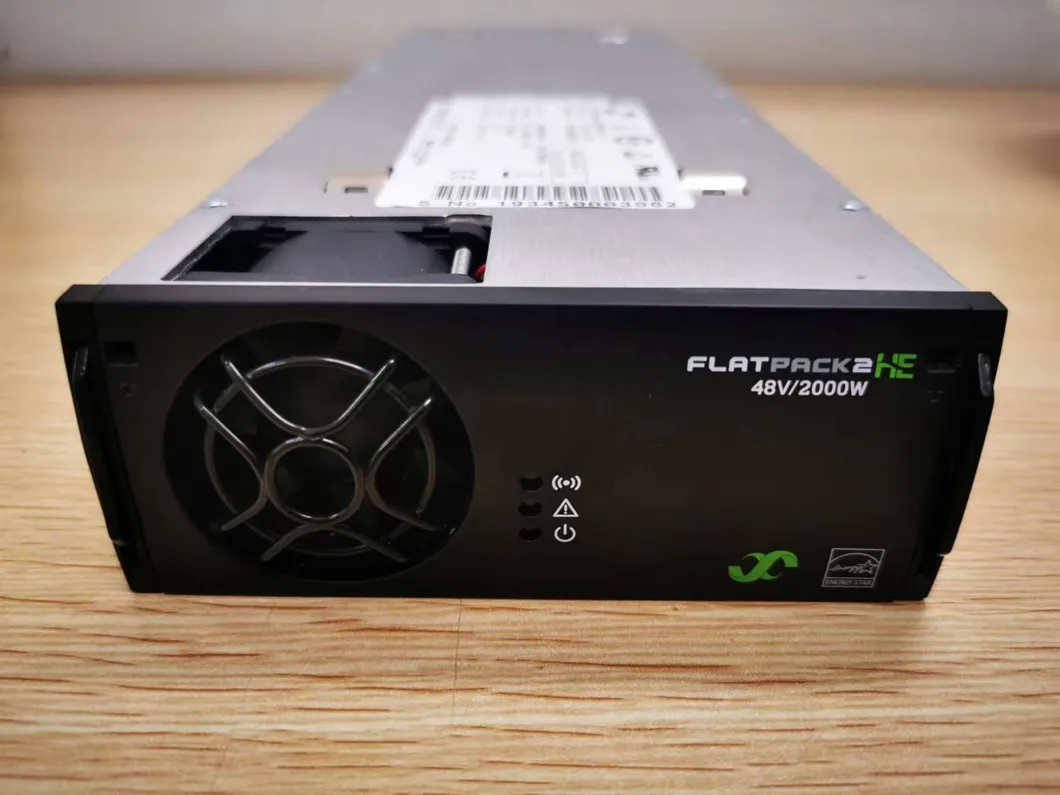

Flatpack2 HE
Flatpack2 48/2000 HE
Frequently Asked Questions
Q1: What is the typical efficiency of the DZY48/05H rectifier?
The DZY48/05H module features a typical efficiency of 86% with a power density of 4.0W/in³.
Q2: What are the input and output voltage ranges for this module?
The input voltage ranges from 85 to 300VAC (Nominal 220VAC), and the output voltage ranges from 42 to 58VDC (Nominal 53.5VDC).
Q3: Is the DZY48/05H suitable for 5G telecom applications?
Yes, it is specifically designed for 3G/4G/5G base stations, satellite communication stations, and telecom roadside cabinets.
Q4: How does the module handle hazardous input voltage?
The module is designed with a protection mechanism that disconnects the mains automatically if the input voltage cannot be sustained, preventing self-damage.
Q5: What international certifications does the product hold?
The product is CE marked and holds certifications including ISO, RoHS, and GS, making it suitable for global applications.
Q6: What is the cooling mechanism for the DZY48/05H?
It utilizes a front-to-back air flow cooling system with a single fan and advanced thermal solutions for high reliability.
