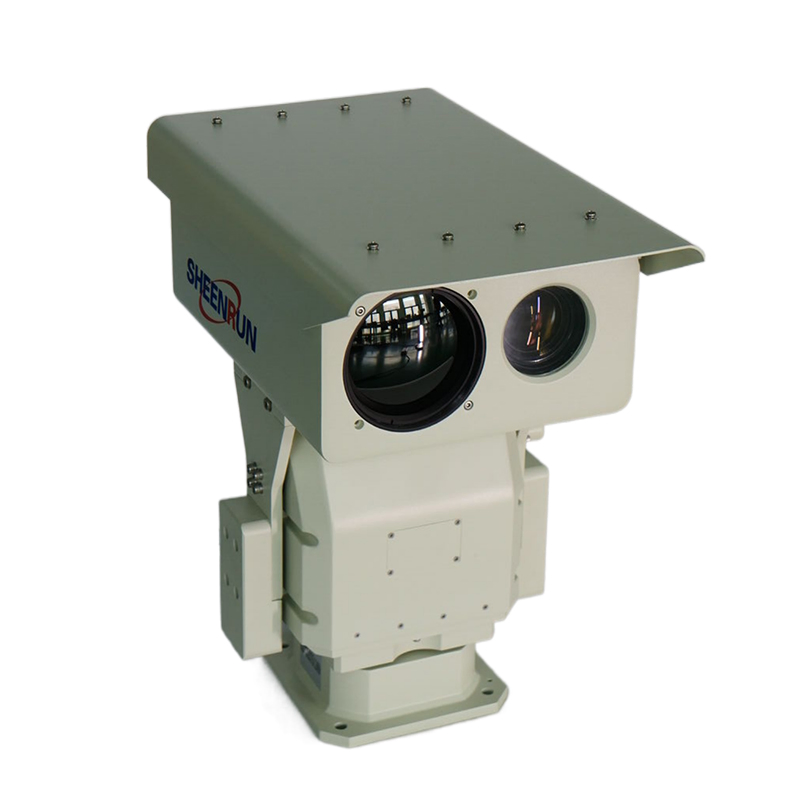

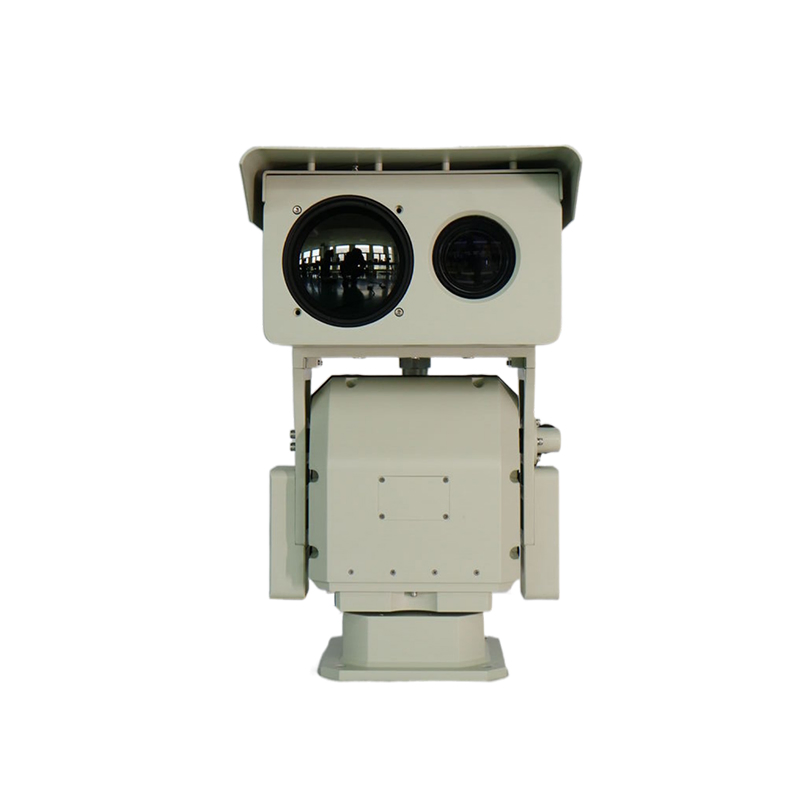

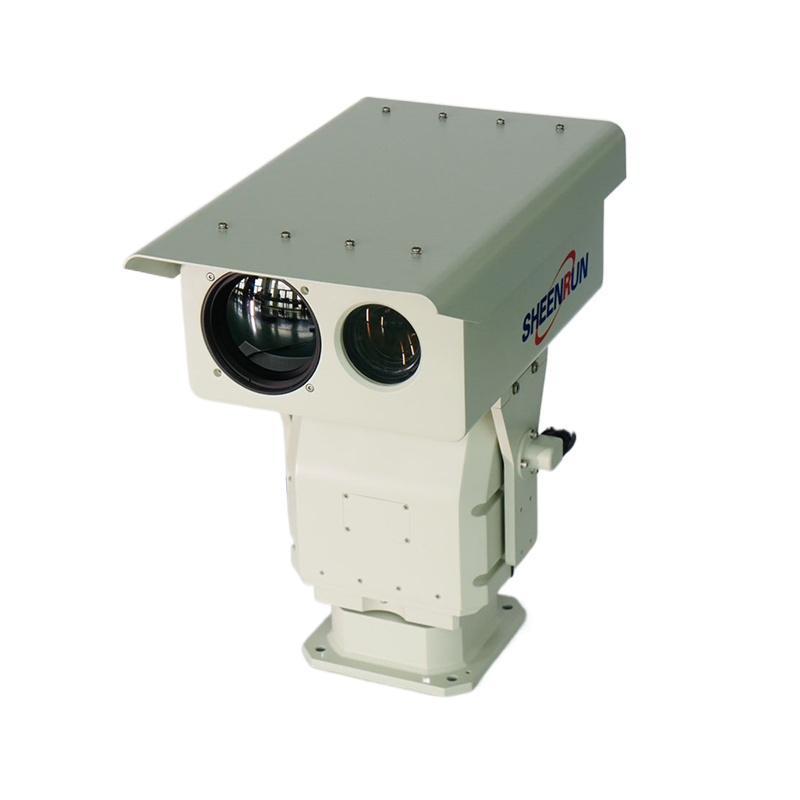

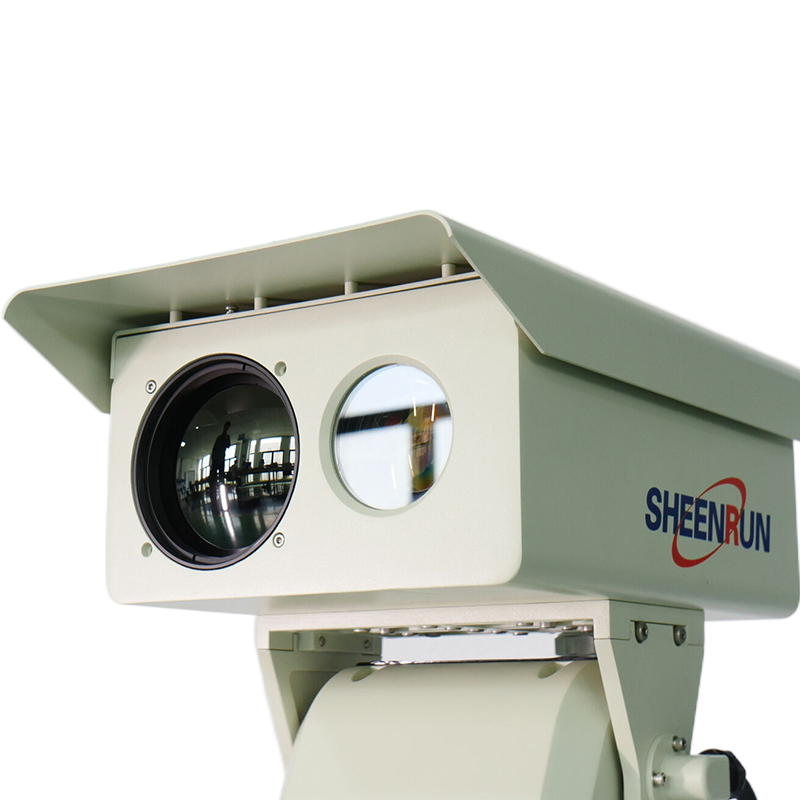

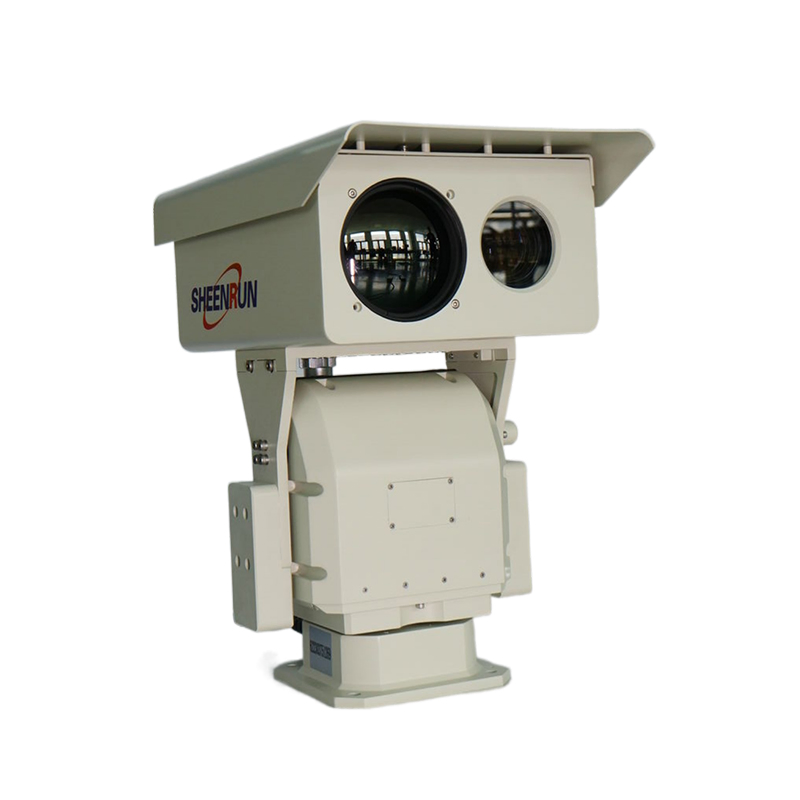

China Sheenrun PTZ Dual-Sensor Uncooled Thermal Visible Camera System
China Sheenrun PTZ Dual-Sensor Uncooled Thermal Visible Camera System
China Sheenrun PTZ Dual-Sensor Uncooled Thermal Visible Camera System
China Sheenrun PTZ Dual-Sensor Uncooled Thermal Visible Camera System
China Sheenrun PTZ Dual-Sensor Uncooled Thermal Visible Camera System
1 / 5
China Sheenrun PTZ Dual-Sensor Uncooled Thermal Visible Camera System
China Sheenrun PTZ Dual-Sensor Uncooled Thermal Visible Camera System
China Sheenrun PTZ Dual-Sensor Uncooled Thermal Visible Camera System
China Sheenrun PTZ Dual-Sensor Uncooled Thermal Visible Camera System
China Sheenrun PTZ Dual-Sensor Uncooled Thermal Visible Camera System

China Sheenrun PTZ Dual-Sensor Uncooled Thermal Visible Camera System

Customization: Available
Type: Monitoring System
Application: All-Round Monitoring, Sound Monitoring
Send Inquiry

Product Description

Basic Information
Model NO.
SHR-HLV1540AHVIR155
Feature
Waterproof / Weatherproof, High Definition
Sensor
CMOS
Technology
Pan / Tilt / Zoom
Protection Grade
IP66
Thermal Lens
30~150mm (F1.0)
Monitor Distance
Up to 12km (Thermal)
Power Supply
DC12V
Product Description

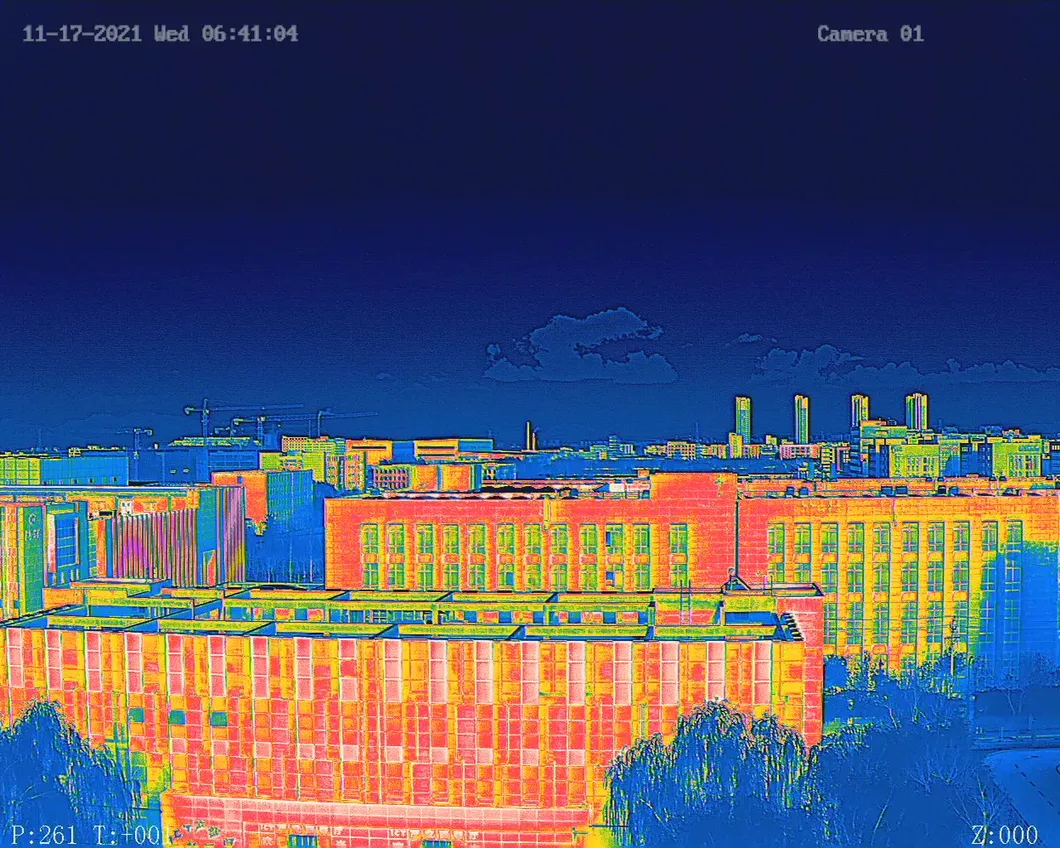

Camera System 1

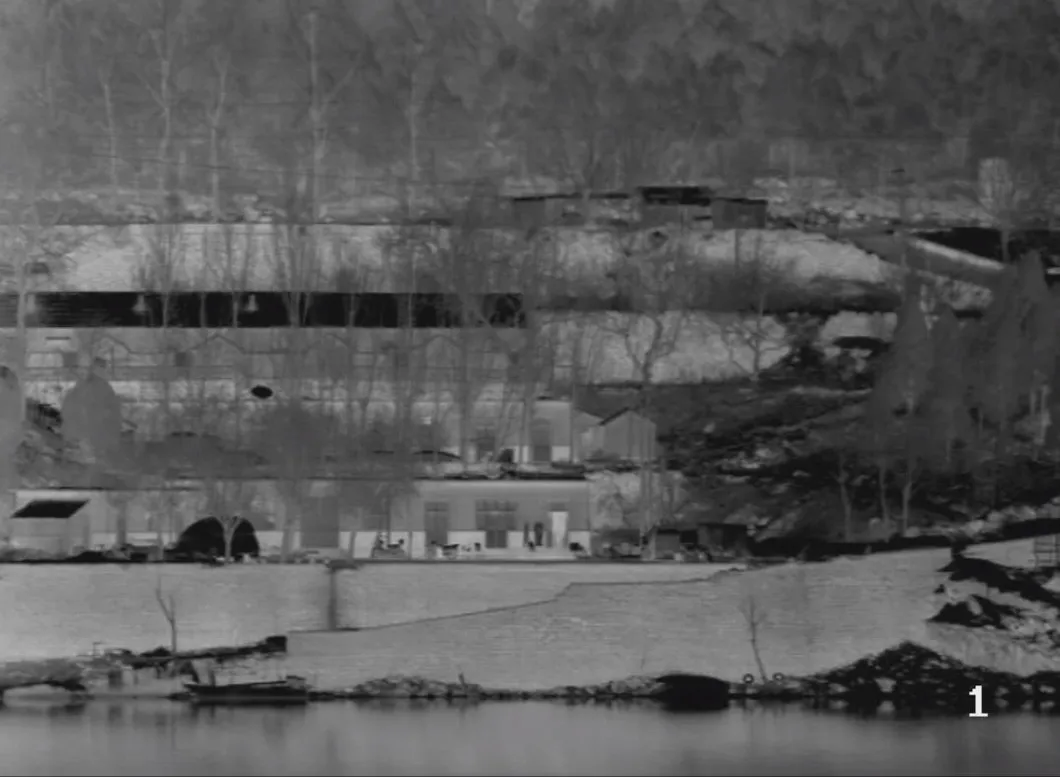

Camera System 2

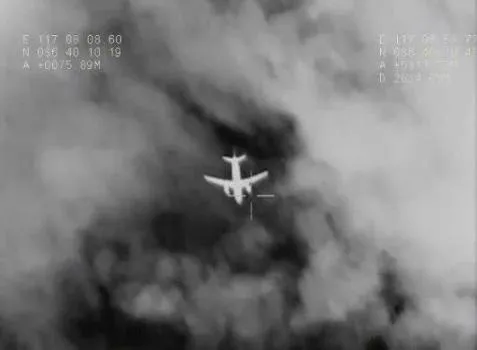

Camera System 3
  • Integrated infrared thermal imaging, visible light camera, and pan-tilt controlling system for day and night omni-directional monitoring.
  • Adopting advanced thermal imaging technology, not limited by light sources for clear imaging.
  • Day and night 2 megapixel low illuminance color camera for detailed observation.
  • High intelligence, simple to operate, easy to use and maintain.
  • 3D locating function with frame selection magnifying and click-to-center capabilities.
  • Universal variable speed pan-tilt for no blind angle monitoring and high precision locating.
Technical Specifications
ComponentSpecifications
Monitor DistanceVisible Light8000-10000m (Day vision)
Thermal (Human/Vehicle)Detection: 5040m / 14400m
Thermal LensFocal Length36~180mm, 5× optical zoom
F ValueF1.0~F1.2
Thermal DetectorTypeUncooled microbolometer FPA (VOX)
Resolution640×512
NETD≤[email protected], 300K
HD Day CameraLens16.7~1000mm, 60× zoom
Sensor1/1.8" Progressive Scan CMOS (1080P)
Pan-tiltRotation360° Continuous Horizontal; -60°~+20° Pitching
SpeedHorizontal: 0.01°~12°/s; Pitching: 0.01°~8°/s
Presets255 Presets, 8 Cruising Paths
EnvironmentProtectionIP66, Working Temp: -25ºC to +55ºC
Field Applications

Ideal for: Safe city monitoring, forest fire-proof monitoring, high altitude monitoring, railway surveillance, harbor and oilfield security, and freeway monitoring.

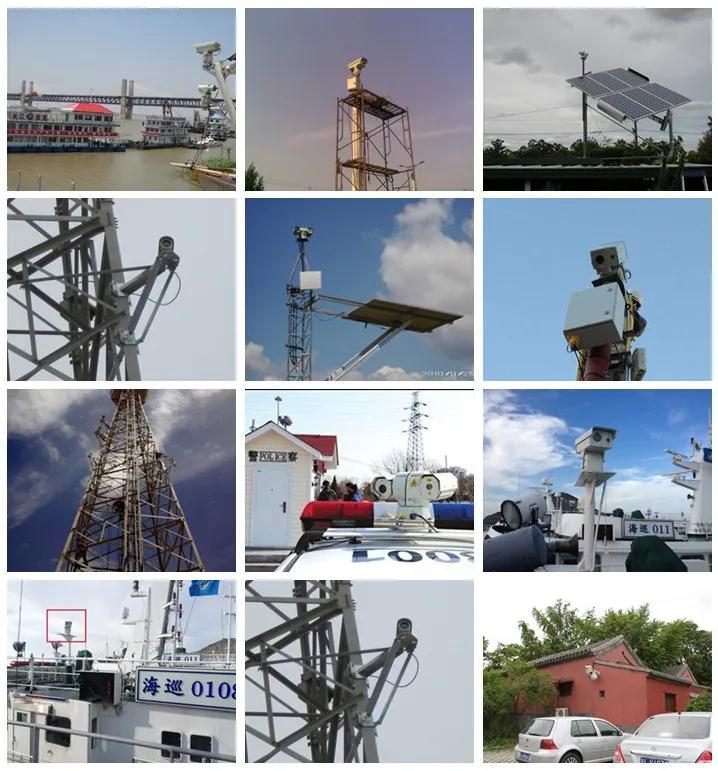

Applications
Professional Expertise

As a leading night vision and rugged information equipment supplier, the center focuses on independent innovation in laser night vision and uncooled continuous zoom infrared thermal imaging. With advanced international standards in synchronous zoom laser technology, the expertise extends across global markets for high-precision surveillance solutions.

Innovation Center
Certification
Frequently Asked Questions
What is the maximum monitoring distance of this system?
The system offers impressive range, with visible light day vision up to 10km and thermal detection for vehicles up to 14.4km.
Is this camera suitable for extreme outdoor environments?
Yes, it features an IP66 protection grade and is designed to operate in temperatures ranging from -25ºC to +55ºC, making it both waterproof and weatherproof.
Does the system support auto-focusing?
The HD day camera supports auto-focus, and the thermal lens comes with electric focusing, with an auto-focusing option available for the thermal module.
What kind of Pan-Tilt capabilities does the device have?
The device features a heavy-duty pan-tilt with 360° continuous horizontal rotation and -60° to +20° pitching, supporting up to 255 preset positions.
Can the camera track objects precisely?
Yes, it includes a 3D locating function that allows for frame selection magnifying and clicking to center, significantly enhancing its usability for high-precision tracking.
