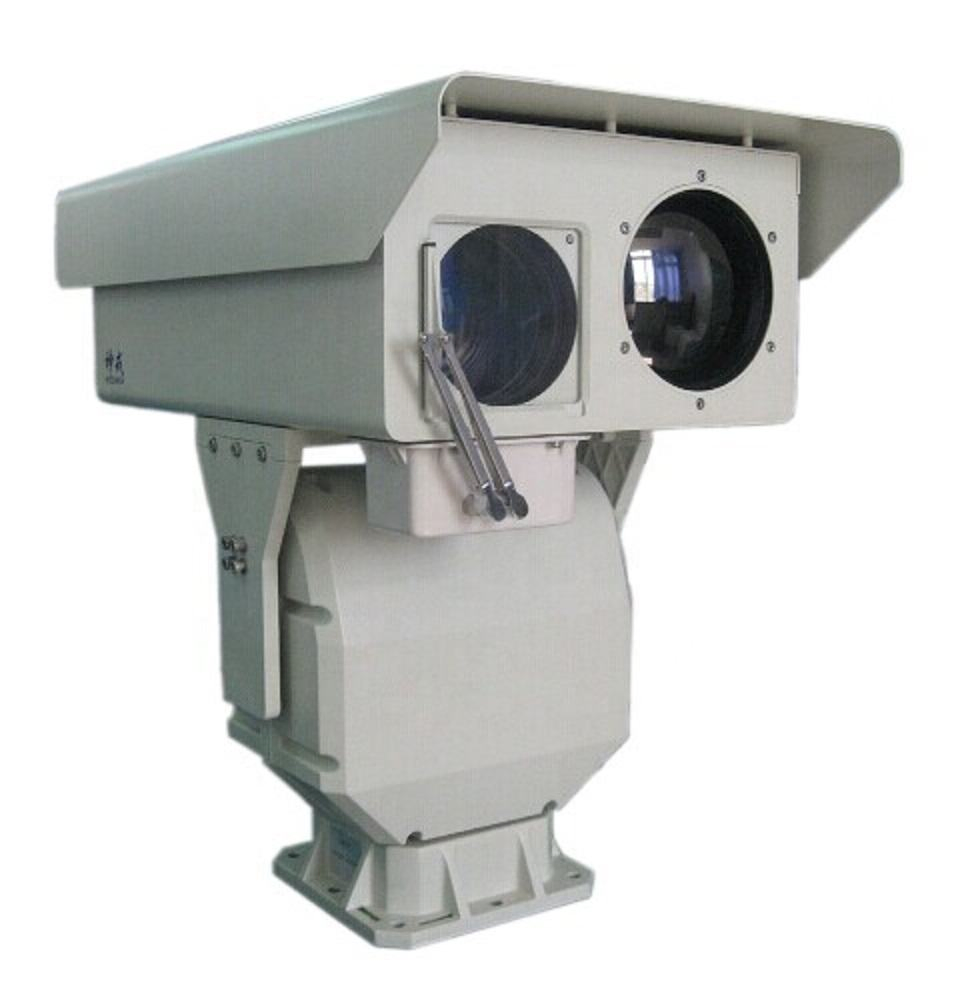

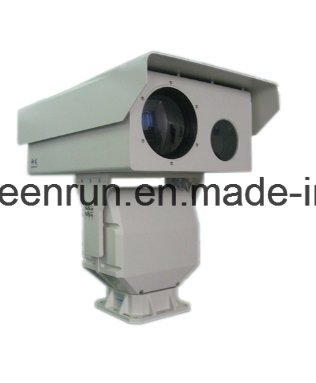

China Sheenrun 15km Long Range PTZ Dual Sensor Thermal Camera System
China Sheenrun 15km Long Range PTZ Dual Sensor Thermal Camera System
China Sheenrun 15km Long Range PTZ Dual Sensor Thermal Camera System
China Sheenrun 15km Long Range PTZ Dual Sensor Thermal Camera System
China Sheenrun 15km Long Range PTZ Dual Sensor Thermal Camera System
1 / 5
China Sheenrun 15km Long Range PTZ Dual Sensor Thermal Camera System
China Sheenrun 15km Long Range PTZ Dual Sensor Thermal Camera System
China Sheenrun 15km Long Range PTZ Dual Sensor Thermal Camera System
China Sheenrun 15km Long Range PTZ Dual Sensor Thermal Camera System
China Sheenrun 15km Long Range PTZ Dual Sensor Thermal Camera System

China Sheenrun 15km Long Range PTZ Dual Sensor Thermal Camera System

Customization: Available
Technology: Pan / Tilt / Zoom
Style: Pan/Tilt
Send Inquiry

Product Description

Basic Info

Model NO.
SHR-HLV1540AHVIR155A
Type
IP Camera
Sensor
CMOS
HDMI Format
1080P
Feature
Waterproof / Weatherproof, High Definition
Effective Distance
≧30m
Protection Grade
IP66
Monitor Distance
12km
Laser Power
10W
Package Size
65.00cm * 38.00cm * 32.00cm

Product Features

PTZ Dual Sensor Thermal Camera System
  • Integrated infrared thermal imaging, visible light camera and pan-tilt controlling system, realizing day and night omni-directional monitoring.
  • Adopting thermal imaging technology, not limited by light source, imaging clearly.
  • Day and night 2 megapixel low illuminance color camera, realizing details observing.
  • 3D locating function, realizing frame selection magnifying and clicking to center.
  • Universal variable speed pan-tilt, realizing omni-directional no blind angle monitoring and high precision locating.

Technical Data Specifications

Monitoring Distance Thermal Camera Detection (Human) Detection (Vehicle) Recognition (Human) Recognition (Vehicle)
Low Range Model 25~100mm 2800m 8000m 930m 2000m
Mid Range Model 30~150mm 4200m 12000m 1400m 3000m
High Range Model 30~180mm 5000m 14400m 1670m 3600m
Thermal Detector & Lens
Detector Type Uncooled microbolometer focal plane array (Vox)
Pixel Resolution 640×512 (384×288 optional)
Spectral Range 8~14μm
Image Process DDE, pseudo color
Visible Lens 12.5~750mm, 60× optical zoom available
Pan Tilt Speed Pan 0.01°~ 30°/s; Tilt 0.01°~ 15°/s

Applications & Gallery

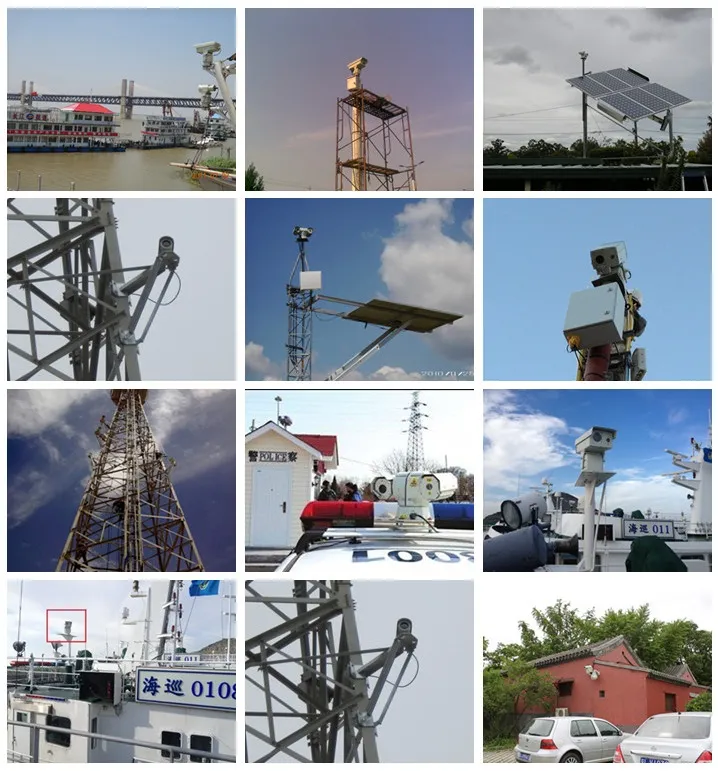

Ideal for: Safe city monitoring, forest fire-proof monitoring, railway monitoring, harbor security, oilfield surveillance, and freeway monitoring.

Application Scenario 1
Application Scenario 2
Application Scenario 3

Frequently Asked Questions

What is the maximum vehicle detection range of this system?
Depending on the model, the system can detect vehicles at a distance of up to 14,400 meters under optimal conditions.
Does the camera support both day and night surveillance?
Yes, the system integrates infrared thermal imaging for total darkness and high-definition visible light sensors for daytime monitoring.
Is the housing durable enough for extreme outdoor environments?
The system is rated at IP66 protection grade, making it waterproof and dustproof. It operates in temperatures from -25ºC to +55ºC.
What are the benefits of the 3D locating function?
The 3D locating function allows operators to click on the screen to center the camera or draw a frame to zoom in instantly, significantly reducing operational difficulty.
What imaging processing technologies are used for the thermal sensor?
The camera utilizes Digital Detail Enhancement (DDE) and pseudo-color technology to ensure clear and actionable thermal imagery.
What power supply is required for installation?
The system uses a wide-range waterproof power adapter supporting AC90-295V, with a power consumption of ≤140W.
