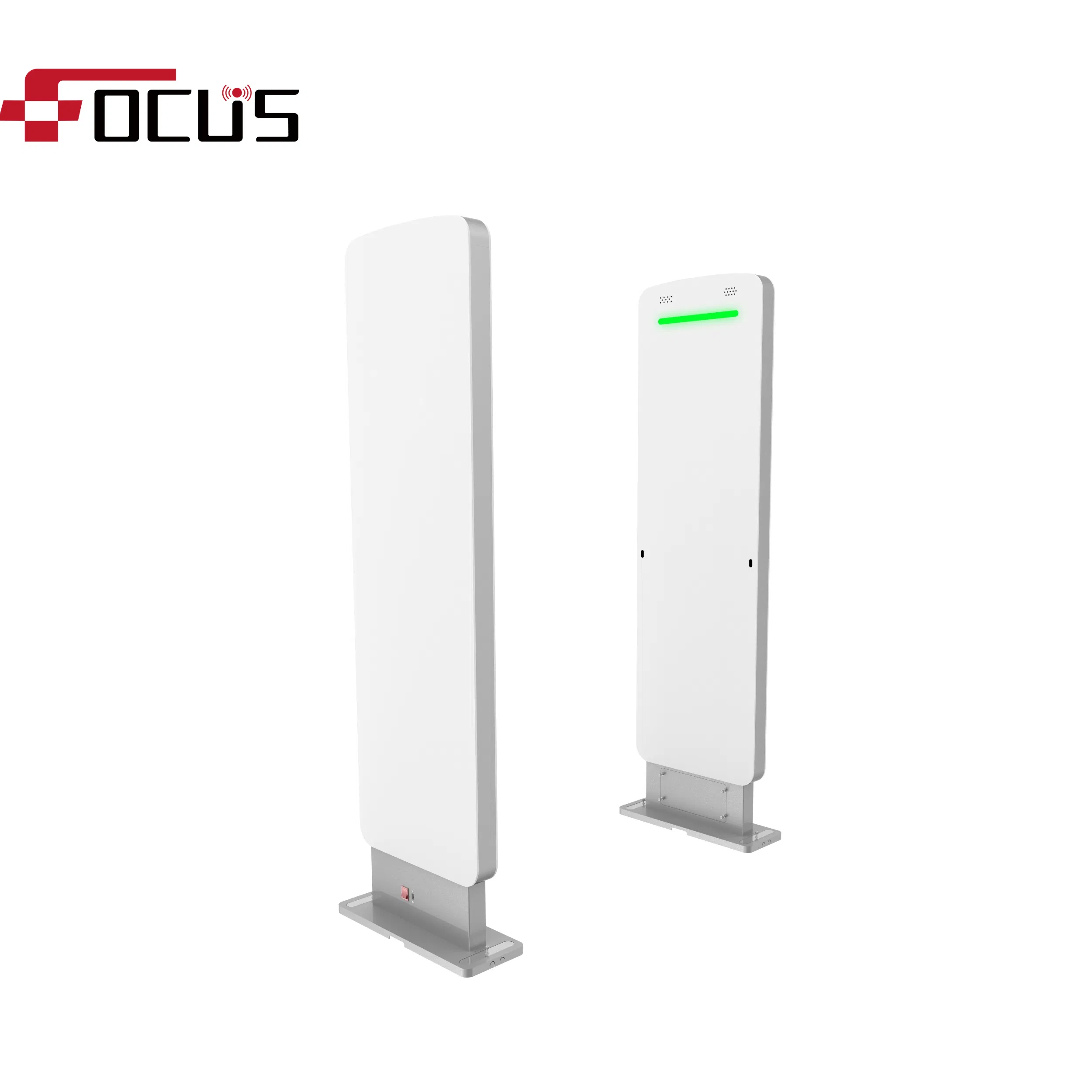

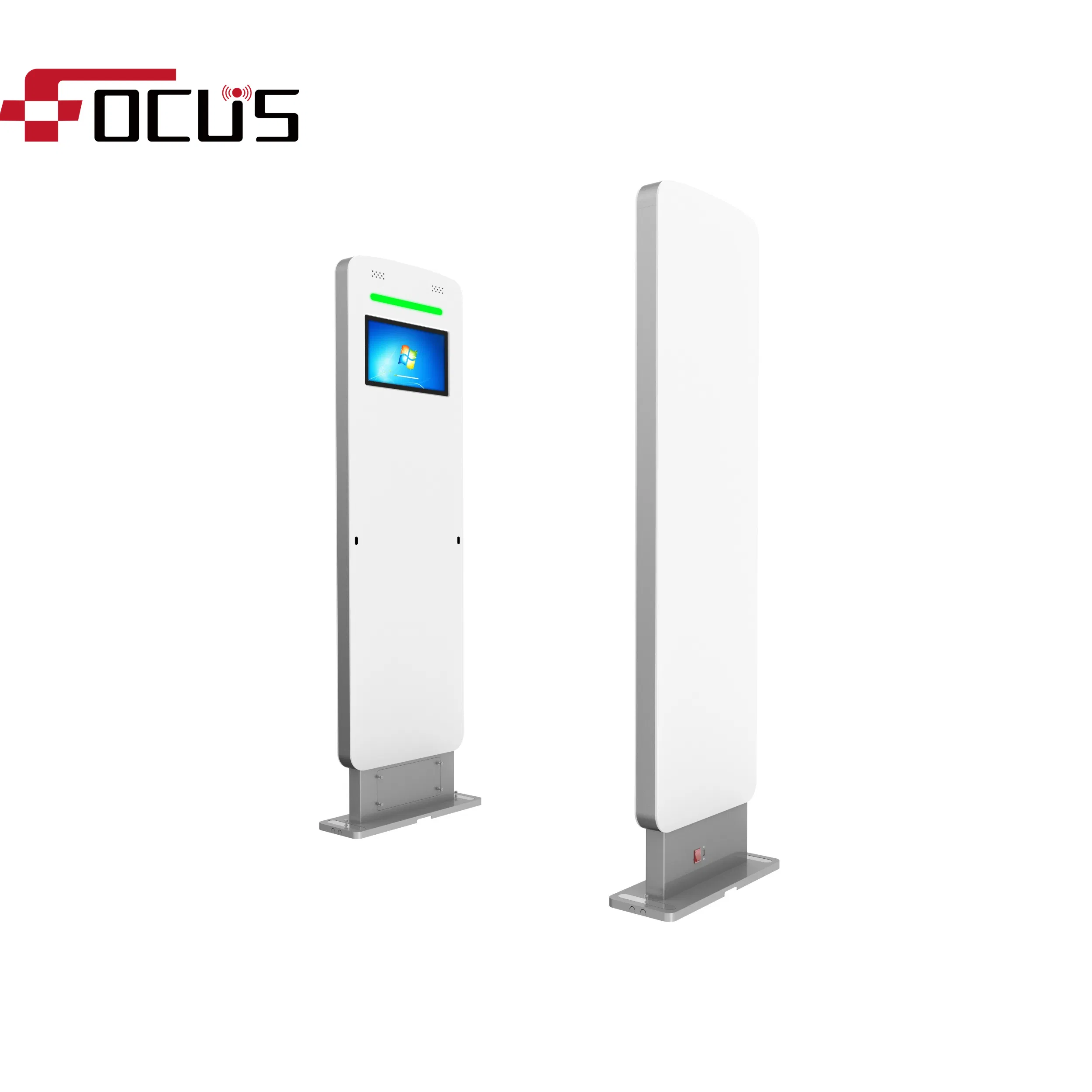

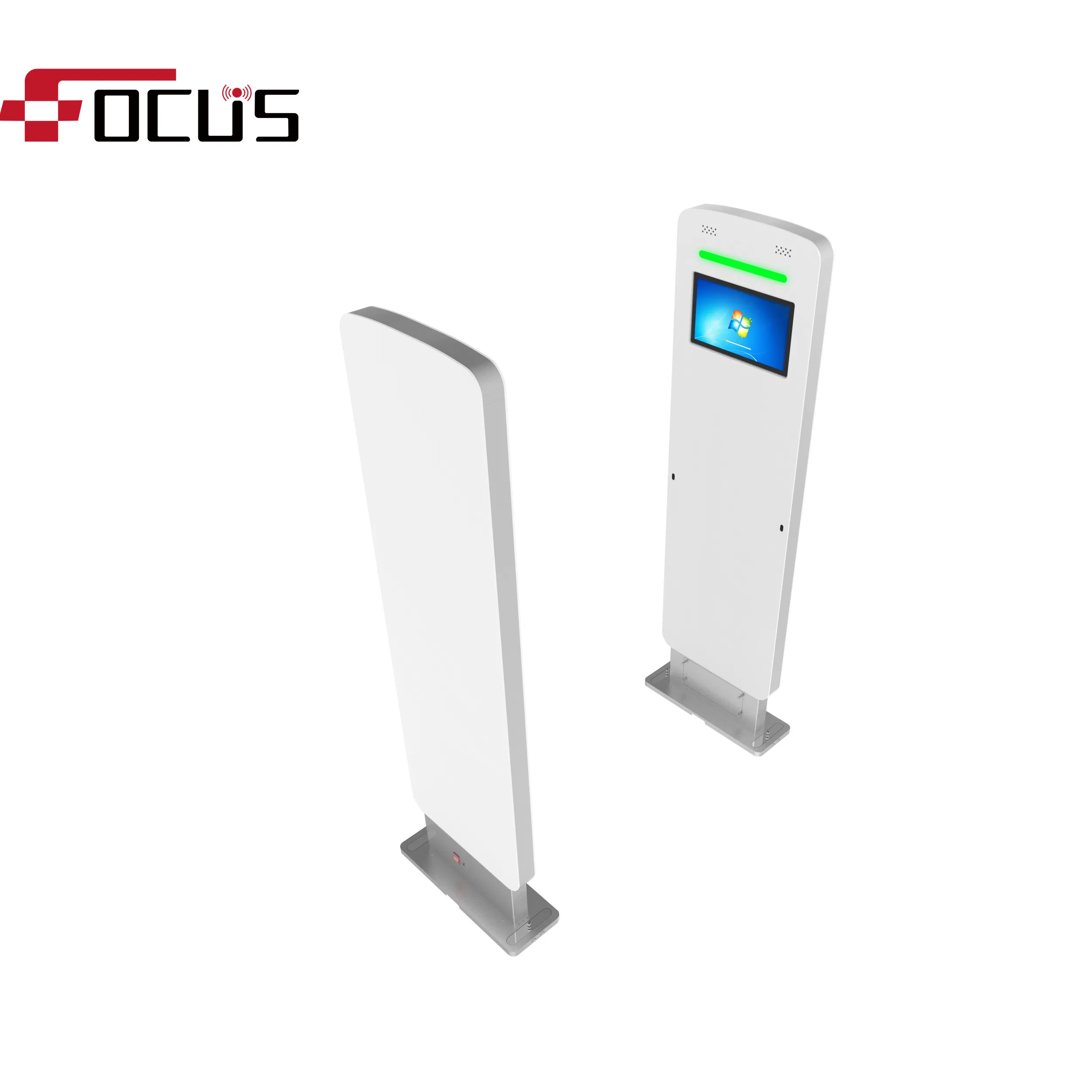

China Manufacturer RFID Security Gate UHF Antenna Fixed Gate Reader 860-960MHz Access Control
China Manufacturer RFID Security Gate UHF Antenna Fixed Gate Reader 860-960MHz Access Control
China Manufacturer RFID Security Gate UHF Antenna Fixed Gate Reader 860-960MHz Access Control
China Manufacturer RFID Security Gate UHF Antenna Fixed Gate Reader 860-960MHz Access Control
China Manufacturer RFID Security Gate UHF Antenna Fixed Gate Reader 860-960MHz Access Control
1 / 5
China Manufacturer RFID Security Gate UHF Antenna Fixed Gate Reader 860-960MHz Access Control
China Manufacturer RFID Security Gate UHF Antenna Fixed Gate Reader 860-960MHz Access Control
China Manufacturer RFID Security Gate UHF Antenna Fixed Gate Reader 860-960MHz Access Control
China Manufacturer RFID Security Gate UHF Antenna Fixed Gate Reader 860-960MHz Access Control
China Manufacturer RFID Security Gate UHF Antenna Fixed Gate Reader 860-960MHz Access Control

China Manufacturer RFID Security Gate UHF Antenna Fixed Gate Reader 860-960MHz Access Control

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
ST-G5
Interface
Serial Port, Ethernet Interface
Reading Distance
1-5m
Protocol
ISO 18000-6c(EPC C1 G2)
Frequency
865~868MHz, 902~928MHz (EU&US)
OS
Windows (Optional for Android)
Power Supply
AC220V, 10A, 50Hz
HS Code
8471900090
★

Product Description

UHF Gate Antenna - ST-G5

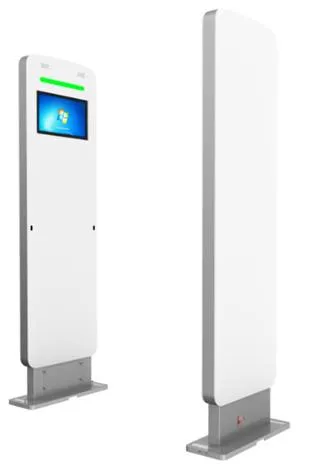

UHF Gate Antenna ST-G5

Introduction: ST-G5 is a high-performance UHF RFID gate reader powered by the Impinj chip and conforms with ISO18000-6C (EPC C1G2) protocol. It features an integrated alarm light and buzzer, along with a built-in infrared sensor that can trigger tag reading or perform bidirectional people counting.

Unlike traditional EAS systems, this RFID gate reader identifies every individual tagged item, significantly enhancing inventory accuracy and anti-theft capabilities.

▶

Key Features

  • Powered by high-performance RFID chip for maximum tag detection.
  • Built-in infrared sensor for motion-triggered reading and entry/exit judgment.
  • Integrated visible and audible alarm system.
  • Optional touch screen integration with Android or Windows OS.
  • Supports RSSI, antenna detection, and online firmware updates.
  • Supports Off-line EAS functionality.
⚙

Technical Specification

Main Specifications
RFID Functions RFID read & write / Audible alarm / Infrared sensor / People Counting
Reading Range 0-600mm, adjustable
Dimensions 520 * 180 * 1655mm
Frequency Range 840MHz - 960MHz
Optional Screen 14" Touch screen (Optional)
Communication Ethernet / RJ45
Mini PC (Optional) Intel i5, 4GB RAM + 128GB SSD
Working Temp 0 ~ 60ºC
📦

Packaging & Delivery

Package Size
38.00cm * 55.00cm * 160.00cm
Gross Weight
67.000kg
📏

Dimensions

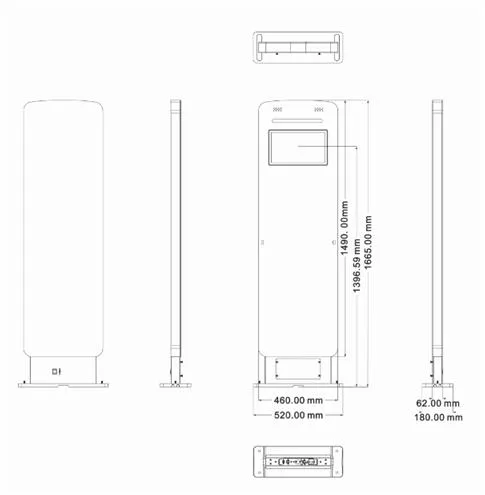

ST-G5 Dimensions
?

Frequently Asked Questions

Q1: What protocols does the ST-G5 gate reader support?
The ST-G5 fully supports the ISO 18000-6C (EPC Class 1 Gen 2) protocol, making it compatible with a wide range of UHF tags.
Q2: Can this gate reader count the number of people passing through?
Yes, it features a built-in infrared sensor that can detect direction and count incoming or outgoing records.
Q3: Is the touch screen a standard feature?
The 14-inch touch screen is an optional feature. You can choose to configure it with or without the screen depending on your application needs.
Q4: What are the primary applications for this UHF RFID gate?
It is widely used in parking systems, hospitals, libraries, corporate offices, banks, and retail stores for asset tracking and security.
Q5: How is the device installed?
The gate is designed for stability and can be securely fixed to the ground using standard screws.
Q6: Does it support both visible and audible alerts?
Yes, the device is equipped with an integrated alarm light and buzzer to provide immediate feedback during tag detection.
