Product Overview

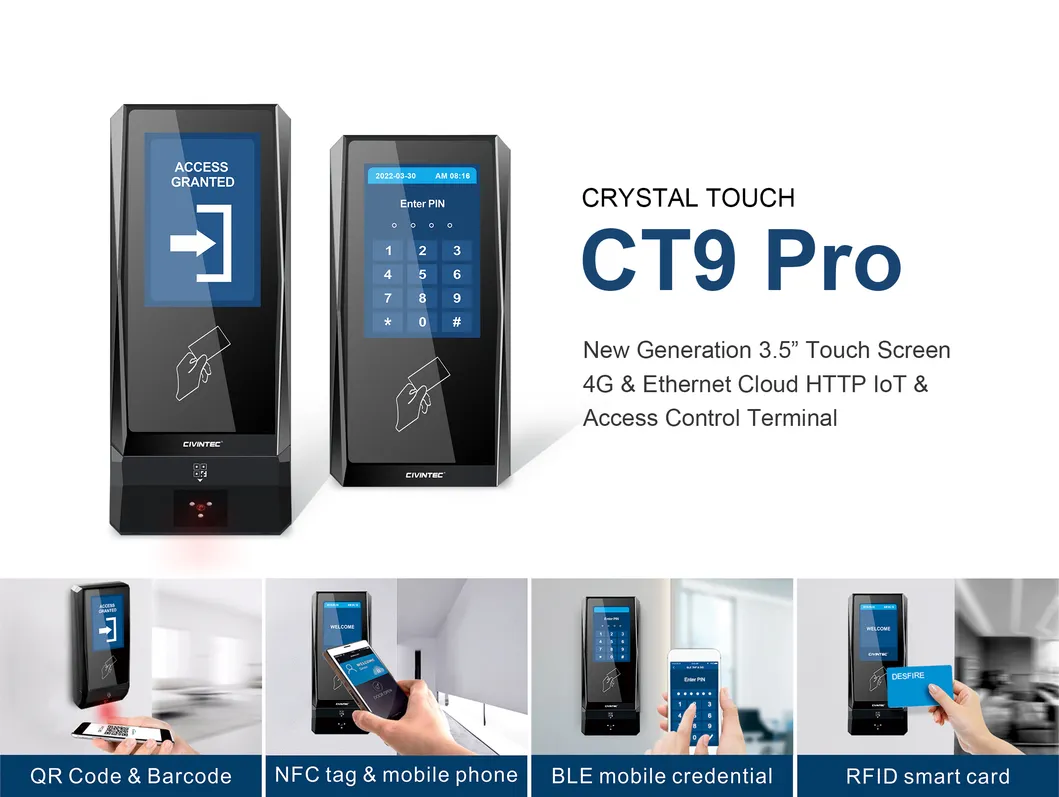

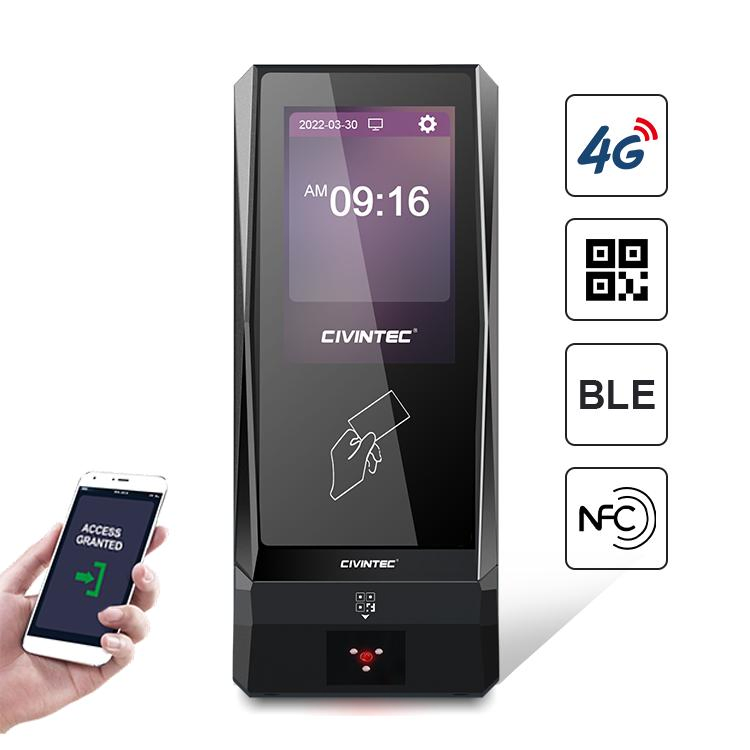

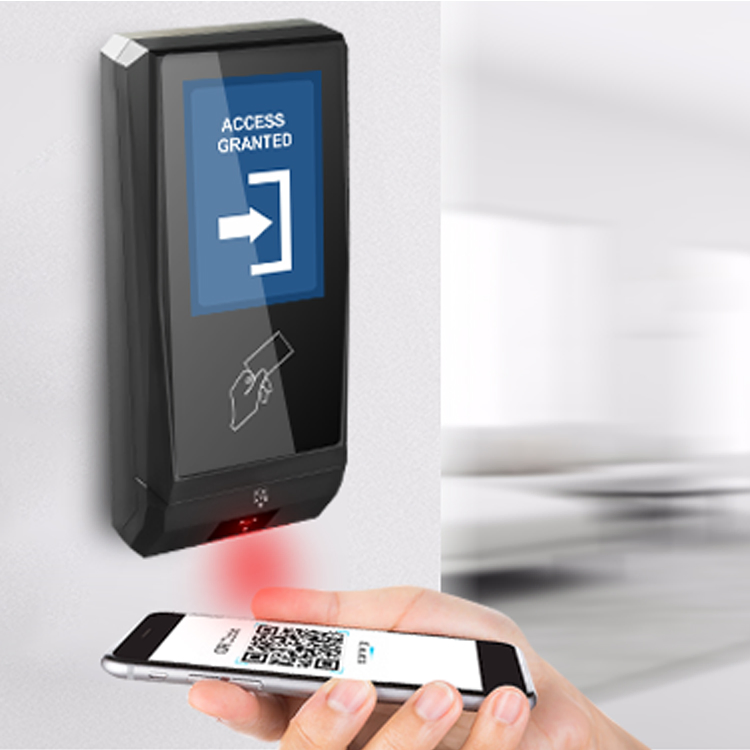

CT9 Pro is Linux based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39, etc. |

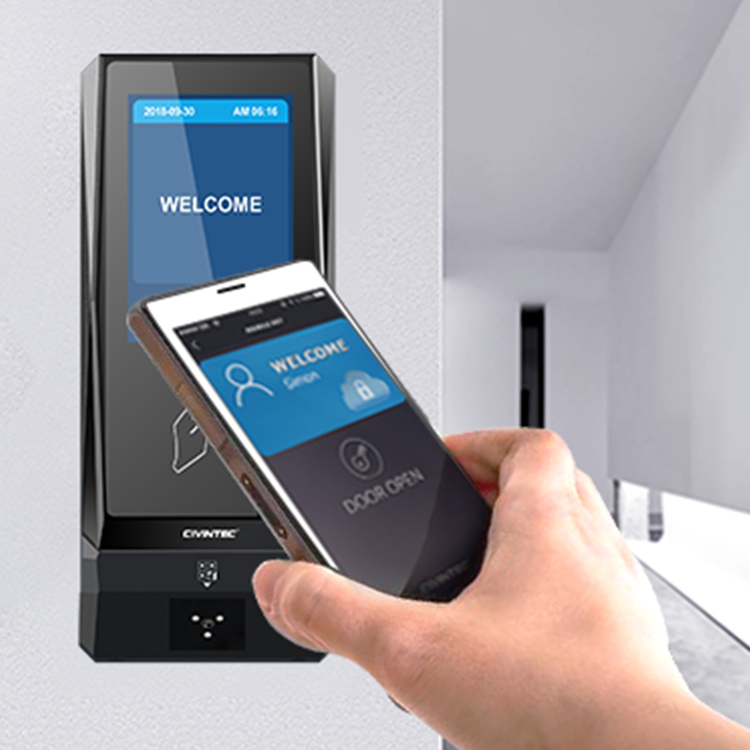

| Mobile ID | BLE, NFC |

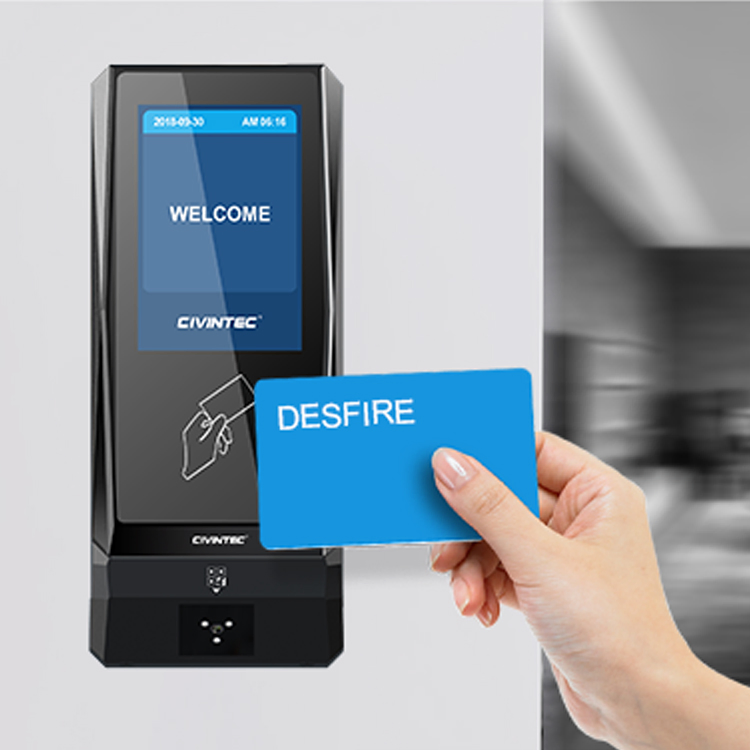

| RFID smart card | EM 125KHz, 13.56MHz ISO14443A Mifare® Classic, Mifare® Plus, DESFire® EV1, EV2, NFC tags, ISO14443B |
| SAM slot | ISO7816(T=0,T=1) 1 SAM module |
| Communication | 4G, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |
| IP protection | IP65 outdoor/indoor use |
| Certification | CE approved |
🚀
Product Features

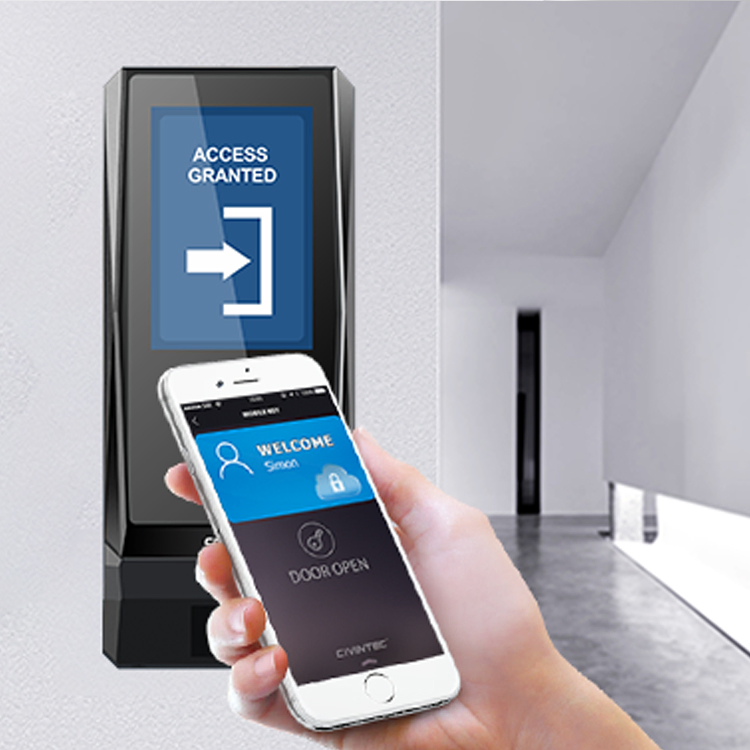

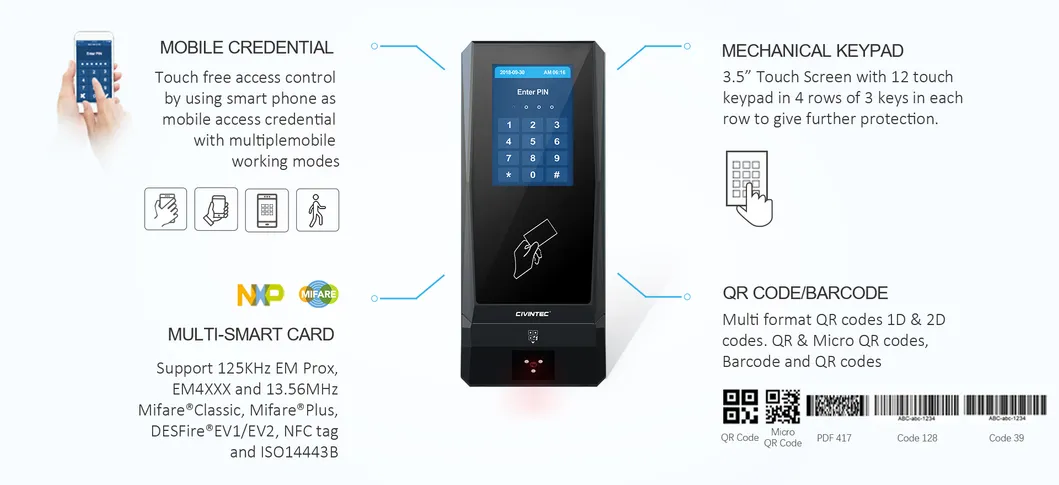

Multiple Access Credential: CT9 Pro incorporates with 5-in-1 multiple access credential technologies, including touch keypad, dual-frequency RFID, BLE & NFC mobile access, and QR code scanning.

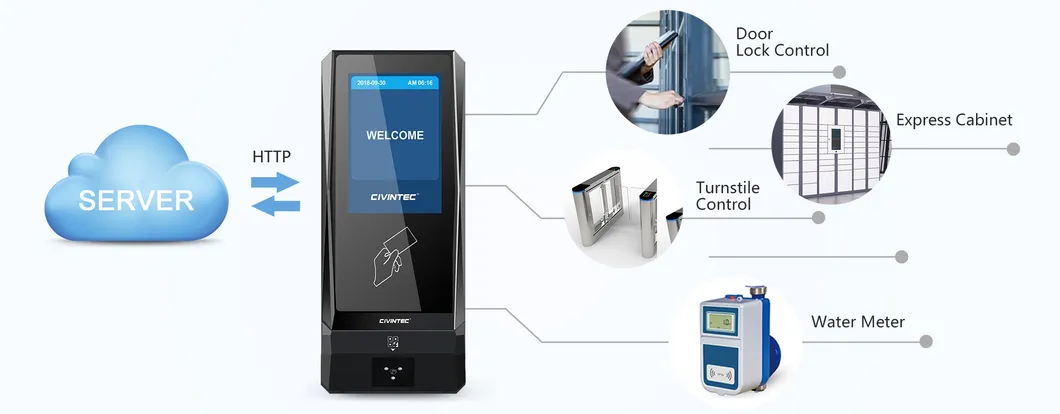

Cloud Server Remote Control: Bio-direction communication via standard HTTP & HTTPs between CT9 Pro and server to remotely control door locks and various IoT facilities.

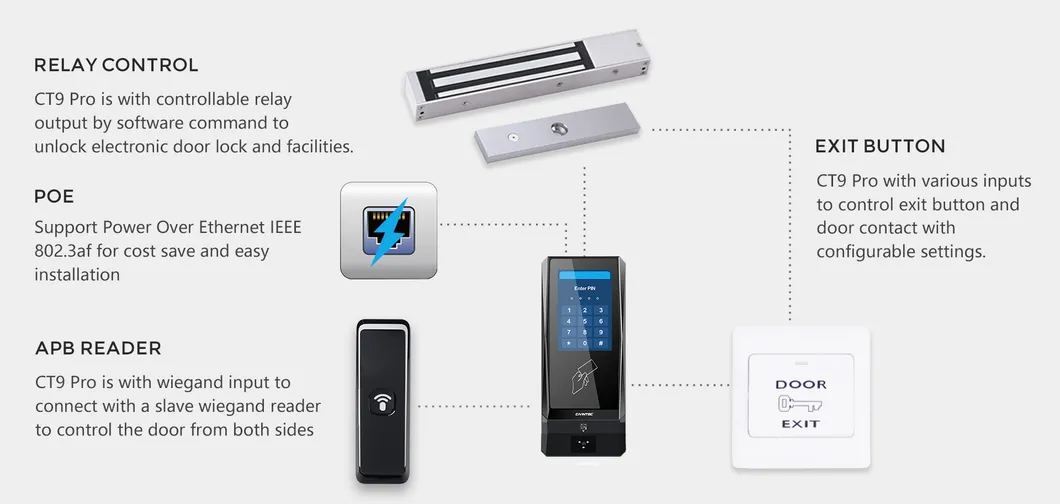

Multiple Application Solutions: Real-time control via encrypted communication. Embedded relay output controls access granted or denied states for versatile facility management.
🛠️
Our Service
We offer ODM customization on hardware, reader housing, firmware, and software design services. Users can program and display their own logos on the 3.5" touch screen.
Frequently Asked Questions
What types of access credentials does the CT9 Pro support?
It supports 5-in-1 technologies: Touch keypad, Dual RFID (125KHz & 13.56MHz), BLE/NFC mobile access, and QR code/barcode scanning.
Can the device be used outdoors?
Yes, the CT9 Pro is IP65 rated, making it suitable for both indoor and outdoor installations.
Does the terminal support Power over Ethernet (PoE)?
Yes, it supports PoE IEEE 802.3af, as well as a 12-30V DC power supply.
What communication interfaces are available?
The device provides multiple options including 4G wireless, TCP/IP Ethernet, Wiegand, and RS485 (OSDP 1&2).
Is it possible to customize the screen display?
Yes, the 3.5" touch screen allows users to program and display their own logos and interface elements.
What is the log and user capacity of the terminal?
The standard configuration supports up to 10,000 users and 50,000 event logs, with more available upon request.
