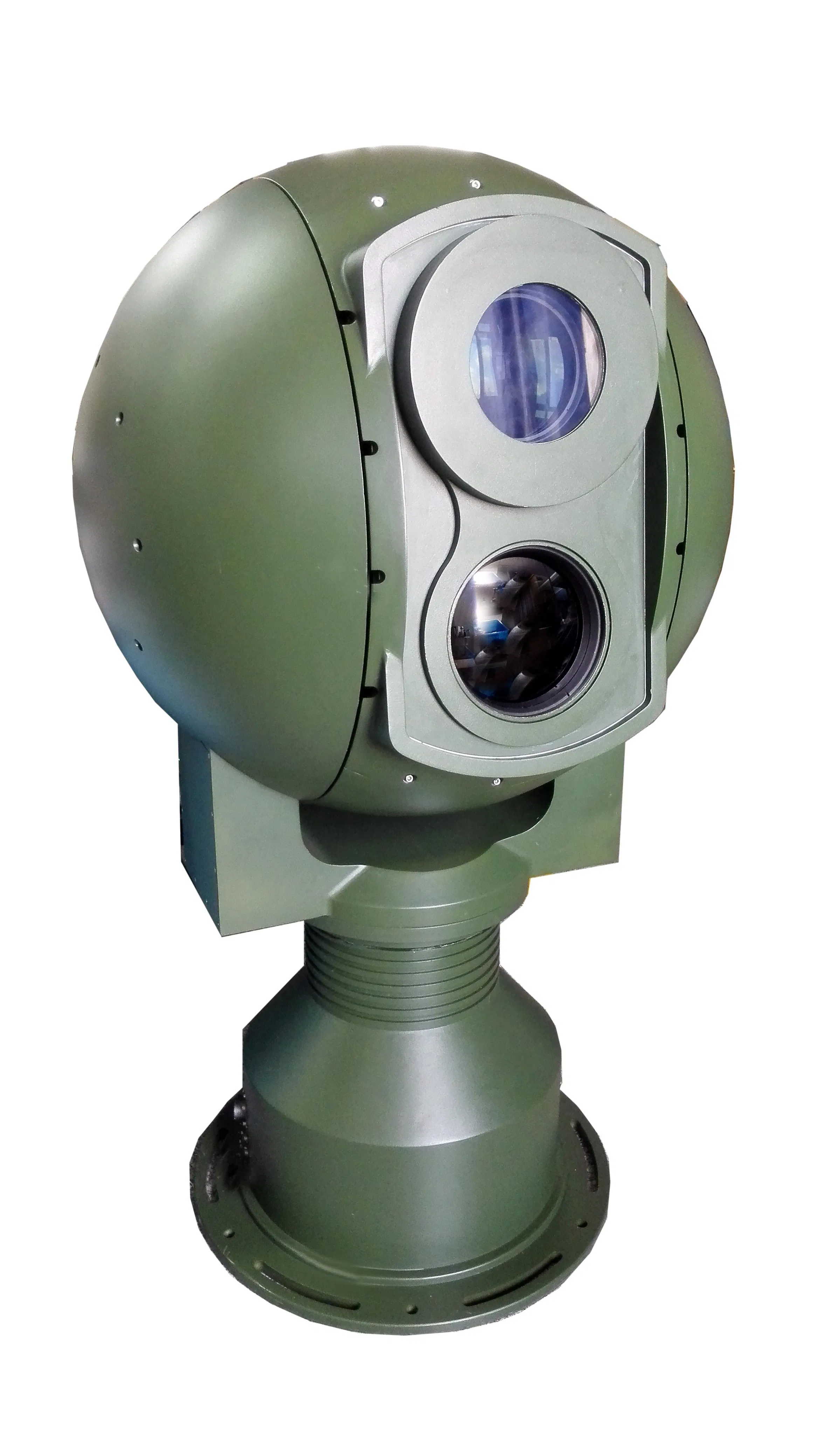

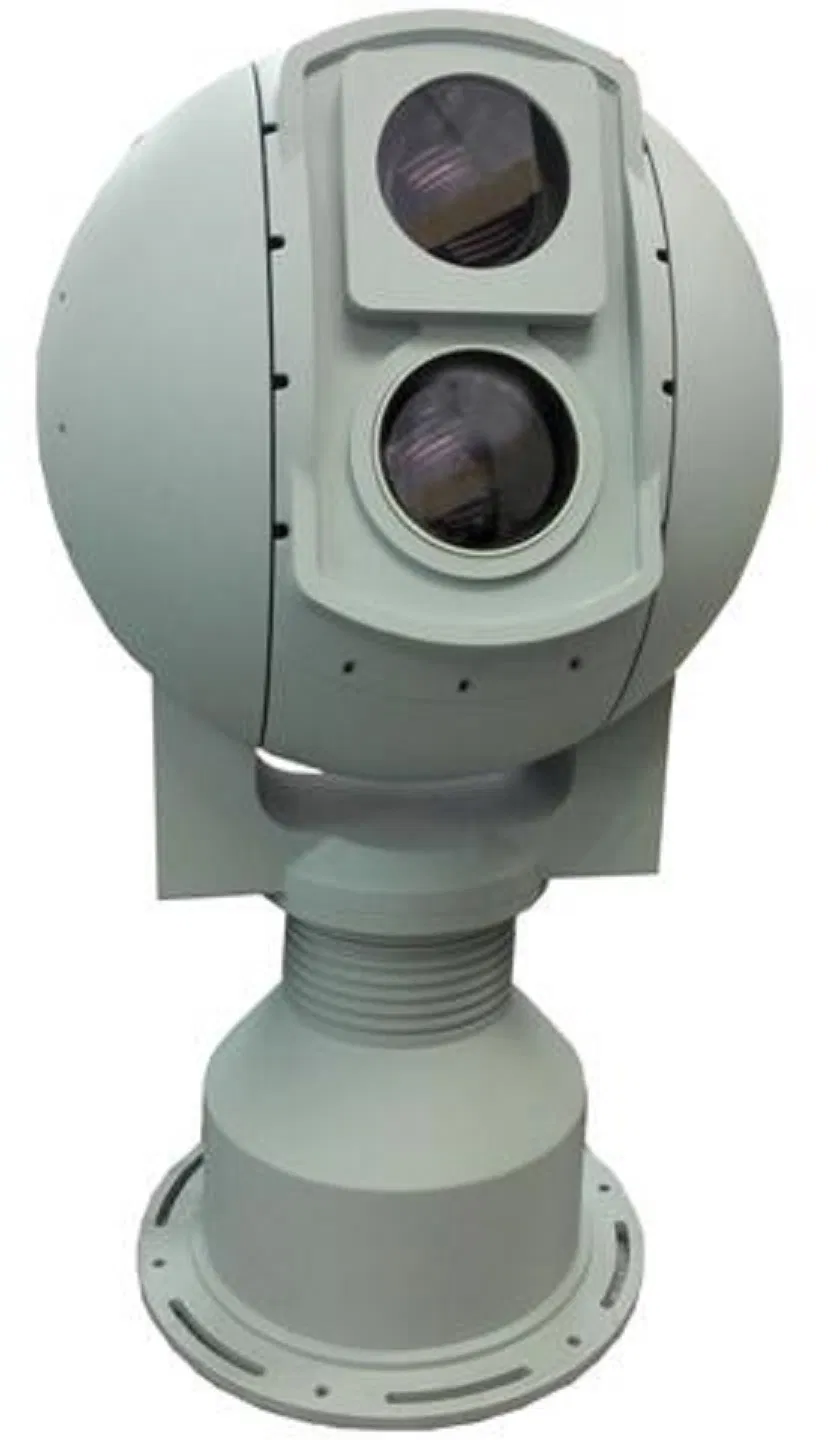

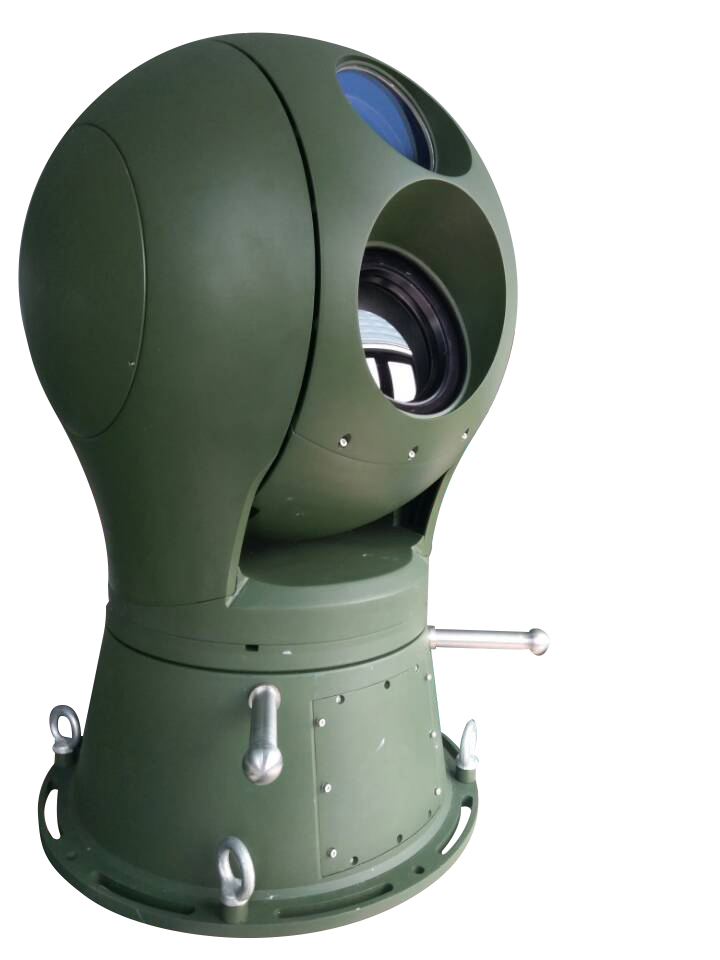

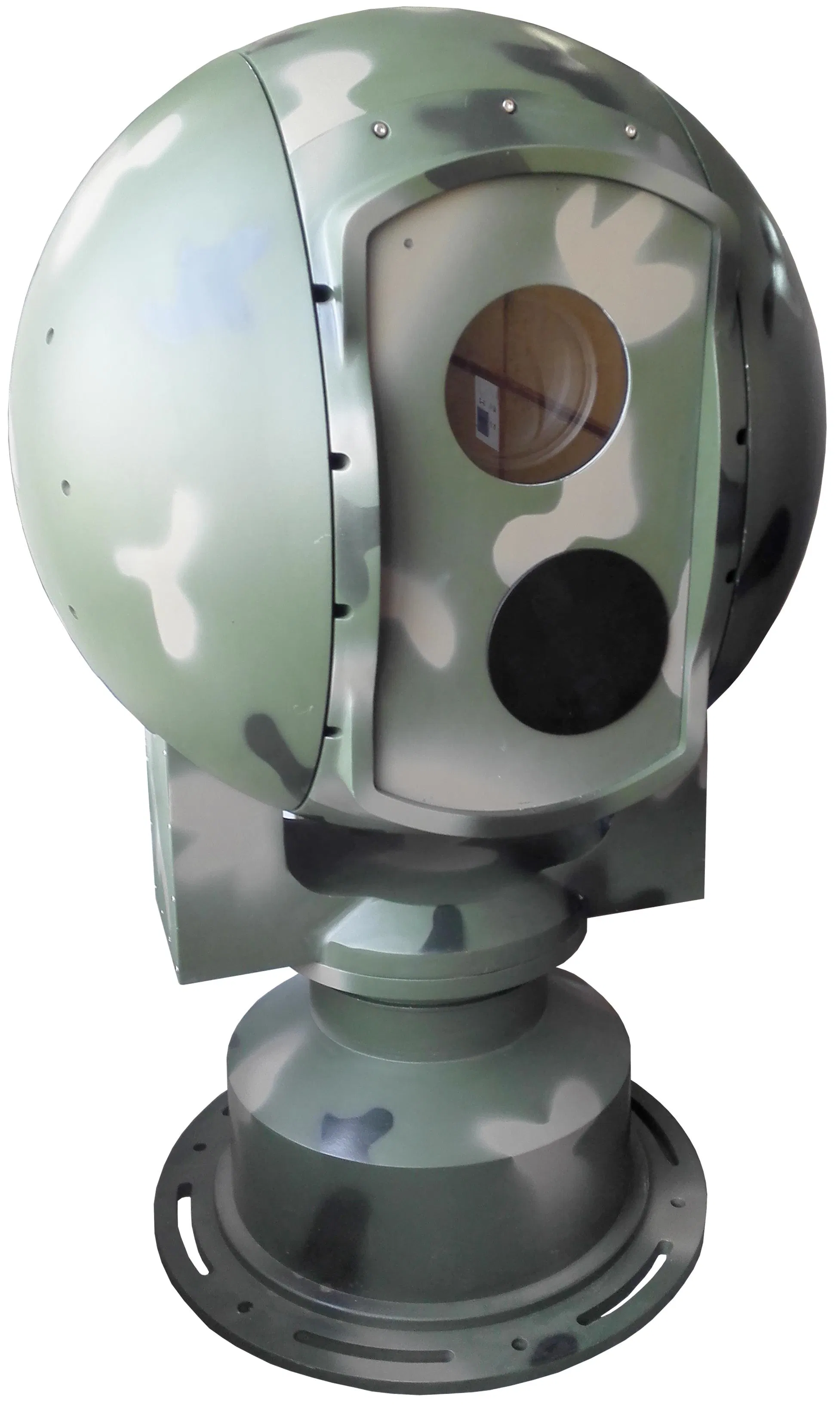

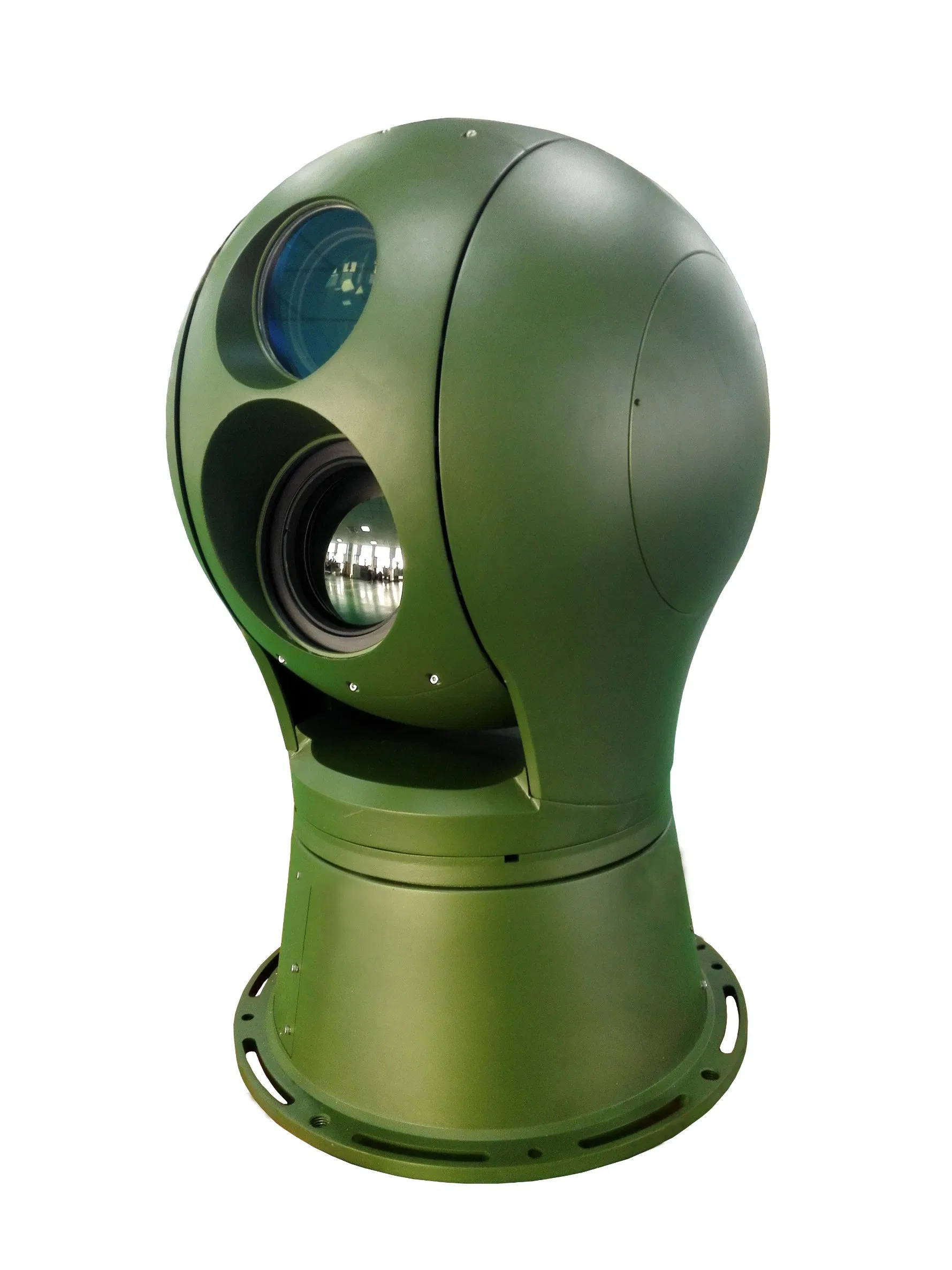

Ball-Shaped Long Range Day and Night All Day Monitoring PTZ Surveillance System
Ball-Shaped Long Range Day and Night All Day Monitoring PTZ Surveillance System
Ball-Shaped Long Range Day and Night All Day Monitoring PTZ Surveillance System
Ball-Shaped Long Range Day and Night All Day Monitoring PTZ Surveillance System
Ball-Shaped Long Range Day and Night All Day Monitoring PTZ Surveillance System
1 / 5
Ball-Shaped Long Range Day and Night All Day Monitoring PTZ Surveillance System
Ball-Shaped Long Range Day and Night All Day Monitoring PTZ Surveillance System
Ball-Shaped Long Range Day and Night All Day Monitoring PTZ Surveillance System
Ball-Shaped Long Range Day and Night All Day Monitoring PTZ Surveillance System
Ball-Shaped Long Range Day and Night All Day Monitoring PTZ Surveillance System

Ball-Shaped Long Range Day and Night All Day Monitoring PTZ Surveillance System

Customization: Available
Technology: Pan / Tilt / Zoom
Style: Pan/Tilt
Send Inquiry

Product Description

Basic Specifications
Model NO.
PT550WHLV2020TIR155R
Type
IP Camera
Sensor
CMOS
HDMI Format
1080P
Horizontal Resolution
540tvl
Certification
CE, FCC, RoHS, ISO9001
Effective Distance
12km
Sensor Size
1/1.8"
Car Detection
12km
Human Detection
4.2km
Thermal Lens
30~150mm
Protection Grade
IP66
Product Highlights
✓
Triple Spectral Imaging: Combines visible light, thermal imaging, and laser night vision for comprehensive surveillance.
✓
Continuous Zoom: Advanced thermal technology for clear imaging over large areas and long-distance recognition.
✓
High Sensitivity: Infrared detector with temperature sensitivity up to 50mK.
✓
Laser Illuminator: Synchronous zooming laser system for monitoring in 0 Lux complete darkness.
✓
3D Locating: Frame selection magnification and click-to-center functions for ease of use.
✓
Rugged Design: Anti-corrosion, waterproof, and anti-acid rain shell designed for extreme environments.
Technical Specifications
Visible Light Camera Thermal Imaging
Focal Length 20~750mm Focal Length 30~150mm
Sensor Type 1/1.8" Progressive Scan CMOS Detector Type Uncooled VOx FPA
Resolution 1920×1080 (1080P) Resolution 640×512
Day Vision Range 5000m Human Detection 4200m
Night Vision Range 2000m Vehicle Detection 12000m
Pan-Tilt Mechanical Specs
Rotation Angle Horizontal 360° Continuous Pitching Angle -45° to +45°
Pan Speed 0.01° to 45°/s Tilt Speed 0.01° to 30°/s
Preset Accuracy ±0.1° Preset Positions 255 Bits
Product Presentation
Long Range PTZ Surveillance System
Our Services
Warranty
Standard one-year warranty with extended options.
Technical Support
Life-long professional troubleshooting support.
OEM & Custom
Full support for OEM and product customization.
Frequently Asked Questions
● What is the maximum detection range of this system?
The system can detect vehicles at a distance of up to 12km and humans at approximately 4.2km using thermal imaging technology.
● Can the camera operate in total darkness?
Yes, it features a synchronous zooming laser illuminating system that allows for monitoring in 0 Lux complete darkness with a night vision range of up to 2000m.
● Is the device suitable for outdoor marine or coastal environments?
The system is rated IP66 and features a professionally designed anti-corrosion, anti-acid rain shell, making it ideal for harsh outdoor environments.
● Does it support automated monitoring paths?
Yes, the pan-tilt system supports up to 8 cruising paths, with each path capable of storing 10 preset bits for automated surveillance.
● What imaging modes are available?
It provides a three-spectral imaging design: visible light for clear daytime images, thermal imaging for long-range heat detection, and laser night vision.
● What are the power requirements?
The system operates on DC30V±10% and comes with an AC220V to AC24V waterproof power supply.
