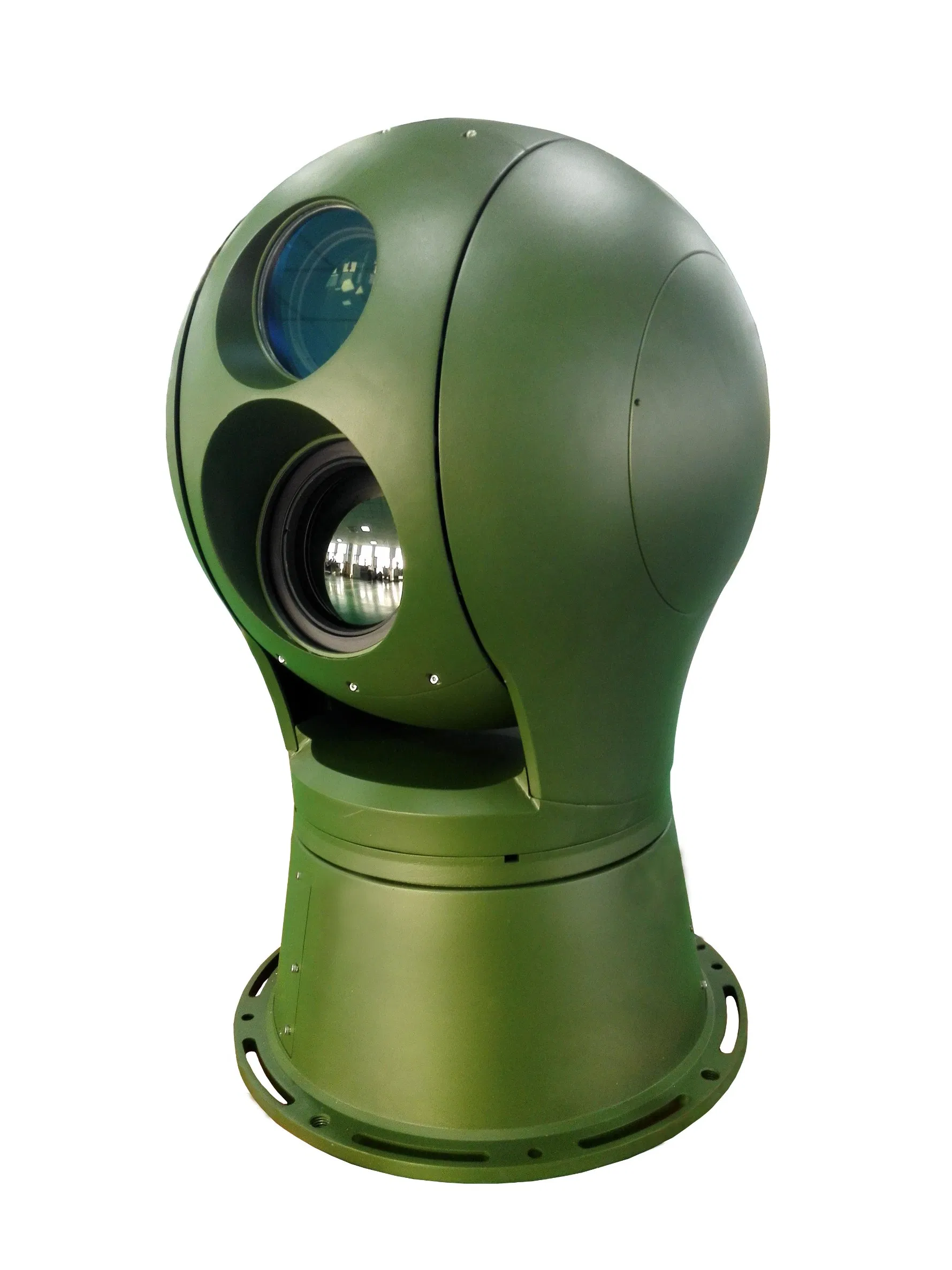

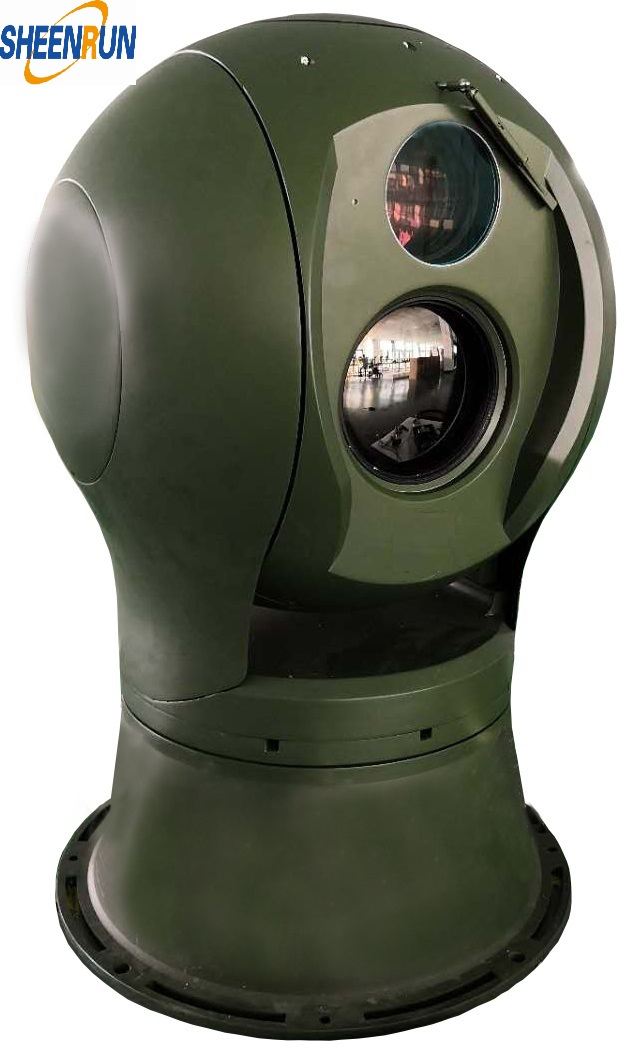

Automatic Tracking Multi-Sensor 360 Security Camera Thermal Laser Optical System for Ship Vehicle Mounted
Automatic Tracking Multi-Sensor 360 Security Camera Thermal Laser Optical System for Ship Vehicle Mounted
Automatic Tracking Multi-Sensor 360 Security Camera Thermal Laser Optical System for Ship Vehicle Mounted
1 / 3
Automatic Tracking Multi-Sensor 360 Security Camera Thermal Laser Optical System for Ship Vehicle Mounted
Automatic Tracking Multi-Sensor 360 Security Camera Thermal Laser Optical System for Ship Vehicle Mounted
Automatic Tracking Multi-Sensor 360 Security Camera Thermal Laser Optical System for Ship Vehicle Mounted

Automatic Tracking Multi-Sensor 360 Security Camera Thermal Laser Optical System for Ship Vehicle Mounted

Customization: Available
Type: Monitoring System
Application: All-Round Monitoring, Sound Monitoring
Send Inquiry

Product Description

Basic Product Information
Model NO.
PT550HLV3020HTIR210R
Feature
Waterproof / Weatherproof, High Definition
System
Wireless Transmission / Video Camera
Software
Vehicle & Computer Monitoring Software
Sensor
CMOS 1/3 Inch
Technology
Pan / Tilt / Zoom (PTZ)
Resolution
480tvl / High Definition
Protection
IP66
Distance
Up to 9km
Installation
Outdoor Pedestal Mounting
Packaging & Delivery
Package Size
57.00cm * 47.00cm * 57.00cm
Gross Weight
25.500kg
Capacity
1000 piece/Month
Product Description & Features
  • ✔ Adopting thermal imaging technology for clear imaging, large area search, and long-distance objective recognition.
  • ✔ High resolution infrared detector with NETD ≤ 50mK.
  • ✔ Day and night 2 megapixels low illuminance color camera for continuous monitoring.
  • ✔ Optional auto-focusing function with multiple triggering modes.
  • ✔ Preset thermal imaging functions to enhance FOV efficiency.
  • ✔ 3D locating function with frame selection magnification.
  • ✔ High reliability aluminum alloy electro-optical pan-tilt with anti-wind and anti-salt fog reinforcement.
Technical Indicators
Monitoring Distance HD Camera: 2000m - 9000m
Thermal Camera (Human): 900m - 1570m
Thermal Camera (Vehicle): 2470m - 4000m
Thermal Detector Uncooled microbolometer focal plane array (Vox) / Cooled detector option
Pixel: 324×256 / 640×512
Thermal Lens Focal length: 20~200mm (10x zoom) / 75-300mm dual FOV
F value: F1.0 ~ F2.3
HD Camera 1/1.8'' Progressive Scan CMOS
Resolution: 1080P, H.264/MJPEG
Pan-Tilt Load: 25kg - 40kg
Pan: 0°~ 360°; Tilt: -45°~ +45°
Speed: Pan 45°/s; Tilt 30°/s
Environment Op Temp: -25ºC~ +55ºC (Optional -40ºC)
Protection: IP66
Power Consumption: ≤180W (230W with heater)
Product Showcase

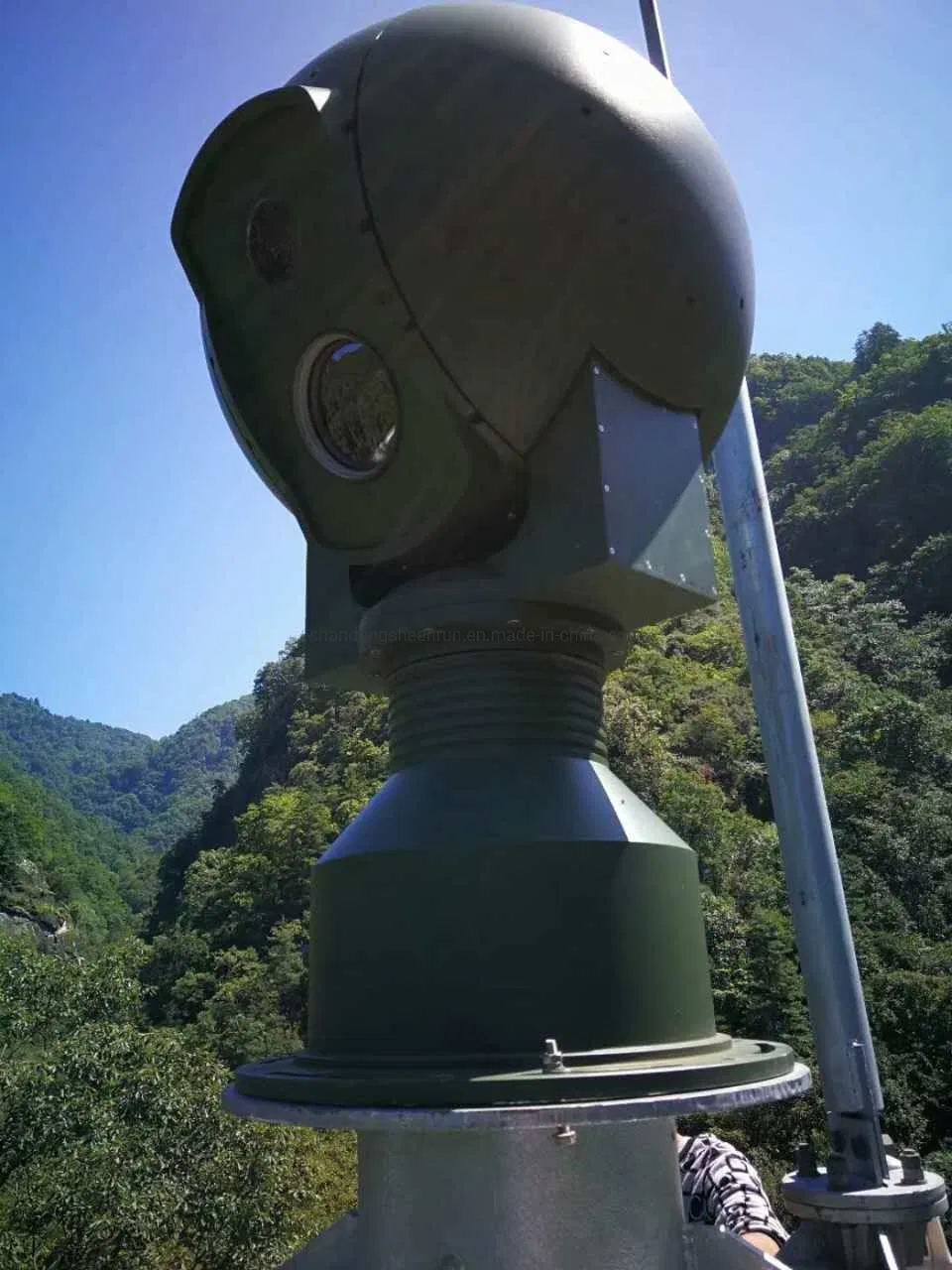

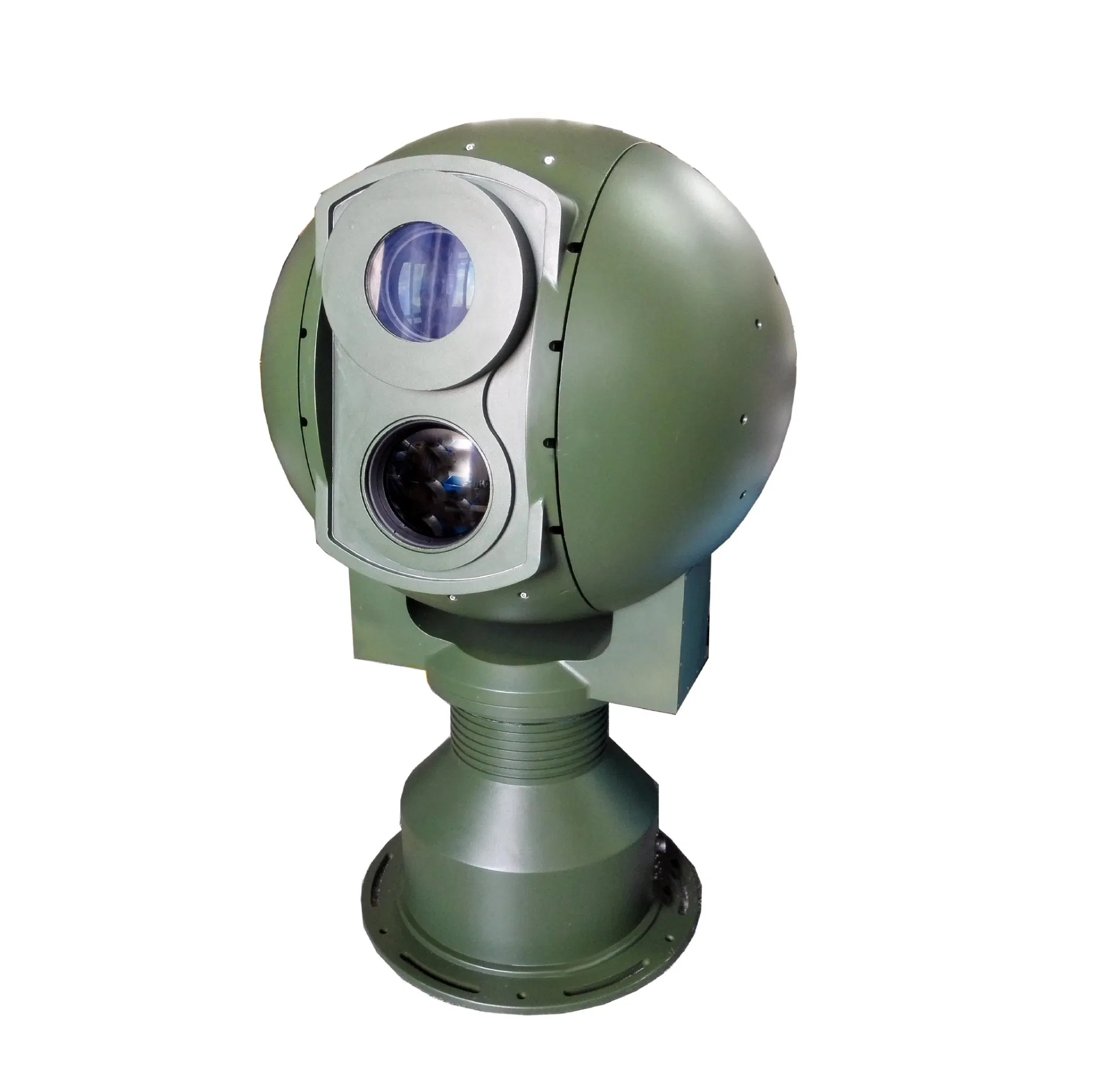

Multi-Sensor 360 Security Camera

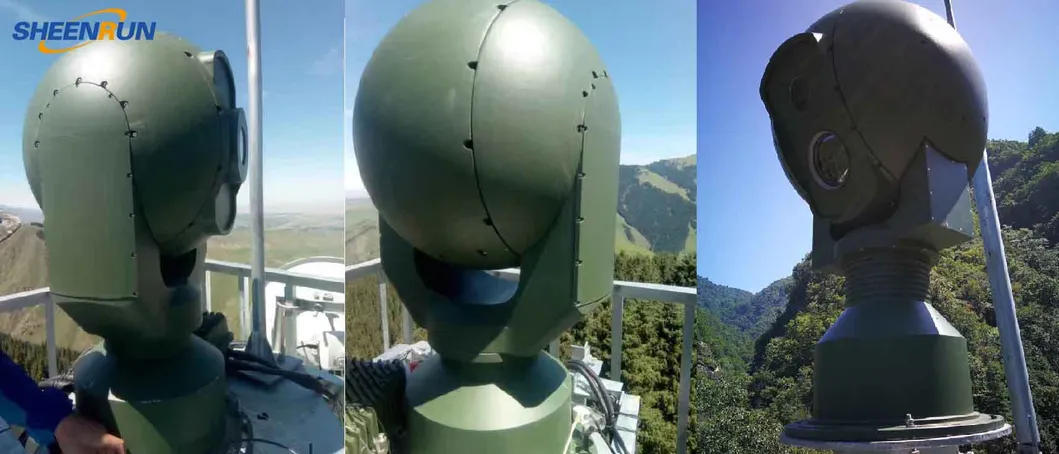

Thermal Laser Optical System
Exhibition & Capability
Exhibition Display
Tech Exhibition

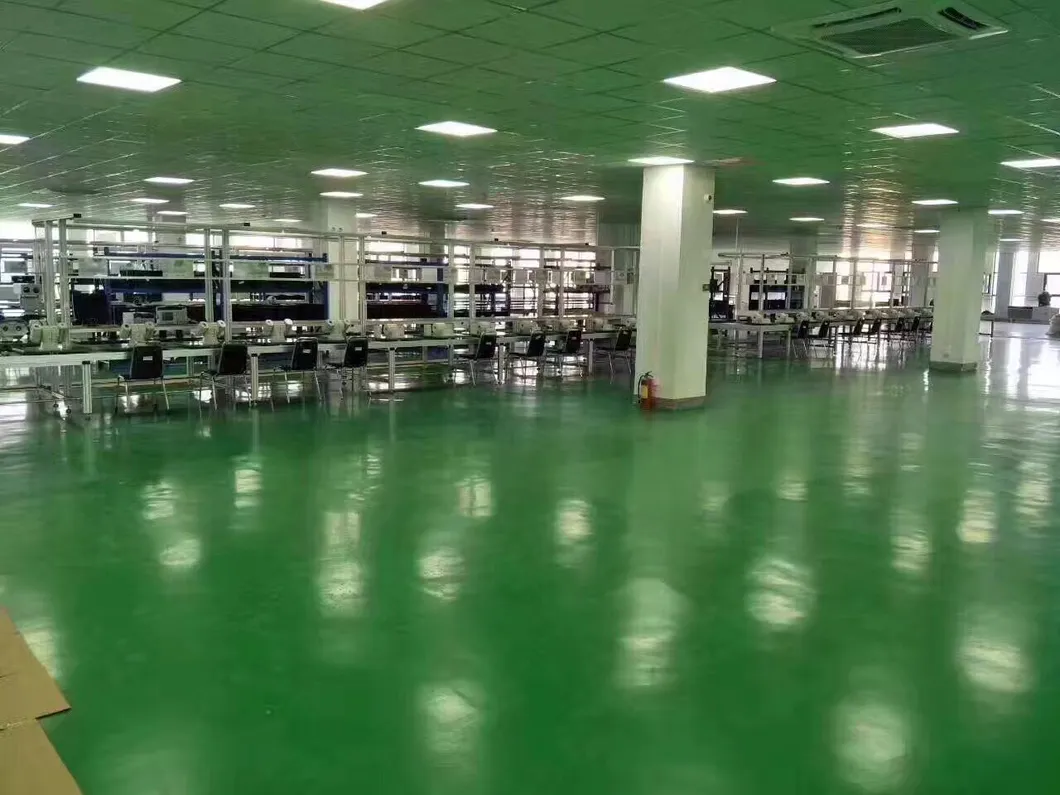

Manufacturing Center
Professional Manufacturing

A leading night vision equipment and rugged information equipment supplier. Focused on independent innovation, developing high-end laser night vision cameras and uncooled continuous zoom infrared thermal imaging cameras. Our technologies have reached international advanced standards, maintaining a significant market share in the laser night vision industry.

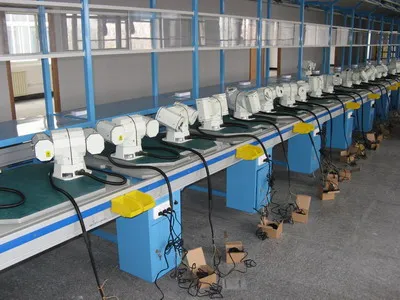

Internal Facility

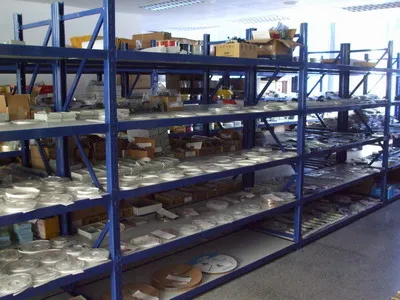

Facility Exterior
Effect Demo & Applications

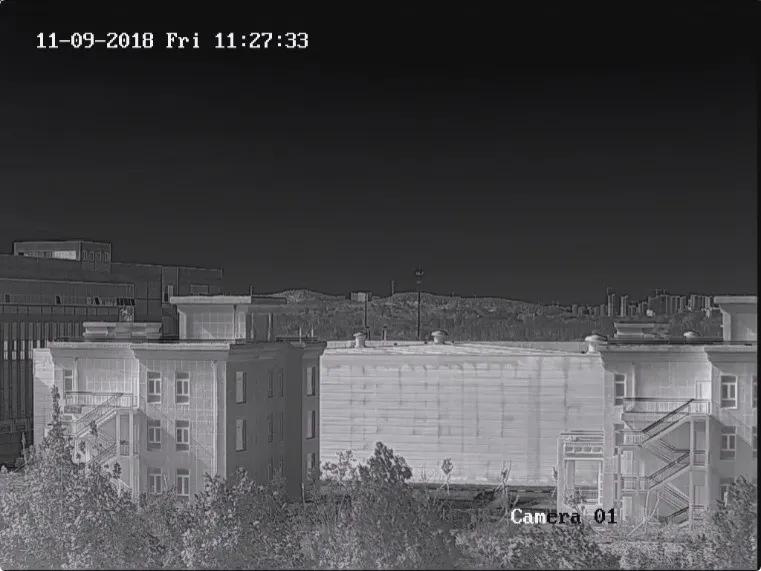

Effect Demo 1

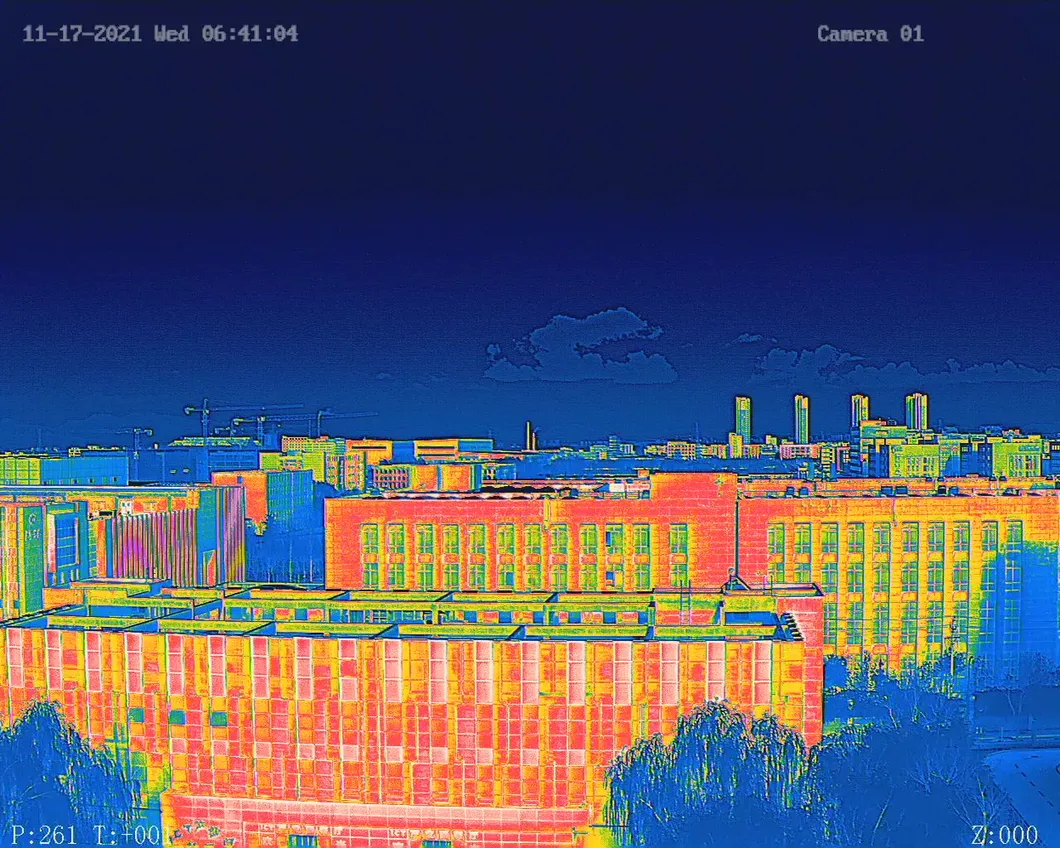

Effect Demo 2

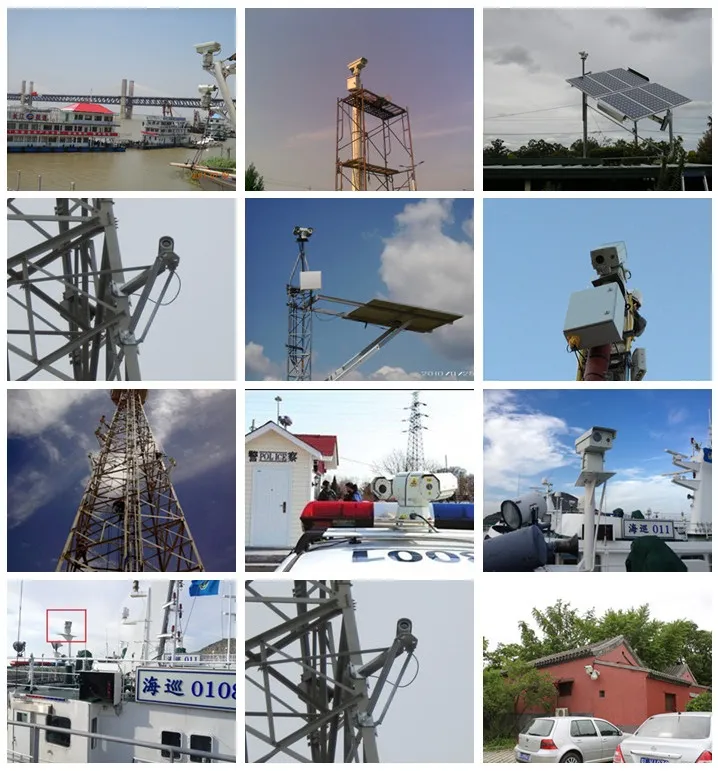

Application Scenarios
Frequently Asked Questions
What is the maximum monitoring distance of this system?
The system supports long-distance monitoring, with an HD camera reach of up to 9,000m and thermal imaging for vehicle detection up to 16,000m depending on the specific model configuration.
Is the device suitable for harsh outdoor environments?
Yes, it features an IP66 protection grade, aluminum alloy construction, and is designed to resist high winds (Grade 12), salt fog, and extreme temperatures ranging from -25ºC to +55ºC (optionally -40ºC).
Does the camera support automatic tracking?
The system includes a 3D locating function and supports auto-focusing and auto-cruise (up to 8 paths), making it ideal for automatic tracking and wide-area surveillance.
What are the power requirements?
The device operates on a DC30V power supply, with a wide range power input (AC90~305V) and consumption of approximately 180W (230W with heater enabled).
Can this be used for ship or vehicle mounting?
Absolutely. Its reinforced design and vibration resistance make it perfect for ship-borne, vehicle-mounted, or fixed outdoor pedestal mounting.
What imaging technologies are used?
It combines thermal imaging (NETD≤ 50mK) with a 2-megapixel low-illuminance color camera to provide clear video output during both day and night operations.
